5M Timing Belt Idler Pulley 20T — Reliable Tension Control for DIY Drive Systems

When your timing belt loses tension mid-run, the whole system suffers — skipped steps, misaligned axes, and wasted material. Whether you're building a CNC router, tuning a 3D printer, or designing a custom conveyor, the right idler pulley keeps your 5M pitch belt tracking true. This 20-tooth idler pulley is engineered for makers, small workshops, and automation hobbyists who need consistent belt tension without constant readjustment.

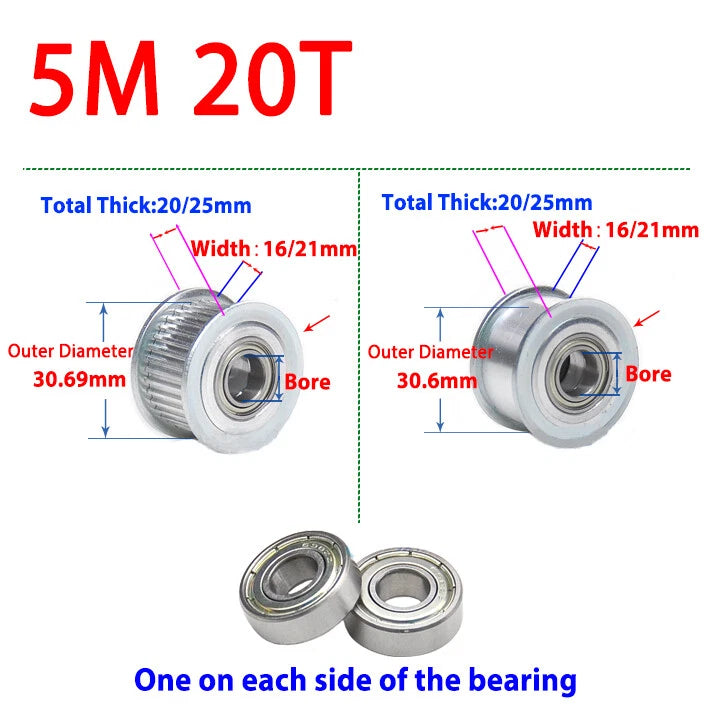

Each pulley is machined from aluminum alloy with a smooth or toothed rim (your choice), designed to fit 5M pitch timing belts. Slot widths range from 11 mm to 27 mm (~0.43" to ~1.06"), and bore sizes span 5 mm to 15 mm (~0.20" to ~0.59"), covering the most common shaft diameters used in DIY automation builds. The flanged rim keeps the belt centered under load.

Typical use cases include 5M belt tensioning on desktop CNC machines, idler routing on RepRap-style 3D printer frames, and belt-driven conveyor systems in light industrial or educational lab settings — anywhere a compact, low-profile idler pulley for 5M timing belts is needed to maintain drive accuracy.

⚙️ Compatibility: Fits standard 5M pitch timing belts. Slot width 11 / 16 / 21 / 27 mm. Bore 5 / 6 / 7 / 8 / 10 / 12 / 15 mm. Select your combination from the variant options above.

✅ Key Features of These 5M Timing Belt Idler Pulleys

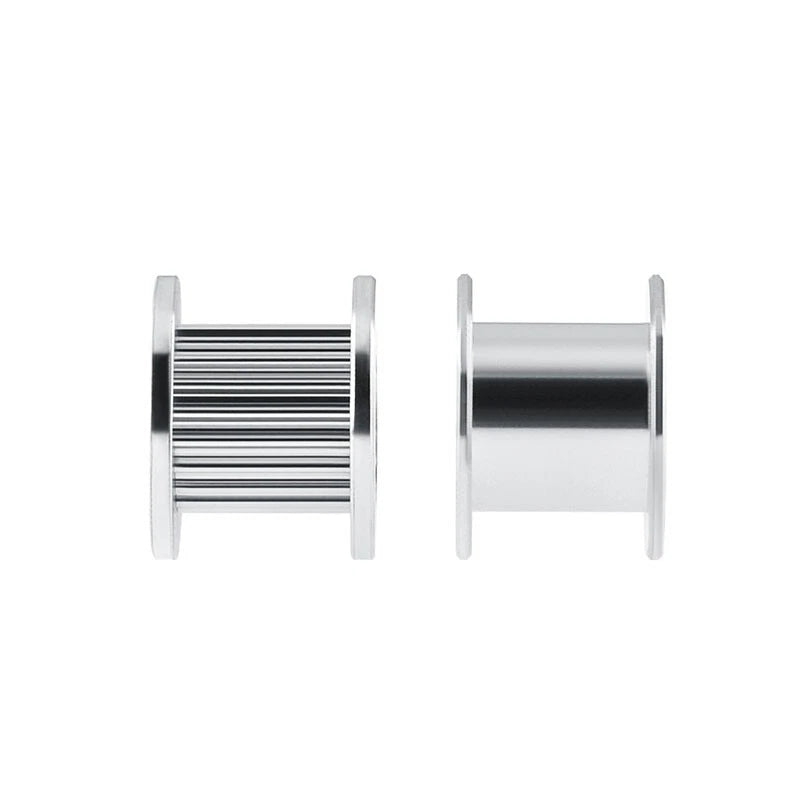

  • 🔩Two rim styles available — choose smooth (without teeth) for free-spinning tension, or toothed (with teeth, 20T) for positive belt engagement on the return side.
  • 📐Wide size matrix — slot widths of 11, 16, 21, and 27 mm paired with bore sizes of 5, 6, 7, 8, 10, 12, and 15 mm give you 56 combinations to match your exact shaft and belt width.
  • 🏗️Aluminum alloy construction — lightweight yet rigid body resists deformation under continuous belt load, keeping tooth pitch consistent across the pulley face.
  • 🔄Flanged rim design — integrated side flanges prevent lateral belt walk, reducing the need for external belt guides in compact drive assemblies.
  • 🎯Precision-bored center hole — machined bore accepts standard metric shafts with minimal runout, suitable for direct mounting on stepper motor shafts or idler axle bolts.
  • 🛠️Drop-in replacement geometry — 20-tooth count and 5M pitch match widely used open-loop and closed-loop belt drive configurations in CNC, 3D printing, and conveyor automation projects.

📐 Technical Specifications — 5M Timing Belt Idler Pulley

Belt Pitch 5M (5 mm pitch)
Tooth Count 20T
Rim Style Smooth (Without Teeth) / Toothed (With Teeth) — see variant options
Slot Width 11 mm / 16 mm / 21 mm / 27 mm — see variant options
Bore Size 5 / 6 / 7 / 8 / 10 / 12 / 15 mm — see variant options
Material Aluminum alloy
Flange Yes, integrated side flanges
Outer Diameter See variant options
Surface Finish See variant options
Quantity per Order 1 piece

❓ Frequently Asked Questions

How do I choose the right slot width for my timing belt?

Match the slot width to your belt's physical width. A standard 5M belt typically comes in widths of 10–25 mm. Choose a slot width that is equal to or slightly wider than your belt — for example, an 11 mm slot for a 10 mm wide belt, or a 16 mm slot for a 15 mm wide belt. If your belt is wider than 21 mm, the 27 mm slot option is recommended.

What is the difference between the smooth (without teeth) and toothed (with teeth) versions?

The smooth version is used as a free-spinning idler to redirect or tension the belt without engaging the belt teeth — ideal for the non-drive side of a belt loop. The toothed (20T) version meshes with the belt teeth and is used when you need the idler to positively drive or synchronize belt movement on the return path.

How do I select the correct bore size?

Measure the outer diameter of the shaft or axle bolt the pulley will mount on. Select the bore size that matches your shaft diameter exactly — for example, a 5 mm bore for an M5 shaft, or an 8 mm bore for an 8 mm stepper motor shaft. If you need a slightly larger bore for a set-screw or key arrangement, choose the next size up and consult your shaft specifications.

Is this pulley compatible with standard 5M open-loop and closed-loop timing belts?

Yes. This pulley is designed for the 5M pitch standard (5 mm tooth pitch), which is compatible with both open-ended 5M timing belt stock and closed-loop 5M belt loops commonly used in CNC routers, laser cutters, and 3D printer drive systems. Always verify your belt's pitch before ordering.

Will the aluminum body corrode or weaken over time in a workshop environment?

Aluminum alloy offers good natural corrosion resistance in typical indoor workshop and lab environments. For applications involving moisture, cutting fluids, or outdoor exposure, consider applying a light coating of machine oil to the bore and shaft interface. The flanged rim and pulley body do not require special treatment under normal dry operating conditions.

Can I use this pulley on a stepper motor shaft directly?

Yes, provided you select the bore size that matches your stepper motor shaft diameter (commonly 5 mm or 8 mm for NEMA 17 and NEMA 23 motors). For secure mounting, ensure the pulley is fixed with a set screw or retaining clip appropriate for your shaft. If your motor shaft has a flat (D-cut), a set screw tightened against the flat will provide a more secure connection.

How many pulleys are included per order?

Each order includes 1 piece. If you need multiple pulleys for a multi-axis machine or a belt system with several idler points, simply increase the quantity before adding to cart.

🛒 Select your Style, Slot width, and Bore size above, then add to cart.
