#6-32 UNC Knurled Thumb Screws — Stepped Hand Grip, 10 Colors, 4–40mm

HomeDIYer

No reviews

By HomeDIYer®

Size(L=Thread Diameter): #6-32UNC x L=4mm

Colours: Royal blue

Pack of Quantity(Pcs): 1

Price:

$7.60 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri 8:30 AM – 8:00 PM

WhatsApp Email Us

24-Hour Fast Ship

Arrives in 3–14 Days

Worldwide Shipping

30-Day Returns

1 tree planted with every purchase

#6-32 UNC Knurled Thumb Screws — Hand-Tighten Without Tools, 10 Anodized Colors

Reaching for a screwdriver every time you need to open an access panel, adjust a jig, or swap a component slows you down and adds unnecessary friction to your workflow. Makers, electronics builders, lab technicians, and equipment designers who need fast, tool-free fastening rely on knurled thumb screws to keep assemblies accessible without sacrificing a secure hold. These #6-32 UNC knurled thumb screws with stepped hand grip knobs deliver exactly that — plus a range of anodized colors that let you color-code panels, match your build aesthetic, or simply add a clean, finished look to your project.

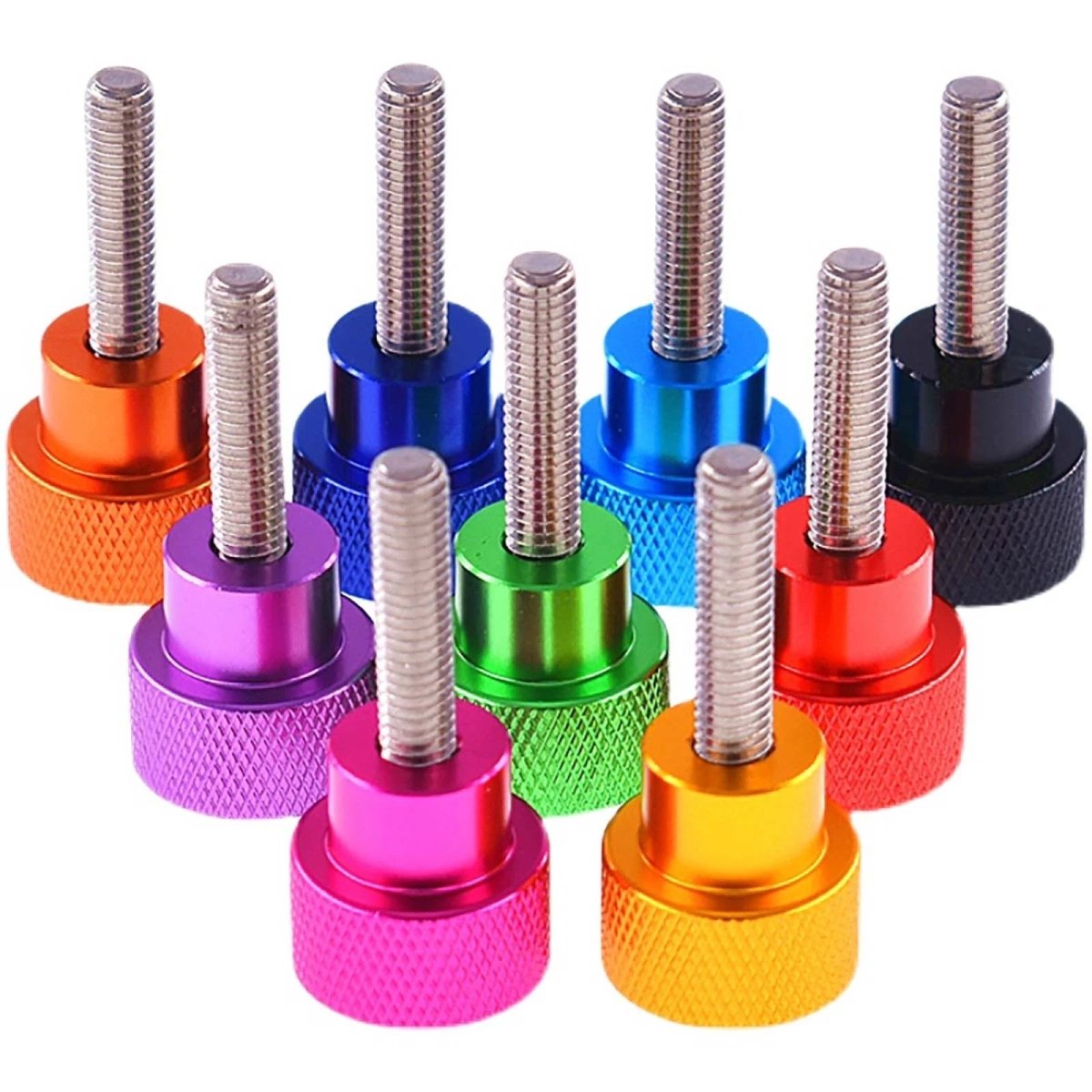

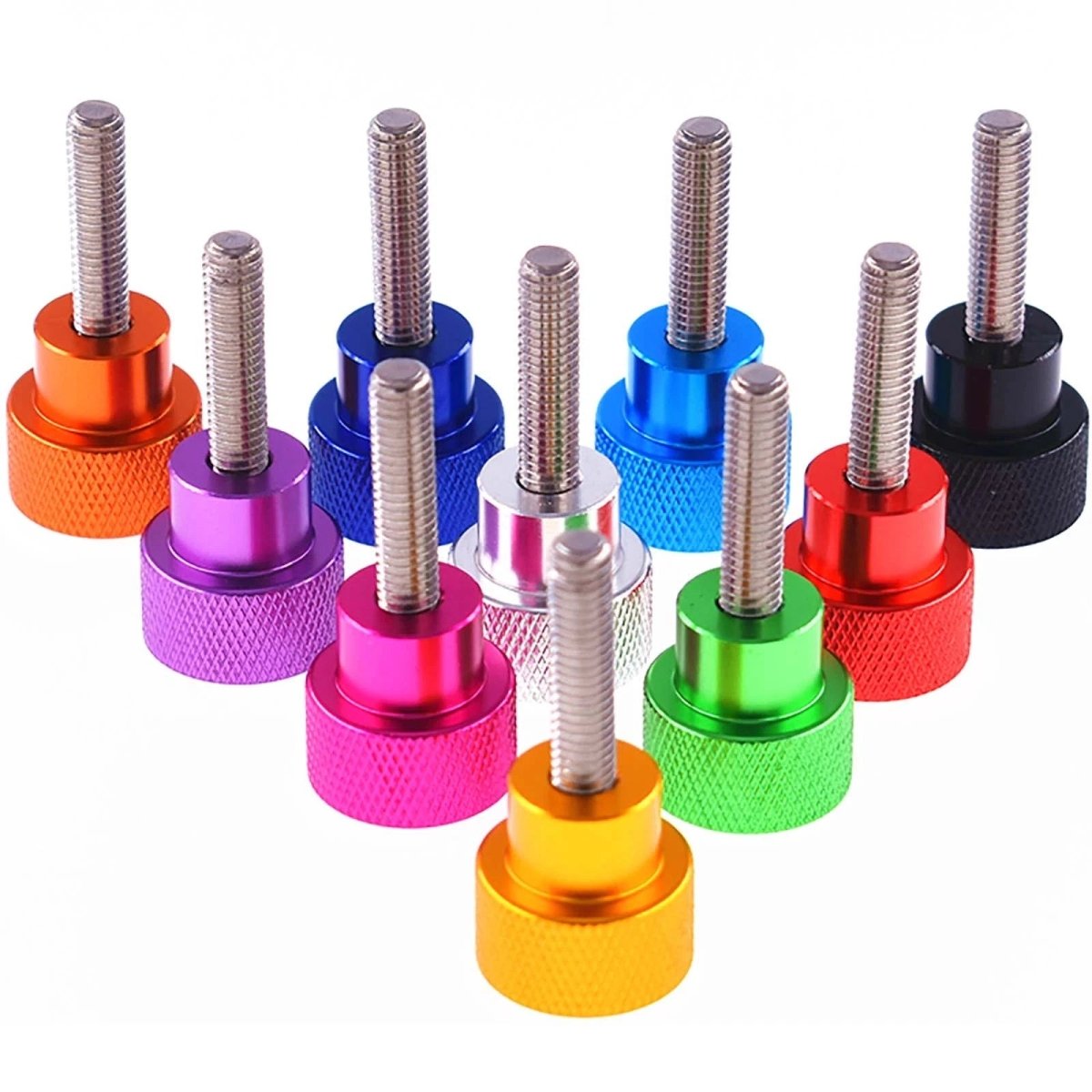

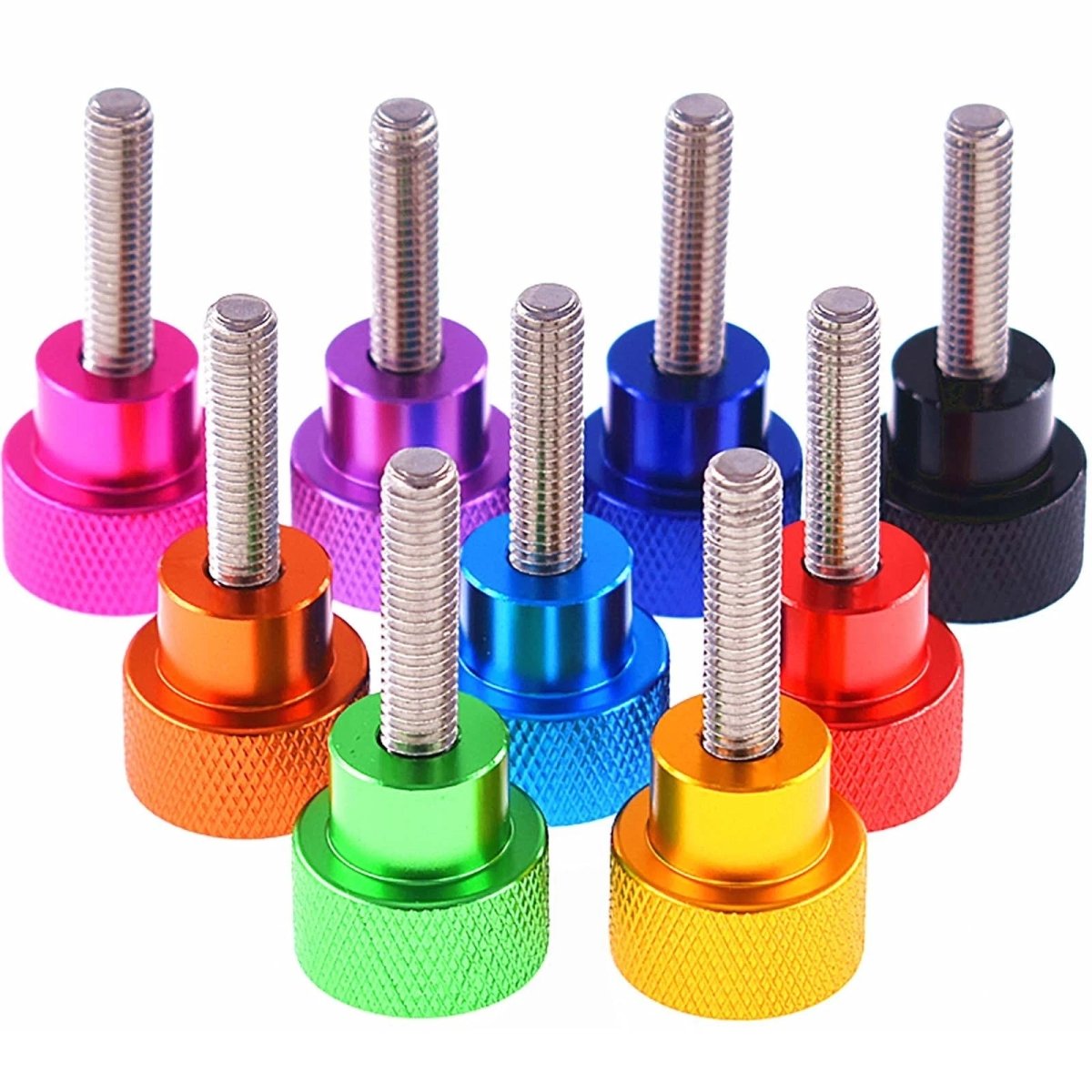

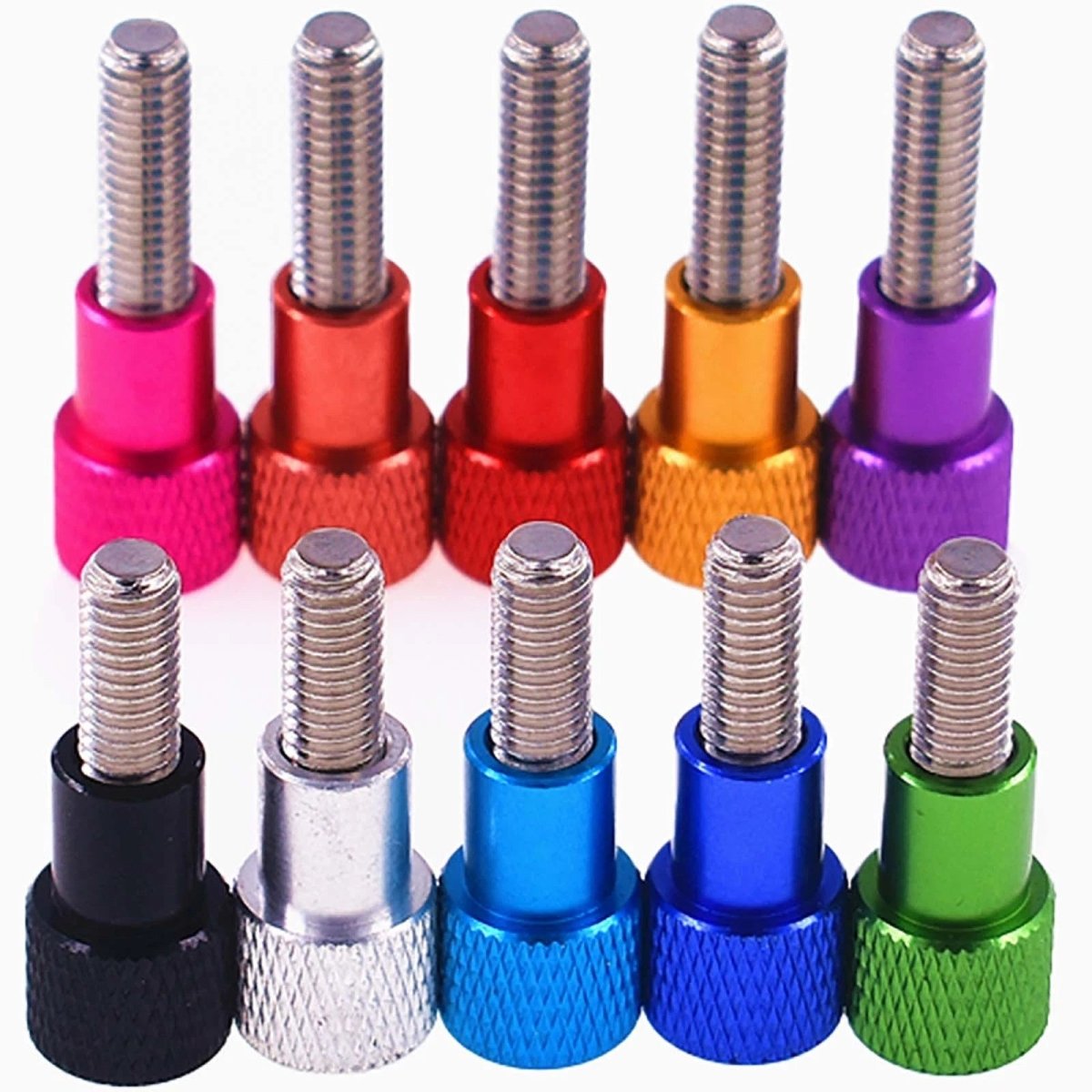

Each order is for 1 piece of your chosen size and color combination. The stepped knurled knob provides a comfortable finger grip for hand-tightening, while the threaded shank follows the #6-32 UNC (Unified National Coarse) standard. Lengths range from 4mm (≈5/32") to 40mm (≈1-9/16"), covering thin panel applications through deeper thread engagement needs. Ten anodized color options are available: Royal Blue, Green, Golden, Dark Red, Black, Silver, Purple, Rose Red, Sky Blue, and Orange. The anodized finish is integral to the aluminum surface — not a paint or coating — so it will not chip or peel under normal use.

Typical applications include electronics enclosure panels and rack-mount equipment where colored knurled thumb screws for tool-free panel access allow quick removal without tools during maintenance, DIY CNC and 3D printer builds where hand-grip knob bolts for machine frames let operators adjust fixtures and guards without reaching for a wrench, and laboratory or prototyping jigs where color-coded #6-32 thumb screws help identify adjustment points at a glance across complex setups.

🔩 Compatibility: #6-32 UNC (Unified National Coarse) thread standard — compatible with standard #6-32 nuts, threaded inserts, and tapped holes. Thread diameter ≈ 0.138" (3.5mm), 32 threads per inch. Sold individually — 1 piece per order.

✅ Key Features of These #6-32 UNC Knurled Thumb Screws

✋Tool-Free Hand Tightening — The stepped knurled knob is shaped for finger grip, allowing secure hand-tightening and removal without a screwdriver or wrench. Ideal for panels, covers, and fixtures that need frequent access.
🎨10 Anodized Color Options — Choose from Royal Blue, Green, Golden, Dark Red, Black, Silver, Purple, Rose Red, Sky Blue, and Orange. Anodizing is an electrochemical surface treatment — not paint — so the color is durable and will not chip or flake under normal use.
📏Wide Length Range — 4mm to 40mm — With 22 length options from 4mm (≈5/32") to 40mm (≈1-9/16"), these hand-grip knob bolts cover thin panel pass-through applications as well as deeper thread engagement requirements in a single product line.
🔗#6-32 UNC Thread Standard — One of the most widely used thread sizes in US electronics and equipment hardware. Compatible with standard #6-32 nuts, threaded inserts, and tapped holes — no special tooling or adapters required.
⚙️Stepped Knob Profile for Positive Grip — The stepped design of the knob provides multiple grip surfaces for fingers of different sizes, reducing slip during tightening and making these screws easier to operate in tight spaces or with gloved hands.
🏗️Aluminum Construction with Anodized Finish — Lightweight aluminum construction keeps added weight minimal in weight-sensitive builds such as robotics, drones, and portable equipment enclosures, while the anodized surface adds corrosion resistance for general indoor and light outdoor use.

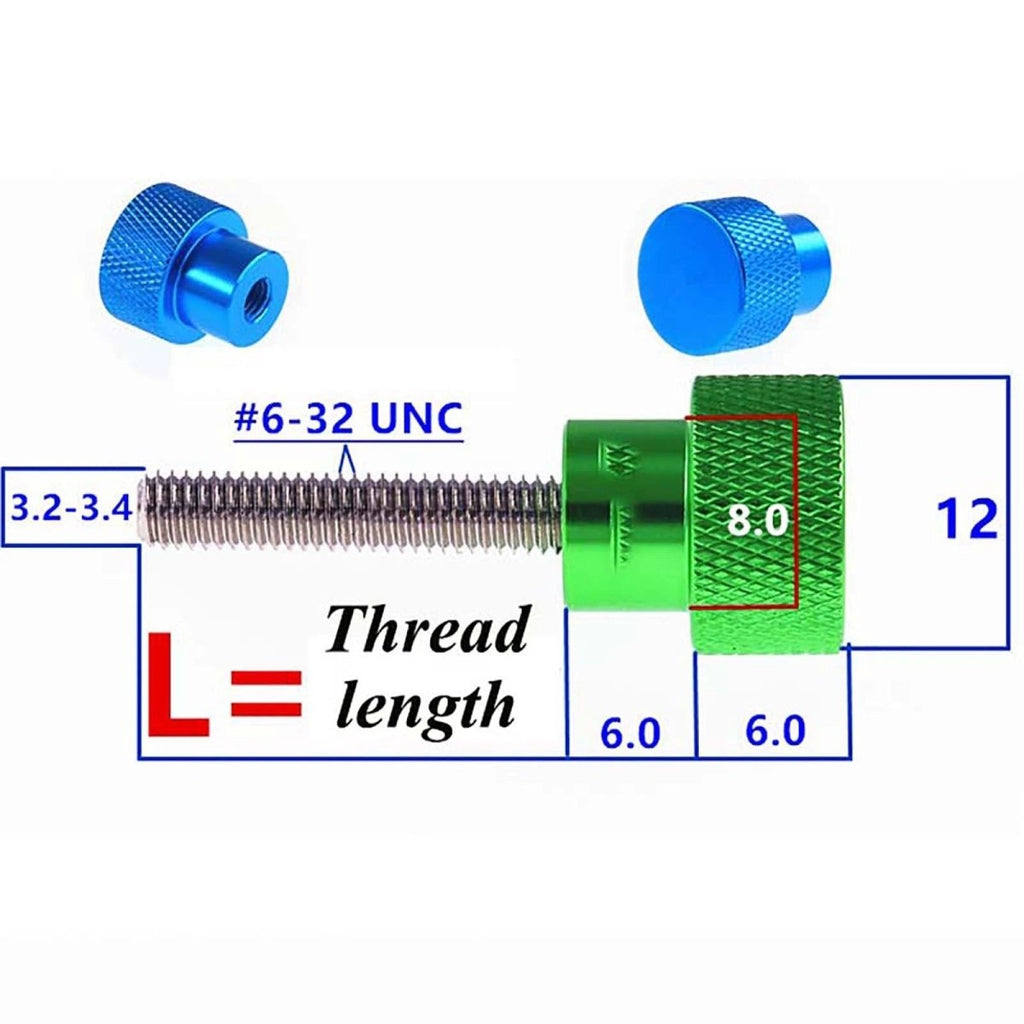

📐 Technical Specifications — #6-32 UNC Knurled Thumb Screws

Product Type	Knurled Thumb Screw with Stepped Hand Grip Knob
Thread Standard	#6-32 UNC (Unified National Coarse)
Thread Diameter	≈ 0.138" (3.5mm nominal)
Threads Per Inch	32
Available Lengths	4mm (≈5/32") — 40mm (≈1-9/16"); 22 length options — see variant selector
Material	Aluminum alloy, anodized surface finish
Color Options	Royal Blue, Green, Golden, Dark Red, Black, Silver, Purple, Rose Red, Sky Blue, Orange
Finish Type	Anodized (electrochemical, integral to surface — not paint or coating)
Drive Type	Hand-tightened (knurled knob — no tool required)
Head Style	Round stepped knurled knob
Pack Quantity	1 piece per order
Recommended Use	Electronics enclosures, access panels, jigs, fixtures, CNC/3D printer frames, lab equipment
Country of Origin	Contact us to confirm

⚠️ Note: Thumb screws are designed for hand-tightened, low-to-medium clamping force applications. They are not intended for high-torque structural connections. For vibration-prone or high-load assemblies, consider pairing with a thread-locking compound or using a standard machine screw with a tool-driven drive.

❓ Frequently Asked Questions

How do I choose the right length for my thumb screw?

Measure the total thickness of the material you need to clamp or pass through, then add the required thread engagement depth in the receiving hole or nut. For #6-32 UNC, a minimum thread engagement of typically 3–5mm is recommended for a secure hold. For example, if your panel is 6mm thick and you need 4mm of thread engagement, choose at least a 10mm (≈3/8") length. Available lengths run from 4mm (≈5/32") to 40mm (≈1-9/16").

What material are these thumb screws made from?

These thumb screws are generally manufactured from aluminum alloy with an anodized surface finish, which provides the range of colors and adds a layer of corrosion resistance. The anodized finish is integral to the material — not a paint or coating that can chip or peel under normal use. Contact us to confirm the exact alloy specification if your application has specific material requirements.

Are these thumb screws suitable for outdoor use?

Anodized aluminum generally offers good resistance to light moisture and oxidation, making these screws suitable for occasional outdoor or humid environments. For prolonged exposure to salt spray, standing water, or harsh chemicals, additional protection or stainless steel alternatives are generally recommended. Contact us if you need confirmation for a specific outdoor application.

What thread standard do these use — are they compatible with standard #6-32 hardware?

Yes. These screws use the #6-32 UNC (Unified National Coarse) thread standard, one of the most common thread sizes in US electronics and equipment hardware. They are compatible with standard #6-32 nuts, threaded inserts, and tapped holes. The "6" refers to the screw diameter (approximately 0.138" / 3.5mm) and "32" refers to 32 threads per inch.

Can I tighten these thumb screws without any tools?

Yes. The stepped knurled knob is specifically designed for hand-tightening without tools. The stepped profile and knurled texture provide grip for fingers, making these screws ideal for applications that require frequent adjustment, removal, or installation by hand — such as equipment panels, enclosures, jigs, and fixtures. No screwdriver or wrench is needed.

How strong are these thumb screws compared to standard machine screws?

Thumb screws are designed for hand-tightened, low-to-medium clamping force applications. They are generally not intended for high-torque or structural load-bearing connections. The clamping force achievable by hand is typically sufficient for panel retention, access covers, jigs, and light fixtures. For high-load or vibration-prone applications, consider using a standard machine screw with a tool-driven drive, or add a thread-locking compound.

What do the color options represent — are they anodized or painted?

The colors are achieved through an anodizing process, not paint or powder coating. Anodizing electrochemically converts the surface of the aluminum into a durable, corrosion-resistant oxide layer that is integral to the material. This means the color will not chip, flake, or peel under normal use. Available colors include Royal Blue, Green, Golden, Dark Red, Black, Silver, Purple, Rose Red, Sky Blue, and Orange — select your preferred color from the variant options above.

🛒 Select your size and color above, then add to cart — ships from our US warehouse.
