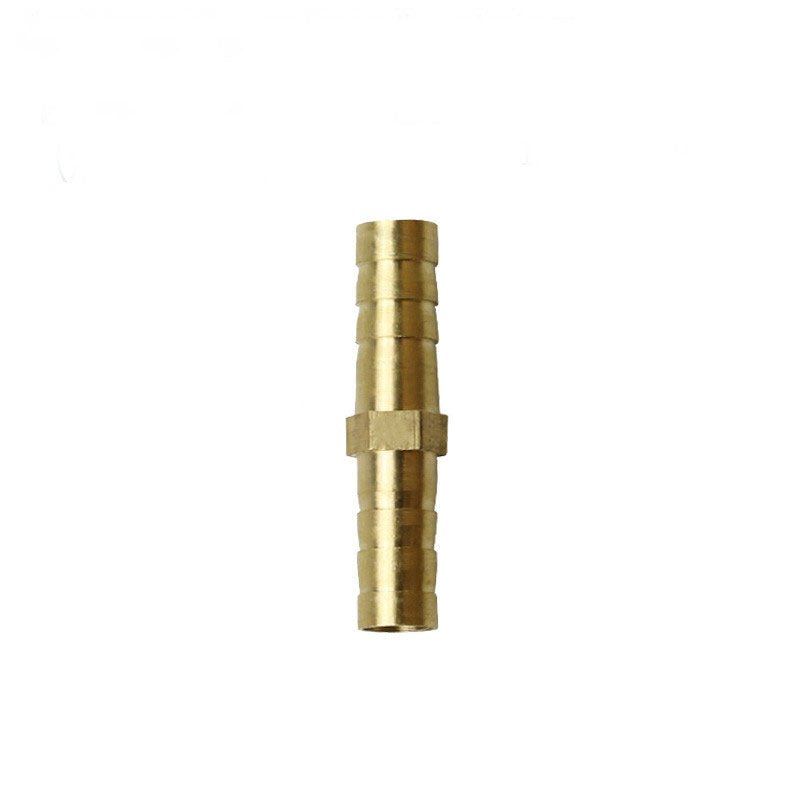

1. Product core introduction
Welcome to the world of reliable and efficient fluid and gas transfer solutions with the 6 8 10 12mm Pagoda Brass Pipe Tube Hose Connectors from HomeDIYer. These precision-engineered fittings are designed to meet the demanding requirements of various applications, whether you're a professional in the industrial sector or a passionate DIY enthusiast. The pagoda-shaped connectors offer a unique combination of functionality and durability, ensuring a seamless connection between pipes, tubes, and hoses. With a focus on quality and performance, our fittings are crafted from high-grade brass, making them suitable for a wide range of pneumatic and fluid systems. Whether you're building a custom air compressor setup, a DIY watering system, or repairing industrial machinery, these connectors are your go-to choice for creating secure and leak-free connections.
2. The main characteristics of the product
• Premium Brass Construction
Our connectors are made from top-quality brass, which is renowned for its excellent corrosion resistance and durability. This material ensures that the fittings can withstand the rigors of continuous use in various environments, including those with exposure to moisture, chemicals, and temperature fluctuations. The brass construction also provides a smooth internal surface, minimizing friction and promoting efficient fluid or gas flow. This not only improves the overall performance of your system but also reduces the risk of clogs and blockages over time.
• Precision Pagoda Design
The unique pagoda design of these connectors is a key feature that sets them apart. The stepped shape allows for a snug and secure fit with different pipe, tube, and hose diameters, ensuring a tight seal and preventing leaks. This design also provides added stability and support, reducing the likelihood of the connection coming loose during operation. The precision machining of the pagoda profile ensures consistent performance and compatibility with a wide range of tubing materials, making it easy to create reliable connections in any project.
• Easy Pneumatic Push In Installation
One of the most significant advantages of these fittings is their pneumatic push in installation method. This innovative design allows for quick and effortless connection without the need for complex tools or additional hardware. Simply insert the pipe or tube into the connector, and the internal mechanism securely locks it in place. This not only saves you valuable time during installation but also makes it easy to disassemble and reconfigure your system if needed. The push in fittings are also reusable, providing added convenience and cost-effectiveness for your projects.

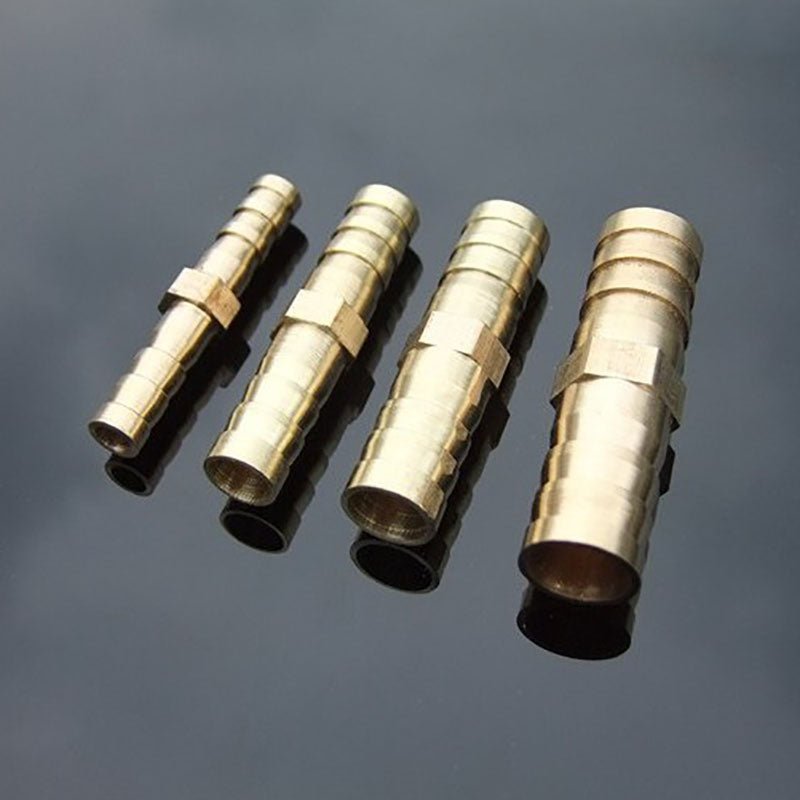

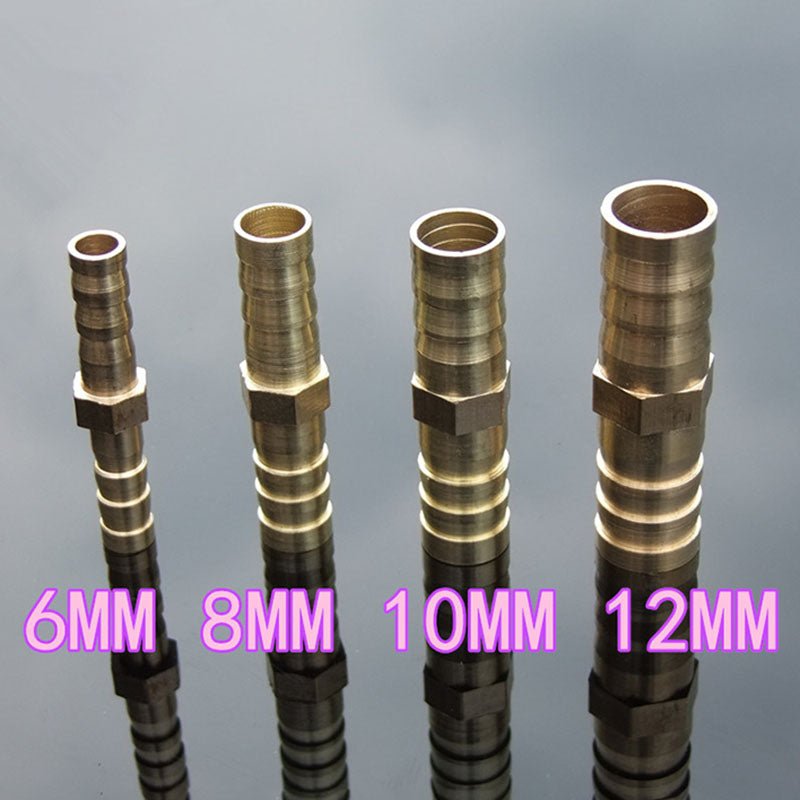

• Versatile Size Range
Available in 6mm, 8mm, 10mm, and 12mm sizes, our connector set offers the versatility you need to tackle a wide variety of projects. Whether you're working with small-diameter tubing for delicate pneumatic applications or larger pipes for heavy-duty fluid transfer, you'll find the right size to fit your requirements. This comprehensive size range makes it easy to stock up on the connectors you need for multiple projects, eliminating the hassle of searching for the right fit each time.
3. Product use scene
• Industrial Pneumatic Systems
In factories and manufacturing plants, our pagoda brass connectors are essential for pneumatic systems that power machinery, automation equipment, and conveyor belts. The reliable connections ensure the efficient transfer of compressed air, preventing leaks that could lead to decreased performance or equipment failure. The durability of the brass fittings makes them suitable for the harsh conditions of industrial environments, where they may be exposed to high pressures, vibrations, and temperature changes. Whether you're maintaining an existing pneumatic system or installing a new one, these connectors will provide the performance and reliability you need.
• DIY Plumbing and Irrigation Projects
For DIY enthusiasts, these connectors are perfect for a variety of plumbing and irrigation projects around the house. You can use them to connect water supply lines to faucets, showers, and toilets, or to create a custom irrigation system for your garden. The easy push in installation makes it simple for even novice DIYers to create professional-looking connections. The brass material is also safe for use with potable water, ensuring that your plumbing projects meet health and safety standards. Whether you're fixing a leaky pipe or building a new outdoor watering system, our connectors will make the job easier and more efficient.
• Automotive and Motorcycle Applications
In the automotive and motorcycle industries, our connectors can be used for a variety of fluid and pneumatic systems. They are suitable for connecting air lines to brakes, suspensions, and pneumatic tools, as well as for fuel and coolant lines. The corrosion resistance of the brass is especially important in these applications, where the connectors may be exposed to harsh chemicals and fluctuating temperatures. The precision fit and reliable seal ensure the proper operation of these critical systems, enhancing the safety and performance of your vehicle.
• Laboratory and Scientific Equipment
In laboratories and scientific research facilities, precise fluid and gas transfer is essential. Our pagoda brass connectors can be used to connect tubing in analytical instruments, chemical reactors, and fluid handling systems. The smooth internal surface of the brass fittings minimizes the risk of contamination and ensures accurate and repeatable results. The versatility of the size range allows researchers to customize their setups to meet specific experimental requirements, making these connectors a valuable tool in the scientific community.
4. Product use instructions
1、Preparing the Tubing
Before installing the connector, ensure that the end of the pipe or tube is clean, smooth, and free from any burrs or debris. Use a deburring tool or sandpaper to smooth the cut edge if necessary. Measure the diameter of the tubing to ensure it matches the appropriate connector size. It's important to have a proper fit to ensure a secure connection and prevent leaks.
2、Installation
Align the end of the tubing with the opening of the pagoda connector. Gently push the tubing into the connector until it reaches the bottom of the stepped profile. You should feel a slight resistance as the internal locking mechanism engages. Give the tubing a gentle tug to ensure it is securely seated. If the tubing is difficult to insert, do not force it. Check for any obstructions or ensure that you are using the correct size connector.
3、Checking the Connection
Once the tubing is inserted, visually inspect the connection to ensure that it is properly seated and that there are no gaps or leaks. You can also perform a pressure test if applicable. For pneumatic systems, apply a small amount of pressure and check for any air leaks around the connection. For fluid systems, run water or the appropriate fluid through the line and look for any signs of dripping or leakage. If you detect a leak, disassemble the connection and check for any damage or improper installation.
4、Disassembly and Reuse
If you need to disassemble the connection, simply grip the tubing firmly and pull it out of the connector. The push in fittings are designed to be reusable, so you can clean the connector and the tubing and reuse them for future projects. However, if the connector or tubing shows signs of wear or damage, it's recommended to replace them to ensure a reliable connection.
5、Maintenance and Storage
After each use, clean the connectors with a mild detergent and water solution to remove any dirt, grease, or residue. Dry them thoroughly before storing. Store the connectors in a clean, dry place, preferably in a labeled container or compartment to keep them organized and easily accessible. Regularly inspect the connectors for any signs of corrosion or damage, and replace them if necessary to maintain the integrity of your systems.
• By following these guidelines, you can ensure the optimal performance and longevity of our 6 8 10 12mm Pagoda Brass Pipe Tube Hose Connectors Pneumatic Push In Fittings from HomeDIYer. If you have any questions or need further technical assistance, please do not hesitate to contact our customer support team.
