65Type Stainless Steel Sash Pulley Sliding Door Roller Runner Wheel Track Pulley

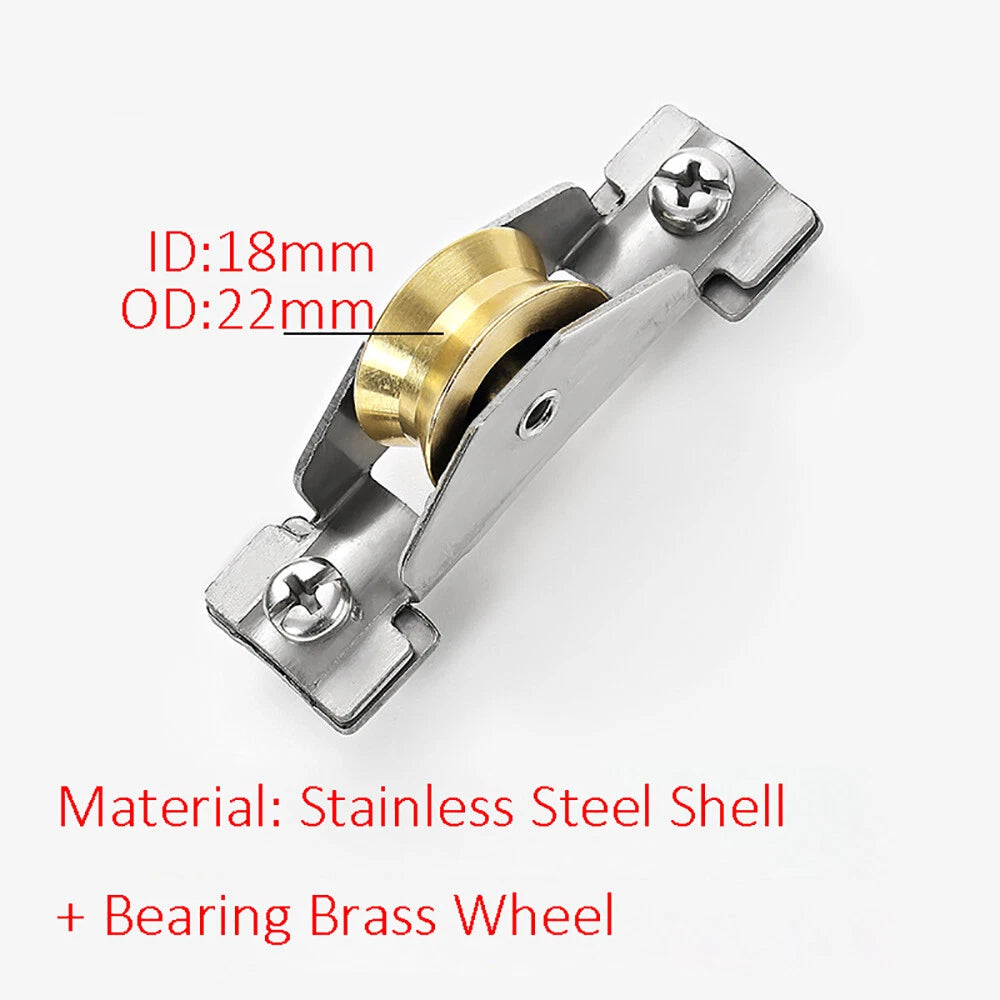

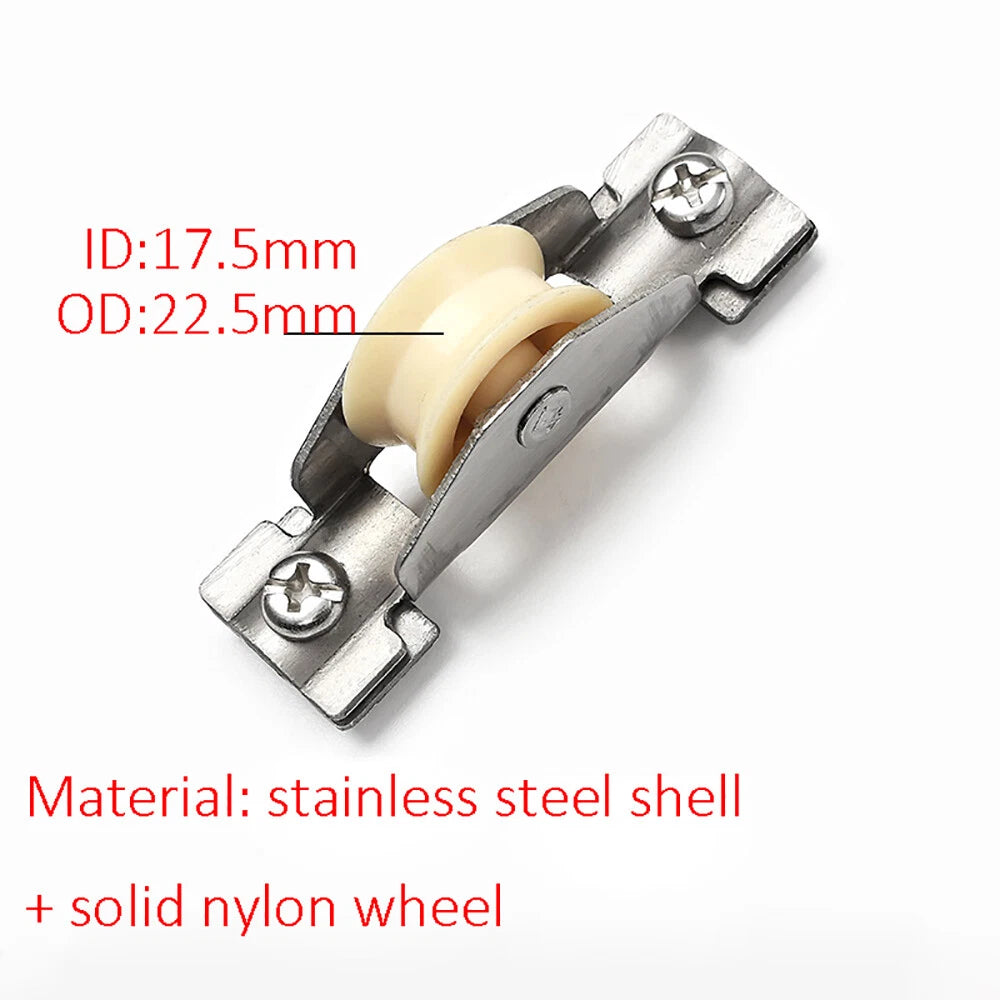

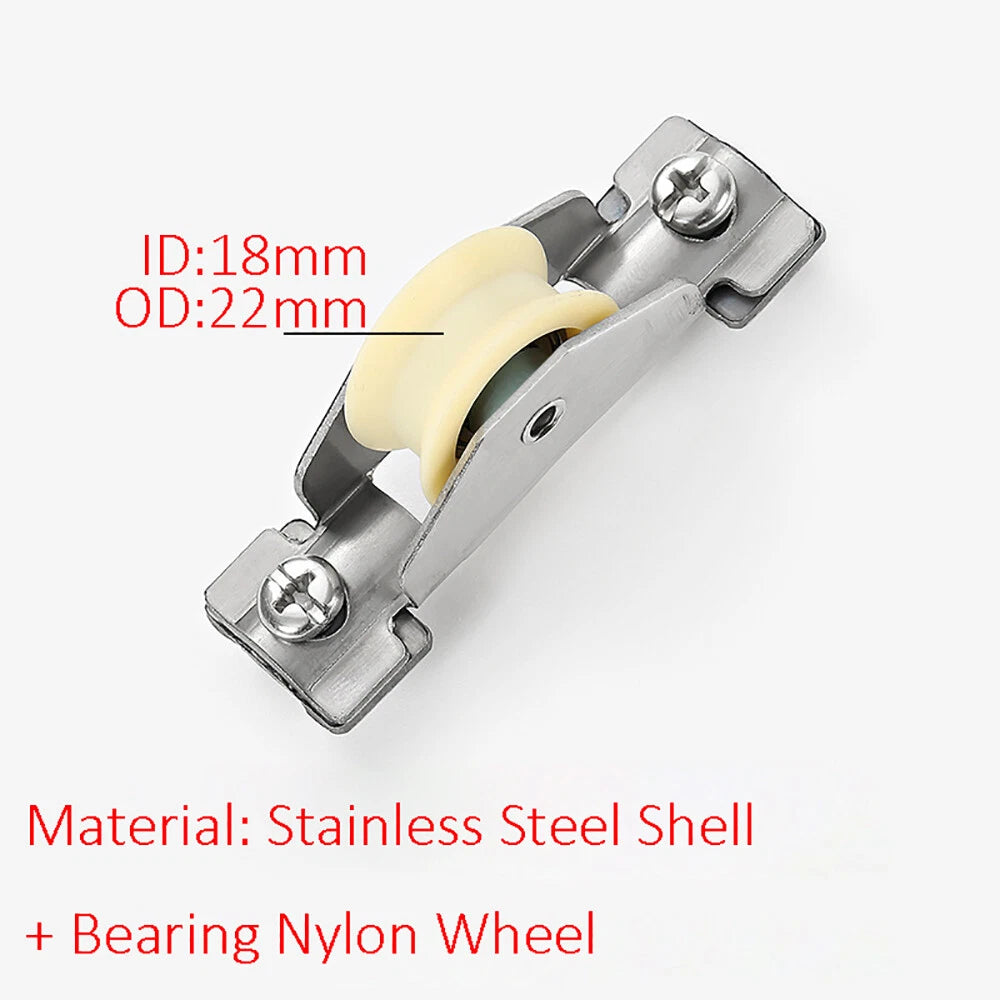

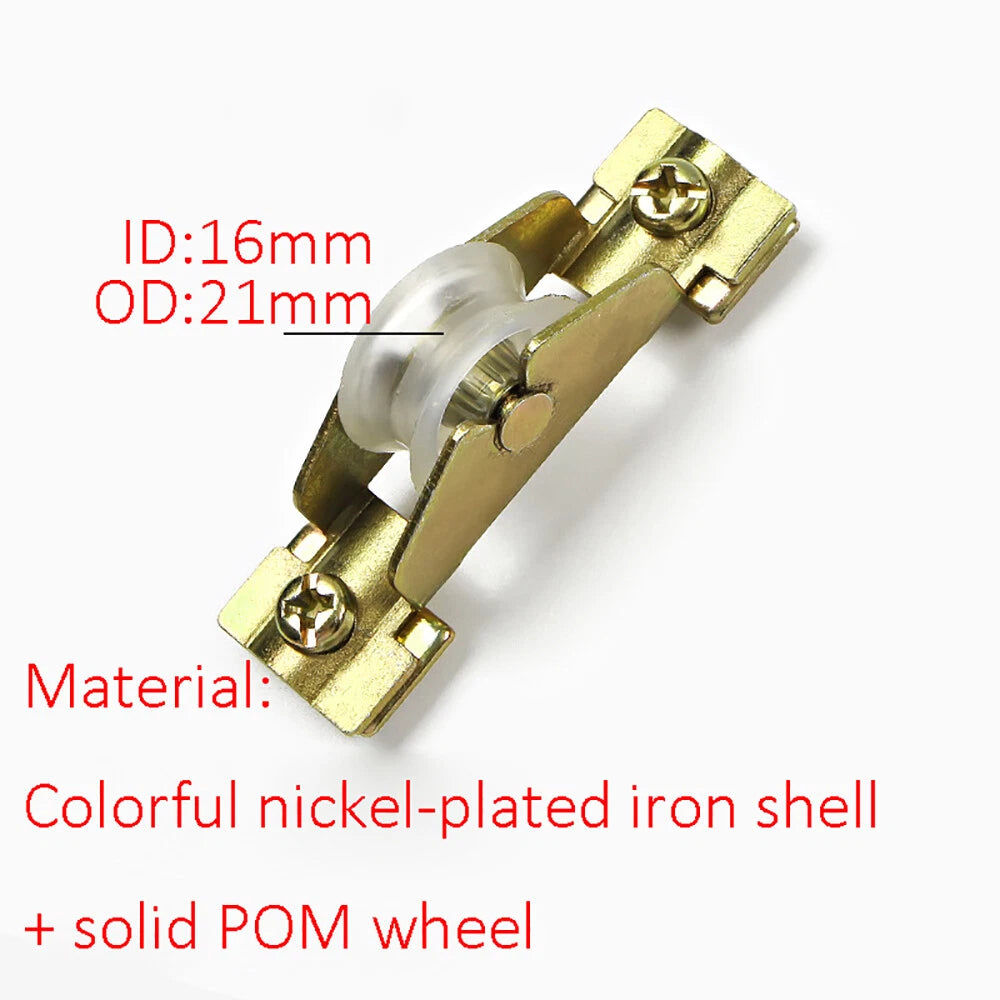

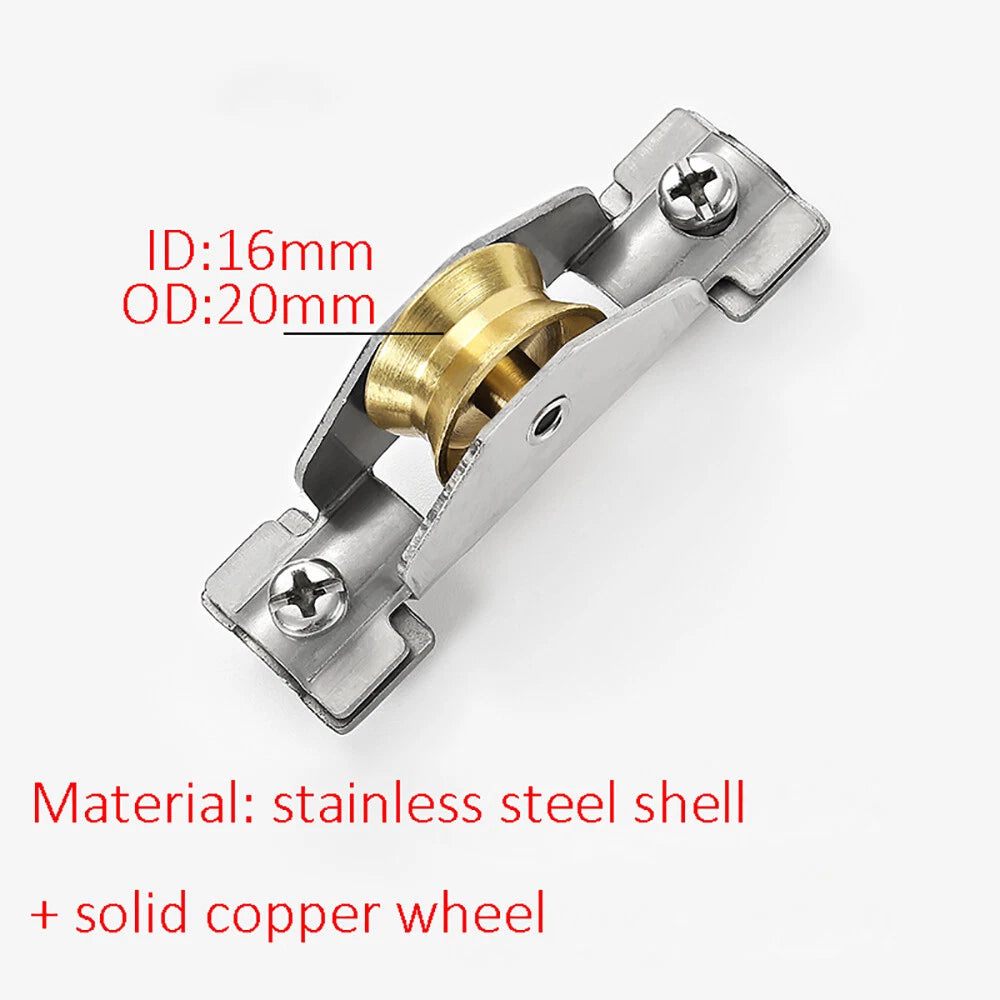

Measure the outer diameter and width of your existing roller wheel, or measure the groove width of your door track. Match those measurements to the size options listed: 16mm×20mm, 16mm×21mm, 17.5mm×22.5mm, or 18mm×22mm. When in doubt, select the size closest to your current roller's dimensions.

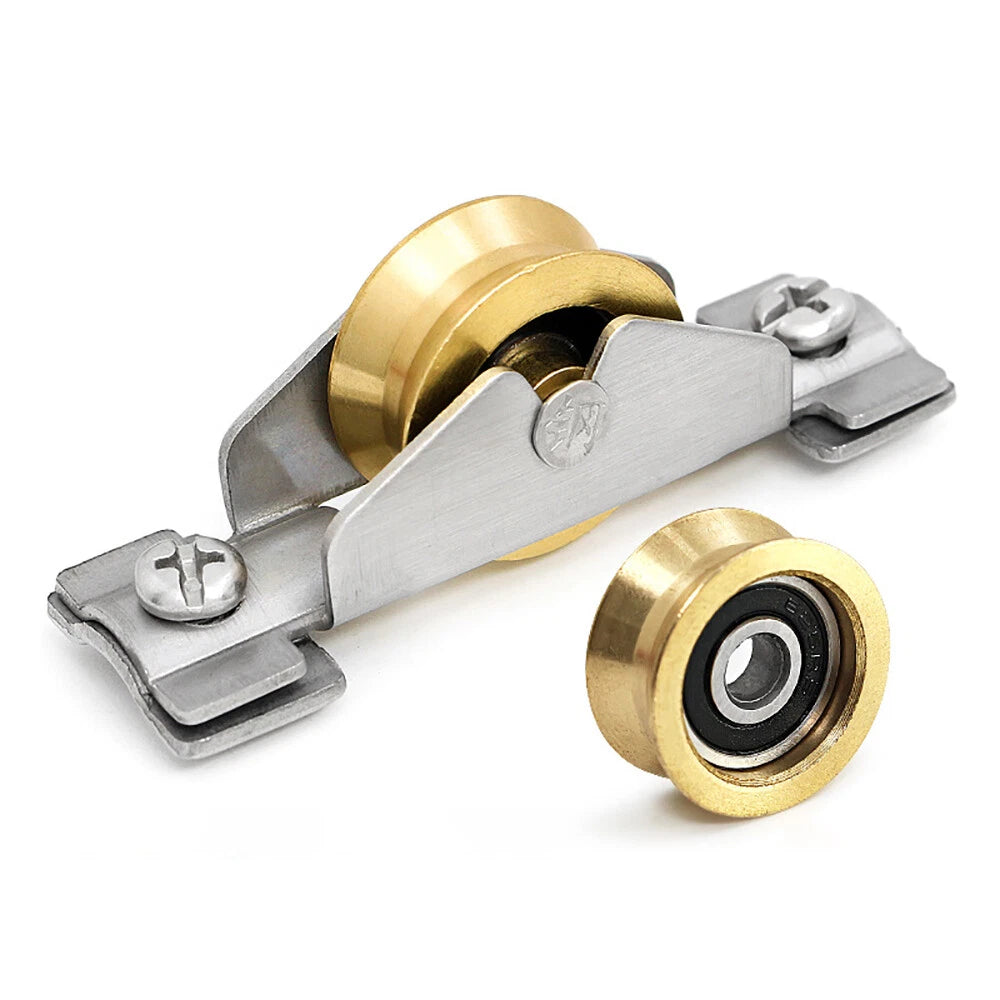

Solid wheel bodies (POM or copper) are one-piece and rely on the smoothness of the material itself for rolling. Bearing wheel bodies contain an internal ball bearing race, which significantly reduces friction and rolling resistance — ideal for doors that are opened and closed many times per day or carry heavier loads.

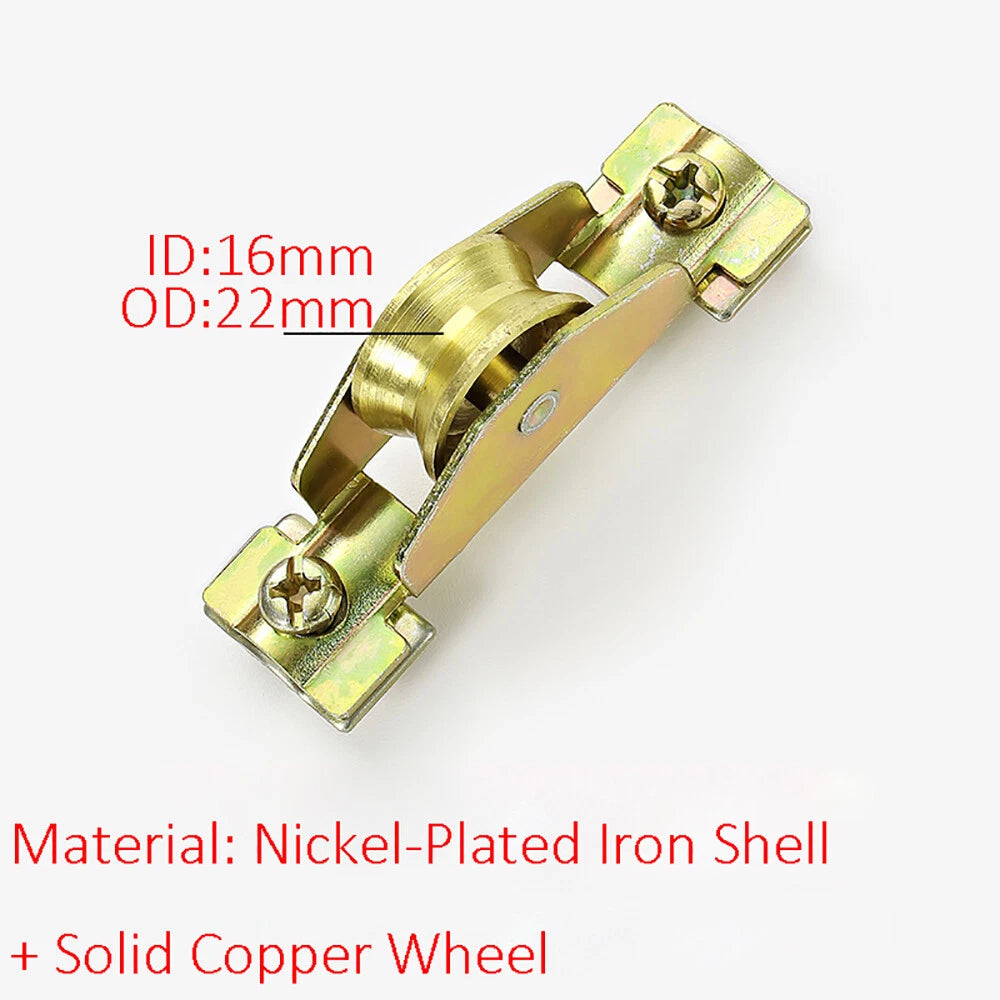

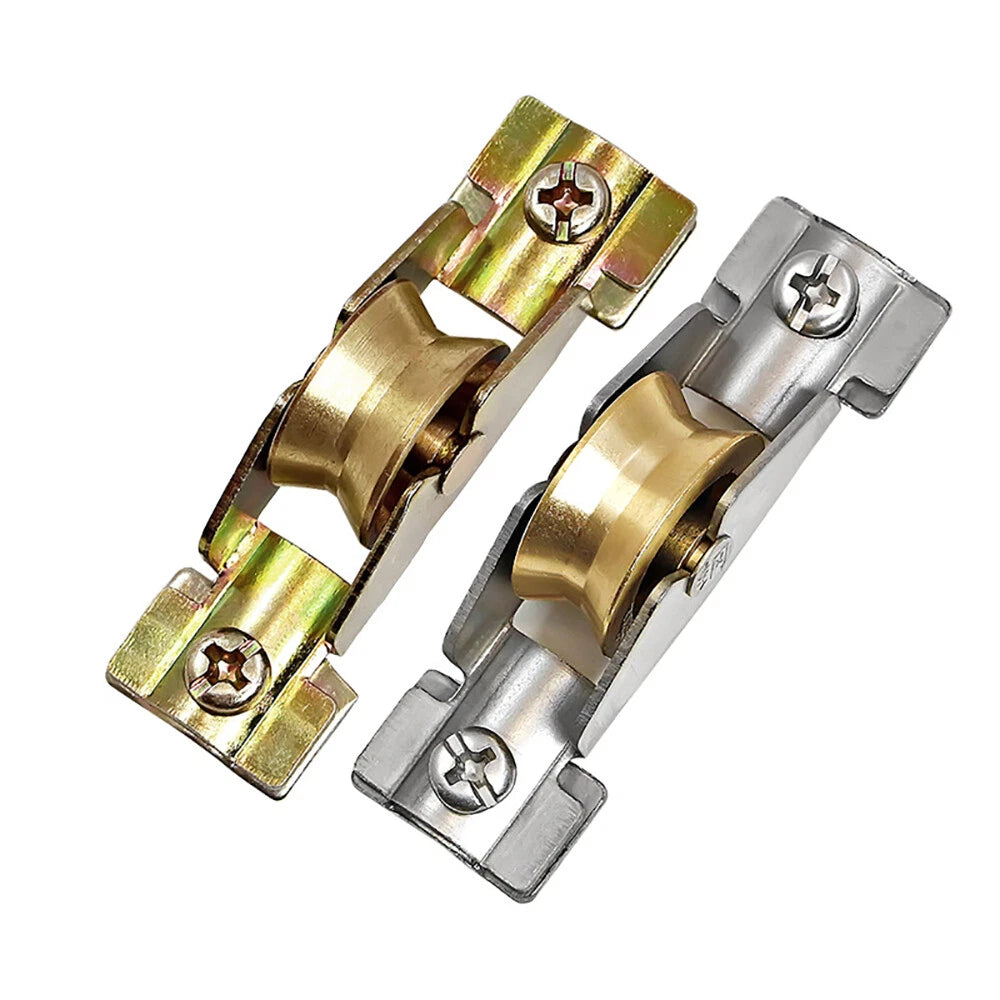

Yes. Stainless steel shells provide meaningful corrosion resistance compared to standard nickel-plated steel, making them a better choice for humid environments such as bathrooms, laundry rooms, or covered outdoor areas. For fully exposed outdoor applications, verify the specific grade suitability.

These pulleys are designed to the standard 65-type form factor, which is widely used across sliding door systems. In most cases they are direct drop-in replacements. However, always verify the outer diameter and width against your track groove before installation, as manufacturing tolerances can vary between track brands.

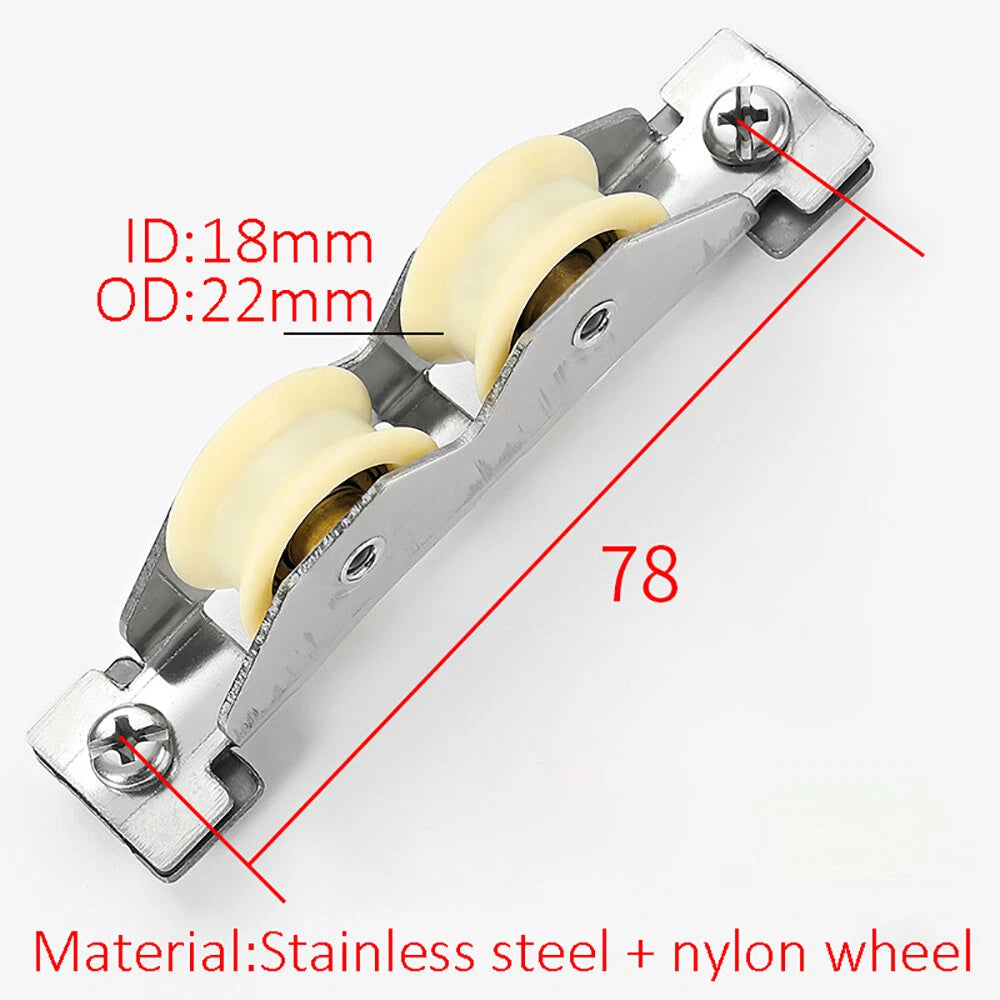

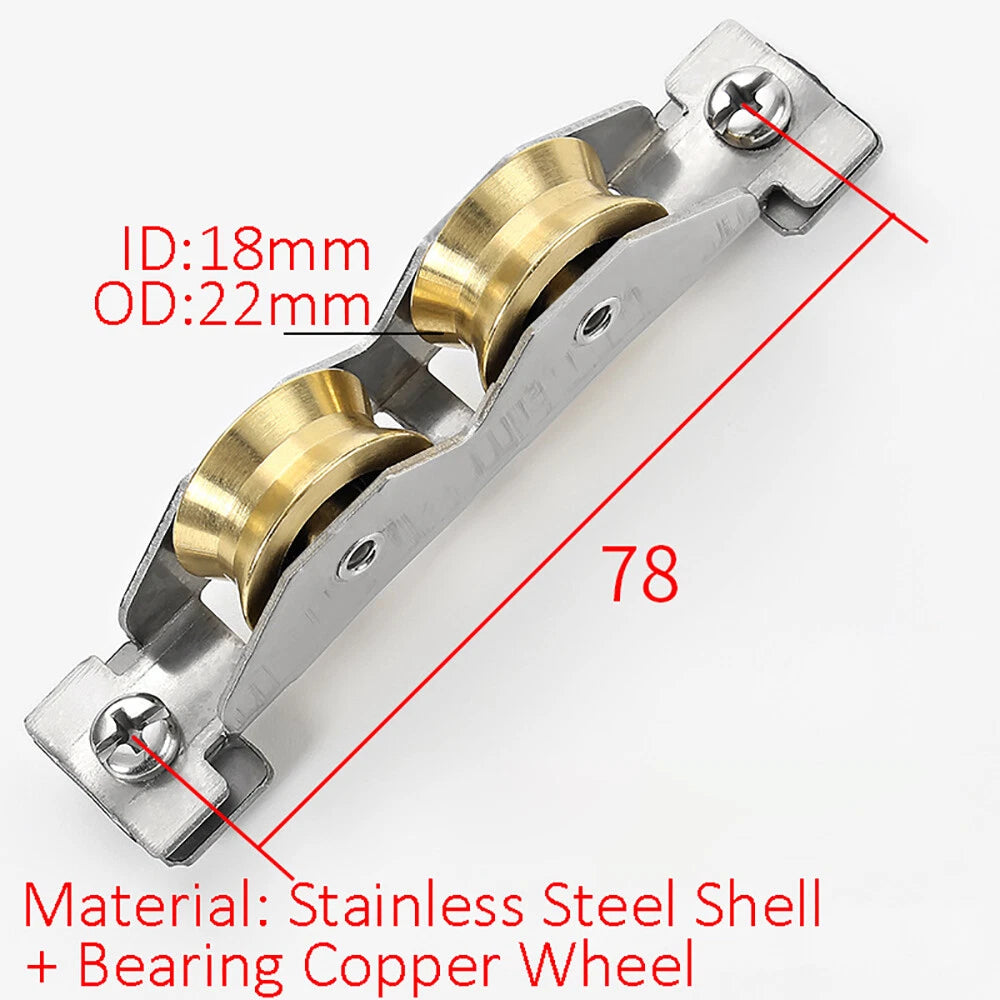

Choose double-bearing variants when the door is heavier than average, when the door is used very frequently (e.g., a high-traffic room divider or commercial wardrobe), or when you want the smoothest possible glide with the longest service interval. Single-bearing variants are well-suited for standard residential interior sliding doors.

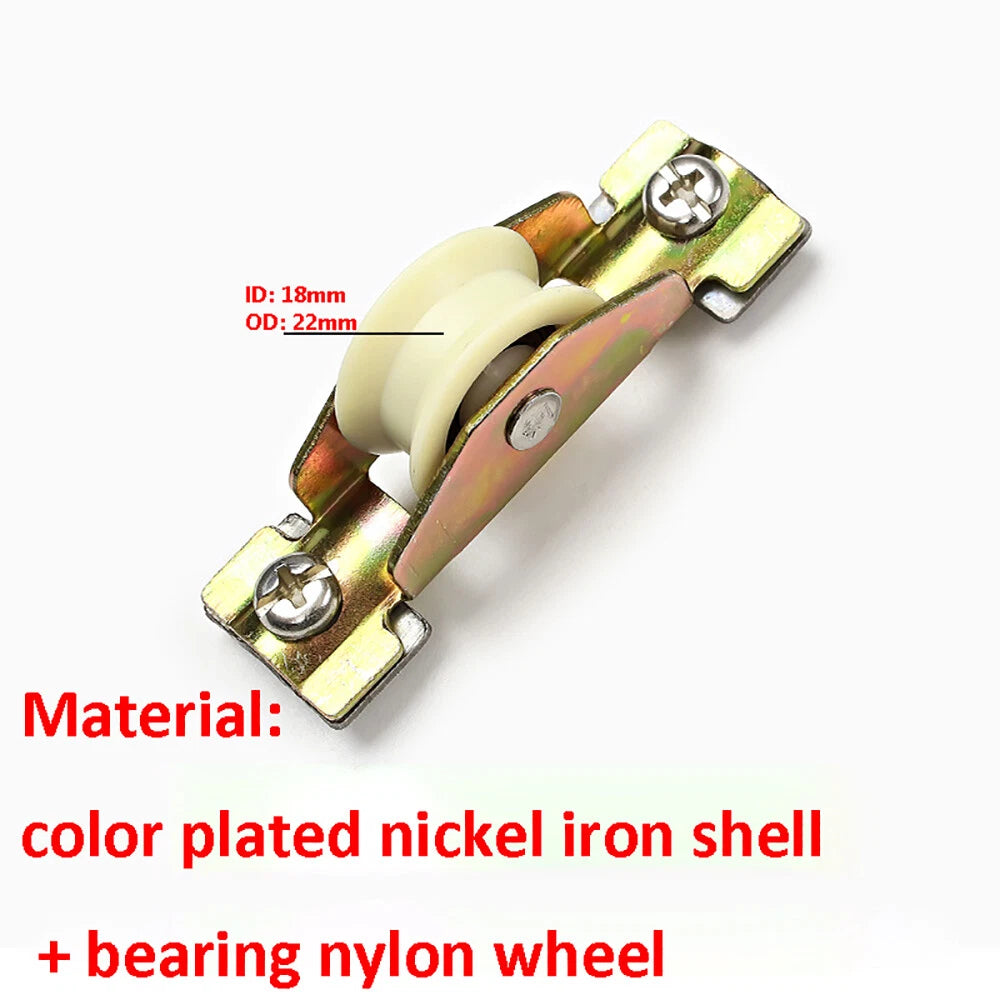

Yes, provided the barn door track uses a 65-type groove profile and the roller dimensions match. Bearing-equipped variants (nylon or copper wheel body) are recommended for barn doors due to the typically heavier door panels involved.

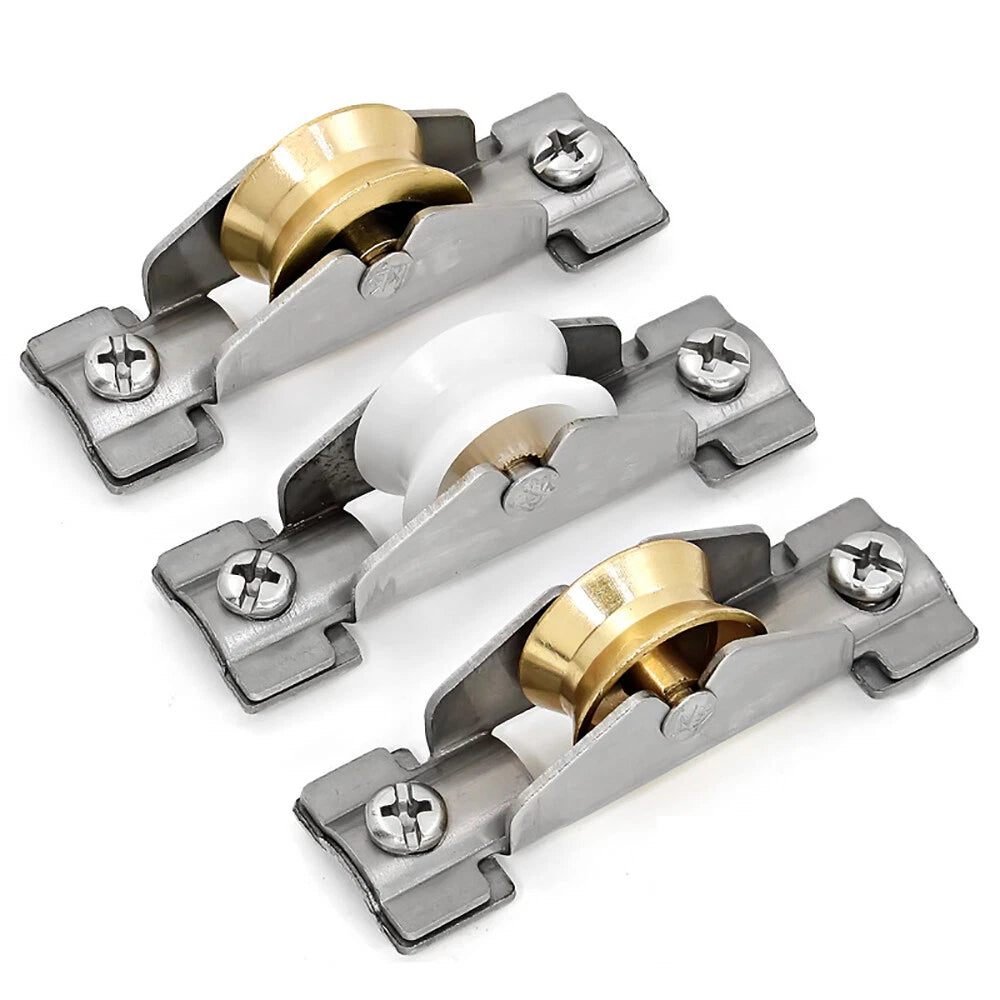

POM (polyoxymethylene) is a rigid engineering plastic known for low friction, light weight, and quiet operation — a good all-around choice for most residential sliding doors. Copper wheel bodies offer higher density and durability under heavier loads, and are often chosen when longevity under sustained mechanical stress is the priority.
