Solder Seal Wire Connectors — Waterproof, No-Crimp Electrical Butt Splicing Kit
Struggling with exposed wire splices that corrode, loosen, or fail in wet conditions? Whether you're rewiring a motorcycle, repairing boat electronics, or running outdoor lighting, unreliable connections are a real hazard. This 800-piece solder seal connector kit gives automotive and marine DIYers a faster, cleaner, and more durable alternative to traditional crimping or open soldering.

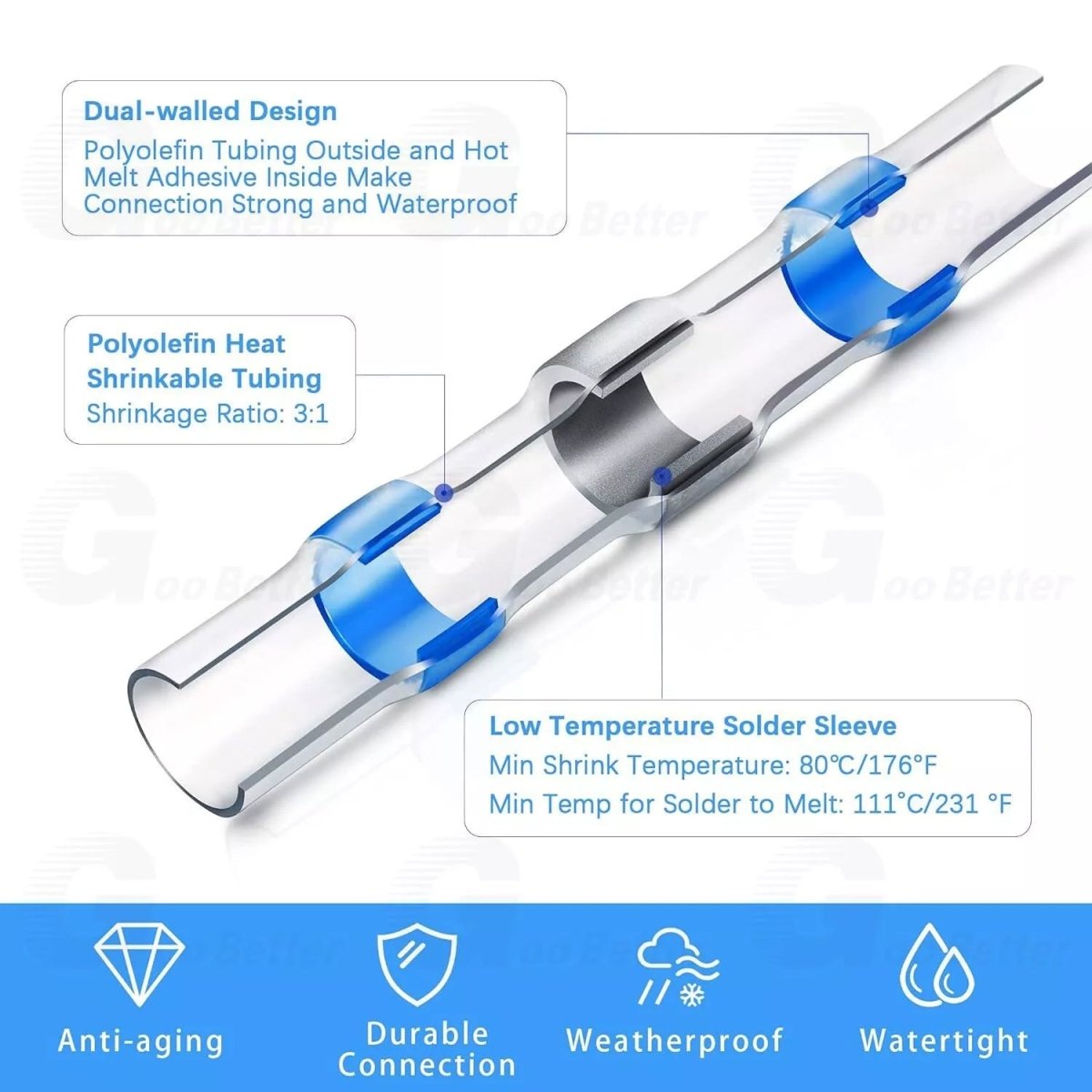

The kit includes 200 solder seal butt connectors across four AWG sizes — 20pcs for 12-10 AWG (4.0–6.0mm²), 70pcs for 22-18 AWG (0.5–1.0mm²), 60pcs for 16-14 AWG (1.5–2.5mm²), and 50pcs for 26-24 AWG (0.25–0.34mm²) — plus 600pcs of black heat shrink tubing (3.0 × 20mm). Each connector features a dual-wall construction: a polyolefin heat-shrinkable outer sleeve (3:1 shrink ratio) and a low-temperature solder ring inside that melts at just 111°C/231°F, while the tube begins shrinking at 80°C/176°F.
Use these connectors for automotive wiring harness repairs, marine bilge pump wiring, RV electrical extensions, trailer lighting hookups, and outdoor landscape lighting — anywhere a watertight, vibration-resistant splice is required.
✅ Compatible with copper and tinned copper wire from 26 AWG to 10 AWG (0.25–6.0mm²). Suitable for 12V and 24V automotive, marine, RV, and low-voltage outdoor electrical systems.
Key Features

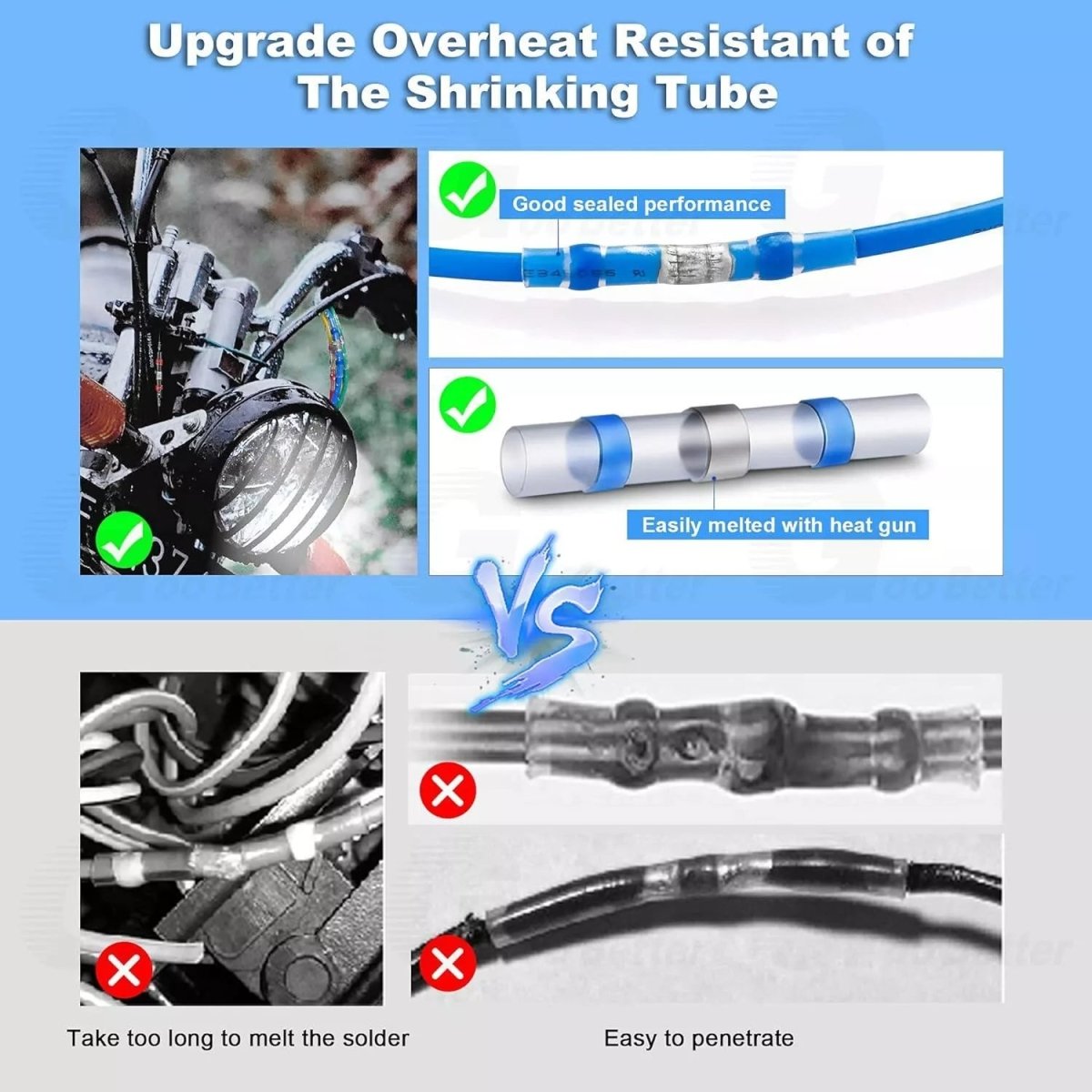

- 🔥 Upgraded overheat-resistant shrink tube — begins shrinking at 80°C/176°F and melts solder at 111°C/231°F for a fast, reliable bond with a heat gun or lighter

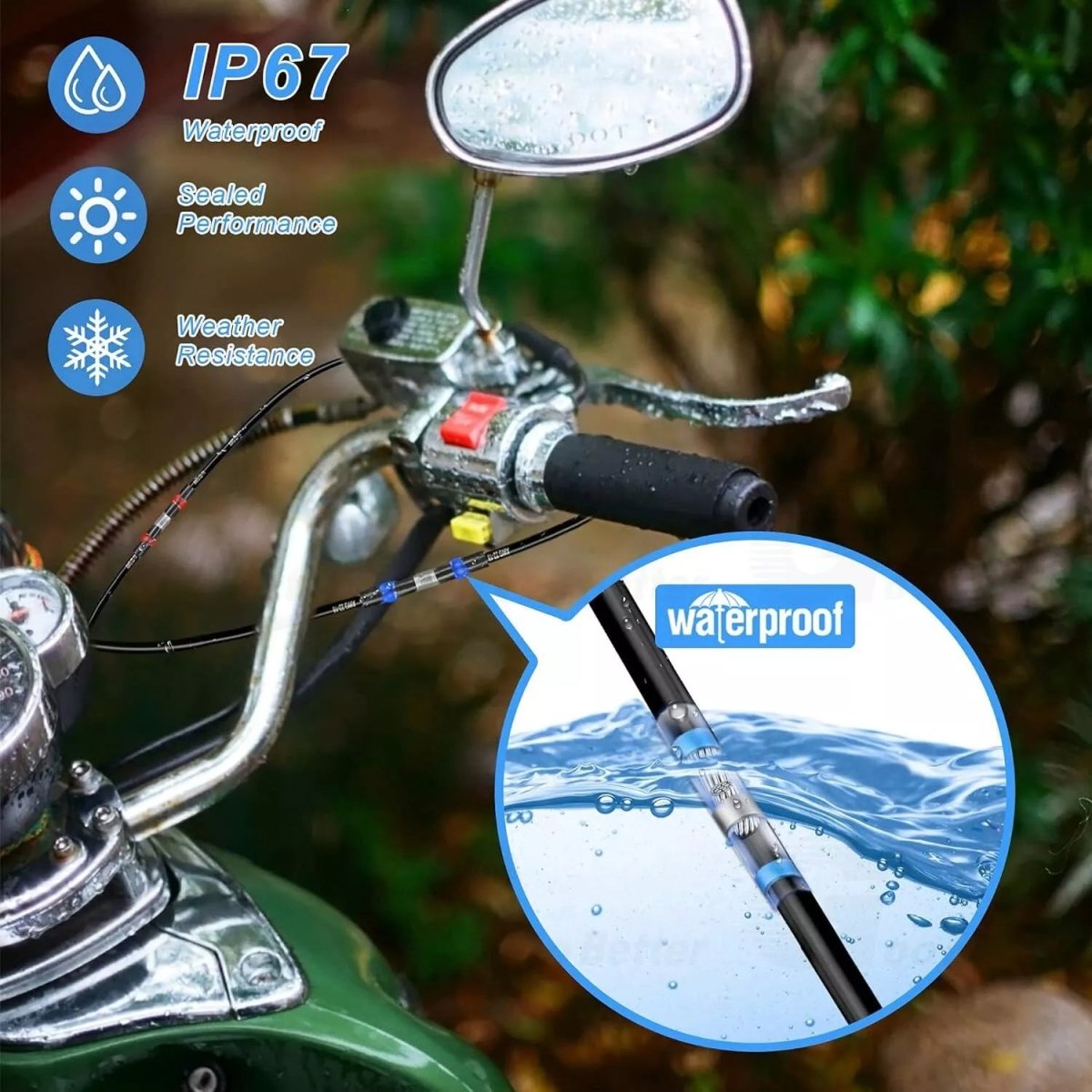

- 💧 IP67-rated waterproof seal — dual-wall design with polyolefin outer tubing and hot-melt adhesive inner lining creates a watertight, dustproof connection that resists corrosion
- 🔌 No soldering iron or crimping tool needed — solderless and crimpless design lets you complete a secure splice in seconds, reducing installation time significantly

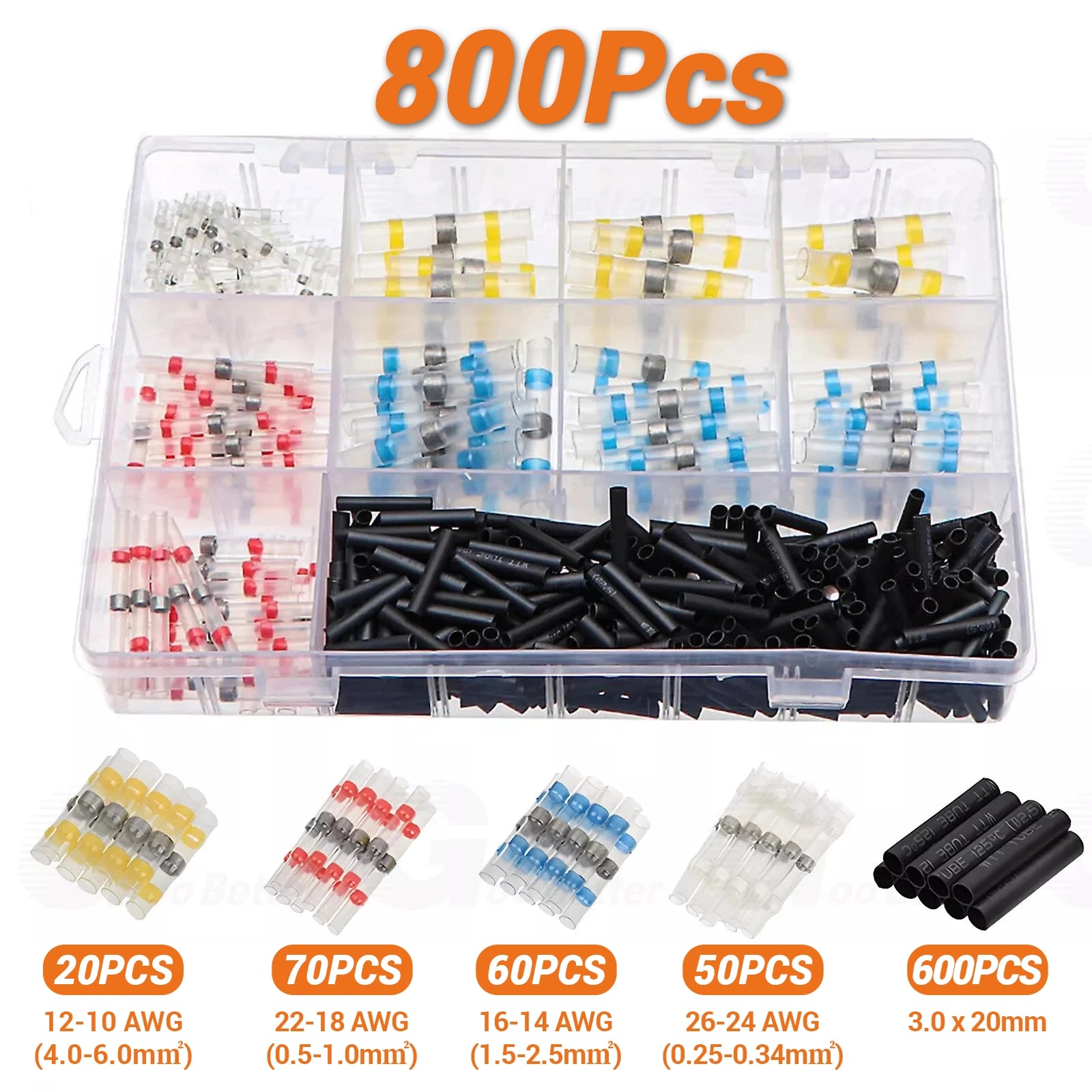

- 📦 Comprehensive 800-piece assortment — 4 AWG sizes (26-24, 22-18, 16-14, 12-10 AWG) plus 600pcs of 3.0×20mm black heat shrink tubing, all organized in a reusable clear storage box
- 🛡️ Anti-aging and weatherproof construction — polyolefin material resists UV, moisture, and temperature extremes for long-lasting performance in outdoor and marine environments
- ⚡ 3:1 shrink ratio for a tight, uniform fit — the high-ratio shrinkage ensures the sleeve conforms snugly around the wire and solder ring, eliminating gaps and weak points

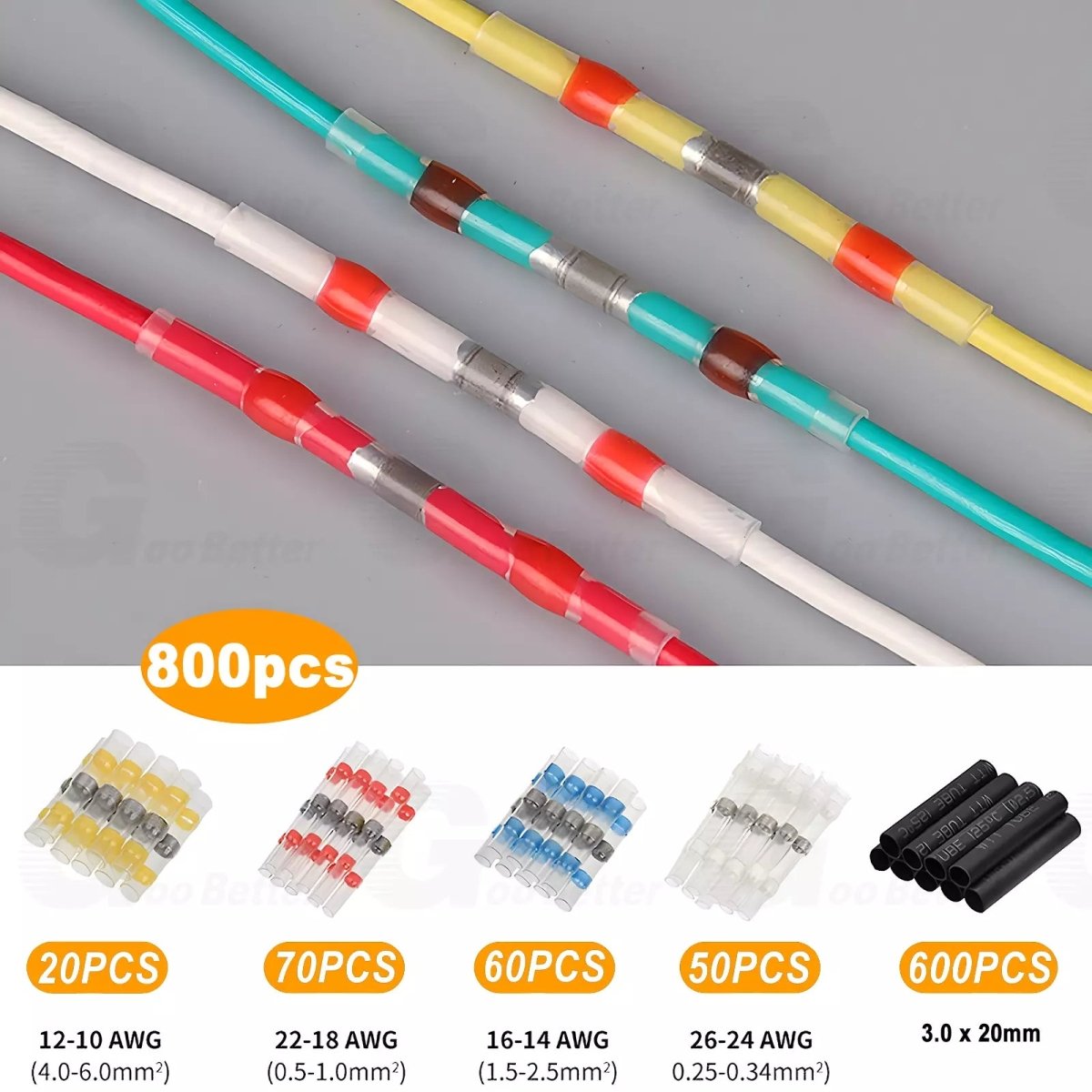

What's in the Box
- 20pcs Solder Seal Connectors — 12-10 AWG (4.0–6.0mm²) — Yellow
- 70pcs Solder Seal Connectors — 22-18 AWG (0.5–1.0mm²) — Red
- 60pcs Solder Seal Connectors — 16-14 AWG (1.5–2.5mm²) — Blue
- 50pcs Solder Seal Connectors — 26-24 AWG (0.25–0.34mm²) — Clear
- 600pcs Heat Shrink Tubing — 3.0 × 20mm — Black

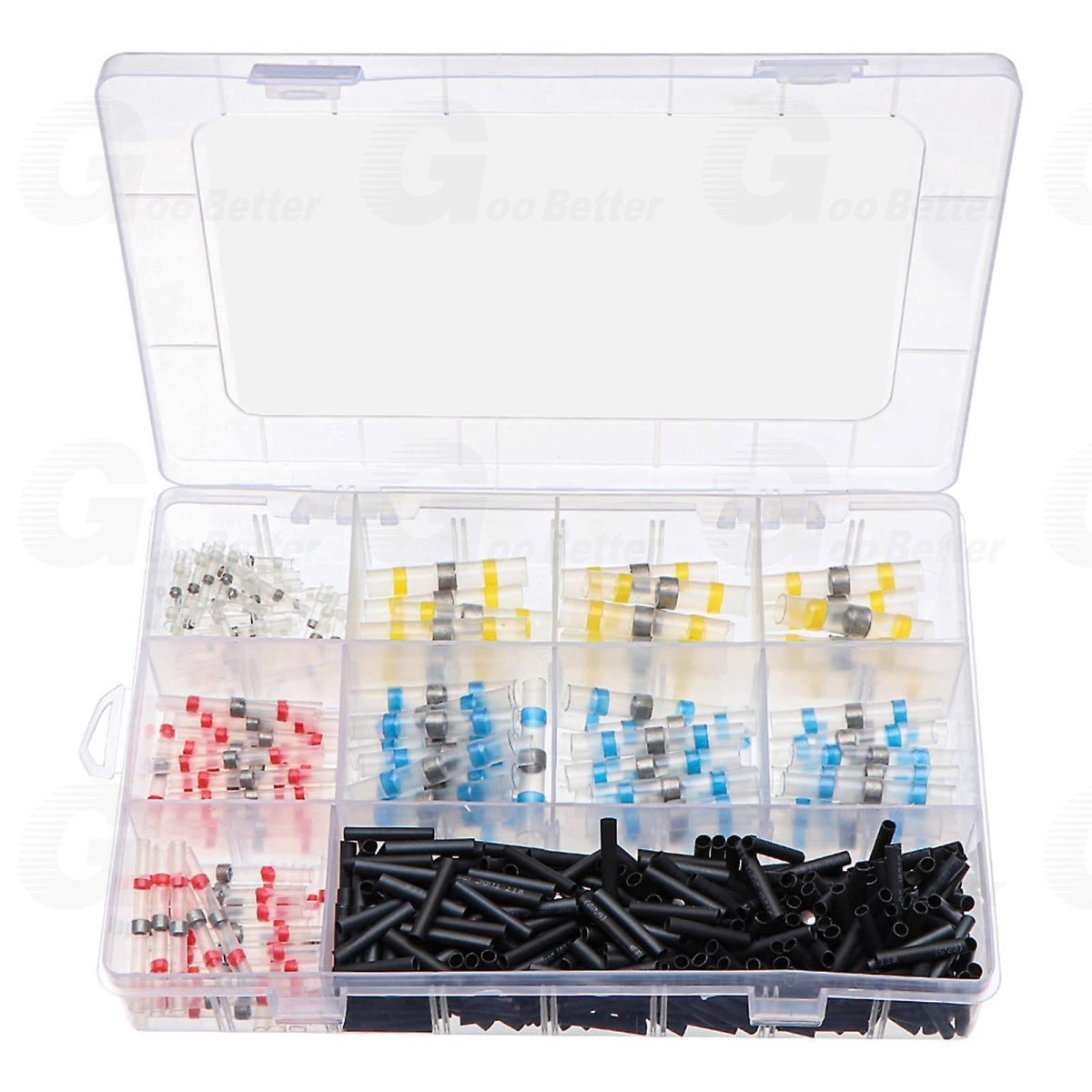

- 1× Reusable Clear Plastic Storage Box
Who Is This For
🔧 Automotive DIYers & Mechanics
Repair or extend wiring harnesses, trailer connectors, and sensor leads without a soldering station. The color-coded sizes make it easy to match the right connector to the wire gauge on the spot.
⛵ Marine & Boating Enthusiasts
IP67 waterproofing and corrosion-resistant materials make these connectors ideal for bilge pumps, navigation lights, fish finders, and any below-deck wiring exposed to moisture and salt air.
🚐 RV Owners & Trailer Builders
Run reliable connections for lighting, solar panels, and appliances in your RV or trailer. The weatherproof seal holds up through road vibration, rain, and temperature swings.
🌿 Outdoor & Landscape Electricians
Splice low-voltage landscape lighting, irrigation controllers, and outdoor speaker wiring with confidence. The anti-aging polyolefin sleeve won't crack or degrade from UV exposure over time.
Technical Specifications
| Total Quantity |
800pcs (200 connectors + 600 heat shrink tubes) |
| Connector Sizes |
26-24 AWG (0.25–0.34mm²) × 50pcs; 22-18 AWG (0.5–1.0mm²) × 70pcs; 16-14 AWG (1.5–2.5mm²) × 60pcs; 12-10 AWG (4.0–6.0mm²) × 20pcs |
| Heat Shrink Tubing |
600pcs, 3.0 × 20mm, Black |
| Outer Sleeve Material |
Polyolefin (heat-shrinkable) |
| Inner Adhesive |
Hot-melt adhesive (waterproof sealant) |
| Shrink Ratio |
3:1 |
| Min. Shrink Temperature |
80°C / 176°F |
| Min. Solder Melt Temperature |
111°C / 231°F |
| Waterproof Rating |
IP67 |
| Connection Type |
Butt splice (solderless, crimpless) |
| Color Coding |
Yellow (12-10 AWG), Red (22-18 AWG), Blue (16-14 AWG), Clear (26-24 AWG) |
| Storage |
Reusable clear plastic compartment box |
| Application |
Automotive, marine, RV, outdoor, low-voltage electrical |
Frequently Asked Questions
Do I need a soldering iron to use these connectors?
No. These are solderless connectors. Simply insert the wire ends into each side of the connector, then apply heat from a heat gun or lighter. The solder ring inside melts at around 111°C/231°F and the outer sleeve shrinks at 80°C/176°F, creating a secure, waterproof bond without any additional tools.
What wire gauges are included in this kit?
The kit covers four AWG ranges: 26-24 AWG (0.25–0.34mm²), 22-18 AWG (0.5–1.0mm²), 16-14 AWG (1.5–2.5mm²), and 12-10 AWG (4.0–6.0mm²). The color coding — clear, red, blue, and yellow respectively — makes it easy to select the right size at a glance.
Are these connectors truly waterproof?
Yes. The dual-wall construction — polyolefin outer sleeve plus hot-melt adhesive inner lining — creates an IP67-rated waterproof seal when properly heat-shrunk. This makes them suitable for marine, automotive, and outdoor applications where moisture exposure is a concern.
Can I use a lighter instead of a heat gun?
Yes, a lighter can work for occasional use, though a heat gun provides more even, controlled heat and is recommended for best results. Move the heat source evenly along the connector to ensure the solder melts fully and the sleeve shrinks uniformly on both ends.
What is the shrink ratio of the heat shrink tubing included?
The polyolefin heat shrink tubing has a 3:1 shrink ratio, meaning it shrinks to one-third of its original diameter. The 600 included tubes measure 3.0 × 20mm before shrinking, making them suitable for a range of wire and connector sizes.
Are these connectors suitable for marine use?
Yes. The IP67 waterproof rating, anti-aging polyolefin material, and hot-melt adhesive seal make these connectors well-suited for marine environments, including bilge pumps, navigation lights, and other below-deck wiring exposed to moisture and salt air.
How do I know which connector size to use?
Match the connector color to your wire gauge: Clear for 26-24 AWG, Red for 22-18 AWG, Blue for 16-14 AWG, and Yellow for 12-10 AWG. If you're unsure of your wire gauge, a wire gauge tool or the wire's insulation markings can help you identify the correct size.
800 connectors. 4 sizes. IP67 waterproof. Add this solder seal kit to your toolbox and make clean, reliable wire splices anywhere — no iron, no crimper, no hassle.
