Solder Seal Wire Connectors — No Crimping, No Soldering Iron Needed
Struggling with unreliable wire splices that corrode, loosen, or fail in wet environments? Whether you're rewiring a boat, fixing automotive harnesses, or running outdoor lighting, a bad connection can mean hours of troubleshooting. These solder seal sleeve connectors eliminate that frustration — just insert, heat, and you're done.

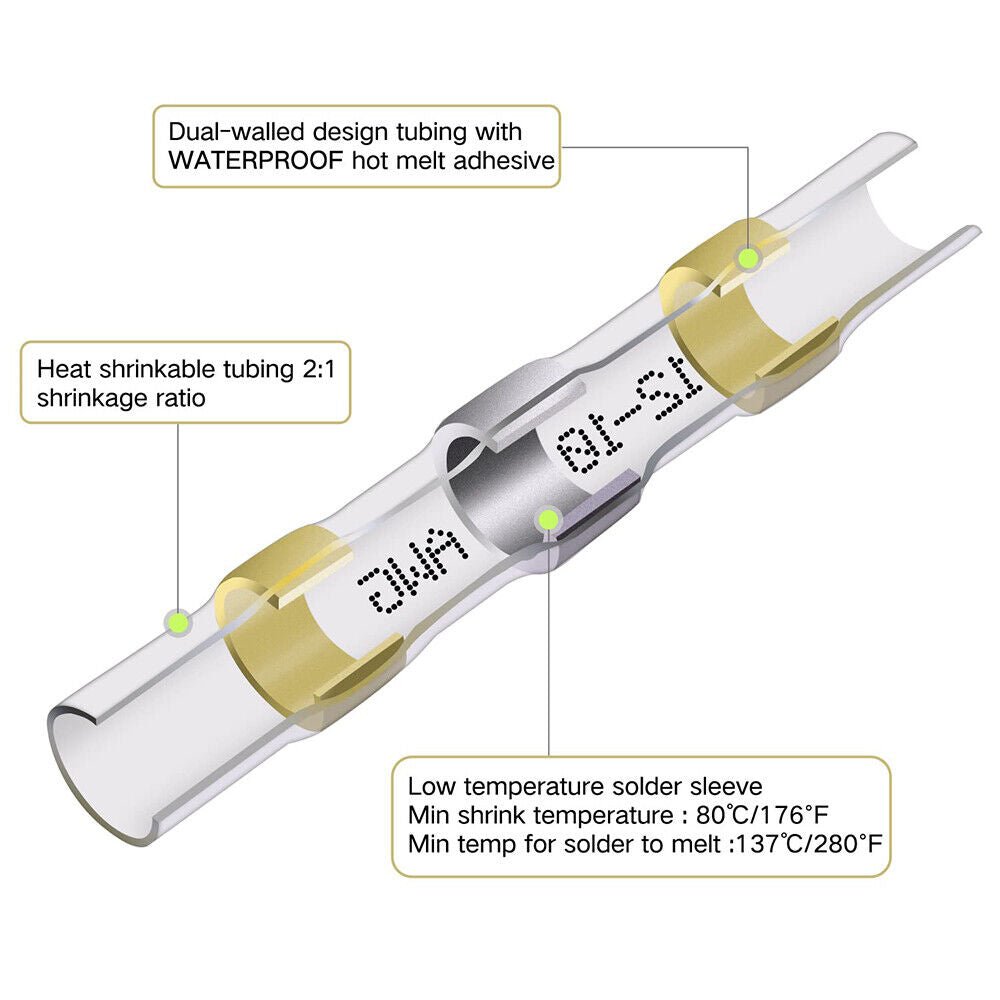

This 840-piece kit combines three components in one compact sleeve: a heat-shrinkable polyolefin outer tube, a low-temperature tin solder ring, and a waterproof hot melt adhesive lining. Available in 5 wire sizes covering AWG 26-10 (0.25–6.0 mm²), the connectors shrink and seal at 80°C while the solder flows completely at 160°C, creating a gas-tight, IP67-rated joint.
From trailer wiring and marine bilge pumps to RV electrical systems and garden lighting, these connectors handle the jobs where a standard butt connector simply isn't enough. The included black heat-shrink tubing (3.0–20 mm, 570 pcs) lets you finish and protect any remaining bare connections in the same session.
✅ Compatible with stranded and solid copper wire, AWG 26-10 (0.25–6.0 mm²) — suitable for automotive, marine, RV, outdoor, and low-voltage electrical applications.
Key Features
- 🔥 No Crimping or Soldering Iron Required — Simply insert the wire ends into each side of the sleeve and apply heat with a heat gun; the solder ring melts and flows automatically for a solid, gas-tight connection.

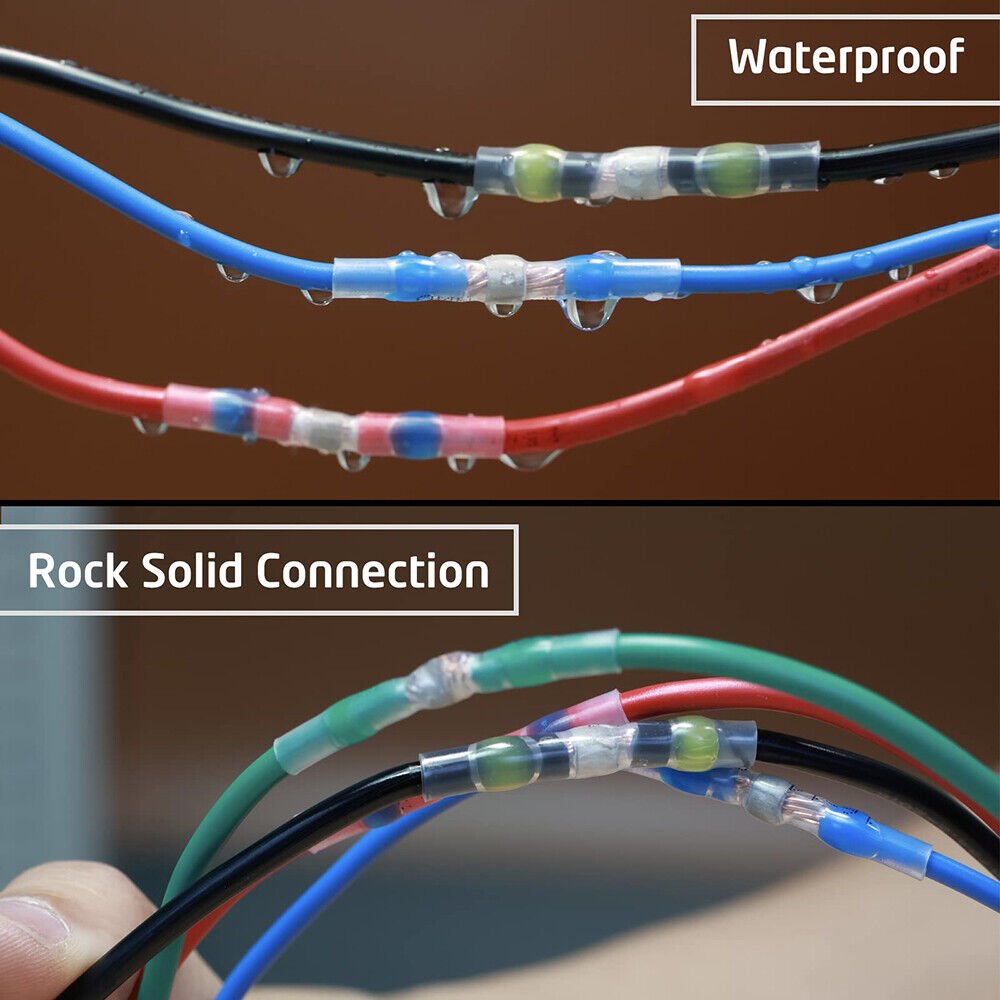

- 🛡️ IP67 Waterproof & Dustproof — The dual-wall construction seals with hot melt adhesive on both ends, blocking moisture, salt spray, and dust from reaching the joint — rated IP67 for full submersion protection.

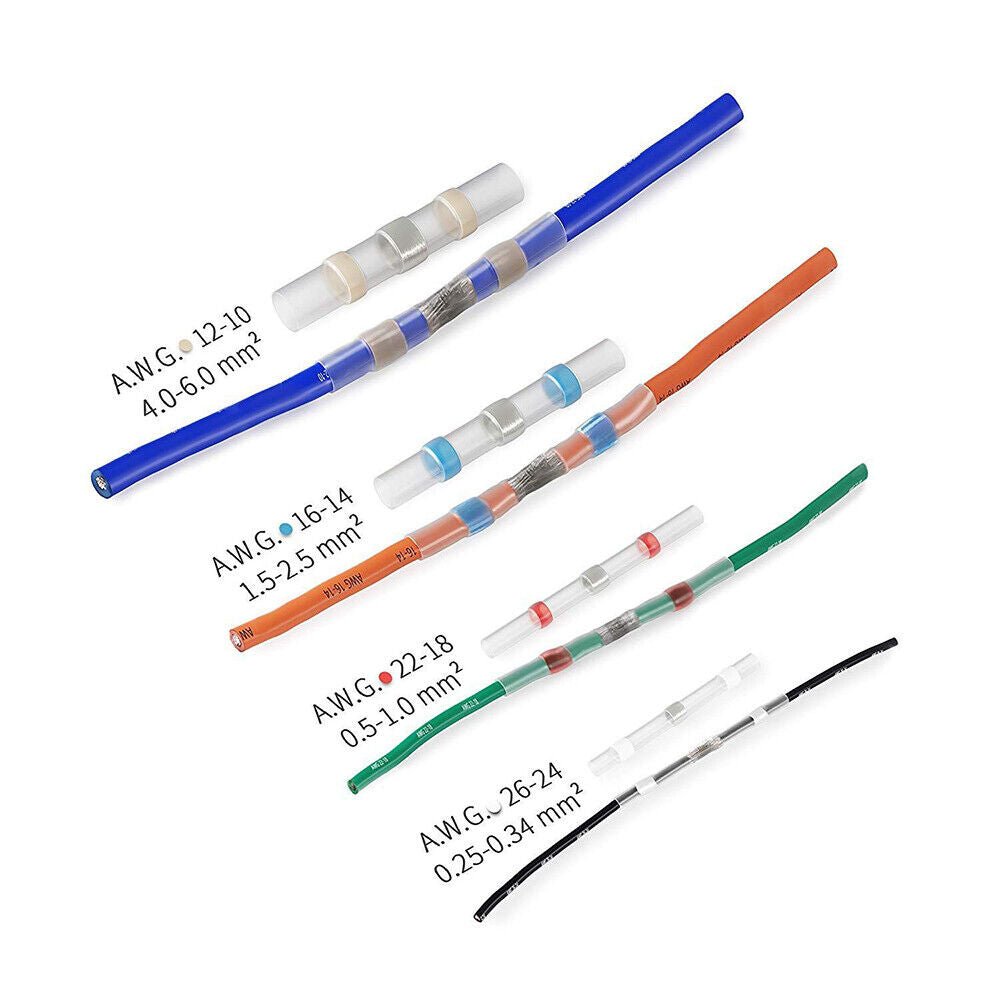

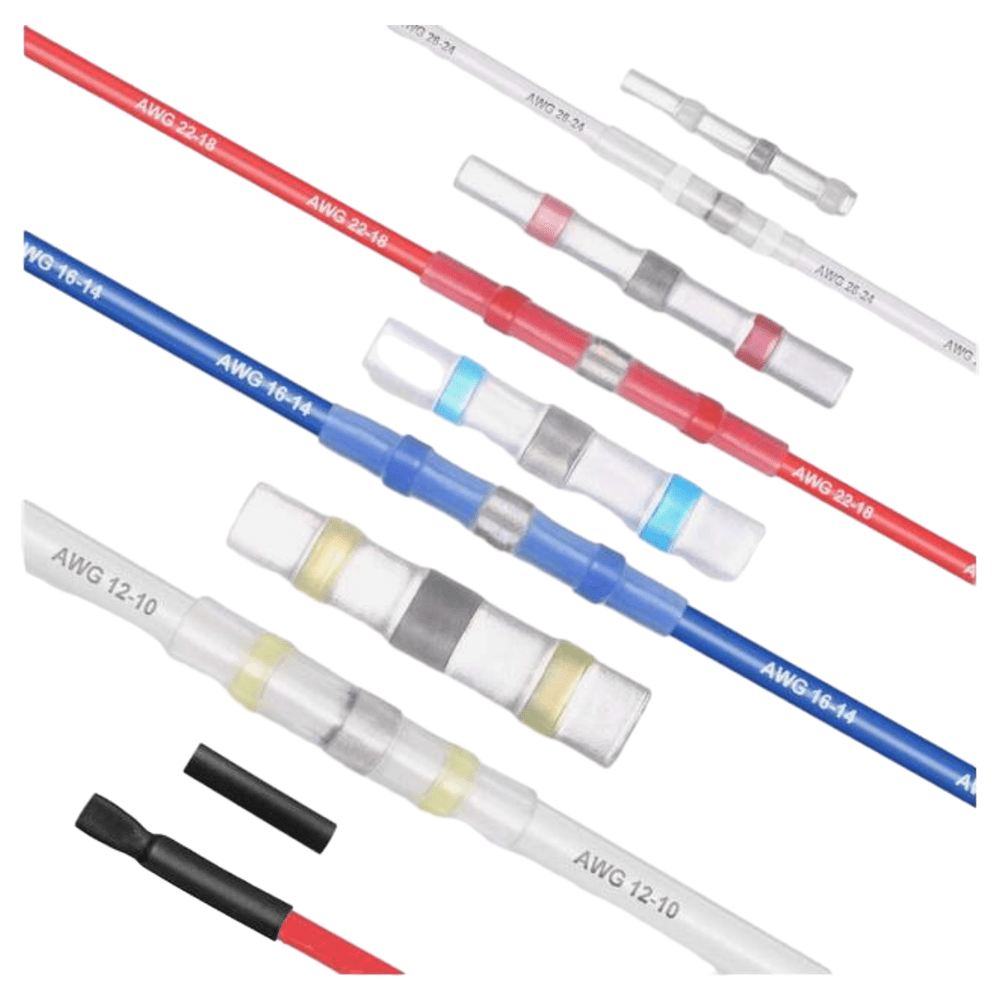

- 📐 5 Color-Coded Sizes for AWG 26-10 — White (AWG 26-24 / 0.25–0.34 mm²), Red (AWG 22-18 / 0.5–1.0 mm²), Green (AWG 18-16 / 1.0–1.5 mm²), Blue (AWG 16-14 / 1.5–2.5 mm²), Yellow (AWG 12-10 / 4.0–6.0 mm²) — color coding eliminates guesswork on the job.
- 🌡️ Wide Operating Temperature Range — Rated for continuous use from -55°C to 105°C, with a dielectric strength of 1KV, making these connectors suitable for engine bays, bilge areas, and outdoor installations.

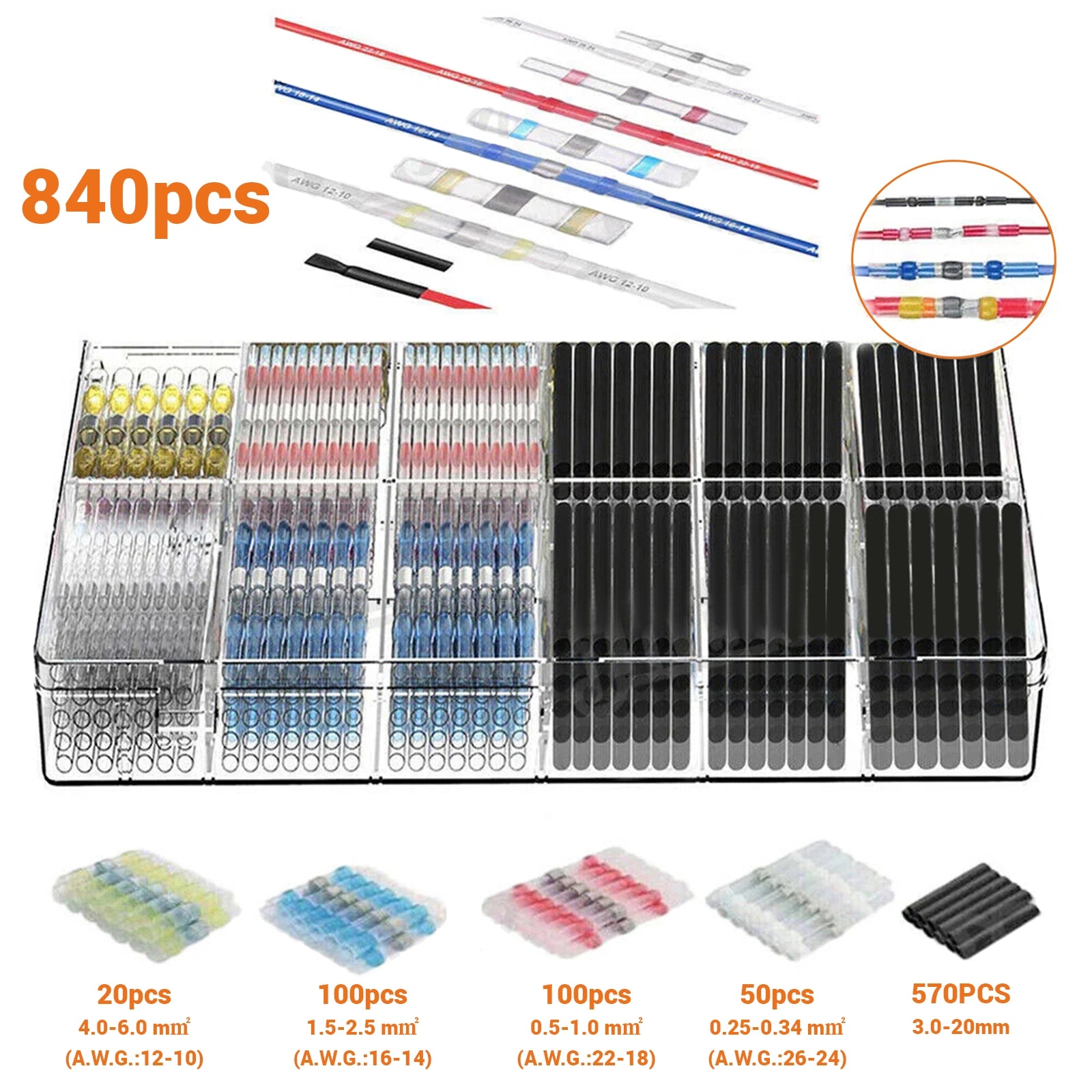

- 📦 840-Piece Comprehensive Kit — Includes 20 pcs Yellow, 100 pcs Blue, 100 pcs Red, 50 pcs White solder seal connectors, plus 570 pcs black heat shrink tubing (3.0–20 mm) — everything organized in a clear compartment tray for fast access.
- ⚡ Reliable Low-Temperature Solder Alloy — Solder starts flowing at 138°C and fully dissolves at 160°C, well within the safe range of a standard heat gun, ensuring consistent joints without overheating wire insulation.

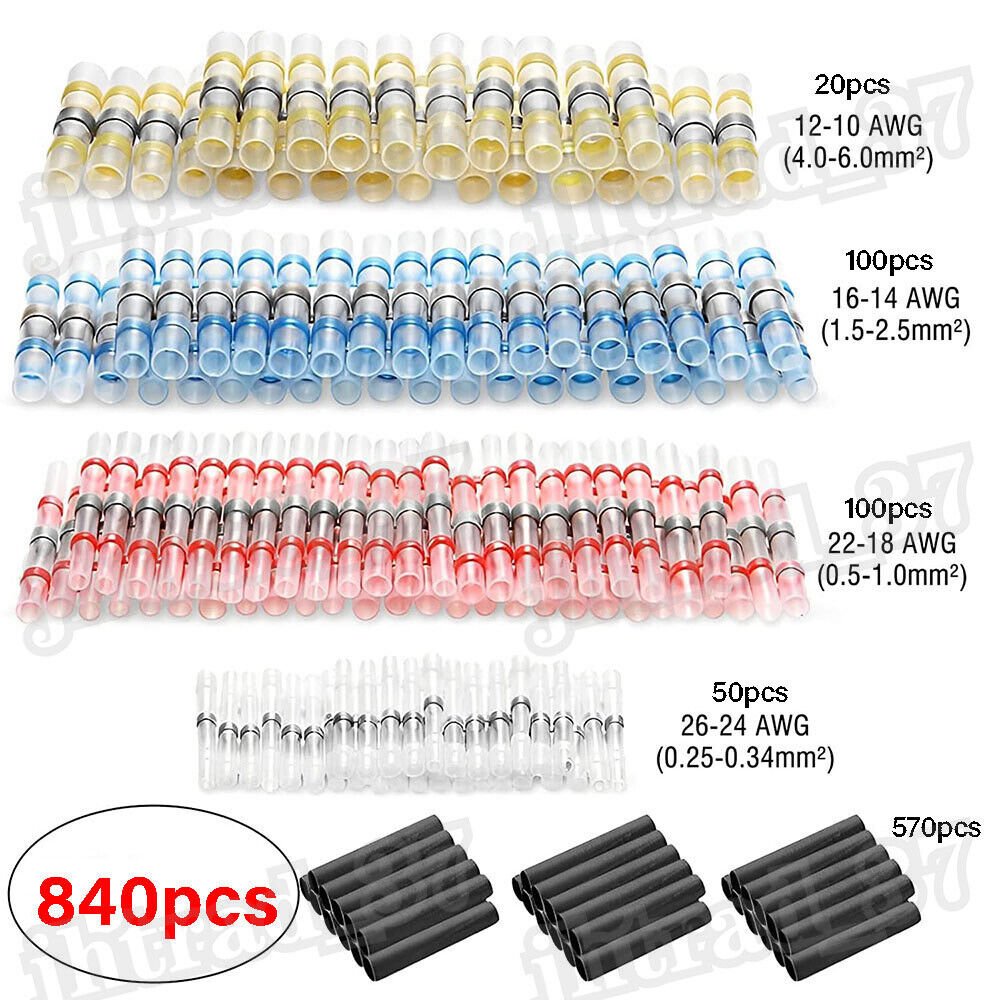

What's in the Box
- 20 pcs — Yellow solder seal connectors (AWG 12-10 / 4.0–6.0 mm²)
- 100 pcs — Blue solder seal connectors (AWG 16-14 / 1.5–2.5 mm²)
- 100 pcs — Red solder seal connectors (AWG 22-18 / 0.5–1.0 mm²)
- 50 pcs — White solder seal connectors (AWG 26-24 / 0.25–0.34 mm²)
- 570 pcs — Black heat shrink tubing (3.0–20 mm)
- 1 × Clear compartment storage tray
Who Is This For
🚗 Automotive & Trailer Wiring
Splice tail lights, trailer harnesses, and accessory circuits with connections that won't corrode or vibrate loose — even under the hood or in wheel wells exposed to road spray.
⛵ Marine & Boating Electrical
Salt water and constant humidity destroy standard connectors fast. The IP67-rated seal keeps bilge pump wiring, navigation lights, and fish finder cables protected for the long haul.
🏕️ RV, Outdoor & Garden Lighting
Run low-voltage landscape lighting, solar panel wiring, or RV 12V circuits with confidence — these connectors handle UV exposure, rain, and temperature swings without degrading.
🔧 DIY Home Electrical Repairs
Perfect for homeowners and hobbyists who need a fast, clean wire splice without a soldering station. The heat gun does all the work — no flux, no mess, no experience required.
Technical Specifications
| Total Quantity |
840 pcs |
| Solder Connector Colors / Sizes |
White (AWG 26-24), Red (AWG 22-18), Green (AWG 18-16), Blue (AWG 16-14), Yellow (AWG 12-10) |
| Wire Range (MM²) |
0.25–0.34 / 0.5–1.0 / 1.0–1.5 / 1.5–2.5 / 4.0–6.0 mm² |
| Heat Shrink Tubing |
570 pcs, Black, 3.0–20 mm diameter |
| Outer Tube Material |
Polyolefin (heat-shrinkable) |
| Inner Adhesive |
Waterproof hot melt adhesive |
| Solder Ring |
Low-temperature tin solder alloy |
| Shrinkage Temperature |
80°C |
| Solder Start Temperature |
138°C |
| Solder Complete Temperature |
160°C |
| Working Temperature Range |
-55°C to 105°C |
| Dielectric Strength |
1KV |
| Protection Level |
IP67 |
| Application |
Automotive, Marine, RV, Outdoor, Low-voltage electrical |
Frequently Asked Questions
Do I need a soldering iron to use these connectors?

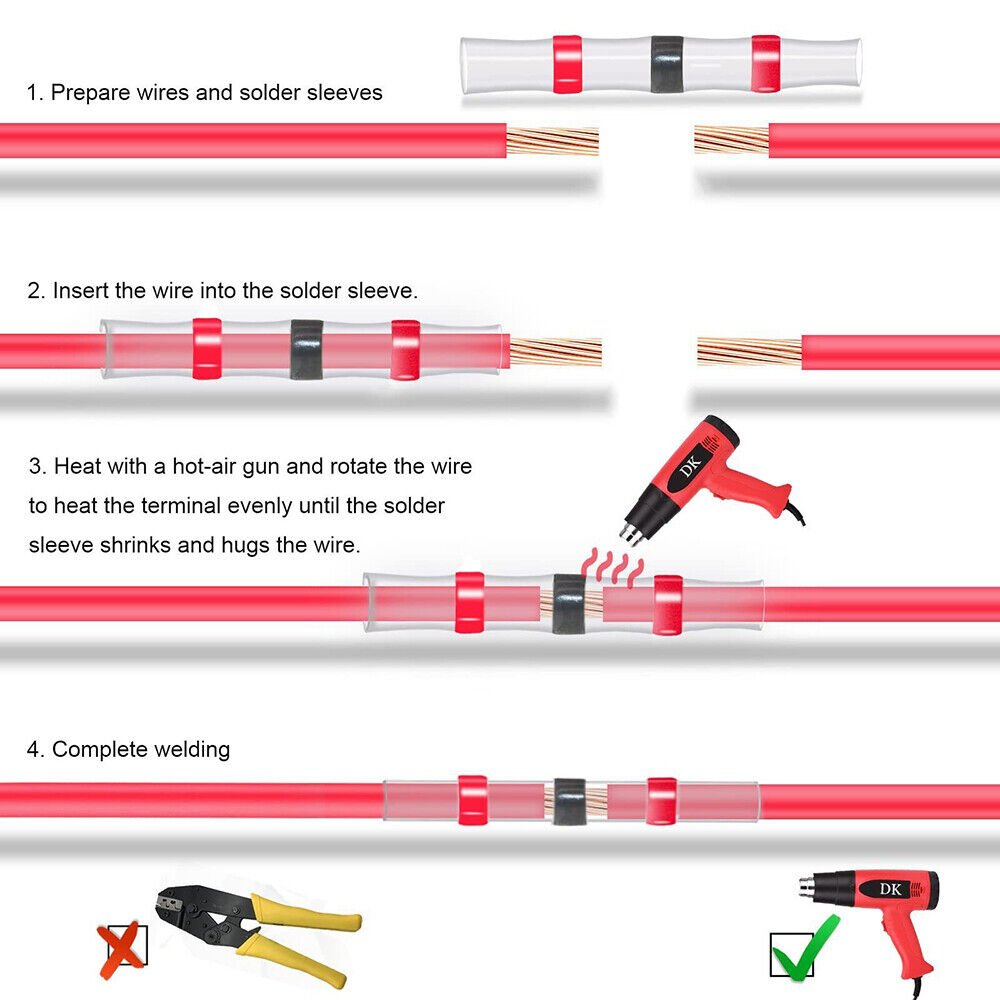

No. These are solderless in the traditional sense — the solder ring is pre-loaded inside the sleeve. All you need is a heat gun. Apply heat evenly until the sleeve shrinks and the solder ring melts and flows around the wire strands.
What heat gun temperature should I use?
A heat gun set to around 150–200°C works well. The sleeve begins shrinking at 80°C and the solder fully flows at 160°C. Keep the gun moving to heat evenly and avoid scorching the insulation.
Are these connectors truly waterproof?
Yes. The hot melt adhesive lining seals both ends of the connector when heated, achieving an IP67 protection rating — meaning the joint can withstand temporary submersion in water up to 1 meter for 30 minutes.
How do I choose the right size connector?
Match the connector color to your wire gauge: White for AWG 26-24 (0.25–0.34 mm²), Red for AWG 22-18 (0.5–1.0 mm²), Green for AWG 18-16 (1.0–1.5 mm²), Blue for AWG 16-14 (1.5–2.5 mm²), and Yellow for AWG 12-10 (4.0–6.0 mm²). Using the correct size ensures a tight mechanical and electrical connection.
Can these be used on solid core wire?
These connectors work best with stranded copper wire, which is standard in automotive and marine applications. They can be used on solid core wire within the specified AWG range, but stranded wire provides better solder flow and mechanical grip.
What is the black heat shrink tubing included for?
The 570 pcs of black heat shrink tubing (3.0–20 mm) are standard single-wall tubing for insulating and protecting bare wire ends, terminals, or other connections that don't require soldering. They shrink with the same heat gun used for the solder connectors.
Are these connectors suitable for high-current applications?
These connectors are rated for low-voltage, low-to-medium current applications typical of automotive, marine, and outdoor wiring (12V–48V systems). For high-current or mains-voltage applications, consult a licensed electrician and use appropriately rated components.
