When your motion-control build demands consistent torque transfer without belt slip, choosing the wrong pulley can derail an entire project. Engineers, makers, and machine builders working on CNC routers, 3D printers, conveyor systems, and robotics platforms need synchronous wheels that hold tight tolerances across every cycle — these 8M pitch timing belt pulleys are designed for exactly that application.

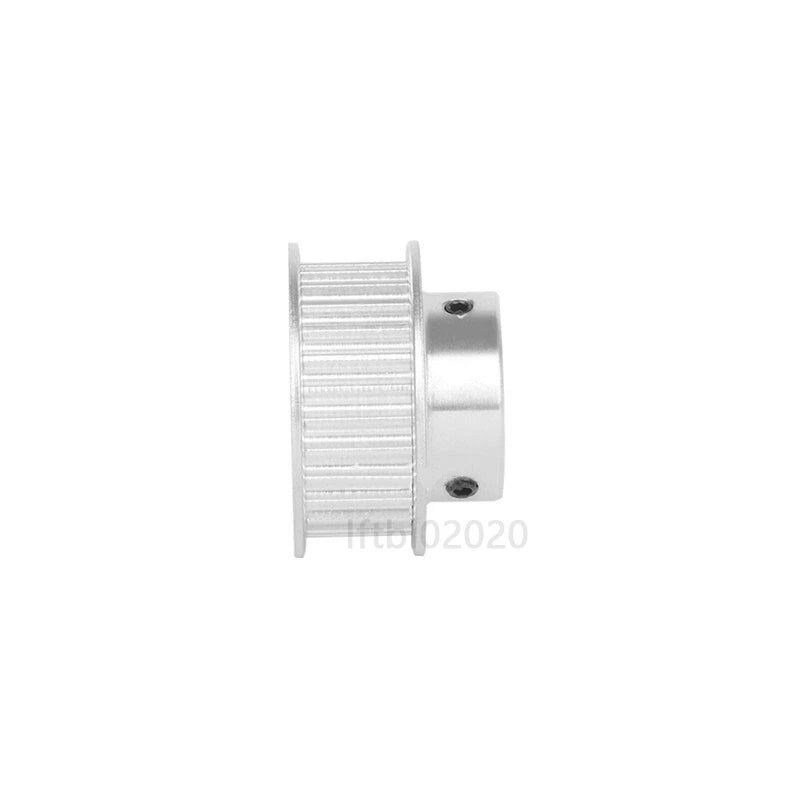

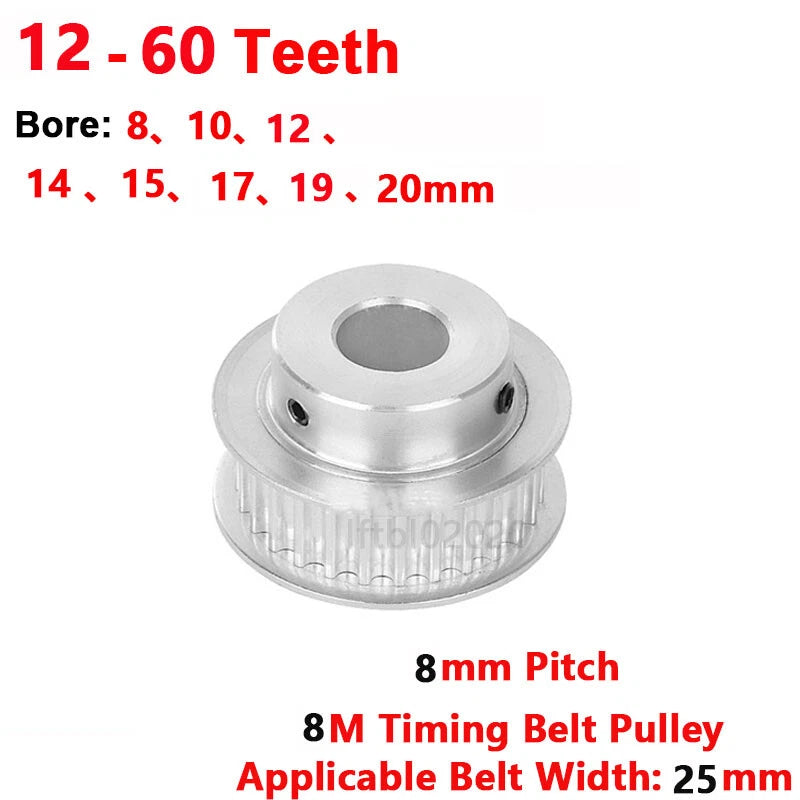

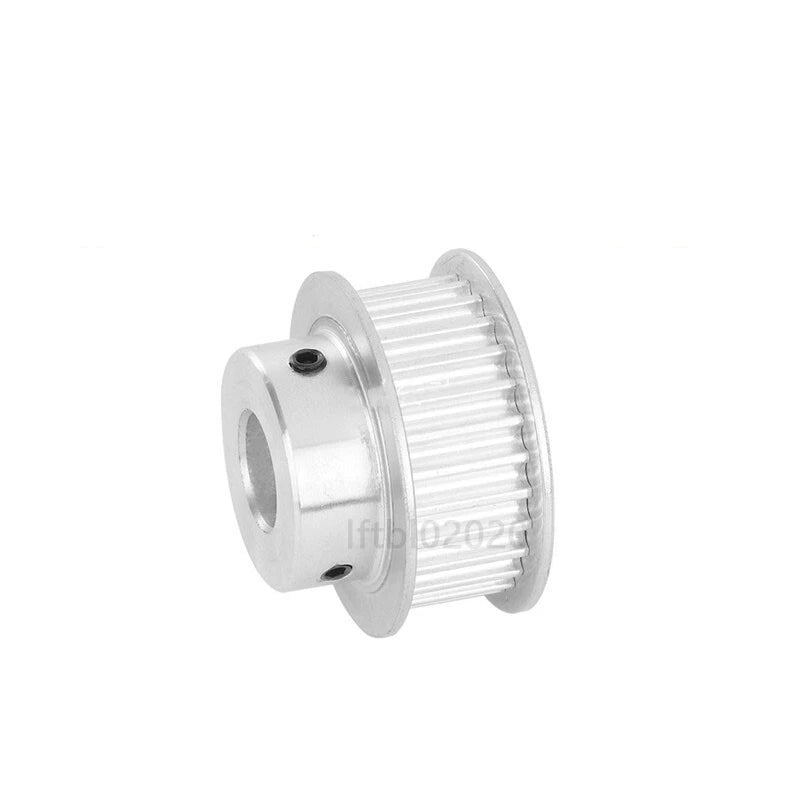

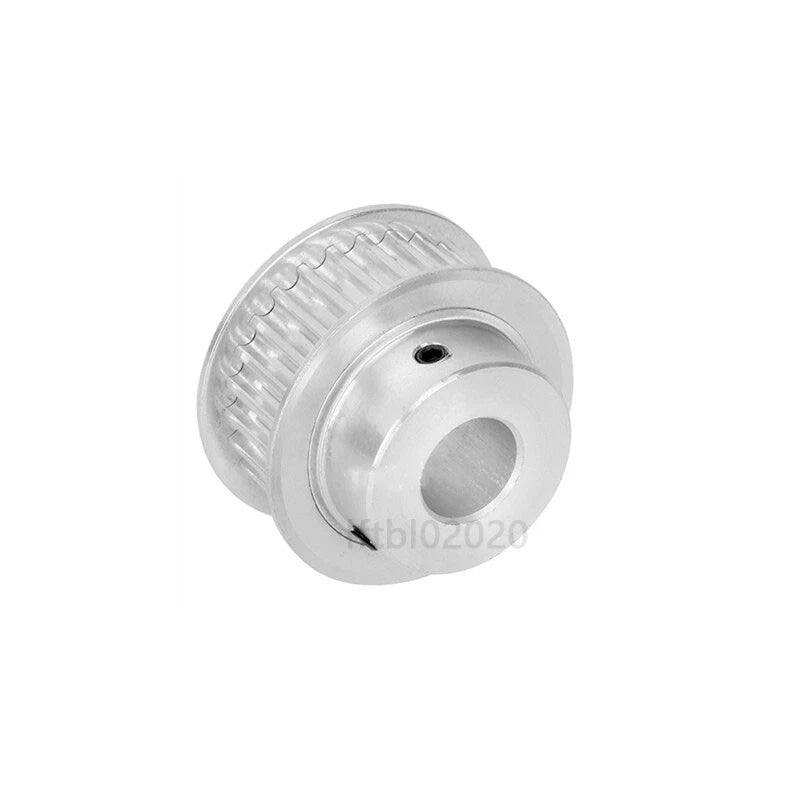

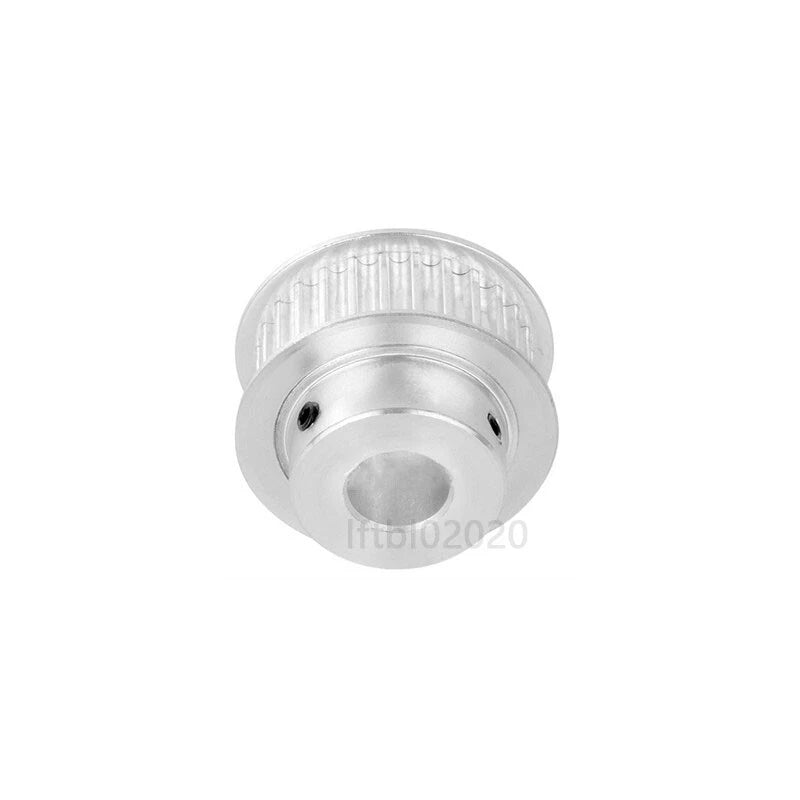

Each pulley is machined from aluminum alloy with an 8mm pitch (8M) tooth profile and a 27mm tooth width (approximately 1.06 inches). The range covers 12 to 60 teeth, with bore options from 8mm to 30mm (approximately 0.31 to 1.18 inches), including a 12.7mm (1/2 inch) bore for imperial shaft compatibility. One pulley is included per order.
Typical use cases include 8M belt drive systems on large-format CNC routers requiring high torque transmission, direct-drive or reduction-stage assemblies in industrial automation equipment, and replacement synchronous wheels for wide-belt printer carriages and conveyor indexing systems.
Available in 12, 14, 15, 16, 18, 20, 22, 24, 25, 26, 28, 30, 40, 44, 50, and 60 teeth — covering low-speed high-torque to high-speed precision drive ratios in a single product line.
Bore options from 8mm to 30mm, including 12.7mm (1/2") for imperial shafts, allowing direct mounting on stepper motors, servo shafts, and drive axles without custom machining.
Machined aluminum body delivers a favorable strength-to-weight ratio, resists corrosion in typical indoor automation environments, and dissipates heat during sustained operation.
The 27mm (approx. 1.06") tooth width matches standard 25mm 8M belts with lateral clearance, reducing edge wear and maintaining belt tracking under load.
The 8mm pitch tooth geometry provides positive engagement with 8M timing belts, eliminating slip under moderate-to-high torque loads common in CNC and conveyor applications.
Each variant ships as one pulley. Order the exact quantity needed for your drive system — ideal for prototyping, replacement, or multi-axis builds where each axis may require a different tooth count.
| Belt Pitch | 8M (8mm) |
|---|---|
| Tooth Width | 27mm (~1.06 in) |
| Number of Teeth | 12 / 14 / 15 / 16 / 18 / 20 / 22 / 24 / 25 / 26 / 28 / 30 / 40 / 44 / 50 / 60 |
| Bore Diameter | 8 / 10 / 12 / 12.7 / 14 / 15 / 16 / 17 / 18 / 19 / 20 / 22 / 24 / 25 / 28 / 30mm |
| Material | Aluminum alloy |
| Finish | Natural anodized / machined (see variant options) |
| Outer Diameter | See variant options |
| Hub Length | See variant options |
| Keyway | Contact us to confirm |
| Set Screw | Contact us to confirm |
| Quantity per Order | 1 piece |
| Compatible Belt Width | 25mm (nominal), 27mm tooth width |
The tooth count determines your pulley's pitch diameter and, combined with your motor pulley, sets the drive ratio. More teeth on the driven pulley relative to the driver pulley reduces output speed and increases torque. For CNC routers and 3D printers, common configurations pair a 20-tooth motor pulley with a 20- to 40-tooth driven pulley depending on the desired linear resolution and speed.
Select the bore that matches your shaft diameter exactly. Common stepper motor shaft sizes are 8mm, 10mm, and 12mm. Servo motors often use 14mm, 19mm, or larger shafts. The 12.7mm bore option accommodates 1/2-inch imperial shafts. If your shaft is slightly undersized, a set screw or keyway can compensate — contact us to confirm keyway availability for your chosen variant.
The 8M pitch profile is specifically designed for moderate-to-high torque synchronous drives. The aluminum alloy body provides adequate strength for typical CNC router, laser cutter, and conveyor applications. For extremely high-load industrial machinery, verify the torque rating against your system requirements. The 27mm tooth width distributes belt load across a wider contact area compared to narrower 8M variants.
Aluminum alloy naturally forms a thin oxide layer that resists corrosion in typical indoor environments. For humid, wet, or outdoor installations, consider applying a protective coating or using stainless steel hardware for mounting. These pulleys are not rated for submersion or direct exposure to corrosive chemicals.
Yes — these pulleys follow the standard 8M (8mm pitch) tooth profile and are compatible with any 8M synchronous timing belt of 25mm width. Confirm that your belt's pitch matches 8M and that the belt width is 25mm (the 27mm tooth width provides slight lateral clearance). Mixing different pitch standards such as HTD 8M and GT2 8M may result in poor engagement — verify the tooth profile with your belt supplier.
Yes, provided the replacement pulley matches the original in tooth count, bore diameter, and belt pitch. Measure your existing pulley's tooth count and bore before ordering. If the original pulley had a keyway or set screw in a specific position, contact us to confirm whether the replacement can be configured to match.
8M refers to an 8mm tooth pitch — the distance between adjacent tooth centers. GT2 has a 2mm pitch and is common in small 3D printers and light-duty CNC machines. T10 has a 10mm pitch and is used in heavier industrial drives. The 8M pitch occupies a middle ground: suitable for medium-to-large CNC machines, conveyor systems, and automation equipment where GT2 would be undersized but T10 would be unnecessarily large.
