When a belt drive system loses tension or runs misaligned, the entire mechanism suffers — vibration increases, belts wear prematurely, and positioning accuracy degrades. Engineers, machine builders, and serious DIYers who need a reliable 8M pitch idler pulley to maintain consistent belt tension will find this series purpose-built for the task. Available in toothed (24T, 25T, 30T) and smooth (toothless) configurations, these pulleys are designed to integrate directly into existing 8M belt drive layouts without modification.
Each pulley is machined from aluminum alloy with a hard-anodized or natural finish, featuring a central bore ranging from approximately 5mm to 15mm (0.20"–0.59") and a slot width of 16mm, 21mm, 27mm, 32mm, or 42mm to match standard 8M belt widths. The toothed variants engage the belt directly for positive drive or synchronization, while the smooth variants serve as tension idlers or belt guides without tooth engagement.
Typical applications include CNC router belt tensioning systems, 3D printer gantry idler setups, conveyor belt guide pulleys, and industrial automation belt drive assemblies where an 8M pitch idler pulley with selectable bore and slot width is required.
Available in 24T, 25T, and 30T configurations to suit different drive ratios and belt wrap requirements in your 8M belt system.

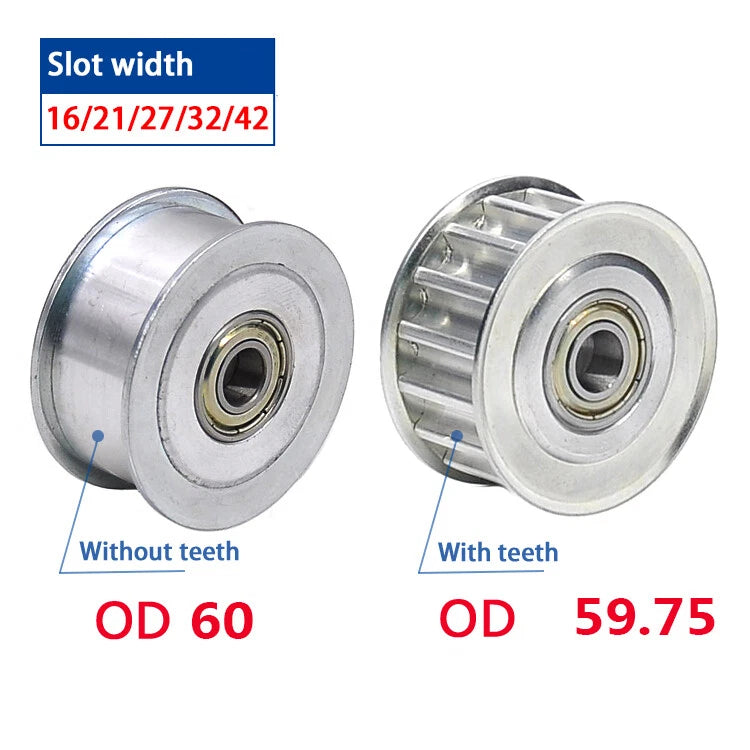

Choose toothed pulleys for positive belt engagement or smooth pulleys for tension and guide idler applications — both share the same mounting dimensions.
Central bore options from approximately 10mm to 25mm (0.39"–0.98") across variants, with keyway slot widths of 16mm, 21mm, 27mm, 32mm, or 42mm to match your shaft and belt width.
Machined aluminum body keeps rotating mass low while providing sufficient rigidity for continuous belt tensioning duty in automated and semi-automated systems.

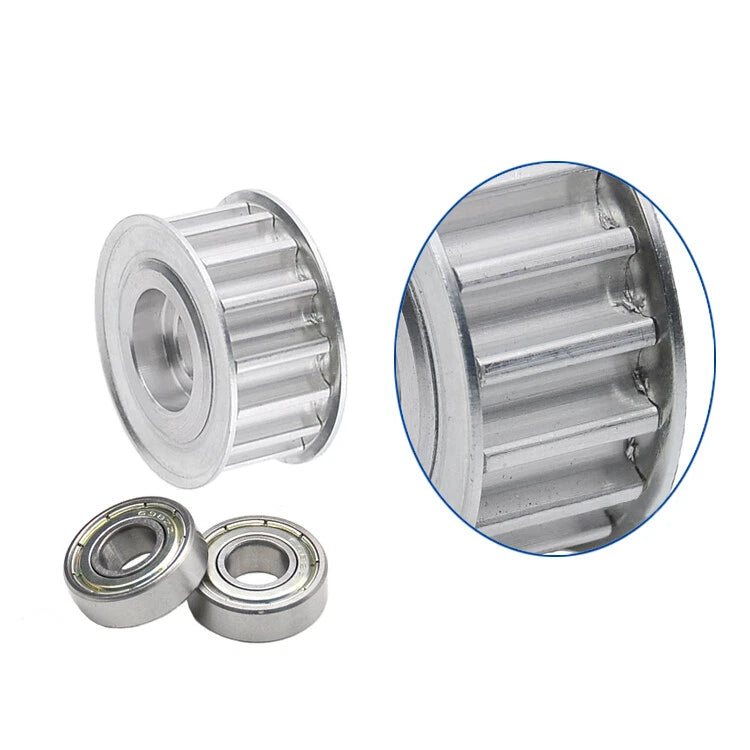

Toothed variants feature an accurate 8M tooth profile for consistent belt mesh, reducing backlash and maintaining synchronization in motion control applications.
Standard 8M pitch dimensions allow direct substitution in existing belt drive frames without redesigning the tensioner bracket or shaft arrangement.

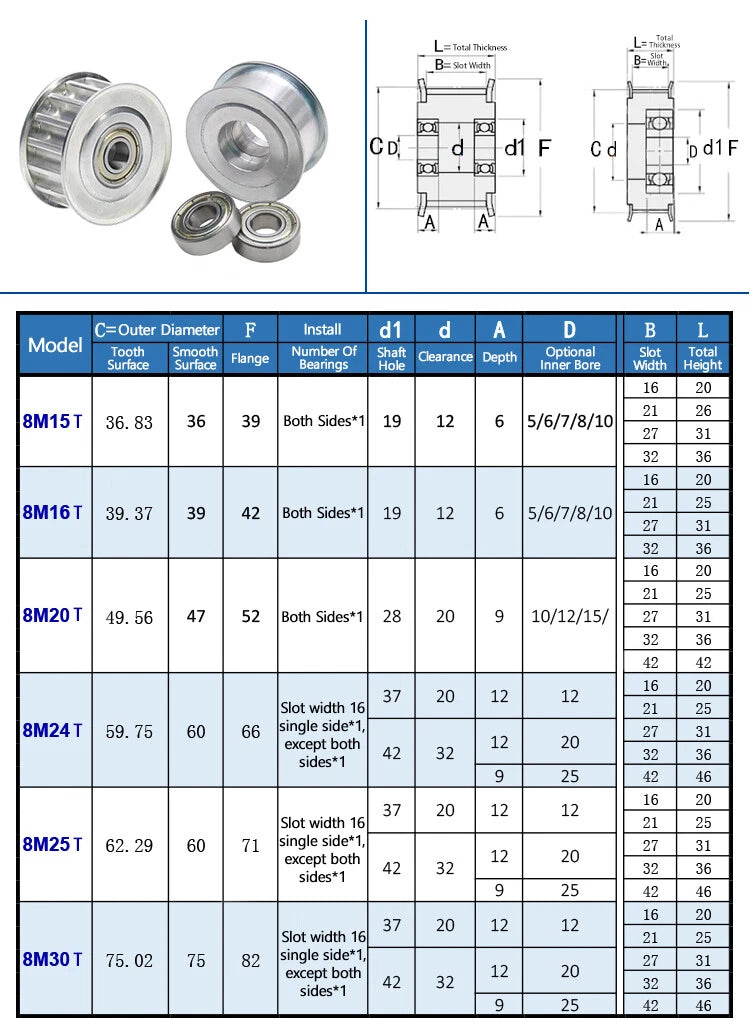

| Belt Pitch | 8M (8mm pitch) |
|---|---|
| Tooth Count Options | 24T / 25T / 30T |
| Pulley Type | Toothed (with teeth) / Smooth (without teeth) |
| Bore Diameter | See variant options |
| Slot (Belt) Width | 16mm / 21mm / 27mm / 32mm / 42mm |
| Material | Aluminum alloy |
| Finish | See variant options |
| Outer Diameter | See variant options |
| Compatible Belt Type | 8M synchronous timing belt |
| Quantity per Order | 1 piece |
Choose the toothed version when you need the idler to positively engage the belt teeth — for example, as a driven or synchronizing pulley. Choose the smooth version when the idler is used purely for tensioning or guiding the back (flat) side of the belt, where tooth engagement is not required and could cause belt damage.
The tooth count determines the pulley's pitch diameter and therefore the belt wrap angle and drive ratio. A higher tooth count means a larger pulley diameter. For idler applications, the tooth count mainly affects the minimum bend radius the belt experiences — a larger pulley (30T) is gentler on the belt and suitable for higher-speed or longer-life applications.

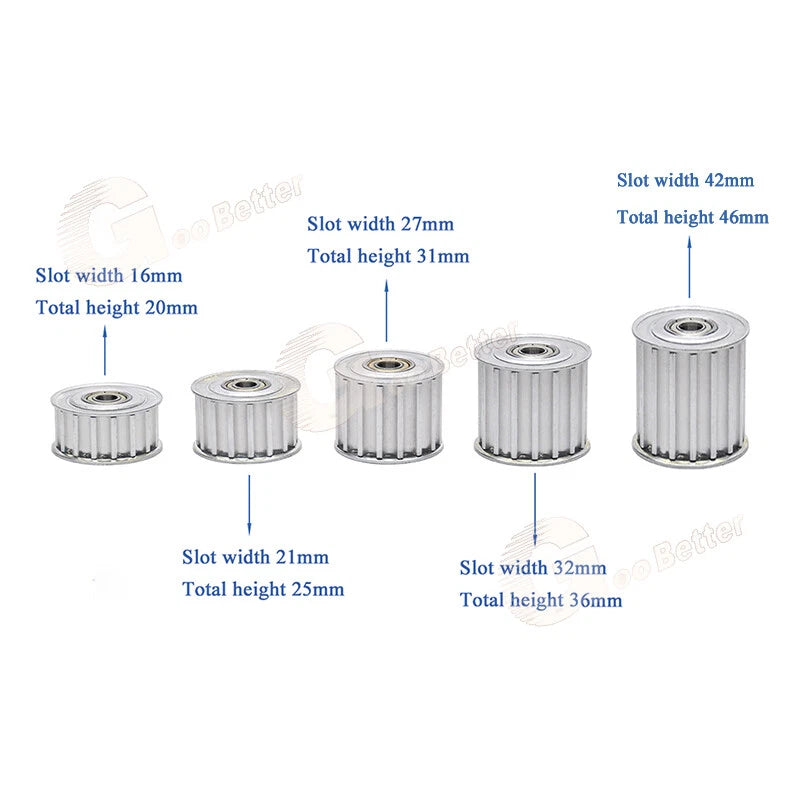

The bore diameter must match your shaft or bearing outer diameter. The slot width (16mm, 21mm, 27mm, 32mm, or 42mm) must match or exceed your belt width — select the slot width that matches your 8M belt width exactly for proper belt tracking. Refer to the variant options above to find the combination that fits your shaft and belt.
Yes — these pulleys are machined to the standard 8M tooth profile and are compatible with any 8M pitch synchronous timing belt of the appropriate width. Confirm that your belt width does not exceed the selected slot width variant.
Aluminum alloy offers good natural corrosion resistance suitable for indoor industrial and workshop environments. For applications involving moisture, mild chemicals, or outdoor exposure, consider adding a protective coating or using a sealed bearing insert. The material is not recommended for prolonged immersion or highly corrosive chemical environments without additional protection.

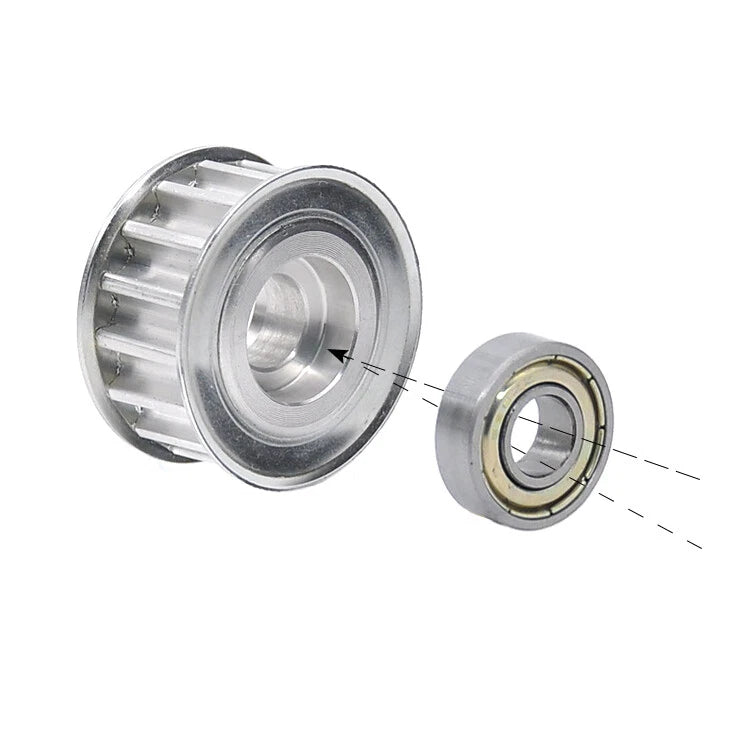

The aluminum construction keeps rotational inertia low, making these pulleys suitable for moderate to high-speed belt drive systems. Maximum allowable speed depends on the bearing used in your tensioner assembly and the belt tension. For very high-speed or high-load applications, verify that the bearing specification in your tensioner bracket is rated accordingly.
The slot width is the usable belt-contact width of the pulley. It should match your belt width: for example, a 15mm-wide 8M belt typically uses a 16mm or 21mm slot pulley. Selecting a slot width narrower than your belt will cause the belt to ride over the pulley flanges; selecting one significantly wider is acceptable but may reduce lateral belt guidance.
