When a timing belt slips or loses tension mid-run, the entire motion system pays the price — lost steps, misaligned cuts, or failed prints. Engineers, CNC builders, and automation technicians who rely on 8M pitch belt drives need an idler pulley that holds its position under load without introducing backlash or vibration. This 8M idler pulley is designed for exactly that role.

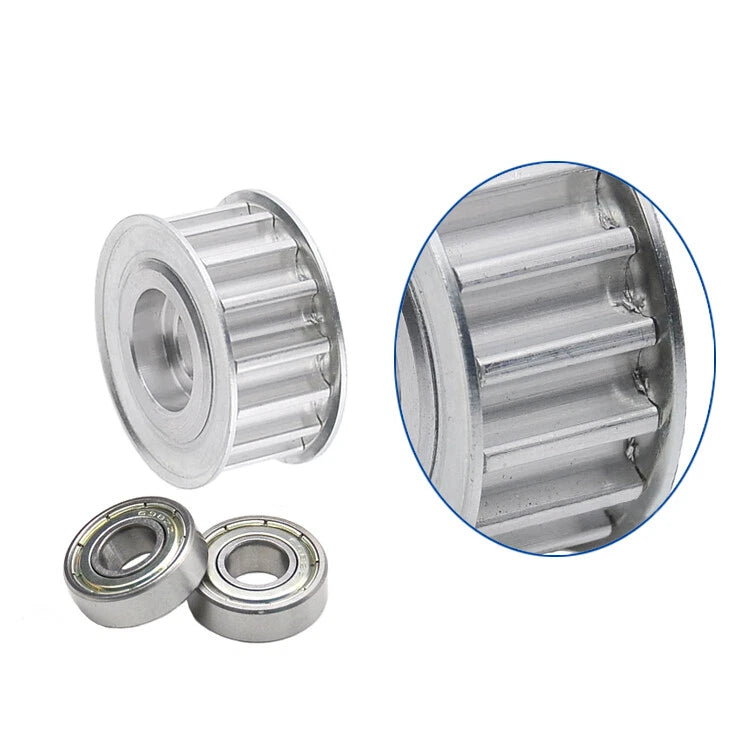

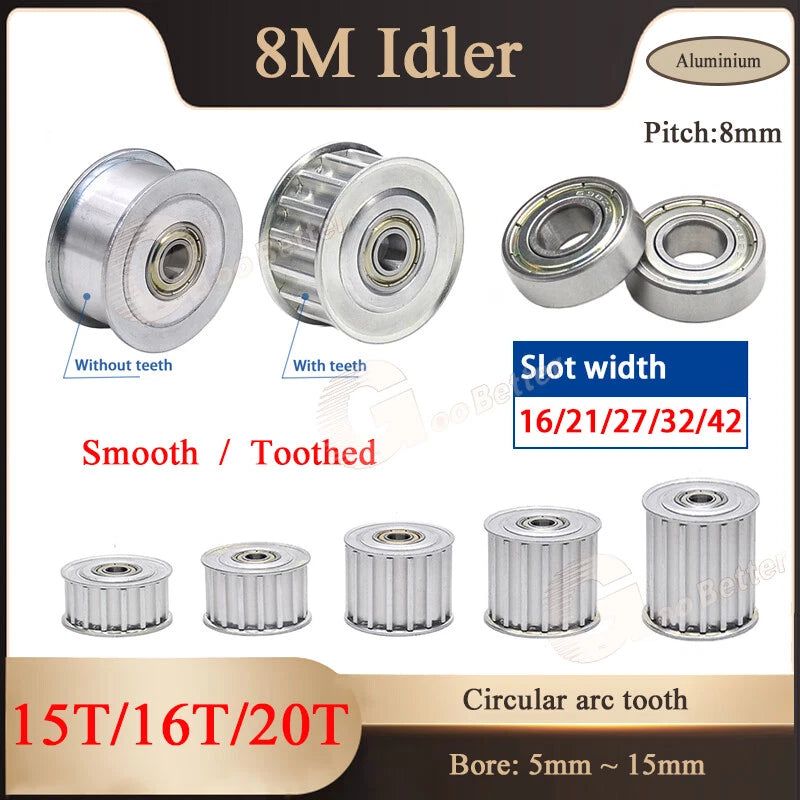

Each pulley is machined from aluminum alloy with a smooth or toothed rim to match your belt engagement requirement. Available in three tooth counts — 15T, 16T, and 20T — with bore diameters ranging from 5 mm to 15 mm (approximately 0.20 in to 0.59 in) and slot widths of 16 mm, 21 mm, 27 mm, 32 mm, or 42 mm to accommodate a wide range of 8M belt widths.
Typical applications include CNC router and laser cutter belt tensioning systems, 8M timing belt drives in industrial automation, large-format 3D printer motion platforms, and custom gantry or conveyor belt routing setups where a fixed or adjustable idler is required to maintain consistent belt wrap angle.

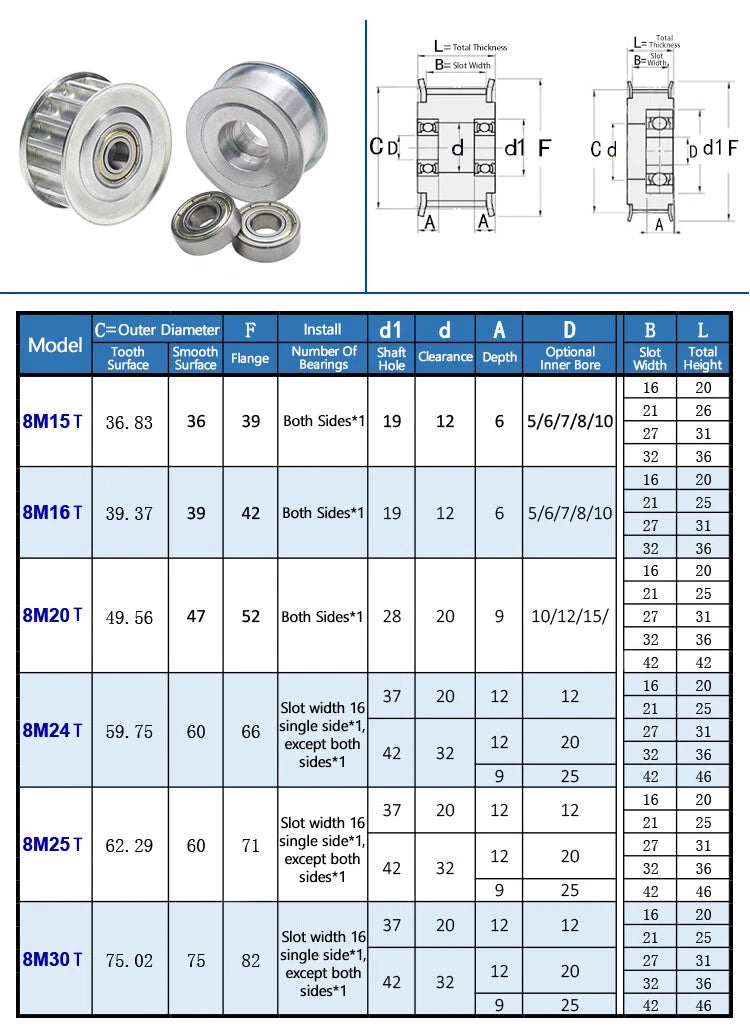

| Belt Pitch | 8M (8 mm tooth pitch) |
|---|---|
| Tooth Count | 15T / 16T / 20T (see variant options) |
| Pulley Type | With teeth (toothed) / Without teeth (smooth) |
| Bore Diameter | 5 mm / 6 mm / 7 mm / 8 mm / 10 mm / 12 mm / 15 mm |
| Slot Width | 16 mm / 21 mm / 27 mm / 32 mm / 42 mm |
| Material | Aluminum alloy |
| Outer Diameter | See variant options |
| Hub Width | See variant options |
| Mounting | Keyed bore with set screw slot |
| Finish | Natural aluminum / anodized (see variant options) |
| Weight | See variant options |
The tooth count affects the effective pitch diameter of the pulley, which in turn influences the belt wrap angle and the tension distribution in your drive. For most idler applications where the pulley is not a drive sprocket, the difference between 15T and 16T is minimal. Choose 20T when you need a larger diameter to reduce belt bending stress, particularly on longer belt spans or when using stiffer 8M belts. If you are replacing an existing idler, match the tooth count to your current setup to maintain the same geometry.

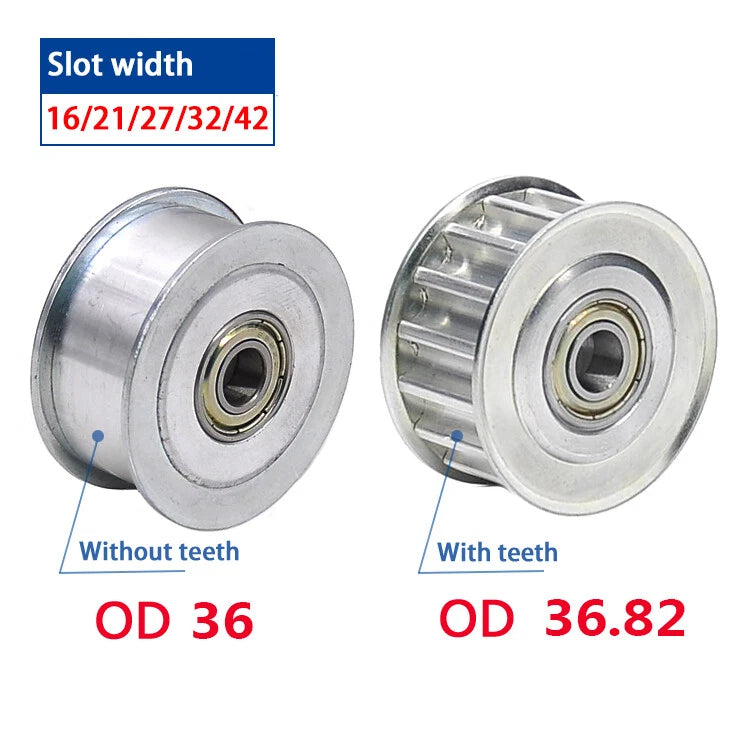

A toothed idler is used on the tooth side of the belt when you need positive engagement — for example, when the idler is part of a tensioning system that must prevent belt skipping. A smooth idler is used on the back (flat) side of the belt to redirect or tension it without engaging the teeth. Using a smooth idler on the tooth side can cause premature belt wear, so always match the idler type to the belt face it contacts.
The bore diameter must match your idler shaft or bolt diameter. Common sizes in this range are 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm, and 15 mm. The slot width must be equal to or greater than the width of your 8M belt. For example, a 20 mm wide 8M belt requires at least a 21 mm slot width. Always measure your belt width and shaft diameter before selecting a variant.
The aluminum alloy construction provides a good strength-to-weight ratio suitable for light-duty to medium-duty 8M belt drives, including CNC machines, 3D printers, and light automation equipment. For heavy-duty industrial applications with high belt tension or shock loads, verify the load rating against your system requirements. The keyed bore with set screw slot ensures secure shaft engagement under normal operating conditions.
Aluminum alloy naturally forms a thin oxide layer that provides moderate corrosion resistance in typical indoor workshop environments. It is not recommended for continuous exposure to water, salt spray, or aggressive chemicals without additional surface treatment. For humid or outdoor environments, consider applying a light coating of machine oil to the bore and mounting surfaces.
These pulleys are designed and listed as idler pulleys. While the toothed variants are mechanically capable of transmitting torque in low-load scenarios, they are not rated or tested as drive pulleys. For drive applications, use a dedicated 8M timing pulley with a properly sized keyway and set screw rated for your torque requirements.

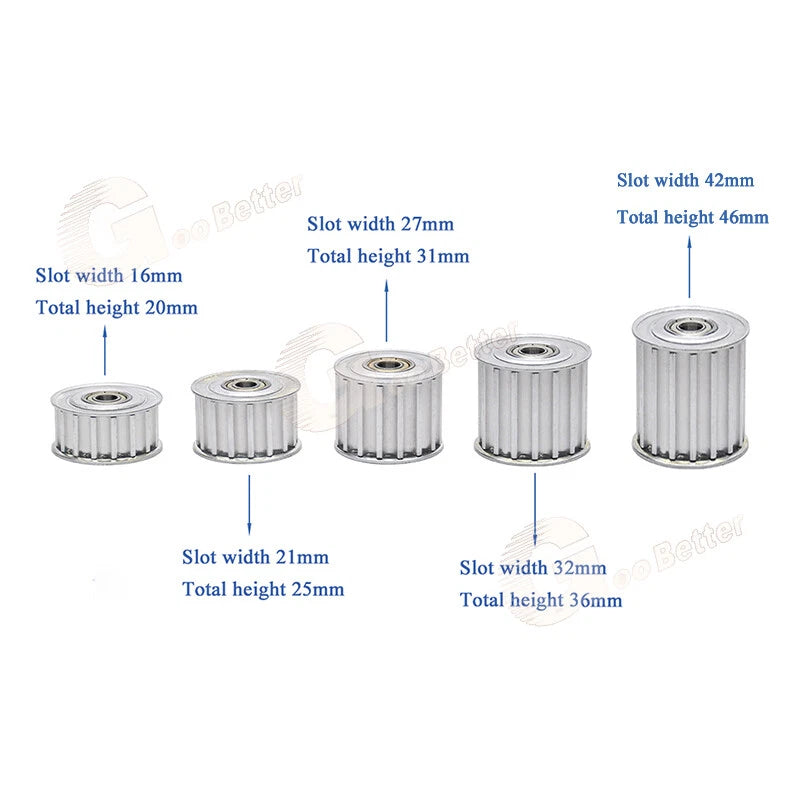

As a general guide: the 16 mm slot suits belts up to 15 mm wide; the 21 mm slot suits belts up to 20 mm wide; the 27 mm slot suits belts up to 25 mm wide; the 32 mm slot suits belts up to 30 mm wide; and the 42 mm slot suits belts up to 40 mm wide. Always confirm the exact belt width specification for your application before ordering.
