When a timing belt loses tension mid-run, the consequences range from skipped teeth to full drive failure — a frustrating and costly outcome for engineers, machine builders, and serious DIYers who depend on synchronised motion. These 8M timing belt idler pulleys are designed to maintain consistent belt tension and guide alignment across a wide range of 8M pitch drive systems, without the need for constant readjustment.
Each pulley is machined from aluminium alloy with a hard-anodised or natural finish, available in both toothed and smooth (flat-face) configurations. Tooth counts range from 15T to 30T, belt widths span 16mm to 42mm (~0.63 in to ~1.65 in), and bore diameters cover 5mm to 25mm (~0.20 in to ~0.98 in) to suit a broad range of shaft sizes. The toothed variants engage belt teeth directly for positive tracking; smooth variants act as back-side tensioners or deflection guides.
Typical applications include CNC router Z-axis and gantry drives requiring 8M idler pulleys for belt tensioning, 3D printer and laser cutter motion systems using 8M timing belt idler tensioner pulleys, and industrial conveyor or indexing table builds where smooth-face 8M belt guide pulleys maintain lateral alignment without tooth engagement.

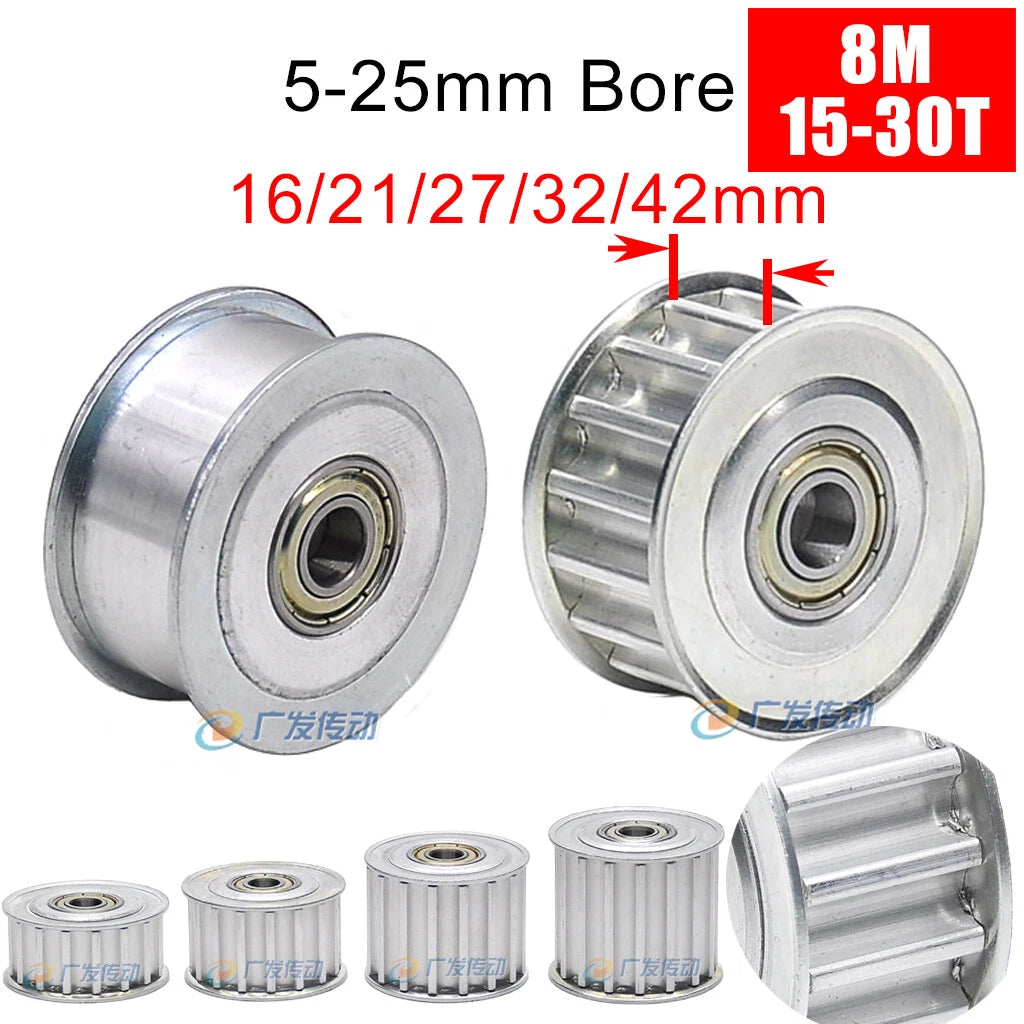

Available in 15T, 16T, 20T, 24T, 25T, and 30T configurations to match your drive geometry and wrap angle requirements.

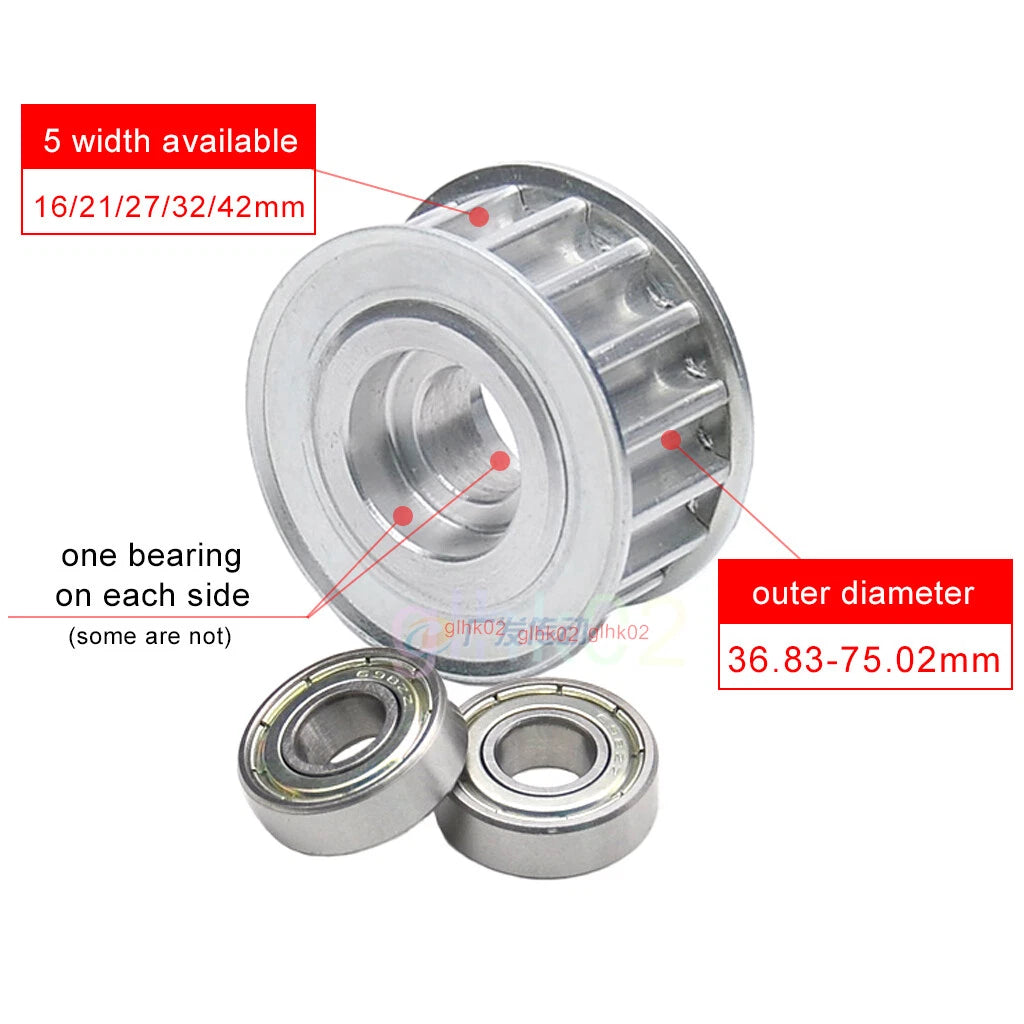

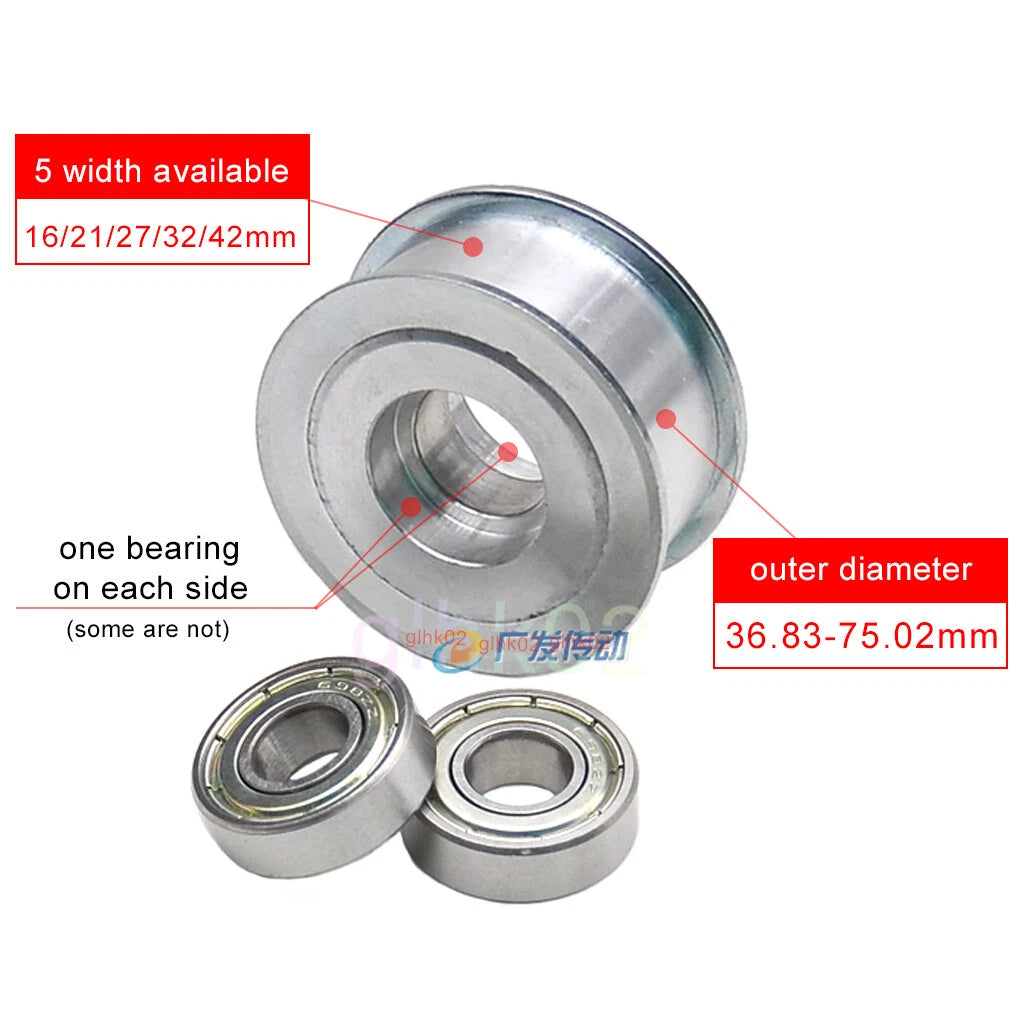

Covers 16mm, 21mm, 27mm, 32mm, and 42mm belt widths (~0.63–1.65 in), accommodating light-duty to heavy-duty 8M belt drives.
Bore options from 5mm to 25mm (5, 6, 7, 8, 10, 12, 15, 20, 25mm) allow direct shaft mounting without custom machining in most builds.

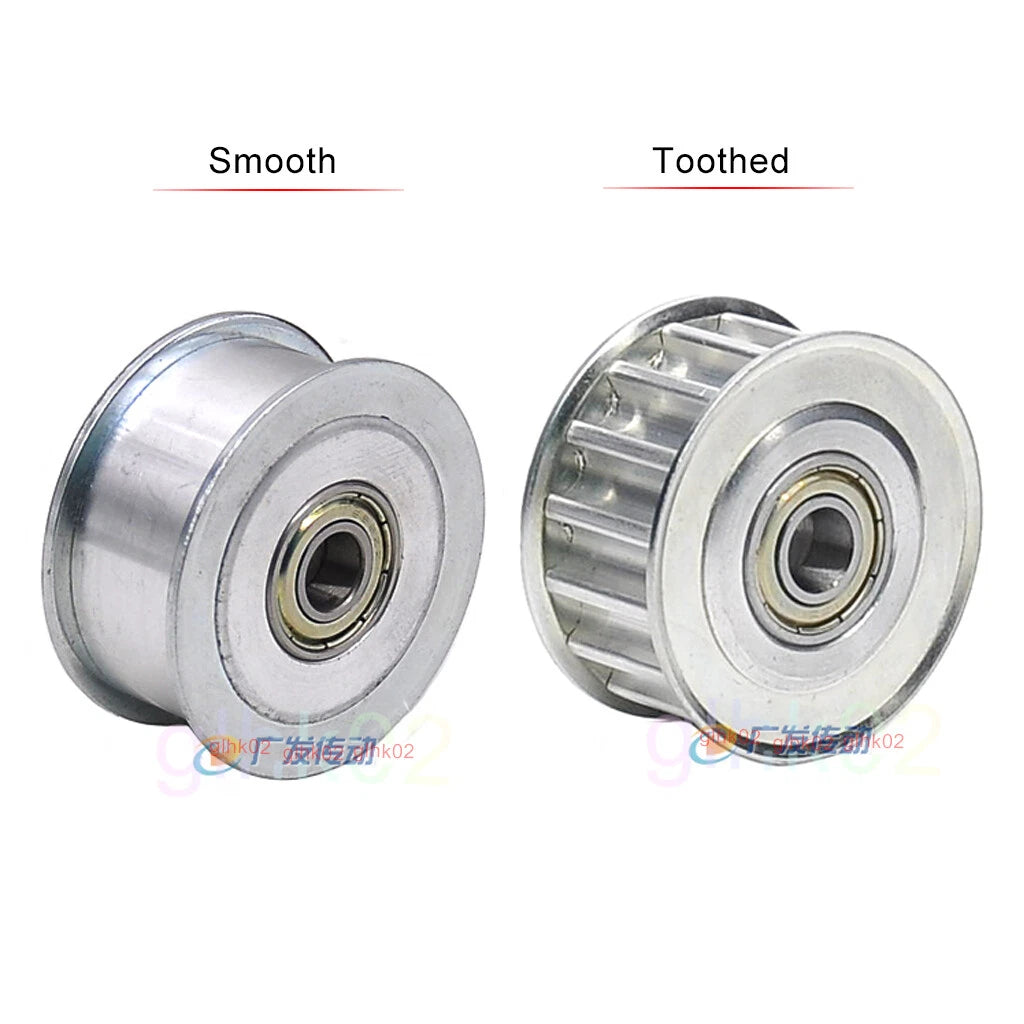

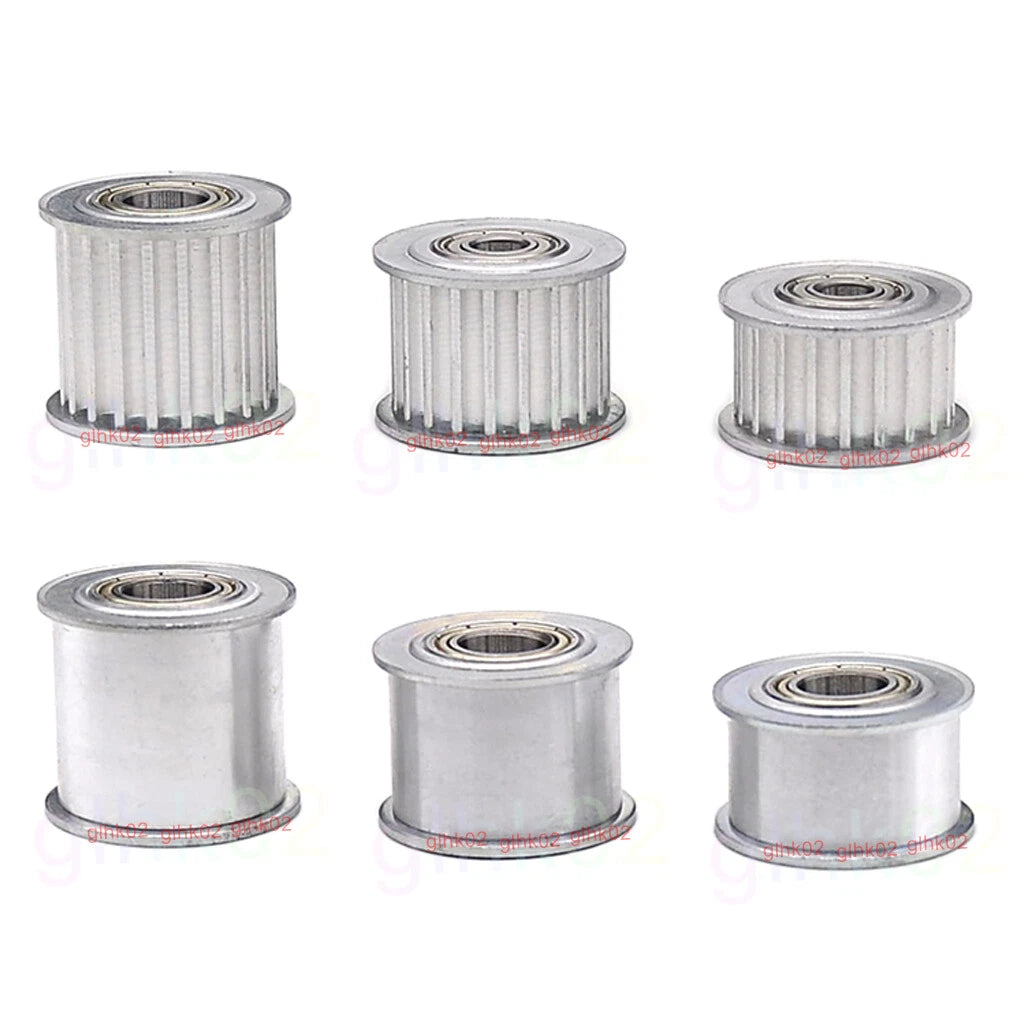

Toothed face for positive belt engagement and tracking; smooth face for back-side tensioning and deflection guiding without tooth wear.
Lightweight yet rigid aluminium body keeps rotational inertia low while providing the structural integrity needed for sustained belt tension loads.
Standard 8M pitch geometry ensures direct compatibility with off-the-shelf 8M timing belts and matching sprocket systems — no custom adaptation required.

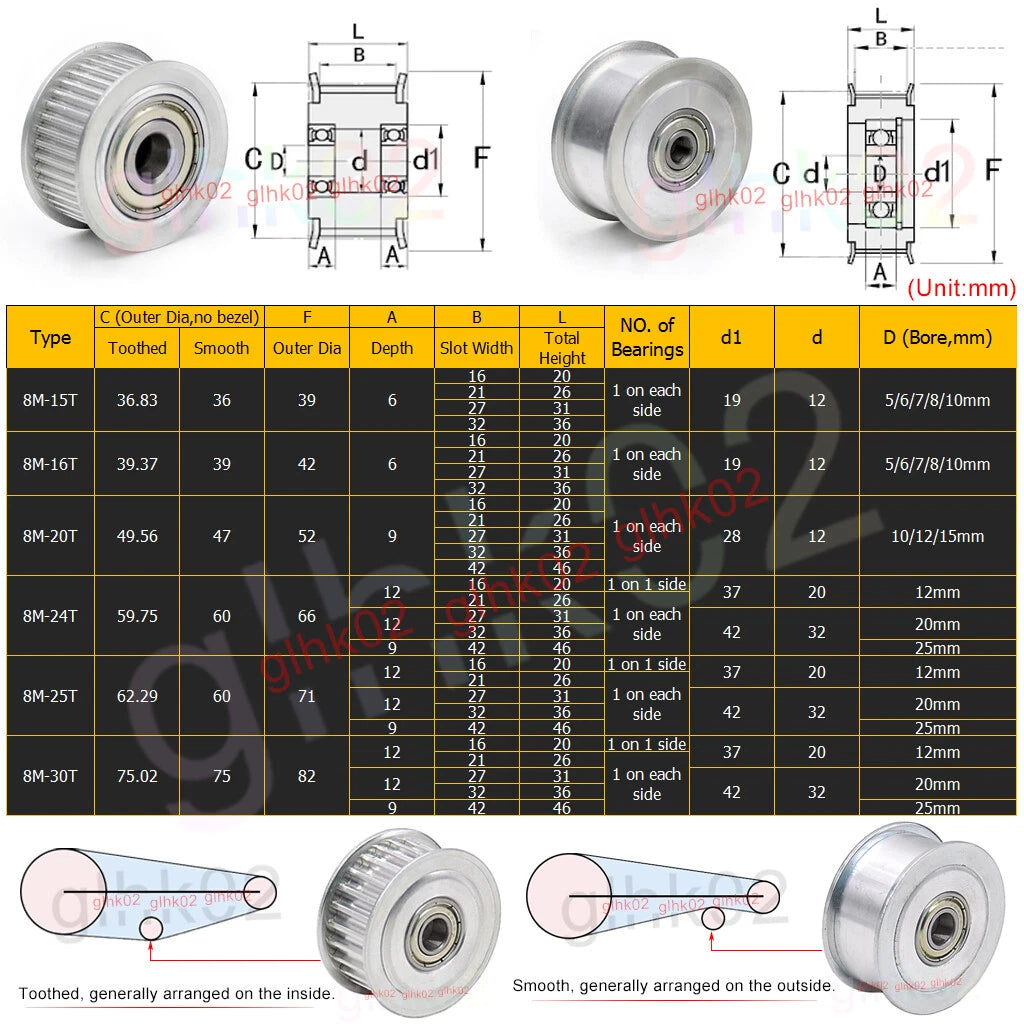

| Belt Pitch | 8M (8mm tooth pitch) |
|---|---|
| Tooth Count Options | 15T, 16T, 20T, 24T, 25T, 30T |
| Face Type | Toothed or Smooth (see variant options) |

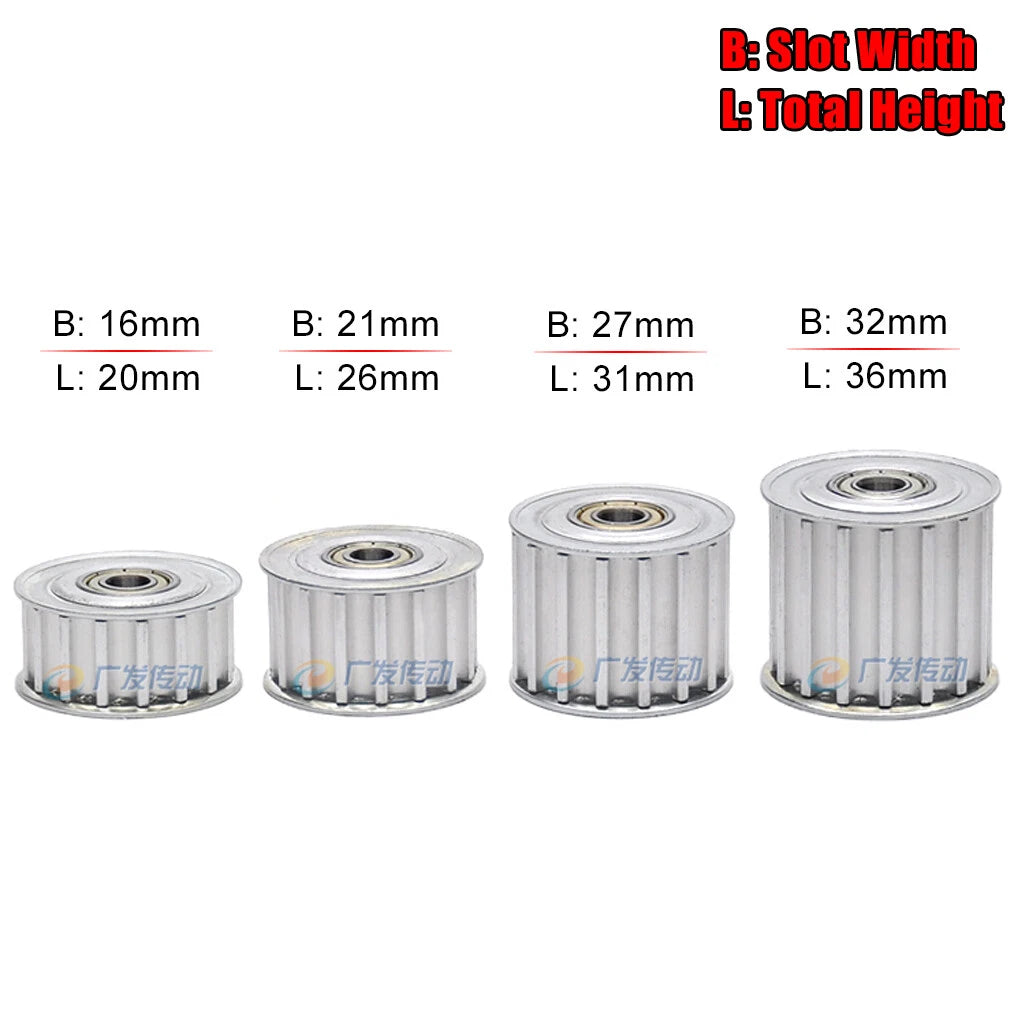

| Belt Width Options | 16mm, 21mm, 27mm, 32mm, 42mm |
| Bore Diameter Options | 5, 6, 7, 8, 10, 12, 15, 20, 25mm |
| Material | Aluminium alloy |
| Finish | See variant options |
| Flange | See variant options |
| Keyway | Contact us to confirm |
| Set Screw | Contact us to confirm |
| Quantity per Order | 1 PCS |
Use a toothed idler on the tooth side of the belt when you need positive engagement and precise tracking — it meshes with the belt profile and prevents lateral drift. Use a smooth idler on the back (flat) side of the belt for tensioning or deflection without engaging the teeth. Applying a smooth pulley to the tooth side can cause belt wear and skipping.
Tooth count affects the wrap angle and the pitch diameter of the idler. A larger tooth count gives a larger pitch diameter, which reduces belt bending stress at the idler contact point — beneficial for high-speed or long-life applications. For tight-space tensioner positions, a smaller tooth count (15T–16T) is common. Match the tooth count to your available mounting space and the minimum bend radius of your 8M belt.
Measure your shaft diameter with a vernier calliper or micrometer. Select the bore that matches your shaft exactly — available in 5, 6, 7, 8, 10, 12, 15, 20, and 25mm. If your shaft diameter falls between listed sizes, a bore that is slightly larger can be used with a keyway or set screw arrangement, but contact us to confirm availability of those features for your chosen variant.
Yes — these pulleys are machined to standard 8M pitch geometry (8mm tooth pitch, standard tooth profile), making them compatible with any off-the-shelf 8M timing belt from major belt manufacturers. Ensure the belt width you select matches the pulley face width variant you order (e.g., a 25mm-wide belt requires a 27mm or wider pulley face for proper tracking).
As a general rule, select a pulley face width that is equal to or slightly wider than your belt width. For example, a 25mm-wide 8M belt pairs well with a 27mm face pulley. Using a pulley face that is narrower than the belt can cause the belt to ride off the edge under load. Available face widths are 16mm, 21mm, 27mm, 32mm, and 42mm.
The pulleys are machined from aluminium alloy, which offers a good strength-to-weight ratio and natural corrosion resistance in typical indoor mechanical environments. For applications involving moisture, cutting fluids, or outdoor exposure, consider applying a light protective coating or selecting a variant with an anodised finish. Aluminium is not suitable for highly acidic or alkaline environments without additional protection.
Yes. In many 8M belt drive designs, a combination of toothed idlers (for tooth-side guidance) and smooth idlers (for back-side tensioning) is used in the same system. Order the appropriate face type for each position. Ensure the bore and belt width variants match the shaft and belt specifications at each mounting point.
