8M Führungsrolle mit-ohne Zähne 15-30z Riemenscheibe Pulley für 3D Drucker CNC

Roll over image to zoom in Click on image to zoom

8M Führungsrolle mit-ohne Zähne 15-30z Riemenscheibe Pulley für 3D Drucker CNC

HomeDIYer

No reviews

By HomeDIYer®

Modell: 8M 15T

Anzug für Gürtelbreite: 15mm

Produkttyp & Bohrung: Mit Zähnen & 5mm

Price:

$8.23 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri 8:30 AM – 8:00 PM

WhatsApp Email Us

24-Hour Fast Ship

Arrives in 3–14 Days

Worldwide Shipping

30-Day Returns

1 tree planted with every purchase

8M Timing Pulley With/Without Teeth — Precision Drive Component for 3D Printers & CNC

When your motion system demands consistent torque transfer and zero belt slip, a mismatched or worn pulley becomes the weakest link in your build. Engineers, makers, and machine builders working on 3D printers, CNC routers, and automation rigs need an 8M timing pulley that holds tight tolerances across every cycle. This 8M timing pulley is available with or without teeth, covering 15 to 30 tooth counts and belt widths from 15 mm to 30 mm, so you can match it precisely to your existing 8M HTD belt drive.

Each pulley is machined from aluminum alloy, delivering a lightweight yet rigid body that resists deformation under load. The bore diameter ranges from 5 mm to 25 mm (0.20 in to 0.98 in), and tooth profiles conform to the 8M HTD standard with a pitch of 8 mm (0.315 in). Belt-compatible widths span 15 mm, 20 mm, 25 mm, and 30 mm (0.59 in to 1.18 in), with tooth counts of 15T, 16T, 20T, 24T, 25T, and 30T available across both toothed and smooth (toothless) variants.

Typical use cases include replacing worn drive pulleys on Cartesian or CoreXY 3D printer gantries, upgrading the axis drive on a desktop CNC router for tighter positional accuracy, and building custom conveyor or robotic arm assemblies where an 8M HTD belt pulley with a specific bore-to-belt-width combination is required.

⚙️ Compatible with 8M HTD timing belts — belt widths 15 mm, 20 mm, 25 mm, 30 mm. Verify tooth count and bore diameter before ordering.

✅ Key Features of These 8M Timing Pulleys

🔩 8M HTD Tooth Profile

Engineered to the 8 mm pitch HTD standard for positive engagement with 8M timing belts, minimizing backlash in precision motion systems.

⚖️ Aluminum Alloy Construction

Lightweight aluminum body keeps rotational inertia low while providing the rigidity needed for sustained CNC and 3D printer duty cycles.

📐 Wide Tooth Count Range

Available in 15T, 16T, 20T, 24T, 25T, and 30T configurations to match your required gear ratio and belt wrap angle.

🎯 Multiple Bore Sizes

Bore options from 5 mm to 25 mm accommodate common motor shaft diameters used in NEMA 17, NEMA 23, and servo motor applications.

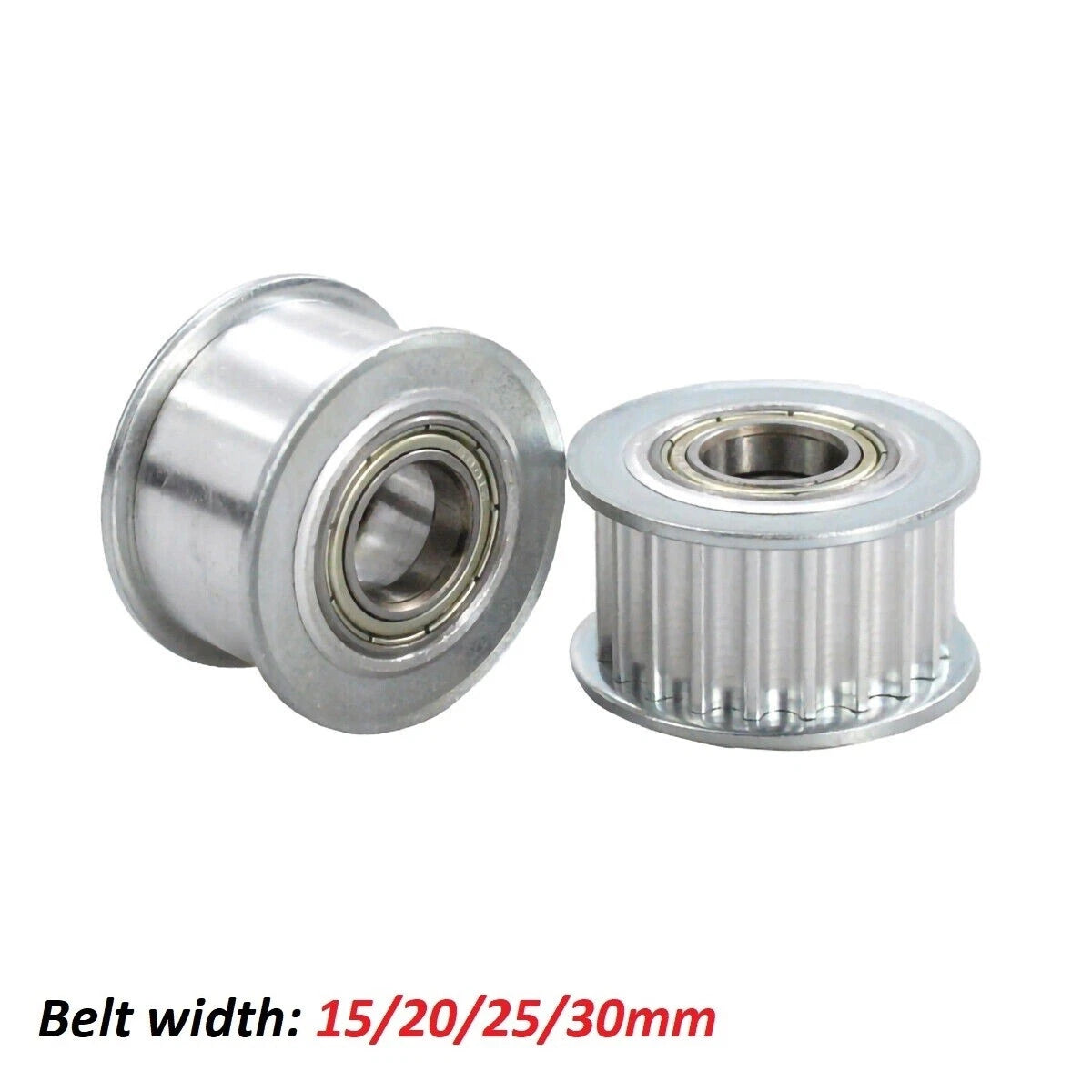

↔️ Four Belt Width Options

Choose 15 mm, 20 mm, 25 mm, or 30 mm belt width to match your existing drive belt and maintain proper belt tracking.

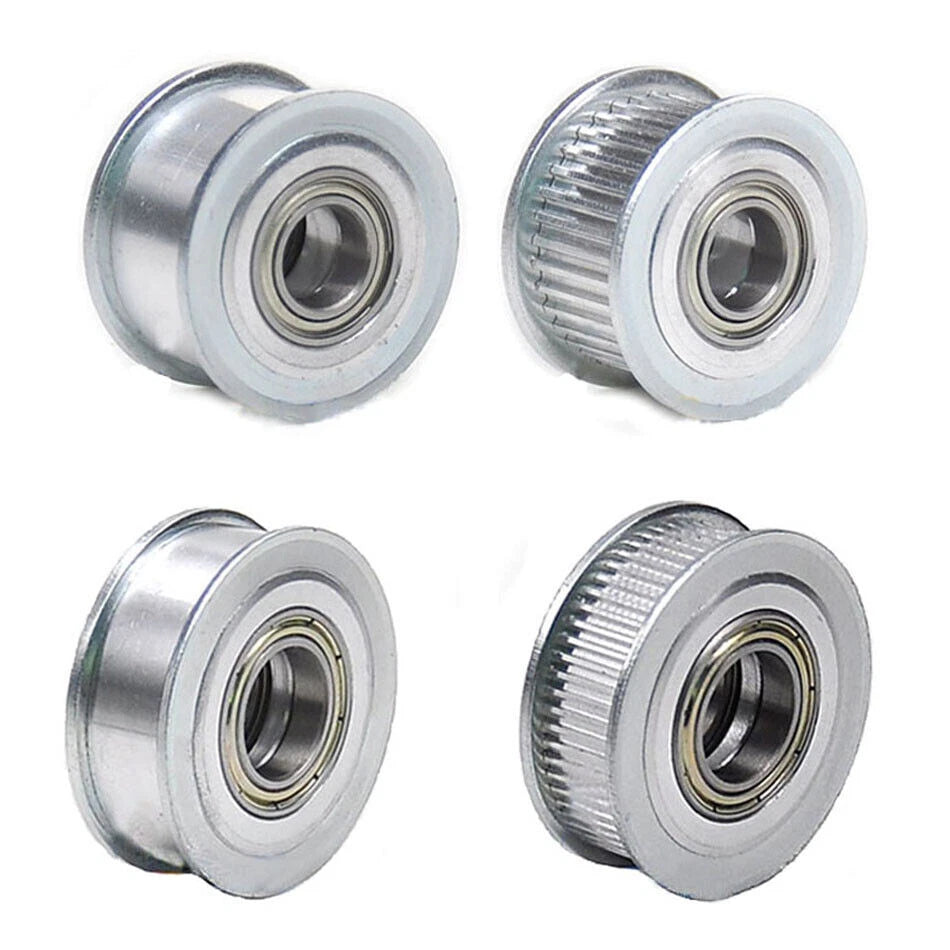

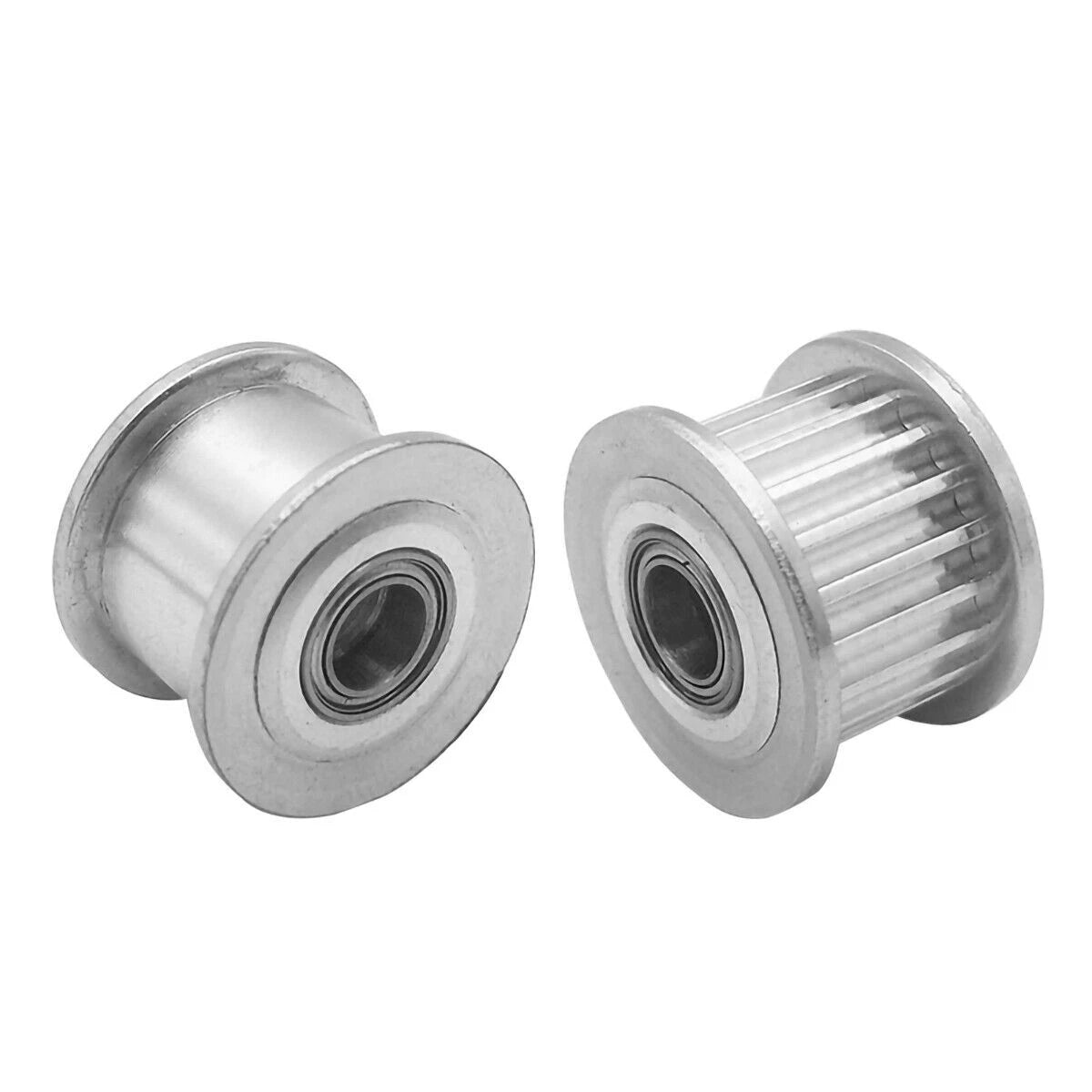

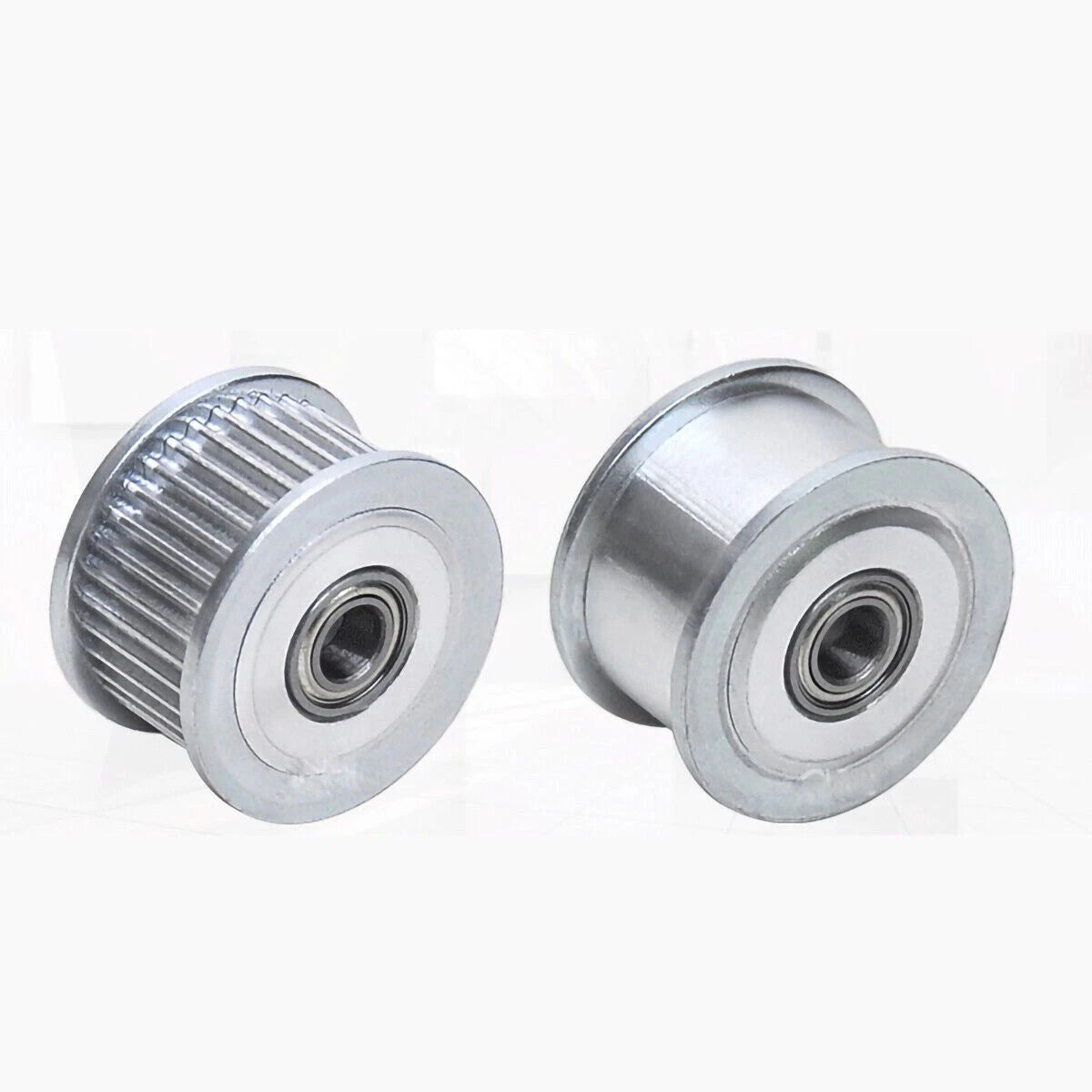

🔄 Toothed & Smooth Variants

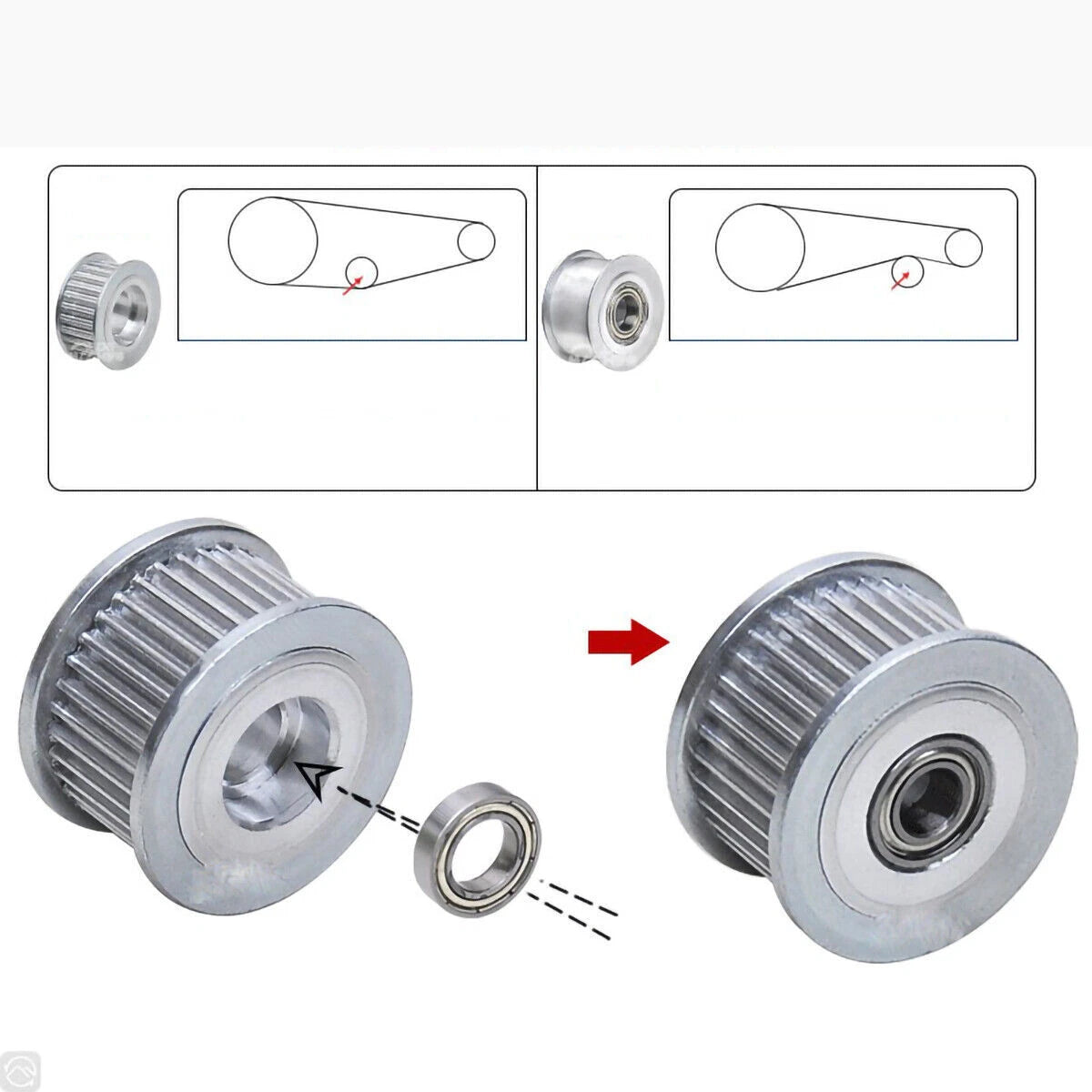

Toothed pulleys provide positive drive; smooth (toothless) pulleys serve as idlers or tensioners in multi-pulley belt routing layouts.

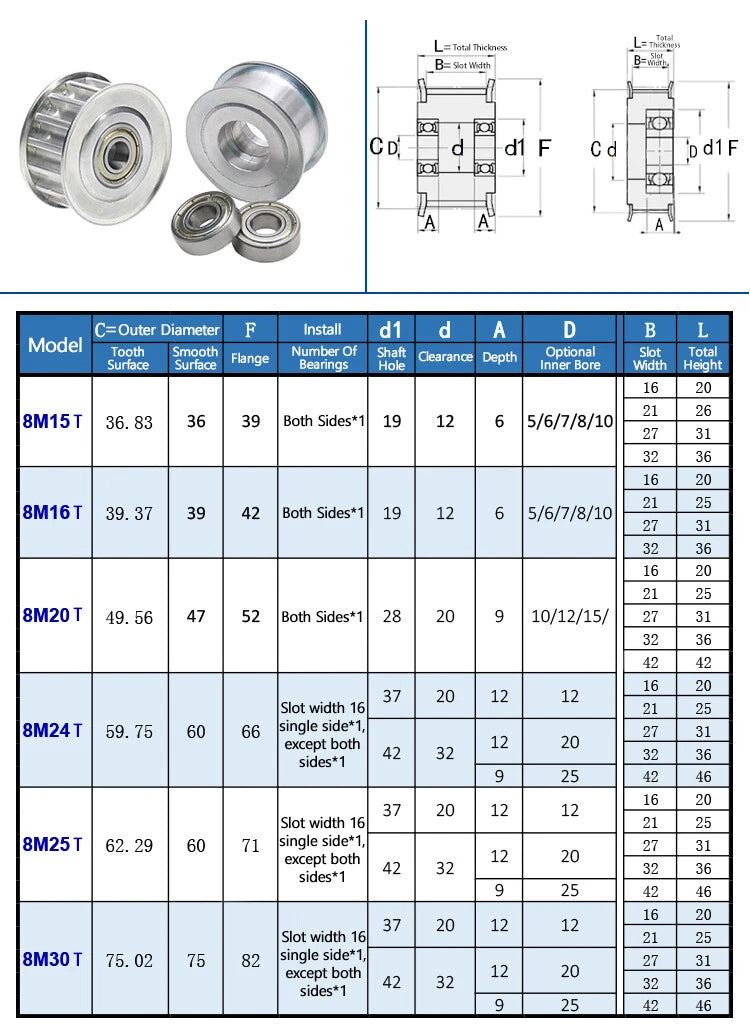

📐 Technical Specifications — 8M Timing Pulley

Belt Pitch	8 mm (HTD 8M)
Tooth Count Options	15T, 16T, 20T, 24T, 25T, 30T
Belt Width Compatibility	15 mm / 20 mm / 25 mm / 30 mm
Bore Diameter Range	5 mm – 25 mm (0.20 in – 0.98 in)
Material	Aluminum alloy
Pulley Type	Toothed (positive drive) or Smooth (idler/tensioner)
Outer Diameter	See variant options
Hub Width	See variant options
Flange	See variant options
Surface Finish	See variant options
Weight	See variant options

❓ Frequently Asked Questions

How do I choose the right tooth count for my application?

Match the tooth count to your required drive ratio. For 3D printer gantries, 20T is a common choice for balanced speed and torque. Higher tooth counts (24T–30T) increase belt speed per motor revolution, while lower counts (15T–16T) provide more torque at lower speeds. Always pair with a matching 8M HTD belt.

What belt width should I select?

Select the belt width that matches your existing 8M timing belt. Common widths are 15 mm for lighter-duty 3D printer axes and 20–30 mm for heavier CNC or industrial conveyor applications. Mismatching belt and pulley width will cause belt tracking issues and accelerated wear.

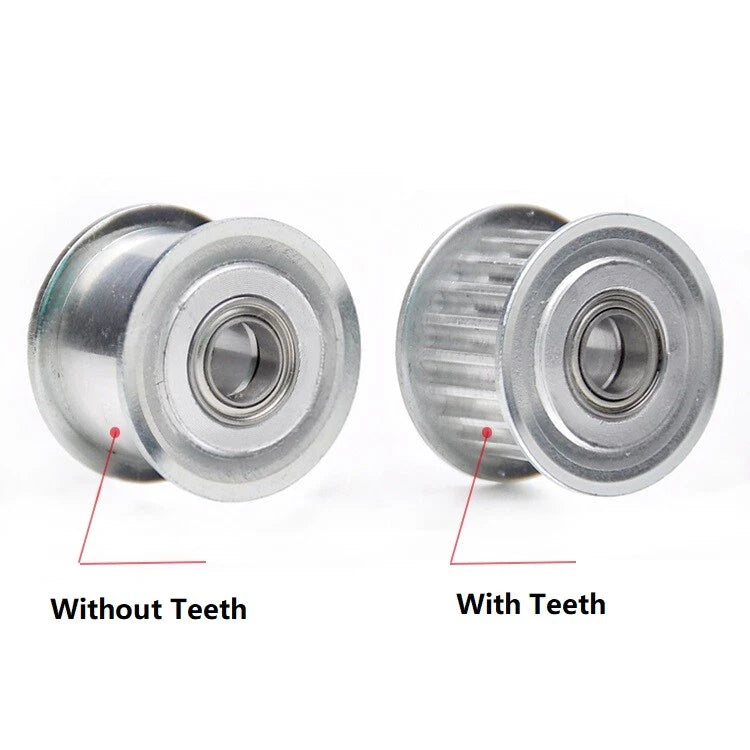

What is the difference between the toothed and toothless (smooth) variants?

Toothed pulleys engage directly with the belt teeth to transmit torque without slip — use these on driven shafts. Smooth (toothless) pulleys act as idlers or tensioners; they guide and tension the belt without driving it. Both share the same outer profile and bore options.

Which bore size should I choose for a NEMA 17 stepper motor?

NEMA 17 stepper motors typically have a 5 mm output shaft, so the 5 mm bore variant is the standard choice. If your motor has a flat (D-cut) shaft, confirm the bore fits before ordering. For NEMA 23 motors with 6.35 mm or 8 mm shafts, select the 6 mm or 8 mm bore option accordingly.

Are these pulleys compatible with standard 8M HTD belts from other brands?

Yes. These pulleys conform to the HTD 8M tooth profile standard, which is an industry-wide specification. They are compatible with any 8M HTD timing belt of the matching width, regardless of brand, as long as the belt pitch and width match the pulley specifications.

How do I prevent the pulley from slipping on the motor shaft?

Most 8M pulleys include one or two set screw holes on the hub. Tighten the set screw(s) against the motor shaft flat (D-cut) or use thread-locking compound for additional security. Ensure the bore diameter matches the shaft diameter closely — excessive clearance increases the risk of slip under load.

Can I use these pulleys in a CoreXY or H-bot 3D printer build?

Yes. The smooth (toothless) variants are well-suited as idler pulleys in CoreXY belt paths, while the toothed variants drive the primary axes. Select the bore size matching your idler shaft or motor shaft, and choose the belt width that matches your 8M belt.

🛒 Select your Model, Belt Width, and Bore Size above, then add to cart.
