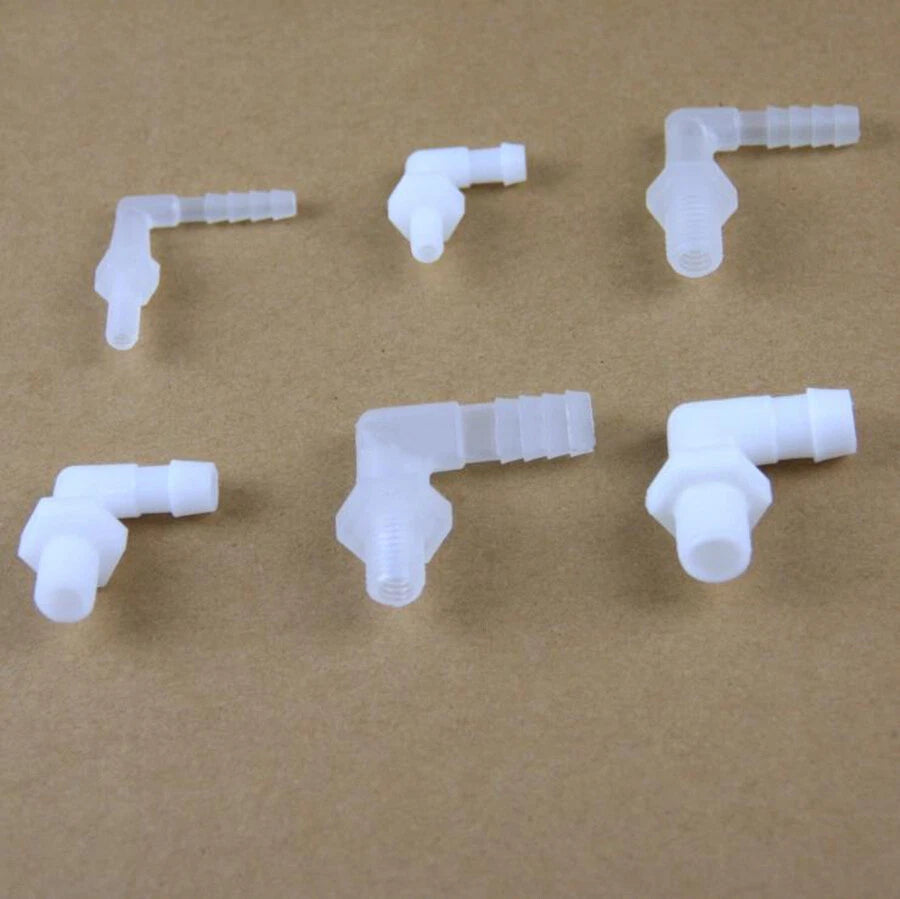

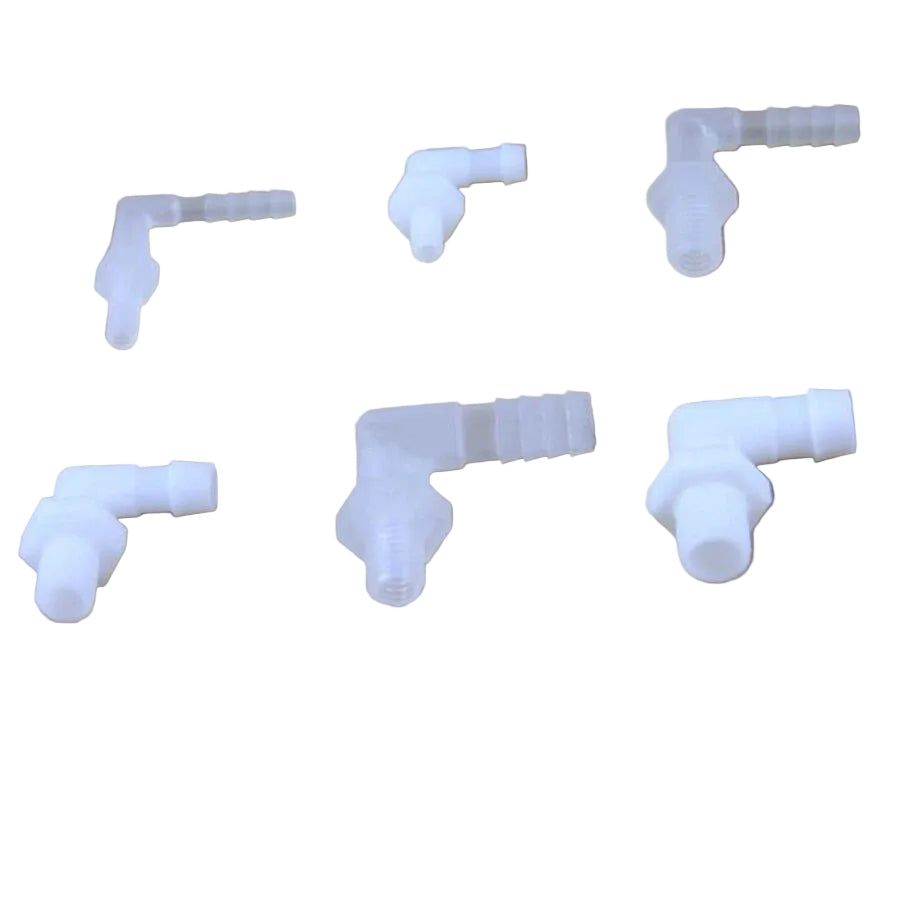

90 Degree Male Thread Barbed Elbow Connectors — Right-Angle Hose Fittings for Tight Spaces

When a straight barbed fitting forces you to bend your hose sharply around a corner — risking kinks, flow restriction, or a cracked tube — a 90 degree male thread barbed elbow connector is the cleaner solution. These right-angle hose fittings are designed for aquarium hobbyists, small engine mechanics, irrigation builders, and DIYers who need to route flexible tubing at a precise 90° turn directly from a metric-threaded port, without stressing the hose.

Each elbow connector features a metric male thread on one end (M6, M10, or M12) and a ribbed barb on the other end at a 90° angle (4mm, 6mm, 8mm, or 10mm barb diameter — approximately 5/32" to 3/8"). The body is typically brass or nickel-plated brass for corrosion resistance and reliable thread engagement. Available in packs of 2, 5, 10, or 20 to suit single repairs or multi-outlet builds.

Typical applications include aquarium sump and canister filter plumbing where space is limited, small engine fuel line routing around chassis obstacles, drip irrigation manifold connections requiring a right-angle exit, and pneumatic hobby projects needing a 90° hose barb fitting at a threaded port.

🔗 Compatibility Note: These fittings use metric male threads (M6, M10, M12 — ISO coarse). They are not directly compatible with NPT or BSP threaded ports. Match the barb diameter to your hose's inner diameter (ID) for a leak-resistant connection.

✅ Key Features of These 90 Degree Male Thread Barbed Elbow Connectors

  • ↩️True 90° Elbow Design — Routes flexible hose at a right angle directly from the threaded port, eliminating sharp hose bends that cause kinking and flow restriction in tight-space installations.
  • 🔩Multiple Metric Thread Sizes — Available in M6, M10, and M12 male thread with barb diameters from 4mm to 10mm, covering common metric hose barb elbow fitting sizes for DIY and light industrial use.
  • 🛡️Corrosion-Resistant Body — Typically brass or nickel-plated brass construction resists rust and oxidation, making these elbow fittings suitable for water, air, and light fuel line applications.
  • 🐟Aquarium & Air Line Ready — The compact 90° profile fits neatly inside aquarium cabinets and sump chambers where a straight fitting would require excessive hose length or awkward routing.
  • ⚙️Ribbed Barb Grip — The stepped barb profile locks onto flexible tubing firmly, reducing hose pull-off risk under normal working pressure without adhesive or additional sealing compound.
  • 📦Flexible Pack Quantities — Choose from packs of 2, 5, 10, or 20 — whether you need a single repair fitting or a full set for a multi-port manifold or irrigation system build.
⚠️ Spec Confirmation: Exact body material (brass vs. nickel-plated) and pressure rating vary by size. If your application involves fuel, elevated pressure, or chemical exposure, please contact us to confirm suitability before ordering.

📐 Technical Specifications — 90° Male Thread Barbed Elbow Hose Fitting

Product Type Male Thread × Barbed Elbow Connector (90 Degree)
Elbow Angle 90°
Thread Type Metric Male (ISO Coarse) — M6, M10, M12
Barb Diameter 4mm (≈5/32"), 6mm (≈1/4"), 8mm (≈5/16"), 10mm (≈3/8") — see variant options
Body Material Typically brass or nickel-plated brass — contact us to confirm
Finish See variant options
Compatible Hose Types Silicone, PVC, rubber, polyurethane flexible tubing
Thread Standard ISO Metric Coarse (not NPT / BSP)
Working Pressure Contact us to confirm for your specific size and application
Recommended Applications Aquarium plumbing, fuel line routing, irrigation, pneumatic hobby, coolant lines
Pack Sizes Available 2 pcs, 5 pcs, 10 pcs, 20 pcs
Country of Origin See variant options

❓ Frequently Asked Questions

How do I choose the right barb size for my hose?

Measure your hose's inner diameter (ID). The barb diameter should match or be very slightly larger than the hose ID for a secure, leak-resistant grip. For example, a 6mm (≈1/4") ID hose typically pairs with a 6mm barb. When in doubt, size up by 1mm for a tighter fit on the tubing wall.

What thread standard do these 90-degree elbow connectors use — are they compatible with NPT or BSP ports?

These fittings use metric male threads (M6, M10, M12) conforming generally to ISO metric coarse thread standards. They are not directly compatible with NPT (National Pipe Thread) or BSP (British Standard Pipe) threaded ports without a separate adapter fitting.

What material are these elbow barbed connectors made from?

These connectors are typically made from brass or nickel-plated brass, providing good corrosion resistance for air, water, and light fuel applications. If chemical compatibility is critical for your use case, please contact us to confirm the exact material for your chosen size.

Can these 90-degree fittings be used outdoors or in wet/submerged environments?

Brass elbow connectors generally perform well in damp or outdoor environments for moderate-duty use. For prolonged outdoor exposure or partially submerged installations, applying PTFE thread sealant tape (2–3 wraps) is recommended to maintain a watertight seal and prevent thread corrosion over time.

What hose types are compatible with these elbow barbed connectors?

These 90-degree barbed connectors work with most common flexible hose types including silicone tubing, PVC air line, rubber fuel hose, and polyurethane tubing. The key requirement is that the hose inner diameter matches the barb diameter you select. Rigid pipe is not compatible with the barb end.

What is the maximum pressure these 90-degree fittings can handle?

Working pressure capacity varies by size, body material, and the hose clamp used. For low-pressure applications such as aquarium air lines (typically under 5 PSI) and gravity-fed irrigation, these fittings are generally well-suited. For higher-pressure fuel or pneumatic systems, please contact us to confirm suitability for your specific application.

Do I need a hose clamp with these 90-degree barbed fittings?

For low-pressure applications like aquarium air lines, a push-fit connection over the barb is often sufficient. For fuel lines, pressurized irrigation, or any system where hose blow-off would cause damage, using a worm-drive hose clamp over the barb is strongly recommended.

Why choose a 90-degree elbow connector instead of a straight barbed fitting?

A 90-degree elbow connector lets you route flexible hose at a right angle directly from a threaded port, eliminating the need to bend the hose sharply — which can kink tubing and restrict flow. It's ideal for tight spaces, panel-mounted fittings, and installations where the hose must exit perpendicular to the port, such as inside aquarium cabinets or around engine chassis components.

🛒 Select your size and pack quantity above, then add to cart — ships from our US warehouse.
