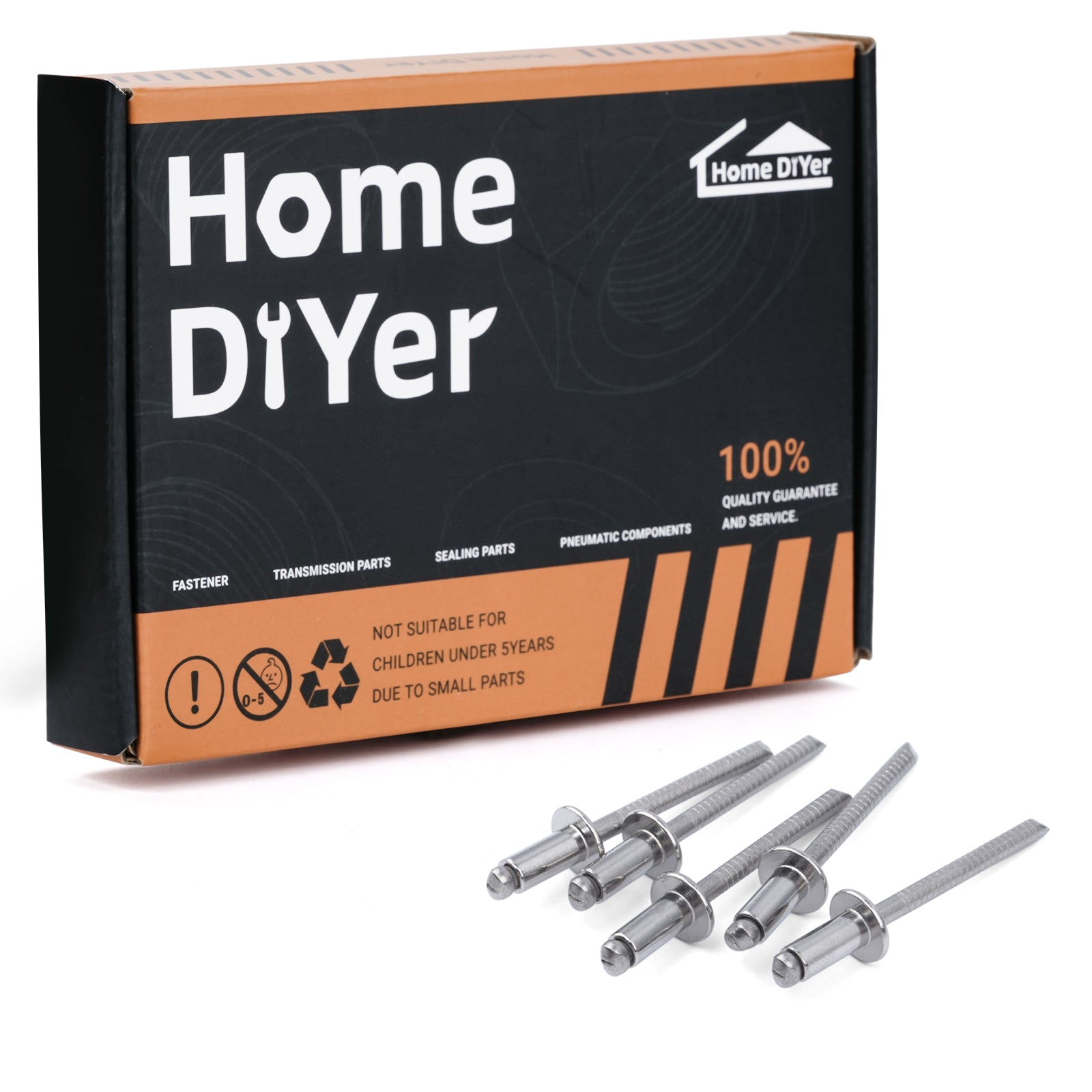

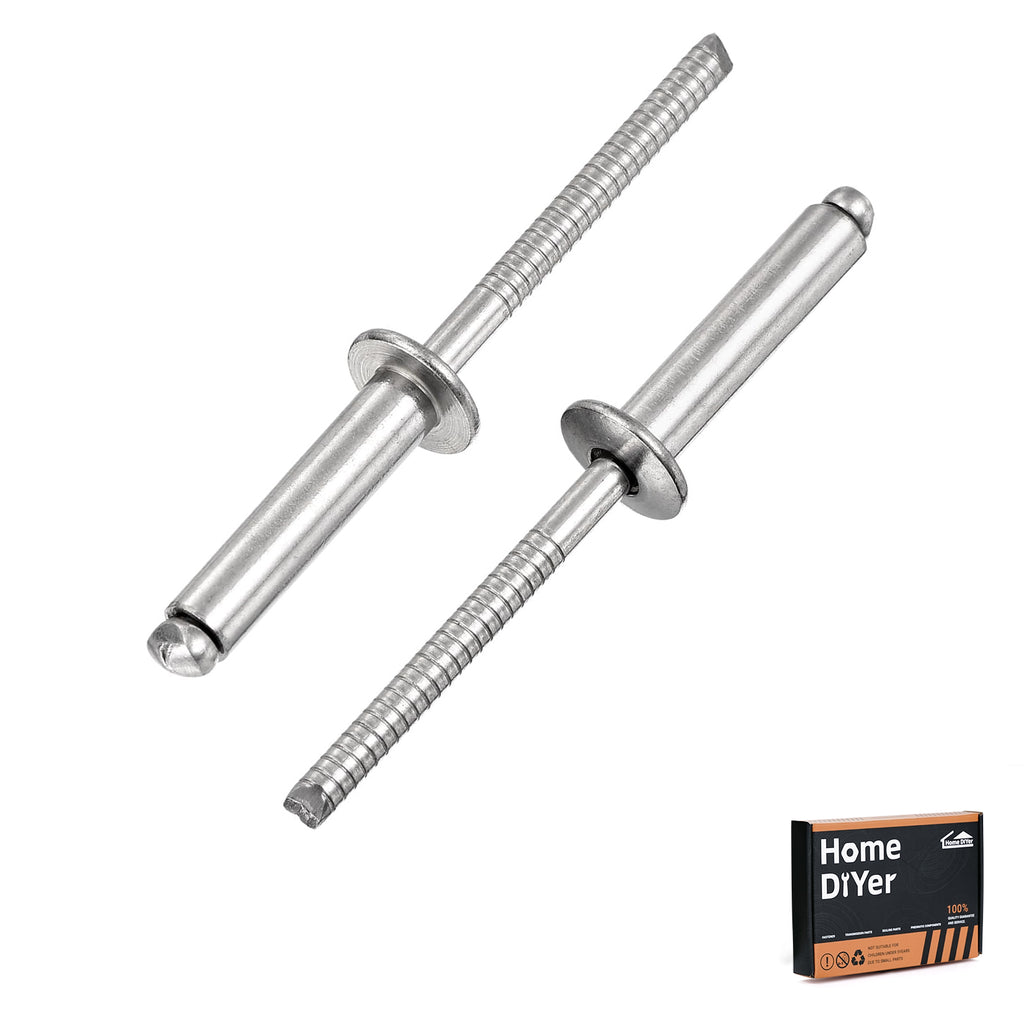

🔩 A2-70 Stainless Steel Dome Head Pop Rivets – Open End Blind Rivets 3mm, 4mm, 4.8mm, 5mm
🏷️ Brand: HomeDIYer Fastener | A2-70 Stainless (Body & Mandrel) | Open End | Dome Head
📌 Overview — Reliable, corrosion-resistant fastening for one-sided access applications. When you need a strong, permanent joint and can only reach one side of the workpiece, our A2-70 Stainless Steel Dome Head Pop Rivets are the solution. The open-end design is ideal for general-purpose fastening in sheet metal, plastic, fiberglass, and composite materials. The dome head provides a clean, finished appearance, while the all-stainless construction (both body and mandrel) delivers excellent corrosion resistance in outdoor, marine, and industrial environments. Available in 3mm, 4mm, 4.8mm, and 5mm diameters with multiple grip lengths. Choose your exact size and quantity – perfect for HVAC, automotive, signage, marine trim, and DIY fabrication.
✨ Key Features – A2 Stainless Open-End Dome Head Pop Rivets
-

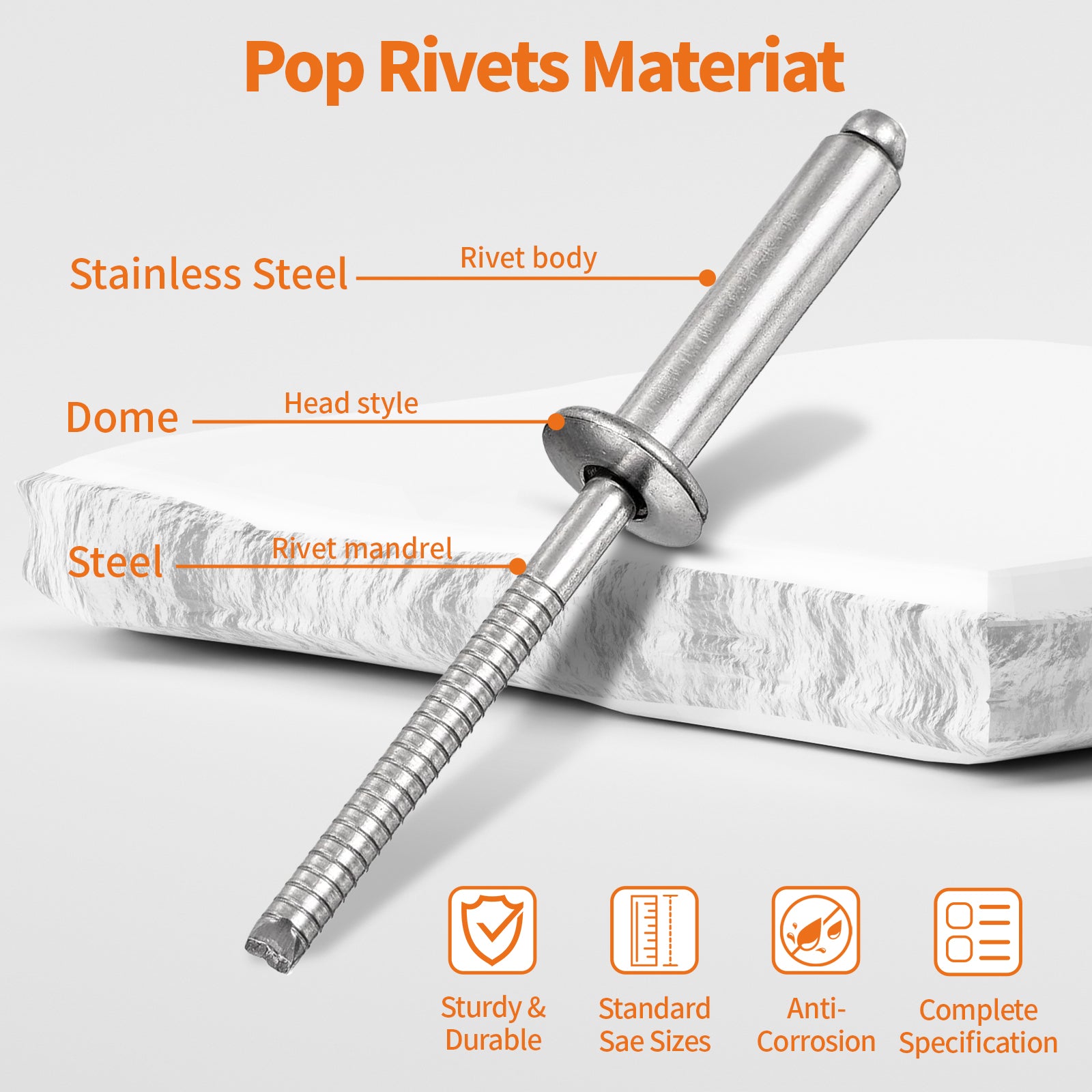

100% A2-70 Stainless Steel – Both the rivet body and the mandrel are made from A2-70 stainless steel for maximum corrosion resistance and strength.
-

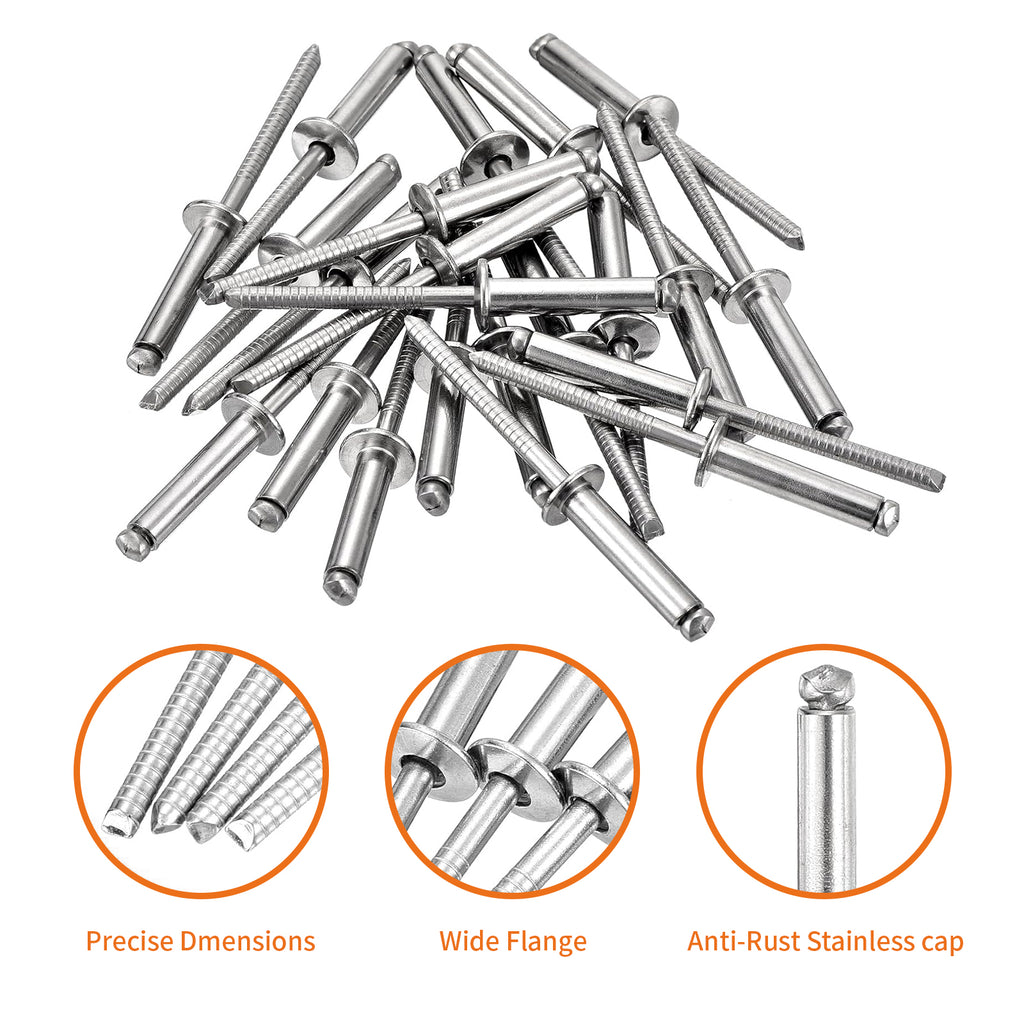

Dome Head Profile – Low-profile rounded head provides a clean, professional finish on the visible side of the assembly.
-
Open End (Blind) Design – Standard open-end rivets for general-purpose use; easy to install with standard rivet guns.
-
Blind Installation (One-Side Access) – Perfect for applications where you can only access one side of the workpiece.
-
Wide Diameter Range – 3mm, 4mm, 4.8mm, 5mm – Covers light to medium-duty fastening needs, from electronics to structural assemblies.
-
Multiple Grip Lengths – Rivet lengths from 8mm to 20mm to accommodate various material stack thicknesses.
-
Recommended Drill Sizes Provided – 3.1mm (3mm rivet), 4.1mm (4mm), 4.9mm (4.8mm), 5.1mm (5mm) for proper hole preparation.

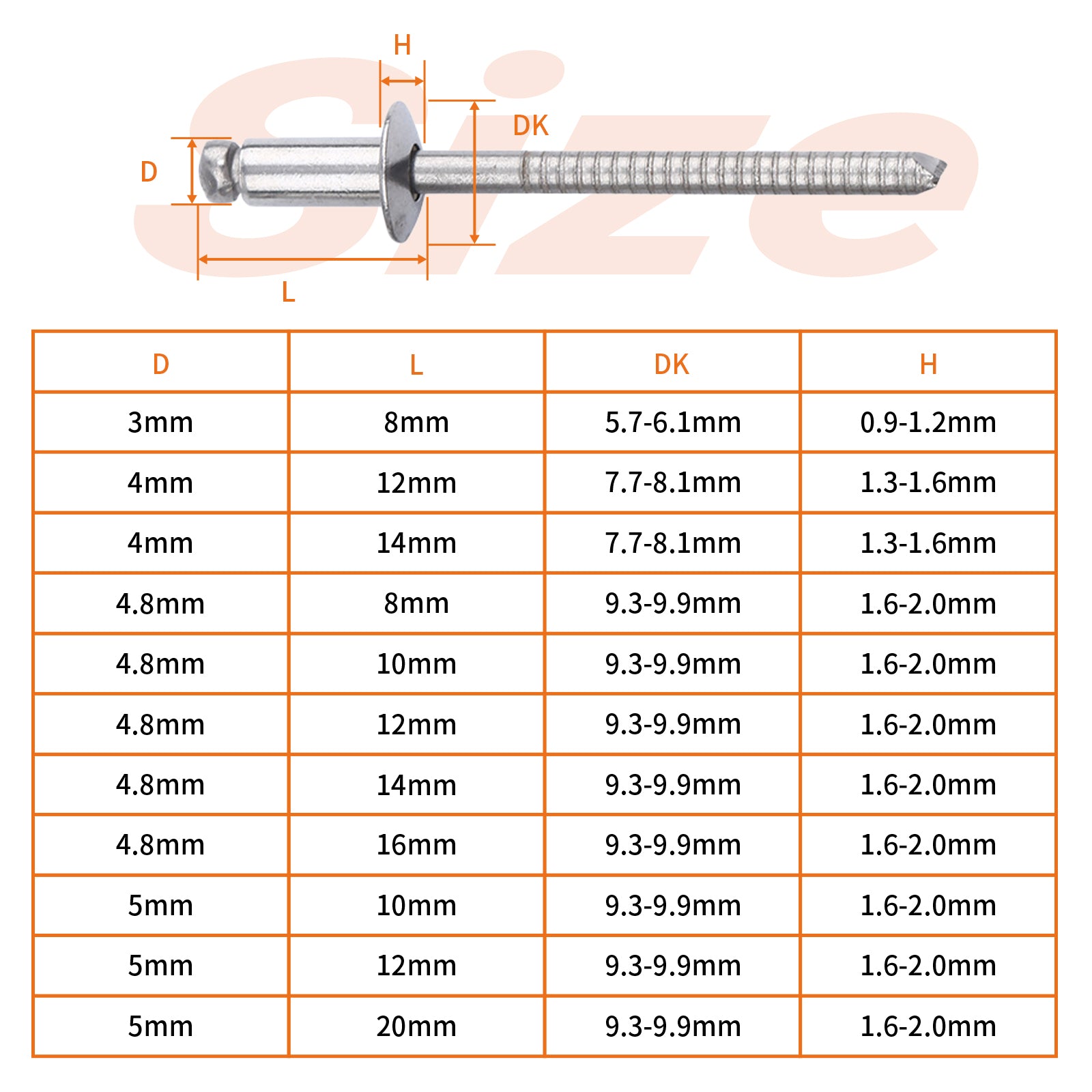

📏 Technical Specifications – Dome Head Open End Pop Rivets (A2 Stainless)
| Rivet Diameter (mm) |
Rivet Length (mm) |
Flange Diameter (mm) |
Flange Thickness (mm) |
Recommended Drill Size (mm) |
| 3.0 |
8 |
5.7-6.1 |
0.9-1.2 |
3.1 |
| 4.0 |
12 |
7.7-8.1 |
1.3-1.6 |
4.1 |
| 14 |
7.7-8.1 |
1.3-1.6 |
4.1 |
| 4.8 |
8 |
9.3-9.9 |
1.6-2.0 |
4.9 |
| 10 |
9.3-9.9 |
1.6-2.0 |
4.9 |
| 12 |
9.3-9.9 |
1.6-2.0 |
4.9 |
| 14 |
9.3-9.9 |
1.6-2.0 |
4.9 |
| 5.0 |
10 |
9.3-9.9 |
1.6-2.0 |
5.1 |
| 12 |
9.3-9.9 |
1.6-2.0 |
5.1 |
| 20 |
9.3-9.9 |
1.6-2.0 |
5.1 |
💡 Selection & ordering: Choose rivet diameter based on hole size. Select rivet length so that the total material thickness falls within the rivet's grip range. Packaging: “As per Your Choice” – order the exact diameter, length, and quantity you need. All rivets are A2-70 stainless steel (body & mandrel).
🔧 Open end vs. sealed: These are open-end (standard) rivets. They are suitable for general-purpose applications where water/air tightness is not required. For waterproof joints, consider our sealed closed-end rivets (sold separately).
❓ Frequently Asked Questions – Dome Head Stainless Pop Rivets
What drill size should I use for each rivet diameter?
📏 3mm rivets → 3.1mm drill bit. 4.0mm rivets → 4.1mm bit. 4.8mm rivets → 4.9mm bit. 5.0mm rivets → 5.1mm bit. Using the correct drill size ensures proper mandrel expansion and a tight joint.
Are these rivets suitable for outdoor or marine use?
🌊 Yes – A2-70 stainless steel (304 grade) provides excellent corrosion resistance for outdoor furniture, marine trim, coastal environments, and general industrial use. They will not rust like carbon steel rivets. For continuous saltwater immersion, consider A4 (316) stainless, but A2 is perfect for most exterior applications.
How do I choose the correct rivet length (grip range)?
📐 Measure the total thickness of the materials being joined. Select a rivet with a length that slightly exceeds that thickness. As a rule, the rivet length should be about 1.5–2mm longer than the total material stack. Use our length chart as a reference; longer rivets accommodate thicker stacks.

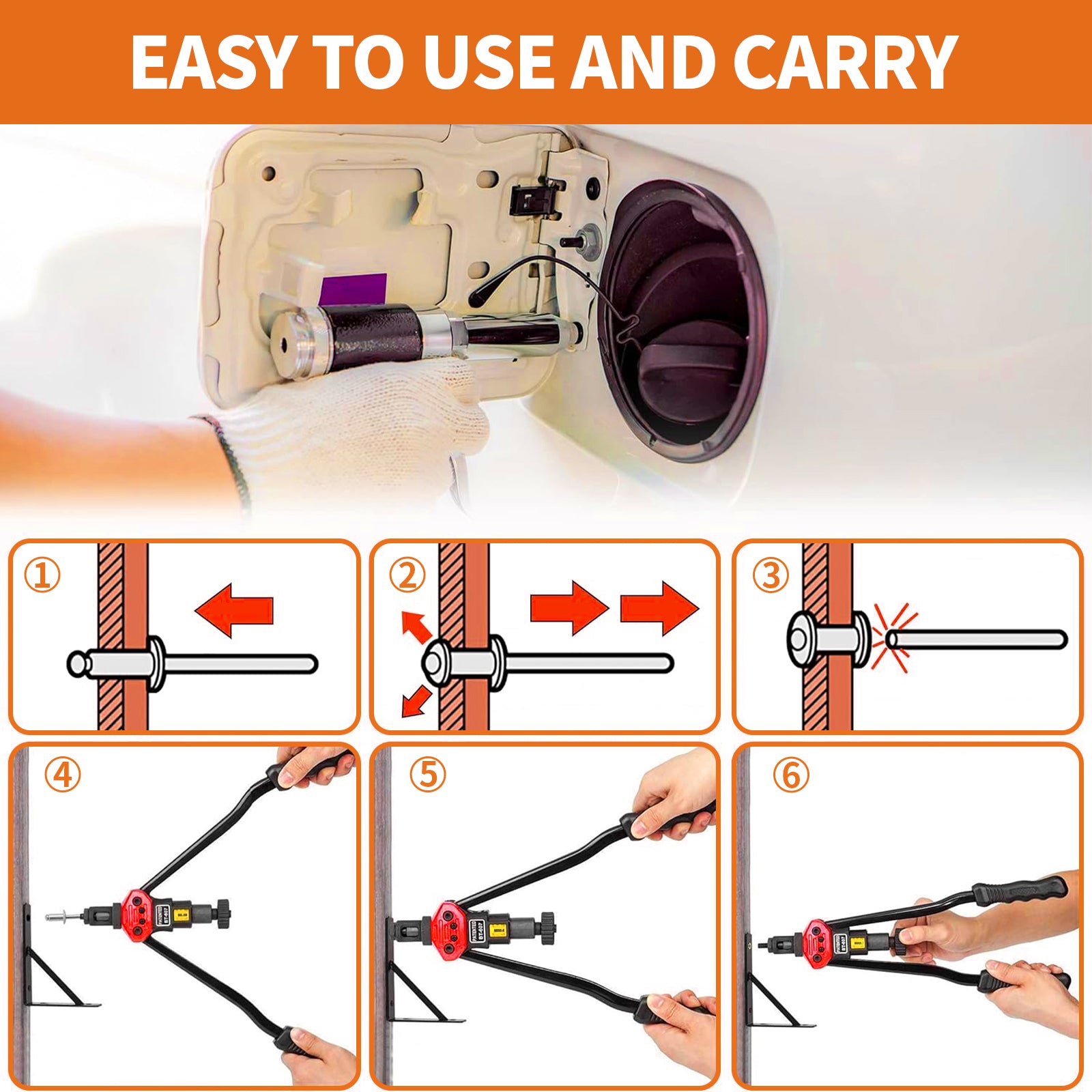

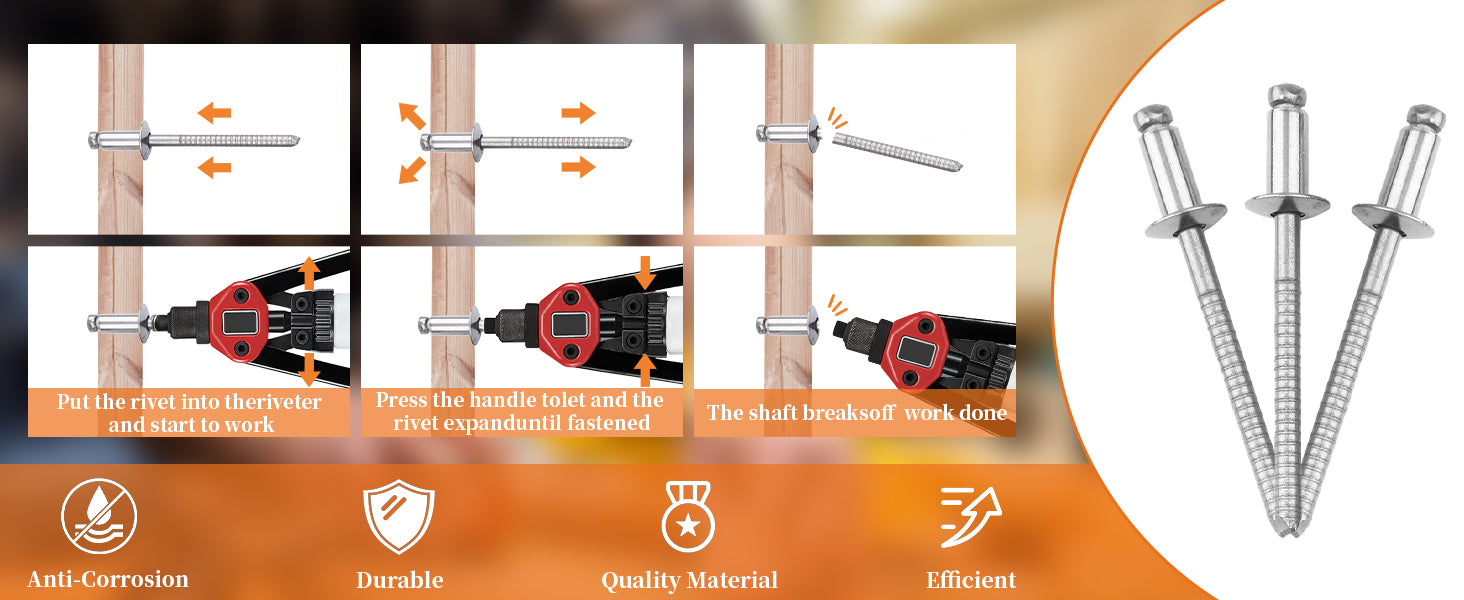

Can I install these rivets with a standard hand rivet gun?
✅ Yes, these are standard open-end blind rivets compatible with most manual, cordless, or pneumatic rivet guns. Ensure your tool has the correct nosepiece for the rivet diameter (3mm, 4mm, 4.8mm, or 5mm). Stainless steel mandrels are strong but set easily with quality tools.
What is the difference between dome head and countersunk head rivets?
🔘 Dome head rivets have a rounded head that sits above the surface, providing a finished look and good bearing area. Countersunk (flat) head rivets sit flush with the surface for a smooth finish. Dome heads are easier to install and more common for general-purpose fastening.
⚙️ HomeDIYer Fastener — Premium all-stainless open rivets for reliable, corrosion-resistant fastening. Order your exact diameter, length, and quantity today.
