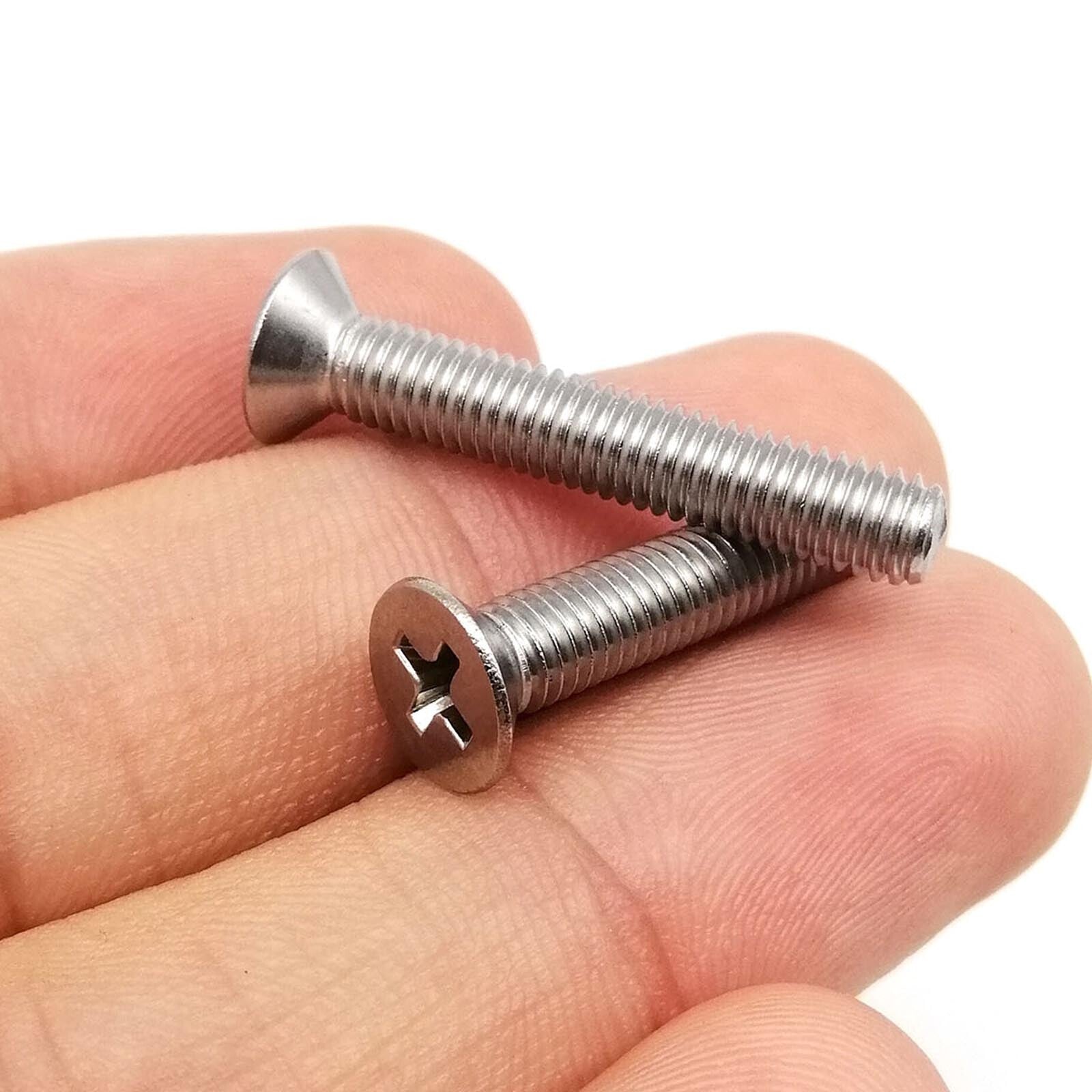

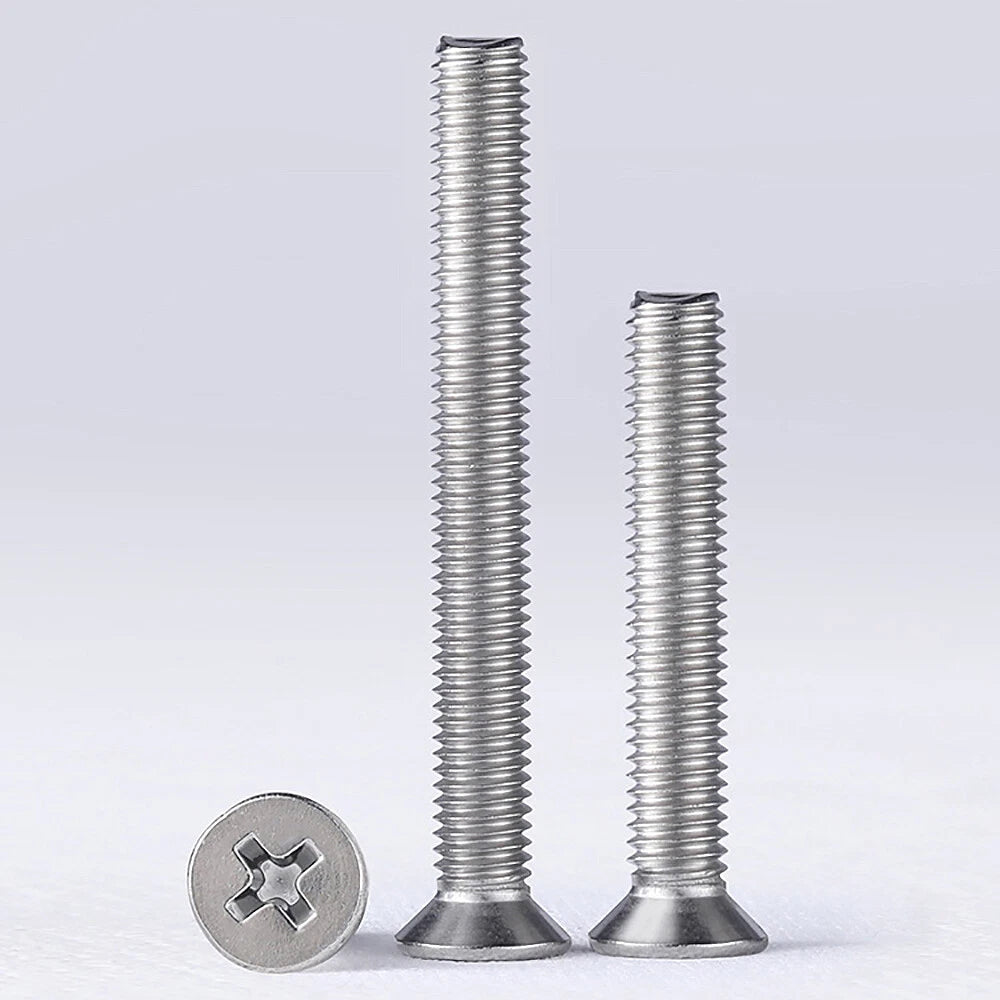

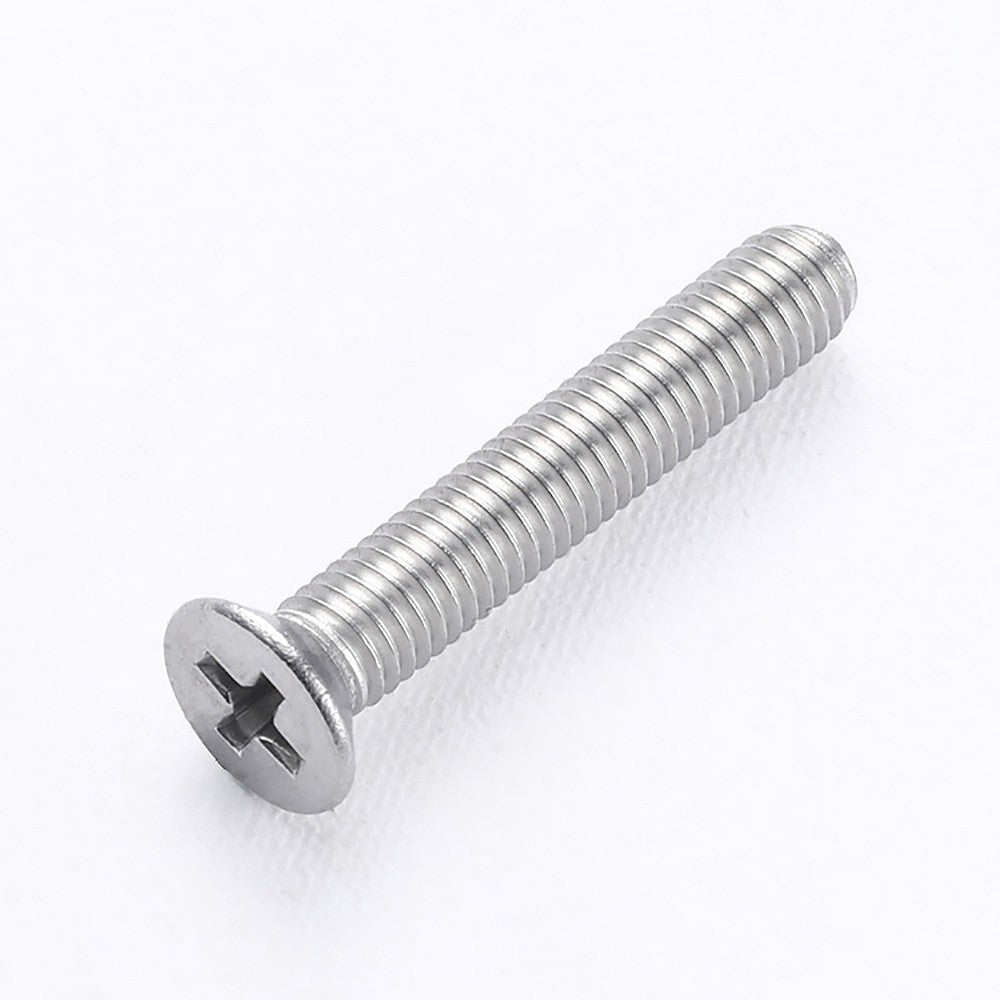

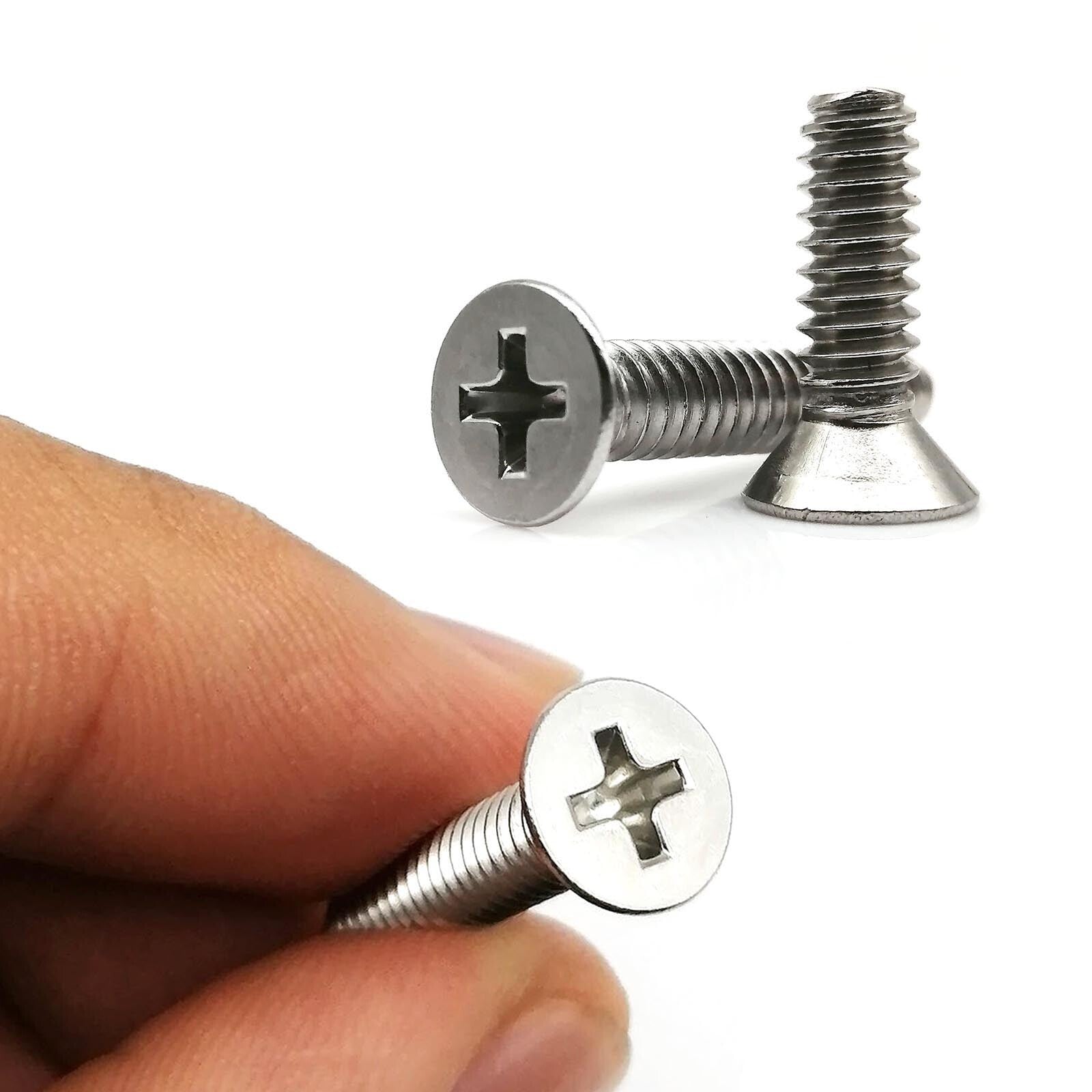

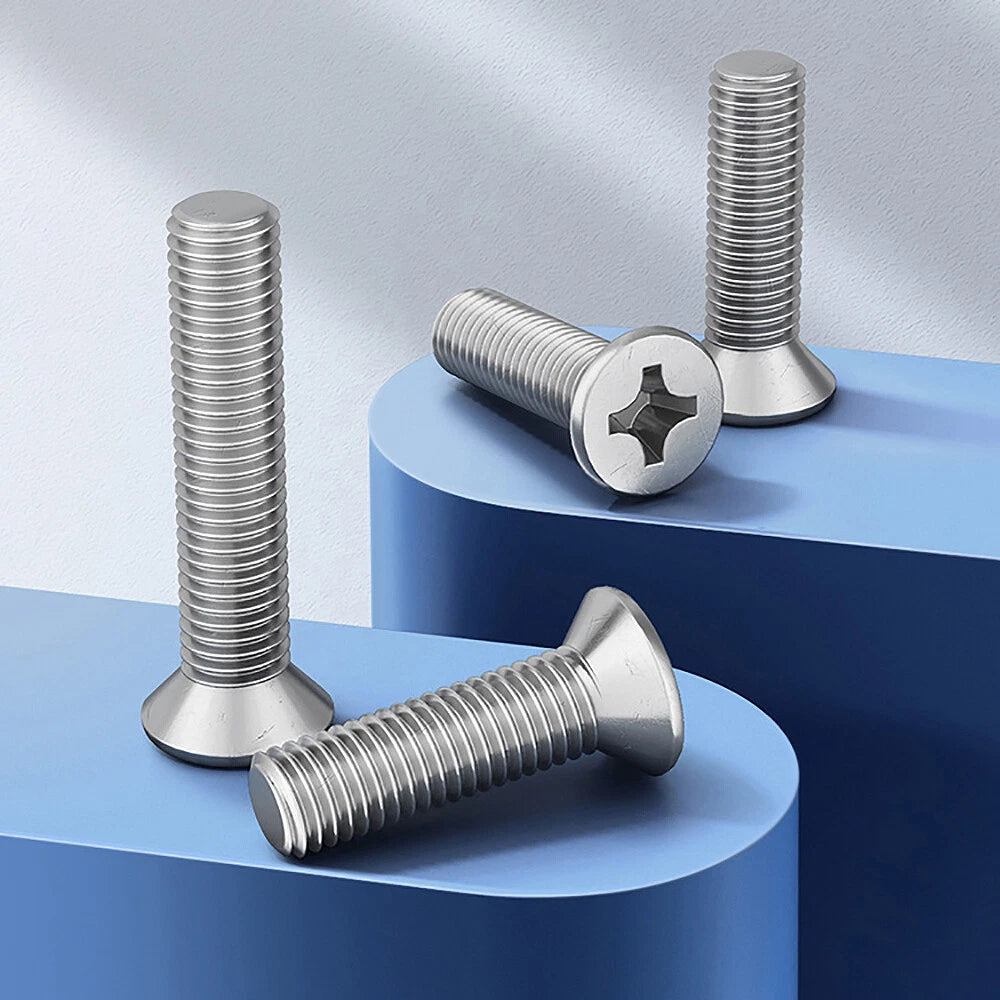

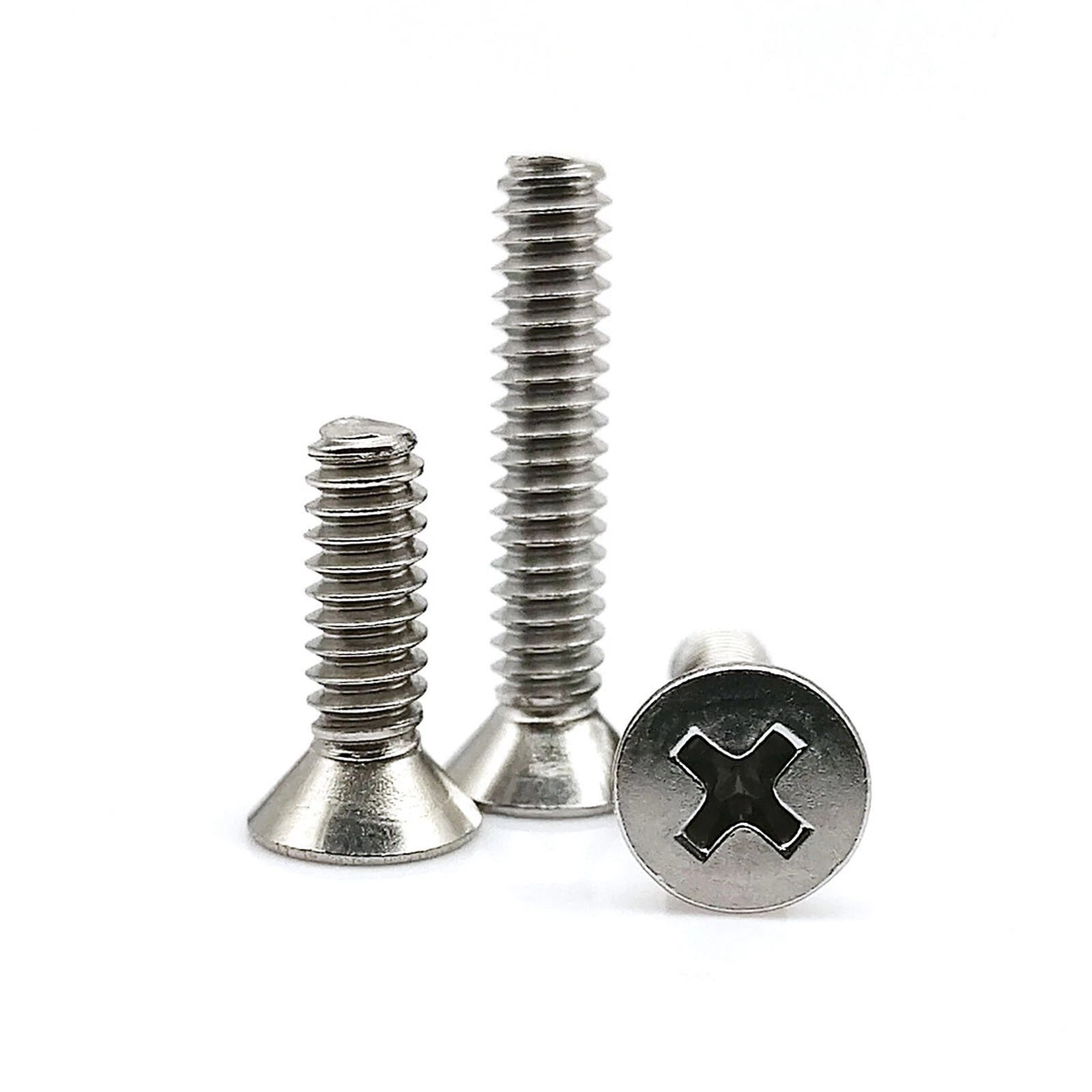

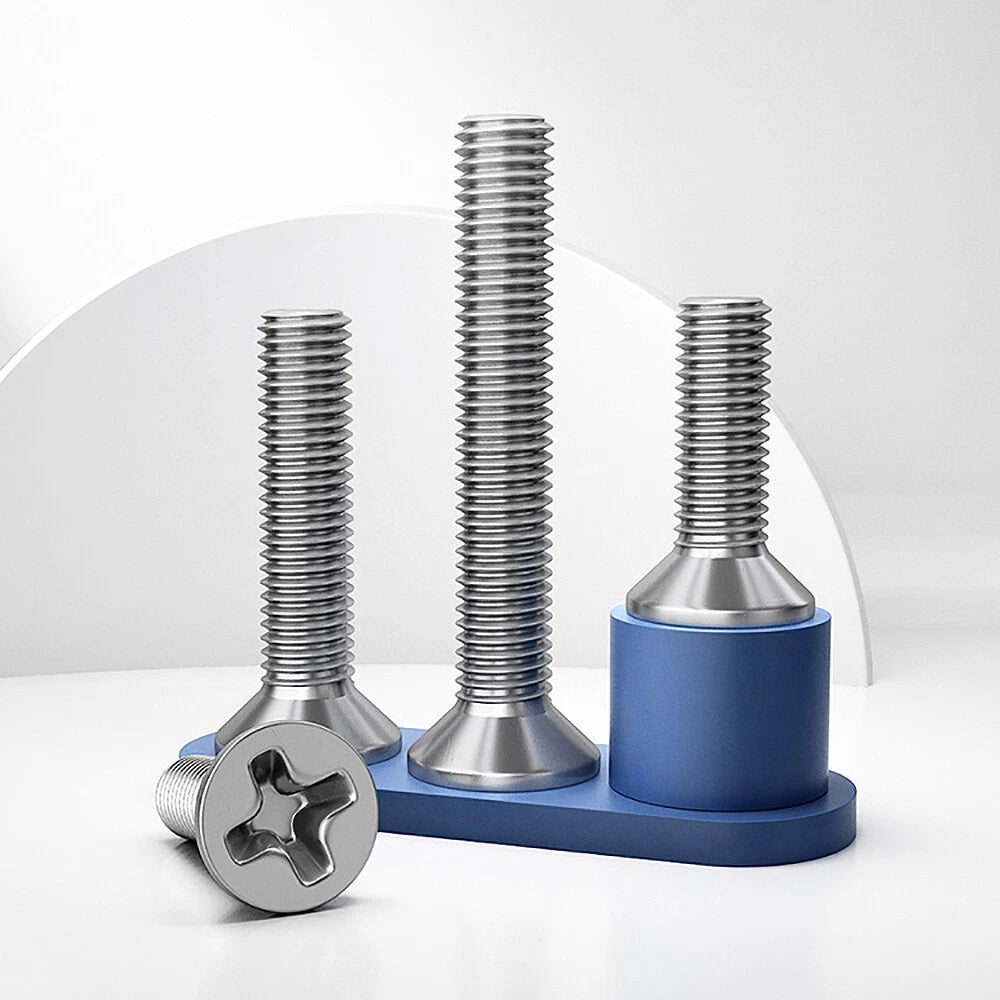

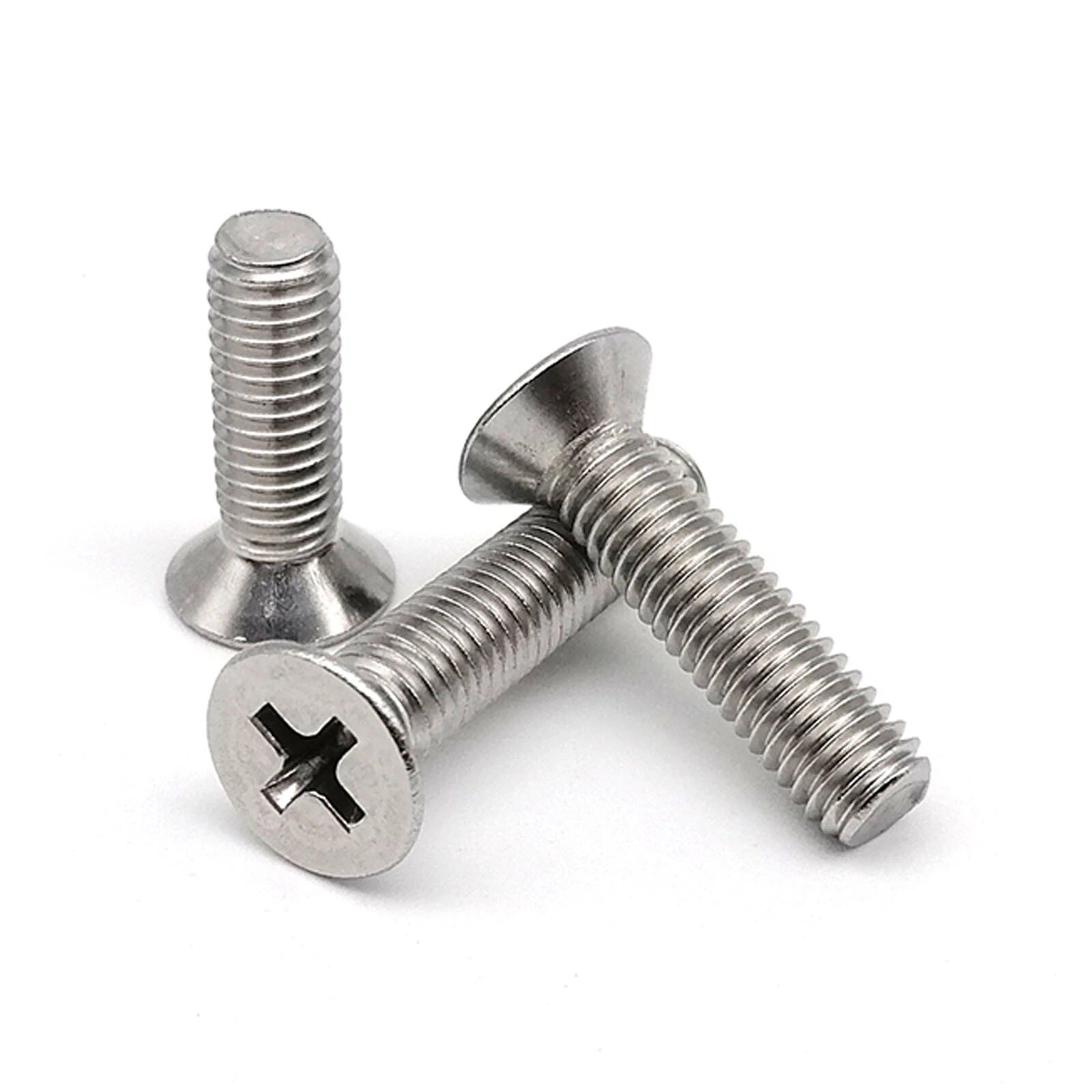

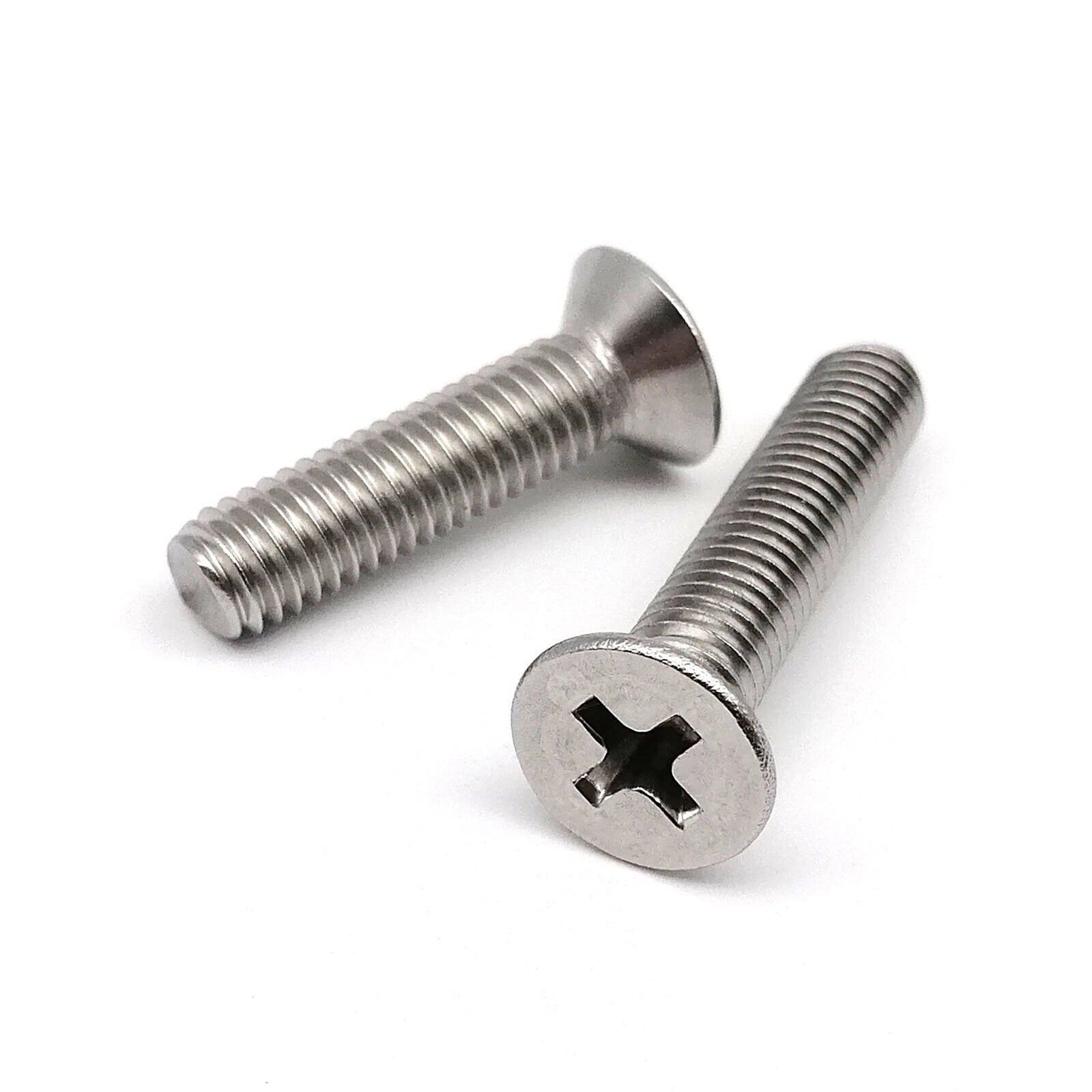

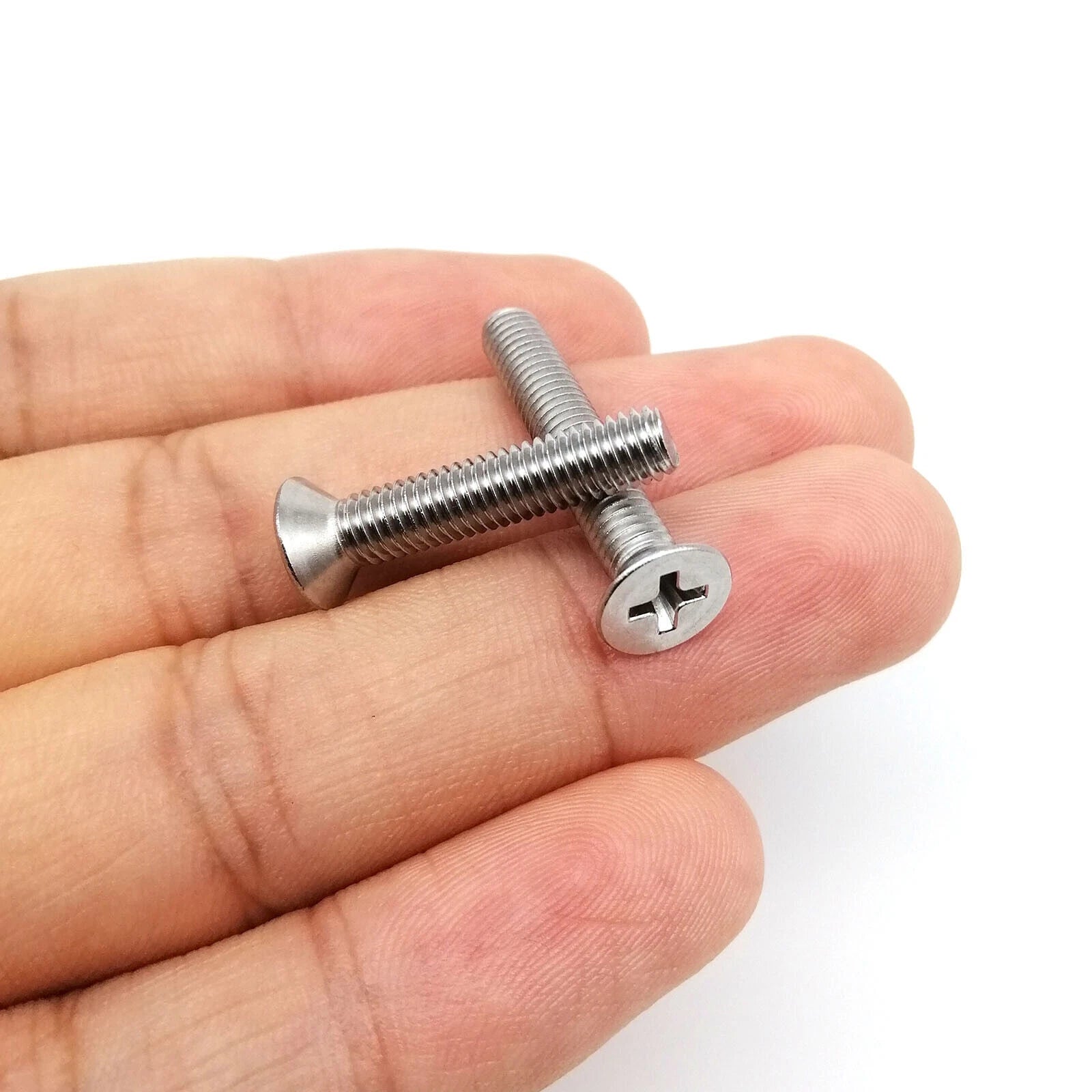

Protruding screw heads on structural panels, outdoor fixtures, and precision assemblies create snag hazards, clearance problems, and an unfinished appearance. These A2 stainless steel M5 countersunk flat head Phillips machine screws to DIN 965 deliver a clean, flush finish: the 90° tapered head sits level with or below the surface, while the A2 stainless construction provides reliable corrosion resistance for indoor, sheltered, and light outdoor applications.

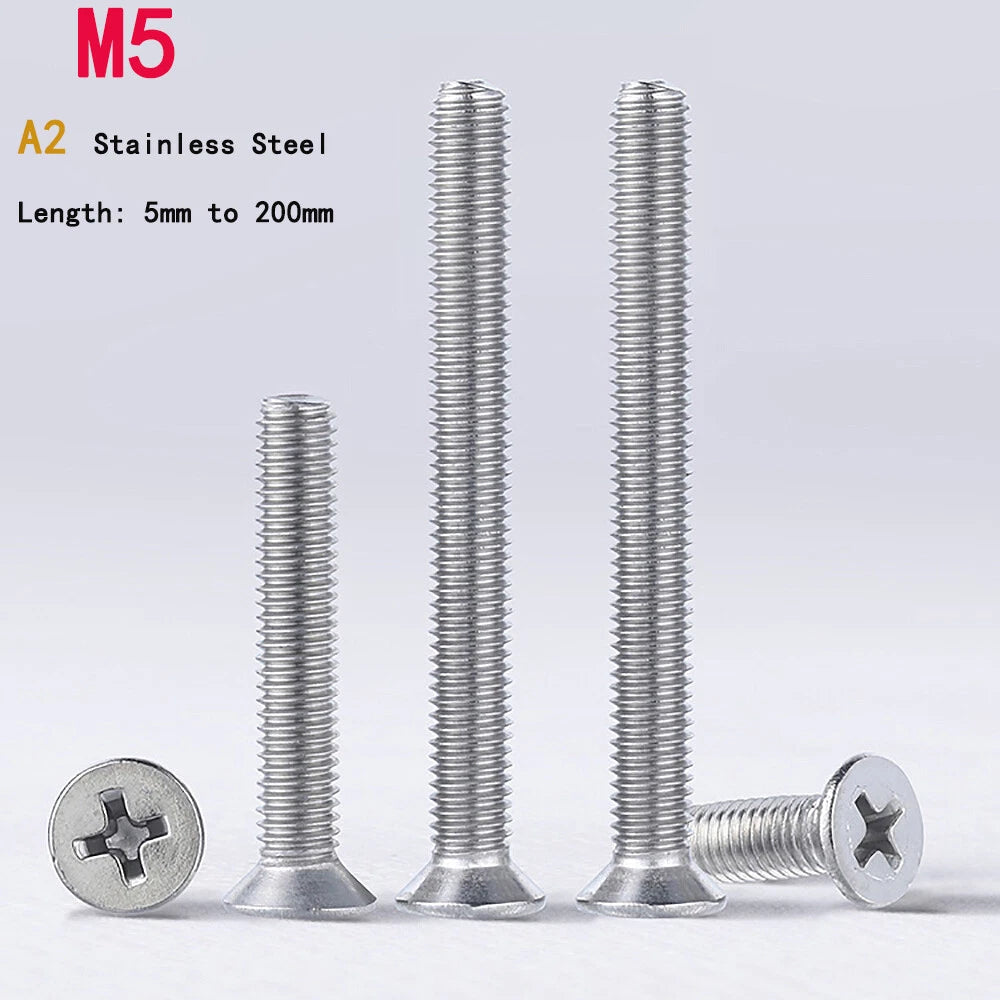

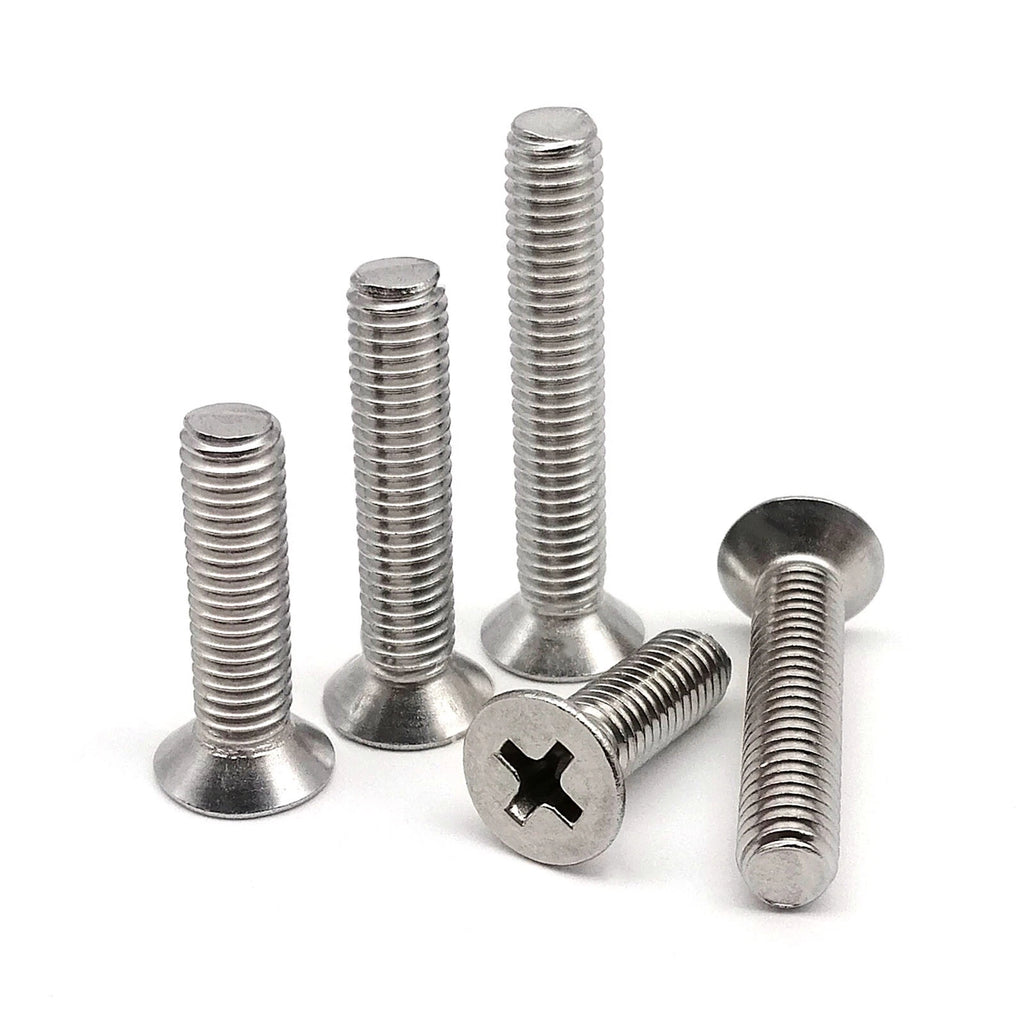

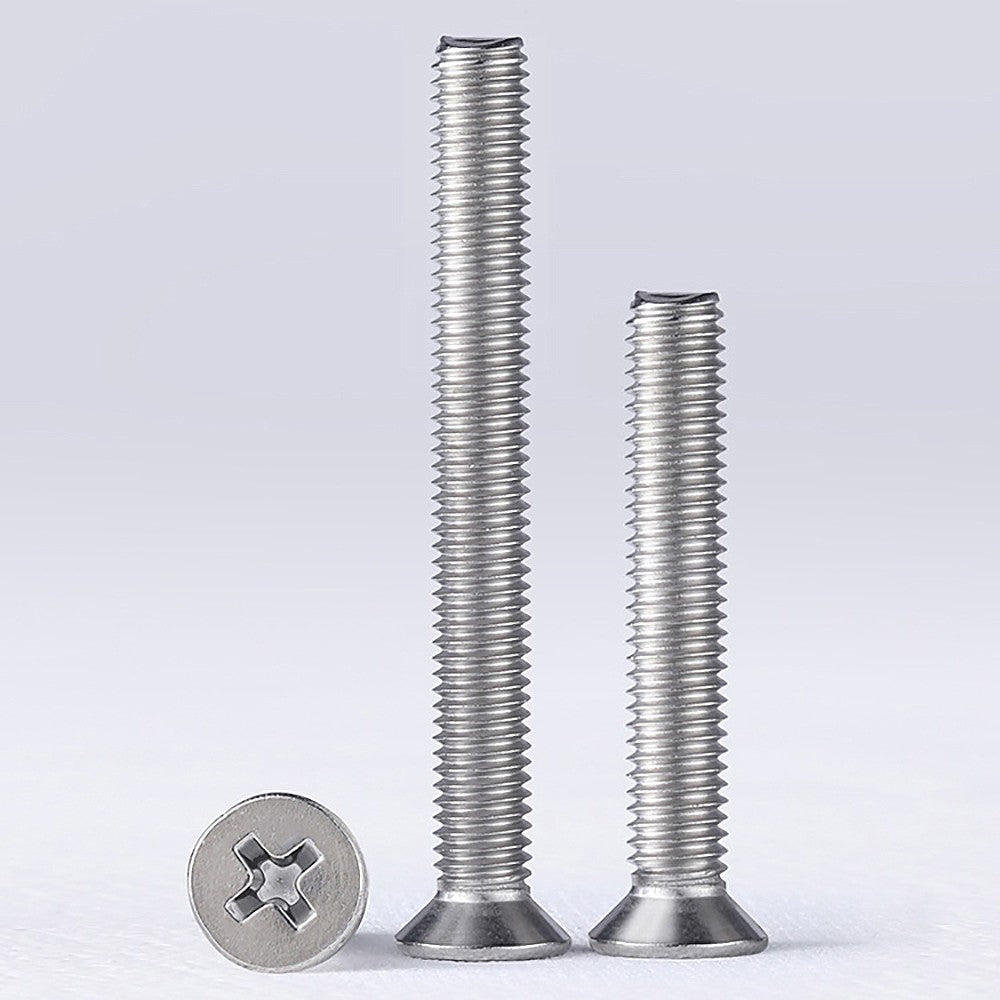

Available in 33 lengths from 6mm (0.24”) to 200mm (7.87”) — all measured including the head — this listing covers the full M5 countersunk range from short panel-mount screws to long through-bolt assemblies. The DIN 965 standard ensures dimensional consistency with metric countersunk holes and M5 hardware worldwide. Pack sizes from 5 to 100 pieces let you order exactly what you need.
Typical applications include structural panel and bracket mounting where a flush surface is required, outdoor furniture and sheltered fixture assembly, machinery and equipment enclosures, woodworking and metalworking projects using M5 countersunk fasteners, and replacement screws for equipment and assemblies specifying DIN 965 M5.
| Material | A2 Stainless Steel (304 / 18-8) |
|---|---|
| Finish | Natural stainless (no coating) |
| Thread Standard | ISO Metric M5 × 0.8mm pitch |
| Thread Diameter | M5 (5mm) |
| Head Style | Countersunk Flat Head (90° angle) |
| Drive Type | Phillips PH2 |
| Standard | DIN 965 / ISO 7046 |
| Available Lengths | 6mm (0.24”), 8mm (0.31”), 10mm (0.39”), 12mm (0.47”), 14mm (0.55”), 16mm (0.63”), 18mm (0.71”), 20mm (0.79”), 22mm (0.87”), 25mm (0.98”), 30mm (1.18”), 35mm (1.38”), 40mm (1.57”), 45mm (1.77”), 50mm (1.97”), 55mm (2.17”), 60mm (2.36”), 65mm (2.56”), 70mm (2.76”), 75mm (2.95”), 80mm (3.15”), 90mm (3.54”), 100mm (3.94”), 110mm (4.33”), 120mm (4.72”), 130mm (5.12”), 140mm (5.51”), 150mm (5.91”), 160mm (6.30”), 170mm (6.69”), 180mm (7.09”), 190mm (7.48”), 200mm (7.87”) |
| Length Measurement | Including head (total length per DIN 965) |
| Pack Sizes | 5 / 10 / 20 / 50 / 100 pcs |
| Screw Type | Machine screw (requires tapped hole or nut) |
| Corrosion Resistance | Excellent — suitable for indoor and light outdoor use |
| Common Applications | Structural panels, outdoor fixtures, machinery enclosures, woodworking, metalworking, equipment repair |
For countersunk screws, length is measured including the head (total length). The screw should sit flush with or just below the surface when fully driven into a properly countersunk hole. Engaged thread length should be at least 7.5mm for M5 (1.5× the thread diameter). Available lengths: 6mm (0.24”) to 200mm (7.87”). When in doubt, size up.
DIN 965 is the German industrial standard for countersunk flat head machine screws with a Phillips (cross) drive and a 90° head angle. It is widely used in European and international manufacturing and is dimensionally compatible with ISO 7046. If your application specifies DIN 965 or ISO 7046 M5 countersunk screws, these are a direct match.
A2 is the most common grade of austenitic stainless steel, equivalent to 304 or 18-8 stainless. It offers excellent corrosion resistance, is non-magnetic in most conditions, and is the standard grade for general-purpose stainless fasteners in structural, outdoor, and precision applications.
A2 stainless steel provides strong corrosion resistance and is suitable for light outdoor and sheltered applications — outdoor furniture, garden structures, and sheltered fixtures. For marine, coastal, or highly corrosive environments, A4 (316) stainless is generally recommended.
A Phillips PH2 screwdriver is required for M5. Use a quality driver to avoid cam-out, especially when applying higher torque on longer screws. A power driver with a PH2 bit is suitable for longer lengths.
Yes — these are machine screws, not self-tapping. They require a pre-tapped M5 hole or a matching M5 metric nut. They will not cut their own thread into plastic or metal. If your application requires self-tapping, you will need a different screw type.
A2 stainless steel typically has a tensile strength of around 500–700 MPa. M5 screws are suitable for light-to-medium structural loads in panels, brackets, and fixtures. For critical load-bearing applications, verify the specific grade (A2-70 is common) and consult torque specifications for M5.
Available in packs of 5, 10, 20, 50, and 100 pieces. Larger packs offer better per-unit value for workshops and production use. Select your preferred quantity using the Pack of option above.
