🔩 Product Overview: A2 Stainless Steel 304 Phillips Pan Head Screws – M3, M4, M5, M10
Whether you're assembling furniture, repairing medical equipment, or working on vehicle accessories, having reliable, corrosion‑resistant fasteners is non‑negotiable. These A2 (304) stainless steel Phillips pan head machine screws offer excellent oxidation and heat resistance, high strength, and good toughness. Available in M3, M4, M5, and M10 metric diameters with lengths from 3mm to 100mm (measured under the head), they cover a wide range of applications – from delicate electronics enclosures to heavy‑duty industrial machinery. The low‑profile pan head sits flush on surfaces, and the Phillips drive makes installation quick with standard bits. Fully threaded with standard coarse pitch, these Grade 5 bolts are a versatile choice for both professional and DIY projects.
✨ Why Choose 304 Stainless Steel Phillips Pan Head Screws
-
A2 stainless steel (304 grade) – Good corrosion resistance, oxidation resistance, and heat resistance. High strength and high toughness for long‑term reliability.
-
Phillips pan head design – Rounded top with a flat bearing surface. Distributes clamping force evenly and gives a clean, professional finish.
-
Metric sizes M3, M4, M5, M10 – Covers a broad range from small electronics (M3) up to structural fastening (M10). One product line serves many needs.
-
Lengths from 3mm to 100mm (under head) – Short screws for thin panels, long ones for through‑hole assemblies. Choose exactly what your project requires.
-
Fully threaded, coarse metric pitch – Standard threads: M3x0.5, M4x0.7, M5x0.8, M10x1.5. Threads run the entire shank length for maximum grip.
-
Grade 5 strength – Suitable for general fastening in industry, furniture, medical appliances, food industry, vehicle and ship accessories, and more.
-
Wide application range – Industry, furniture decoration, medical appliances, food industry, vehicle and ship accessories – widely welcomed across sectors.

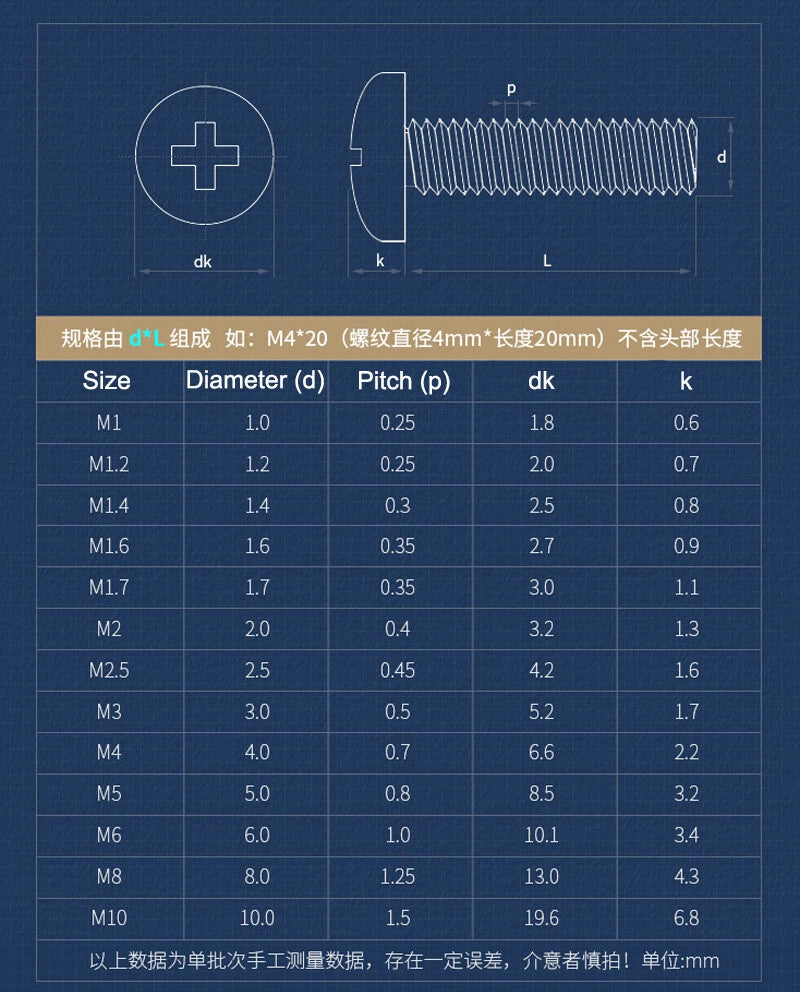

📏 Technical Specifications – A2 Stainless Pan Head Screws (M3–M10)
| Specification |
Details |
| Product Type |
Phillips Pan Head Machine Screws |
| Material |
A2 Stainless Steel (304 / 18-8) |
| Drive Style |
Phillips cross‑head |
| Head Style |
Pan head (low‑profile rounded) |
| System of Measurement |
Metric |
| Thread Sizes (Diameter) |
M3, M4, M5, M10 |
| Thread Pitches (coarse) |
M3x0.5, M4x0.7, M5x0.8, M10x1.5 |
| Thread Type |
Fully threaded |
| Length Range (under head) |
3mm – 100mm (select from options) |
| Length Measurement |
Under head – from flat bearing surface to tip (head not included) |
| Grade |
Grade 5 |
| Finish |
Natural stainless (unplated) |
❓ FAQs – A2 Stainless Steel Pan Head Screws
🔸 Are these screws fully threaded? How is length measured?
Yes – they are fully threaded from just under the head to the tip. Length is measured from the underside of the head (the flat bearing surface) to the tip, not including the pan head. For example, an M5 x 20mm screw has a 20mm threaded shank below the head.
🔸 Will A2 (304) stainless steel rust outdoors?
A2 stainless is highly resistant to moisture, rain, and humidity – perfect for most outdoor use. For direct saltwater immersion or heavy coastal spray, A4 (316) stainless is better, but for furniture, appliances, and general outdoor DIY, 304 lasts for years without rust.
🔸 What Phillips screwdriver size works for M3 through M10?
M3: use PH1. M4: use PH1 or PH2. M5: use PH2. M10: use PH3 or a large PH2. Using the correct size prevents stripping. For M10, a PH3 provides better engagement.
🔸 Can I use these screws with nuts, or are they self‑tapping?
These are standard machine screws – they require a matching metric nut (M3–M10) or a pre‑tapped hole. They are not self‑tapping. For best corrosion resistance, pair them with A2 stainless nuts.
🔸 What lengths are available for each diameter?
We offer lengths from 3mm to 100mm. Typical ranges: M3: 4–30mm; M4: 5–40mm; M5: 6–60mm; M10: 10–100mm. Please select your desired length from the dropdown options. If you need a length not listed, contact us.
🔸 Are these screws suitable for food industry or medical applications?
Yes – 304 stainless steel is widely used in food processing and medical equipment due to its corrosion resistance and ease of cleaning. However, for specific sanitary certifications, please verify with your local requirements.
