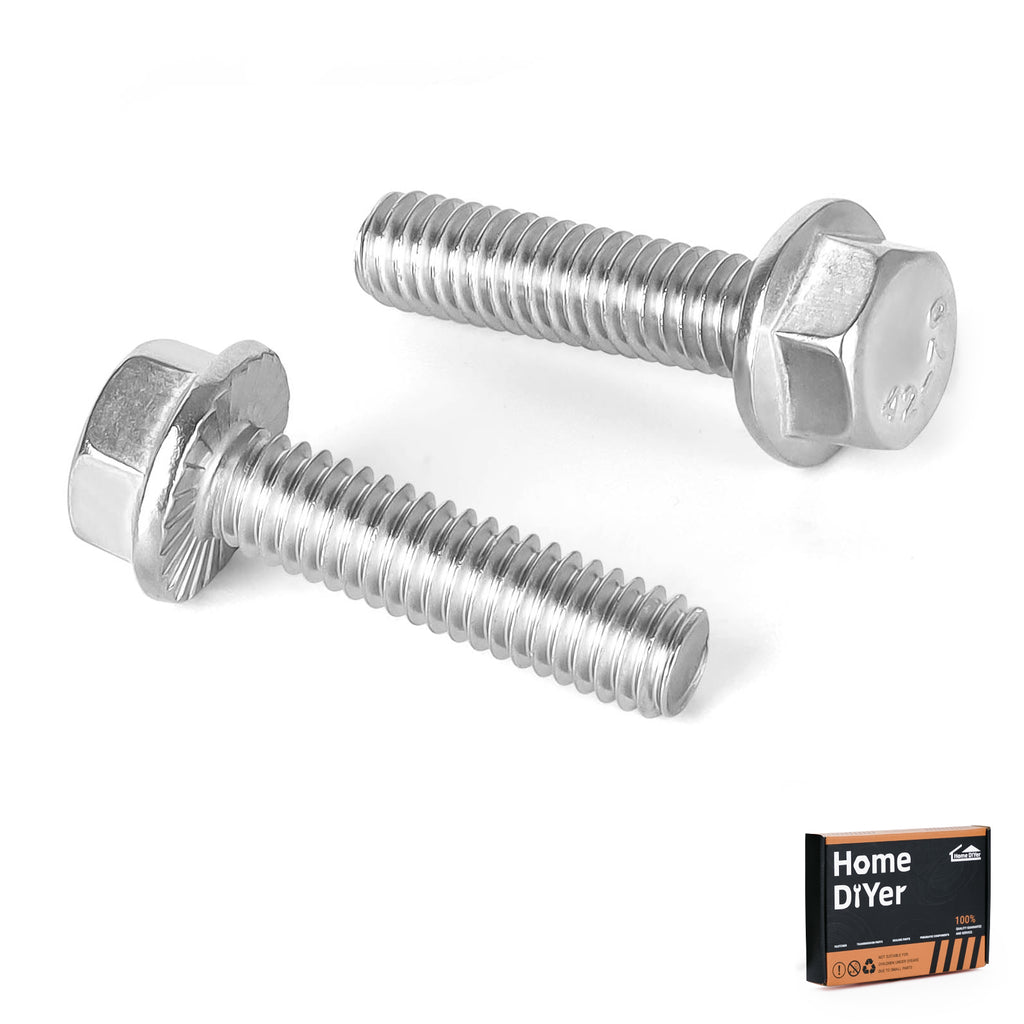

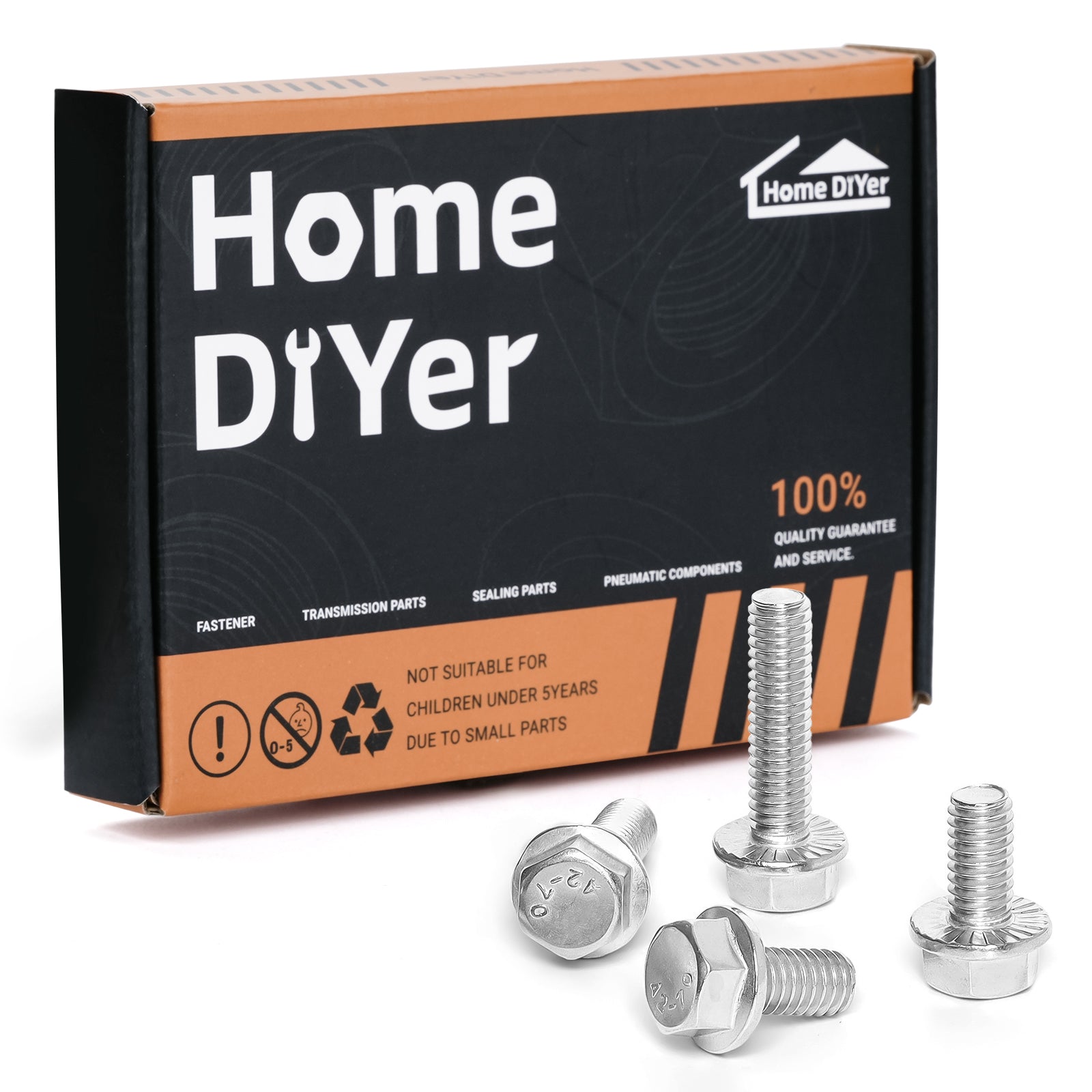

🔩 A2 Stainless Steel Flanged Hexagon Head Bolts – Flange Hex Screws (M5 to M10) | DIN6921
🏷️ Brand: HomeDIYer Fastener | DIN6921 | A2-70 | Fully Threaded | Made in Europe
📌 Overview — Eliminate washers and speed up assembly with integrated flange bolts. Whether you're working on automotive components, machinery, outdoor structures, or industrial equipment, you need fasteners that hold tight without extra hardware. Our A2-70 Stainless Steel Flanged Hexagon Head Bolts (DIN6921) feature a wide, serrated flange under the hex head that distributes load and locks into place — no separate flat washer or lock washer needed. The flange also helps prevent loosening from vibration. Fully threaded from M5 to M10, these bolts are made from corrosion-resistant A2 stainless steel and manufactured in Europe to high standards. Perfect for mechanics, fabricators, and maintenance pros who value efficiency and reliability.

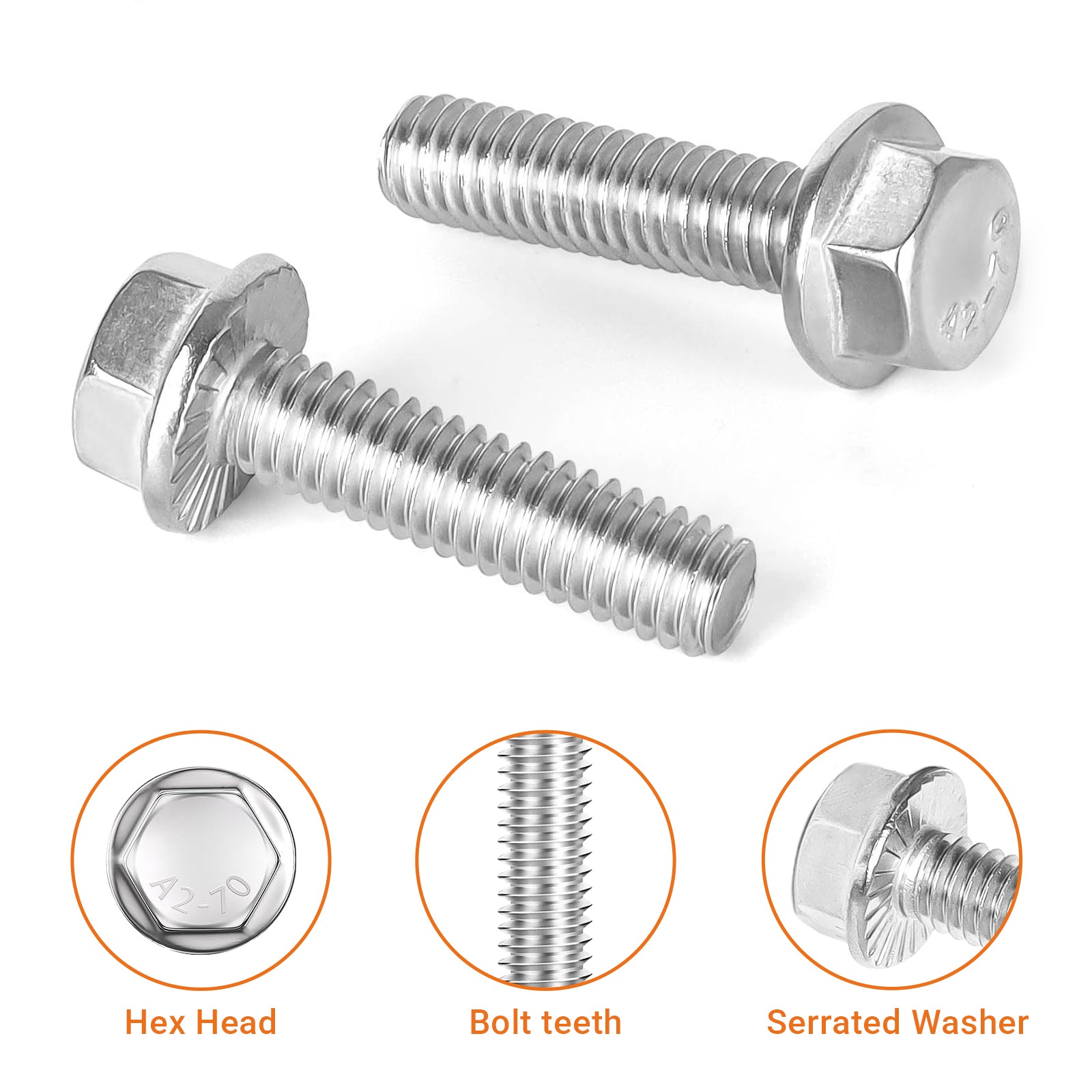

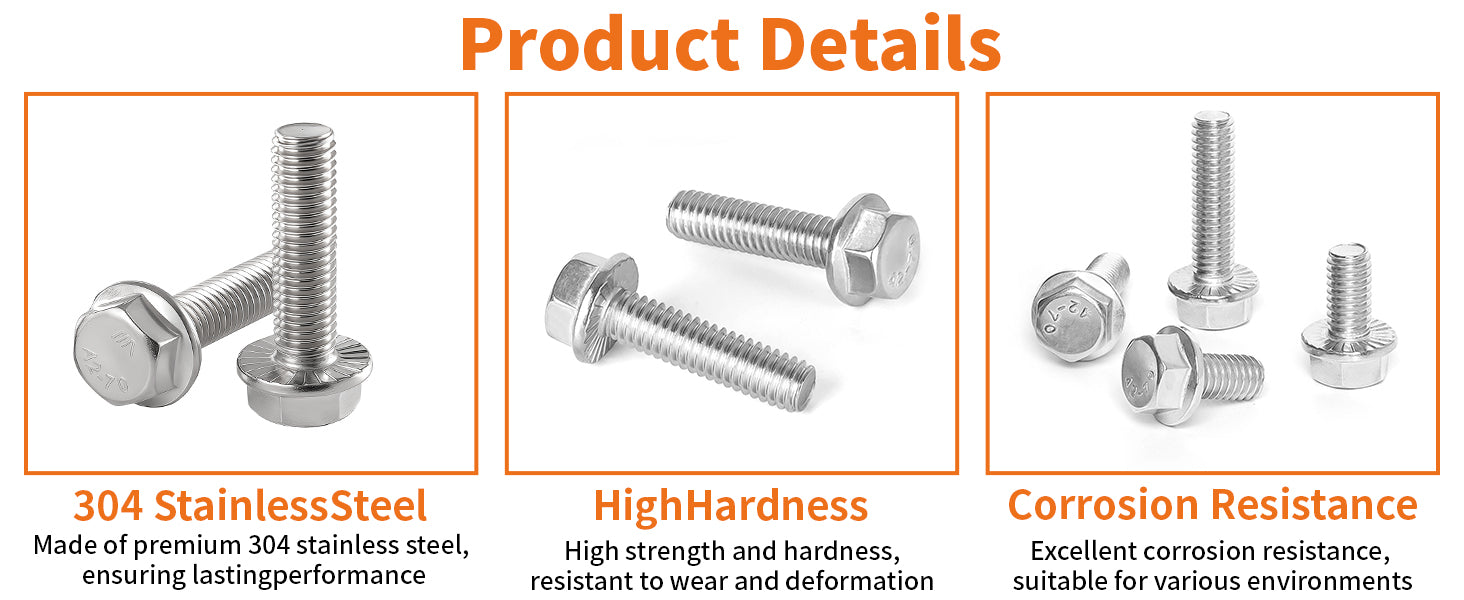

✨ Key Features of A2-70 Flanged Hexagon Head Screws
-
Integrated Wide Flange – Eliminates the need for separate flat washers; distributes clamping load evenly over a larger area.
-
Fully Threaded Design – Provides maximum grip strength and versatility for any material thickness; bolt length measured from under the head.
-
A2-70 Stainless Steel (304 equivalent) – Excellent corrosion resistance for outdoor, marine, and industrial environments. No rust.
-
DIN6921 Standard – Precision dimensions ensure compatibility with metric nuts and tapped holes.
-
Hexagon Head with Flange – Easy to tighten with standard wrenches or sockets; flange also helps resist vibration loosening.
-
Metric Coarse Threads M5–M10 – Covers common sizes for machinery, automotive, and structural applications. Choose any length you need.
-
Manufactured in Europe – High-quality production with consistent tolerances.

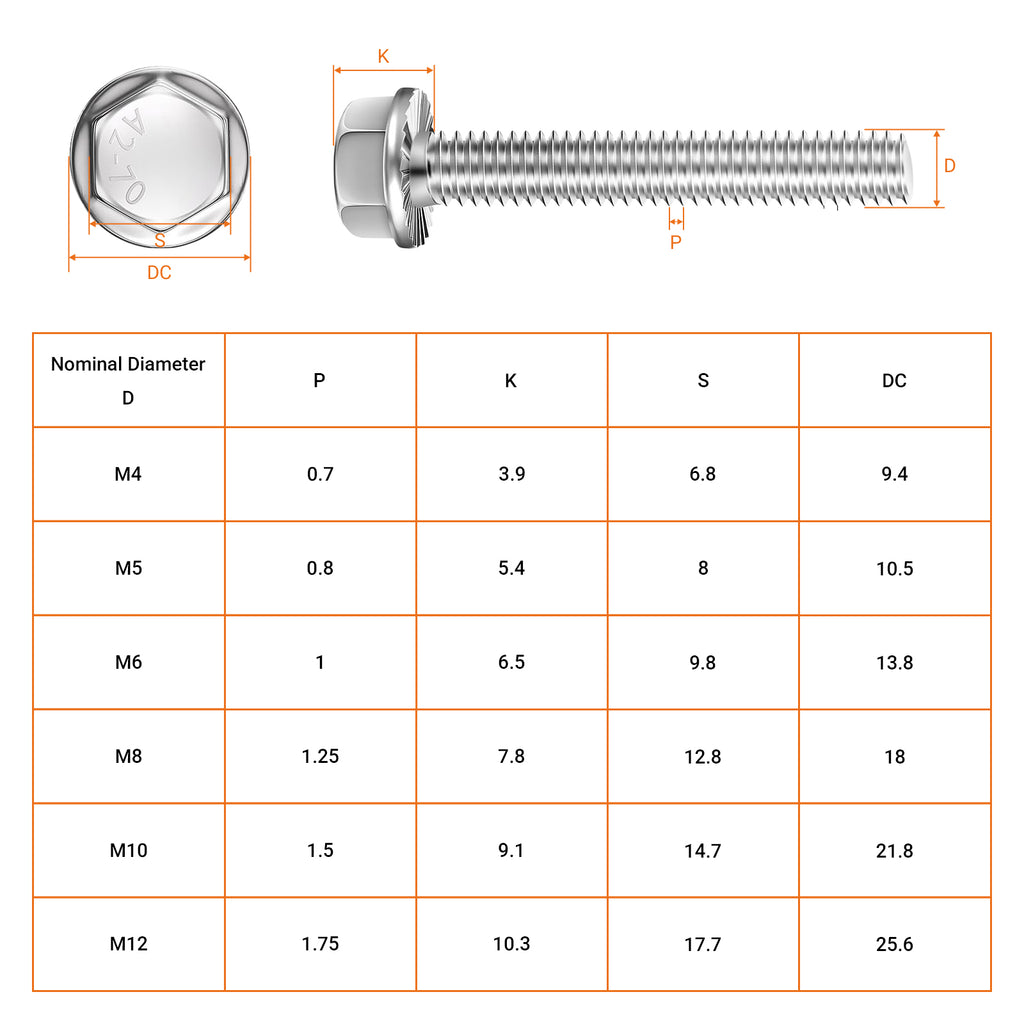

📏 Technical Specifications – Flanged Hex Bolts (DIN6921, Metric Coarse)
| Thread Size |
Thread Pitch (mm) |
Spanner / Wrench Size (mm) |
Flange Diameter (mm) |
Fully Threaded |
| M5 |
0.8 |
8 |
11.2 |
✅ |
| M6 |
1.0 |
10 |
14.2 |
✅ |
| M8 |
1.25 |
13 |
18.0 |
✅ |
| M10 |
1.5 |
15 |
22.3 |
✅ |
💡 Length & ordering info: All bolts are fully threaded. Lengths are measured from the underside of the head (does not include head height). Choose your preferred length (e.g., 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, up to 100mm or more) — sold as per your requirement. Contact us for bulk or custom-length orders.
🔩 A2-70 Stainless Steel = Superior corrosion resistance — Ideal for marine environments, outdoor furniture, food processing equipment, and automotive trim. Dimensions are subject to standard manufacturing tolerances per DIN 6921.
❓ Frequently Asked Questions – Flanged Hexagon Head Bolts
Do I still need a washer when using these flange bolts?
🔧 No. The integrated flange replaces a standard flat washer. It distributes the load and, on many flanged designs, also provides a locking effect against the mating surface. For soft or delicate materials, you may still use a soft washer, but generally, these bolts are designed to be used without additional washers.
Are these bolts fully threaded or partially threaded?
✅ All bolts in this series are fully threaded from under the head to the tip. This provides maximum grip strength and adaptability for any material thickness. Partial thread available upon request for bulk custom orders.
What wrench size do I need for each bolt?
📐 M5 → 8mm wrench, M6 → 10mm, M8 → 13mm, M10 → 15mm. Use standard metric combination wrenches, sockets, or ratchets. The hex head is standard across DIN6921.
Can I order custom lengths? What lengths are commonly available?
📦 Absolutely! “Package Included: As per Your Choice” means you select the length you need when ordering. Common lengths range from 10mm up to 100mm (e.g., 10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100mm). Bulk custom lengths are also possible — just let us know your requirement.
Where are these bolts manufactured?
🏭 These bolts are manufactured in Europe to DIN6921 standards, ensuring high quality, consistent thread profiles, and reliable mechanical properties. We stand behind their performance.
⚙️ HomeDIYer Fastener — European-quality stainless steel hardware. Order your exact length and quantity today.
