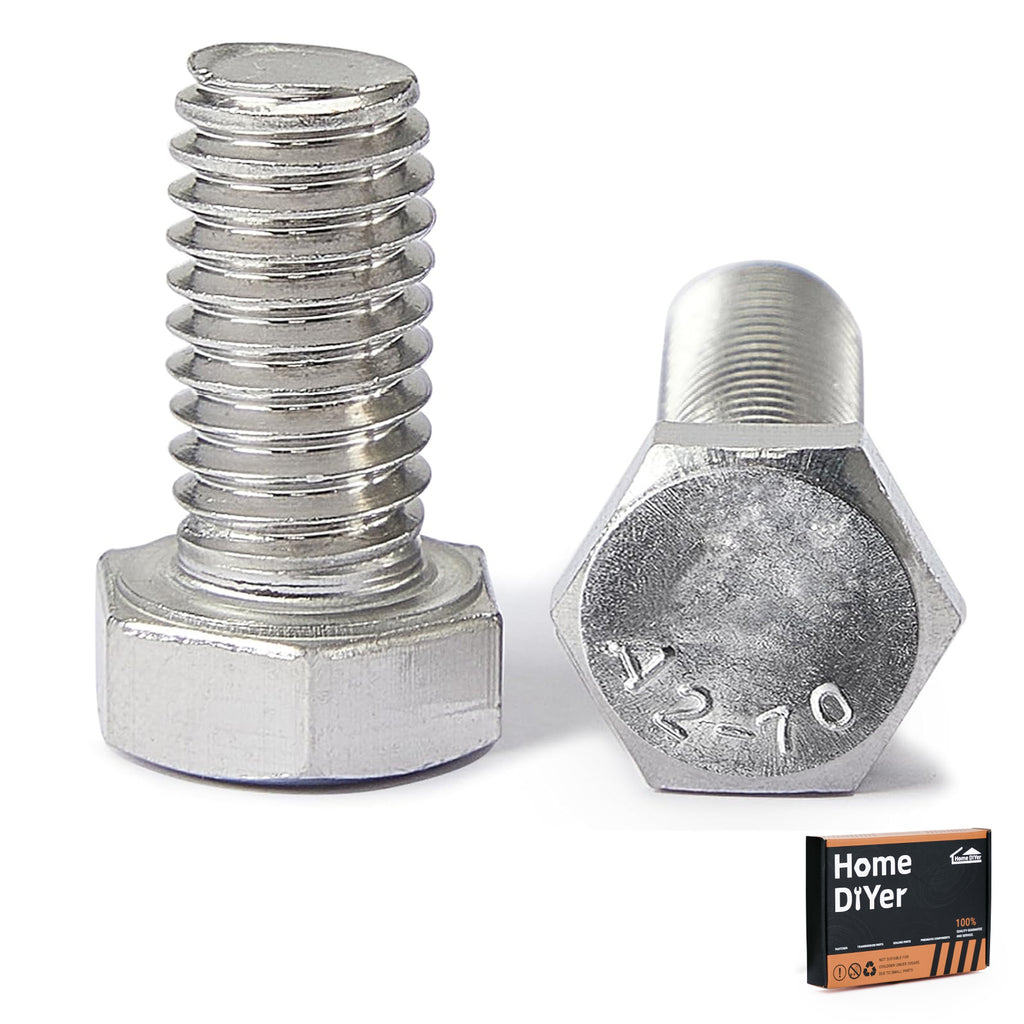

🔩 A2 Stainless Steel Hexagon Head Set Screws – Fully Threaded Bolts M4 to M12 | DIN933
🏷️ Brand: HomeDIYer Fastener | DIN933 | A2-70 | Fully Threaded | Metric Coarse
📌 Overview — Reliable, corrosion-resistant fasteners for everyday assembly and repairs. Whether you're building machinery, maintaining outdoor equipment, or working on a DIY project, you need bolts that are strong, rust-resistant, and easy to work with. Our A2-70 Stainless Steel Hexagon Head Set Screws (DIN933) are fully threaded from end to end, providing maximum grip and versatility for any material thickness. The standard hex head allows easy tightening with common wrenches, and the A2 stainless steel construction resists corrosion in humid and outdoor environments. Perfect for mechanics, fabricators, and home users who value quality and longevity. Available in M4 to M12 metric coarse threads – choose your exact length and quantity. No more rusted or mismatched hardware.
✨ Key Features of A2-70 Hexagon Head Fully Threaded Set Screws
-
Fully Threaded (DIN933) – Threads run the entire length of the shank, providing maximum holding strength and flexibility for any material thickness.
-

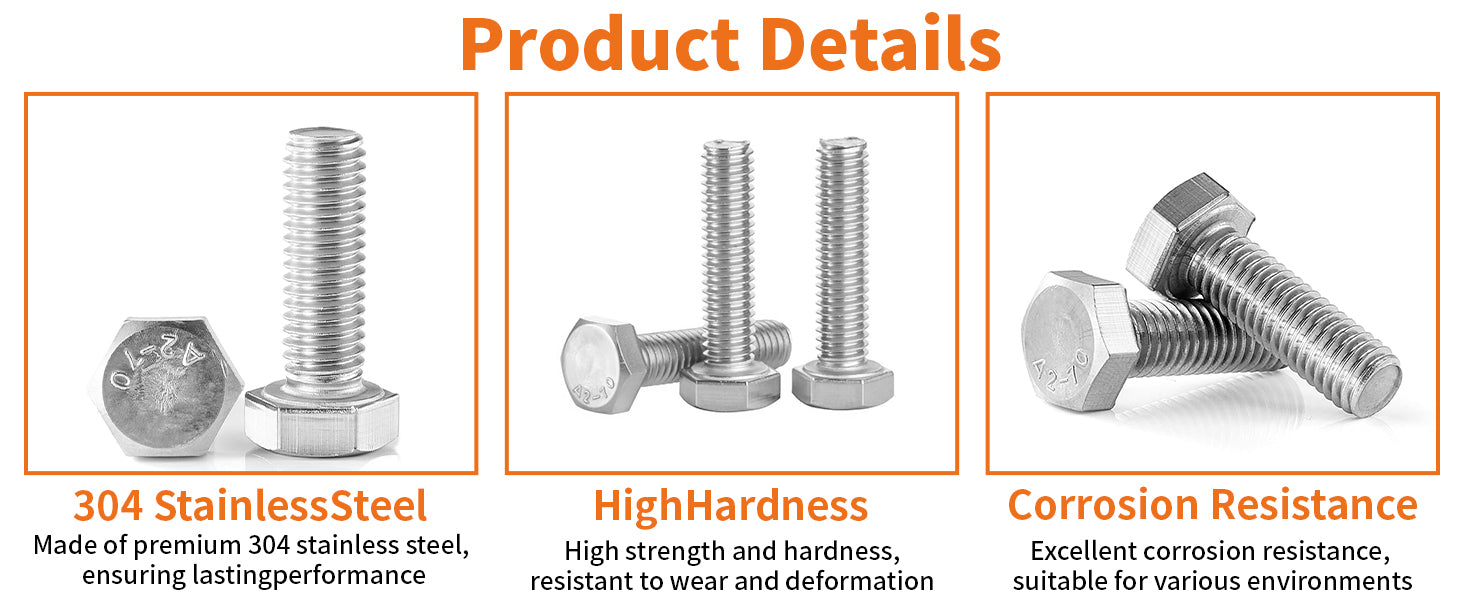

A2-70 Stainless Steel (304 equivalent) – Excellent corrosion resistance for outdoor, marine, and industrial environments. No red rust.
-

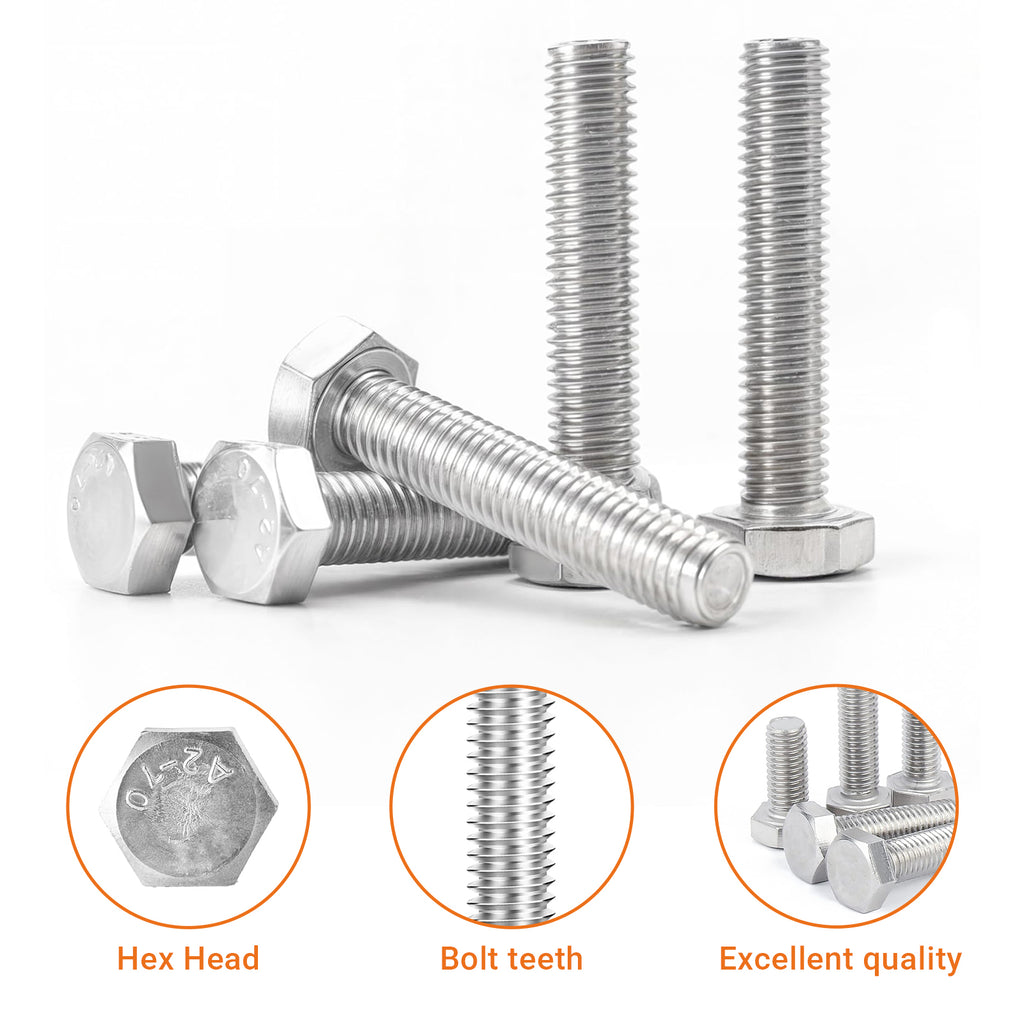

Standard Hexagon Head – Compatible with common metric wrenches and sockets (7mm to 19mm). Easy to apply high torque.
-
Metric Coarse Threads (most common) – Standard ISO metric pitches: M4x0.7, M5x0.8, M6x1.0, M8x1.25, M10x1.5, M12x1.75.
-
Length Measured Under Head – Accurate sizing for pre-drilled holes and counterbores (head height not included).
-
Wide Size Range M4 to M12 – Covers light to medium-duty applications: electronics enclosures, machinery guards, furniture, and structural assemblies.
-
Untreated Natural Stainless Finish – Clean, smooth surface with no coatings to chip or peel.

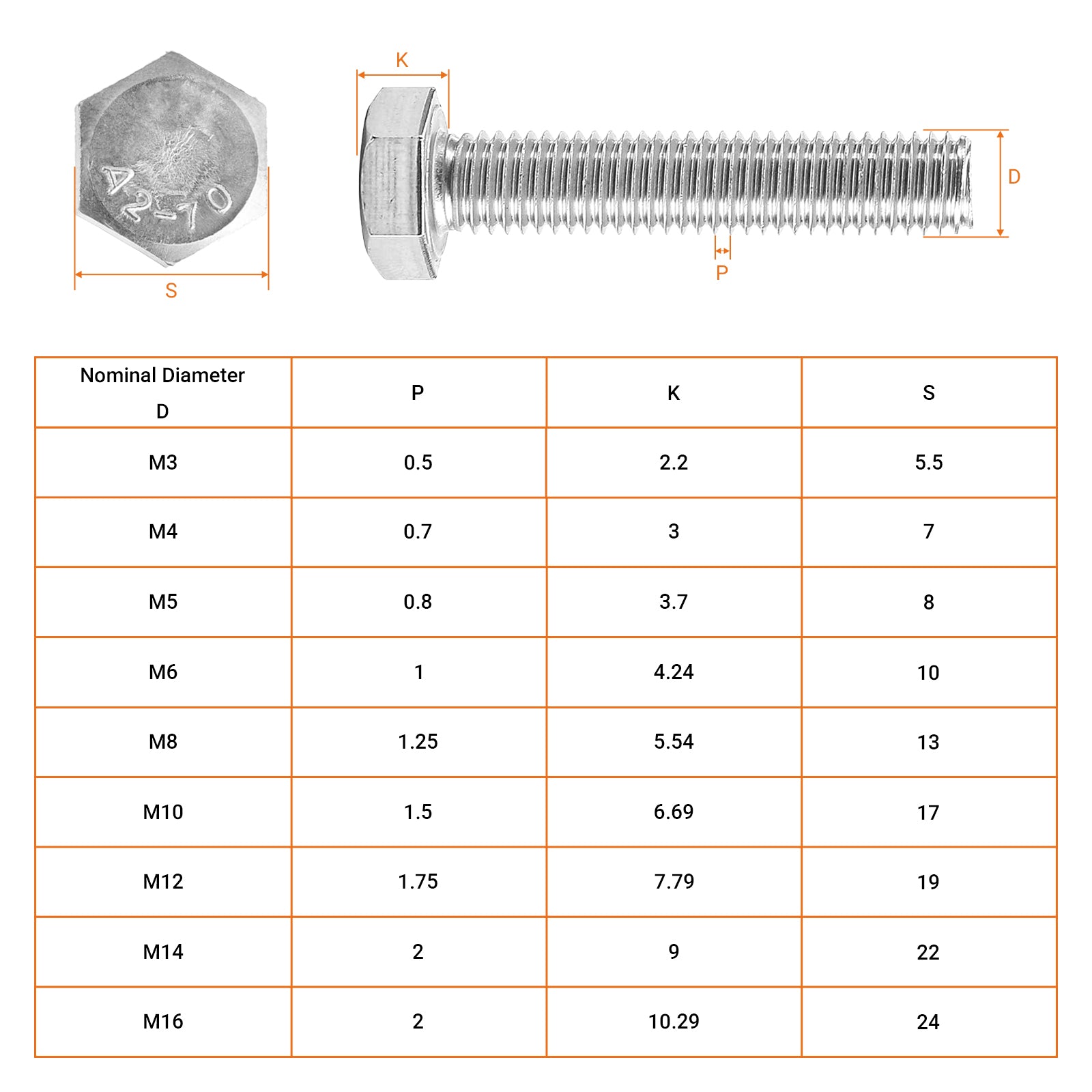

📏 Technical Specifications – Hexagon Head Set Screws (DIN933, Metric Coarse)
| Thread Size |
Thread Pitch (mm) |
Spanner / Wrench Size (mm) |
| M4 |
0.7 |
7 |
| M5 |
0.8 |
8 |
| M6 |
1.0 |
10 |
| M8 |
1.25 |
13 |
| M10 |
1.5 |
17 |
| M12 |
1.75 |
19 |
💡 Length & ordering info: Screws are fully threaded per DIN933. Length is measured from the underside of the head (does not include head height). Choose your preferred length (e.g., 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm) — sold as per your requirement. Contact us for bulk or custom-length orders.
🔩 A2-70 Stainless Steel = Corrosion resistance with good strength — Ideal for outdoor furniture, marine trim, food equipment, and general fabrication. Tensile strength ~700 MPa.
❓ Frequently Asked Questions – Hexagon Head Fully Threaded Screws
Are these screws fully threaded or partially threaded?
✅ These are fully threaded set screws per DIN933. The thread runs from just under the head to the very tip. This provides maximum grip and is ideal for applications where the bolt passes through a nut or threaded hole of varying thickness.
What wrench size do I need for each bolt?
📐 M4 → 7mm, M5 → 8mm, M6 → 10mm, M8 → 13mm, M10 → 17mm, M12 → 19mm. Use standard metric combination wrenches, sockets, or ratchets. The hex head dimensions follow DIN933 standards.
Can I use these screws outdoors? Will they rust?
🌊 Yes – A2-70 stainless steel (304 grade) provides excellent corrosion resistance for outdoor use, including coastal areas and freshwater marine environments. They will not rust like carbon steel. For continuous saltwater immersion, consider A4 (316) stainless, but A2 is perfect for most exterior applications.
What lengths are available? Can I order custom lengths?
📦 “As per Your Choice” – select the exact length you need. Common lengths range from 10mm to 100mm (10,12,16,20,25,30,35,40,45,50,60,70,80,90,100mm). Custom lengths available for bulk orders – just contact us with your requirements.
Are these screws compatible with standard metric nuts?
🔩 Yes, they use standard metric coarse threads (M4x0.7, M5x0.8, etc.), which are the most common. They fit perfectly with any metric nut, threaded insert, or tapped hole of the same size and pitch.
⚙️ HomeDIYer Fastener — Quality stainless steel hardware for professionals and makers. Order your exact size, length, and quantity today.
