When vibration, minor shaft misalignment, or backlash causes positioning errors in your CNC router, 3D printer, or automation rig, a rigid coupling is often the culprit. Engineers, makers, and machine builders who demand smooth, low-backlash power transmission need a coupling that absorbs shock without sacrificing torque accuracy. This aluminum jaw shaft coupler with a flexible plum spider insert is engineered for exactly that application.

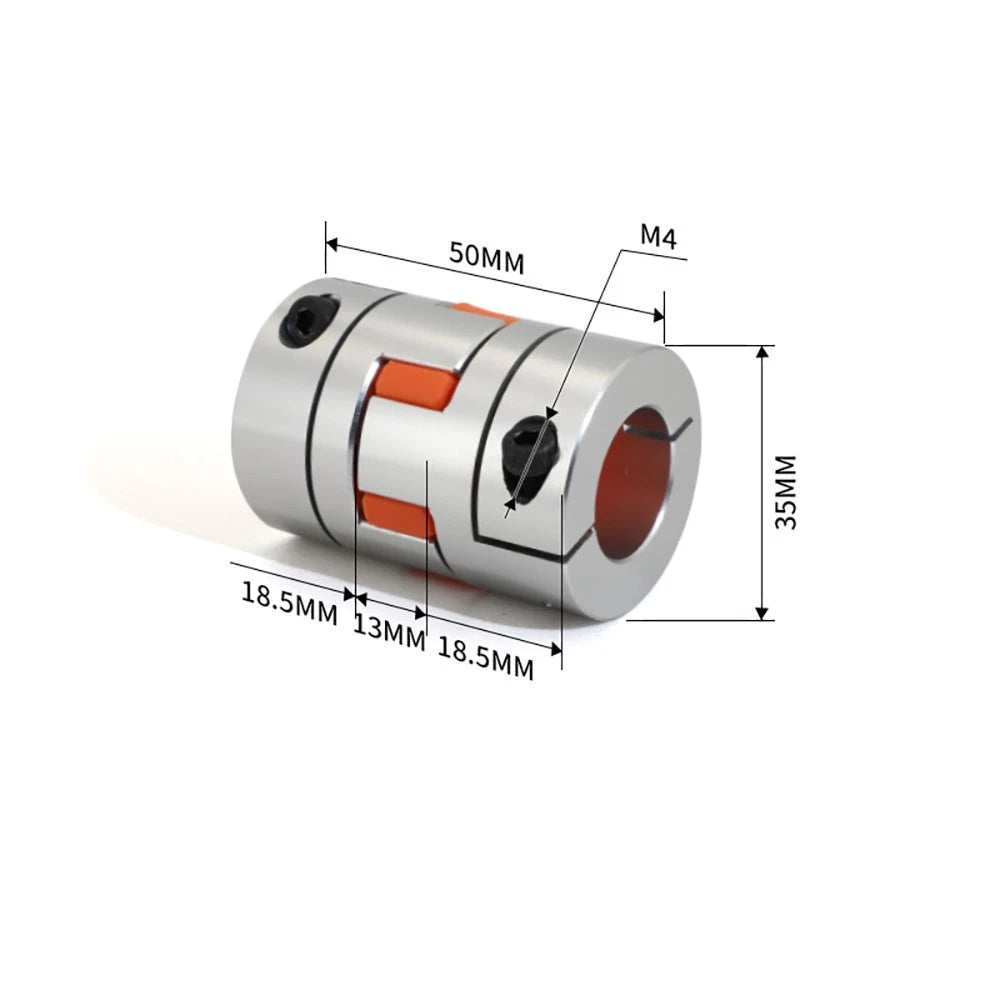

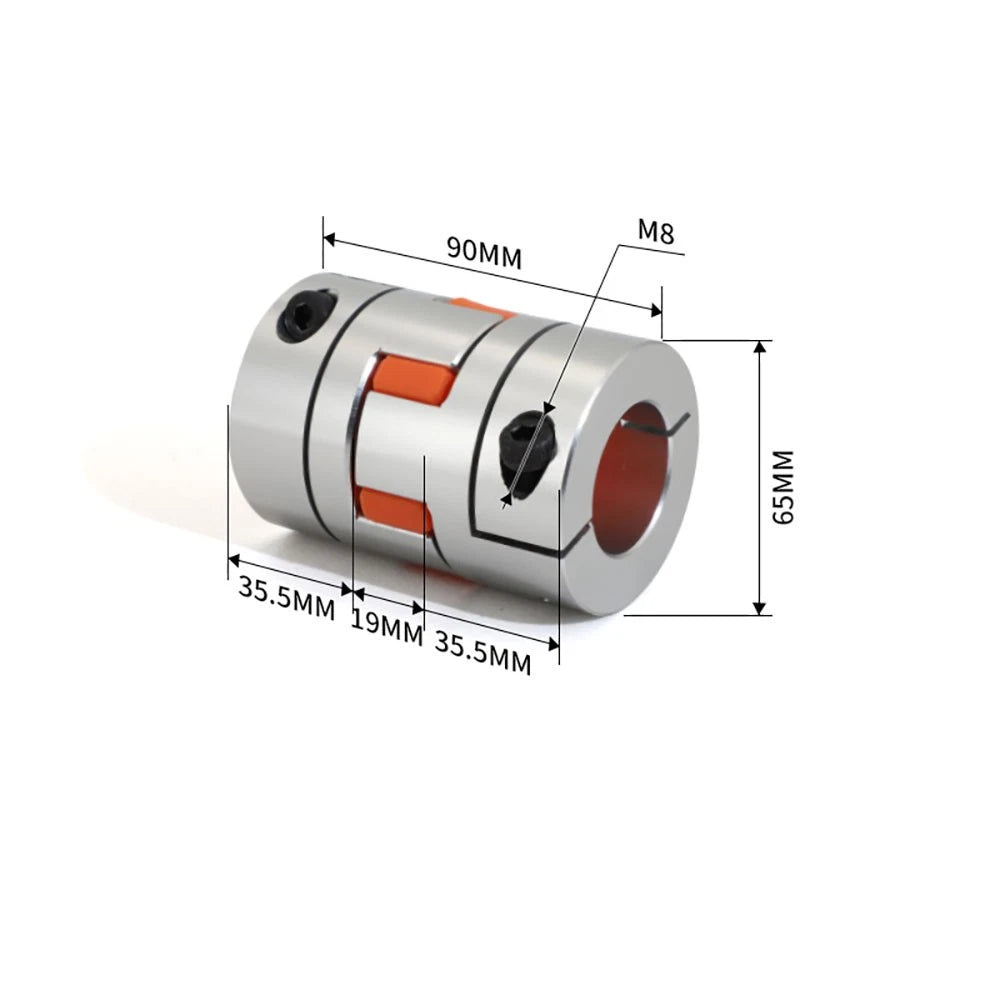

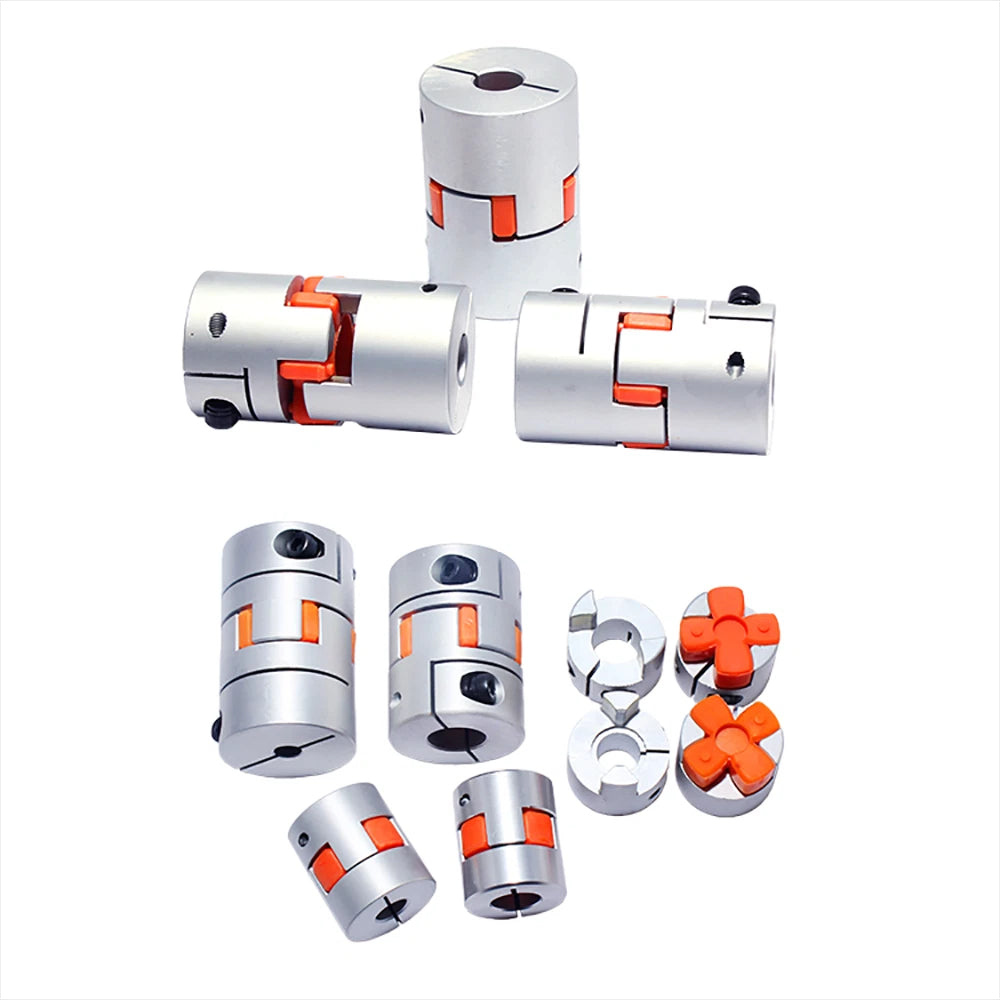

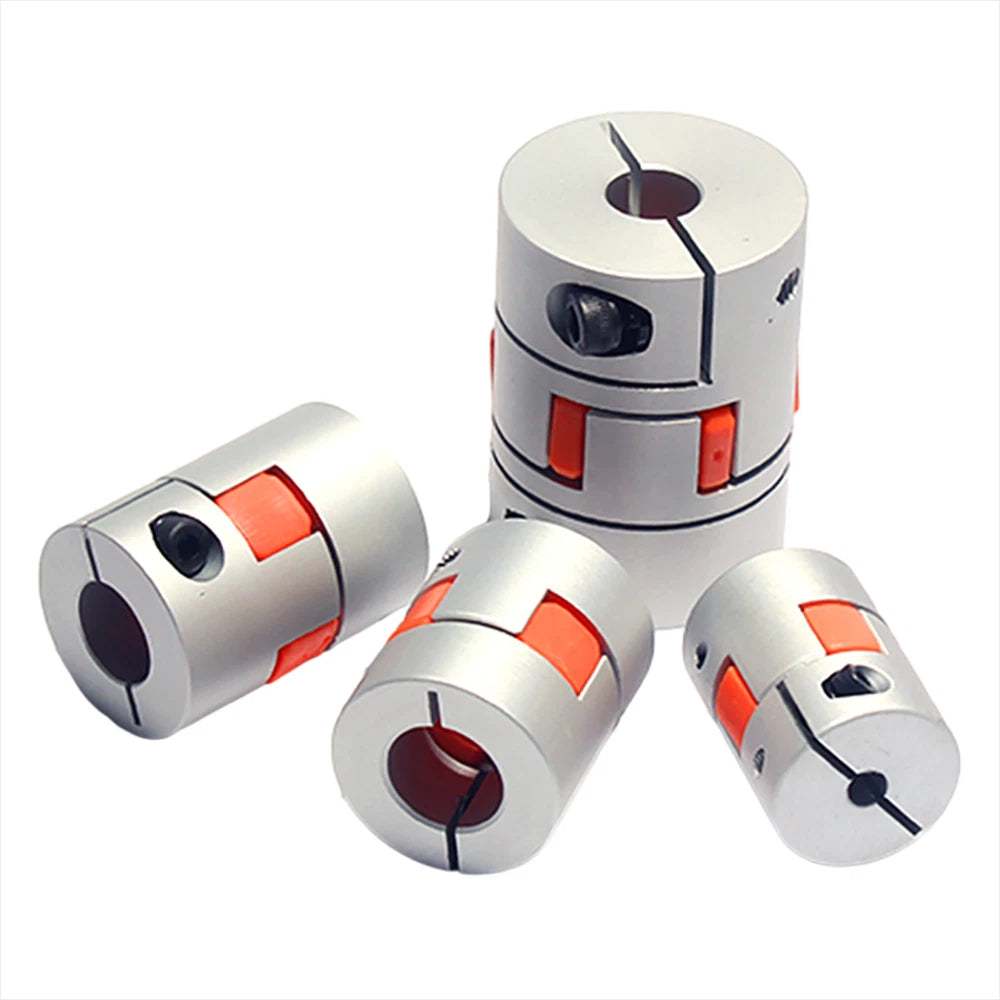

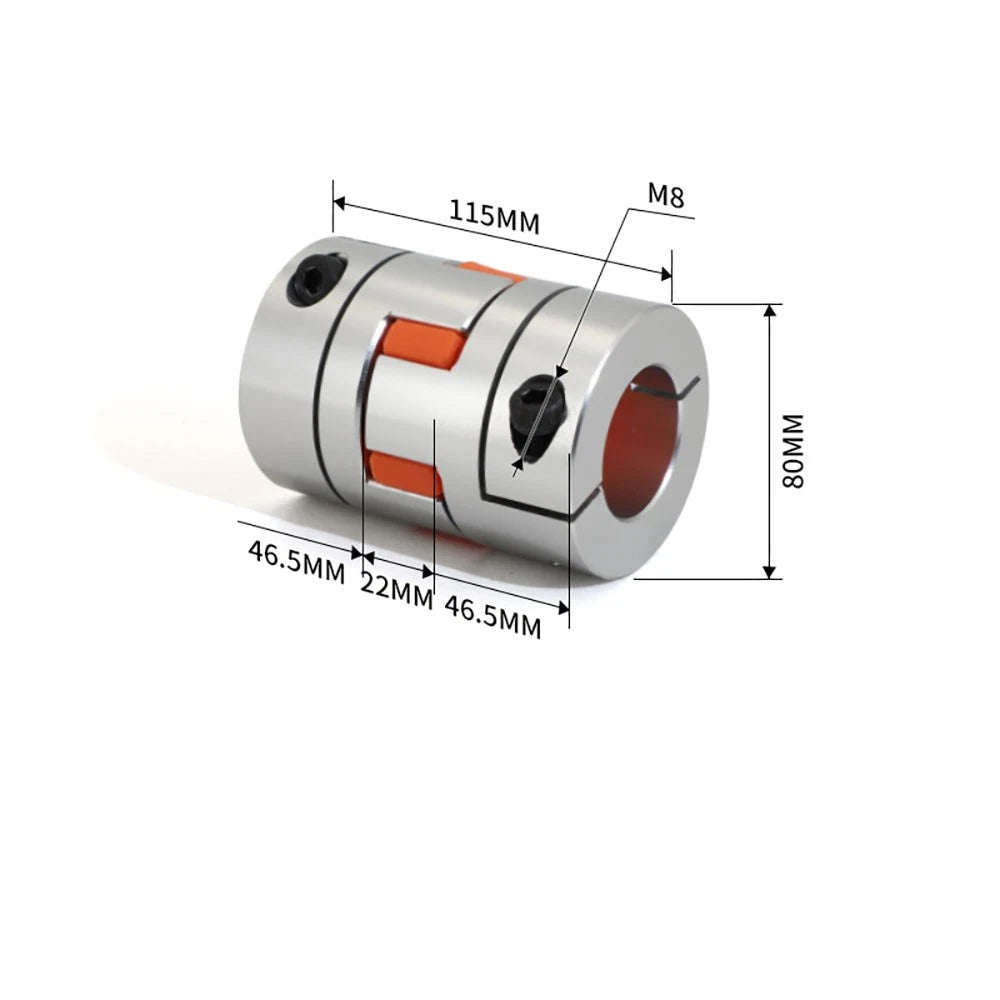

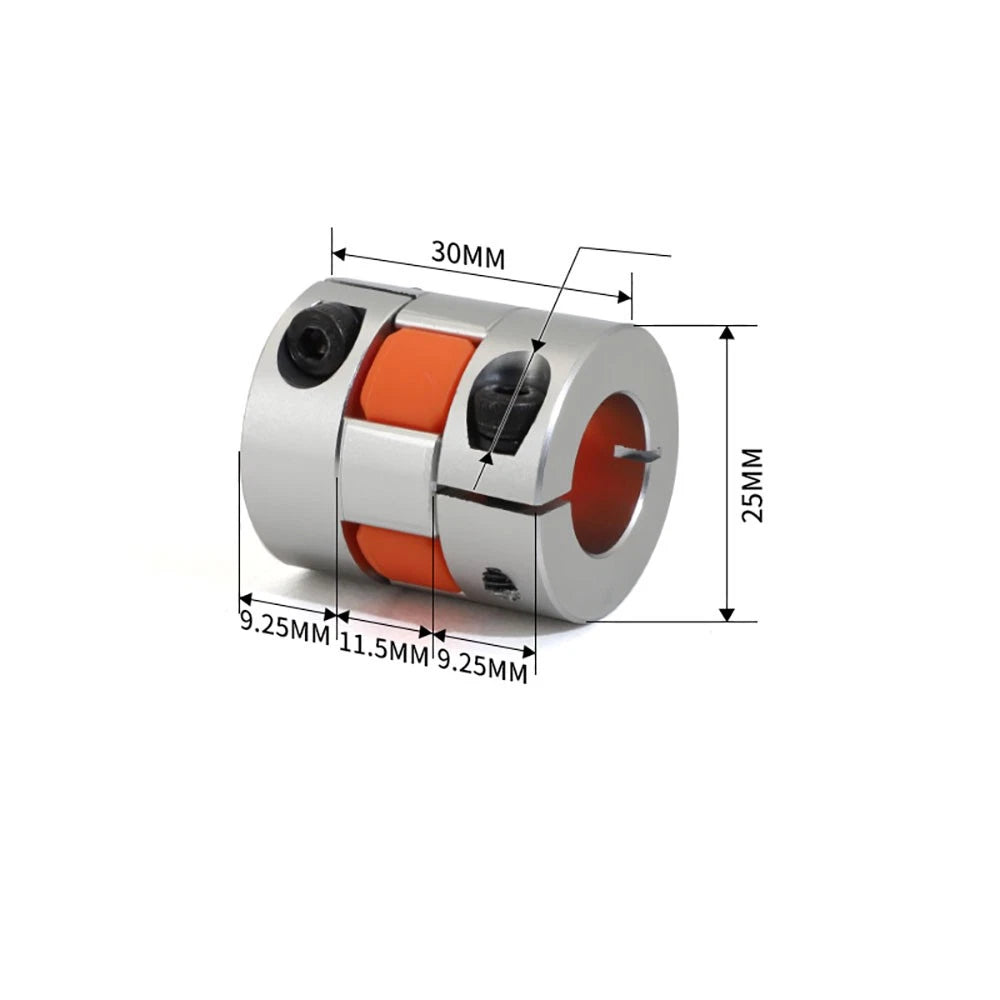

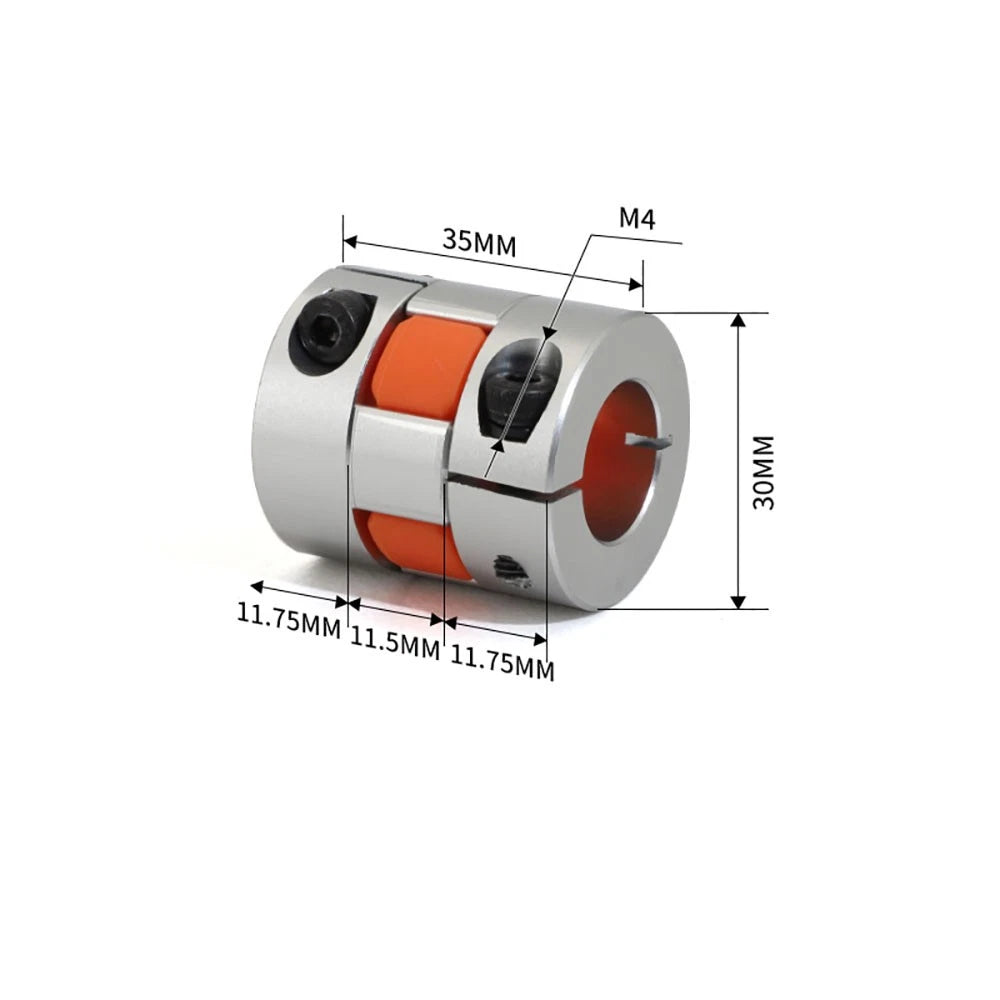

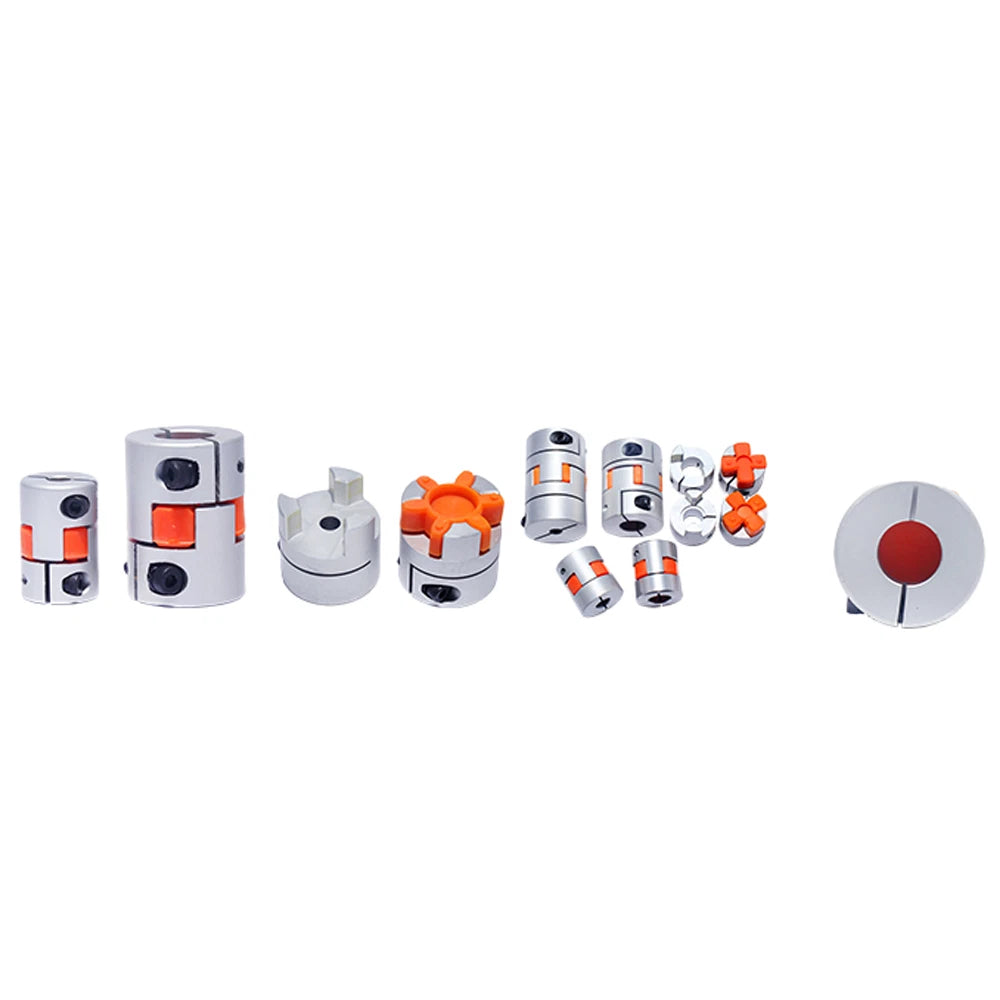

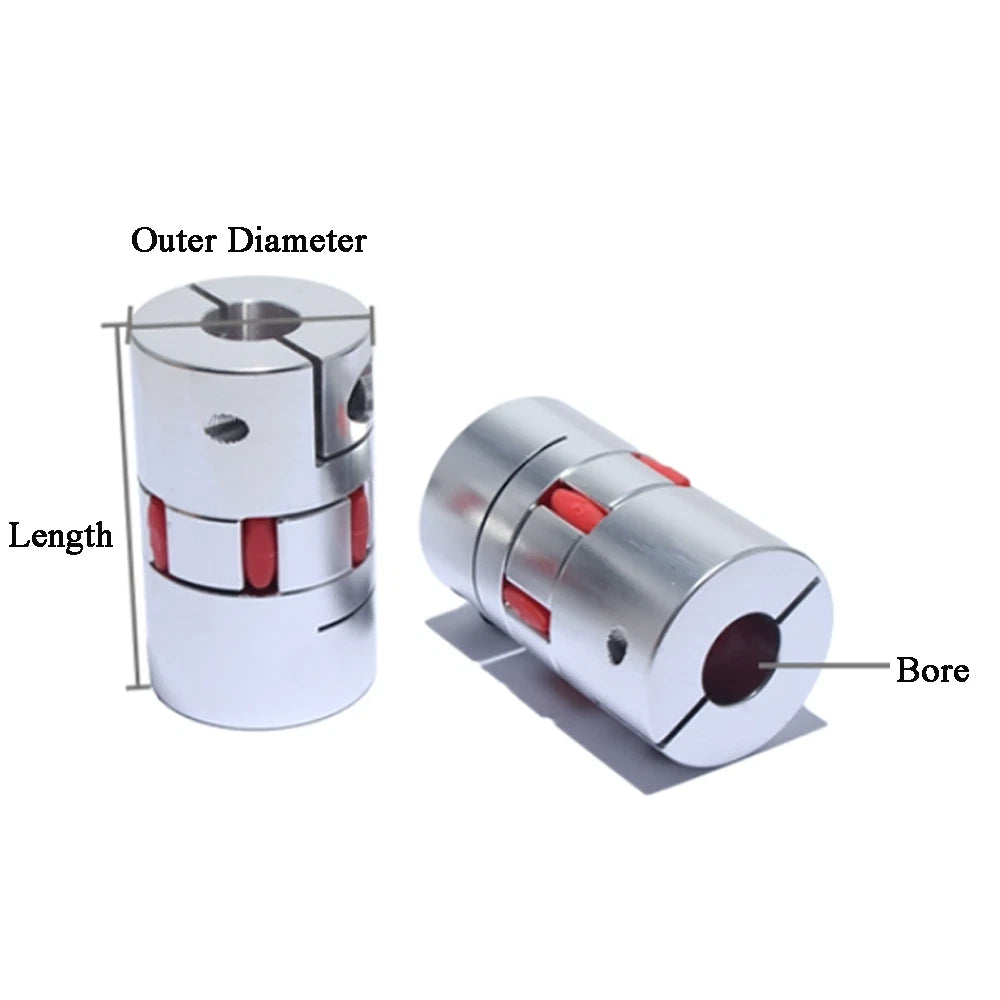

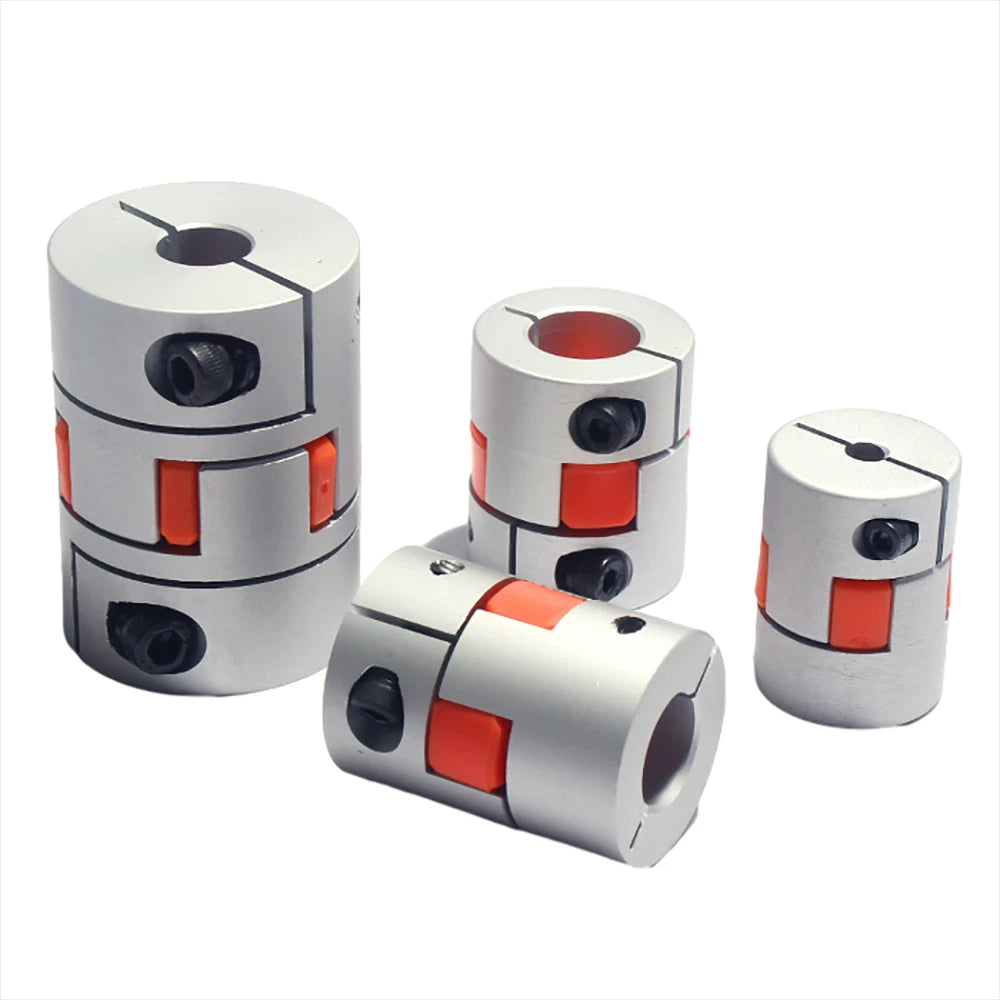

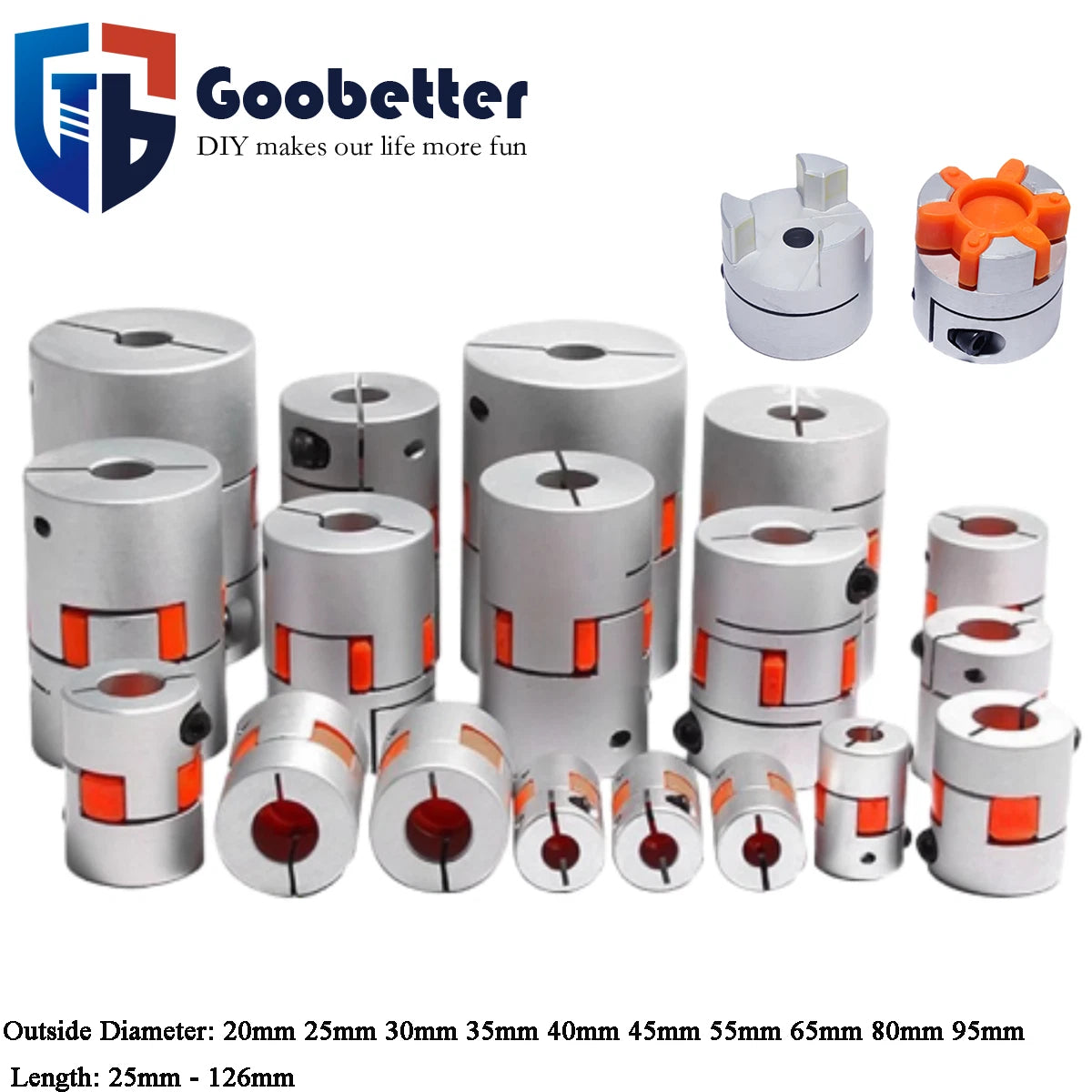

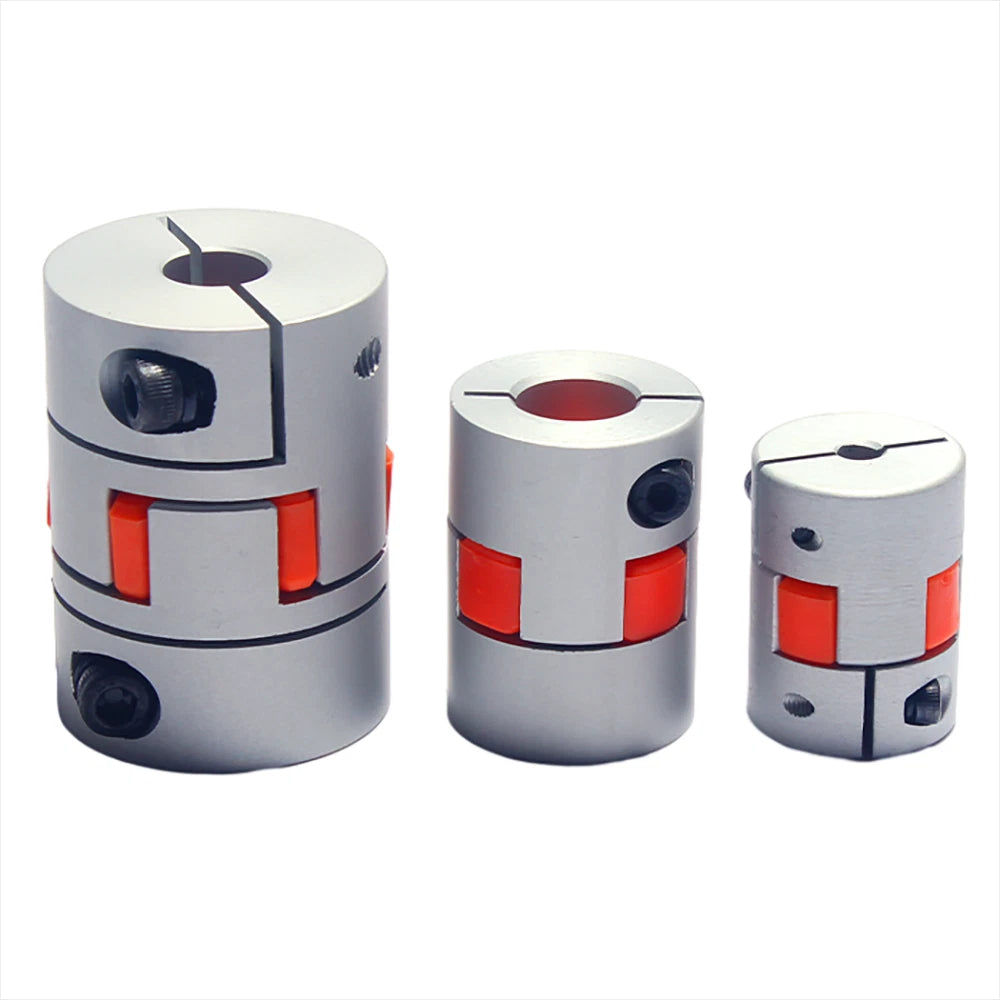

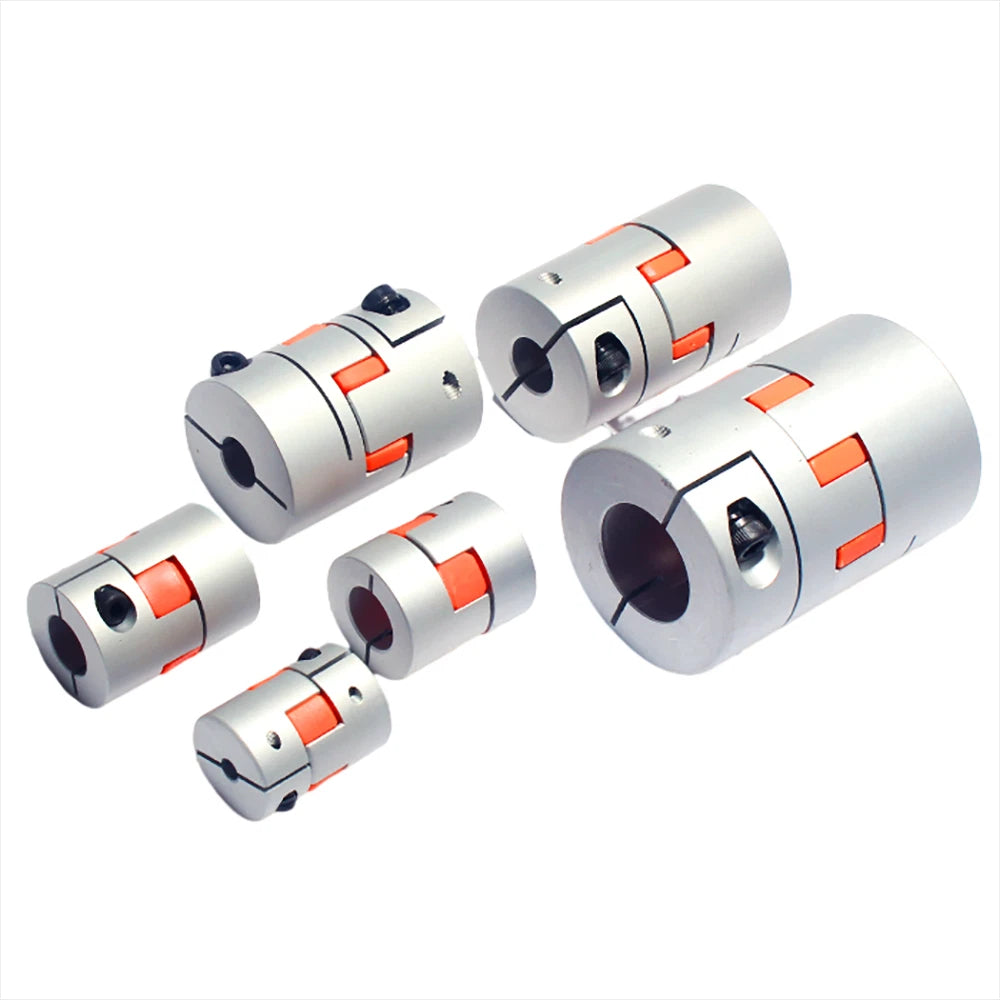

Each coupler consists of two precision-machined aluminum alloy hubs and a polyurethane spider (plum) insert seated between them. The outer diameter spans D20mm (0.79 in) to D95mm (3.74 in), with lengths from L25mm (0.98 in) to L126mm (4.96 in). Shaft bore compatibility ranges from 4mm to 55mm depending on the selected coupler dimension, covering the most common stepper motor and servo shaft sizes.

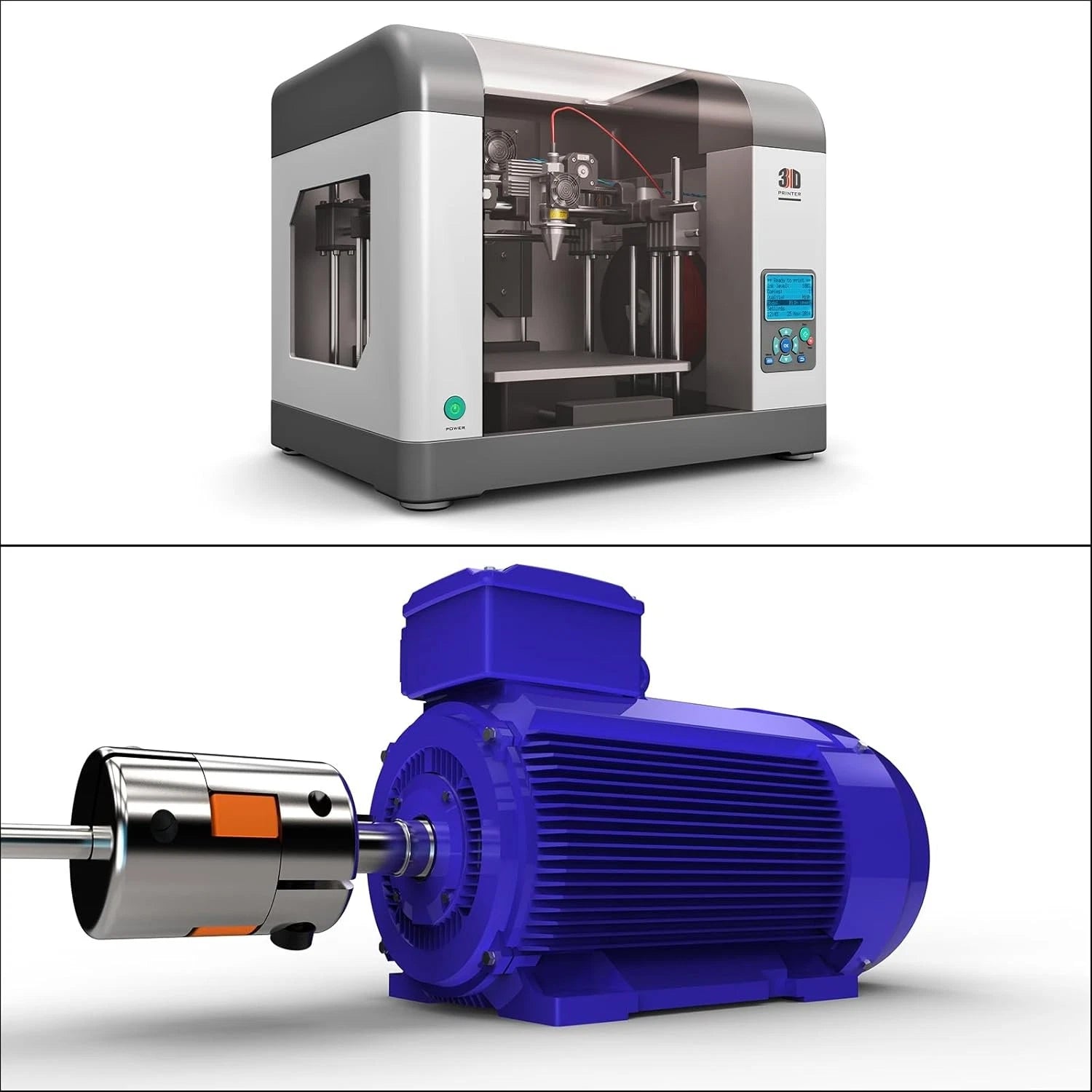

Typical use cases include NEMA 17 and NEMA 23 stepper motor drives on FDM 3D printers and laser engravers, Z-axis and lead-screw connections on CNC milling machines, and servo-to-gearbox shaft connections in light industrial automation. The flexible spider insert accommodates angular, parallel, and axial misalignment, making this a reliable flexible plum jaw coupling for demanding motion control applications.
| Coupler Type | Jaw / Plum Spider (flexible) |
|---|---|
| Hub Material | Aluminum alloy |
| Spider Insert Material | Polyurethane (PU) |
| Outer Diameter (D) | 20mm – 95mm (0.79 in – 3.74 in) |
| Length (L) | 25mm – 126mm (0.98 in – 4.96 in) |
| Shaft Bore Range | 4mm – 55mm (see variant options) |
| Misalignment Tolerance | Angular, parallel, and axial (see variant options) |
| Clamp Style | Set screw (grub screw) |
| Pack Quantity | 1 / 2 / 3 / 5 pcs (see variant options) |
| Surface Finish | Natural anodized / mill finish |
| Application | 3D printers, CNC machines, stepper/servo motor drives |
Match the coupler's shaft bore range to your motor shaft diameter and your driven shaft diameter. For example, a NEMA 17 stepper typically has a 5mm shaft, so any coupler with a bore range that includes 5mm will fit. Then select the outer diameter (D) and length (L) that fits within your machine's available space. Refer to the variant options for the exact bore range of each coupler size.

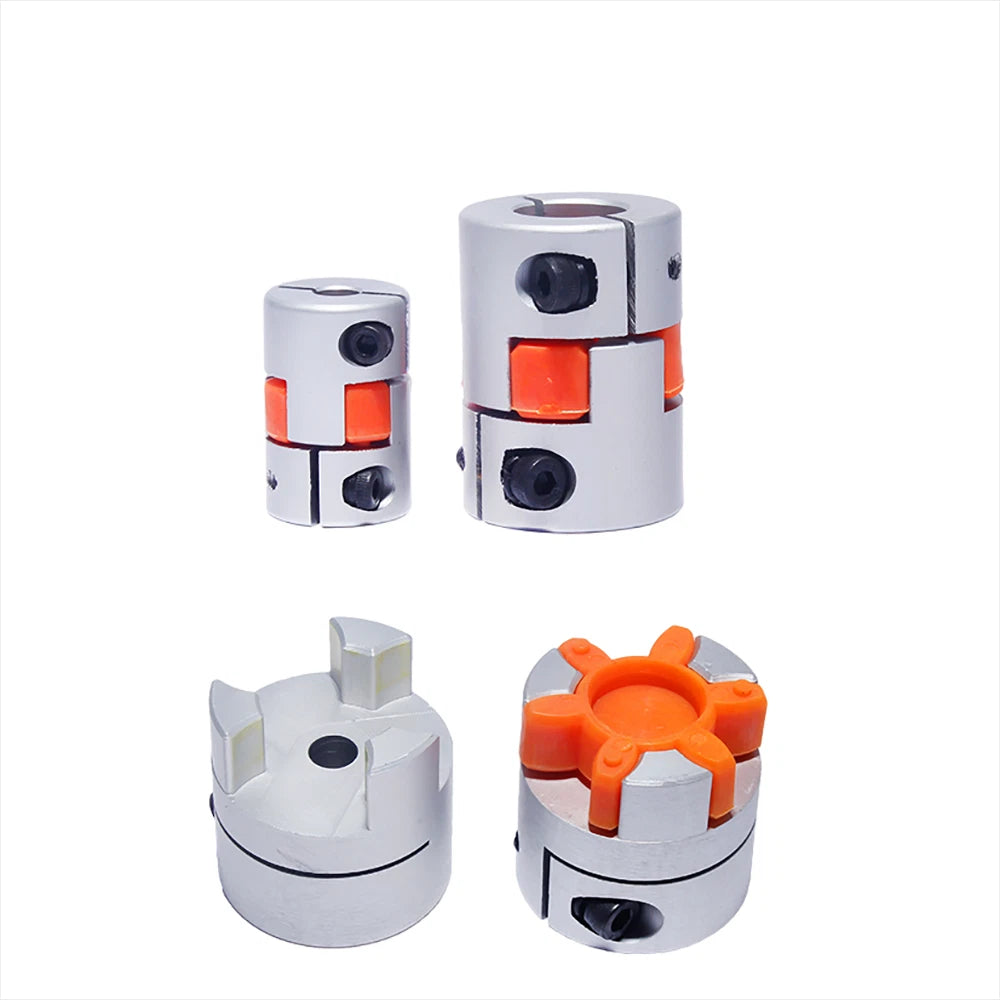

The polyurethane spider insert sits between the two aluminum hubs and acts as a flexible element. It absorbs vibration and shock, accommodates minor shaft misalignment (angular, parallel, and axial), and reduces noise during operation. It also provides a degree of electrical isolation between the two shafts.
Yes. The flexible plum spider insert allows the coupler to tolerate angular misalignment (shafts at a slight angle), parallel misalignment (shafts offset laterally), and axial misalignment (shafts slightly apart or compressed). For best results, minimize misalignment during installation to extend the service life of the spider insert.
Yes. This jaw coupling is widely used on 3D printer Z-axis lead screw connections. The flexible spider compensates for minor misalignment between the stepper motor shaft and the lead screw, reducing binding and improving print quality. Select the coupler dimension that matches your motor shaft and lead screw diameter.
Each hub is secured using set screws (grub screws) that clamp onto the shaft. Tighten the set screws firmly with the appropriate hex key after aligning the coupler. For shafts with a flat (D-cut), align the set screw to the flat for a more secure grip and to prevent rotation under load.
The polyurethane spider insert can wear over time, especially under high-cycle or high-torque conditions. In most jaw couplings, the spider insert is a separate component that can be replaced without replacing the aluminum hubs. If you notice increased backlash or vibration, inspect the spider for wear and replace it as needed.

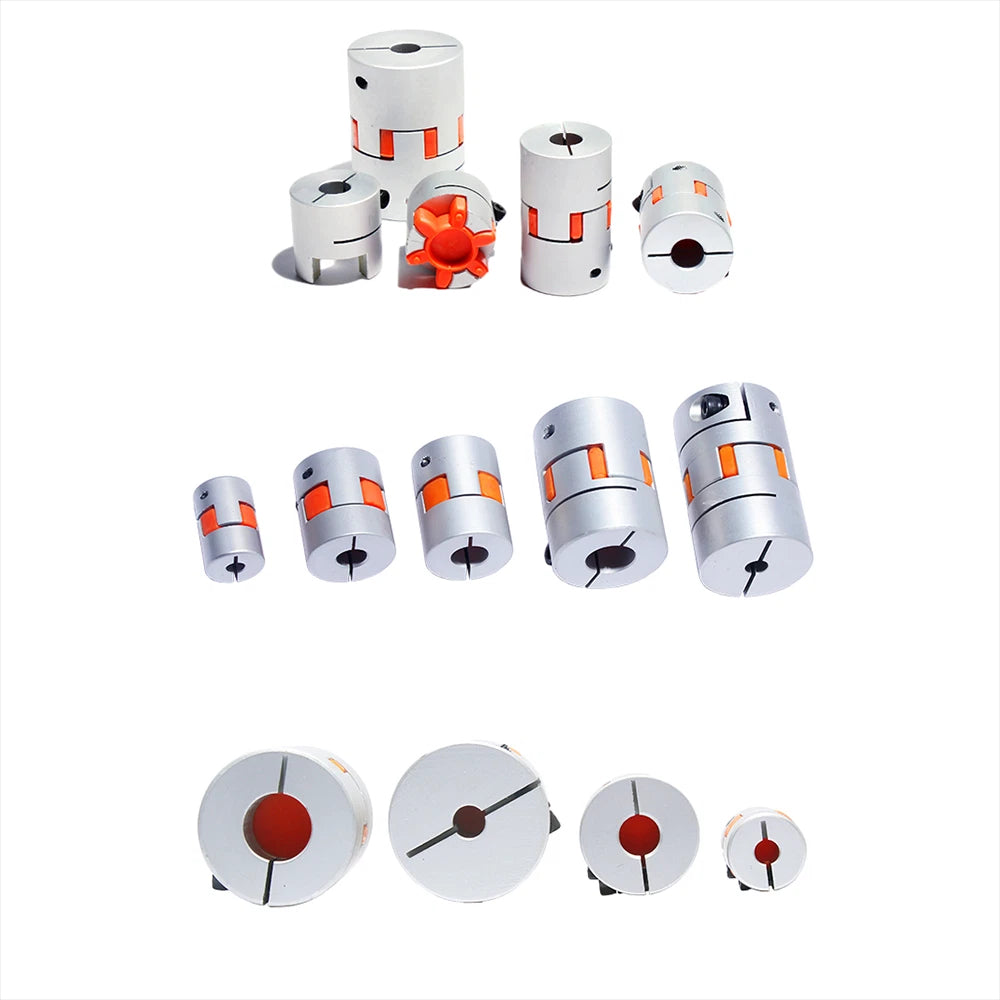

Larger outer diameters (D) generally correspond to higher torque capacity and larger shaft bore ranges. Smaller couplers (D20–D25mm) are suited for light-duty applications such as small 3D printers and NEMA 14/17 motors. Mid-range sizes (D30–D45mm) cover NEMA 23 motors and medium CNC axes. Larger sizes (D55–D95mm) are intended for NEMA 34 motors, servo drives, and heavier industrial applications. Always verify the shaft bore range for your selected size.
