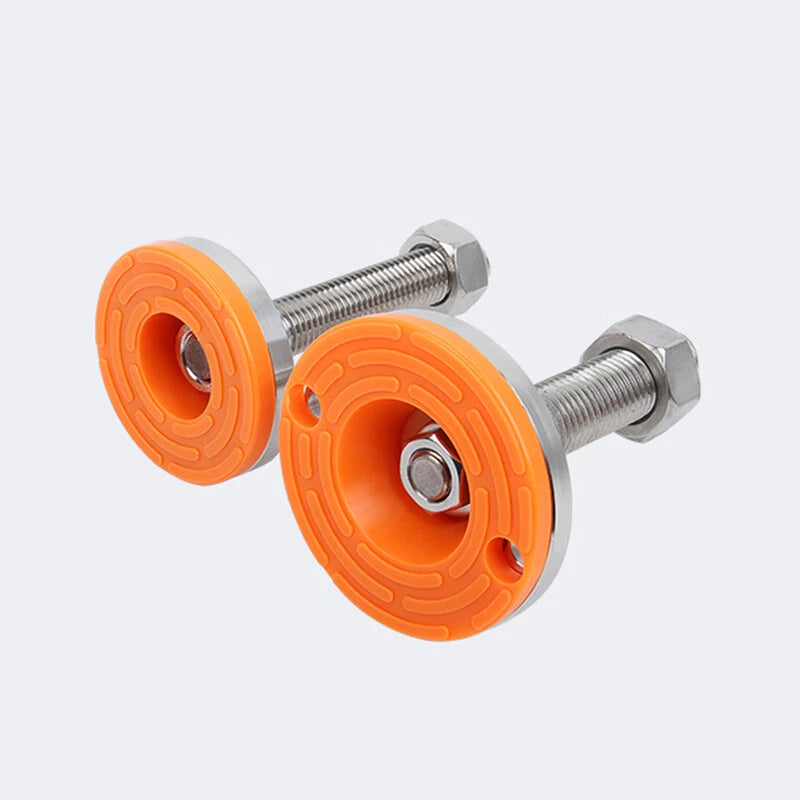

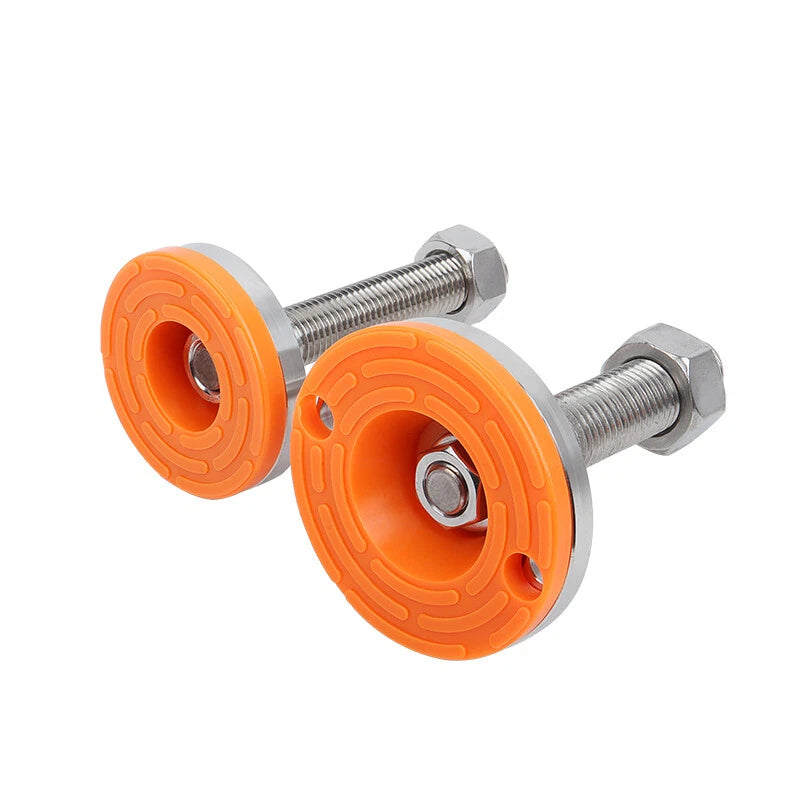

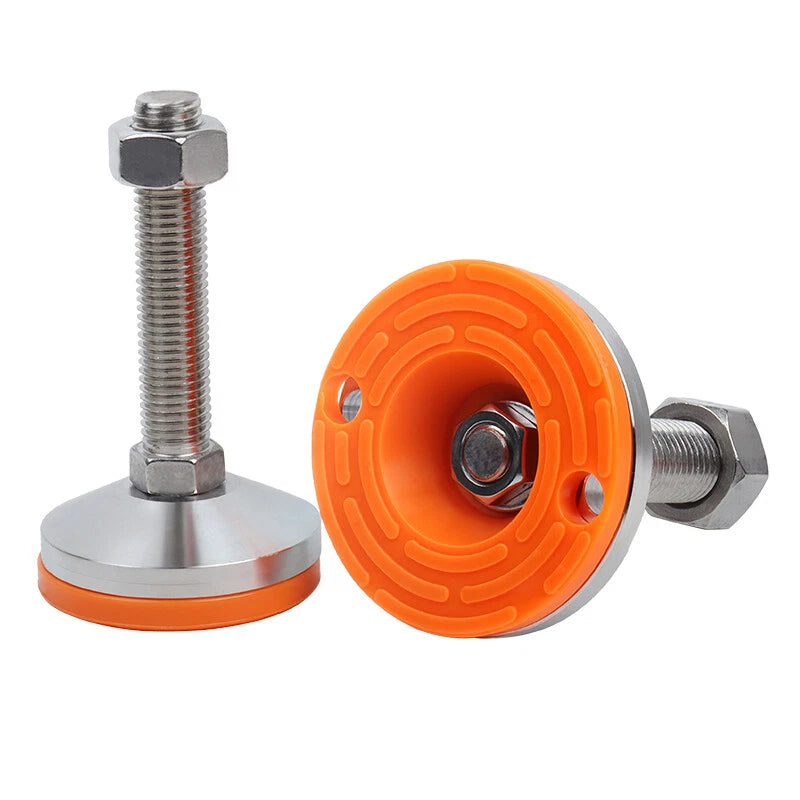

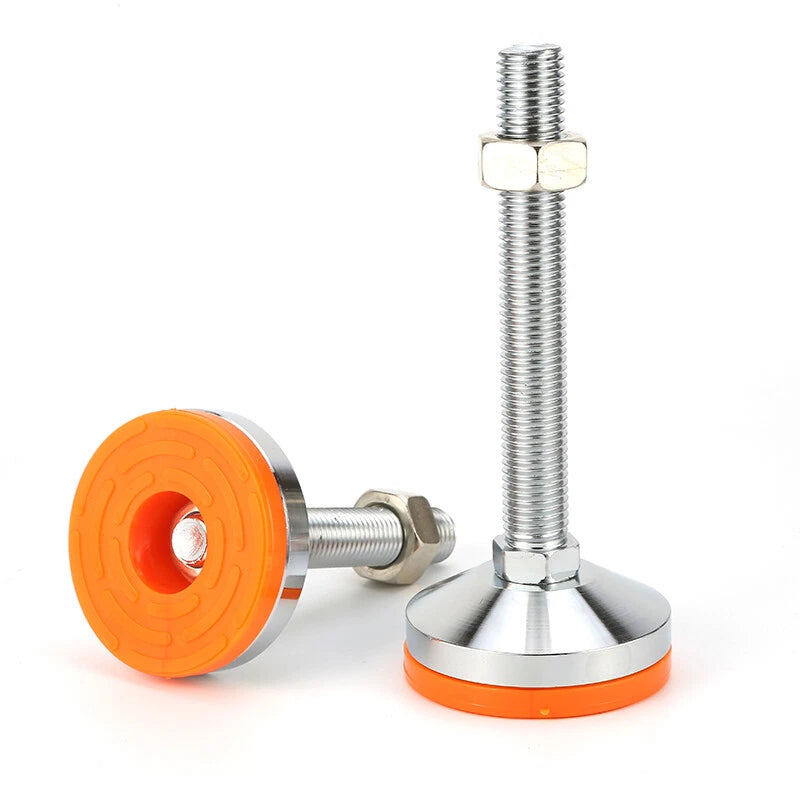

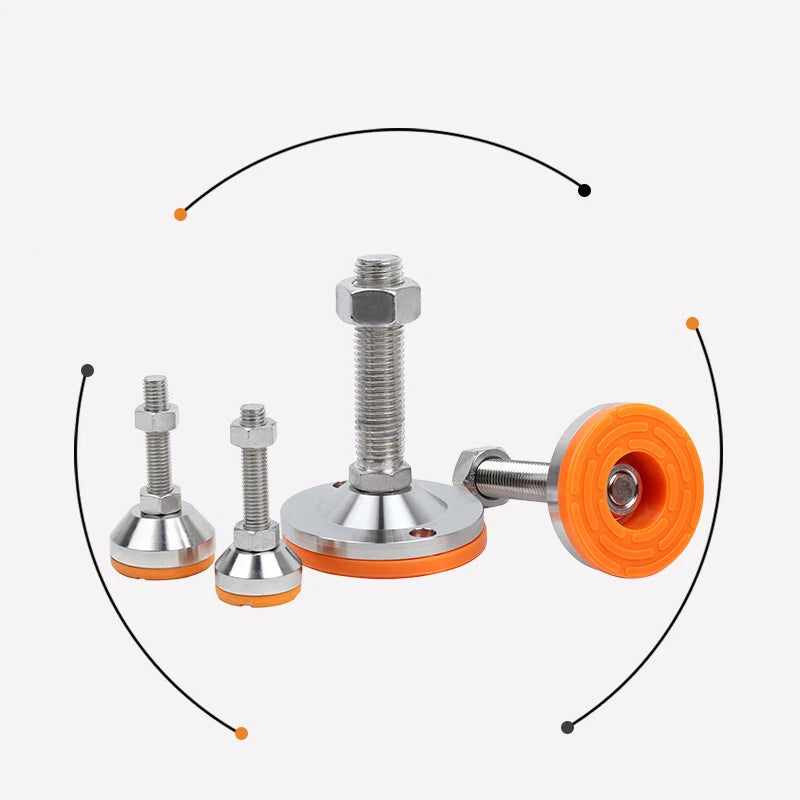

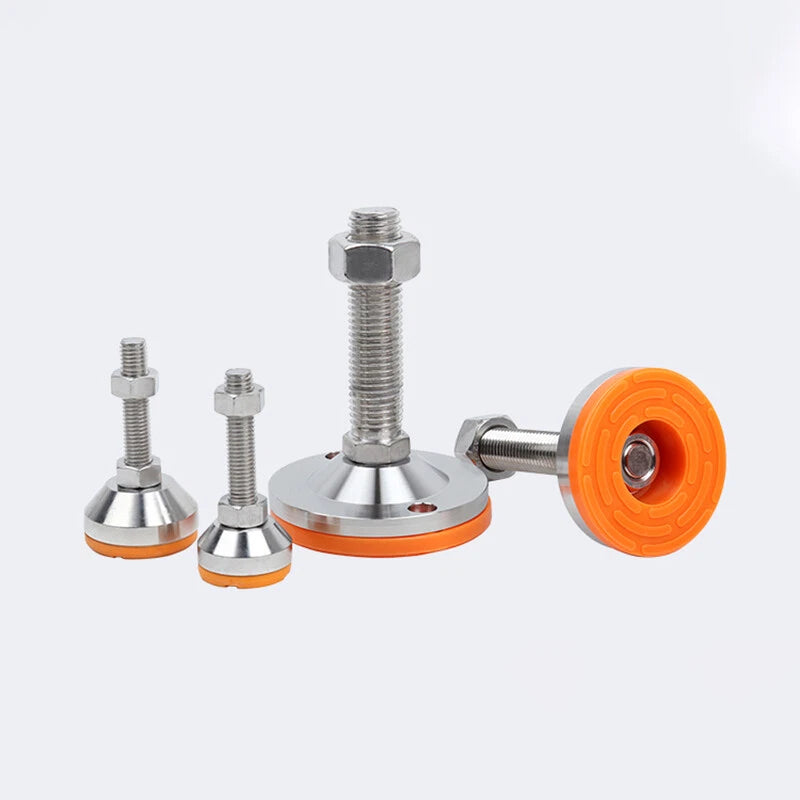

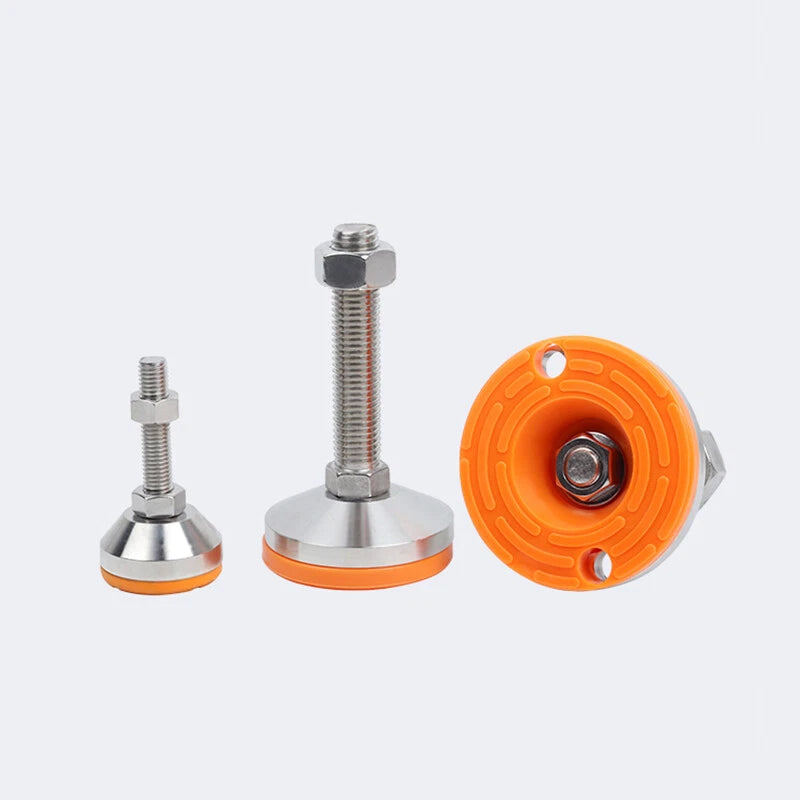

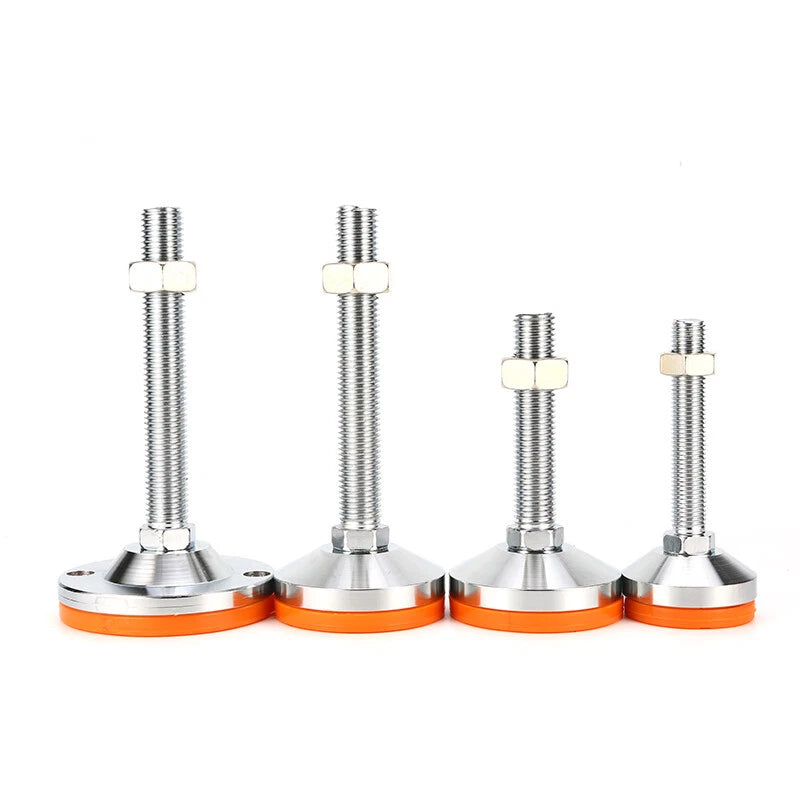

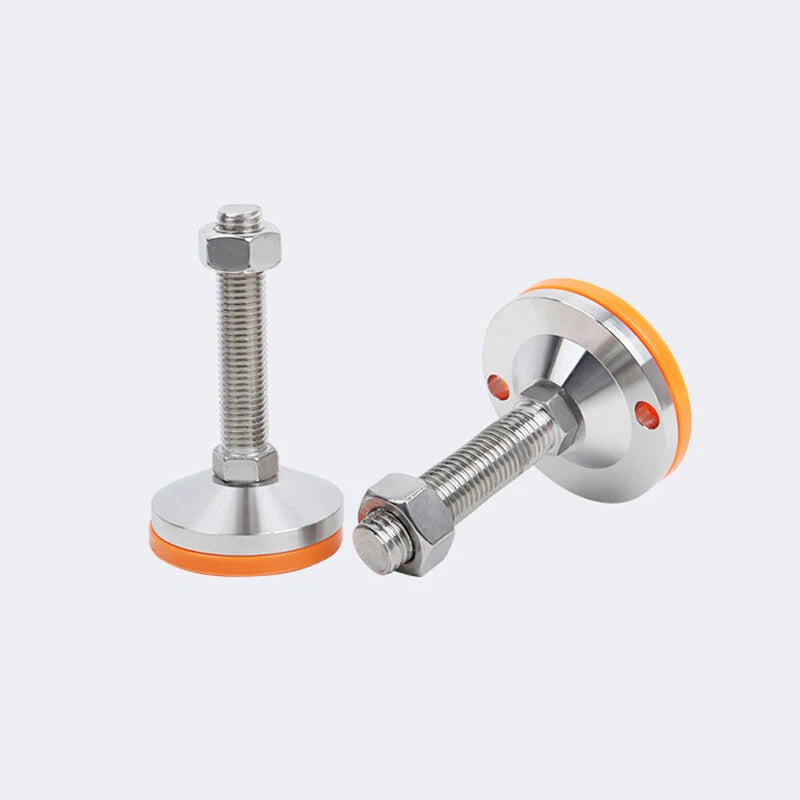

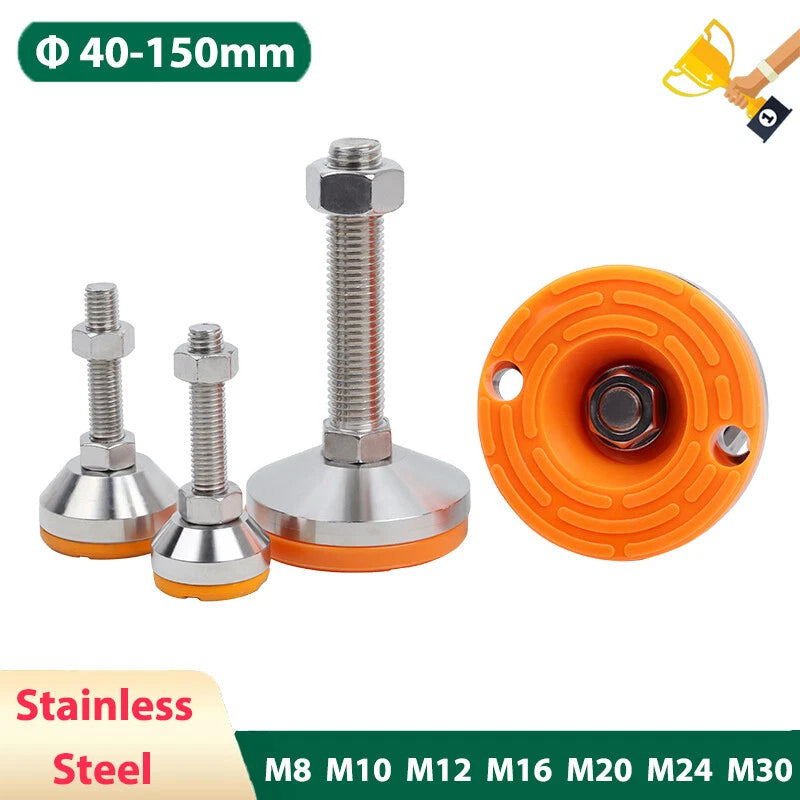

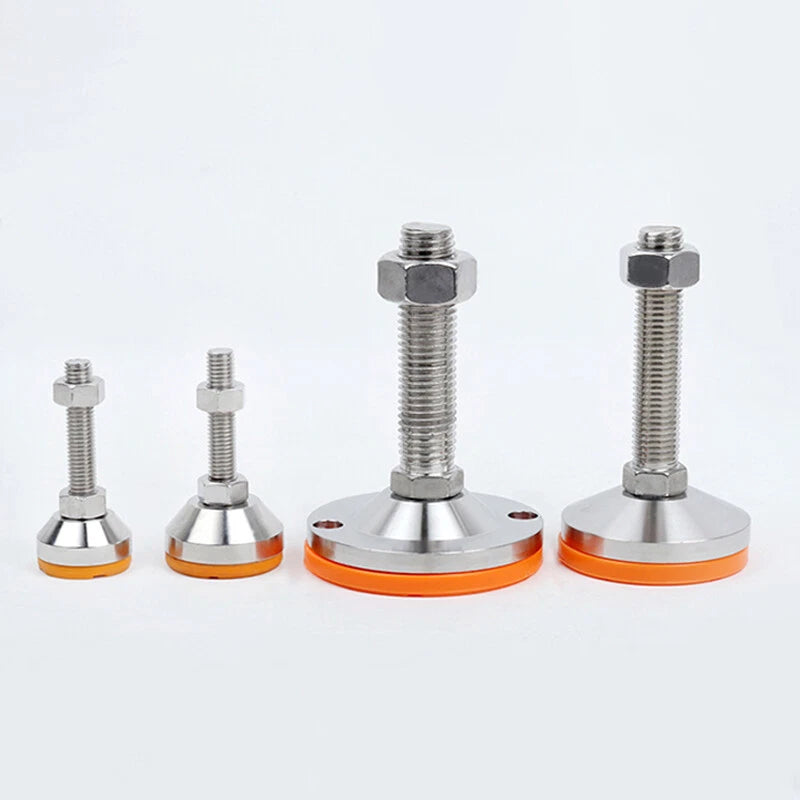

You’ve got a heavy workbench that wobbles on an uneven concrete floor. Or a industrial machine that needs precise levelling to prevent vibration and wear. These stainless steel levelling feet are exactly what you need. The threaded stud (M8 to M30) allows you to adjust height from 30mm up to 200mm, while the large rubber‑padded base (40–150mm diameter) grips the floor, absorbs shock, and prevents slipping. Made from stainless steel with a thick chrome‑plated base, they resist rust in humid workshops, machine rooms, or even outdoor setups. Each foot supports heavy loads without crushing or deforming. Use them under machinery, workbenches, racks, industrial equipment, or any application where stable, adjustable support is critical.

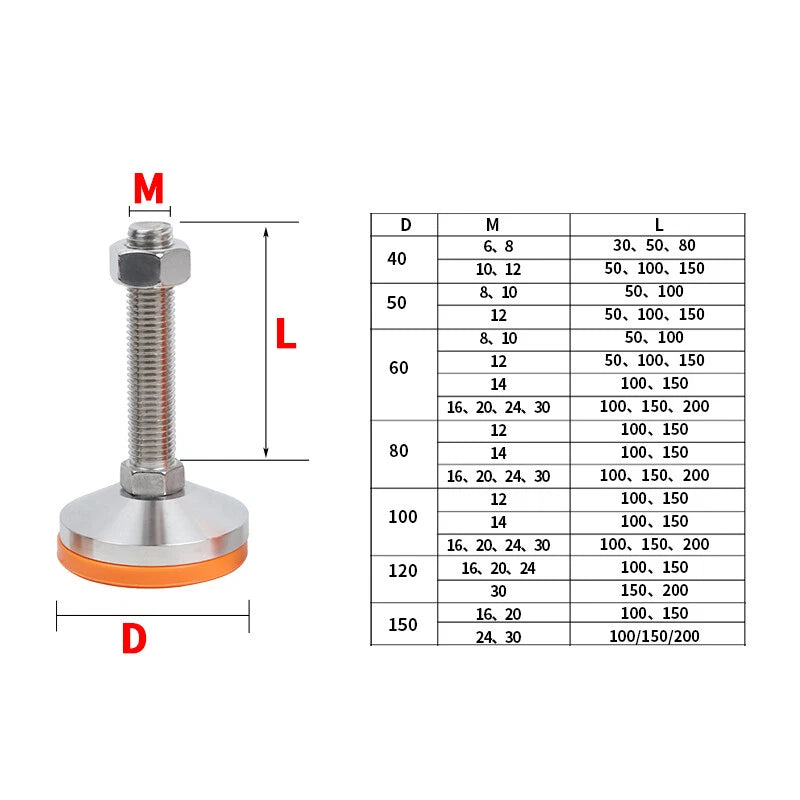

| Thread Size (M) | Thread Length (mm, adjustable range) * | Base Diameter (mm) | Base Material | Load Capacity (approx.) | Material |
|---|---|---|---|---|---|
| 📐 Available in multiple combinations – select thread diameter, length, and base size from dropdown. Below are typical ranges. | |||||
| M8 | 30–100 | 40, 50 |
Stainless steel + rubber pad |
Varies by size – up to 1500kg per foot |
Stainless steel (304 equivalent), chrome‑plated base |
| M10 | 30–120 | 40, 50, 60 | |||
| M12 | 30–150 | 50, 60, 80 | |||
| M16 | 40–200 | 60, 80, 100 | |||
| M20 | 50–200 | 80, 100, 120 | |||
| M24 | 60–200 | 100, 120, 150 | |||
| M30 | 80–200 | 120, 150 | |||

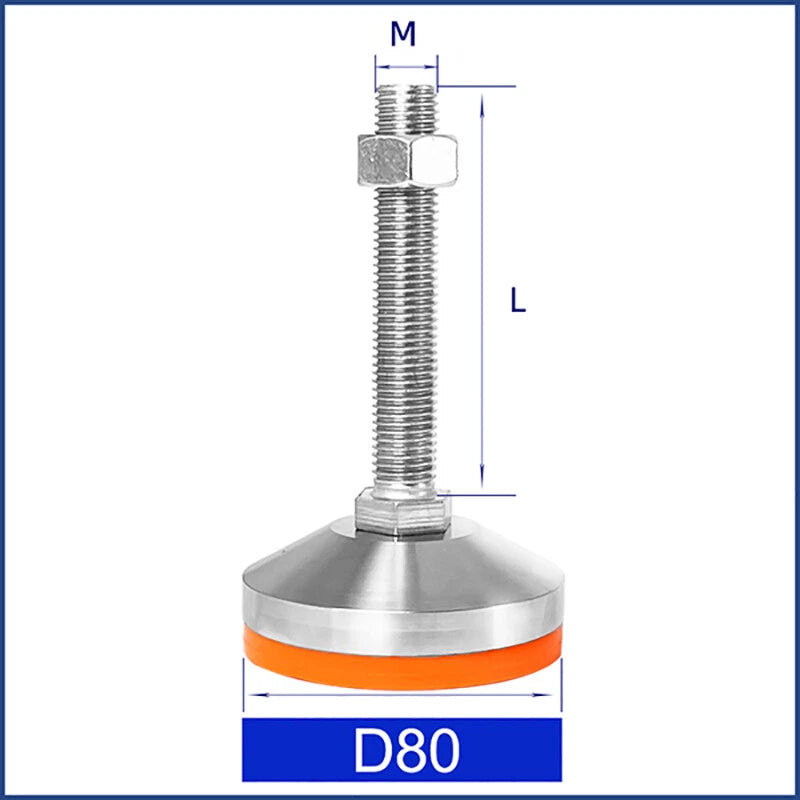

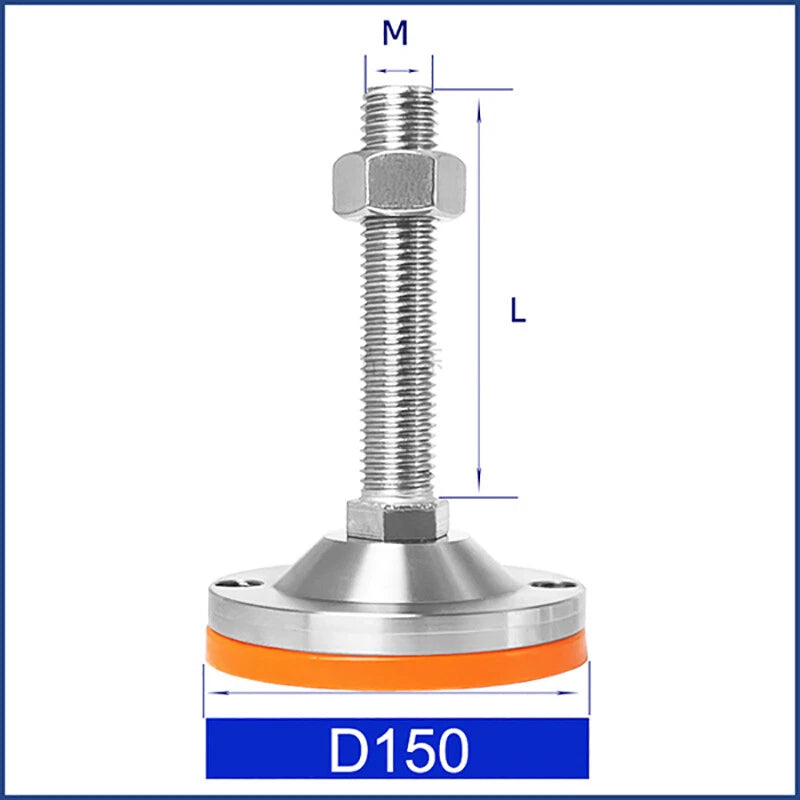

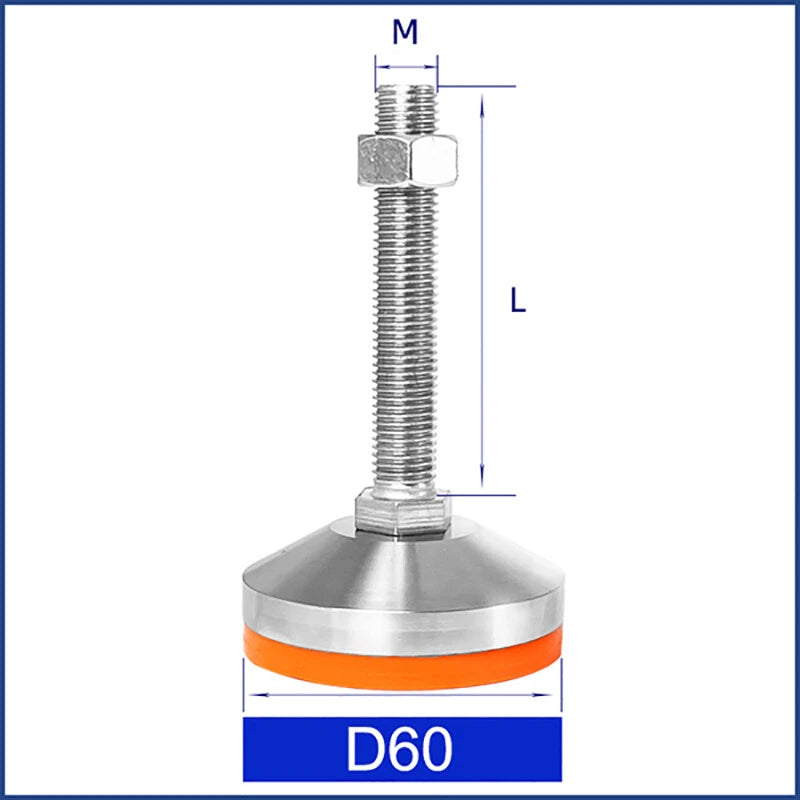

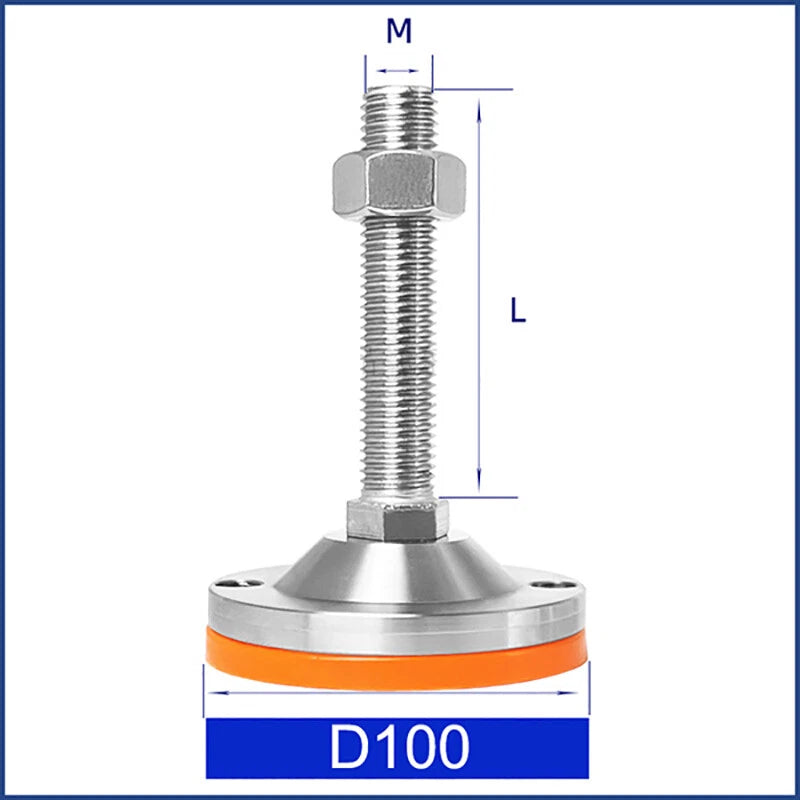

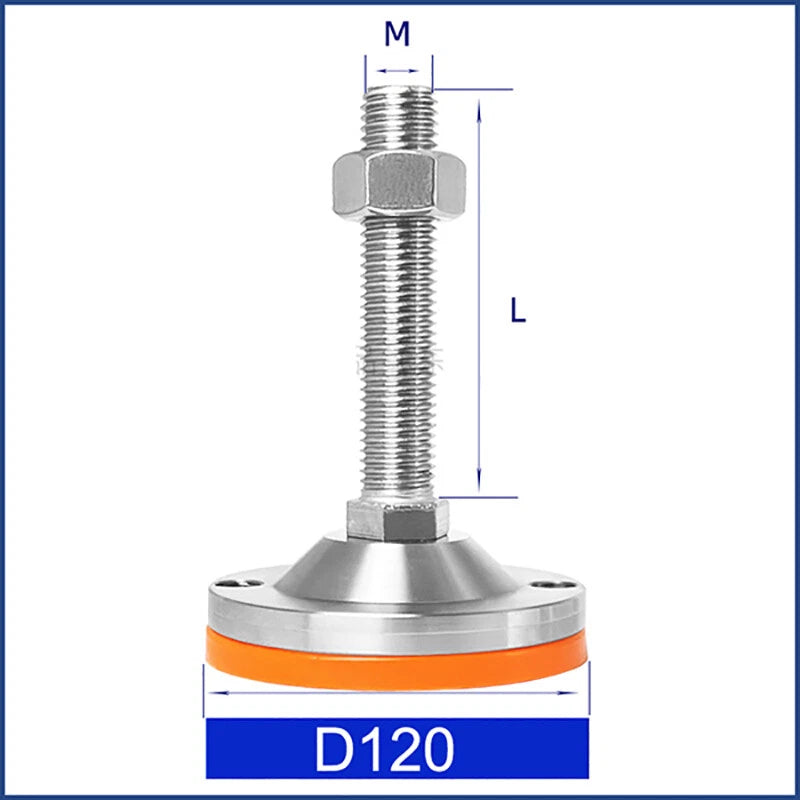

* Thread length = adjustable height range measured from underside of base to top of stud. Not all combinations shown; exact options available in dropdown. Load capacity depends on base size and thread diameter – contact us for exact ratings.
| Component | Specification | Benefit |
|---|---|---|
| Threaded stud | Stainless steel, fully threaded, M8–M30 | Corrosion resistant, smooth height adjustment, high strength |
| Base chassis | Thickened chrome‑plated steel | Stable support, large load bearing, uniform force distribution |

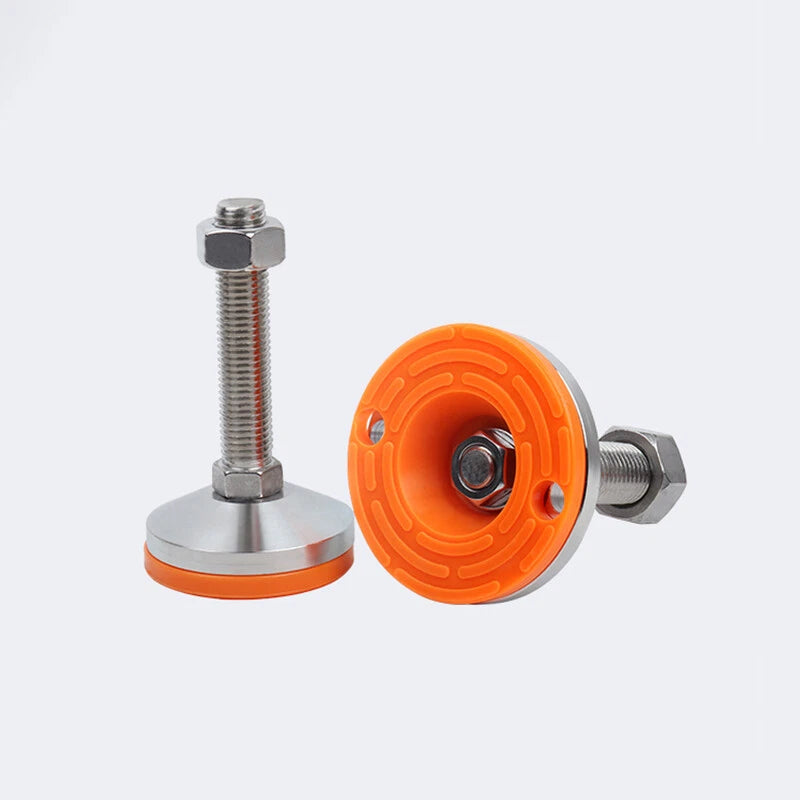

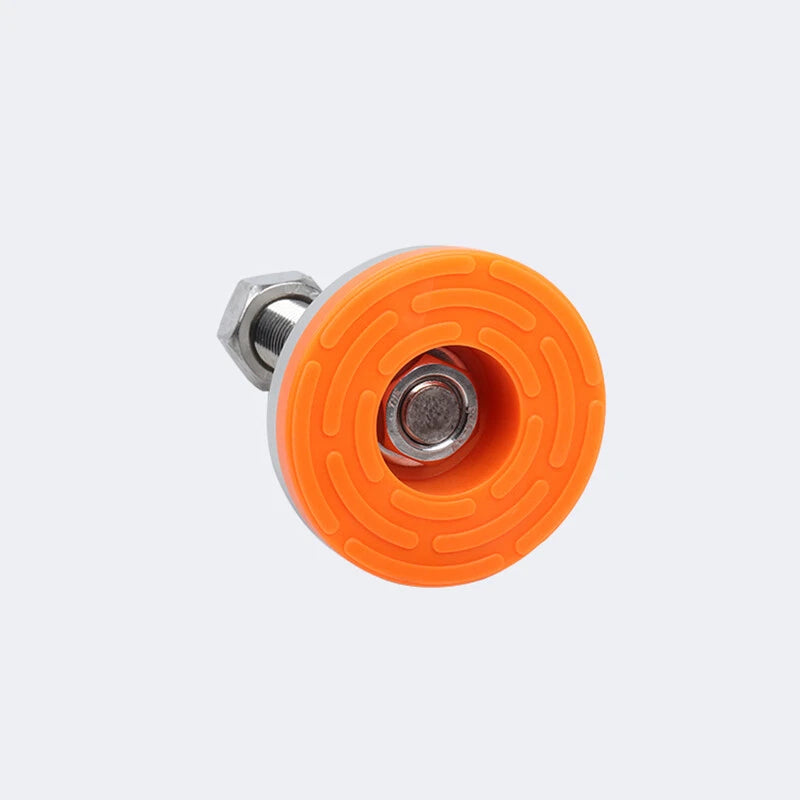

| Anti‑slip pad | Rubber, environmentally friendly, wear‑resistant | Non‑slip, shock absorption, protects floors from scratches |
| Finish | Natural stainless + chrome plating | Strong oxidation resistance, anti‑abrasion, easy to clean |
1. How much weight can these levelling feet support?
Load capacity depends on the thread diameter and base size. As a rough guide, an M8 foot with a 40mm base can support ~200‑300 kg per foot; an M20 with 120mm base can support over 1000 kg per foot. For exact ratings for your specific combination, please refer to the product datasheet or contact us. Always use four or more feet to distribute the load evenly.
2. Can I use these feet on a machine that vibrates a lot?
Yes – the rubber pad provides excellent shock absorption and vibration damping. The anti‑slip surface also prevents the machine from walking under vibration. For extremely high‑vibration environments (e.g., punch presses), we recommend checking the pad hardness – these are medium‑durometer and work well for most industrial machinery.
3. How do I adjust the height once installed?
Simply turn the stud – the foot will rise or lower as the thread moves through the nut or threaded hole in your equipment. For fine adjustment, you may need to loosen a lock nut first. For permanent installations, tighten the lock nut against the equipment frame to secure the height.
4. Will these feet rust if used in a damp basement or outdoors?
The stud is made from stainless steel (304 grade), which is highly resistant to rust and corrosion. The base is chrome‑plated steel – the chrome layer provides good protection, but if scratched, the underlying steel may rust over time in very wet conditions. For continuous outdoor or saltwater environments, we recommend all‑stainless versions (contact us). For most workshops, basements, and covered outdoor areas, these are perfectly adequate.
5. What if my floor is extremely uneven? What’s the maximum angle correction?
The stud length gives you up to 200mm of vertical adjustment. This can compensate for significant floor slopes. The rubber pad can also tilt slightly (up to about 5‑10 degrees) to conform to minor unevenness. For extreme slopes, choose a longer stud length.
6. Do you sell lock nuts or mounting plates for these feet?
We sell the feet as shown – the stud is fully threaded, and we recommend using a standard metric hex nut (same thread size) as a lock nut. Mounting plates are not included, but the feet can be screwed directly into a threaded insert, a tapped hole, or through a hole with a nut on the other side. Contact us if you need custom mounting hardware.
