Black Compression Spring — Precision Pressure Spring for Robotics, Automation & DIY
When a project demands consistent return force without the guesswork, engineers and makers reach for a compression spring they can trust. These black compression springs are designed for robotics builders, automation integrators, and hands-on DIYers who need a reliable pressure spring that holds its spec across repeated cycles — not one that fatigues after a few hundred uses.

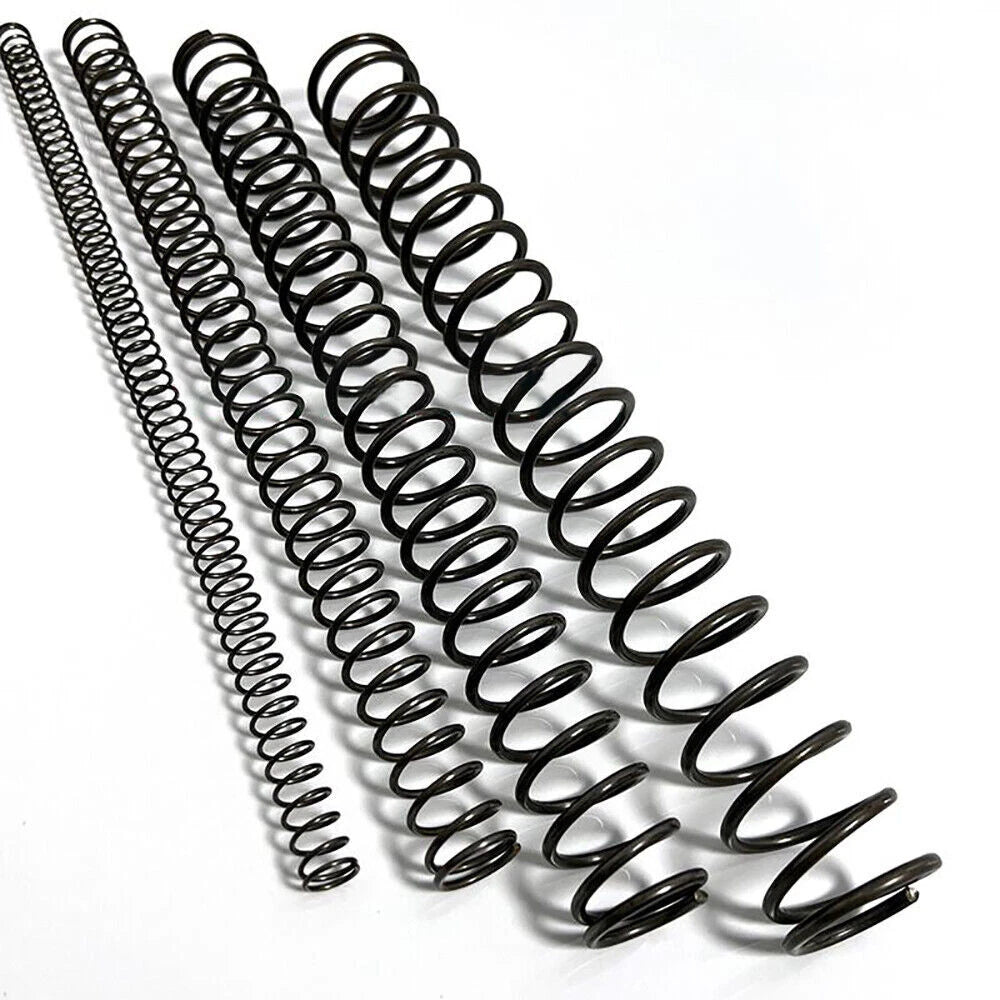

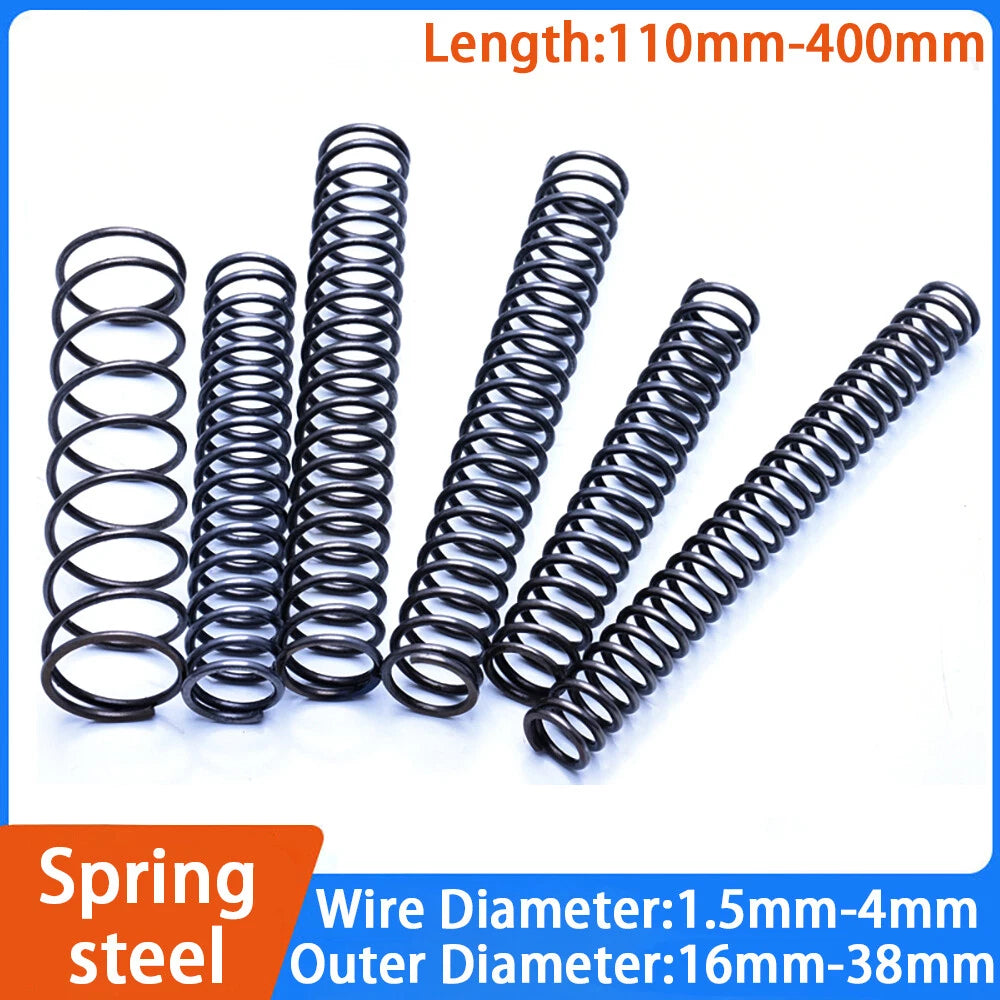

Each spring is cold-coiled from carbon steel wire with a black surface treatment for corrosion inhibition. Wire diameters span 1.5 mm (0.059 in) to 4.0 mm (0.157 in); outer diameters range from 16 mm (0.63 in) to 38 mm (1.50 in); free lengths cover 110 mm (4.33 in) to 400 mm (15.75 in). Closed and ground ends ensure flat, stable seating on both contact surfaces.
Typical applications include linear actuator return mechanisms, jig and fixture clamping systems, valve and plunger assemblies, 3D-printer bed leveling mounts, and custom robotics linkages where a compact black pressure spring with a defined spring rate is required.
🔧 Compatibility: Suitable for standard spring pockets and guide rods sized to match the selected outer diameter. Verify bore/rod clearance against your chosen OD variant before ordering.
✅ Key Features of These Black Compression Springs
🖤 Black Surface Treatment
Oxide-based black finish provides a base layer of corrosion inhibition and a clean, uniform appearance suited to visible assemblies.
📐 Wide Size Matrix
Six wire diameters (1.5 / 1.6 / 1.8 / 2.3 / 2.6 / 4.0 mm) combined with nine outer diameters and lengths from 110 mm to 400 mm give you precise dimensional control.
⚙️ Closed & Ground Ends
Flat ground ends distribute load evenly, reduce buckling tendency, and allow the spring to seat squarely in pockets or on guide rods.
🔄 Consistent Return Force
Cold-coiling process maintains tight pitch uniformity, delivering repeatable spring rates cycle after cycle in automation and robotics applications.
📦 Flexible Quantity Options
Available in packs of 1, 2, 3, or 5 pieces per order — ideal for prototyping single units or stocking spares for production runs.
🏭 Broad Application Range
Fits linear actuators, valve assemblies, jig clamps, 3D-printer mounts, and custom robotics linkages requiring a defined-rate black pressure spring.
📐 Technical Specifications — Black Compression Spring
| Spring Type |
Compression (Coil) |
| Material |
Carbon Steel |
| Surface Finish |
Black oxide treatment |
| Wire Diameter |
1.5 / 1.6 / 1.8 / 2.3 / 2.6 / 4.0 mm |
| Outer Diameter |
16 / 19 / 24.5 / 25 / 28 / 30 / 32 / 35 / 38 mm |
| Free Length |
110 / 120 / 130 / 150 / 400 mm |
| End Type |
Closed & Ground |
| Coil Direction |
Right-hand |
| Spring Rate |
See variant options |
| Max Load |
See variant options |
| Quantity per Pack |
1 / 2 / 3 / 5 Pcs |
❓ Frequently Asked Questions
How do I choose the right wire diameter for my application?
Wire diameter determines the spring rate and load capacity. Thinner wire (1.5–1.8 mm) suits lighter-duty return mechanisms and 3D-printer mounts, while heavier wire (2.3–4.0 mm) handles higher clamping forces in jigs, actuators, and industrial fixtures. Match wire diameter to your required spring rate and available pocket depth.
What outer diameter should I select to fit my guide rod or spring pocket?

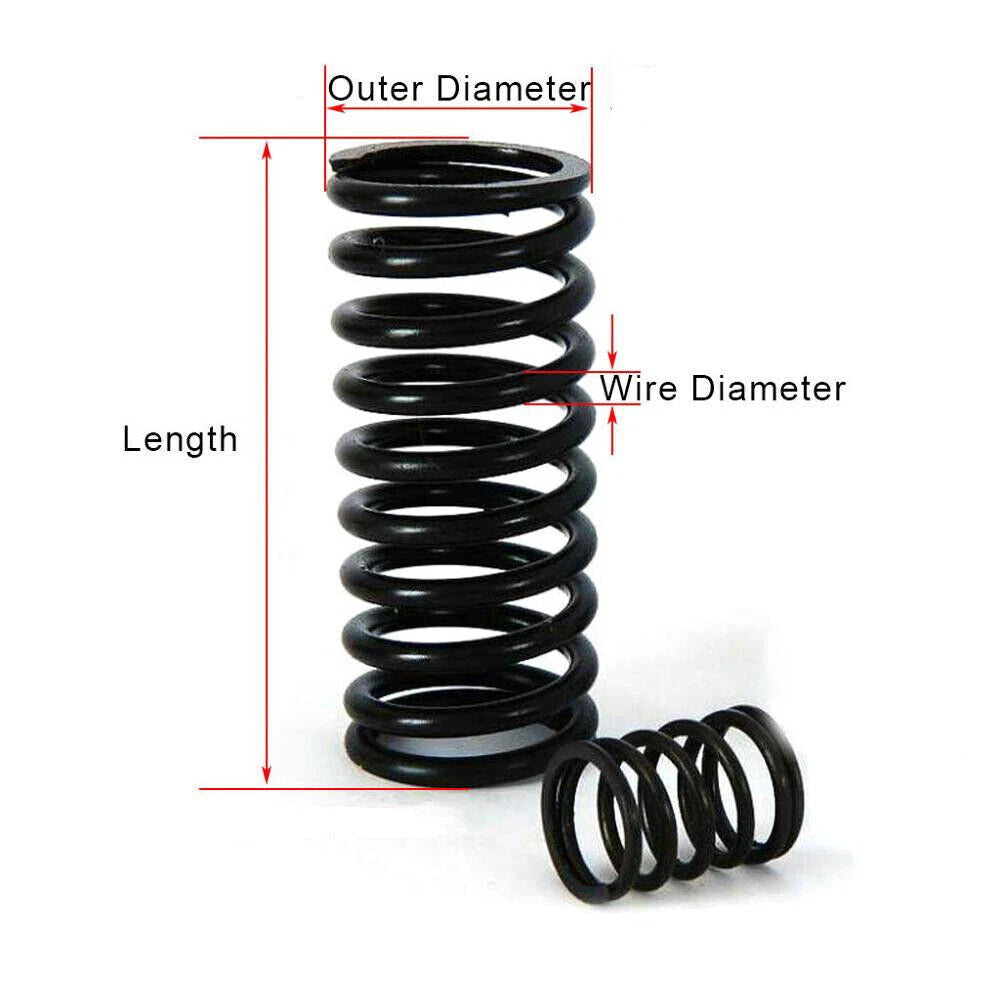

The outer diameter (OD) should be slightly smaller than your pocket bore, or the inner diameter (ID ≈ OD − 2 × wire dia) should be slightly larger than your guide rod. For example, a 25 mm OD spring with 2.3 mm wire has an approximate ID of 20.4 mm. Always verify clearance with your specific variant before assembly.
How strong are these compression springs?
Strength varies by wire diameter and coil geometry. The 4.0 mm wire variants carry significantly higher loads than the 1.5 mm variants. Exact spring rates and maximum loads depend on the specific OD and length combination — refer to your variant selection or contact us for calculated values.
Are these springs corrosion-resistant for outdoor or humid environments?
The black oxide finish provides a basic level of corrosion inhibition suitable for indoor and light-duty environments. For prolonged outdoor exposure or high-humidity conditions, consider applying a light machine oil or grease to the spring surface to extend service life.
Can I use these springs in robotics and automation equipment?
Yes. The closed and ground ends, consistent pitch, and defined wire diameters make these black compression springs well-suited for robotics linkages, linear actuator return mechanisms, and automated assembly fixtures where repeatable force and dimensional accuracy are required.
What is the difference between ordering 1 Pcs vs. 5 Pcs of the same variant?
Each pack contains the specified number of identical springs (same wire diameter, outer diameter, and free length). Ordering a 5-piece pack provides a per-unit cost saving compared to five individual 1-piece orders and is ideal for production runs, spare-parts kits, or multi-axis robotics builds.
How do I measure free length to confirm the spring fits my assembly?
Free length is the overall length of the spring in its uncompressed, unloaded state. Measure from the flat ground end to the opposite flat ground end with no force applied. Ensure your assembly's spring pocket or travel distance accommodates both the free length and the required compressed length at maximum deflection.
🛒 Select your Wire Diameter, Outer Diameter, and Length & Amount above, then add to cart.
