If you've ever stripped a panel screw, lost a tiny driver, or wasted minutes wrestling with a cover you open every day, you know the frustration. Engineers, makers, and technicians who work with electronics housings, 3D printer frames, lab instruments, and telecom cabinets need fasteners that keep up with their workflow — not slow it down. These black nylon PA66 knurled thumb screws are built for exactly that.

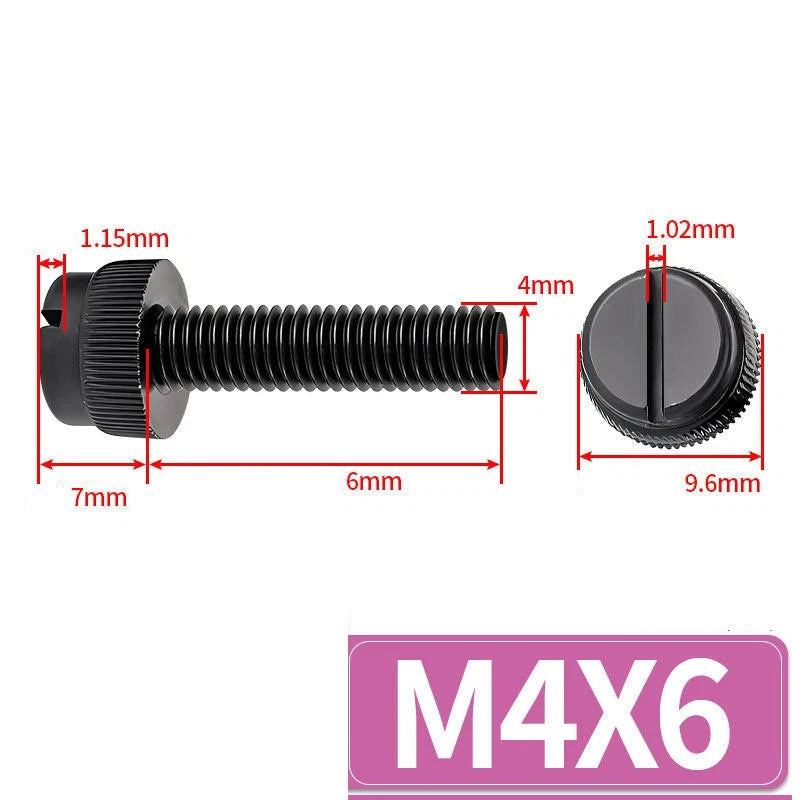

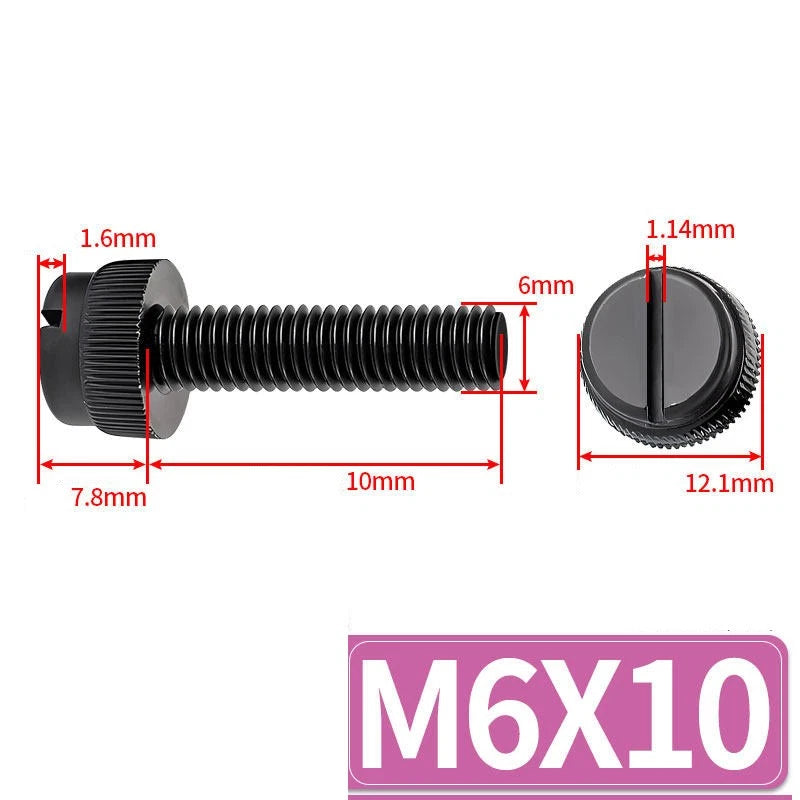

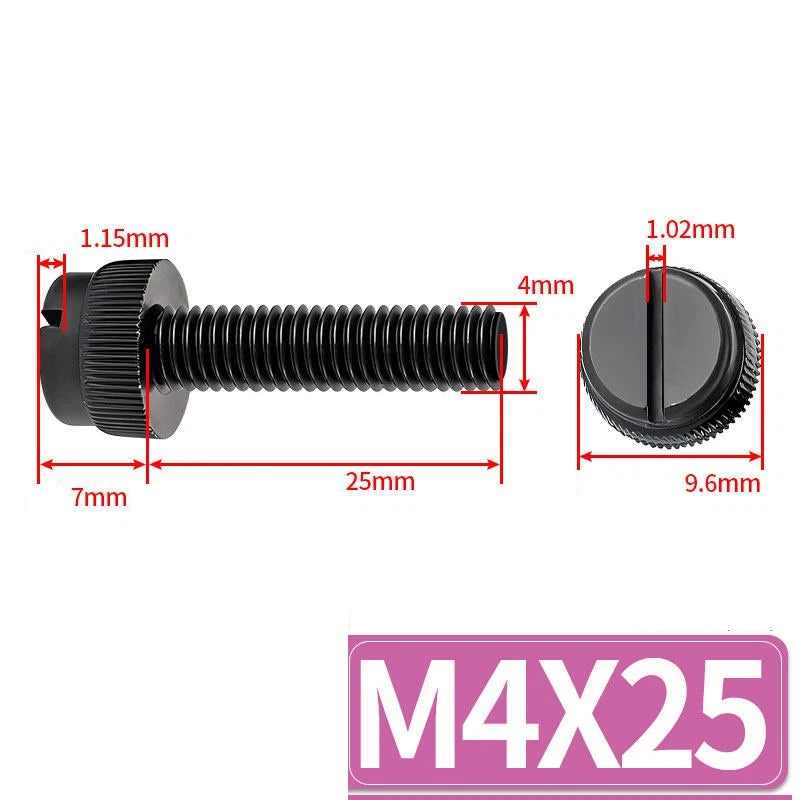

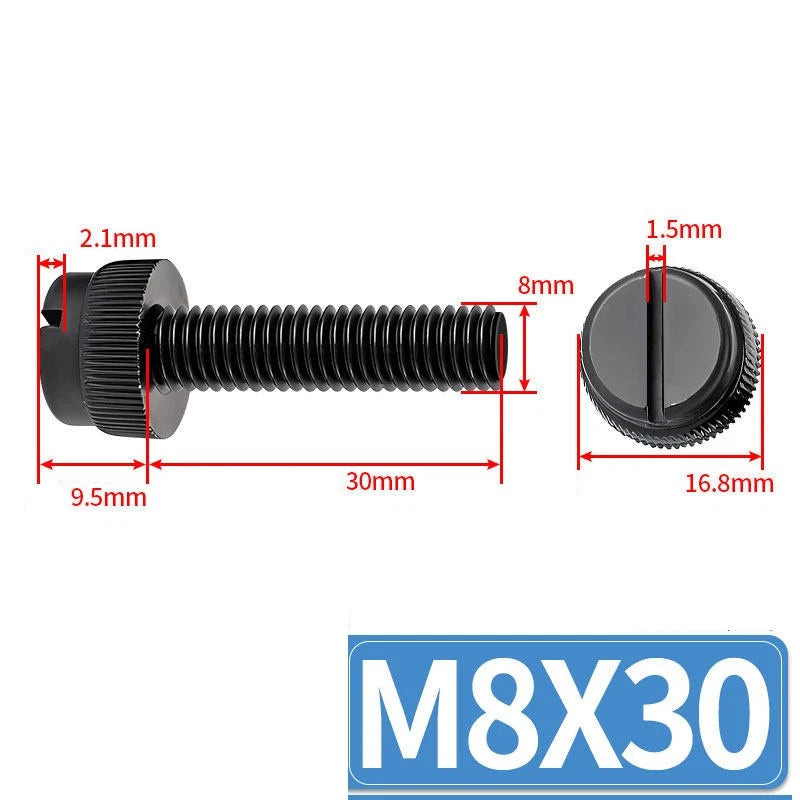

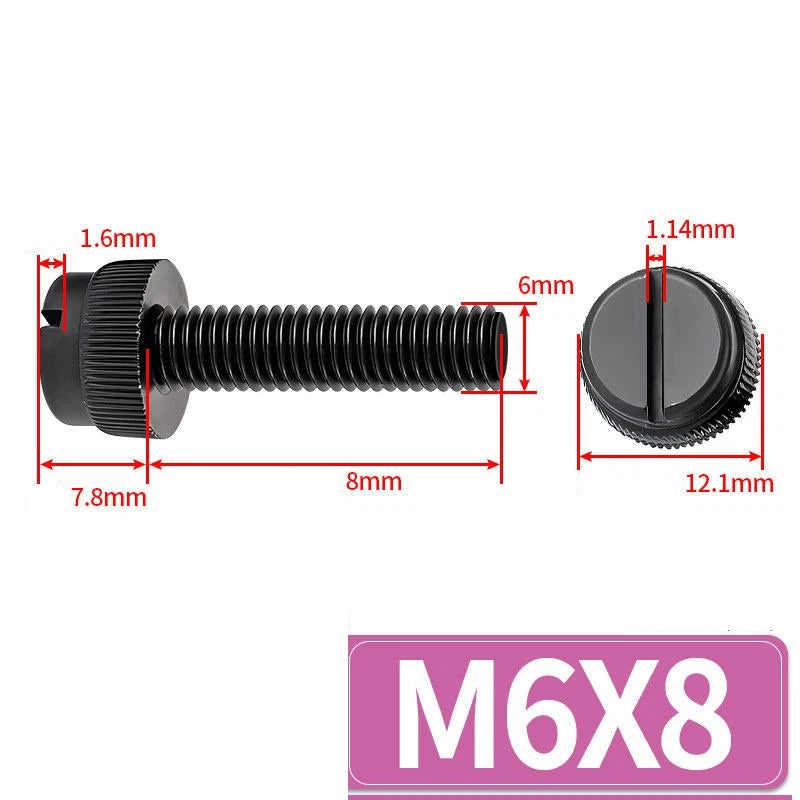

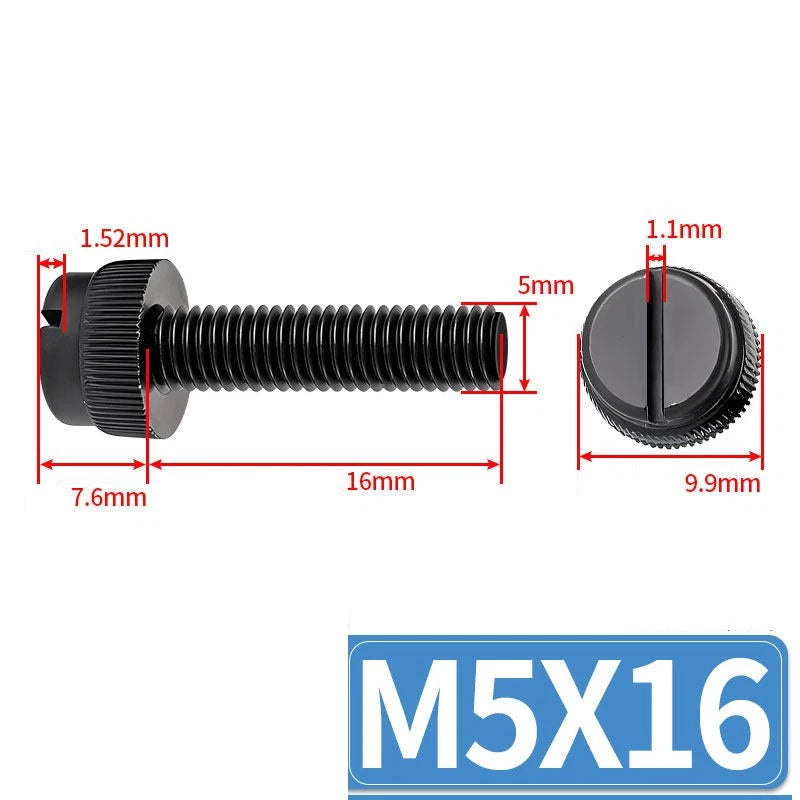

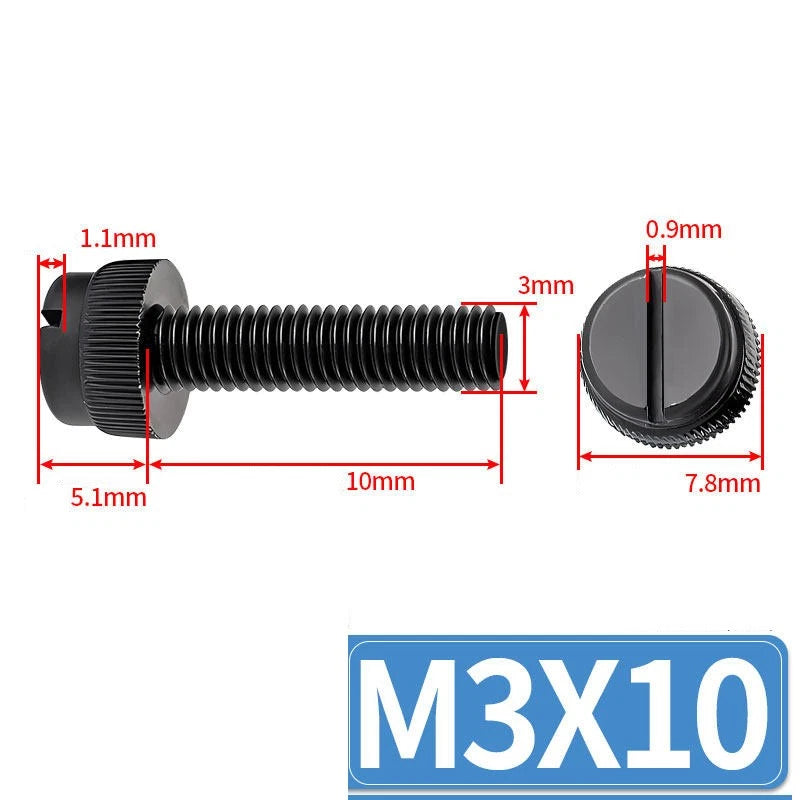

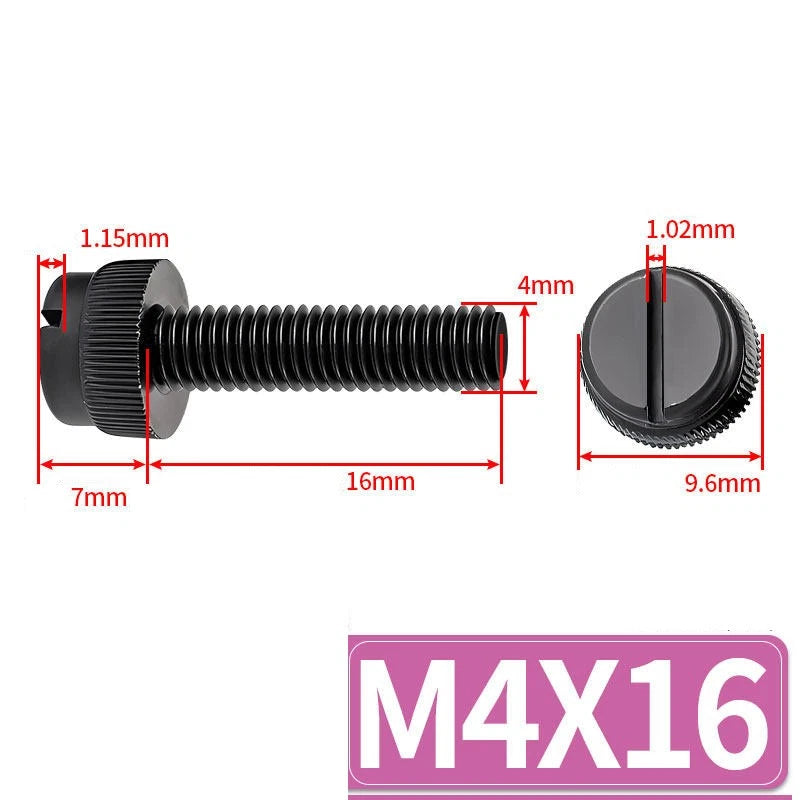

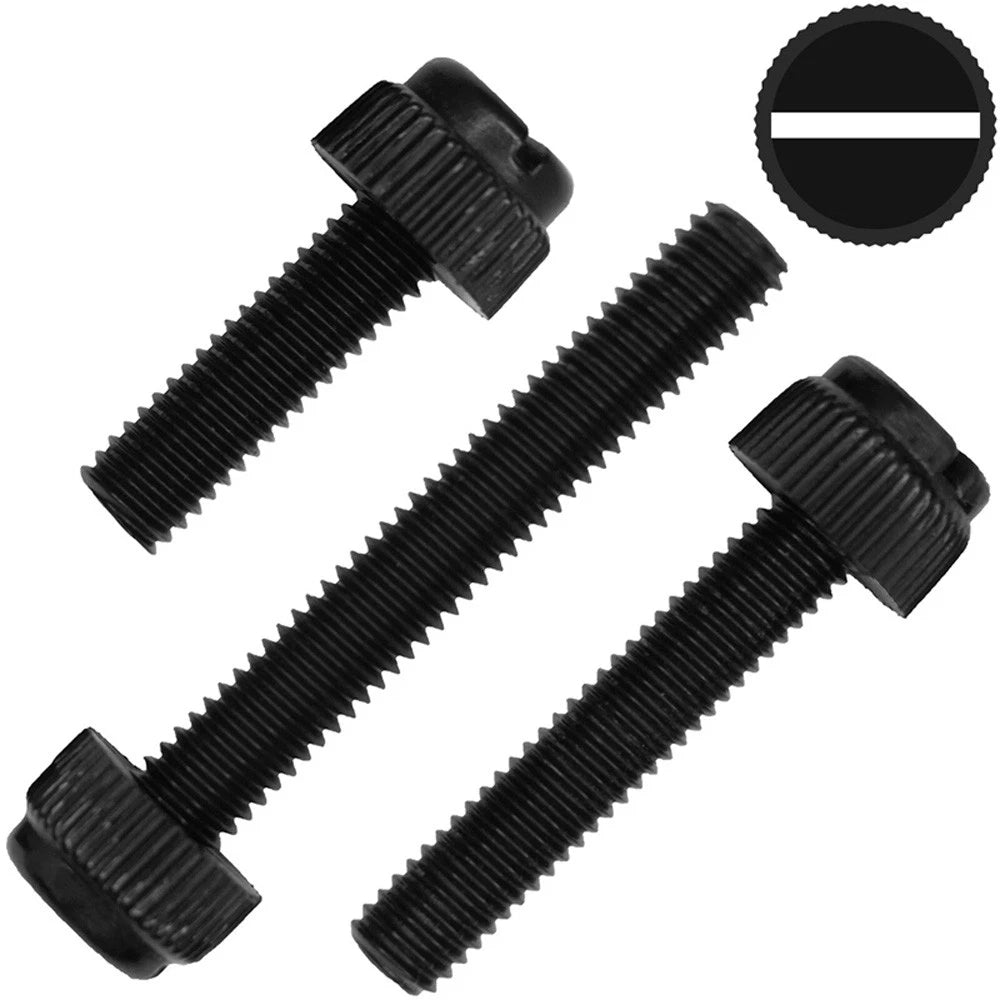

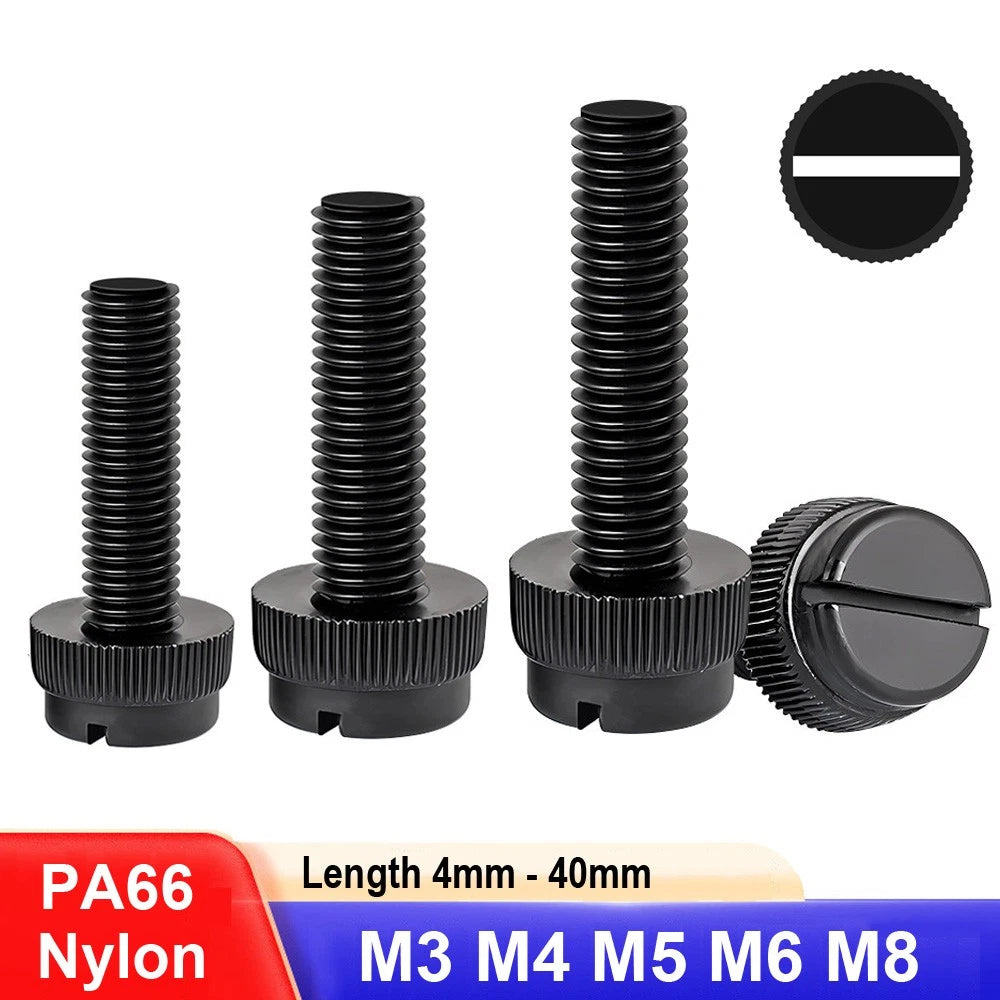

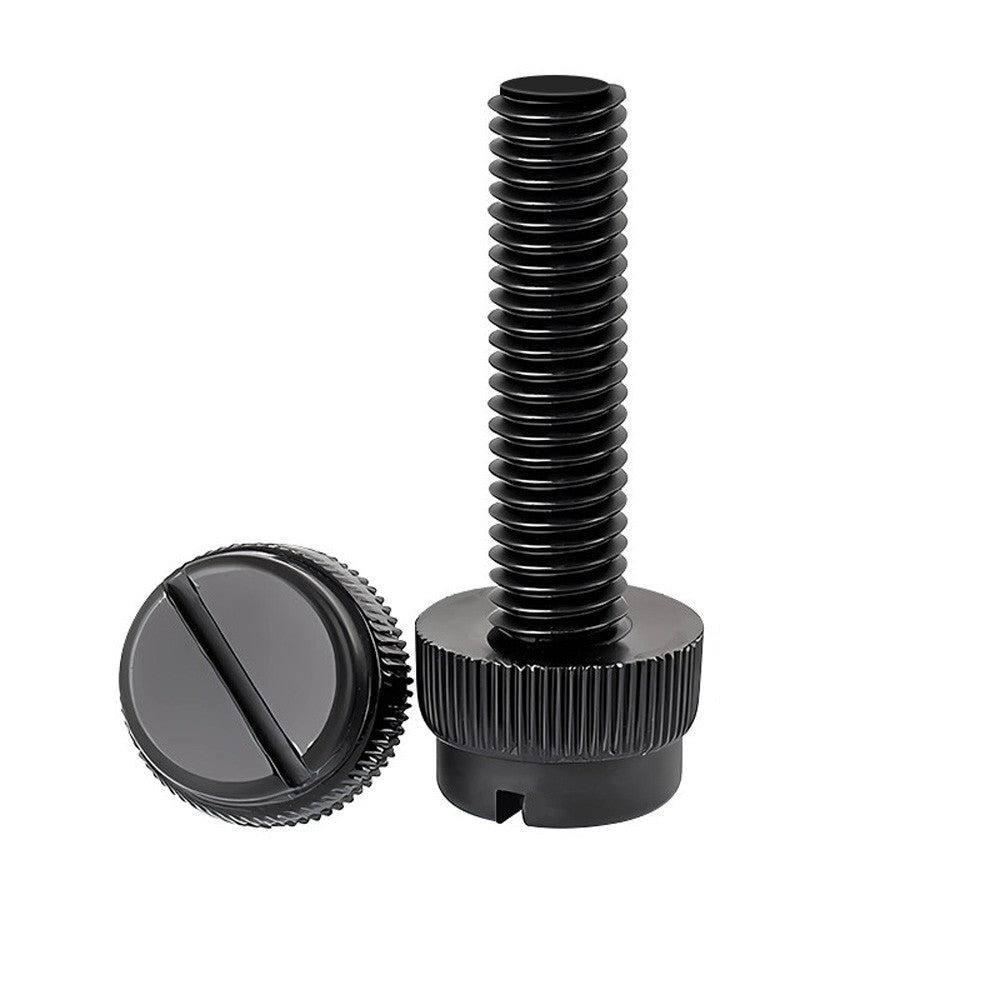

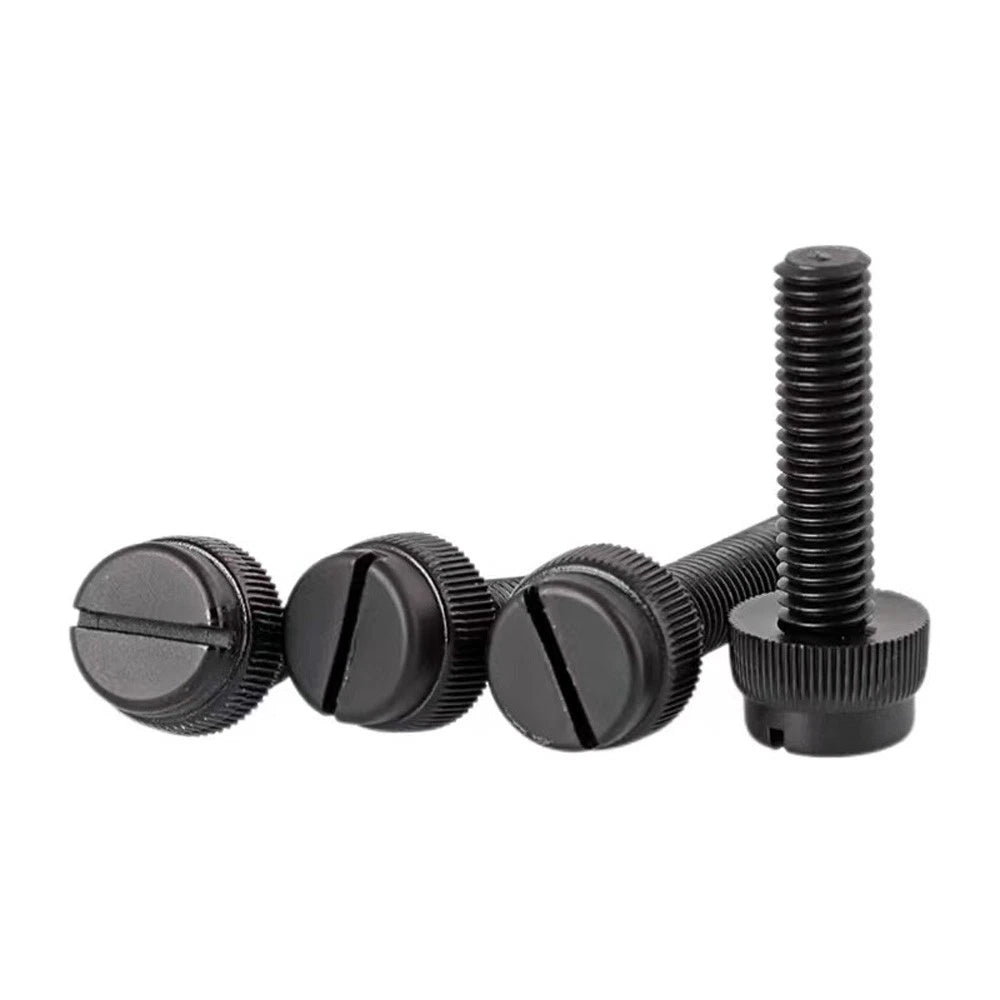

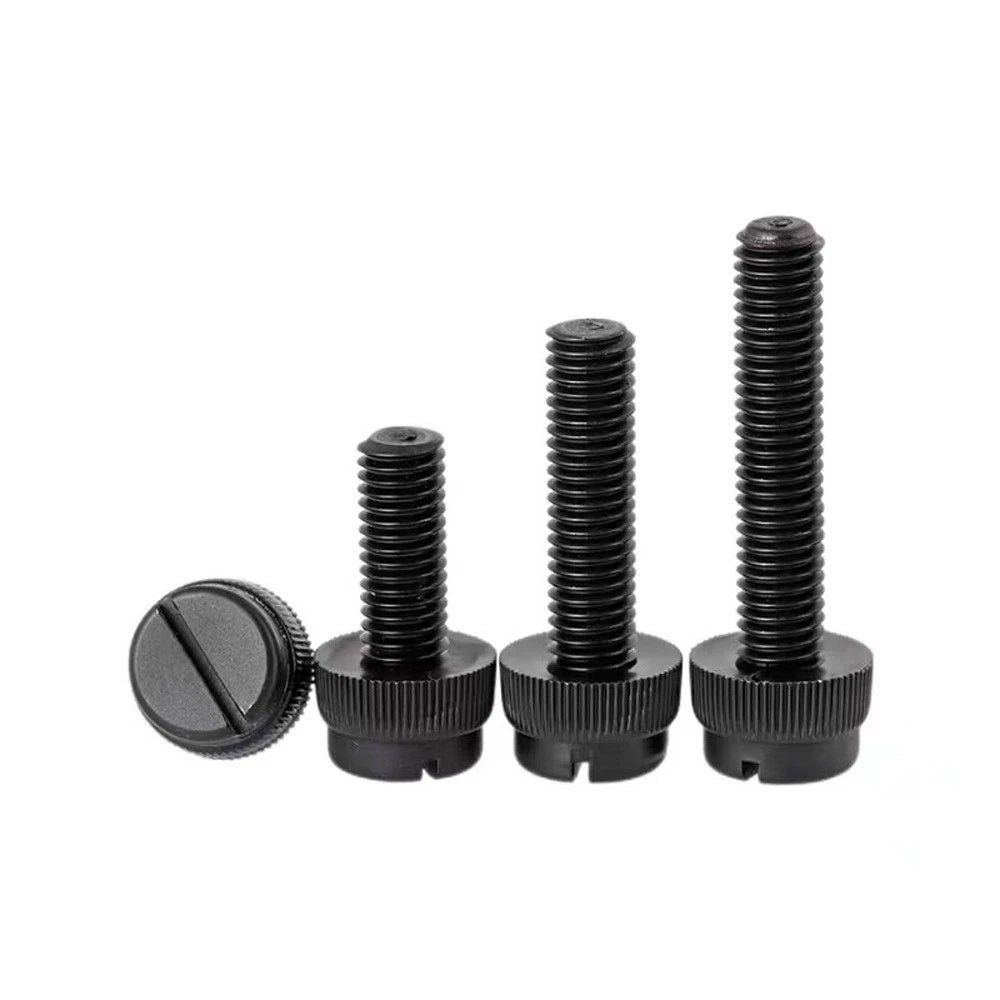

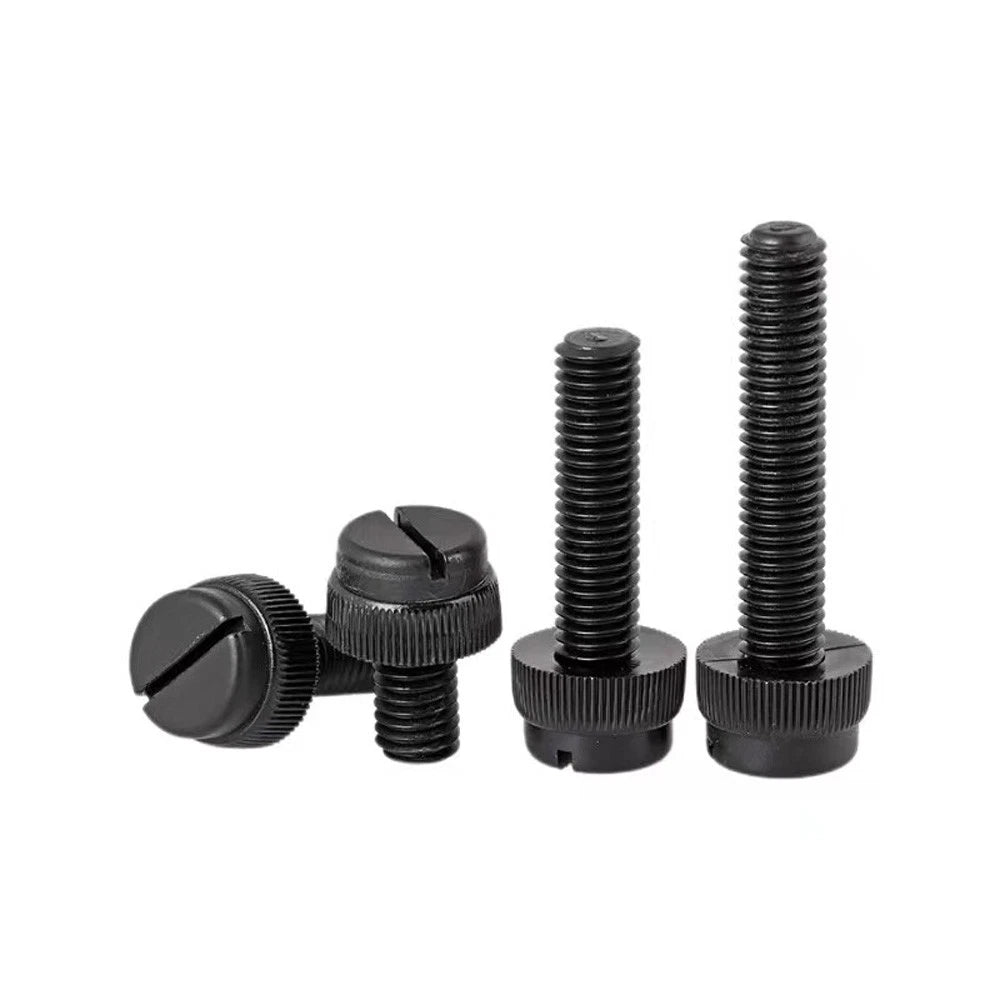

Each screw is molded from PA66 nylon — a glass-smooth, non-conductive engineering plastic rated for continuous use up to 85°C (185°F) and compliant with the UL94 V-2 flame retardant standard. The knurled cylindrical head provides a secure finger grip, while the slotted top accepts a flathead screwdriver for extra torque when needed. Available in metric sizes M3, M4, M5, M6, and M8, with thread lengths ranging from 4mm (≈5/32″) to 60mm (≈2-3/8″) — sold in packs of 10, 20, 50, 100, 200, or 500 pieces.
Typical use cases include securing access panels on routers and network switches, mounting PCBs inside electrical enclosures, fastening covers on medical device housings, and assembling 3D printer frames or DIY electronics projects where tool-free nylon thumb screws for electronics enclosures are a practical necessity.
| Material | PA66 Nylon (Polyamide 66) |
|---|---|
| Color | Black |
| Thread Standard | ISO Metric (M3, M4, M5, M6, M8) |
| Thread Length Range | 4mm–60mm (≈5/32″–2-3/8″) |
| Head Style | Knurled cylindrical thumb head with slotted top |
| Drive Type | Slotted (flathead screwdriver compatible) |
| Max Continuous Temp. | 85°C (185°F) |
| Flame Rating | UL94 V-2 |
| Electrical Conductivity | Non-conductive (insulating) |
| Magnetic | Non-magnetic |
| Corrosion Resistance | Rust-proof; avoid strong acids, alkalis, phenol-based solvents |
| Pack Sizes Available | 10, 20, 50, 100, 200, 500 pieces |
| Application Type | Low-to-medium torque (panels, covers, enclosures) |
| Customization | Contact us to confirm non-listed sizes |
Measure the thickness of the material being fastened, then add the depth of the threaded hole or nut. As a general rule, thread engagement should be at least 1× the screw diameter — so an M4 screw typically needs at least 4mm of thread engagement. For quick reference: 6mm ≈ 1/4″, 10mm ≈ 3/8″, 16mm ≈ 5/8″, 25mm ≈ 1″, 40mm ≈ 1-9/16″.
PA66 nylon thumb screws are designed for low-to-medium torque applications such as panel covers, enclosures, and access doors. They are generally not suitable for structural or high-load joints. For applications requiring higher clamping force, metal thumb screws are recommended.
PA66 nylon is inherently rust-proof and handles typical outdoor humidity well. However, prolonged UV exposure or contact with strong acids, alkalis, or phenol-based solvents may degrade the material over time. For harsh outdoor environments, a glass-fiber reinforced nylon version is generally recommended. For standard indoor or sheltered outdoor use, these perform reliably.
These screws use the ISO metric thread standard (M3, M4, M5, M6, M8), compatible with standard metric nuts, threaded inserts, and tapped holes per ISO 68-1. They are not compatible with UNC or UNF inch-standard threads. If you're unsure, check whether your existing hardware is labeled in millimeters (metric) or fractions of an inch (imperial).
No — the knurled head is designed for finger-tightening without any tools. The slotted top allows you to use a flathead screwdriver for additional torque if needed, making these ideal for panels and covers that require frequent access. Most users find hand-tightening sufficient for typical enclosure and panel applications.
Yes. PA66 nylon is a non-conductive material, making these thumb screws suitable for electronics housings, PCB mounting, and electrical enclosures where metal fasteners could cause shorts or interference. They are also non-magnetic, which matters in sensitive measurement or medical equipment environments.
PA66 nylon is rated for continuous use up to approximately 85°C (185°F) and meets the UL94 V-2 flame retardant standard. Short-term peak temperatures may be tolerated somewhat higher, but for applications with sustained temperatures above 85°C, a heat-stabilized or glass-filled nylon grade is generally recommended.
Yes — we offer customization for sizes not shown in the dropdown. Contact us with your required thread size, length, and quantity and we'll confirm availability and lead time. We're happy to help source the right fit for your project.
