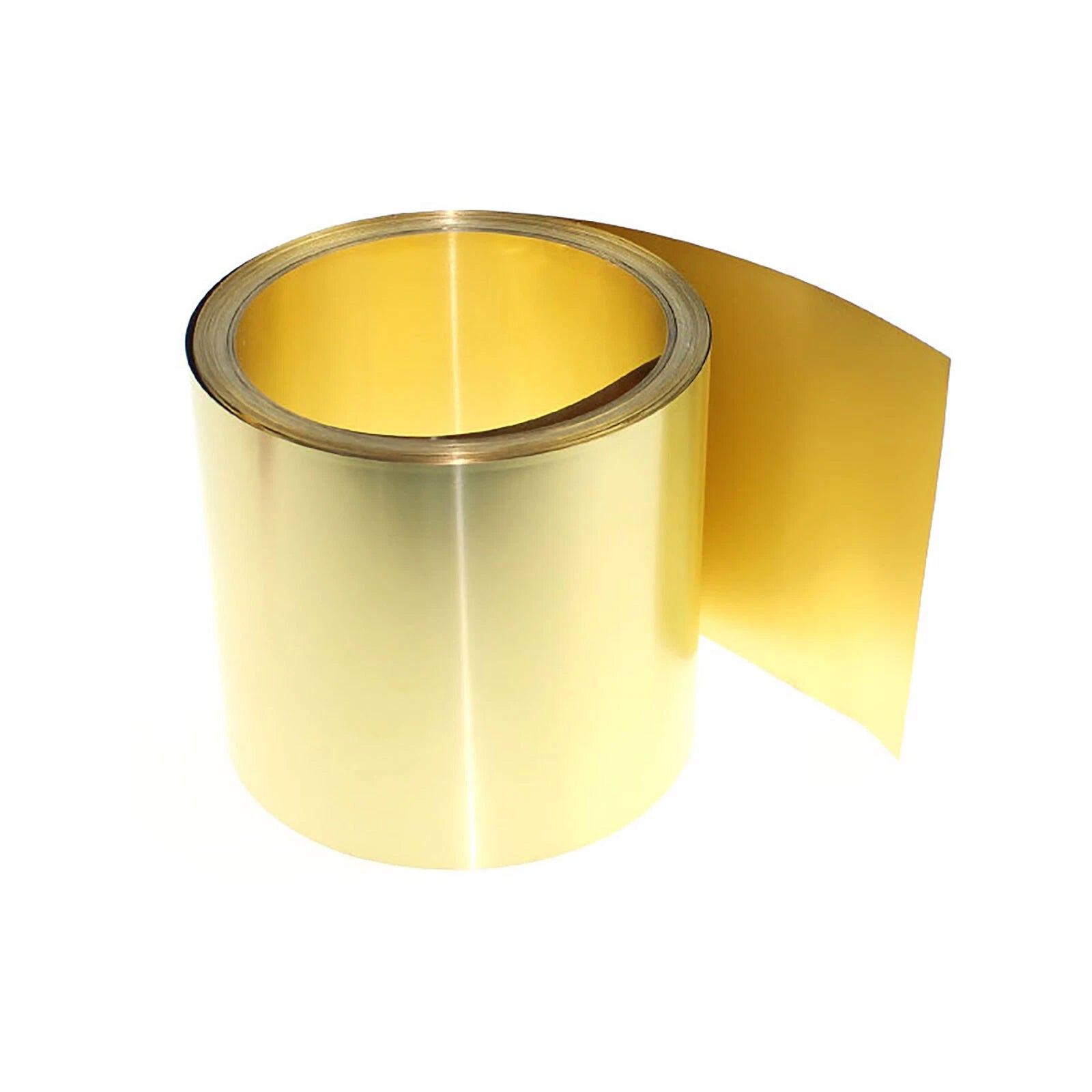

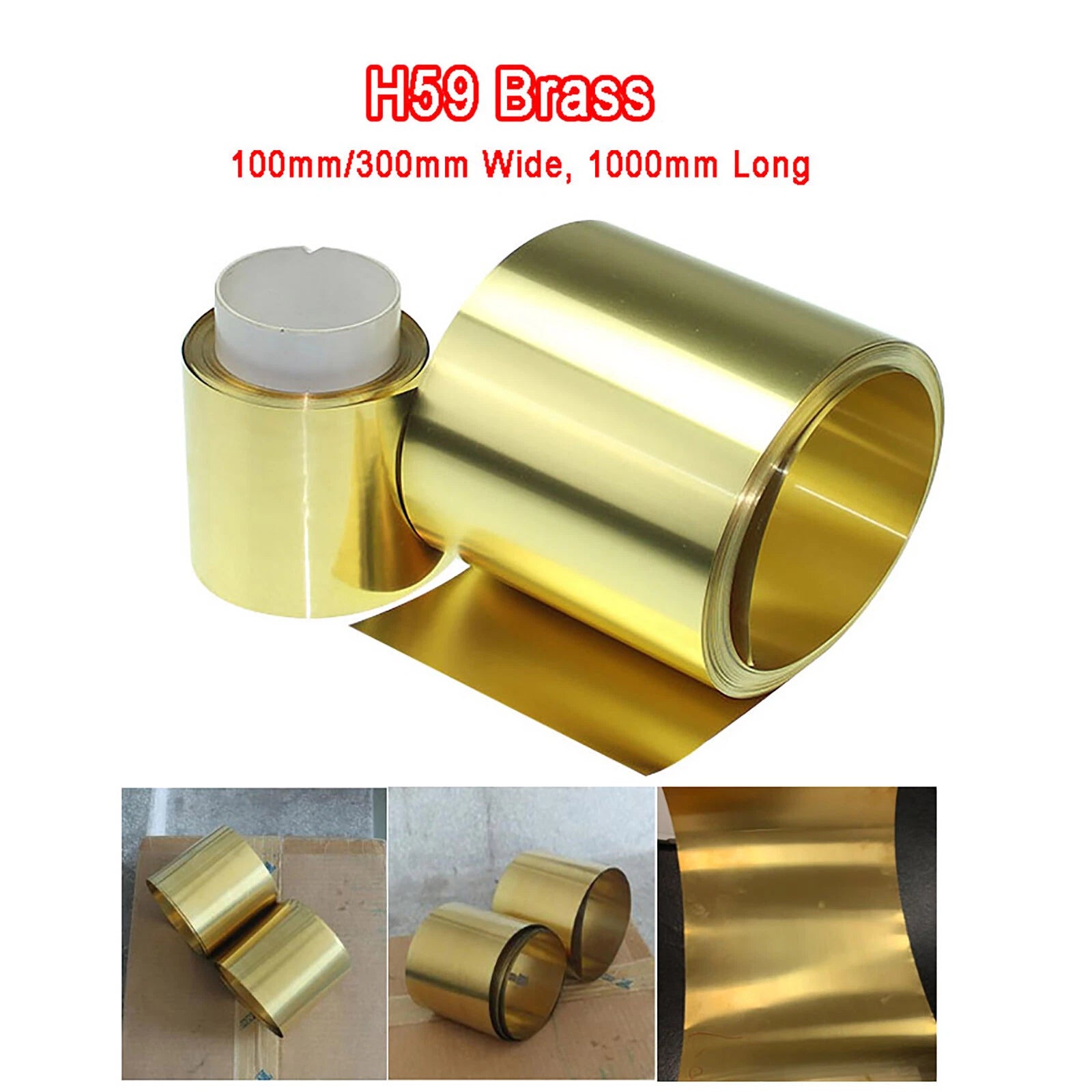

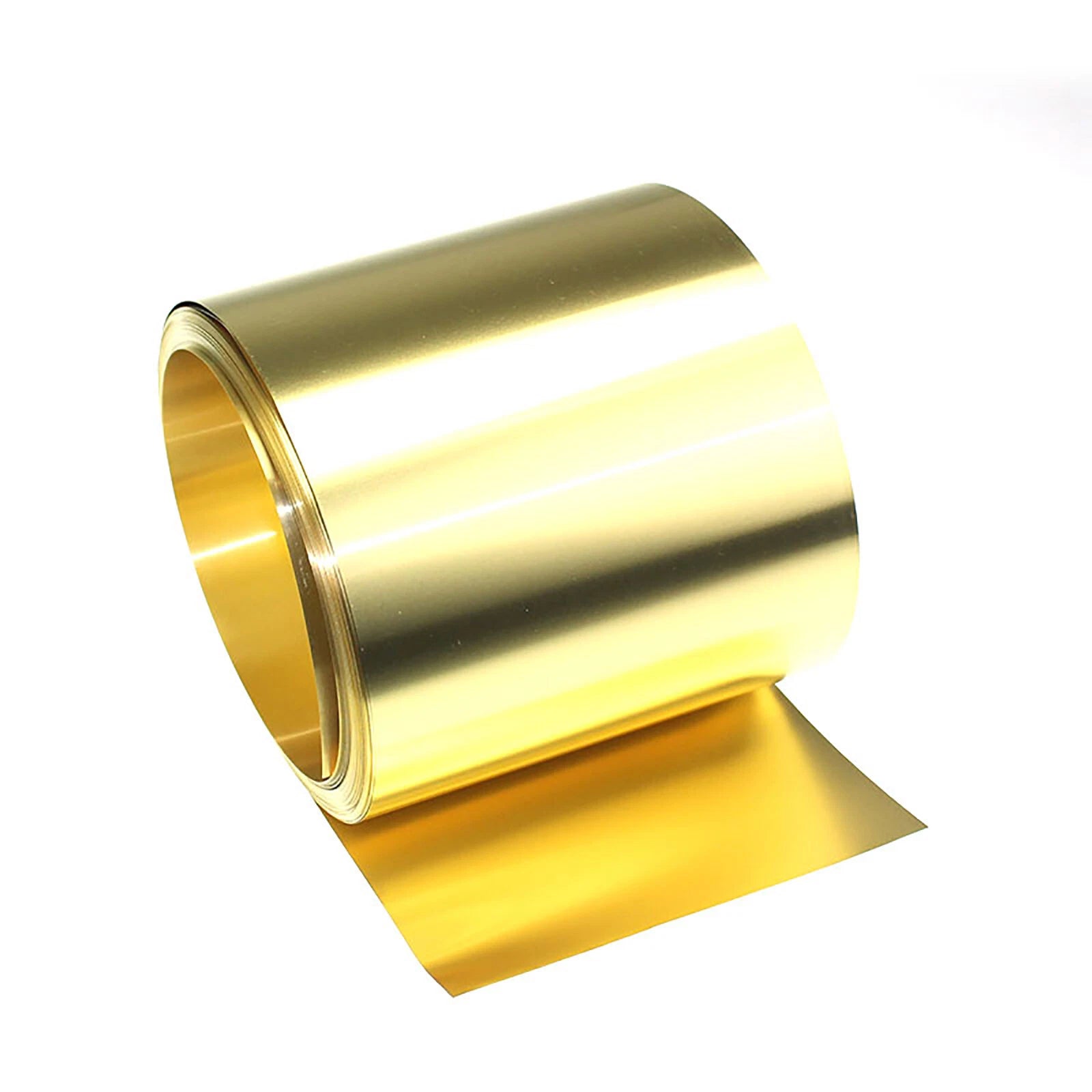

When a project demands exact material thickness and reliable dimensional accuracy, guesswork is not an option. Whether you are a machinist fitting tight tolerances, a hobbyist building scale models, or a maintenance technician replacing worn gaskets, sourcing the right brass sheet in the right thickness can be frustrating. This brass sheet plate roll is designed for DIYers, engineers, and craftspeople who need a consistent, workable metal panel they can cut, bend, and shape on-site.
Each panel is made from C26000 cartridge brass (approximately 70% copper, 30% zinc), offering a balance of ductility and strength. Sheets are available in widths of 100 mm (~3.94 in) and 300 mm (~11.81 in), all cut to a 1,000 mm (~39.37 in) length. Thickness options range from 0.02 mm to 1 mm, letting you match the exact gauge your application requires.
Typical use cases include precision shim stock for machinery alignment, thin brass sheet for DIY jewelry and decorative metalwork, replacement gasket material for plumbing and HVAC repairs, and craft brass sheet for architectural models and electronics enclosures.
| Material | Brass (C26000 / 70Cu–30Zn) |
|---|---|
| Thickness | 0.02 mm / 0.03 mm / 0.05 mm / 0.1 mm / 0.2 mm / 0.3 mm / 0.4 mm / 0.5 mm / 1 mm (See variant options) |
| Width | 100 mm (~3.94 in) or 300 mm (~11.81 in) (See variant options) |
| Length | 1,000 mm (~39.37 in) |
| Surface Finish | Mill finish (smooth, uncoated) |
| Temper | Soft annealed (H00) — suitable for bending and forming |
| Tensile Strength | Typically 300–380 MPa (varies by thickness) |
| Hardness | Typically 55–75 HRB (varies by thickness) |
| Packing Quantity | 1 pc per order |
| Weight | See variant options |
For shim stock and precision gap-filling, 0.02–0.1 mm thicknesses are ideal. For gaskets and light structural panels, 0.2–0.5 mm works well. For heavier forming, bending jigs, or decorative panels that need rigidity, the 1 mm option is recommended. If you are unsure, measure the gap or clearance you need to fill and select the closest available thickness.
The 100 mm (~3.94 in) width suits narrow strip applications such as bearing shims, small gaskets, and jewelry blanks. The 300 mm (~11.81 in) width is better for larger panels, enclosure covers, or projects where you need to cut multiple pieces from a single sheet. Both widths are 1,000 mm long.
C26000 cartridge brass has a tensile strength of approximately 300–380 MPa in the soft-annealed condition. It is suitable for light structural applications, brackets, and enclosures. For heavy load-bearing or high-stress environments, consult an engineer to confirm the gauge meets your design requirements.
Brass does not rust (it contains no iron), but it will develop a natural patina (darkening or greenish tarnish) when exposed to moisture and air over time. For outdoor or high-humidity applications, a clear lacquer or protective coating is recommended to preserve the original finish. In typical indoor environments, the mill finish remains stable without additional treatment.
Yes. C26000 brass is one of the most solderable and brazeable copper alloys. It accepts standard soft solders (tin-lead or lead-free) and silver brazing alloys without special flux formulations. Ensure the surface is clean and free of oils before joining.
Yes. Thinner gauges (0.02–0.3 mm) can be cut with a fiber laser cutter or precision shears. Thicker gauges (0.4–1 mm) are well-suited for CNC routing with carbide tooling or waterjet cutting. Always use appropriate feeds, speeds, and coolant for your specific machine and thickness.
Each order is for 1 pc (one sheet measuring your selected width × 1,000 mm length). Calculate the total area you need for your project, account for cutting waste (typically 10–15%), and order accordingly. You can add multiple pieces to your cart by adjusting the quantity at checkout.
