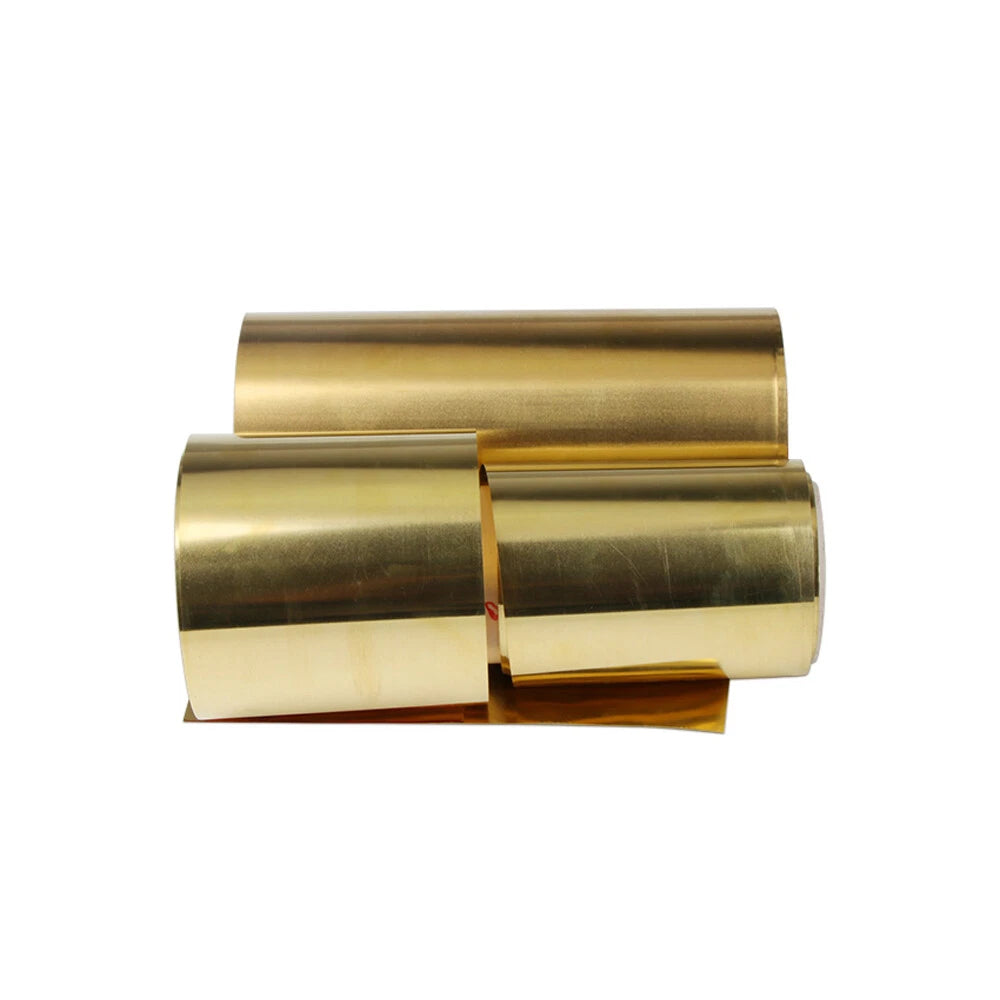

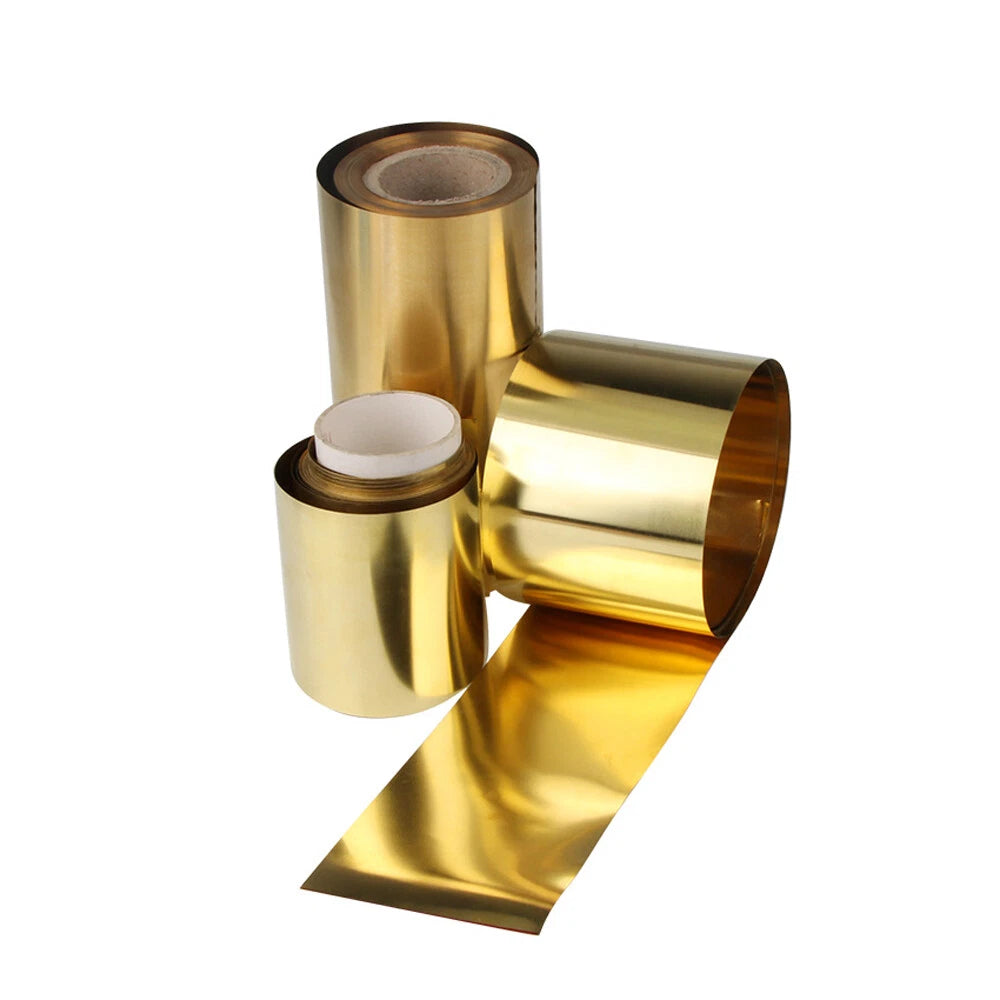

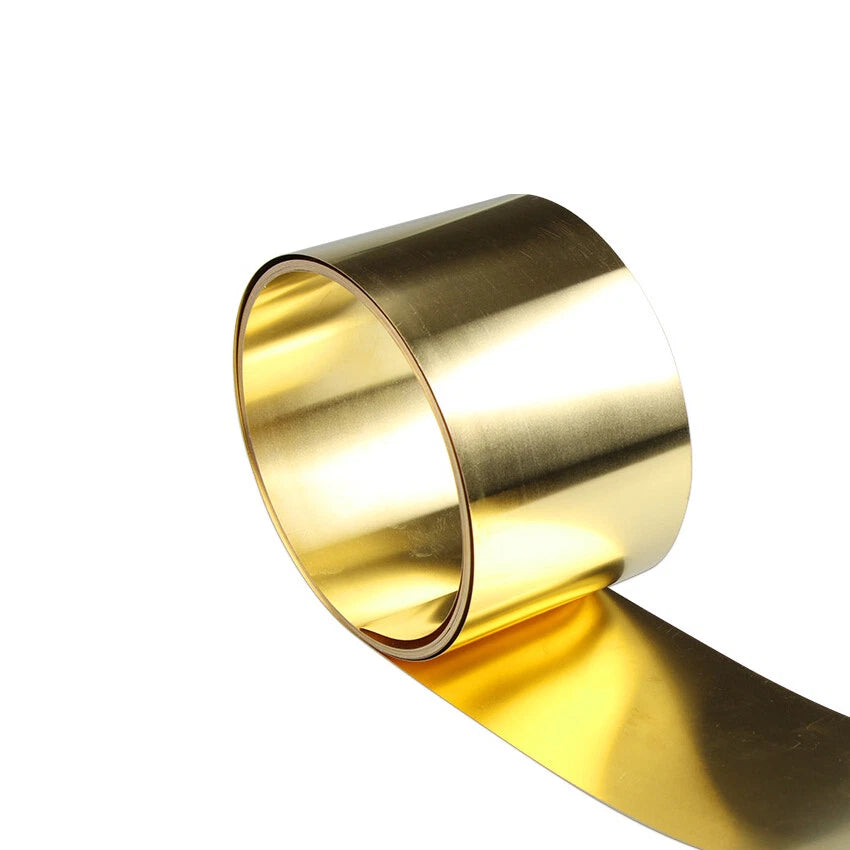

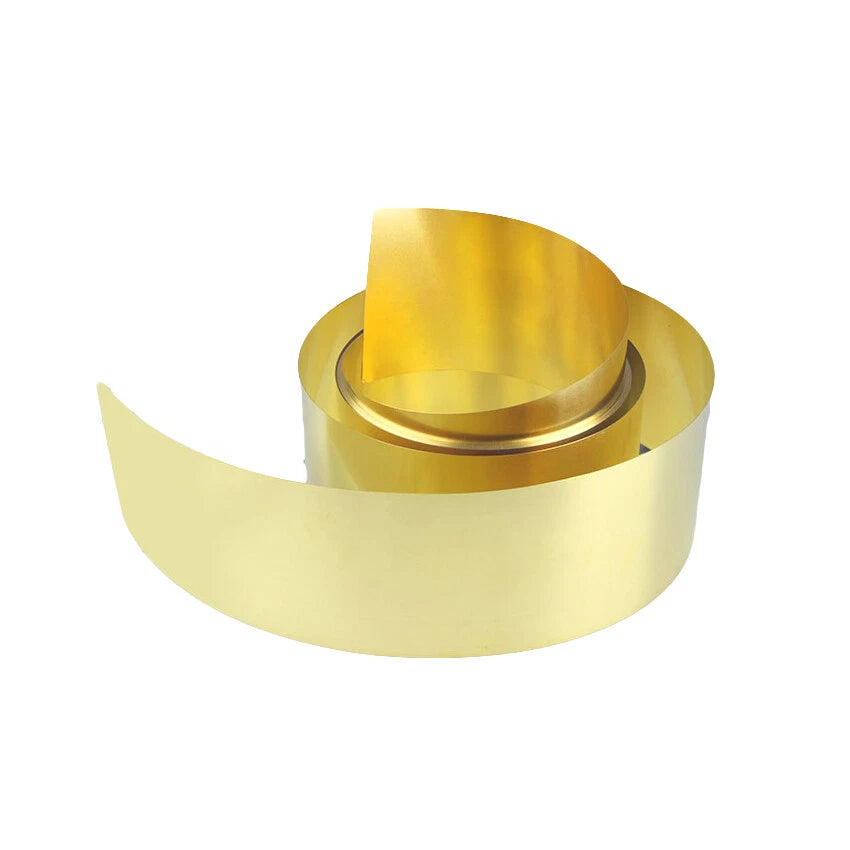

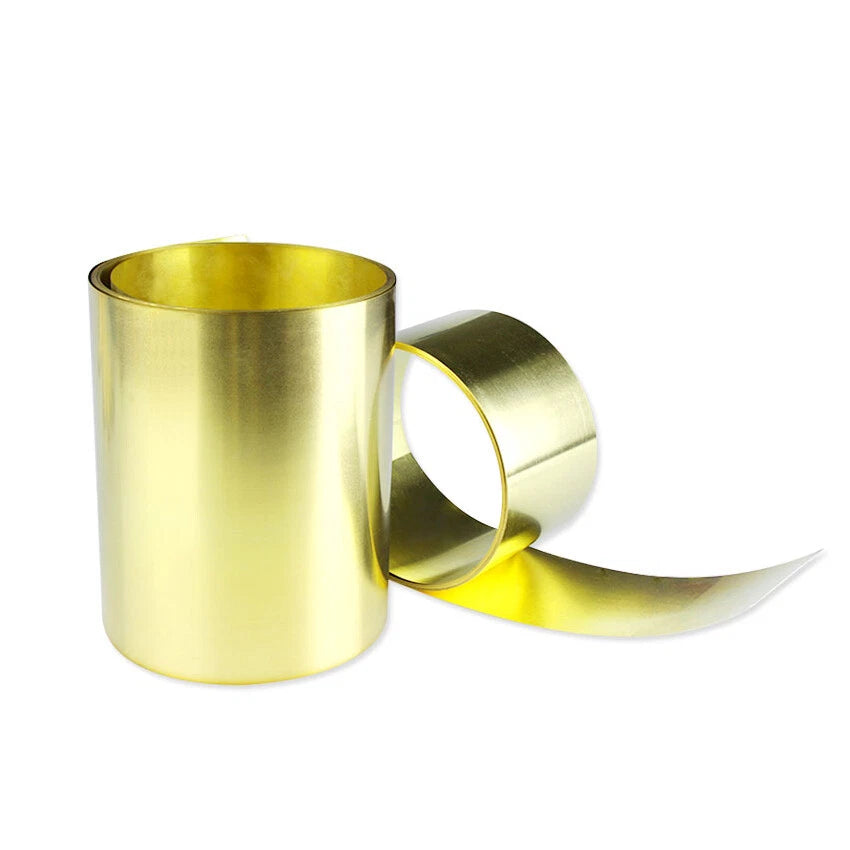

Brass Sheet Roll — Flexible Foil & Plate Strip for Precision Metalwork
Whether you're lining a circuit board, crafting decorative inlays, or fabricating thin shims, finding a brass strip that's both dimensionally accurate and consistently flat is half the battle. This H62 brass sheet roll delivers exactly that — a cold-rolled, smooth-surface foil and plate strip available in thicknesses from 0.02 mm up to 1 mm, with widths of 100 mm or 200 mm and lengths up to 1000 mm (select sizes up to 1500 mm).
Composed of H62 brass (approximately 62% copper, 38% zinc), each strip offers a balance of moderate strength, excellent formability, and good corrosion resistance. Thickness options span 0.02 mm, 0.03 mm, 0.05 mm, 0.1 mm, 0.2 mm, 0.3 mm, 0.4 mm, 0.5 mm, and 1 mm — covering ultra-thin foil work through to structural shim stock.
Common applications include RF/EMI shielding tape, gasket blanks, jewellery and craft inlays, model engineering shims, heat-sink spacers, and architectural trim strips. The consistent rolling tolerance makes it suitable for CNC laser cutting, waterjet profiling, and hand-tool fabrication alike.
🔩H62 Brass Alloy~62% Cu / 38% Zn composition for reliable strength, formability, and corrosion resistance.
📏Wide Thickness Range0.02 mm to 1 mm — from ultra-thin EMI foil to structural shim plate, all in one listing.
📐Multiple Size Options100 mm and 200 mm widths; lengths from 300 mm to 1500 mm. See variant options for exact dimensions.
✨Cold-Rolled Smooth SurfaceConsistent flatness and surface finish — ready for cutting, forming, or direct use as shim stock.
⚙️Machinable & SolderableEasily cut with shears, laser, or waterjet. Accepts soft solder and silver brazing without pre-treatment.
📦Ready to Ship500 units in stock per variant. Select your exact size above and add to cart.
What is H62 brass and how does it differ from other brass grades?
H62 brass contains approximately 62% copper and 38% zinc. Compared to H65 or H70 (higher copper content), H62 is slightly harder and more economical, making it ideal for structural strips, shims, and decorative applications where moderate formability is acceptable.
Can I cut this brass sheet with a laser cutter or waterjet?
Yes. Thinner foils (0.02–0.2 mm) cut cleanly with CO₂ or fibre lasers. Thicker strips (0.3–1 mm) are well-suited to waterjet or CNC shearing. Always use appropriate feed rates and cooling for best edge quality.
Is this brass strip suitable for EMI/RF shielding?
Yes. The ultra-thin variants (0.02–0.1 mm) are commonly used as EMI shielding tape or gasket material. Brass provides good electrical conductivity and is easy to form around enclosures or PCB cavities.
Will this brass tarnish or corrode over time?
H62 brass has good corrosion resistance in dry indoor environments. In humid or outdoor conditions, a light patina may develop. Applying a clear lacquer or wax coating will preserve the original golden finish.
Can I solder or braze this brass sheet?
Yes. H62 brass accepts soft solder (tin-lead or lead-free) and silver brazing without special pre-treatment. Clean the surface with flux before soldering for best adhesion.
How do I choose the right thickness for my project?
For shielding or foil work, choose 0.02–0.1 mm. For gaskets and flexible shims, 0.2–0.5 mm is typical. For structural shim plates or decorative panels, 0.5–1 mm provides rigidity. Contact us to confirm if you're unsure.
Are custom sizes or bulk quantities available?
The listed variants cover the most common sizes. For custom widths, lengths, or bulk orders, please contact us directly and we'll provide a tailored quote.
🛒 Select your exact size (Thickness × Width × Length) above, then add to cart.
