BSP Stainless Steel Tee Fittings — Split Your Pipe Run Without Leaks or Corrosion
When a plumbing, irrigation, or compressed-air system needs to branch in two directions from a single line, a poorly matched fitting is the fastest way to end up with a leak, a stripped thread, or a corroded joint. Contractors, facilities maintenance teams, and serious DIYers who work with BSP-threaded pipe systems need a tee fitting that threads cleanly, seals reliably, and holds up over years of service — not one that corrodes after a single season outdoors.

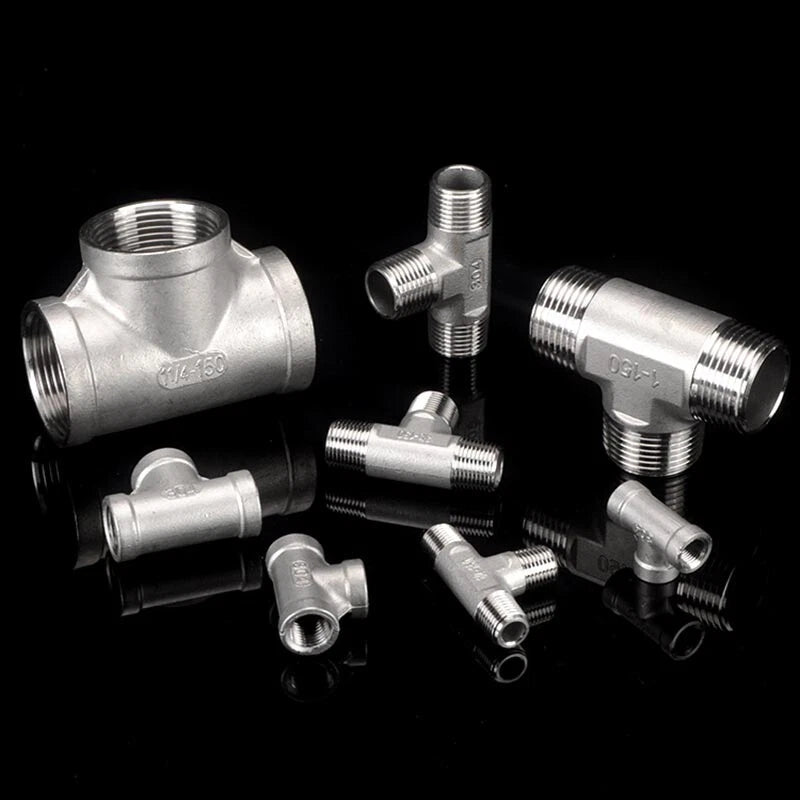

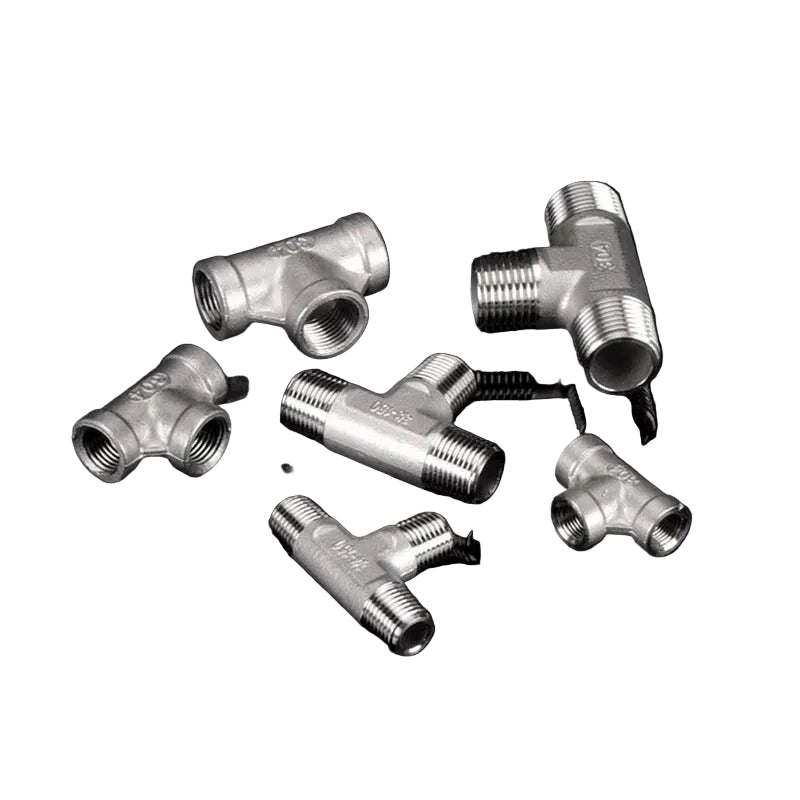

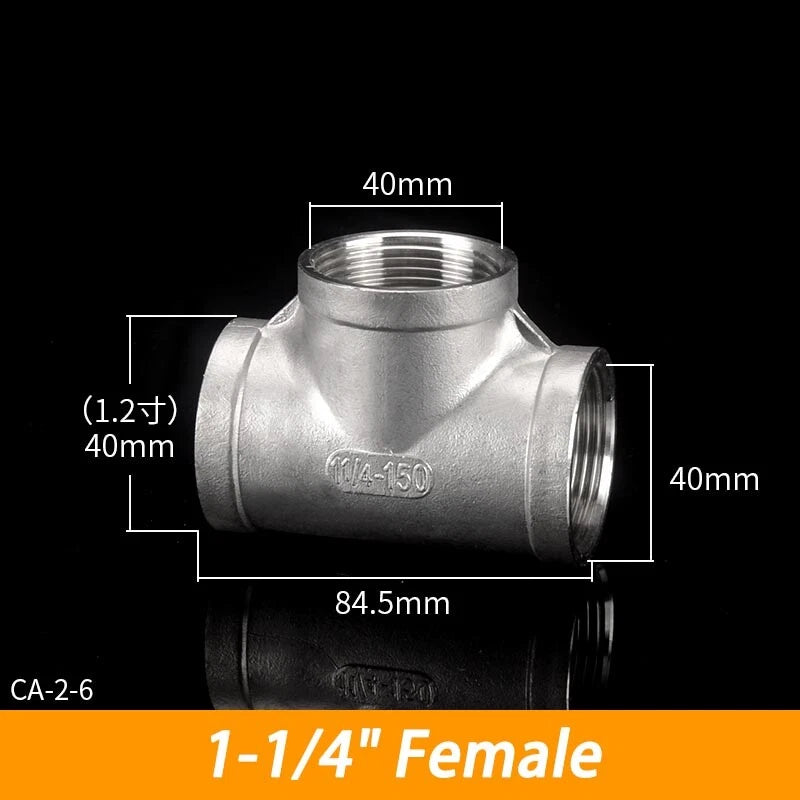

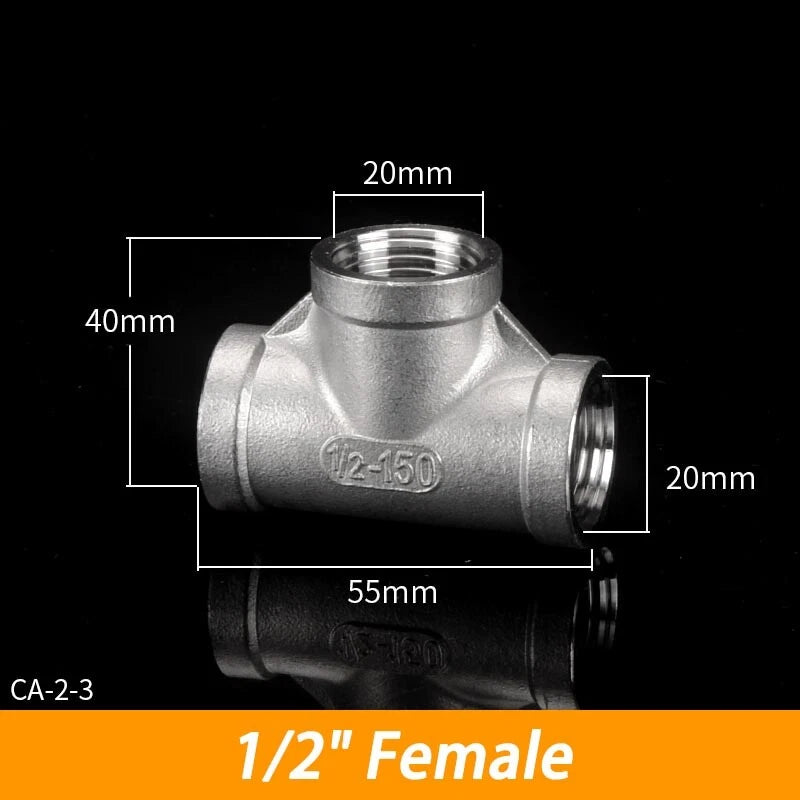

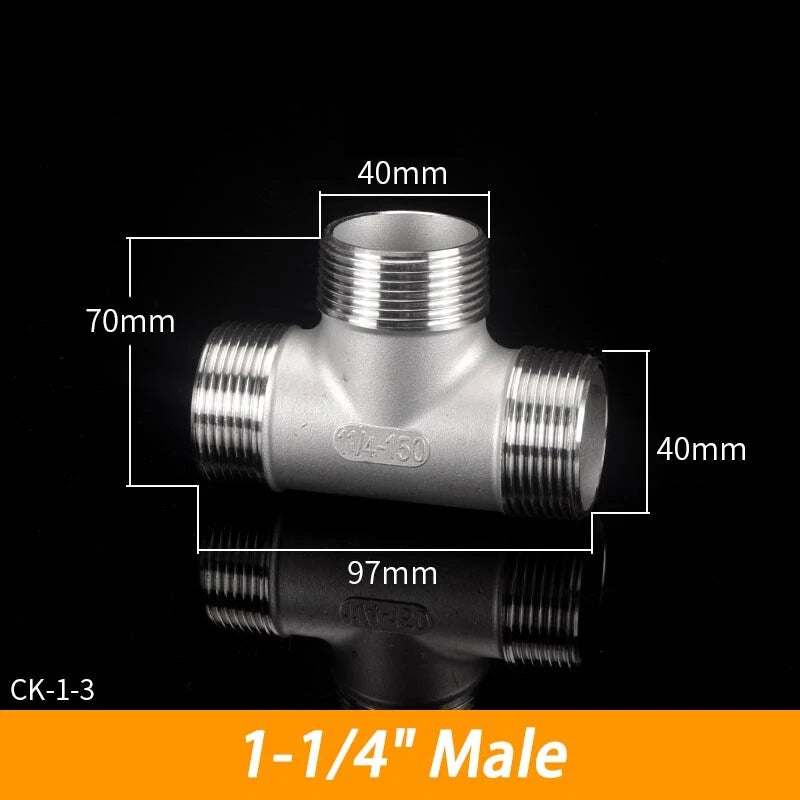

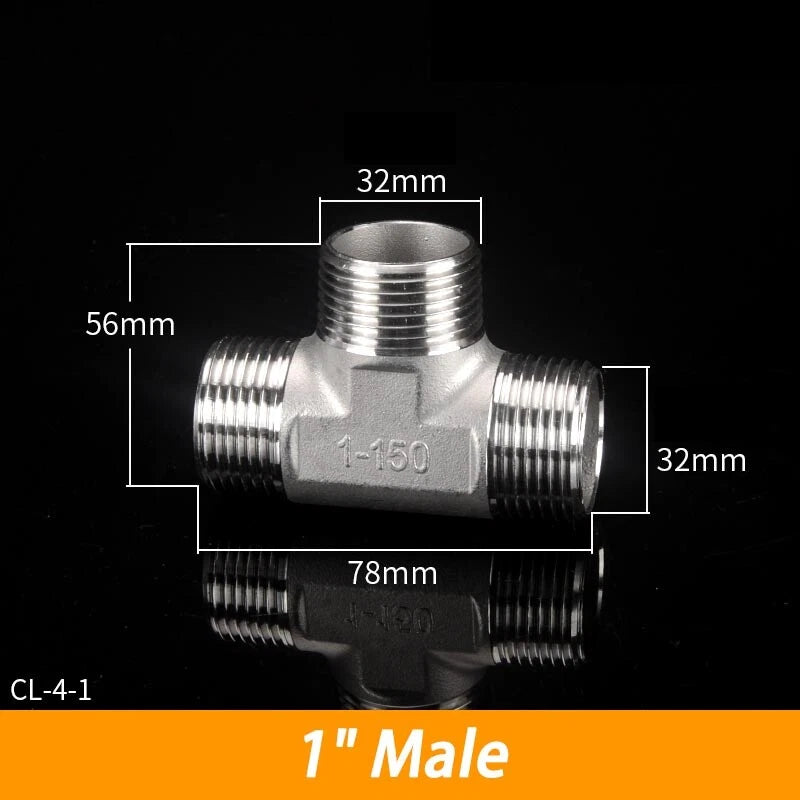

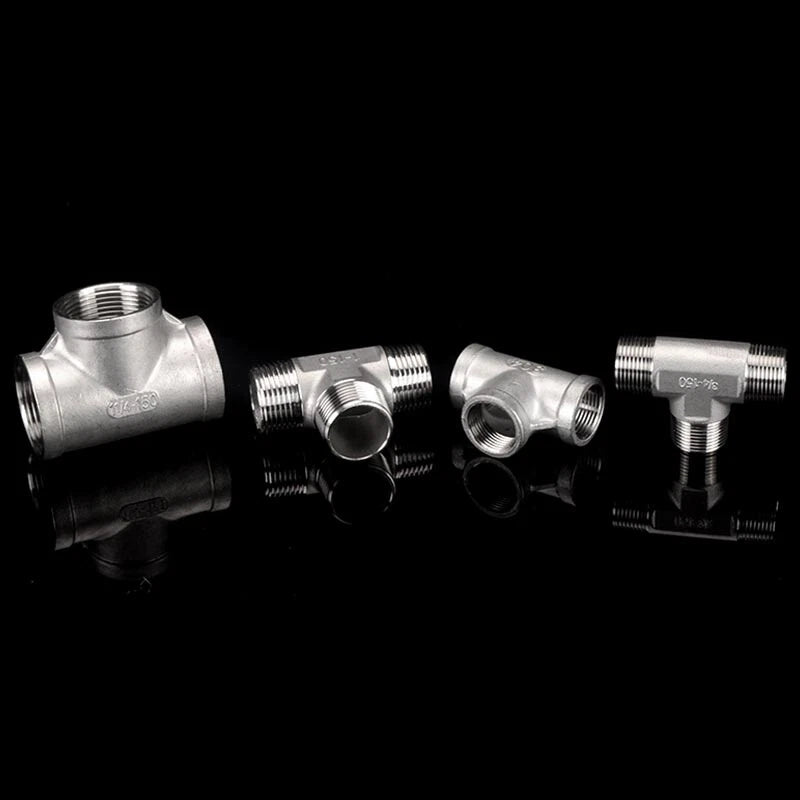

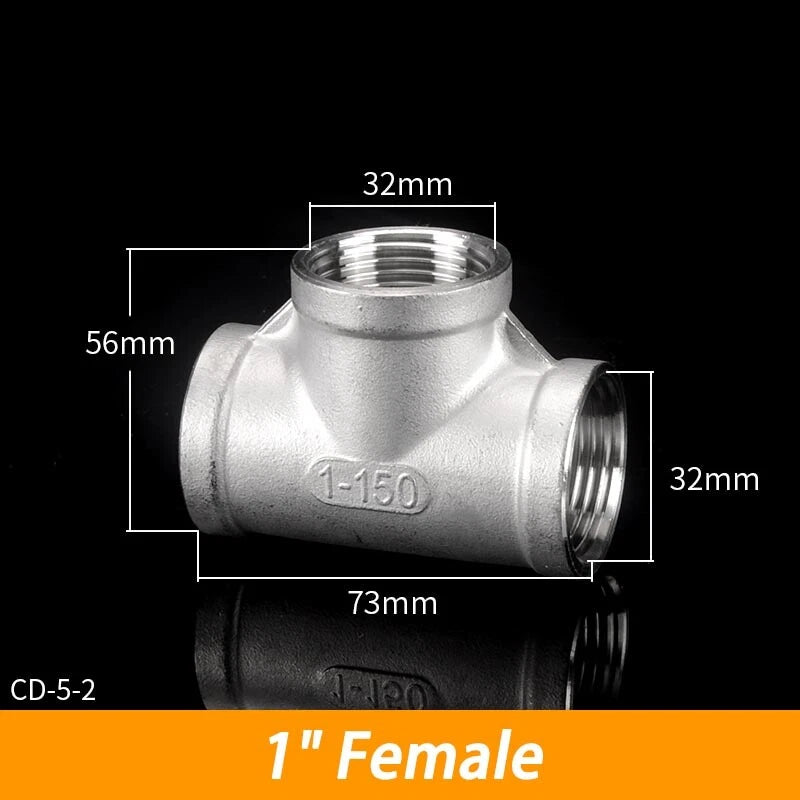

These BSP 304 stainless steel tee fittings are available in both male and female thread configurations across a wide size range — from 1/8" (≈9.7mm) up to 3" (≈76.1mm) — so you can match the exact thread type and nominal pipe size your system calls for. Each fitting is machined from 304 stainless steel, which delivers a strong, corrosion-resistant body suited to water, air, and mild-chemical service. Quantity options of 1, 2, or 4 pieces per order let you stock exactly what a job requires without over-buying.
Typical use cases include residential and commercial water supply branching, compressed-air distribution manifolds, irrigation mainline splits, and industrial fluid-handling systems where a reliable 3-way BSP pipe connector fitting is needed. The consistent thread form also makes these a practical choice for replacing worn fittings in existing BSP-threaded installations.

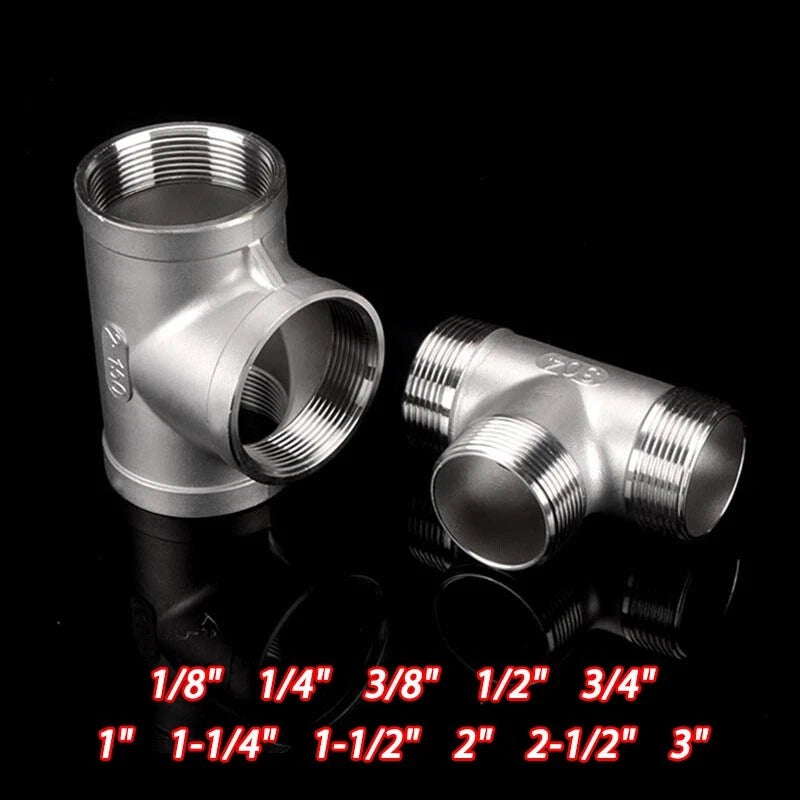

🔗 Thread Standard: BSP (British Standard Pipe) — BSPT tapered or BSPP parallel depending on variant. Not directly compatible with NPT threads. Confirm your pipe thread standard before ordering. Available sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3".
✅ Key Features of These BSP Stainless Steel Tee Fittings
-

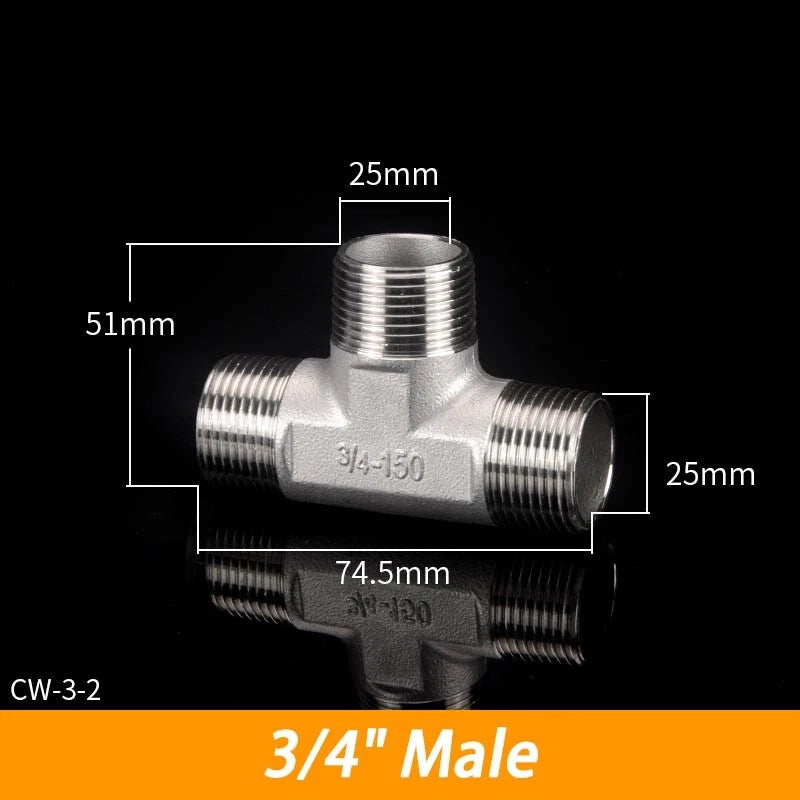

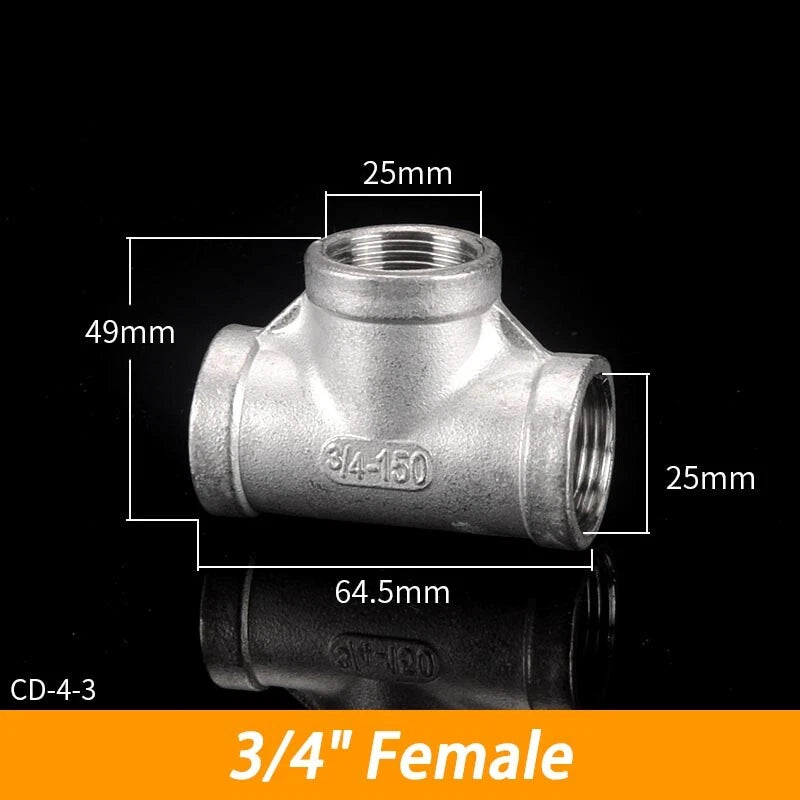

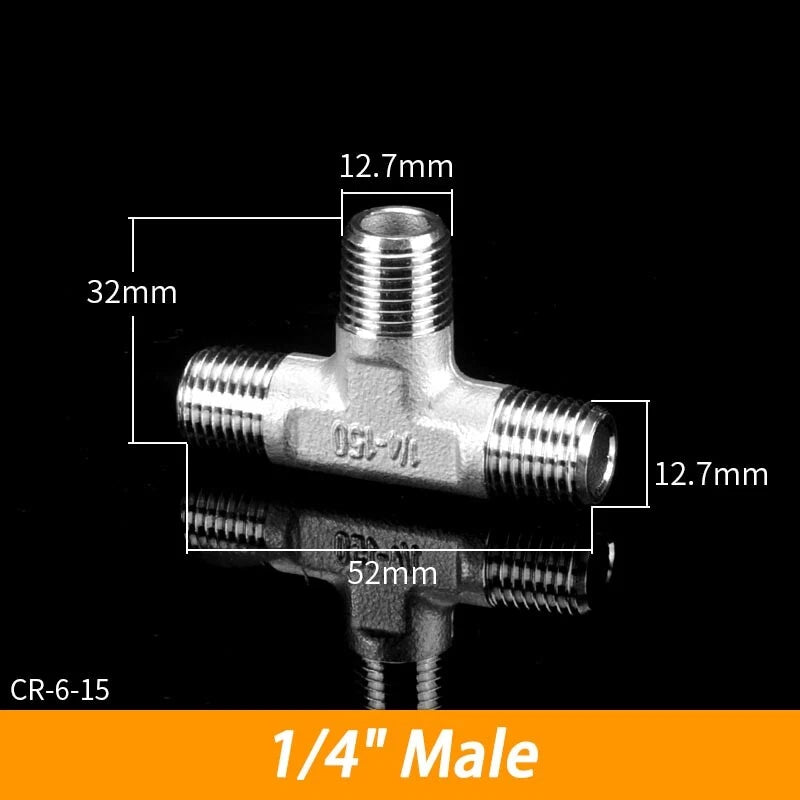

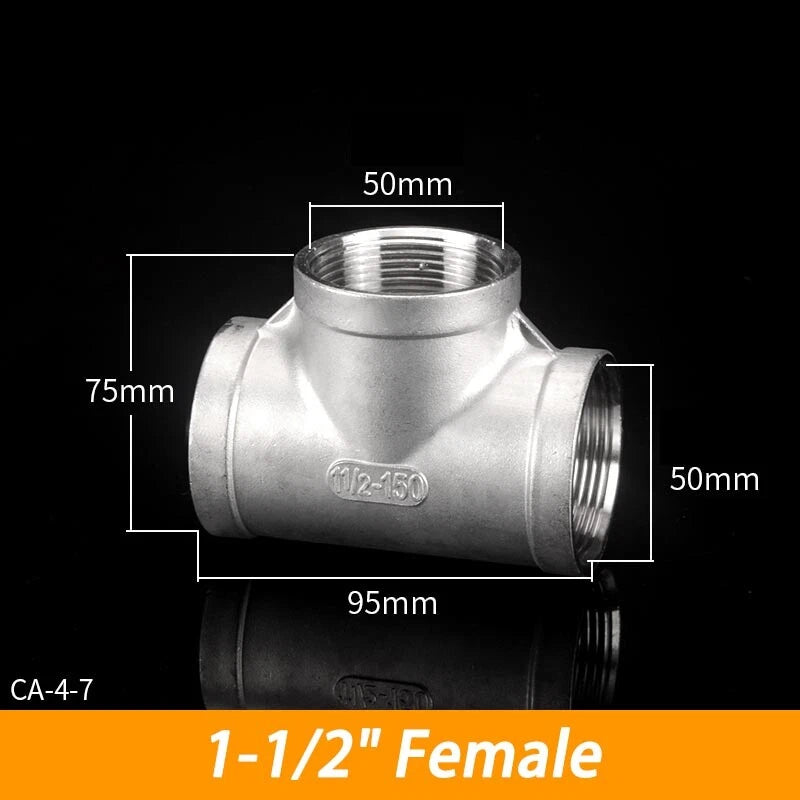

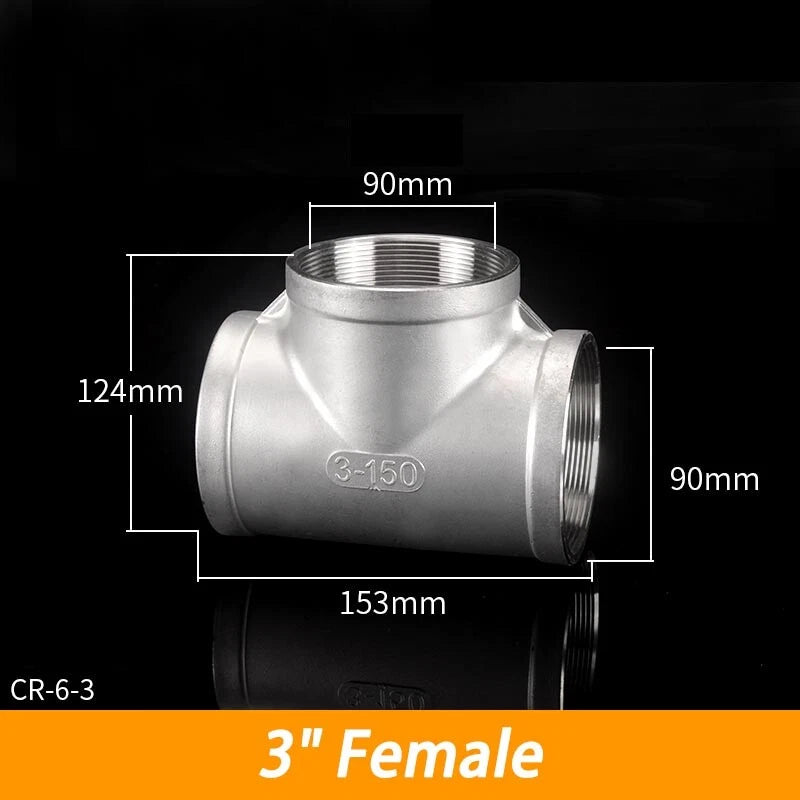

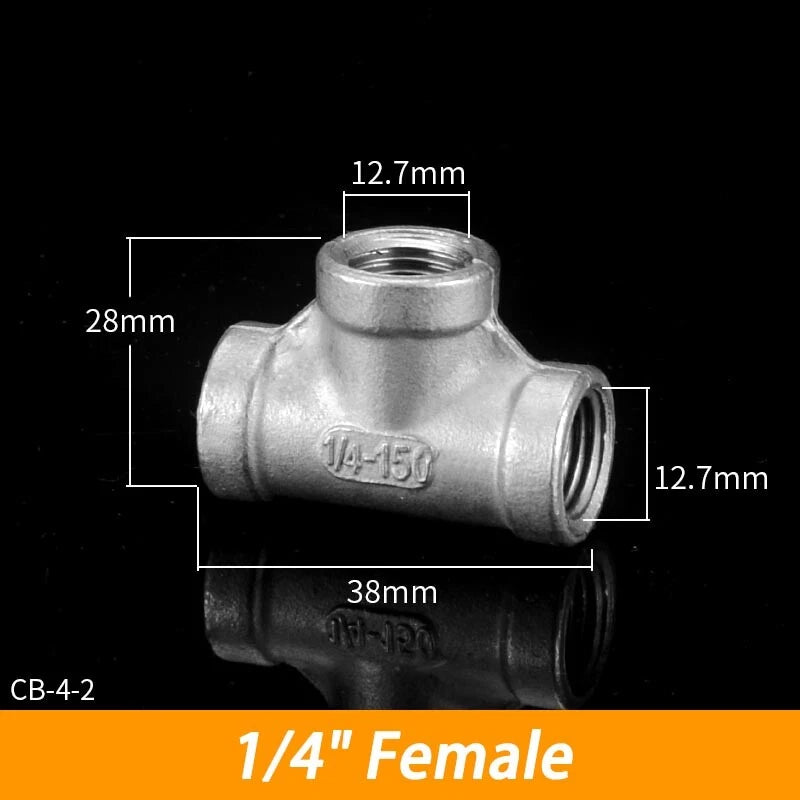

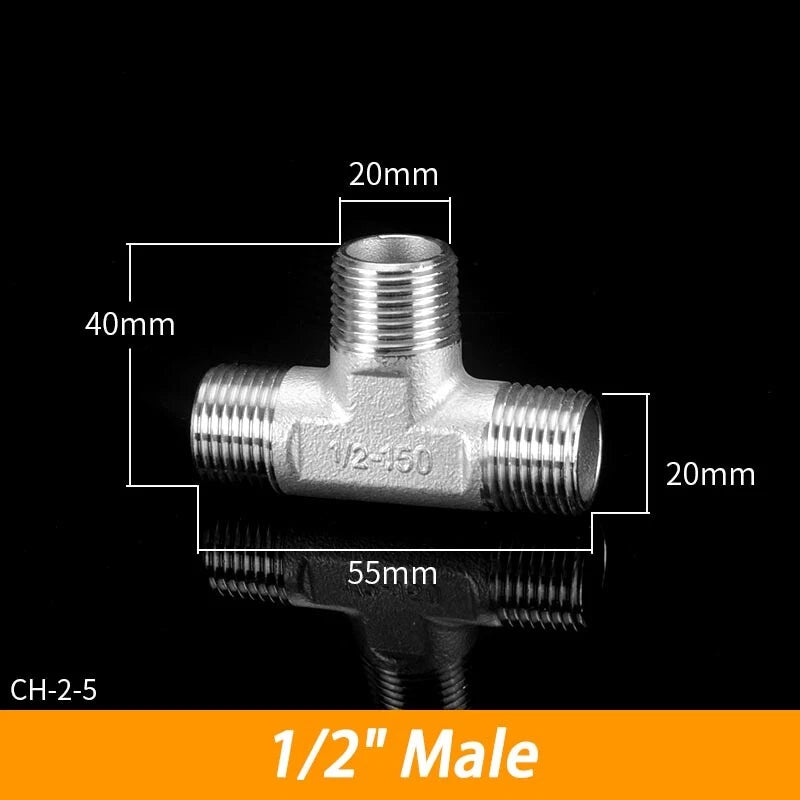

🔩 Full BSP Size Range — Covers 1/8" through 3" nominal pipe sizes in both male and female thread configurations, making it straightforward to source the right 3-way BSP pipe connector fitting for any branch point in your system.
-

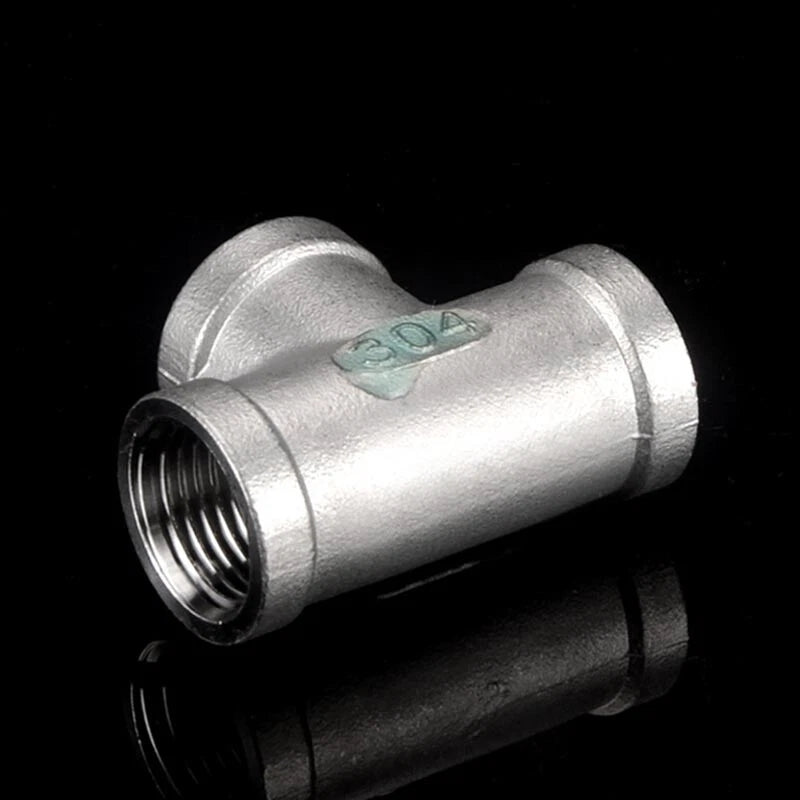

🛡️ 304 Stainless Steel Construction — The 18-8 chromium-nickel alloy resists rust, oxidation, and mild chemical attack, giving these fittings a service life that outlasts standard carbon steel or brass alternatives in wet or outdoor environments.
-
⚙️ Male & Female Thread Options — Both external (male) and internal (female) BSP thread styles are stocked, so you can match the mating thread on your existing pipe, valve, or manifold without adapters.
-
📐 Machined Thread Accuracy — Threads are cut to BSP dimensional standards, which means consistent engagement depth and reduced risk of cross-threading or galling during installation — important when working with stainless-to-stainless connections.
-
📦 Flexible Quantity Packs — Order 1, 2, or 4 pieces per SKU to match the exact quantity a repair or new installation requires, avoiding leftover stock or mid-job shortages on multi-branch stainless steel pipe fitting projects.
-
🚿 Broad Application Compatibility — Suited for water supply, compressed air, irrigation, and mild-chemical fluid lines where a corrosion-resistant 3-way tee fitting with BSP threads is specified.
📐 Technical Specifications — BSP Stainless Steel Tee Pipe Fittings
| Product Type |
3-Way Tee Fitting (Equal Tee) |
| Thread Standard |
BSP (British Standard Pipe) |
| Thread Configurations |
Male (external) and Female (internal) — see variant options |
| Available Sizes (Nominal) |
1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3" |
| Material |
304 Stainless Steel (18-8 Cr-Ni alloy) |
| Finish |
Machined / natural stainless |
| Working Pressure |
Typically up to 150 PSI for water/air at ambient temperature — contact us to confirm for your application |
| Temperature Range |
Generally suitable for -20°F to 400°F (-29°C to 204°C) — confirm for specific media |
| Compatible Media |
Water, air, mild chemicals, food-grade liquids (non-corrosive) |
| Quantity per Order |
1, 2, or 4 pieces — see variant options |
| Country of Origin |
See variant options |
⚠️ Confirm before ordering: BSP and NPT threads are not interchangeable. Verify your pipe thread standard (BSP vs. NPT) and whether you need tapered (BSPT) or parallel (BSPP) threads. Use PTFE tape or appropriate thread sealant on all connections.
❓ Frequently Asked Questions
How do I choose the right BSP tee fitting size?
Measure the outer diameter of your pipe threads and match it to the nominal BSP size. As a general guide:

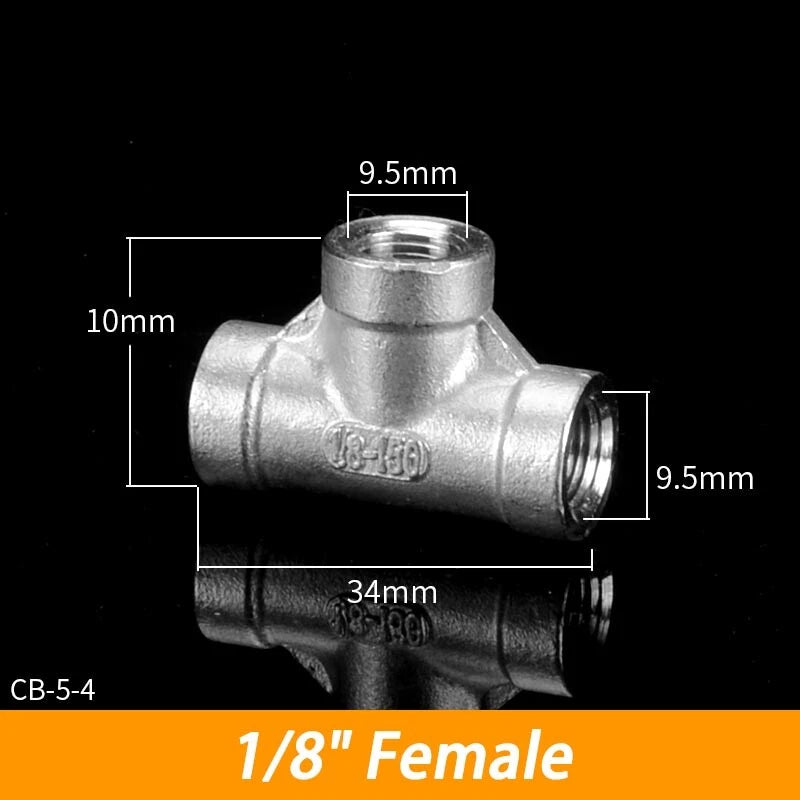

- 1/8" BSP ≈ 9.7mm (≈3/8")
- 1/4" BSP ≈ 13.2mm (≈1/2")

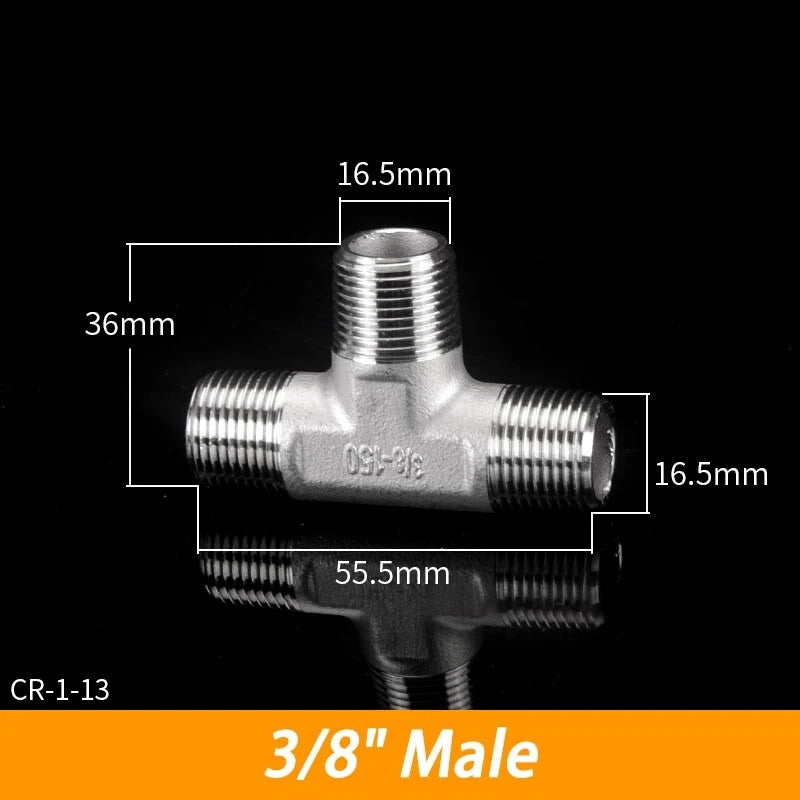

- 3/8" BSP ≈ 16.7mm (≈21/32")
- 1/2" BSP ≈ 20.9mm (≈13/16")
- 3/4" BSP ≈ 26.4mm (≈1")
- 1" BSP ≈ 33.2mm (≈1-5/16")
When in doubt, size up to avoid thread damage. If you're unsure, contact us with your pipe's outer diameter and we'll help confirm the correct size.
What pressure rating do these tee fittings typically handle?
304 stainless steel BSP tee fittings generally handle working pressures up to 150 PSI for water and air applications at ambient temperatures. Actual ratings vary by size and wall thickness — contact us to confirm for your specific application, especially for high-pressure or elevated-temperature service.
Are these fittings suitable for outdoor or marine use?
Yes. 304 stainless steel offers good corrosion resistance in most outdoor environments, including rain, humidity, and mild atmospheric exposure. For coastal or high-salinity marine environments, 316 stainless steel is typically recommended for superior chloride resistance. These fittings are a solid choice for standard outdoor irrigation and water supply applications.
Are BSP and NPT threads compatible?
No — BSP (British Standard Pipe) and NPT (National Pipe Thread) are not directly interchangeable. BSP threads have a 55° thread angle while NPT uses 60°. In some sizes they may appear to thread together but will not seal reliably and can damage threads. Always match BSP fittings to BSP-threaded pipes and fittings. If your system uses NPT threads, you will need an NPT fitting instead.

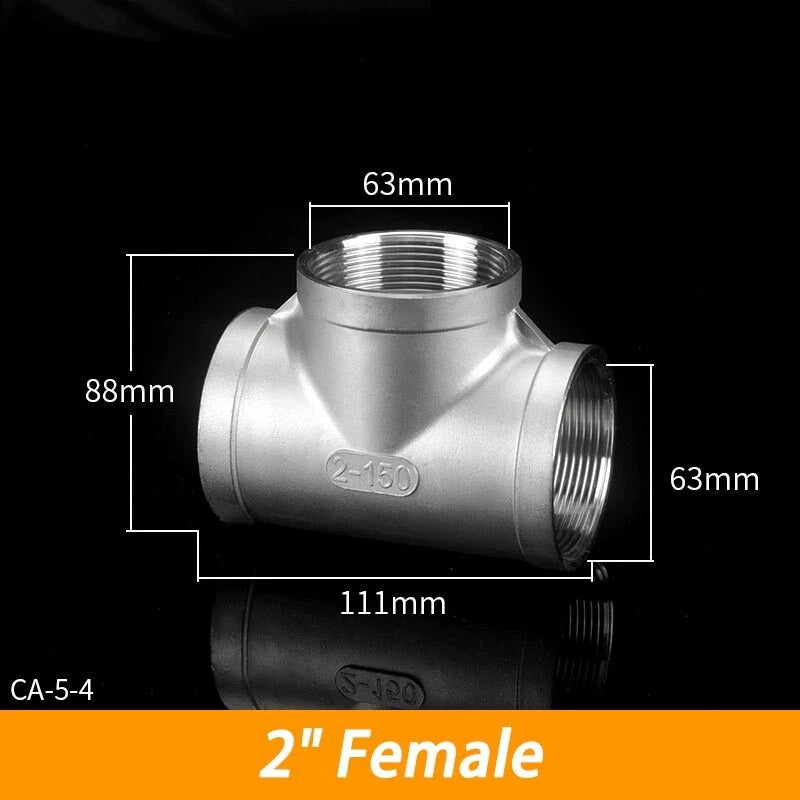

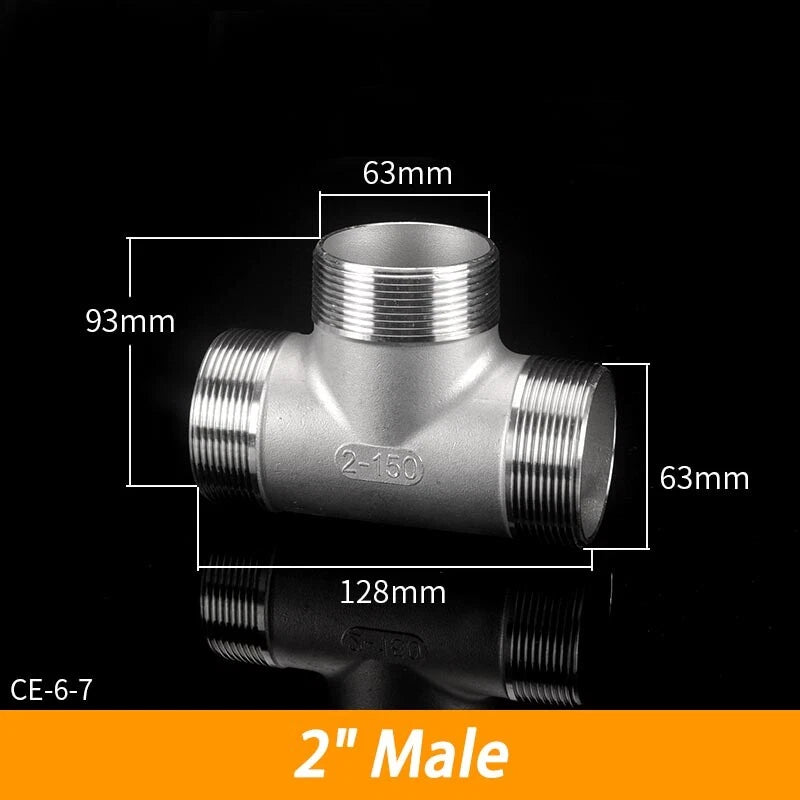

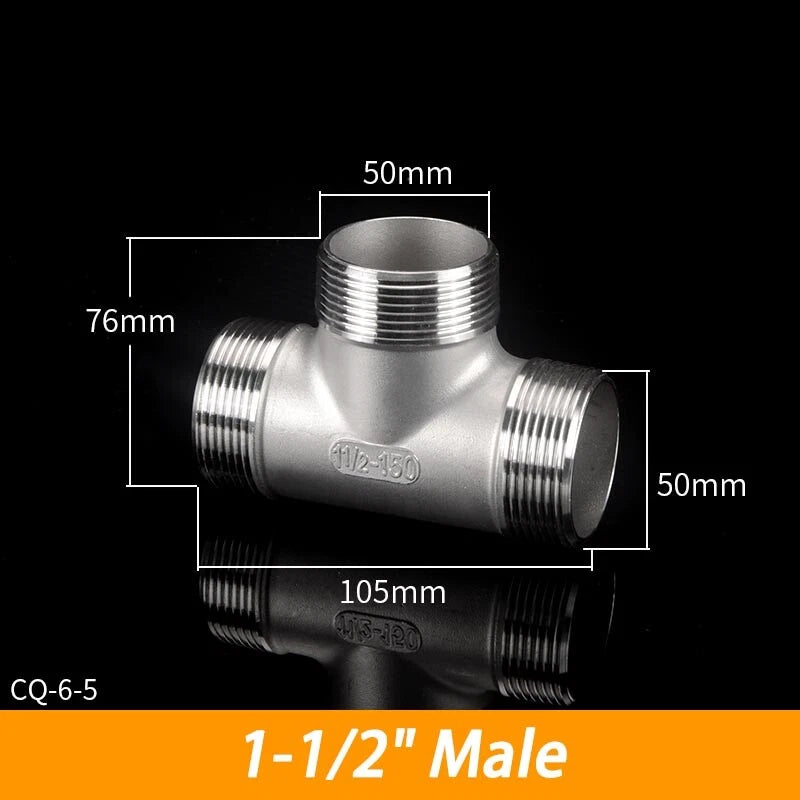

What is the difference between Male and Female BSP tee fittings?
Male BSP fittings have external threads on the outside of the fitting body that screw into a female-threaded port, coupling, or valve. Female BSP fittings have internal threads that accept a male-threaded pipe end or fitting. Choose based on the thread type of the mating component in your system — if your pipe has external threads, you need a female tee; if your valve or manifold has internal threads, you need a male tee.
Do I need thread sealant with these fittings?
Yes, in most cases. BSPT (tapered) threads generally require PTFE tape or thread sealant compound applied to the male threads to achieve a leak-free seal. BSPP (parallel) threads typically require a bonded seal washer or O-ring at the seating face rather than tape on the threads. Check which BSP thread form your fitting uses and apply the appropriate sealant before installation. Do not overtighten stainless-to-stainless connections to avoid galling.
What fluids are these fittings compatible with?
304 stainless steel BSP tee fittings are generally compatible with water, compressed air, mild chemicals, and food-grade liquids in non-corrosive service. They are not recommended for strong acids, concentrated chlorinated solutions, or highly corrosive media without an engineering review. If you're handling a specific chemical, contact us with the fluid details and we can advise on suitability.
