Description

BSP Female Thread PVC Ball Valve Socket — Reliable Flow Control for Water & Irrigation Pipe Systems

When a leaking or hard-to-reach shutoff point becomes a recurring headache in your plumbing or irrigation setup, you need a valve that installs fast and holds tight. This BSP female thread PVC ball valve socket is designed for DIYers, plumbers, and facility maintenance teams who need dependable on/off flow control without the weight or corrosion risk of metal fittings.

Each valve is molded from rigid PVC (polyvinyl chloride) with a smooth-bore ball mechanism and BSP (British Standard Pipe) female threaded inlets on both ends. Available in sizes ranging from 1/2" (DN15, ~21 mm OD) through 4" (DN100, ~114 mm OD), and offered in Blue, White, and Gray colorways to match your existing pipework. Wall thickness and bore dimensions vary by size — see variant options for exact measurements.

Typical use cases include residential cold-water supply shutoffs, drip irrigation zone valves, swimming pool and spa plumbing, rainwater harvesting systems, and light-duty industrial fluid handling where a corrosion-resistant BSP ball valve socket is required.

🔗 Compatible with BSP (BSPP / G-thread) female-threaded pipe systems. Sizes: 1/2" (DN15) · 3/4" (DN20) · 1" (DN25) · 1-1/4" (DN32) · 1-1/2" (DN40) · 2" (DN50) · 2-1/2" (DN65) · 3" (DN80) · 4" (DN100). Not suitable for hot water above 60 °C or high-pressure steam lines.

✅ Key Features of These BSP PVC Ball Valve Sockets

  • 🔵 Full-Bore Ball Design — Unrestricted flow when open; quarter-turn lever gives instant shutoff with minimal pressure drop across the valve.
  • 🛡️ Corrosion-Resistant PVC Body — Immune to rust, scale, and most household chemicals, making it ideal for outdoor irrigation and pool plumbing exposed to moisture and UV.
  • 📐 BSP Female Thread on Both Ends — Standard BSPP (parallel) thread profile ensures leak-free connection to male-threaded pipe nipples, adapters, and fittings without special tools.

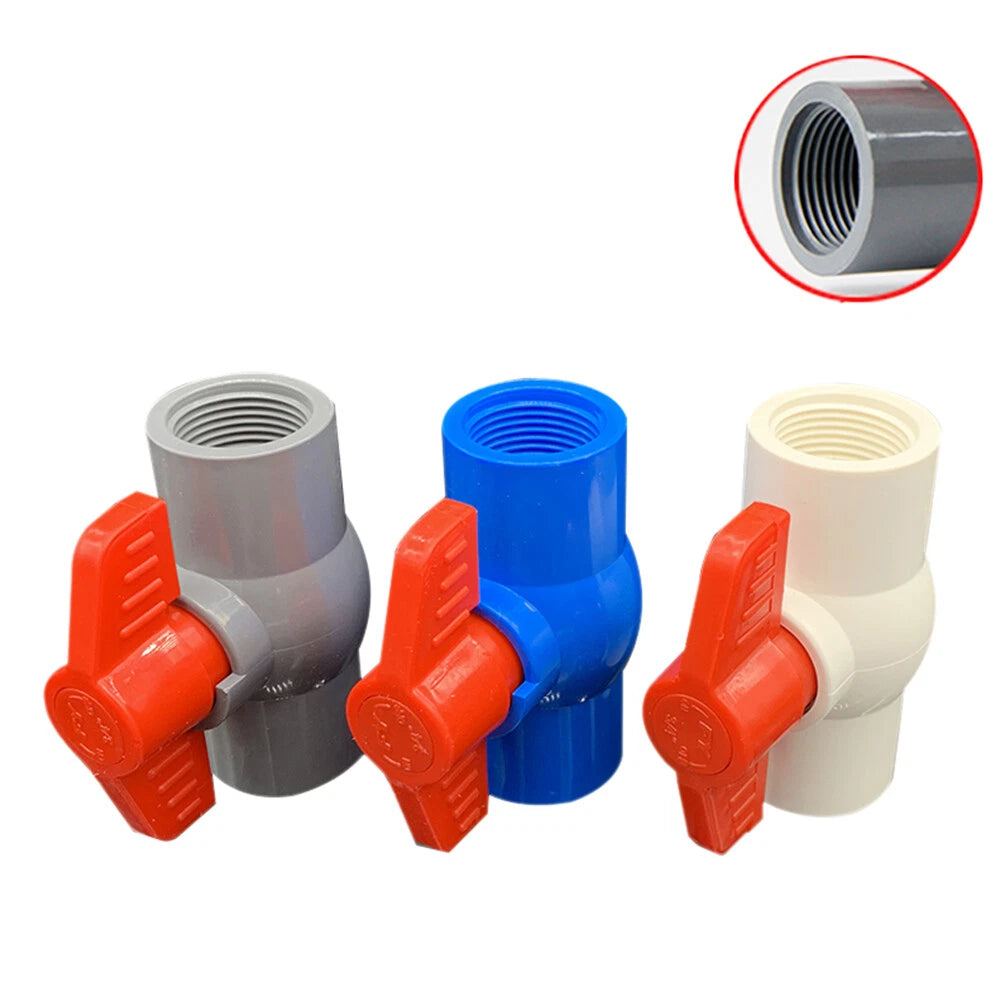

  • 🎨 Three Color Options — Blue, White, and Gray variants let you color-code fluid circuits or match existing pipework for cleaner, more organized installations.
  • 📏 Wide Size Range (DN15–DN100) — A single product family covers 1/2" through 4" pipe sizes, simplifying procurement for multi-zone irrigation or multi-diameter plumbing projects.
  • ⚙️ Lever Handle Included — Ergonomic lever handle provides clear open/closed visual indication and comfortable grip, even with wet hands during maintenance.

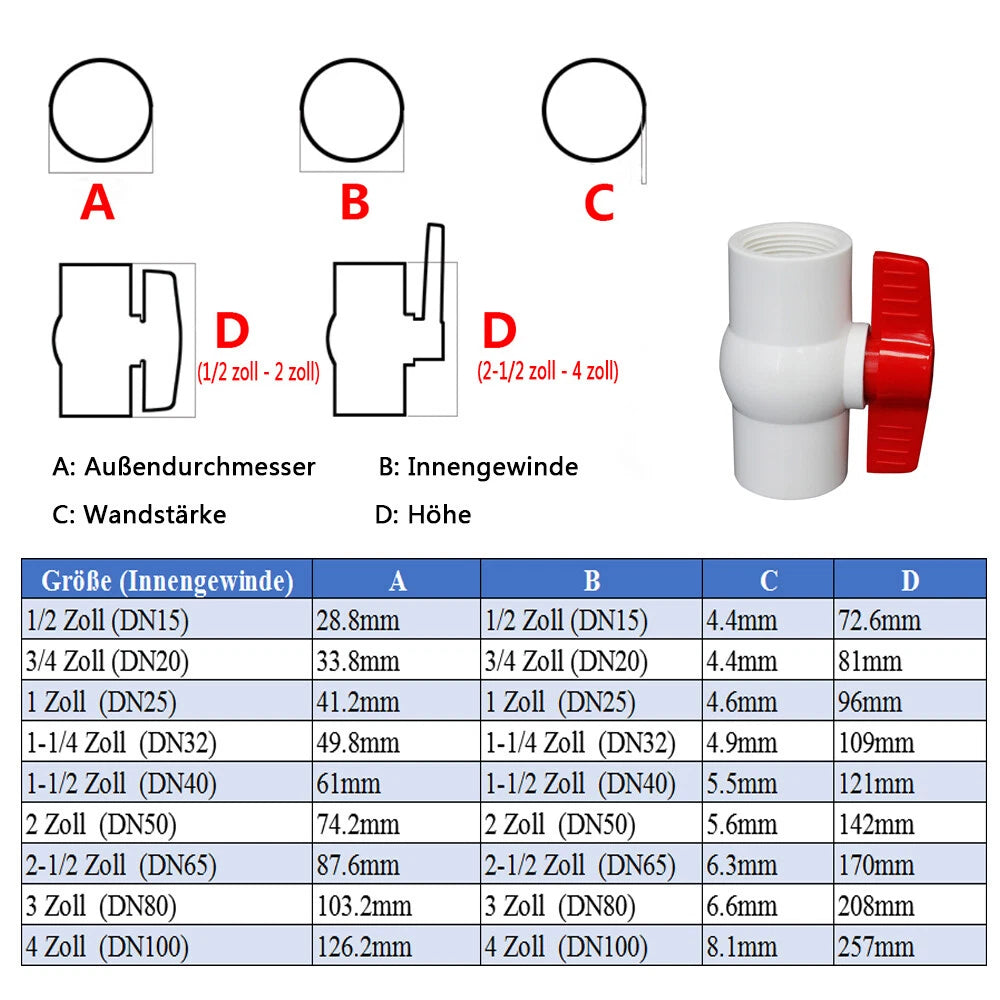

📐 Technical Specifications — BSP PVC Ball Valve Socket

Material PVC (Polyvinyl Chloride)
Connection Type BSP Female Thread (BSPP / G-thread) both ends
Available Sizes 1/2" (DN15) · 1" (DN25) · 1-1/4" (DN32) · 1-1/2" (DN40) · 2" (DN50) · 2-1/2" (DN65) · 3" (DN80) · 4" (DN100)
Color Options Blue / White / Gray
Outer Diameter (OD) See variant options
Wall Thickness See variant options
Operating Pressure Typically up to 10 bar (145 psi) at 20 °C — see variant options
Max Operating Temperature Up to 60 °C (140 °F) for cold/ambient water service
Valve Operation Quarter-turn lever (90°)
Seal Material EPDM / PTFE (See variant options)
Quantity per Order 1 piece (1-tlg)
Weight See variant options

❓ Frequently Asked Questions

How do I choose the right size BSP ball valve socket for my pipe?

Match the valve size to your pipe's nominal bore (DN) or BSP thread designation, not the outer diameter of the pipe itself. For example, a 1" (DN25) pipe uses a 1" BSP female thread valve. If you are unsure, measure the male thread OD on your existing fitting and compare it to standard BSP thread tables. Select the matching size from the variant dropdown above.

Is this ball valve suitable for hot water lines?

This PVC ball valve is rated for cold and ambient-temperature water service up to approximately 60 °C (140 °F). It is not recommended for hot water heating systems, steam lines, or applications where sustained temperatures exceed 60 °C. For hot water, consider a brass or CPVC ball valve instead.

Will this valve resist corrosion in outdoor or pool environments?

Yes. PVC is inherently resistant to rust, oxidation, chlorine, and most mild acids and alkalis, making it well-suited for swimming pool plumbing, irrigation systems, and outdoor installations exposed to rain and humidity. Prolonged direct UV exposure may cause surface discoloration over many years, but structural integrity is generally maintained.

Is the thread BSP parallel (BSPP) or tapered (BSPT)?

These valves use BSPP (British Standard Pipe Parallel, also called G-thread) female threads on both ends. They are designed to mate with male BSPP fittings using a face seal or thread sealant (PTFE tape). They are not directly interchangeable with NPT (National Pipe Taper) threads without an adapter.

Do I need any special tools to install this ball valve?

No special tools are required. Apply PTFE thread seal tape to the male threads of your pipe or fitting, then hand-tighten the valve and finish with a strap wrench or pipe wrench — typically 1 to 2 turns past hand-tight. Avoid over-tightening, which can crack the PVC body. The lever handle is pre-installed and requires no assembly.

Can I use this valve for fluids other than water?

This valve is suitable for cold water, irrigation water, and many non-aggressive aqueous solutions compatible with PVC, EPDM, and PTFE seals. It is not recommended for solvents, fuels, compressed air above rated pressure, or aggressive chemicals that attack PVC. If you are unsure about chemical compatibility, contact us to confirm before ordering.

What is the difference between the Blue, White, and Gray color options?

The three colors are functionally identical — same PVC material, same thread standard, same pressure rating. The color difference allows you to color-code fluid circuits (e.g., blue for cold water, gray for recycled water) or simply match the aesthetic of your existing pipework. Choose the color that best suits your installation from the variant selector above.

How many pieces are included per order?

Each order includes 1 piece (1-tlg) of the selected size and color. If you need multiple valves for a multi-zone irrigation system or a larger plumbing project, simply increase the quantity in your cart before checkout.
