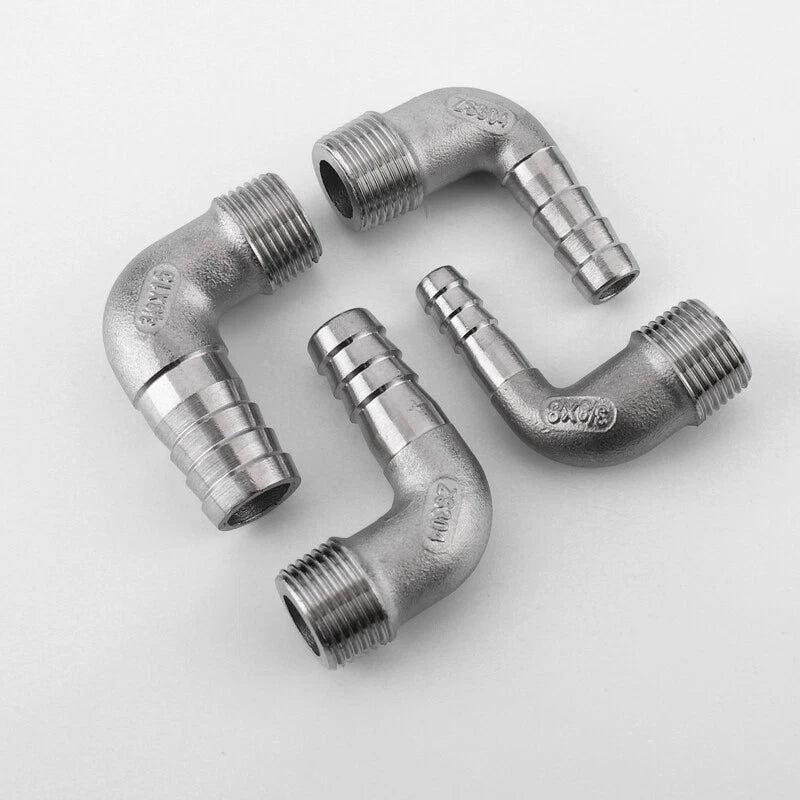

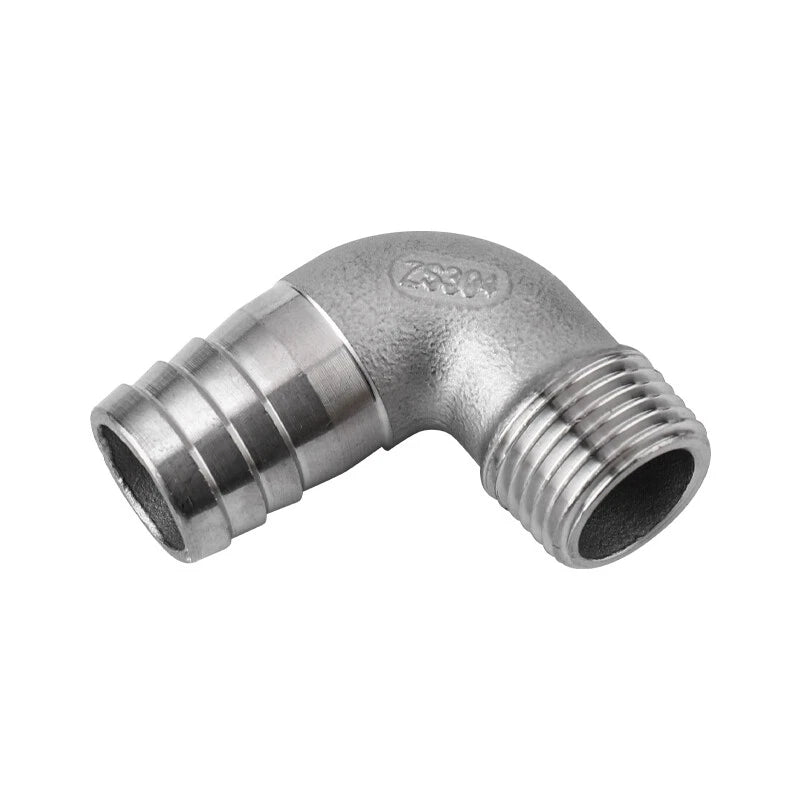

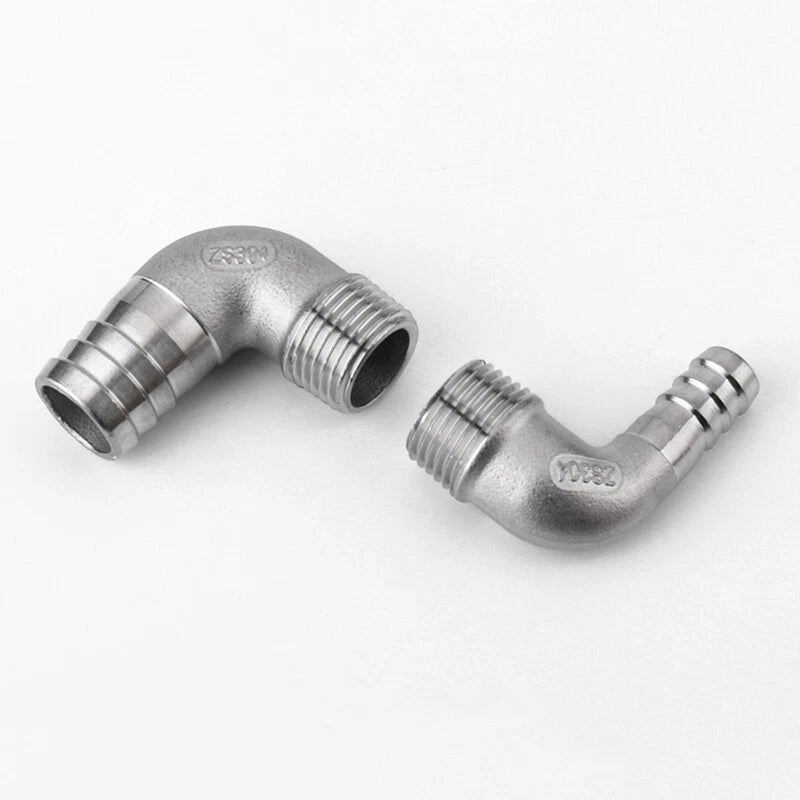

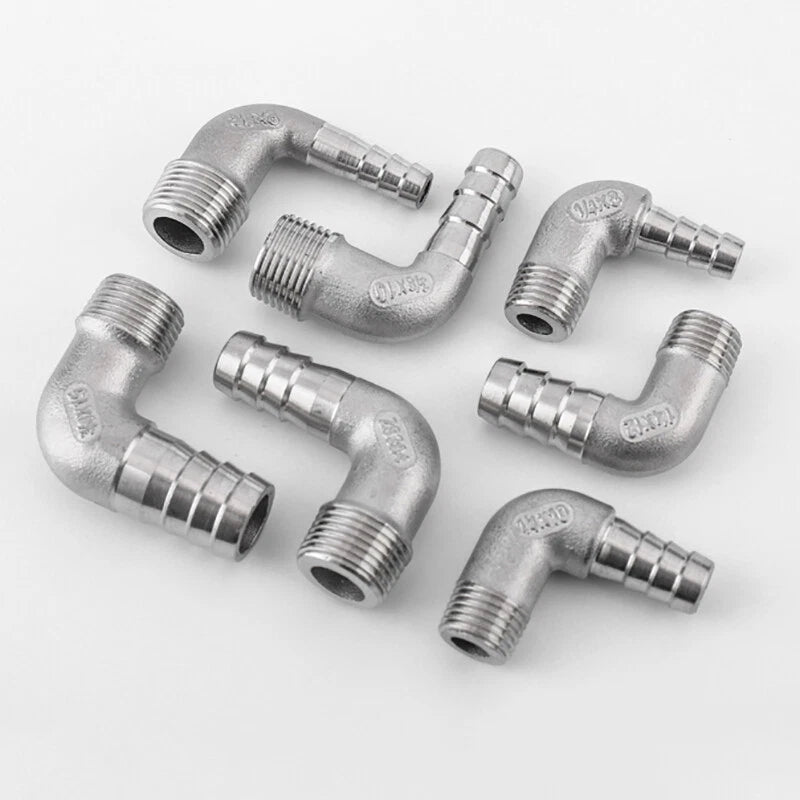

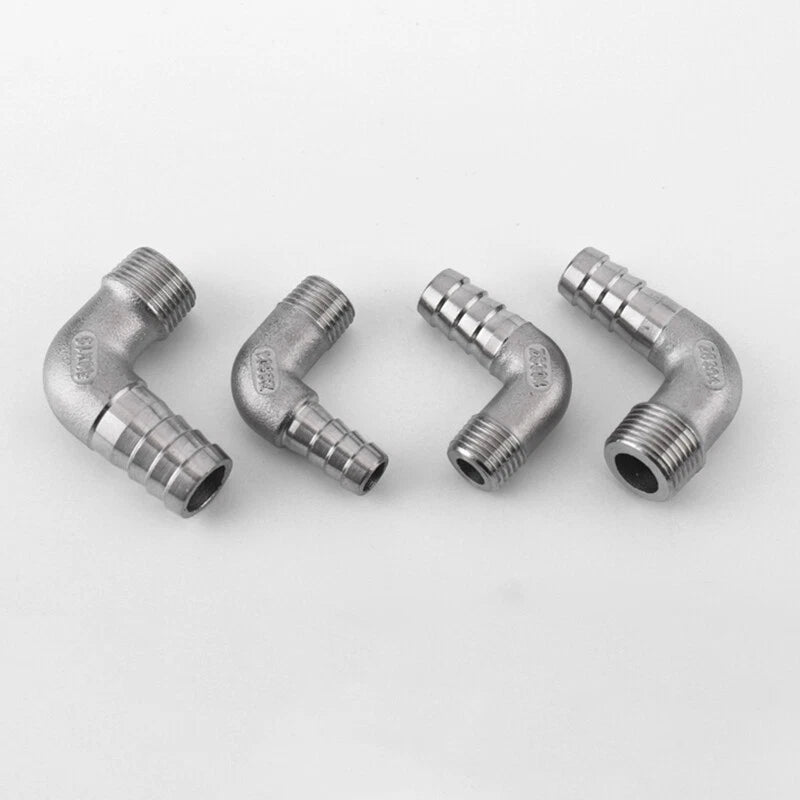

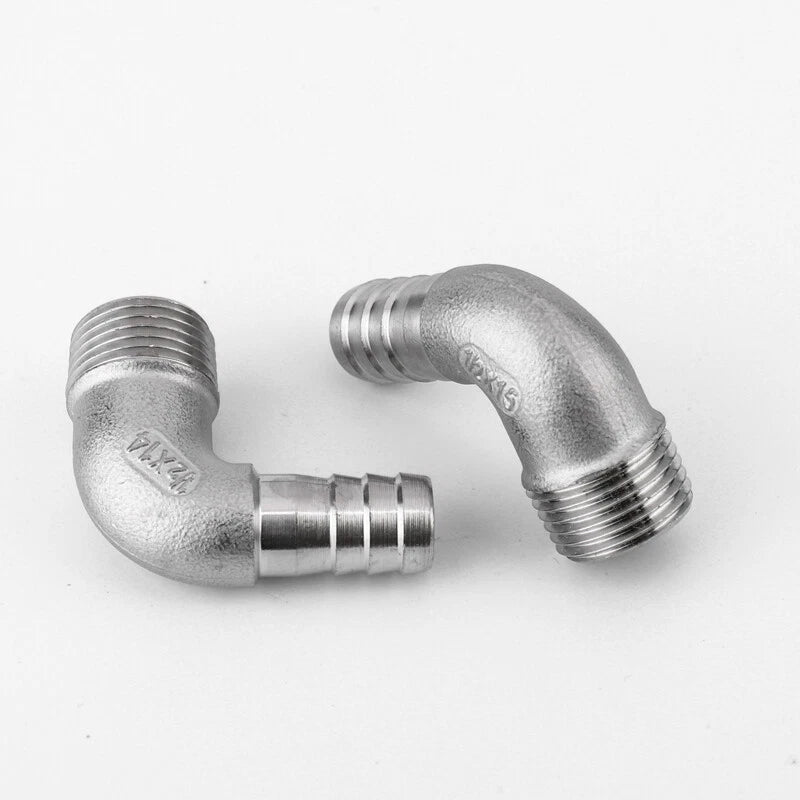

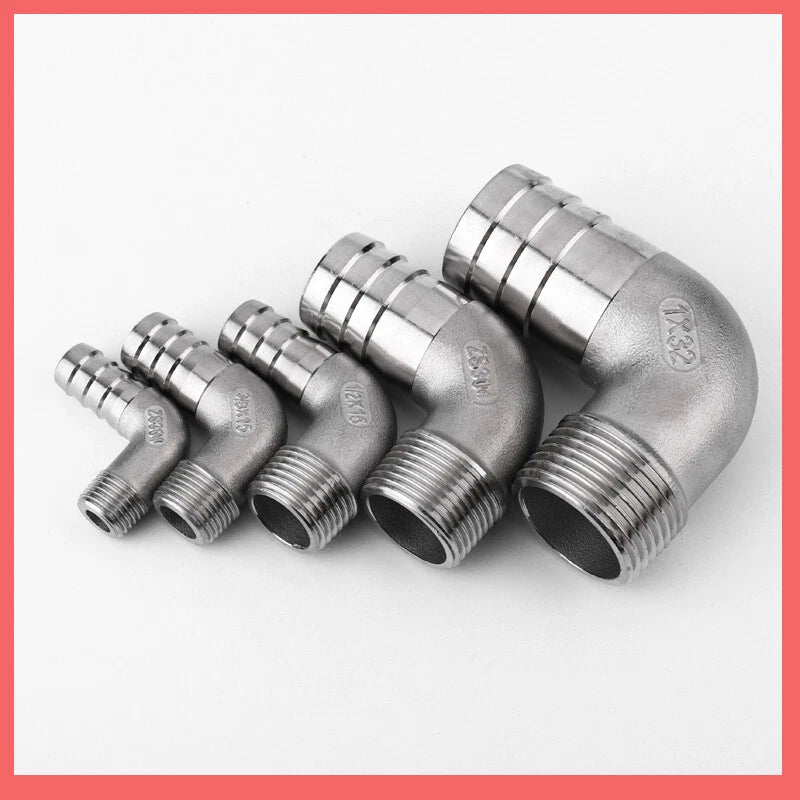

Thread Pipe Fitting Barb Hose Tail Connector BSP Stainless Elbow Hose Connector

Match the BSP thread size to your port (e.g., 1/2" BSP port → 1/2" BSP fitting). Then select the barb tail length based on how far the hose needs to insert before bending — longer tails (15–40 mm) give more grip area for larger-bore hoses, while shorter tails (8–12 mm) suit compact installations with small-diameter hose.

BSP fittings encompass both parallel (BSPP / G) and taper (BSPT / R) thread forms. For a leak-free seal on parallel-threaded ports, use PTFE tape or a thread sealant compound. On taper-threaded ports, the taper itself aids sealing when combined with PTFE tape. If you are unsure of your port type, measure the thread pitch and diameter against a BSP thread chart before ordering.

The barb tail OD is sized to create an interference fit with the hose ID. As a general guide: an 8 mm barb suits hose with an ID of approximately 8–9 mm; a 10 mm barb suits ~10–11 mm ID hose; a 12 mm barb suits ~12–13 mm ID hose, and so on. Always verify the barb OD against your specific hose ID for a secure, leak-resistant connection.

304 stainless steel offers solid corrosion resistance in freshwater, humid, and mildly saline environments. For prolonged saltwater immersion or highly chlorinated water, 316 stainless steel is generally preferred. In typical outdoor garden irrigation or workshop air-line use, 304 stainless performs reliably over many years without surface rust under normal conditions.

The ribbed barb profile is designed to grip flexible hose without a clamp in low-pressure, low-vibration applications. For higher-pressure systems (above approximately 3–5 bar depending on hose type) or installations subject to vibration, adding a worm-drive or ear clamp over the hose at the barb is strongly recommended to prevent blow-off.

Choose 1 pcs if you need a single replacement or are testing a size for fit. The 5-pcs pack suits small projects such as a garden irrigation loop or a multi-outlet manifold build. The 10-pcs pack offers the lowest per-unit cost and is ideal for workshop plumbing runs, irrigation systems with multiple zones, or keeping spares on hand for maintenance.

PTFE (polytetrafluoroethylene) thread tape is the most common and cost-effective sealant for BSP connections. Wrap 2–3 layers clockwise around the male thread before assembly. For higher-pressure or permanent installations, a thread sealant paste (e.g., Loctite 55 or similar pipe-thread compound) can be used in addition to or instead of tape. Avoid over-tightening stainless fittings into brass or aluminium ports to prevent galling.
