Clear 4:1 Heat Shrink Tubing — Reliable Wire Insulation for Every Diameter

Whether you're a DIY enthusiast rewiring a car stereo, an electrician splicing control cables, or a hobbyist building a custom PC, finding heat shrink tubing that actually conforms tightly to irregular connectors and bundled wires is a constant challenge. Standard 2:1 tubing often leaves gaps around stepped connectors or multi-wire bundles — gaps that invite moisture, abrasion, and shorts.

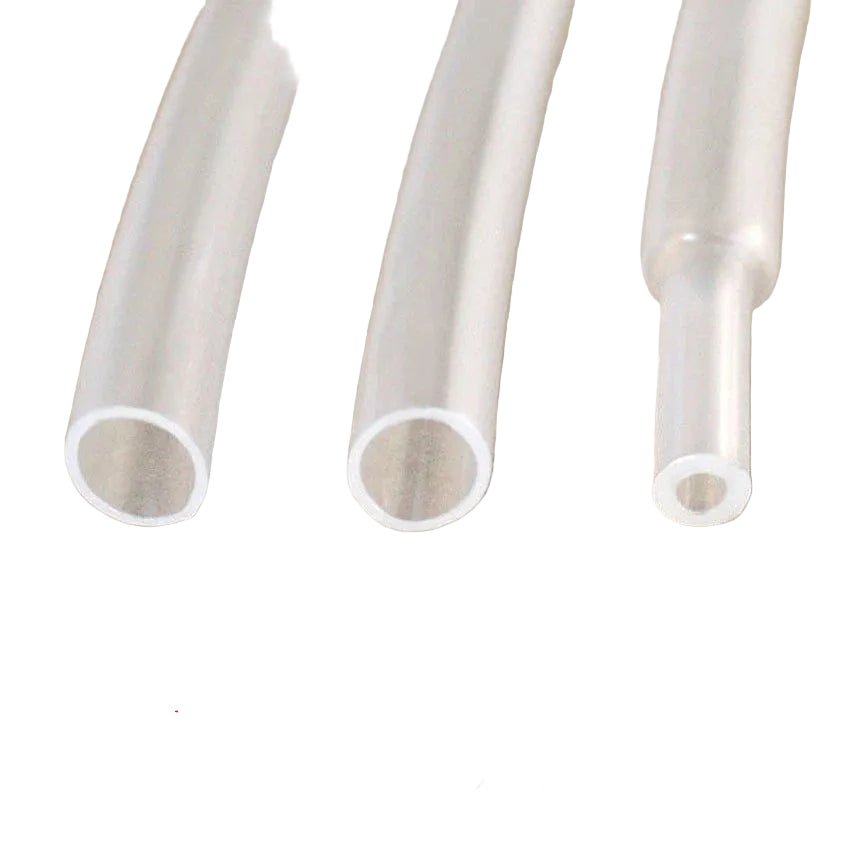

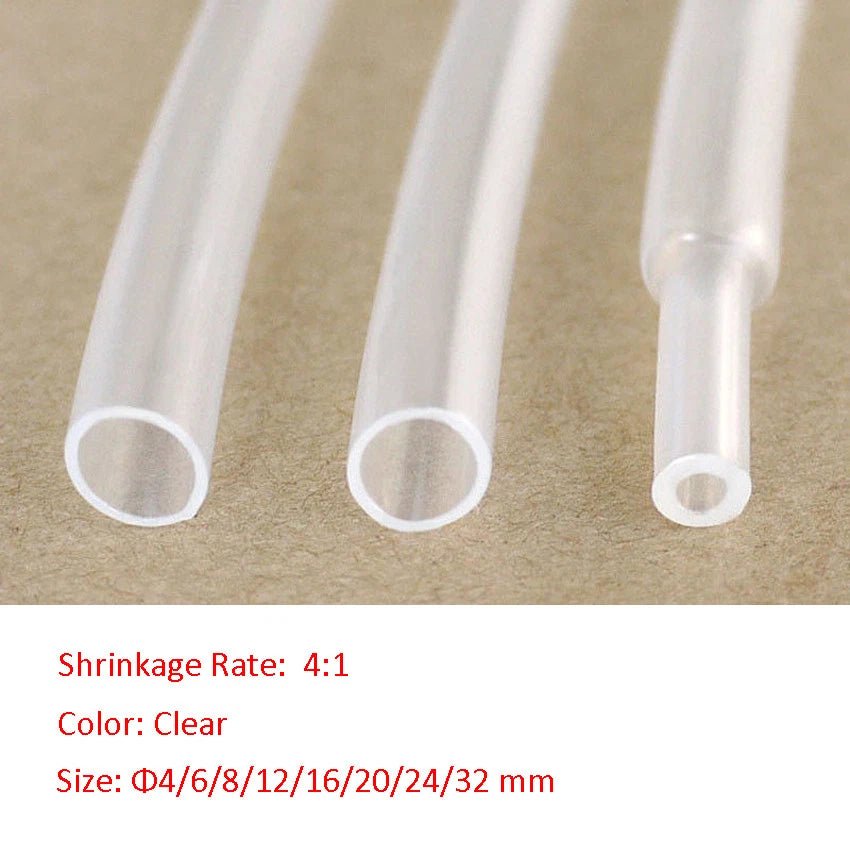

This clear 4:1 heat shrink tubing is made from flexible polyolefin and is available in eight outer diameters — Φ4mm (≈5/32"), Φ6mm (≈1/4"), Φ8mm (≈5/16"), Φ12mm (≈15/32"), Φ16mm (≈5/8"), Φ20mm (≈25/32"), Φ24mm (≈15/16"), and Φ32mm (≈1-1/4") — in lengths of 1M (≈3.3 ft), 3M (≈9.8 ft), 5M (≈16.4 ft), and 10M (≈32.8 ft). The 4:1 shrink ratio means each tube recovers to roughly one-quarter of its supplied diameter, creating a snug, conforming sleeve over connectors, solder joints, and irregular cable profiles.

Typical use cases include automotive wiring harness repair, marine electrical connections where moisture ingress is a concern, and laboratory or workshop cable management where clear visibility of the underlying wire color coding is essential — making this clear heat shrink wire sleeve a practical choice for color-coded wiring systems and inspection-friendly installations.

ℹ️ Compatibility Note: Fits wire and cable ODs from approximately 1mm up to 32mm (≈1/16" to 1-1/4"). Verify your wire's outer diameter against the pre-shrink size before selecting a variant. When in doubt, size up — a slightly larger tube shrinks down more forgivingly than one that's too tight to slide over the connector.

✅ Key Features of These Clear 4:1 Heat Shrink Tubes

🔍Clear Polyolefin Construction — Transparent tubing lets you verify wire color codes and inspect solder joints after shrinking, ideal for color-coded wiring systems and quality-control checks.
📐True 4:1 Shrink Ratio — Recovers to approximately one-quarter of the supplied diameter, conforming tightly around stepped connectors, irregular bundles, and multi-conductor cables where standard 2:1 tubing falls short.
📏Eight Diameter Options (Φ4mm–Φ32mm) — Covers everything from small signal wires to heavy-gauge power cables, so you can order the exact size for each job rather than cutting down oversized tubing.
🌡️Low Activation Temperature — Begins shrinking at approximately 70–90°C (158–194°F), compatible with standard heat guns; no open flame required, reducing the risk of scorching adjacent components.
💧Moisture and Abrasion Resistance — Once recovered, the tubing forms a protective sleeve that resists moisture ingress, mild chemicals, and mechanical abrasion — suitable for automotive, marine, and workshop environments.
✂️Cut-to-Length Flexibility — Available in 1M, 3M, 5M, and 10M rolls so you can cut exactly what you need for each splice or connector, minimizing waste on both small repairs and large wiring harness projects.

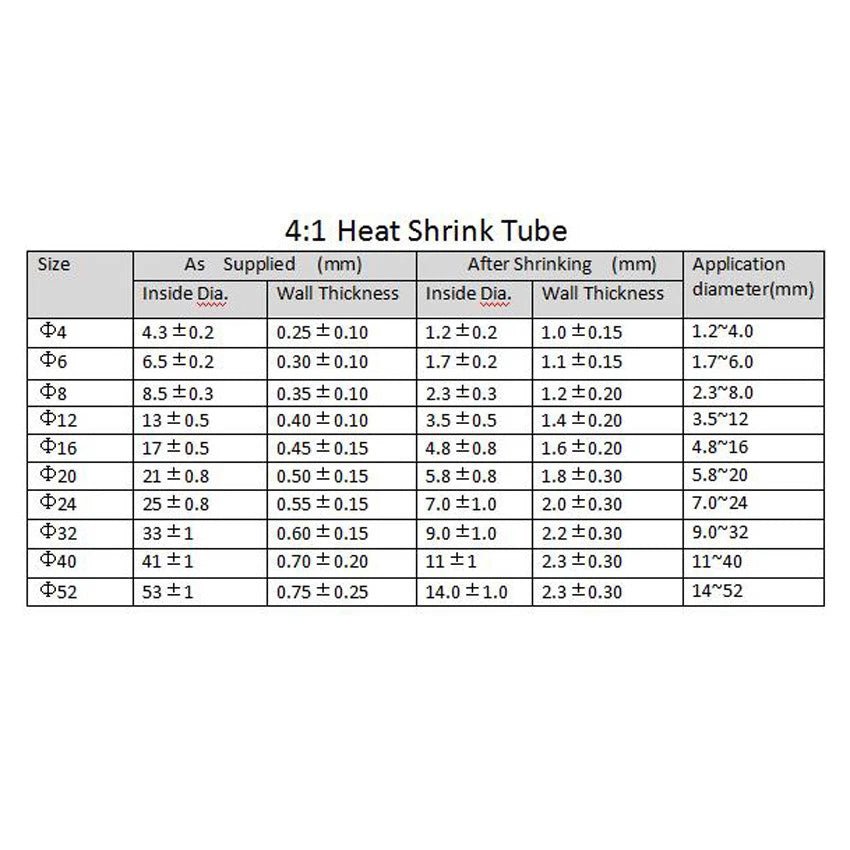

📐 Technical Specifications — Clear 4:1 Heat Shrink Tubing

Material	Polyolefin (clear / transparent)
Shrink Ratio	4:1
Available Diameters (pre-shrink)	Φ4mm (≈5/32"), Φ6mm (≈1/4"), Φ8mm (≈5/16"), Φ12mm (≈15/32"), Φ16mm (≈5/8"), Φ20mm (≈25/32"), Φ24mm (≈15/16"), Φ32mm (≈1-1/4")
Available Lengths	1M (≈3.3 ft), 3M (≈9.8 ft), 5M (≈16.4 ft), 10M (≈32.8 ft)
Shrink Temperature (start)	Typically 70–90°C (158–194°F)
Full Recovery Temperature	Typically ~120°C (248°F)
Voltage Rating	Typically up to 600V — contact us to confirm for high-voltage use
Longitudinal Shrinkage	Typically 5–10%
Color / Finish	Clear (transparent)
Application Method	Heat gun recommended; open flame not recommended
Typical Applications	Wire insulation, cable splicing, connector strain relief, harness bundling
Quantity per Order	See variant options

⚠️ Size Check Reminder: Always measure your wire or connector's outer diameter before ordering. The pre-shrink diameter listed is the supplied (open) size — the recovered diameter will be approximately one-quarter of that value. If you are unsure, please contact us to confirm the right size for your application.

❓ Frequently Asked Questions

How do I choose the right diameter for my wires?

Measure the outer diameter of the wire or bundle before shrinking. The tubing's recovered (post-shrink) inner diameter should be slightly smaller than your wire OD to ensure a snug fit. For example, Φ8mm tubing typically recovers to around 2mm, so it works well on wires up to about 2mm OD. When in doubt, size up one step — you can always apply more heat to achieve a tighter seal.

What does 4:1 shrink ratio mean?

A 4:1 shrink ratio means the tubing will shrink to approximately one-quarter of its original supplied diameter when heat is applied. This is significantly more than standard 2:1 tubing, making it suitable for irregular shapes, connectors, and bundled cables where a tighter, more conforming fit is needed.

What temperature is needed to shrink this tubing?

This tubing generally begins to shrink at around 70–90°C (158–194°F) and fully recovers at approximately 120°C (248°F). A heat gun is the recommended tool. Avoid open flames, which can cause uneven shrinkage or discoloration of the clear material.

Can this clear heat shrink tubing be used outdoors?

Clear polyolefin heat shrink tubing is generally rated for indoor and protected outdoor use. It provides good resistance to moisture, mild chemicals, and UV exposure in most conditions. For prolonged direct UV or harsh outdoor environments, consider an adhesive-lined variant for added sealing.

Is this tubing compatible with standard wire gauges and connectors?

Yes. The range of Φ4mm to Φ32mm covers a wide spectrum of wire gauges from small signal wires up to heavy-gauge power cables and multi-conductor bundles. It is compatible with standard automotive, marine, and electrical connectors. Always verify the pre-shrink diameter against your connector's widest point before ordering.

How much length should I cut for each application?

As a general rule, cut the tubing about 10–15% longer than the area you need to cover, since the tubing will also shrink slightly in length (longitudinal shrinkage is typically 5–10%). For splice joints, allow at least 20mm (≈3/4") of overlap on each side of the joint.

What is the voltage rating of this heat shrink tubing?

Standard clear polyolefin heat shrink tubing is typically rated for up to 600V. For high-voltage applications beyond this range, please contact us to confirm suitability before ordering.

🛒 Select your diameter and length above, then add to cart — ships from our US warehouse.
