Clear PTFE Heat Shrink Tubing — Φ0.5mm to Φ40mm, 600V Rated, High Temp Insulation - HomeDIYer

Roll over image to zoom in Click on image to zoom

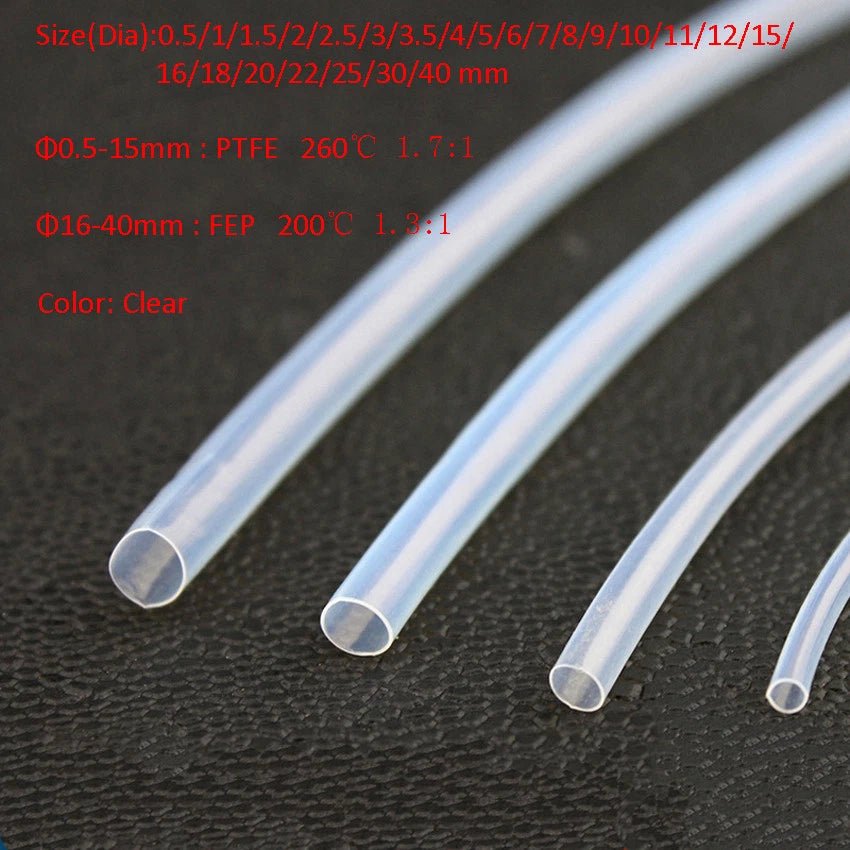

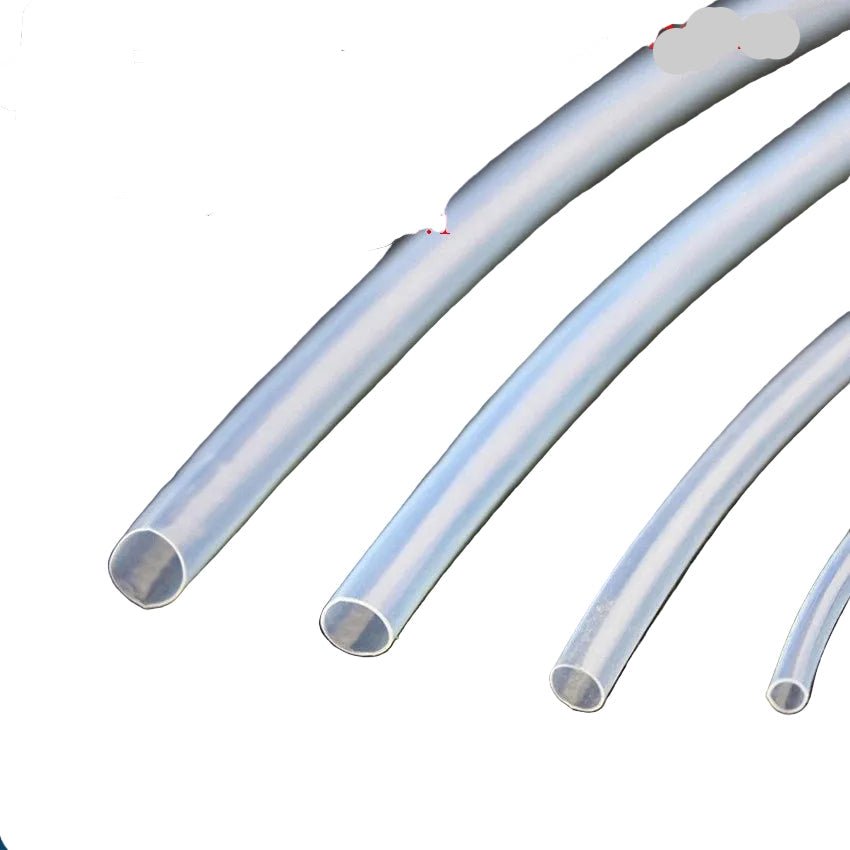

Clear PTFE Heat Shrink Tubing — Φ0.5mm to Φ40mm, 600V Rated, High Temp Insulation

HomeDIYer

No reviews

By HomeDIYer®

Size(Diameter): Φ0.5mm

Length: 1M

Price:

$5.33 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

Clear PTFE Heat Shrink Tubing — Reliable High-Temperature Wire Insulation from Φ0.5mm to Φ40mm

Whether you're repairing a delicate sensor wire, building a custom wiring harness, or protecting components in a high-heat environment, finding insulation that won't melt, crack, or degrade under stress is non-negotiable. This clear PTFE heat shrink tubing is designed for engineers, technicians, and serious DIYers who need dependable electrical insulation across a wide range of wire sizes and operating conditions.

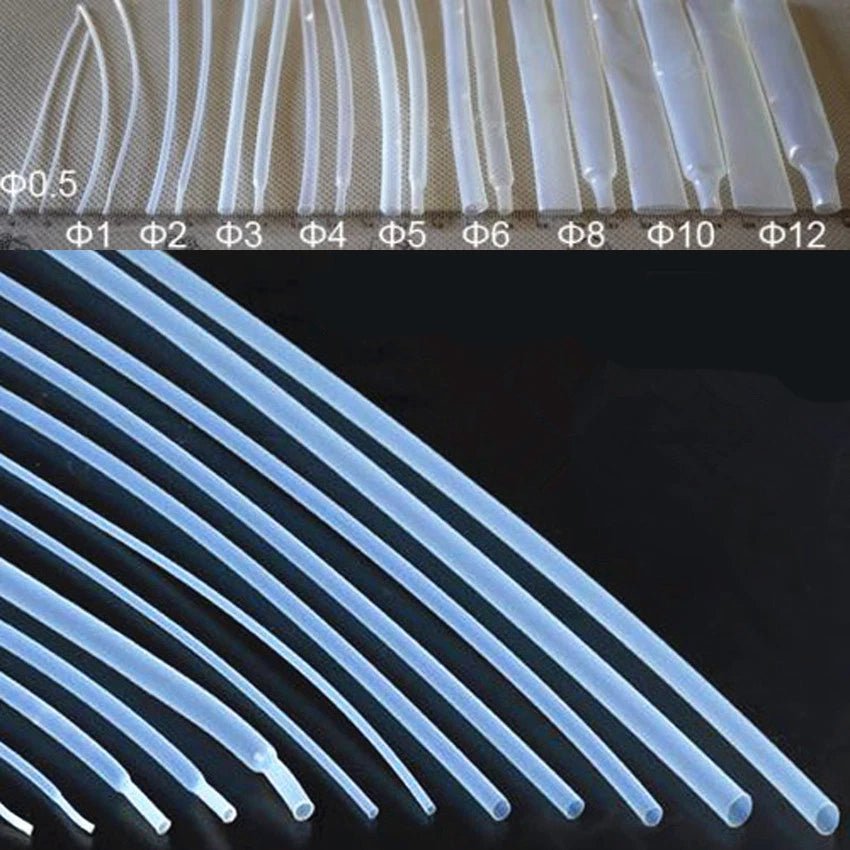

Each piece is made from virgin PTFE (polytetrafluoroethylene) and is available in diameters from Φ0.5mm (≈0.020") to Φ40mm (≈1.57"), with length options of 1M (≈39.4"), 3M (≈9.8 ft), and 5M (≈16.4 ft). The tubing is transparent, allowing visual inspection of the underlying wire or component after installation. Voltage rating is 600V, and the material withstands continuous service temperatures typically up to 260°C (500°F).

Typical use cases include insulating thermocouple leads and fine-gauge sensor wires, protecting solder joints and terminal connections in automotive wiring, sleeving chemical-resistant tubing in laboratory or industrial fluid-handling equipment, and bundling multi-conductor harnesses where heat and chemical exposure are concerns.

ℹ️ Compatibility Note: This tubing uses a standard 2:1 shrink ratio. Select a pre-shrink diameter larger than your component's outer diameter. Compatible with heat guns operating at 327°C (620°F) or above. Not recommended for shrinking with open flame.

✅ Key Features of These Clear PTFE Heat Shrink Tubes

🌡️High-Temperature Resistance — PTFE material withstands continuous service up to typically 260°C (500°F), making it suitable for soldering environments, engine bays, and industrial heat shrink tubing applications where standard PVC would fail.
⚡600V Insulation Rating — Rated for 600V service, this tubing covers the majority of low-voltage wire insulation needs including automotive, electronics prototyping, and light industrial wiring harness builds.
🔬Chemical Inertness — PTFE is resistant to virtually all acids, bases, solvents, and fuels. Ideal for laboratory tubing insulation, chemical plant wiring, and any environment where standard insulation materials would degrade.
👁️Crystal-Clear Transparency — The clear finish lets you visually verify wire color coding, solder joint quality, and component alignment after shrinking — a practical advantage over opaque alternatives in inspection-critical assemblies.
📏Wide Size Range — Φ0.5mm to Φ40mm — One product line covers everything from ultra-fine thermocouple wire insulation (Φ0.5mm) to large-diameter cable bundling (Φ40mm), reducing the need to source from multiple suppliers.
✂️Cut-to-Length Flexibility — Available in 1M, 3M, and 5M lengths so you can order exactly what your project requires, whether it's a single repair or a small production run of wiring harnesses.

📐 Technical Specifications — PTFE Heat Shrink Tubing

Material	Virgin PTFE (Polytetrafluoroethylene)
Color / Finish	Clear (transparent)
Diameter Range	Φ0.5mm (≈0.020") — Φ40mm (≈1.57")
Available Lengths	1M (≈39.4") / 3M (≈9.8 ft) / 5M (≈16.4 ft)
Shrink Ratio	Typically 2:1
Voltage Rating	600V
Max Continuous Temp	Typically up to 260°C (500°F)
Min Operating Temp	Typically down to -200°C (-328°F)
Shrink Temperature	Generally 327°C (620°F) or above (heat gun recommended)
Wall Thickness (shrunk)	See variant options
Flammability	Self-extinguishing (PTFE does not support combustion)
Chemical Resistance	Resistant to most acids, bases, solvents, and fuels
UV Resistance	Excellent
Certifications	Contact us to confirm

⚠️ Sizing Tip: Always measure your component's outer diameter before ordering. PTFE heat shrink tubing with a 2:1 ratio should be selected at roughly 1.5–2× your component's OD to ensure a snug recovered fit. If you're unsure, contact us with your wire gauge or component dimensions.

❓ Frequently Asked Questions

How do I choose the right diameter for my application?

Measure the outer diameter of the wire, component, or bundle you need to cover. PTFE heat shrink tubing typically has a 2:1 shrink ratio, so choose a size whose recovered (shrunk) diameter is slightly smaller than your component's OD. For example, if your wire is 4mm in diameter, a Φ6mm tube will generally shrink down to fit snugly. When in doubt, size up — you can always trim excess length.

What temperature range can this PTFE tubing handle?

PTFE generally withstands continuous operating temperatures from -200°C (-328°F) up to +260°C (+500°F). It is one of the most thermally stable insulation materials available, making it suitable for high-temperature wiring, soldering environments, and industrial equipment.

What voltage rating does this tubing carry?

This tubing is rated at 600V, which covers the majority of low-voltage wiring applications including automotive, electronics, and light industrial use. For higher-voltage environments, please contact us to confirm suitability.

Is PTFE heat shrink tubing safe for outdoor or chemically harsh environments?

Yes. PTFE is chemically inert and resistant to most acids, bases, solvents, and fuels. It is also UV-stable and moisture-resistant, making it well-suited for outdoor installations, laboratory equipment, and chemical processing environments.

What shrink ratio does this tubing have, and what tool do I need?

PTFE heat shrink tubing typically has a 2:1 shrink ratio, meaning it shrinks to approximately half its supplied inner diameter when heat is applied. A heat gun set to around 327°C (620°F) or higher is generally recommended. Open-flame torches are not recommended as they can scorch or unevenly shrink the tubing.

Can I use this tubing for food-contact or medical applications?

PTFE is generally recognized as non-toxic and is widely used in food processing and medical device applications. However, regulatory compliance (FDA, RoHS, etc.) depends on your specific use case. Please contact us to confirm certification details before use in regulated environments.

Which length should I order for a wiring project?

We offer 1M (≈39.4"), 3M (≈9.8 ft), and 5M (≈16.4 ft) lengths. For single-wire repairs or prototyping, 1M is typically sufficient. For production runs or harness builds, 3M or 5M lengths offer better value per meter.

How does PTFE compare to standard PVC or polyolefin heat shrink tubing?

PTFE outperforms PVC and standard polyolefin in three key areas: temperature resistance (up to 260°C vs. typically 105°C for PVC), chemical resistance (inert to nearly all chemicals), and dielectric strength. The trade-off is cost — PTFE is generally more expensive. For demanding environments, the performance advantage typically justifies the price difference.

🛒 Select your diameter and length above, then add to cart — ships from our US warehouse.
