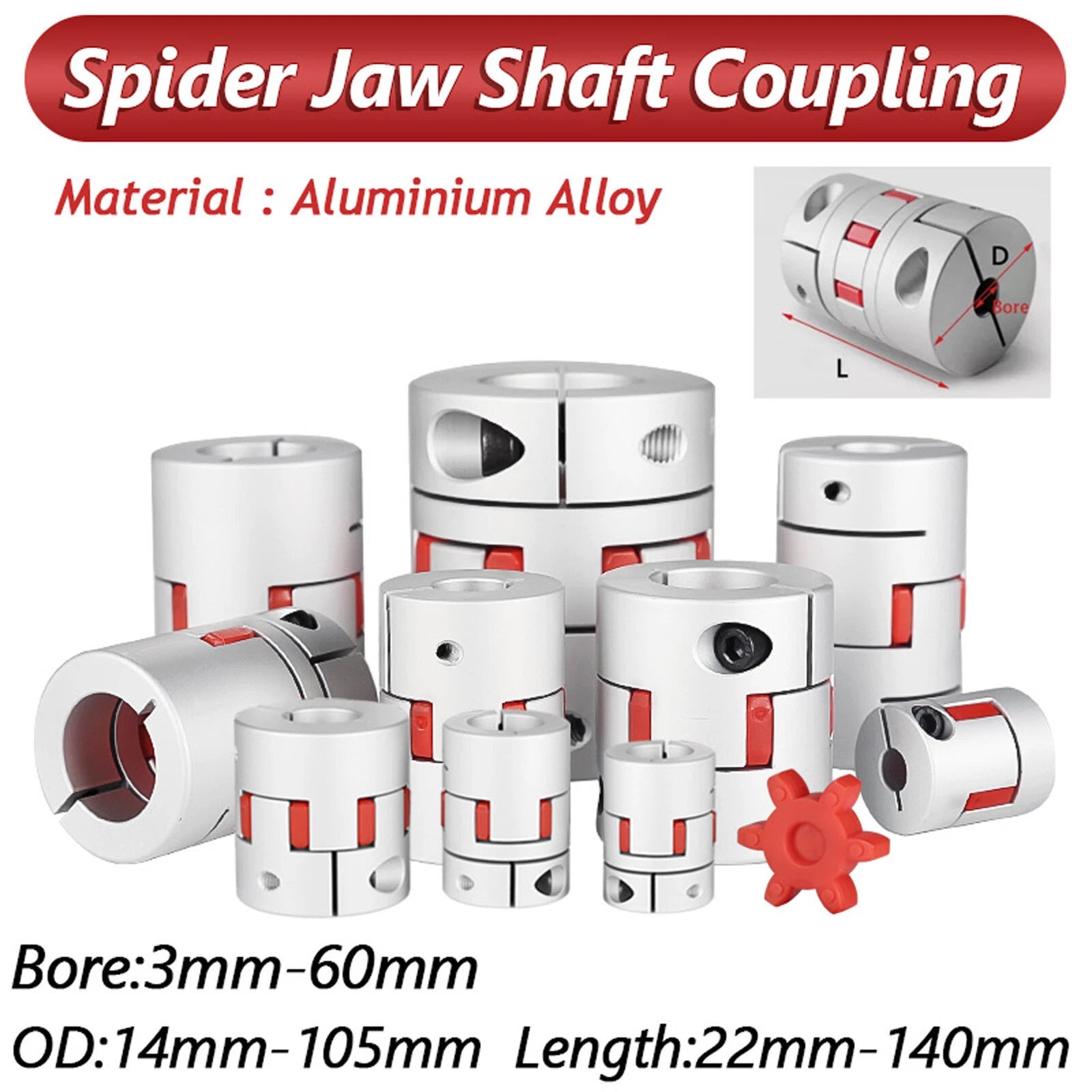

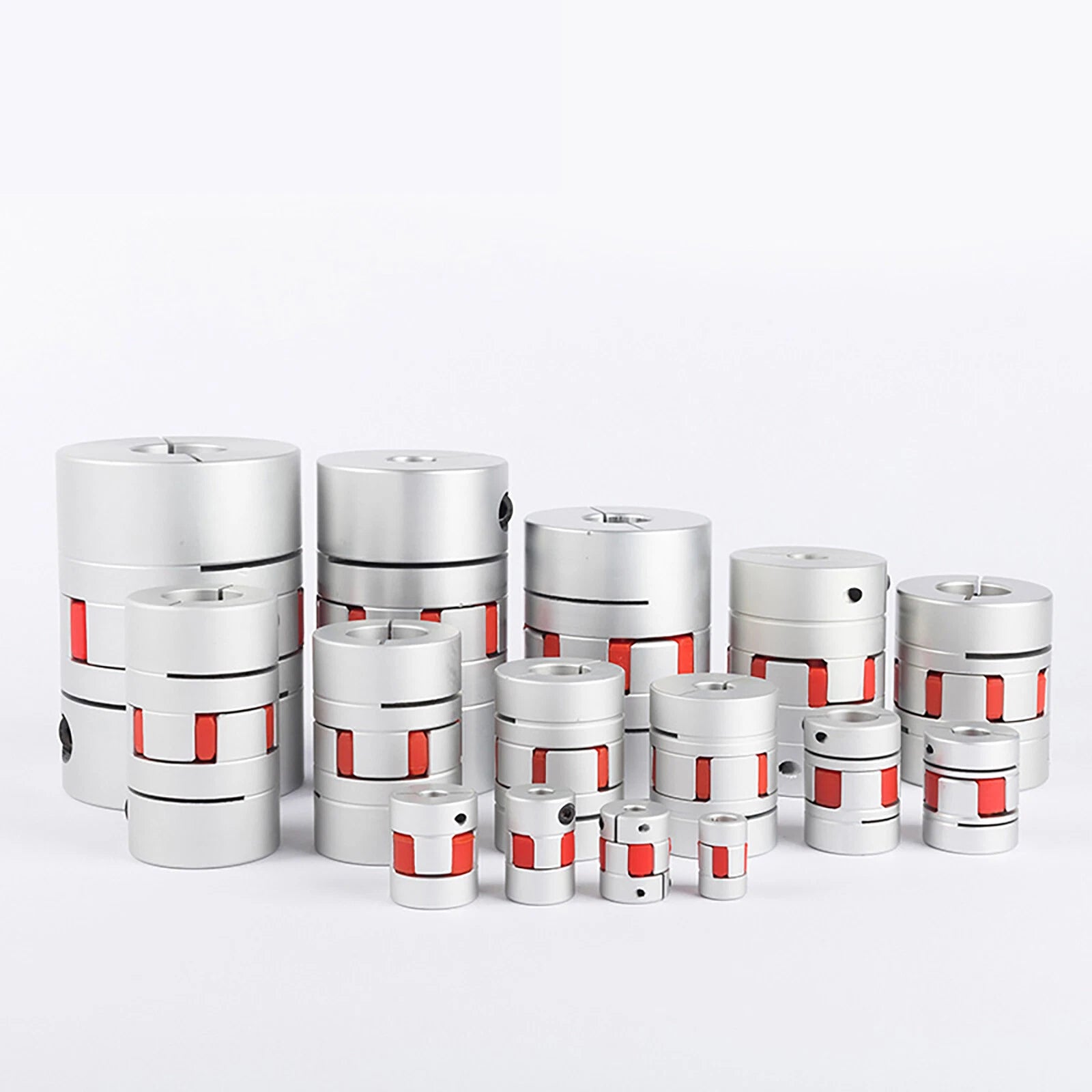

Rigid couplings crack under misalignment, beam couplings lose torque at high loads, and undersized jaw couplings strip out under continuous duty — these are the frustrations that CNC builders, 3D printer retrofitters, and automation engineers face when sourcing a reliable CNC shaft coupler. This flexible plum spider jaw coupling range covers outer diameters from 14mm to 105mm (approx. 0.55" to 4.13") and lengths from 22mm to 140mm (approx. 0.87" to 5.51"), giving you a single source for virtually every desktop-to-industrial motion-control shaft size.

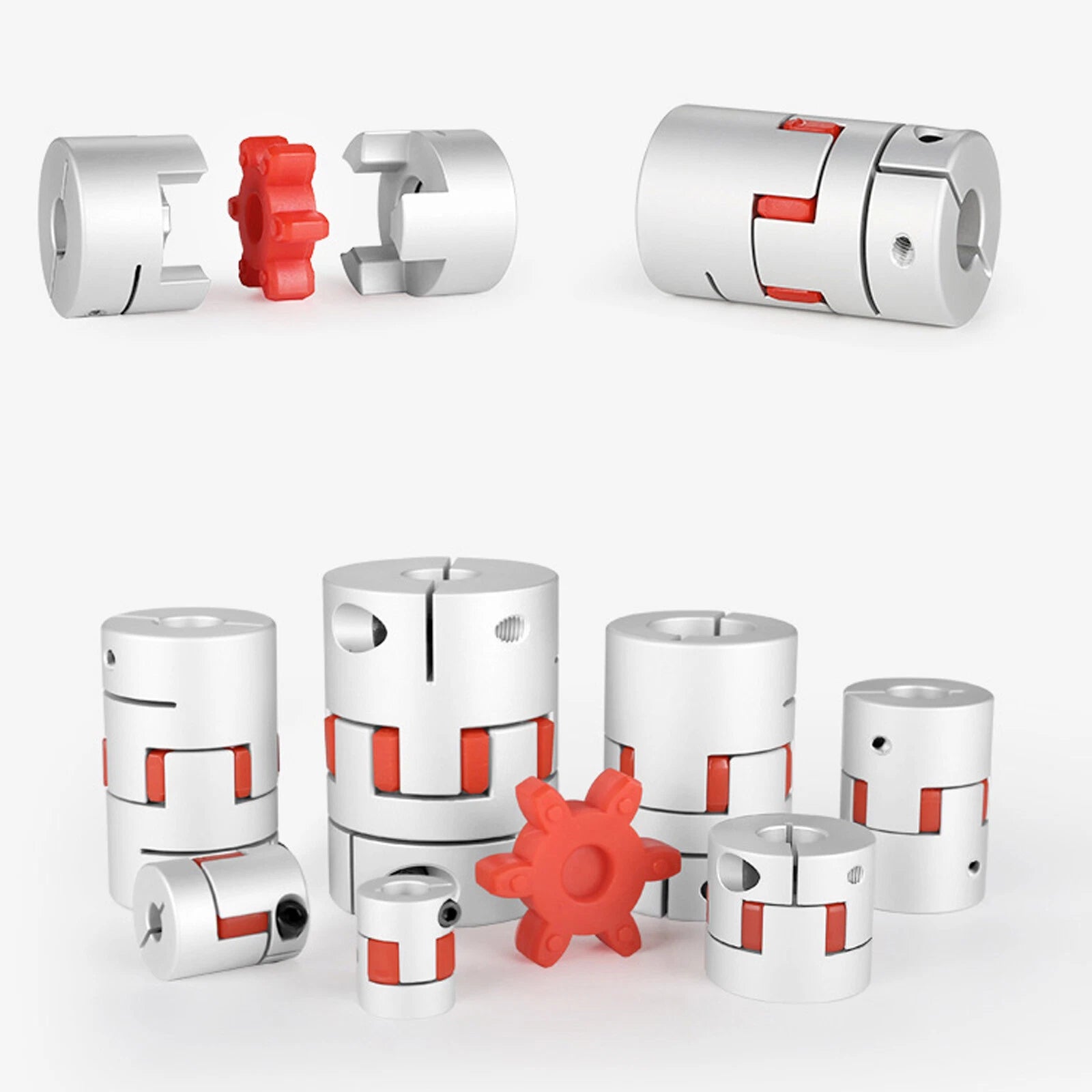

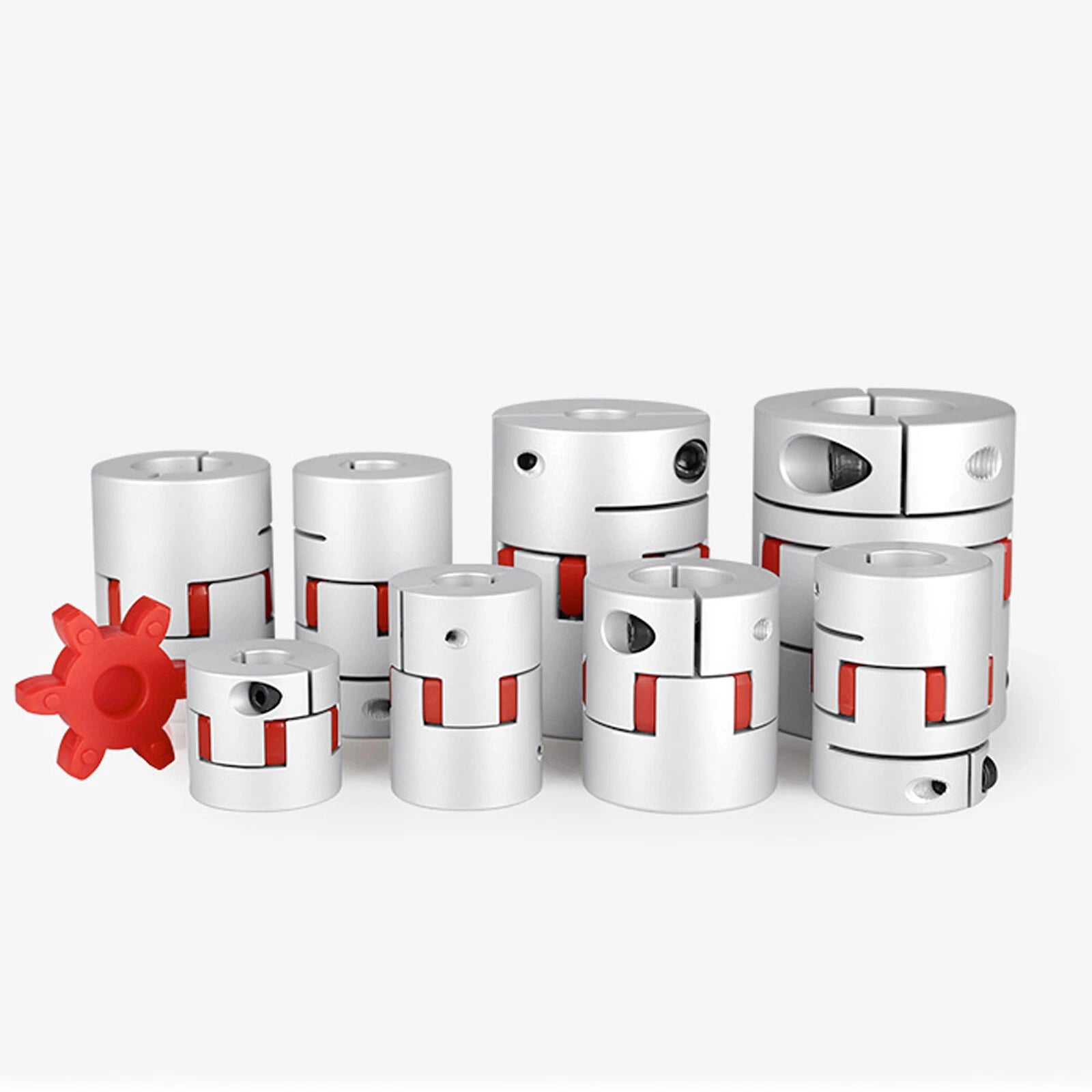

Each coupler consists of two aluminum alloy hubs and a polyurethane (PU) spider insert. The hubs are machined to close tolerances for consistent bore concentricity, while the PU spider absorbs torsional shock and compensates for angular misalignment (typically ±1°–3°) and parallel offset (typically 0.1–0.5mm). Available in two mounting styles — Top Tight Type (set-screw) and Clamping Type (split-clamp) — and sold in quantities of 1, 3, or 5 pieces per order.
Typical applications include connecting NEMA 17 or NEMA 23 stepper motor shafts to T8 lead screws on 3D printer Z-axes, coupling servo motor outputs to ball screws on CNC router gantries, and linking encoder shafts to drive shafts in pick-and-place automation rigs — all scenarios where a flexible plum spider jaw coupling outperforms rigid or beam alternatives in vibration-sensitive environments.
| Coupling Type | Flexible Plum (Spider / Jaw) Coupling |
|---|---|
| Hub Material | Aluminum Alloy |
| Spider Insert Material | Polyurethane (PU) |

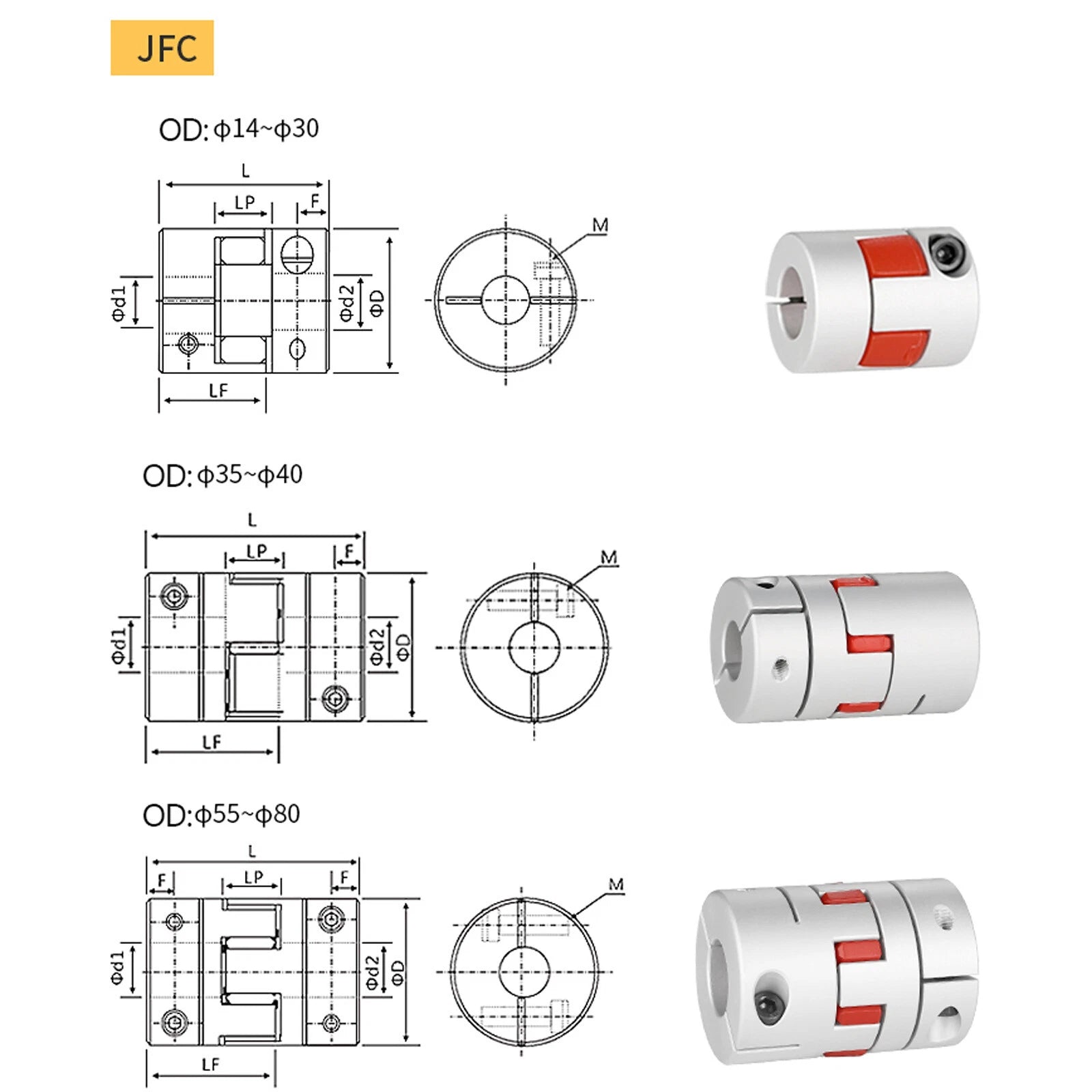

| Mounting Style | Top Tight Type (set-screw) / Clamping Type (split-clamp) |
| Outer Diameter (D) Range | 14mm – 105mm (approx. 0.55" – 4.13") |
| Length (L) Range | 22mm – 140mm (approx. 0.87" – 5.51") |
| Available Sizes (D × L) | See variant options |
| Bore Diameter | See variant options |
| Angular Misalignment Tolerance | Typically ±1° – 3° |
| Parallel Offset Tolerance | Typically 0.1 – 0.5mm |
| Finish | Natural anodized aluminum |
| Quantity Options | 1 piece / 3 pieces / 5 pieces |
| Application | CNC routers, stepper motors, 3D printers, servo drives, laser engravers, automation |

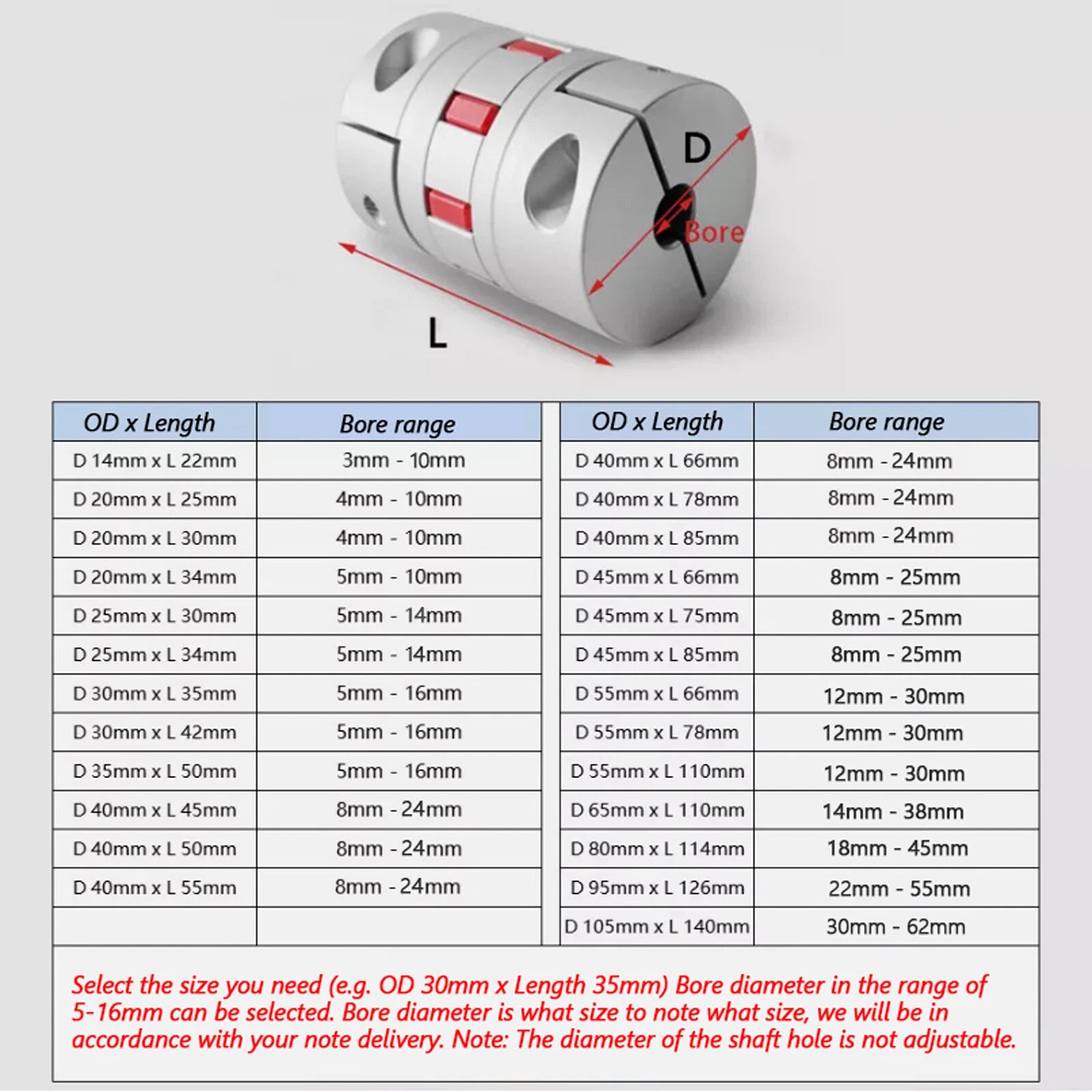

Match the outer diameter (D) and length (L) to the space available in your coupling housing or motor mount, and ensure the bore diameter matches your motor shaft and lead screw diameters. For most desktop 3D printers with NEMA 17 motors and T8 lead screws, the D20–D25mm range is typical. For NEMA 23 CNC routers, D30–D40mm is more common. If you are unsure, contact us with your motor shaft and driven shaft diameters and we can recommend the correct size.

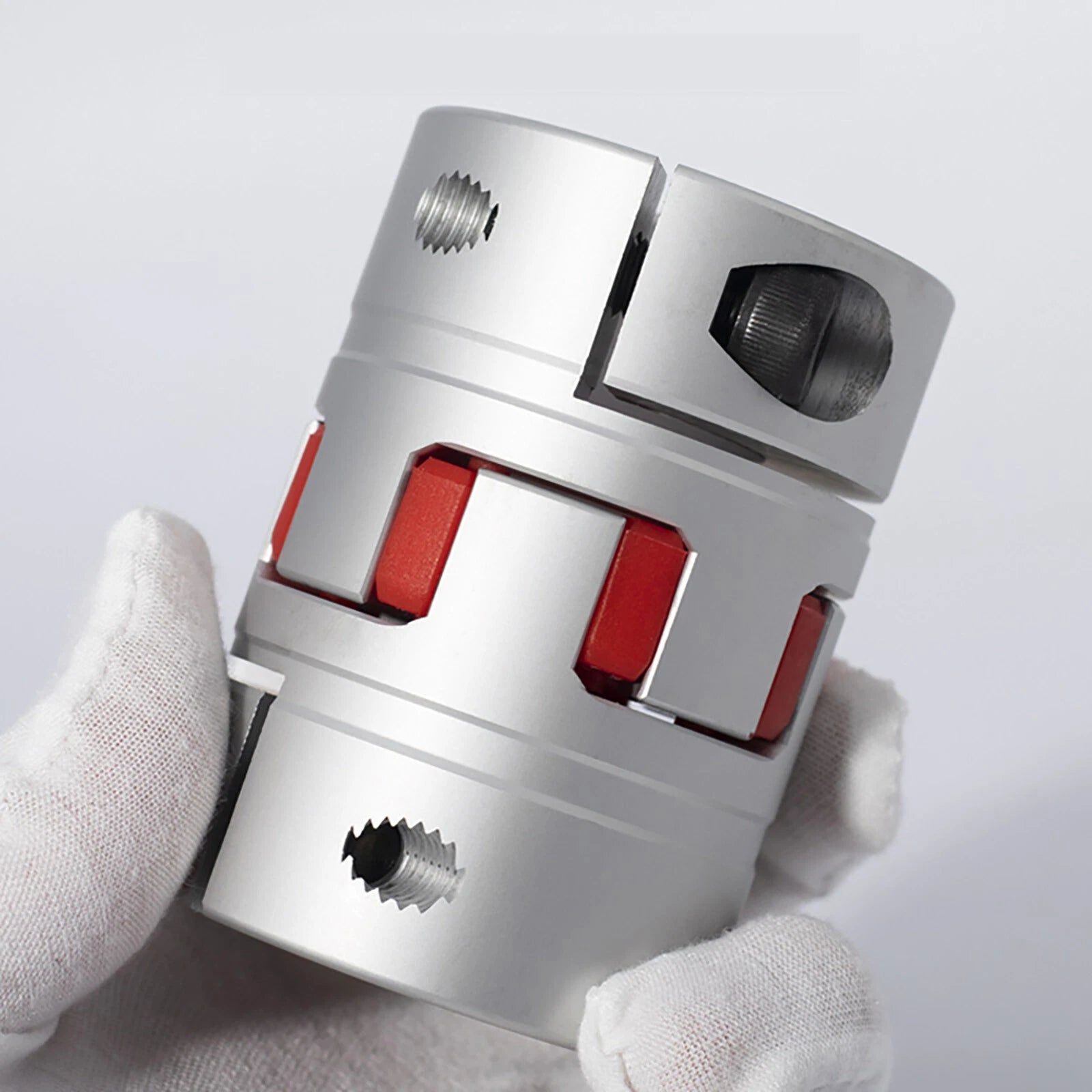

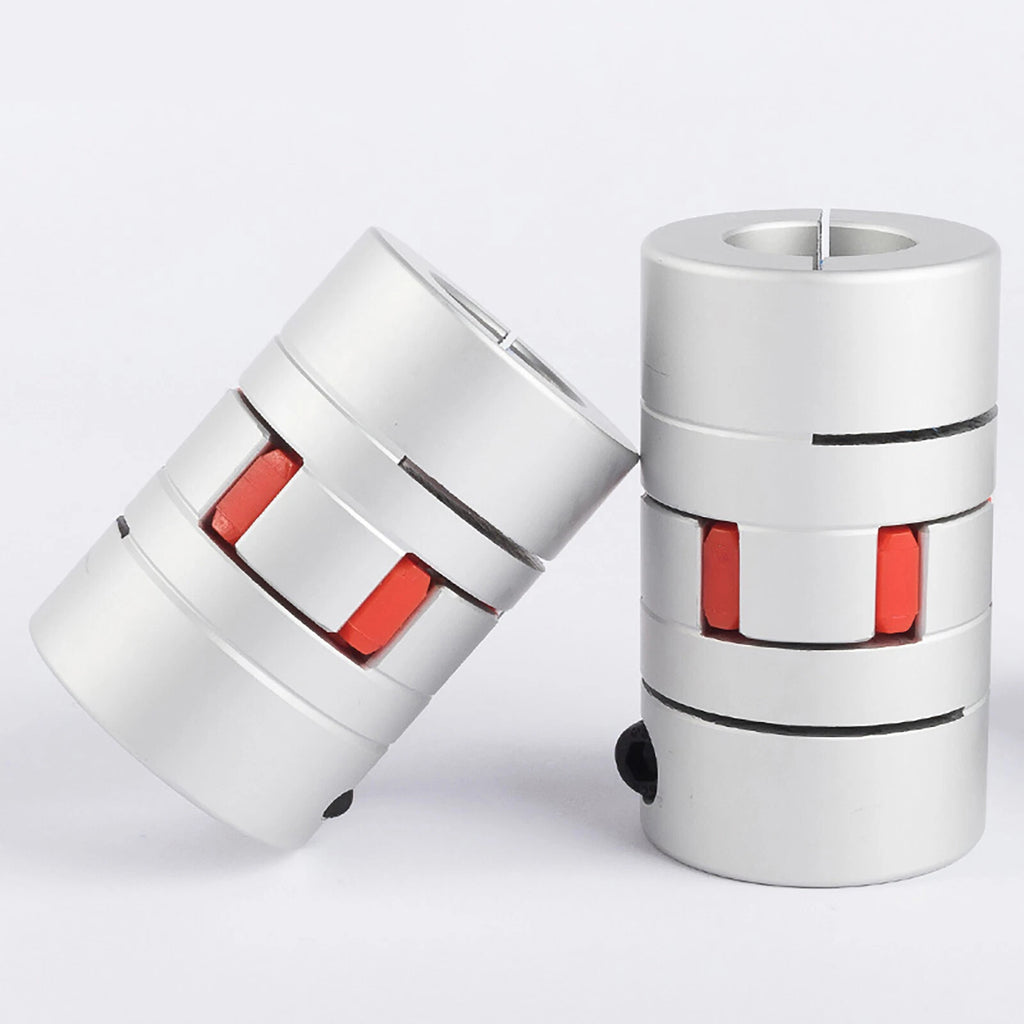

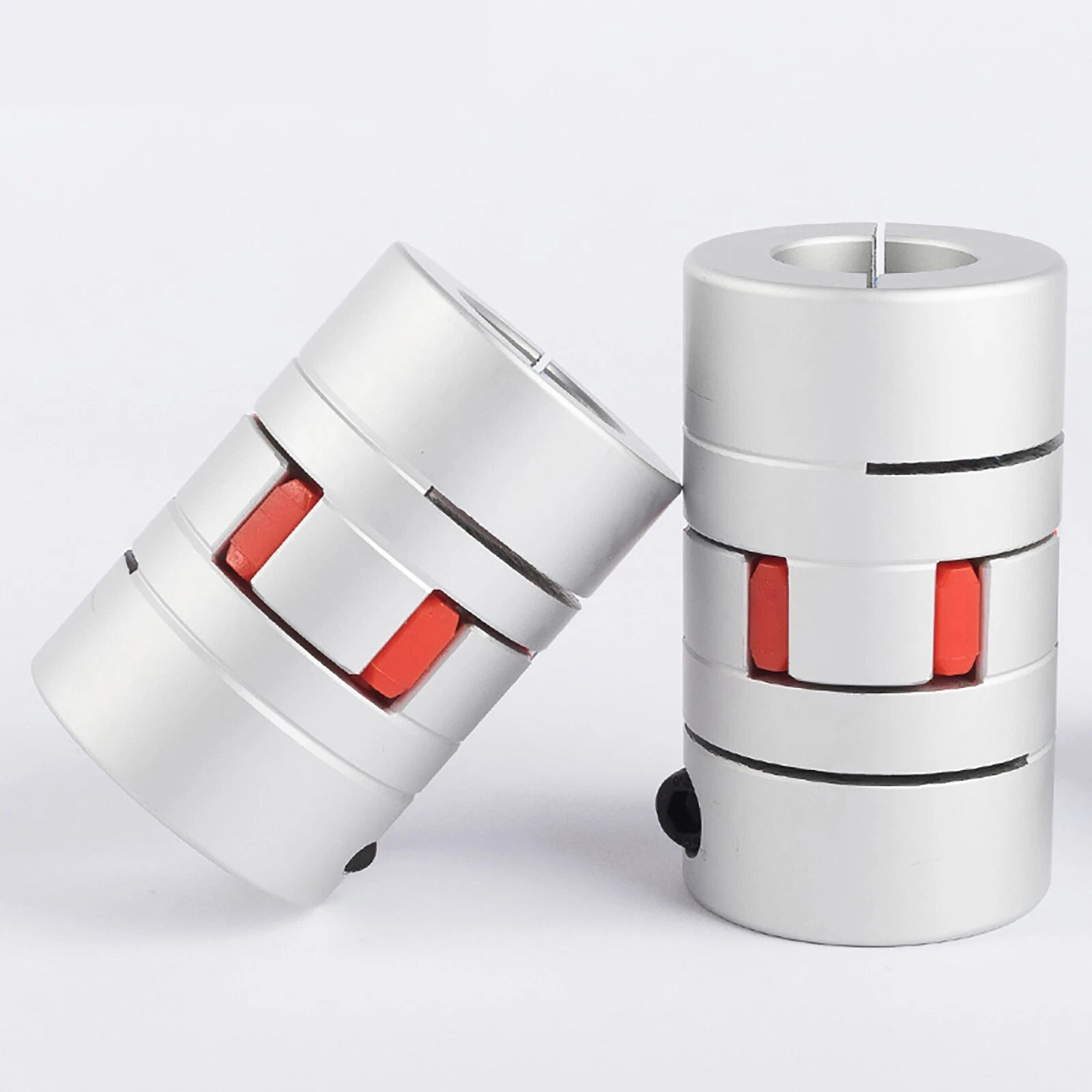

Top Tight Type uses a set-screw that presses against the shaft surface — it installs quickly and allows repositioning without disassembly. Clamping Type uses a split-clamp design that wraps uniformly around the shaft, providing a more secure grip with lower risk of the coupler loosening under sustained vibration or reversing loads. For applications with frequent direction changes or high vibration, Clamping Type is generally the more reliable choice.
The aluminum alloy hubs and PU spider inserts in the mid-to-large size range (D30mm and above) are designed to handle the torque output of NEMA 23 and NEMA 34 stepper motors in typical CNC and automation duty cycles. For high-torque servo or industrial motor applications beyond standard stepper motor ranges, please contact us to confirm suitability for your specific torque and RPM requirements.
The aluminum alloy hubs carry a natural anodized finish that provides moderate corrosion resistance suitable for indoor workshop, enclosed CNC enclosure, and light-industrial environments. For prolonged exposure to coolant mist, cutting fluid, or outdoor conditions, additional protective coating or stainless-steel alternatives are recommended.
The D20mm × L25mm and D20mm × L30mm variants are among the most common sizes for desktop 3D printer Z-axis applications pairing a 5mm NEMA 17 motor shaft with a T8 (8mm) lead screw. Verify the bore diameter matches your specific motor shaft and lead screw before ordering. The outer diameter and hub geometry follow standard coupling dimensions compatible with most open-frame and enclosed 3D printer designs.
Multi-axis CNC machines and 3D printers often require matched couplings across X, Y, and Z axes. Ordering a 3- or 5-pack ensures you have identical couplings on all axes for consistent performance, plus spares for maintenance without waiting for reorder. The per-unit cost is also lower in multi-pack quantities compared to single-piece orders.

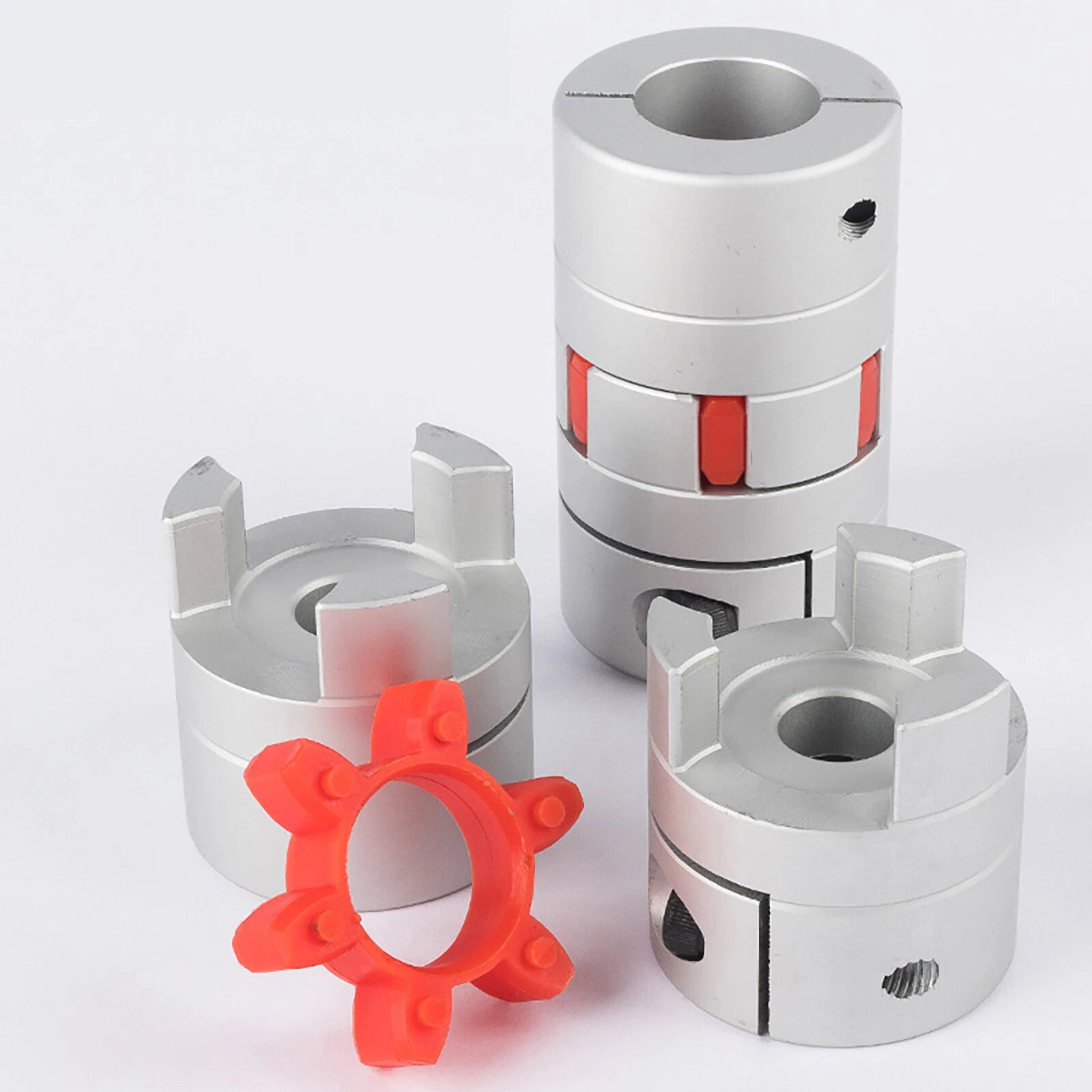

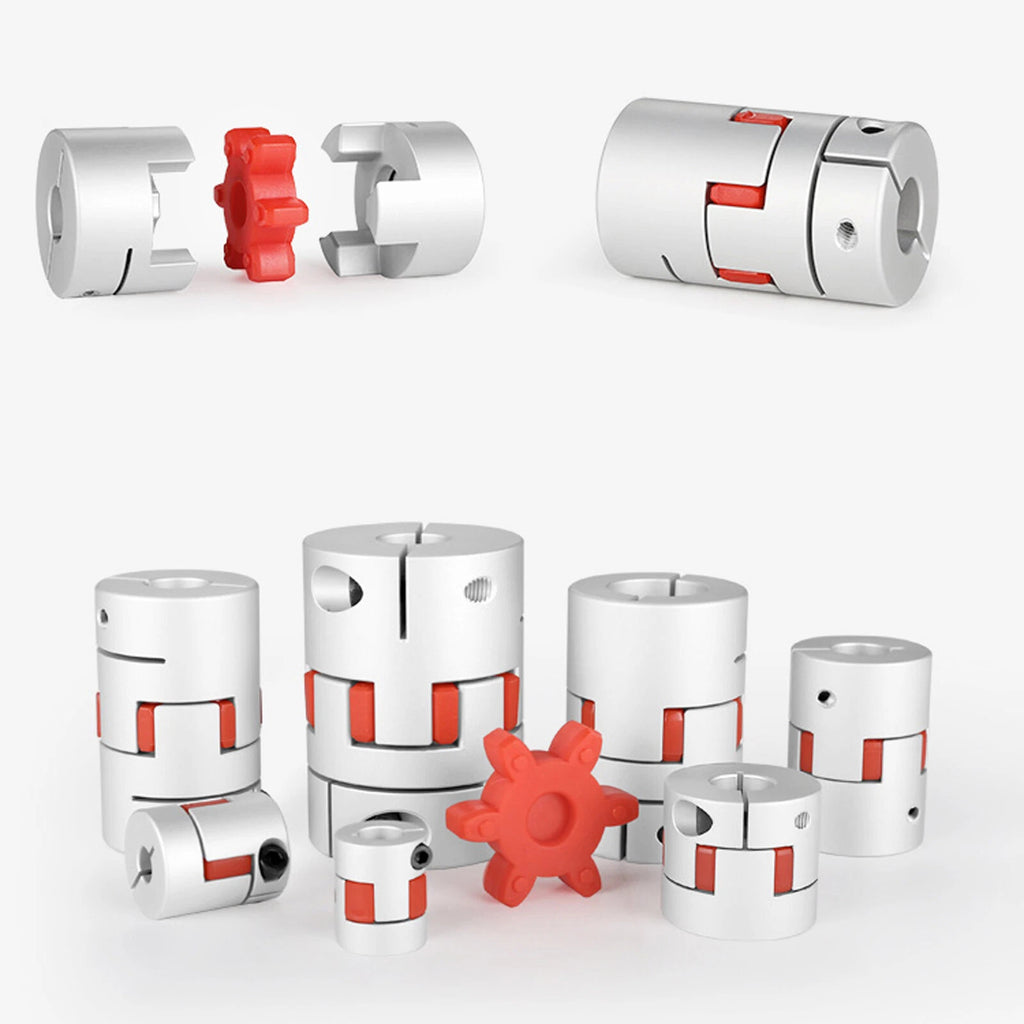

The polyurethane spider insert sits between the two aluminum hubs and can typically be replaced independently without replacing the entire coupler assembly. This makes long-term maintenance more economical, especially for larger sizes. Contact us to confirm spider insert availability for your specific size.
