Colored Heat Shrink Tubing 2:1 — Color-Code, Protect, and Organize Larger Wire Runs
When you're working on automotive wiring harnesses, marine electrical systems, or industrial cable management, keeping track of which wire does what is a constant challenge. Unlabeled or single-color sleeving makes troubleshooting slow and error-prone. Electricians, automotive technicians, and DIY builders who work with heavier gauge cables and multi-conductor bundles need a reliable way to insulate, identify, and protect their connections — all in one step. This colored heat shrink tubing kit is built for exactly that job.

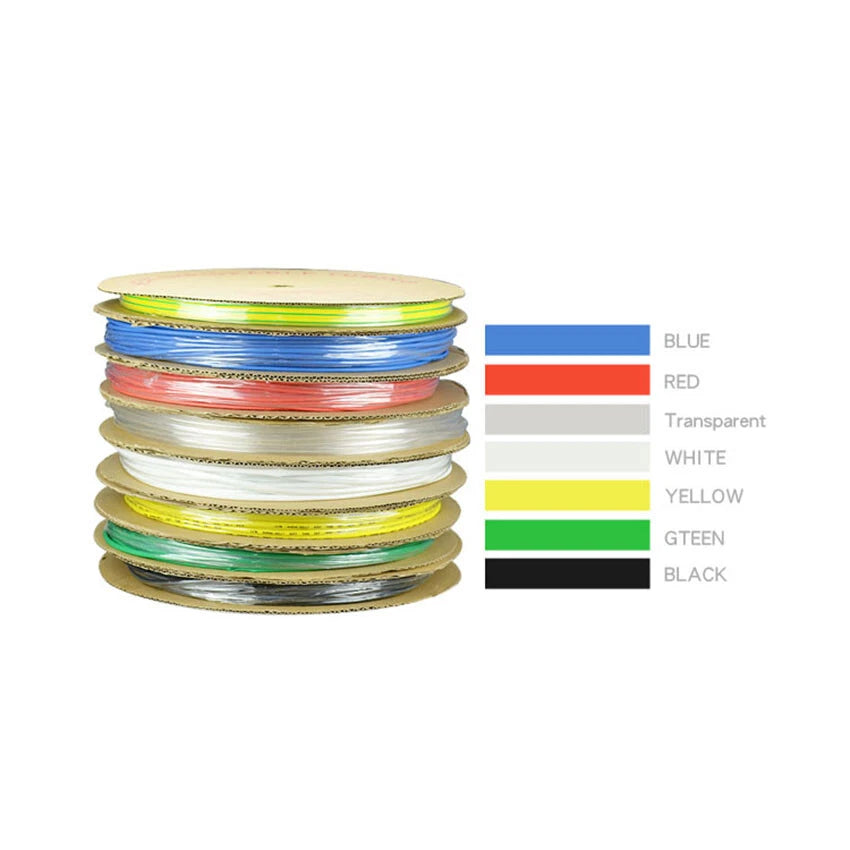

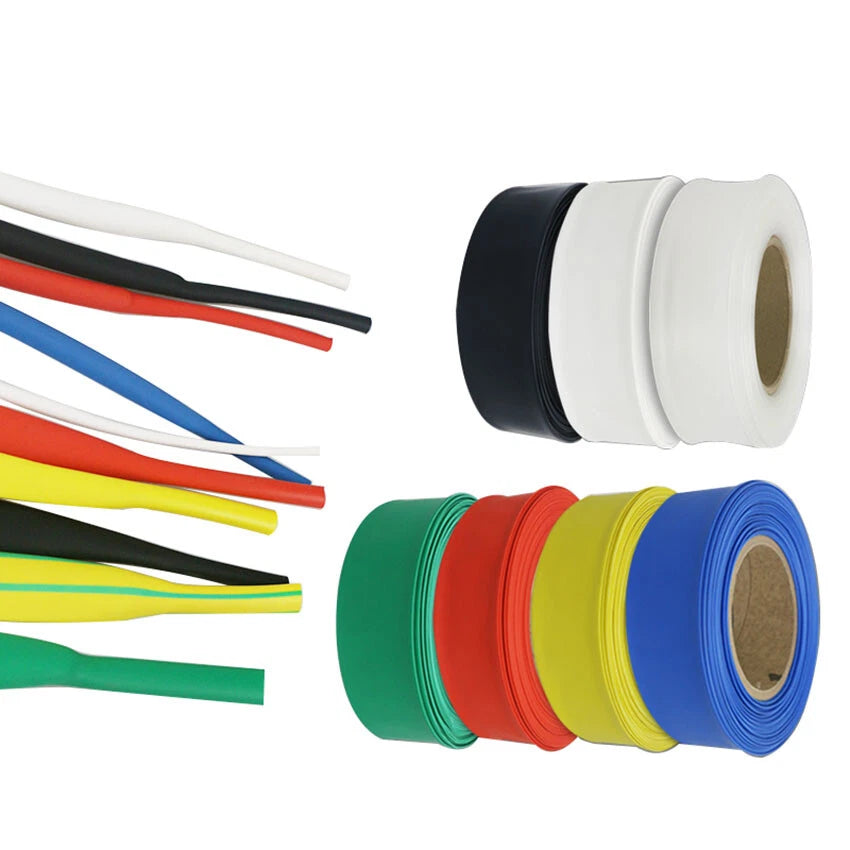

Each order covers a single continuous length of tubing — available in 1M (≈3.3 ft), 3M (≈9.8 ft), 5M (≈16.4 ft), and 10M (≈32.8 ft) — in diameters from φ11mm (≈7/16") to φ15mm (≈19/32"). Seven color options are available: black, white, red, green, yellow, blue, and transparent. Made from flame-retardant polyolefin with a 2:1 shrink ratio, the tubing shrinks to approximately half its original inner diameter when heat is applied, forming a tight, durable sleeve over wire bundles, connectors, and cable terminations.
Typical applications include color-coded automotive wiring harness sleeving for easy circuit identification, cable loom protection on marine and RV electrical systems, and strain relief sleeving on power tool cords and heavy-duty extension leads. Searches like "colored heat shrink tubing large diameter" and "2:1 heat shrink wire sleeving kit assorted colors" describe exactly what this product delivers.
🔌
Compatibility: Suitable for copper, aluminum, and stranded wire bundles. Works with standard heat guns, hot-air soldering stations, and heat lighters. These diameters (φ11–15mm) are designed for heavier gauge wiring, multi-conductor cables, and larger connector bodies — verify your wire's outer diameter (including insulation) before selecting a size.
✅ Key Features of These Colored Heat Shrink Tubes
-
🎨7-Color Selection — Available in black, white, red, green, yellow, blue, and transparent, making it straightforward to implement color-coded wiring identification on automotive, marine, and industrial cable runs.
-

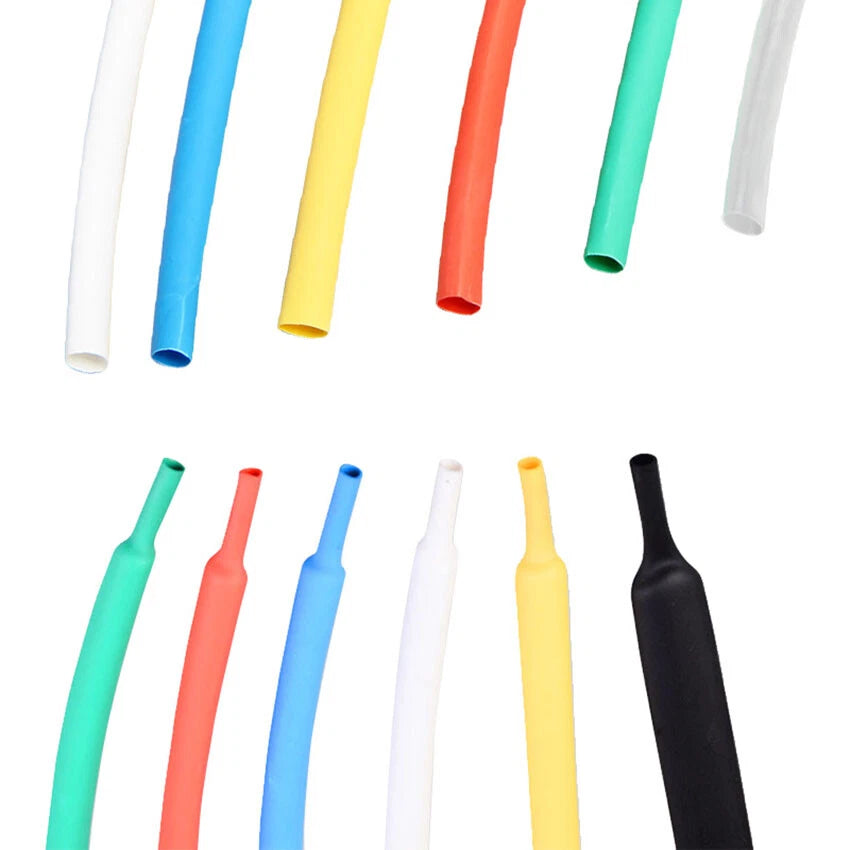

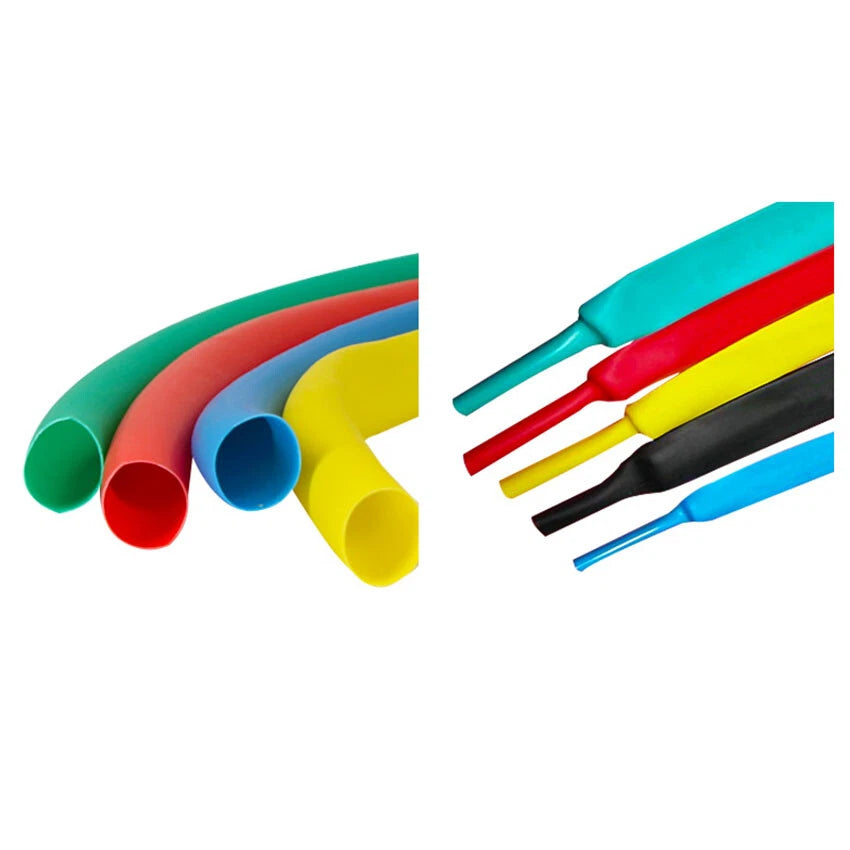

🔥2:1 Shrink Ratio — Shrinks to approximately half its original inner diameter, conforming tightly to wire bundles and connector bodies for a clean, professional-looking colored wire sleeving finish.
-
🛡️Flame-Retardant Polyolefin — Made from polyolefin material that is generally self-extinguishing, providing an added layer of safety in automotive wiring harness and electrical panel applications.
-
📏Larger Diameter Range — Covers φ11mm to φ15mm (≈7/16" to ≈19/32"), suited for heavier gauge wire, multi-conductor cable bundles, and larger connector bodies that smaller tubing sizes cannot accommodate.
-
📦Flexible Length Options — Choose 1M, 3M, 5M, or 10M per order to match your project scale, from a single connector repair to a full wiring harness color-coding job.
-
💧Moisture & Abrasion Resistance — Polyolefin construction resists moisture ingress and light abrasion, helping protect wire joints in engine bays, outdoor enclosures, and workshop environments where cables are subject to movement and wear.
📐 Technical Specifications — Colored Heat Shrink Tubing
| Material |
Polyolefin (flame-retardant) |
| Available Colors |
Black, White, Red, Green, Yellow, Blue, Transparent |
| Shrink Ratio |
2:1 |
| Available Diameters |
φ11mm (≈7/16"), φ12mm (≈15/32"), φ13mm (≈1/2"), φ14mm (≈9/16"), φ15mm (≈19/32") |
| Available Lengths |
1M (≈3.3 ft) / 3M (≈9.8 ft) / 5M (≈16.4 ft) / 10M (≈32.8 ft) |
| Shrink Temperature |
Typically 120°C (248°F) full recovery; begins shrinking at approx. 70–90°C |
| Operating Temperature Range |
See variant options / Contact us to confirm |
| Wall Thickness (recovered) |
See variant options |
| Voltage Rating |
Contact us to confirm |
| Flame Rating |
Generally meets UL 224 or equivalent flame-retardant standard |
| Application Method |
Heat gun, hot-air tool, or heat lighter |
| Recommended Use |
Color-coded wire identification, cable bundling, connector protection, strain relief |
⚠️
Sizing Note: Always measure the outer diameter of your wire bundle or connector (including insulation) before ordering. Choose a tube diameter approximately 20–30% larger than the object to be covered to ensure a proper fit after shrinking at the 2:1 ratio.
❓ Frequently Asked Questions
How do I choose the right diameter for my wire?
Measure the outer diameter of your wire or connector including its insulation jacket. Choose a tube diameter that is generally 20–30% larger than that measurement. For example, for a wire bundle with an 8mm outer diameter, a φ11mm or φ12mm tube typically works well. After applying heat, the 2:1 ratio will shrink the tube to approximately half its original inner diameter, forming a snug fit. When in doubt, size up — a tube that is too small will not slide over the wire before shrinking.
What does 2:1 shrink ratio mean for these sizes?
A 2:1 shrink ratio means the tubing shrinks to approximately half its original inner diameter when heat is applied. For example, a φ14mm tube will recover to roughly φ7mm, and a φ15mm tube to roughly φ7.5mm. This creates a tight, protective sleeve around your wire bundle or connector body. The wall thickness increases proportionally as the diameter decreases, improving mechanical protection at the joint.
What temperature is needed to shrink this tubing?
Polyolefin heat shrink tubing generally begins to shrink at around 70–90°C (158–194°F) and fully recovers at approximately 120°C (248°F). A heat gun set to low or medium is the recommended tool for these larger diameters. Move the heat gun slowly and evenly along the tube — working from the center outward helps prevent air pockets from forming. Avoid using open flames directly on the tubing as they can cause uneven shrinkage or surface damage.
Can I use this colored heat shrink tubing outdoors or in wet environments?
Polyolefin heat shrink tubing is generally resistant to moisture, UV exposure, and mild chemicals, making it suitable for many outdoor applications such as garden lighting, automotive engine bays, marine deck wiring, and outdoor speaker connections. For fully waterproof sealing in harsh marine environments or direct-burial applications, an adhesive-lined (glue-lined) heat shrink variant is typically recommended, as it creates a moisture-proof bond around the wire or connector.
Is this tubing flame-retardant and safe for electrical use?
Yes, polyolefin heat shrink tubing is generally manufactured to meet flame-retardant standards (typically UL 224 or equivalent). It will self-extinguish when the heat source is removed under standard test conditions. It is widely used in automotive wiring harnesses, marine electrical systems, and general electrical insulation. If your application requires a specific voltage or temperature rating, please contact us to confirm before ordering.
What wire gauges and cable sizes are compatible with φ11–15mm tubing?
These larger diameters are generally suited for heavier gauge wiring, multi-conductor cable bundles, and larger connector bodies. As a general guide:
-
φ11–12mm: Typically covers wire bundles or connectors with an outer diameter of roughly 5–8mm (e.g., bundled 10–8 AWG wire, medium connectors)
-
φ13–14mm: Typically suits cable looms or connectors with an outer diameter of roughly 7–10mm
-
φ15mm: Generally suited for larger cable bundles, heavy-duty connectors, or wiring looms up to approximately 9–11mm in outer diameter
Always measure the actual outer diameter of your wire bundle or connector before ordering.
How do I use color coding with heat shrink tubing effectively?
Color coding is a widely used practice in electrical and automotive wiring to identify circuits at a glance, reducing troubleshooting time significantly. Common conventions include:
-
Red: Positive / live / switched power
-
Black: Negative / ground / return
-
Green or Green-Yellow: Earth / safety ground
-
Blue: Neutral (in some wiring systems) or secondary circuits
-
White or Transparent: Signal wires, secondary circuits, or where the wire color beneath needs to remain visible
-
Yellow: Caution / high-voltage warning or custom circuit identification
Apply colored heat shrink at termination points, connector entries, and junction boxes to make future maintenance and fault-finding straightforward.
