Stainless Steel Compression Springs — Precision 0.9mm Wire Diameter for Tight-Space Applications
When a repair stalls because the right spring is nowhere to be found, or a prototype fails because off-the-shelf sizes don't match your design, you need a reliable source of precision-sized compression springs. These 0.9mm wire diameter stainless steel compression springs are engineered for hobbyists, robotics builders, small-batch manufacturers, and repair technicians who demand exact dimensions in compact form factors.
Each spring is wound from stainless steel wire with a diameter of 0.9mm (approximately 0.035 in). Outer diameter options span 5mm to 16mm (approx. 0.20 in to 0.63 in), and free lengths range from 8mm to 50mm (approx. 0.31 in to 1.97 in). Springs are sold in packs of 10 pieces per order, giving you spares for prototyping or batch assembly.

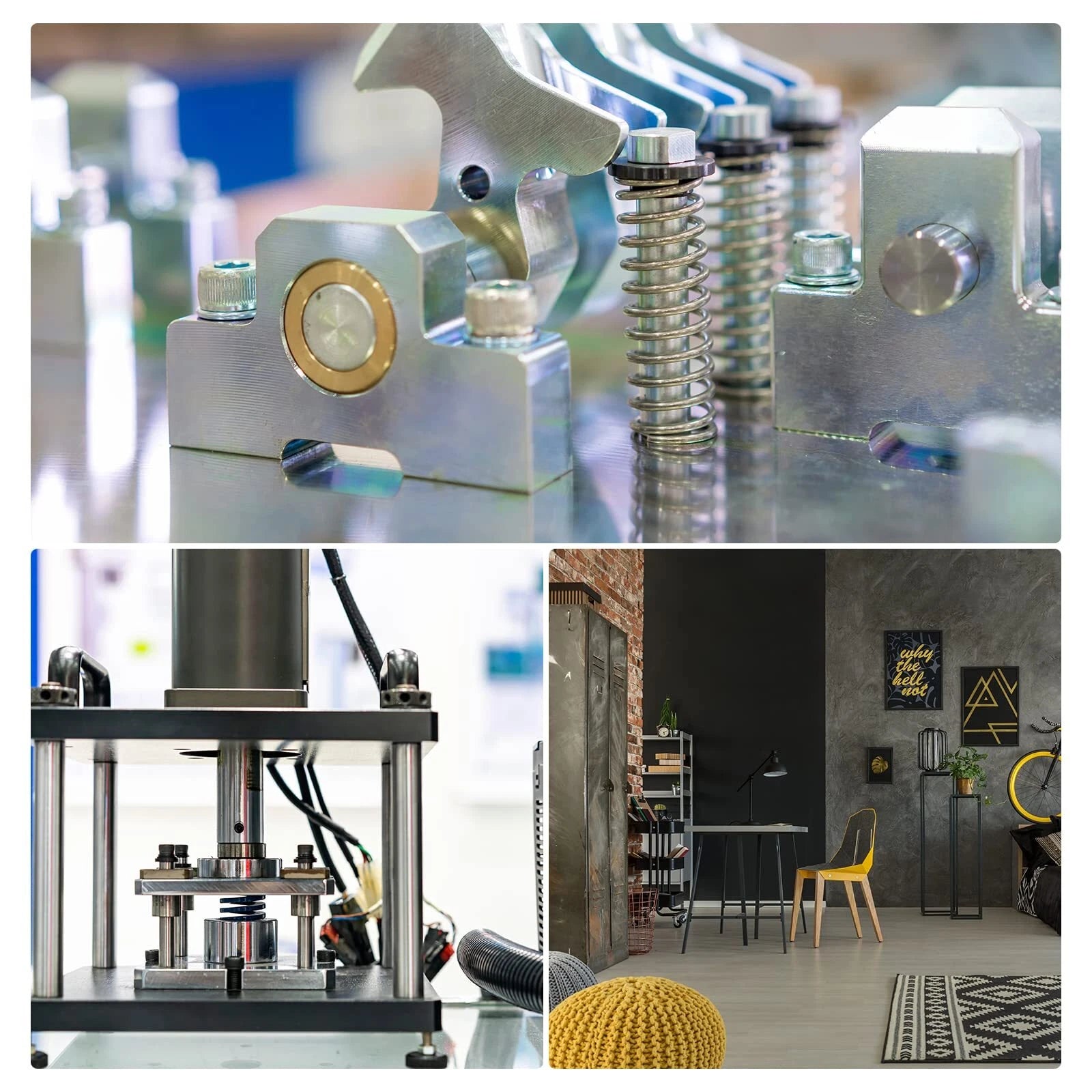

Typical use cases include compression spring replacement in mechanical pens and clickers, return-force elements in robotics actuators and gripper mechanisms, and load-bearing springs in small appliance repair — all scenarios where a stainless steel compression spring with a 0.9mm wire diameter delivers the corrosion resistance and consistent spring rate needed for long-term reliability.
⚙️
Compatibility: Suitable for general mechanical assemblies, DIY projects, robotics, model engineering, and small appliance repair where an outer diameter of 5–16mm and free length of 8–50mm is required. Verify your bore/housing dimensions against the selected variant before ordering.
✅ Key Features of These Stainless Steel Compression Springs
🔩
0.9mm Wire Diameter — Fine wire gauge enables compact spring design with consistent coil spacing, suitable for precision mechanisms where space is limited.
📏
Wide Size Range — Outer diameters from 5mm to 16mm and free lengths from 8mm to 50mm let you match the exact spring geometry your application requires without custom fabrication.
🛡️

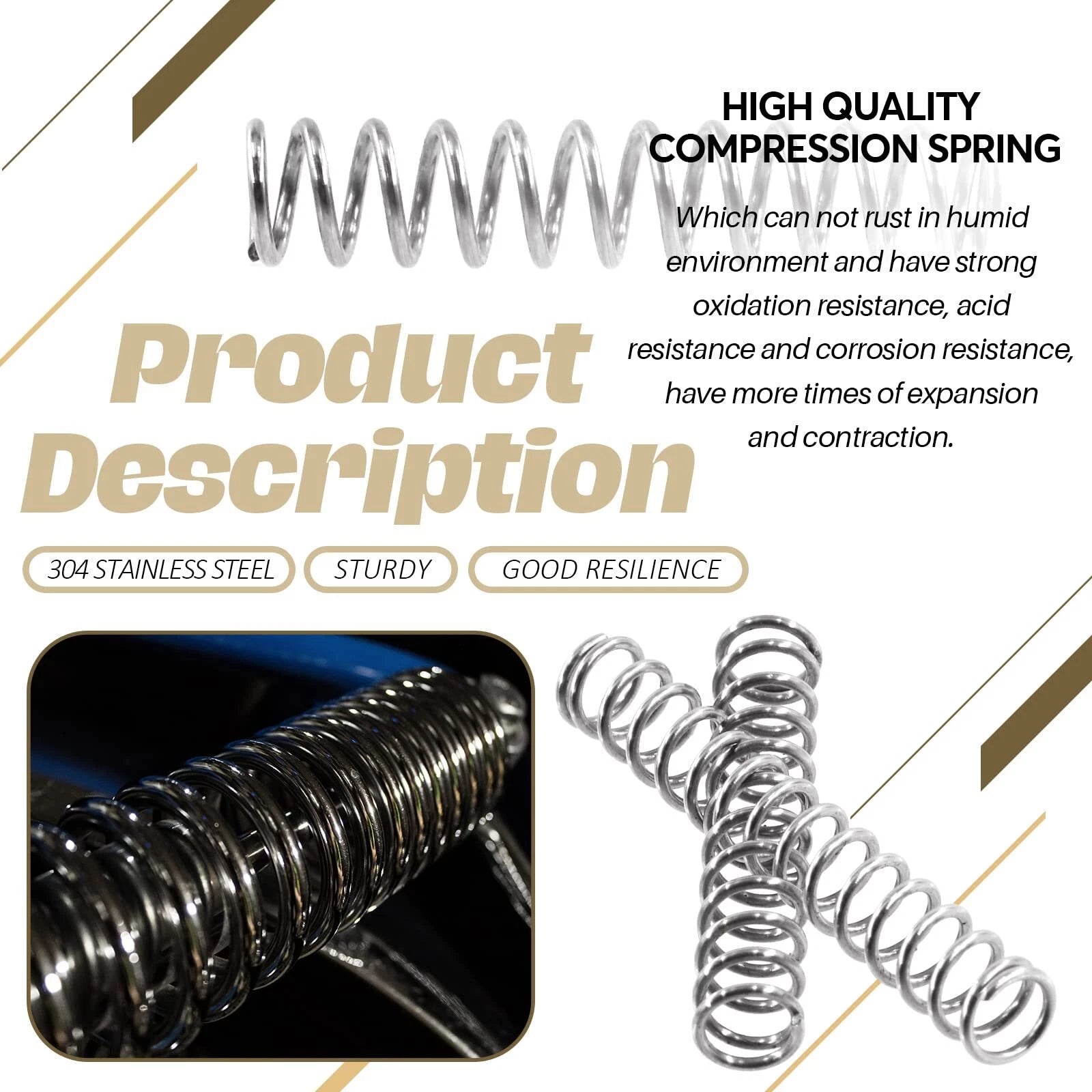

Stainless Steel Construction — Corrosion-resistant stainless steel wire maintains spring rate and surface integrity in humid, wet, or mildly corrosive environments.
📦
10-Piece Packs — Each variant ships as a pack of 10 identical springs, giving you extras for prototyping, testing, or batch replacement without overstocking.
⚖️
Consistent Spring Rate — Uniform wire diameter and coil pitch across the production run ensure repeatable load-deflection behavior from piece to piece.
🔄
Versatile Application Fit — Closed ends provide stable seating against flat surfaces; suitable for use in pens, latches, valves, robotics grippers, and general mechanical assemblies.
📐 Technical Specifications — Compression Springs
| Wire Diameter |
0.9mm (approx. 0.035 in) |
| Outer Diameter (OD) |
5mm – 16mm (approx. 0.20 – 0.63 in) — See variant options |
| Free Length |
8mm – 50mm (approx. 0.31 – 1.97 in) — See variant options |
| Material |
Stainless Steel |
| End Type |
Closed ends (typical for this wire gauge) |
| Quantity per Pack |
10 pieces |
| Spring Rate |
See variant options |
| Surface Finish |
Bright / natural stainless |
| Corrosion Resistance |
Yes — stainless steel alloy |
❓ Frequently Asked Questions
How do I choose the right outer diameter and length for my application?
Measure the bore or housing your spring will sit inside — the spring's outer diameter should be slightly smaller than the bore to allow free movement. For the free length, measure the uncompressed gap your spring needs to fill, then add the required travel distance. Select the variant whose OD and length most closely match those measurements.
What is the wire diameter, and why does it matter?
The wire diameter is 0.9mm. This fine gauge produces a relatively light spring rate, making these springs well-suited for low-load applications such as pen mechanisms, small latches, and lightweight robotics components. If you need a stiffer spring for heavier loads, a larger wire diameter would be more appropriate.
Are these springs corrosion-resistant?
Yes. These springs are made from stainless steel, which provides good resistance to rust and oxidation in humid or mildly wet environments. They are suitable for indoor mechanical assemblies and light outdoor use, though prolonged exposure to saltwater or strong chemicals may affect performance over time.
What end type do these compression springs have?

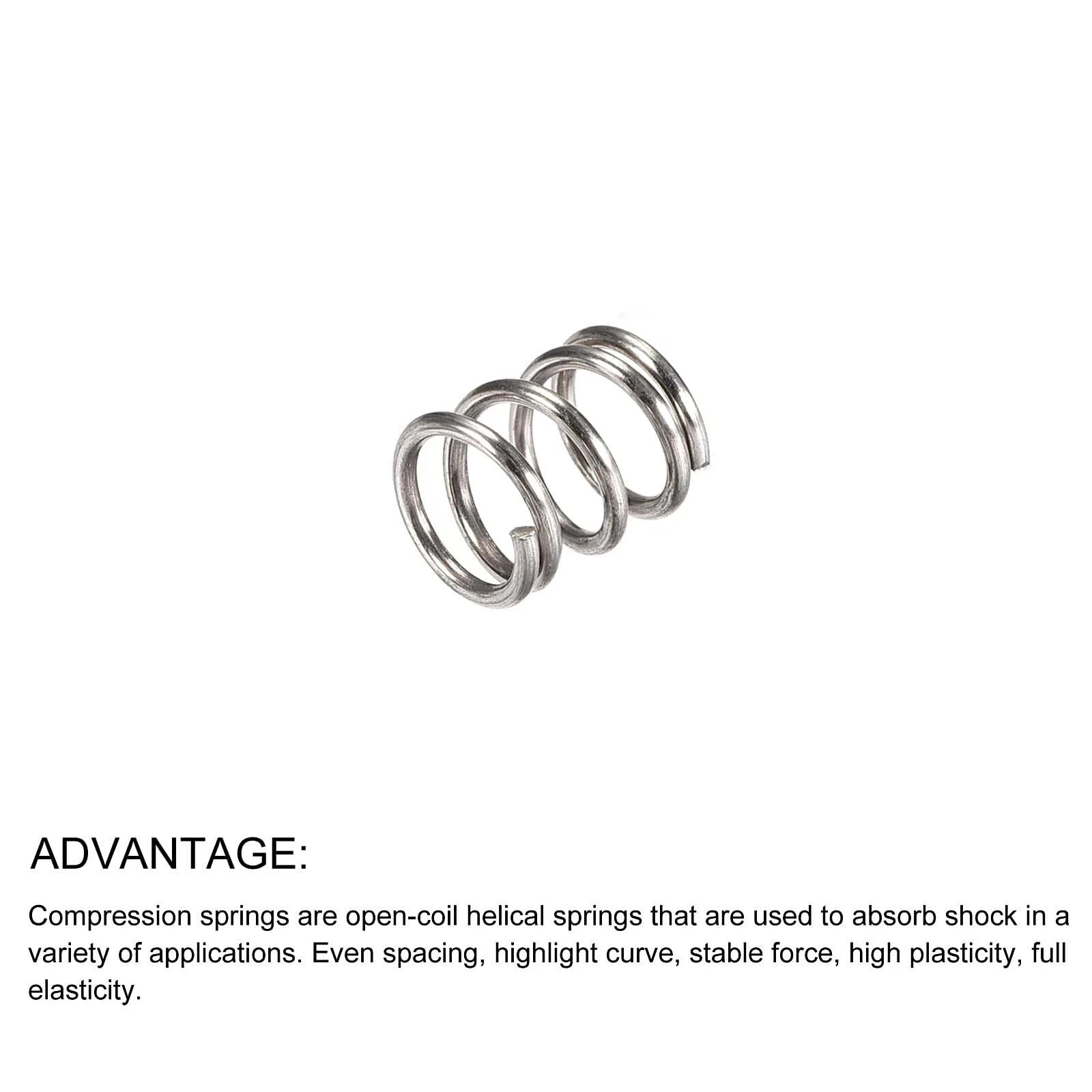

These springs feature closed ends, which provide a flat bearing surface for stable seating against flat plates or housings. This is the most common end type for general-purpose compression springs and is compatible with standard spring seats and retainers.
Can I use these springs in robotics or 3D printer builds?
Yes. The 0.9mm wire diameter and range of outer diameters (5–16mm) make these springs a popular choice for robotics grippers, extruder assemblies, and small actuator return mechanisms. Verify the OD and free length against your design tolerances before ordering.
How many springs come in each pack, and can I order multiple packs?
Each pack contains 10 springs of the same size. To order more than 10 pieces of a single size, simply increase the quantity at checkout — each unit added to your cart represents one 10-piece pack.

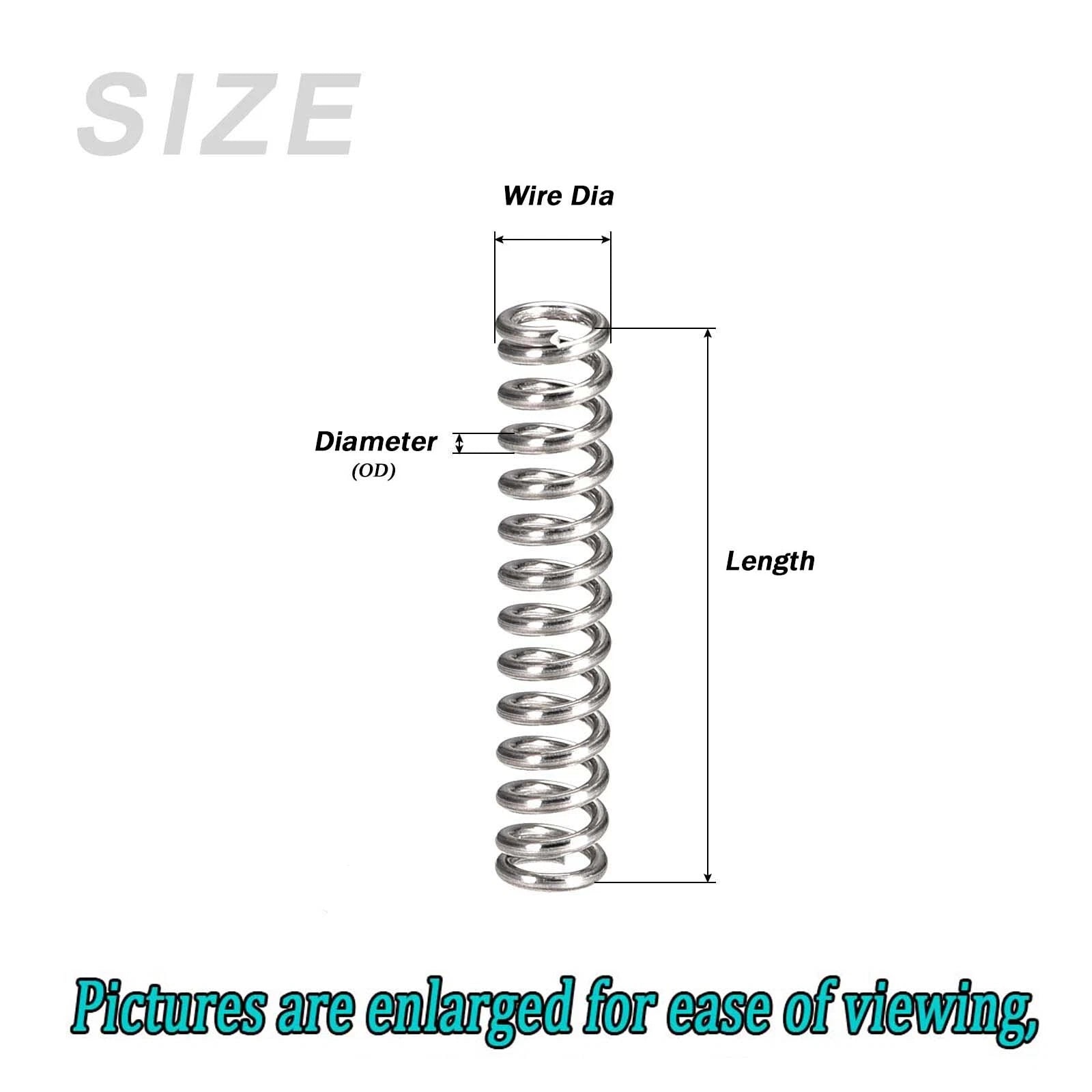

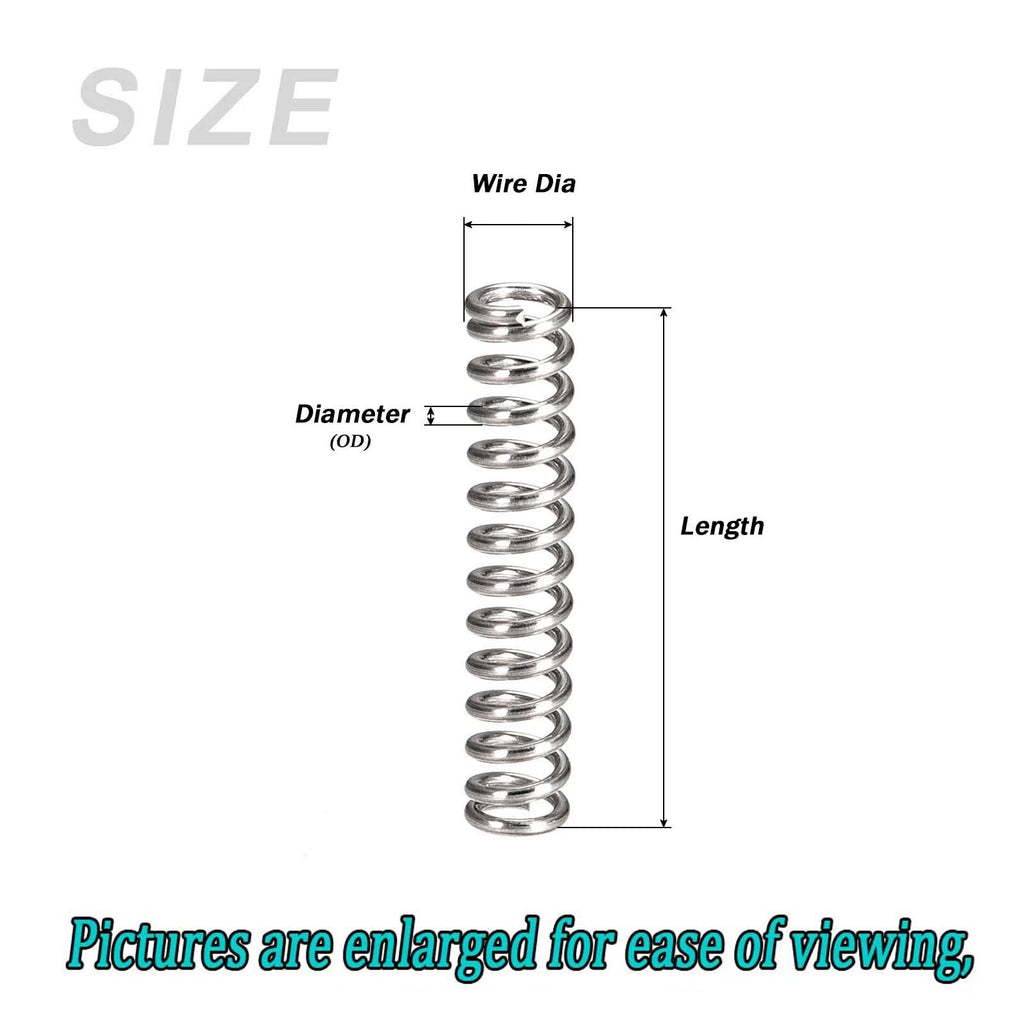

What is the difference between the outer diameter and inner diameter of these springs?
The outer diameter (OD) is the overall width of the spring coil. The inner diameter (ID) equals the OD minus twice the wire diameter — so for a 5mm OD spring with 0.9mm wire, the approximate ID is 5mm − 1.8mm = 3.2mm. Use the ID to check clearance around any shaft or guide rod the spring will slide over.
