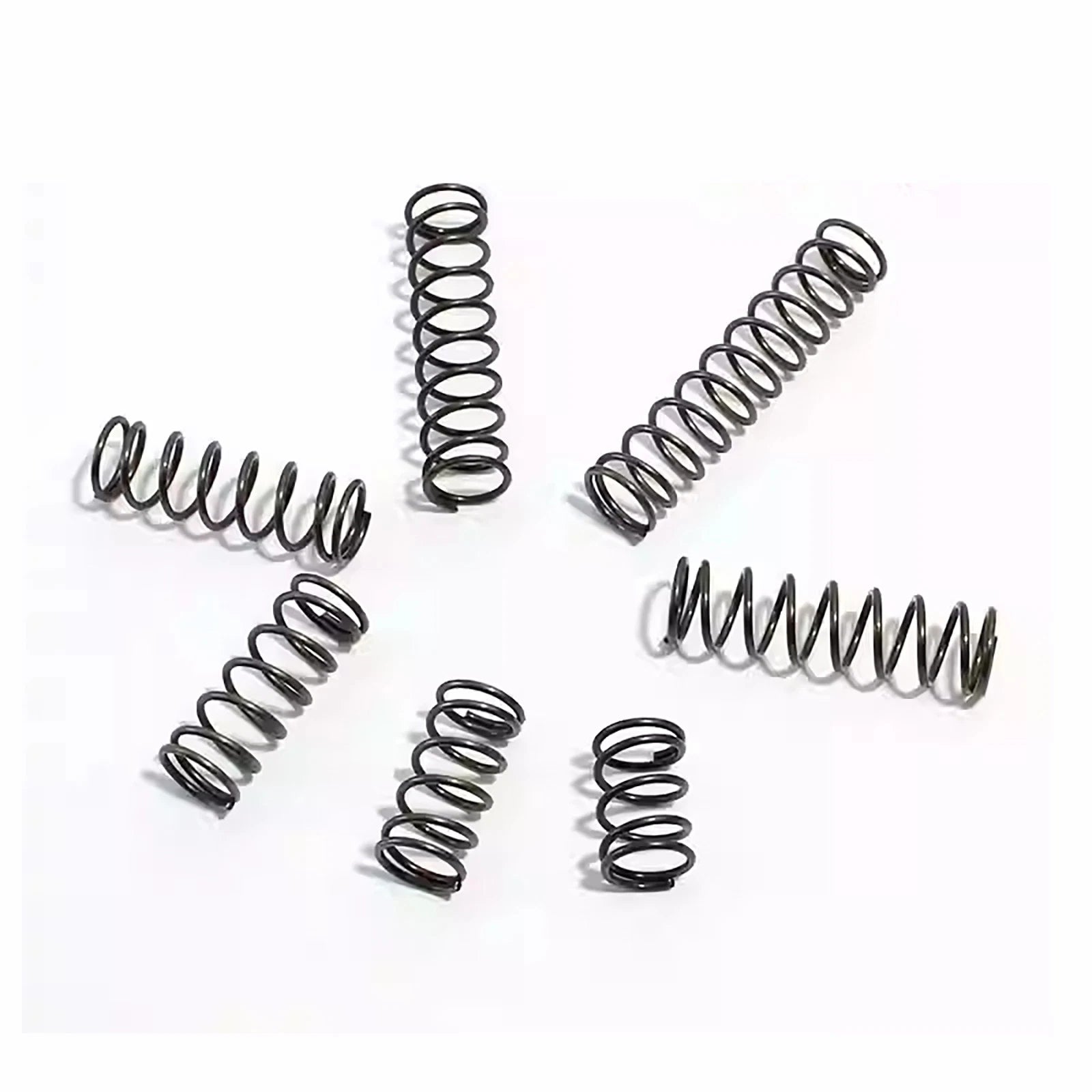

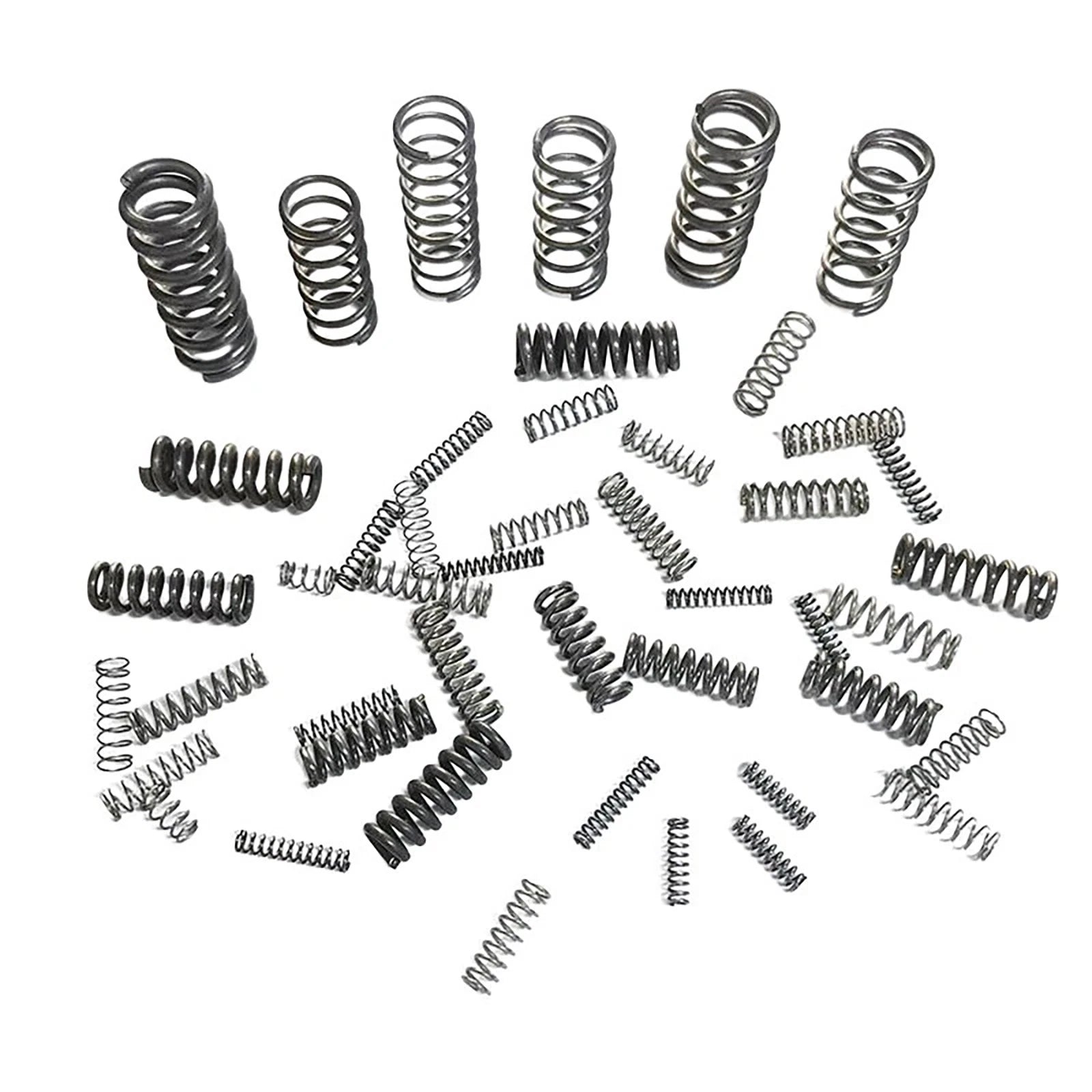

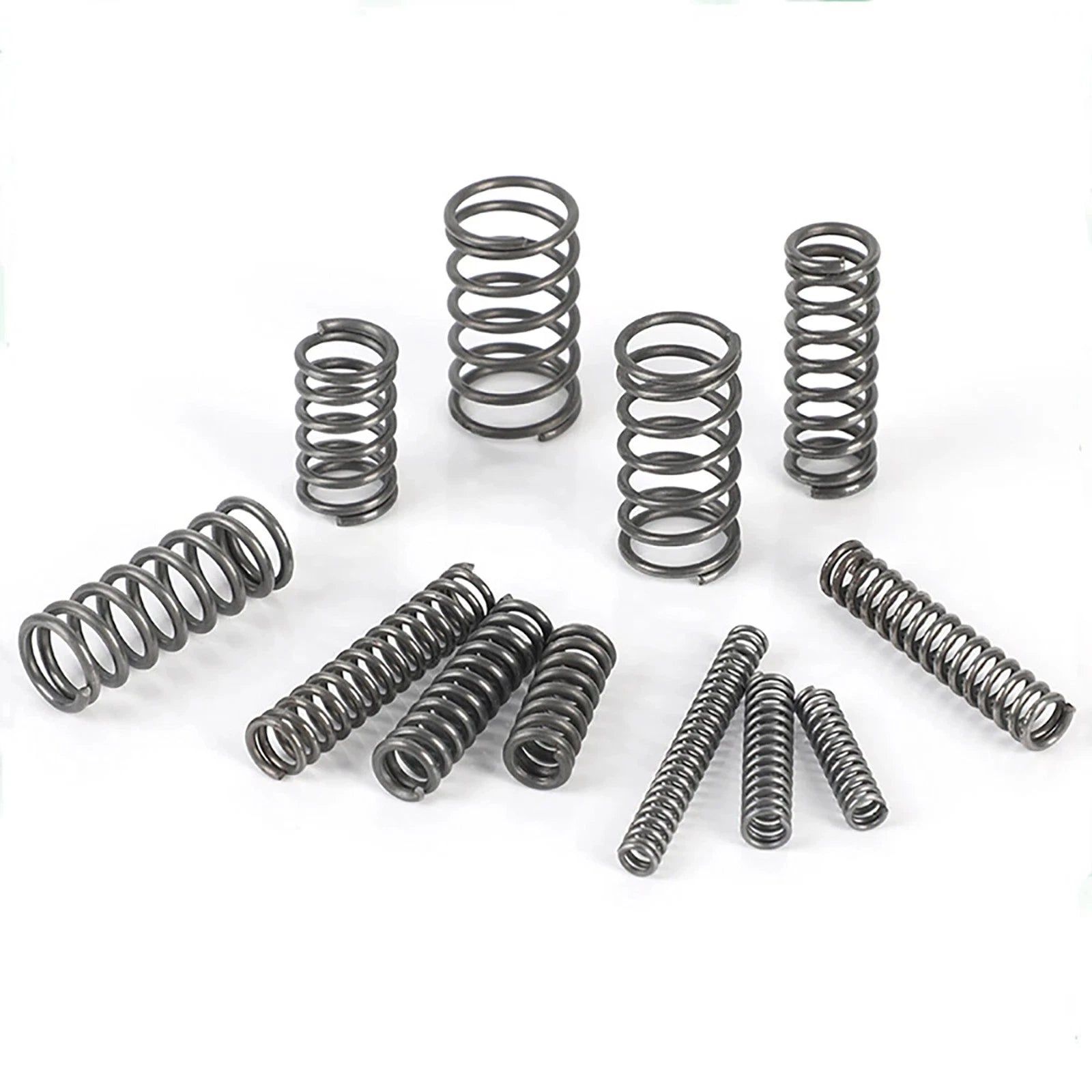

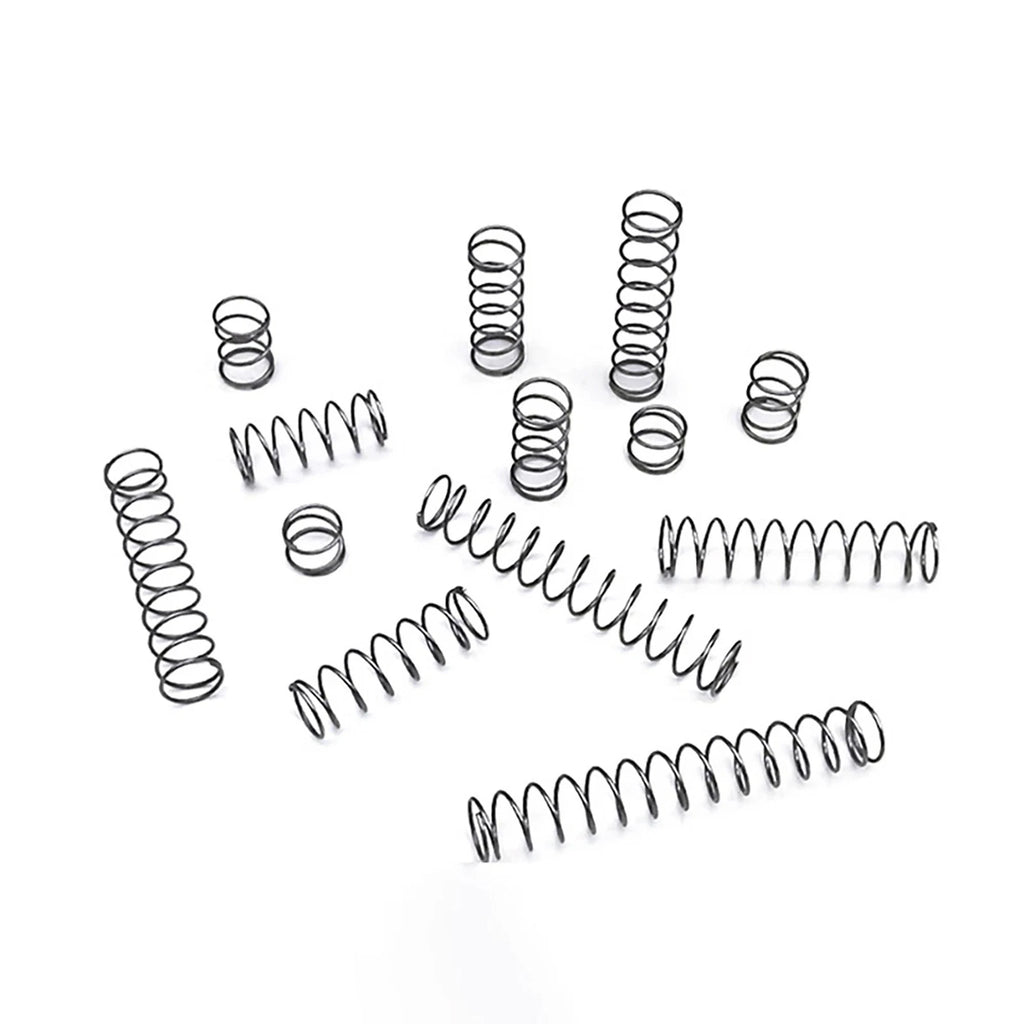

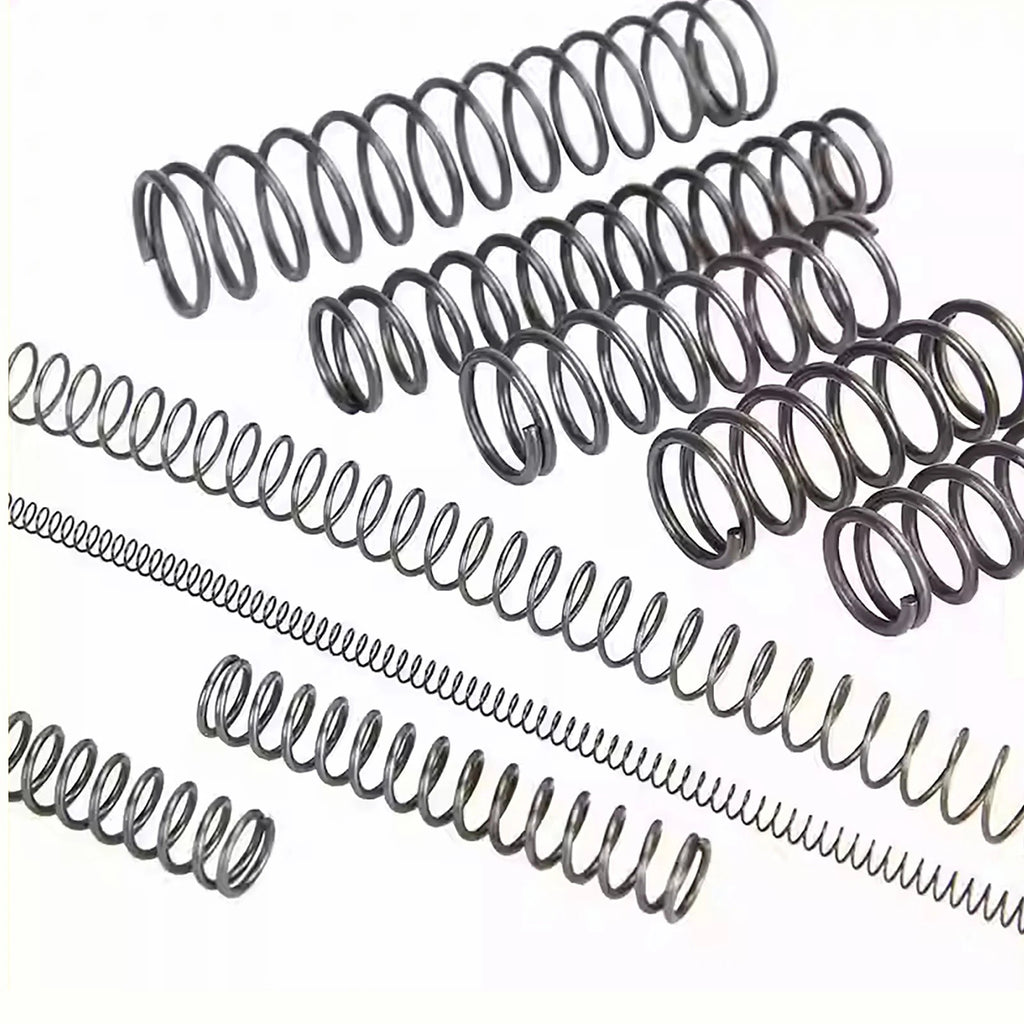

Compression Spring Steel 0.9mm Wire — Reliable Small Pressure Springs for Precision DIY Applications

When your project demands consistent return force in a compact form factor, undersized or mismatched springs cause misfires, binding, and premature failure. Makers, electronics hobbyists, and small-machine builders need springs that hold their rated dimensions batch after batch. These compression springs are engineered for exactly that — delivering repeatable elastic performance in tight spaces where tolerances matter.

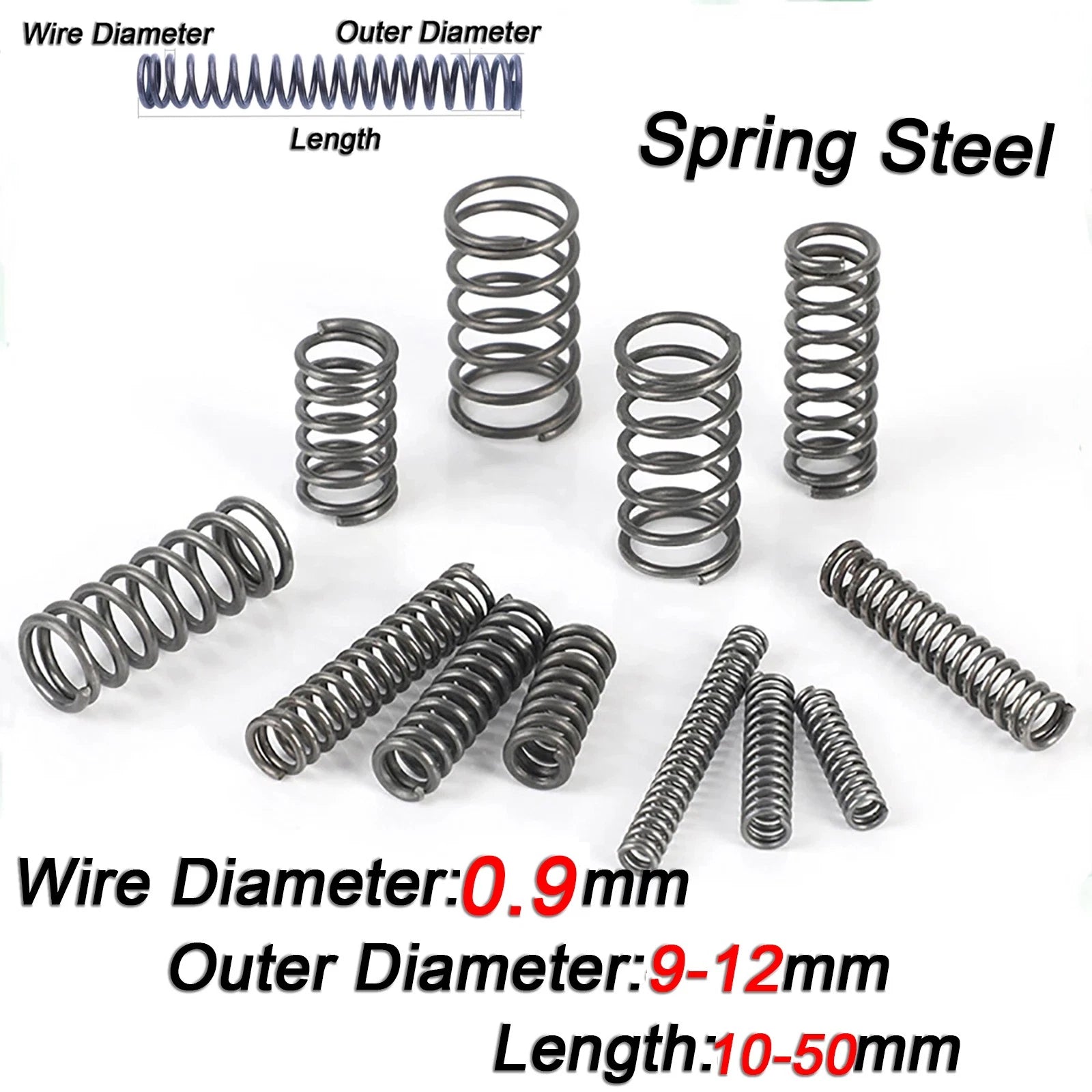

Each spring is formed from 0.9mm diameter steel wire with an outer diameter (OD) ranging from 9mm to 12mm (approximately 0.35" to 0.47"). Free lengths span 10mm to 50mm (roughly 0.39" to 1.97"), giving you a broad selection matrix across wire diameter, OD, and length to match your exact assembly requirement. The coil body features a consistent pitch and closed ends for stable seating on flat surfaces or inside bored housings.

These small compression springs are well-suited for button and switch return mechanisms in DIY electronics enclosures, plunger and valve assemblies in pneumatic or fluid-control prototypes, and tensioning or preload applications in 3D printer extruder arms, robotic grippers, and CNC fixture clamps. Their compact OD range makes them a go-to choice for anyone sourcing small pressure springs for mechanical automation projects.

⚙️ Compatibility: Suitable for spring-loaded mechanisms, plunger assemblies, switch returns, and light-duty tensioning applications requiring an OD of 9–12mm and wire diameter of 0.9mm. Verify free length and spring rate against your design load before ordering.

✅ Key Features of These Compression Springs

🔩 0.9mm Wire Diameter

Consistent wire gauge across all variants ensures uniform spring rate and predictable deflection behavior in precision assemblies.

📐 4 Outer Diameter Options

Choose from 9mm, 10mm, 11mm, or 12mm OD to match your bore, housing, or guide rod diameter without modification.

📏 9 Free Length Options per OD

Free lengths from 10mm to 50mm in 5mm increments let you dial in the exact preload and travel distance your design requires.

🏗️ Closed Ends for Stable Seating

Closed-end coil construction provides a flat bearing surface, reducing lateral shift and improving alignment in spring pockets and on guide pins.

📦 Flexible Pack Quantities

Available in 10, 20, or 50-piece packs — order a small trial quantity or stock up for production runs and prototyping batches.

🔧 Broad Application Range

Ideal for switch returns, plunger mechanisms, 3D printer components, robotic grippers, and light-duty tensioning in DIY automation builds.

📐 Technical Specifications — Compression Springs

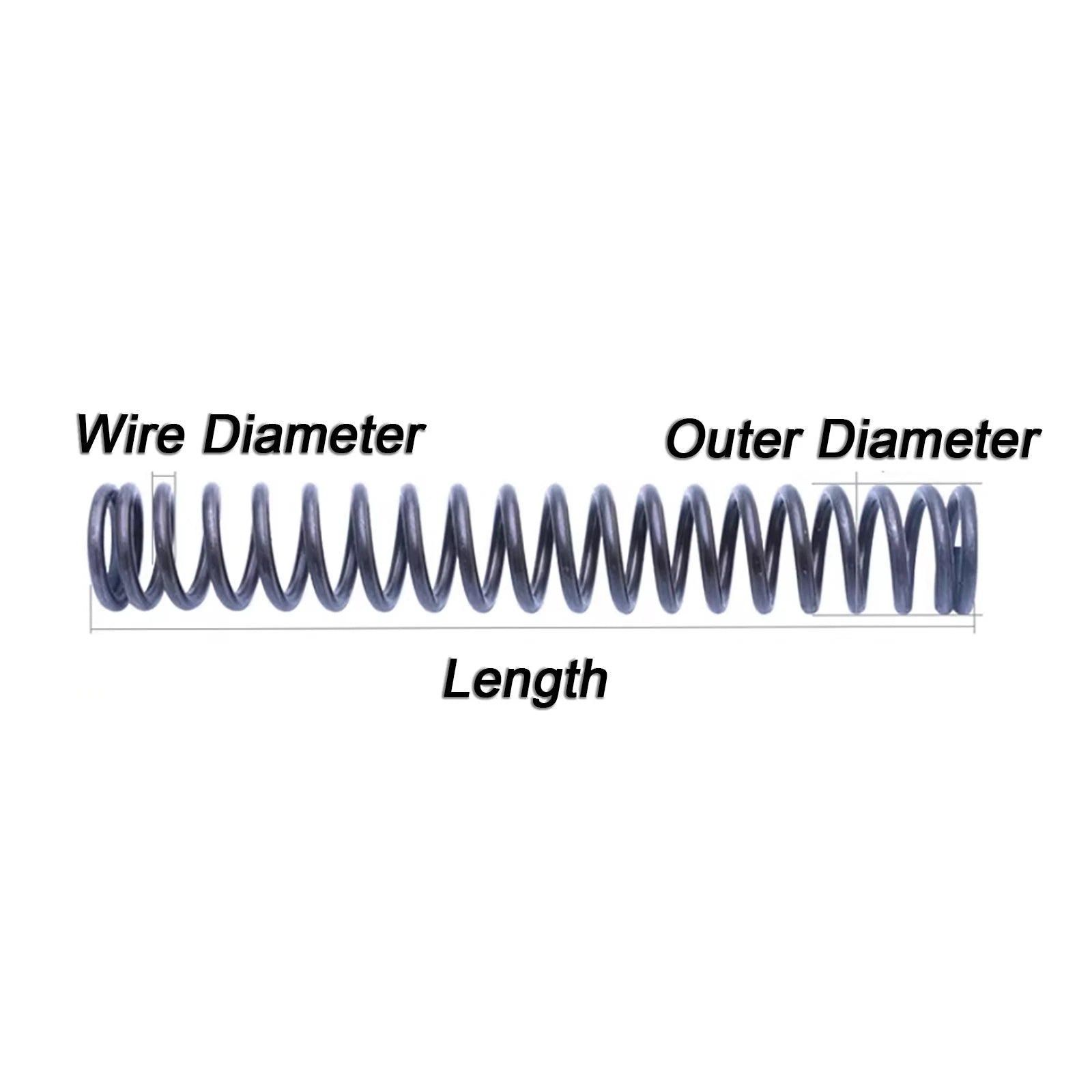

Wire Diameter 0.9mm (~0.035")
Outer Diameter (OD) 9mm / 10mm / 11mm / 12mm (See variant options)
Free Length 10mm – 50mm in 5mm increments (See variant options)
End Type Closed ends
Material Steel
Spring Type Compression
Spring Rate See variant options
Pack Quantity 10 Pcs / 20 Pcs / 50 Pcs (See variant options)
Surface Finish See variant options
Application Light-duty compression, return force, preload tensioning

❓ Frequently Asked Questions

How do I choose the right outer diameter for my application?

Measure the inner diameter of your spring housing or the outer diameter of your guide rod. For a housing fit, select an OD slightly smaller than the bore (typically 0.5–1mm clearance). For a guide rod fit, select an OD larger than the rod so the spring slides freely without binding. This product offers 9mm, 10mm, 11mm, and 12mm OD options to cover common small-mechanism sizes.

What free length should I choose?

Free length is the uncompressed length of the spring. Choose a free length that is longer than your required working length by the amount of travel (deflection) you need. For example, if your mechanism compresses the spring 10mm and you need 15mm of working length, select a free length of approximately 25mm. Available lengths range from 10mm to 50mm in 5mm steps.

Are these springs strong enough for my load?

These are light-duty compression springs with a 0.9mm wire diameter, suited for return mechanisms, switch plungers, and light tensioning — not heavy structural or industrial loads. If you need to confirm the spring rate (force per mm of deflection) for your specific variant, please contact us before ordering so we can provide the appropriate specification.

Are these springs corrosion resistant?

These springs are made from steel wire. Steel offers good mechanical properties for indoor and dry-environment applications. For humid, wet, or chemically exposed environments, consider applying a light coating of oil or grease, or contact us to inquire about stainless steel alternatives if your application demands higher corrosion resistance.

Can I use these springs in 3D printers or CNC machines?

Yes. The 9–12mm OD range and 10–50mm free length options make these springs compatible with many common 3D printer extruder tensioners, bed-leveling mechanisms, and CNC fixture clamps. Verify the OD and free length against your specific printer or machine model's spring pocket dimensions before ordering.

How do I decide between 10, 20, or 50-piece packs?

The 10-piece pack is ideal for prototyping or single-project use where you need a small quantity to test fit and function. The 20-piece pack suits small production runs or builds requiring spares. The 50-piece pack offers the best per-unit value for larger batches, workshop stock, or repeat-use applications where you want a ready supply on hand.

What is the inner diameter (ID) of these springs?

The inner diameter is approximately equal to the outer diameter minus twice the wire diameter. For example, the 9mm OD spring has an approximate ID of 9mm − (2 × 0.9mm) = 7.2mm. Use this to check clearance over a guide rod. Exact ID values may vary slightly due to coiling tolerances; contact us to confirm if your application has tight ID requirements.

🛒 Select your Outer Diameter and Length & Pack Quantity above, then add to cart.
