Compression Spring 0.6mm Wire — Reliable Small Pressure Springs for Precision DIY Work
When a mechanism fails because a tiny spring loses tension or collapses under load, the whole project stalls. Makers, electronics hobbyists, and workshop technicians who need dependable small compression springs for buttons, latches, valves, and miniature assemblies will find this range covers the most common sizes in a single listing.

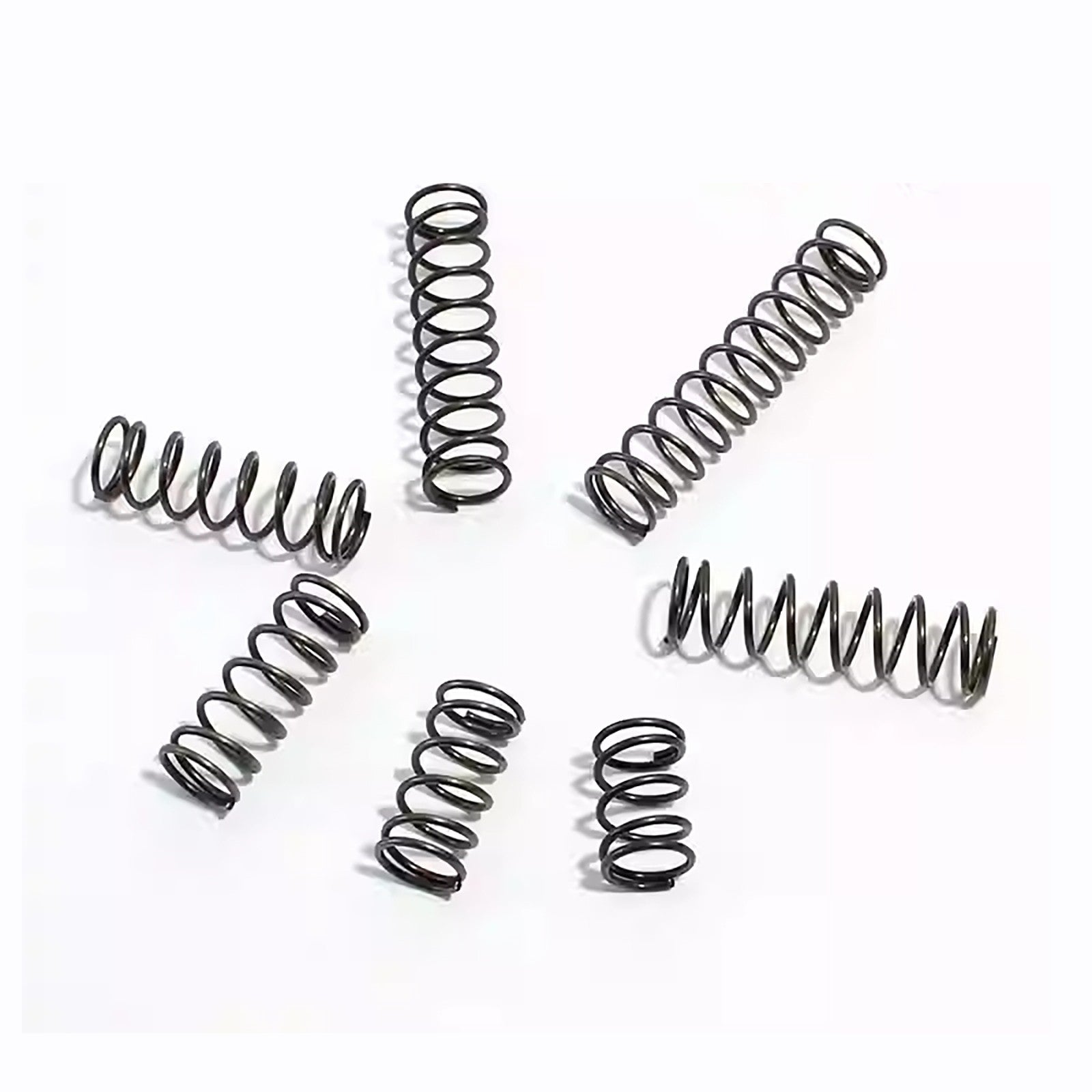

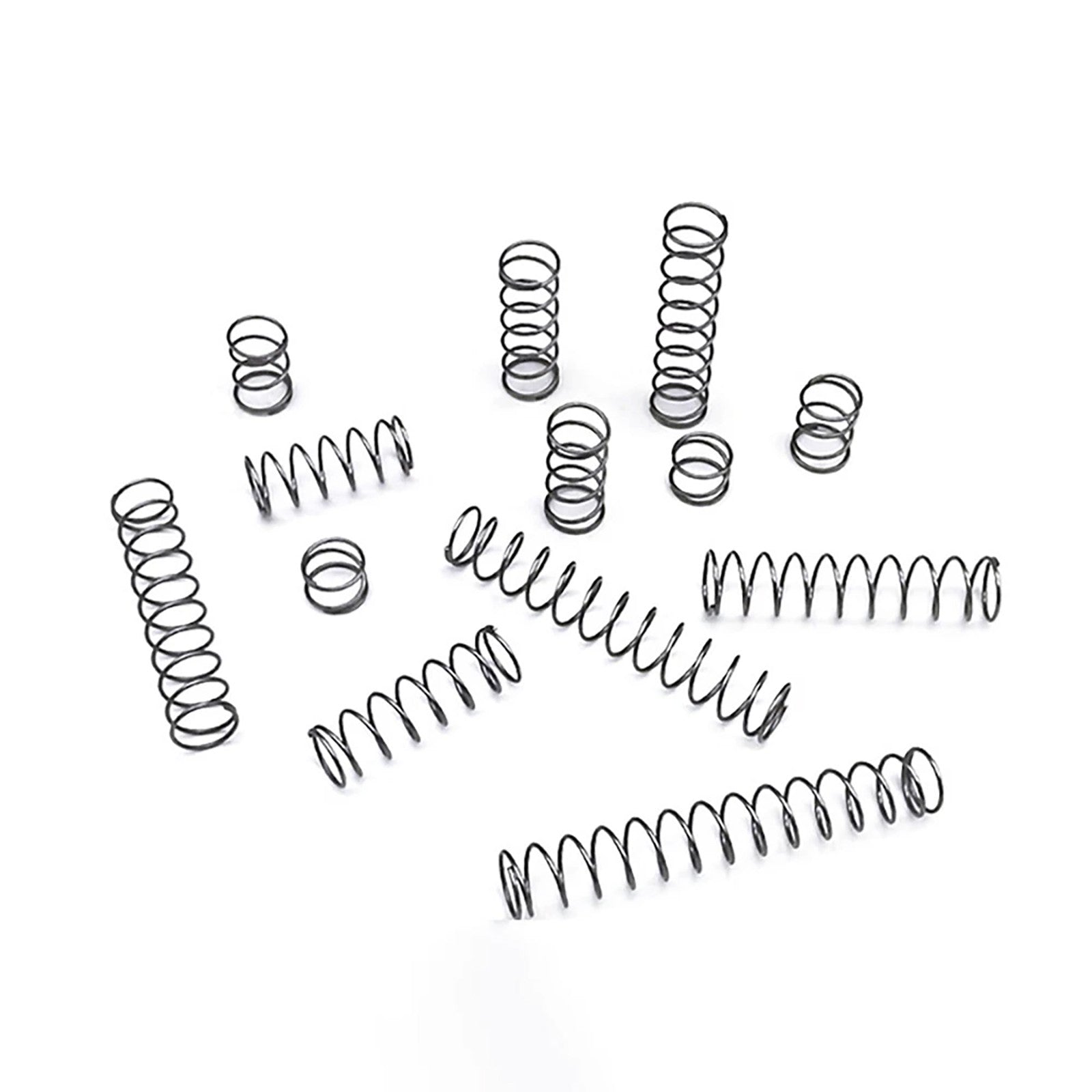

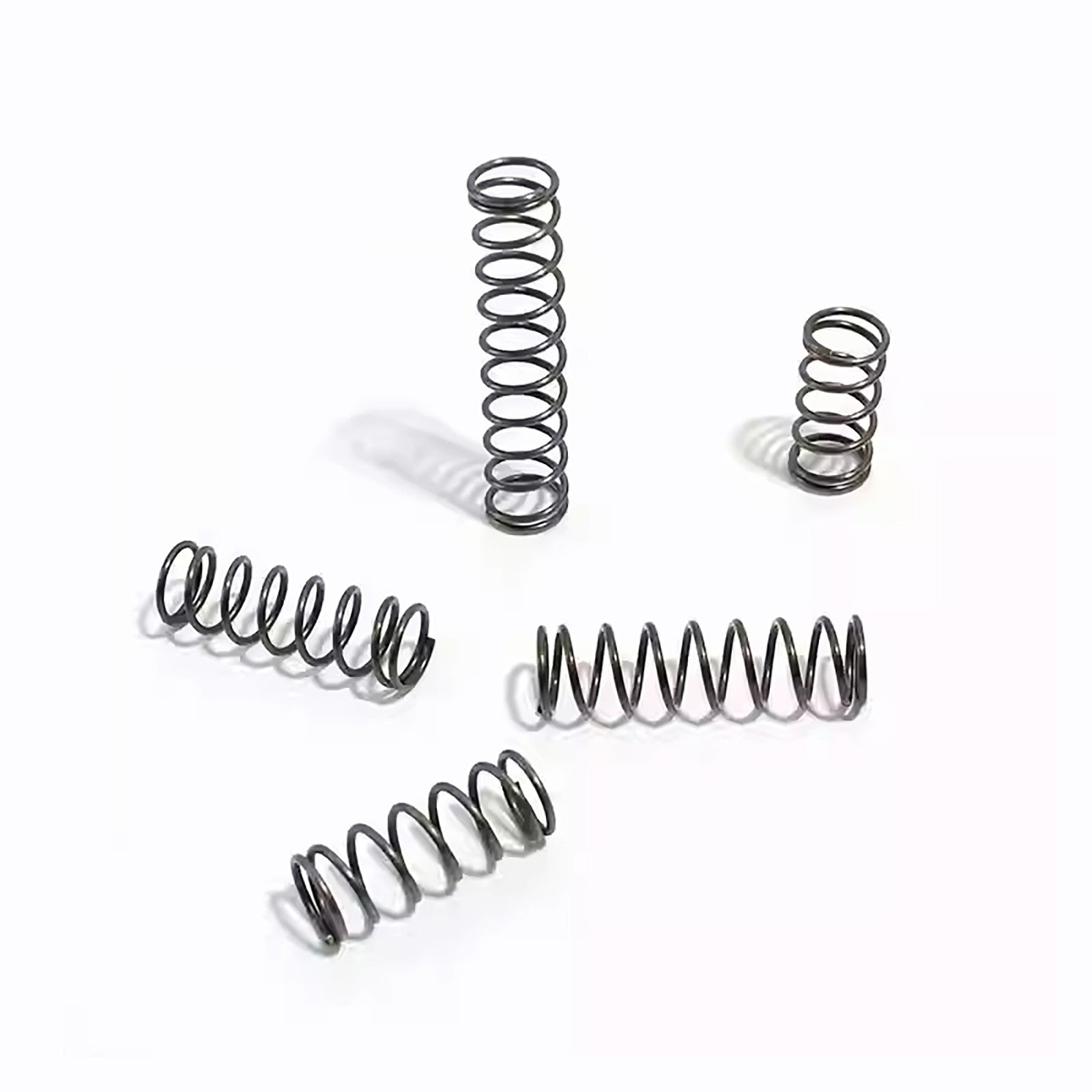

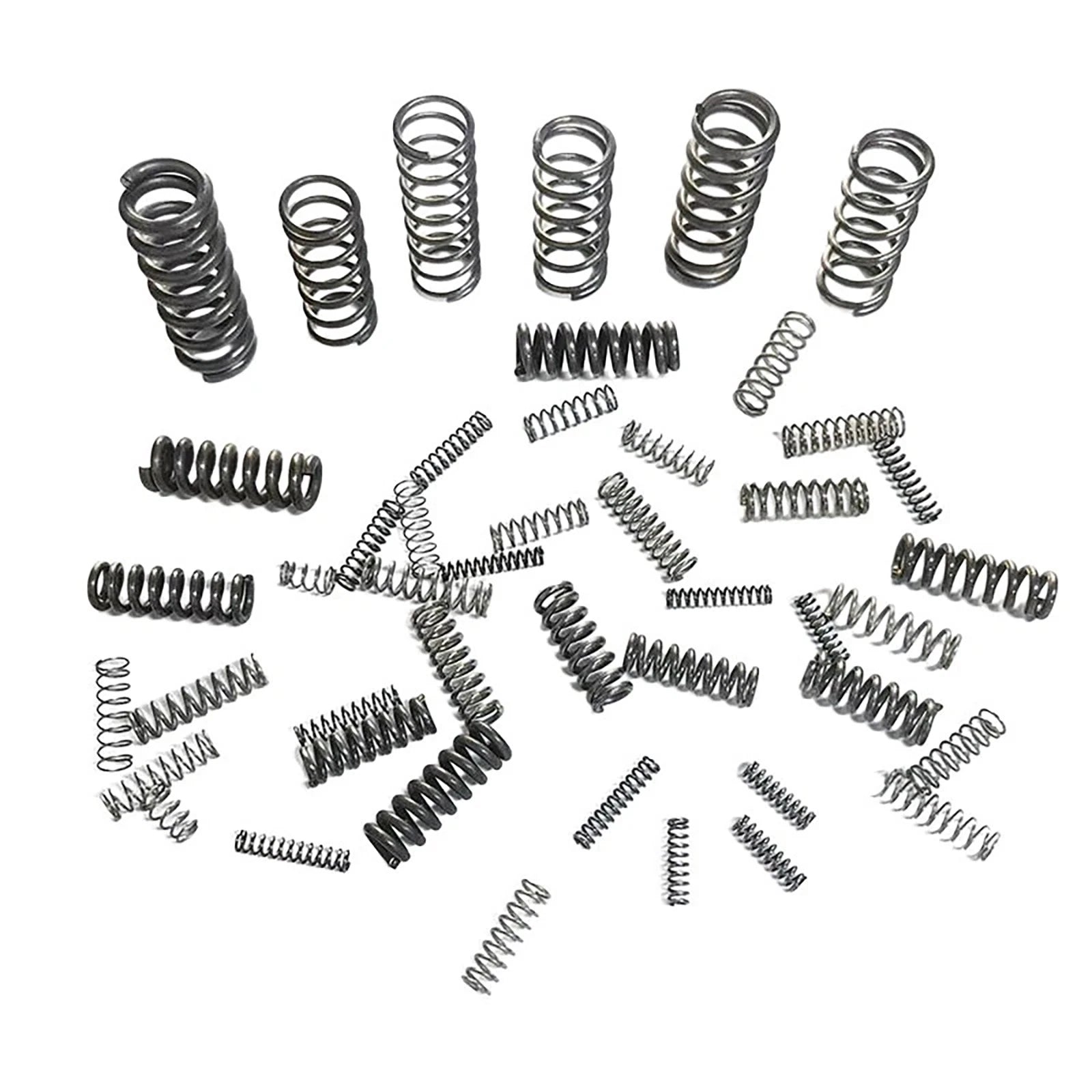

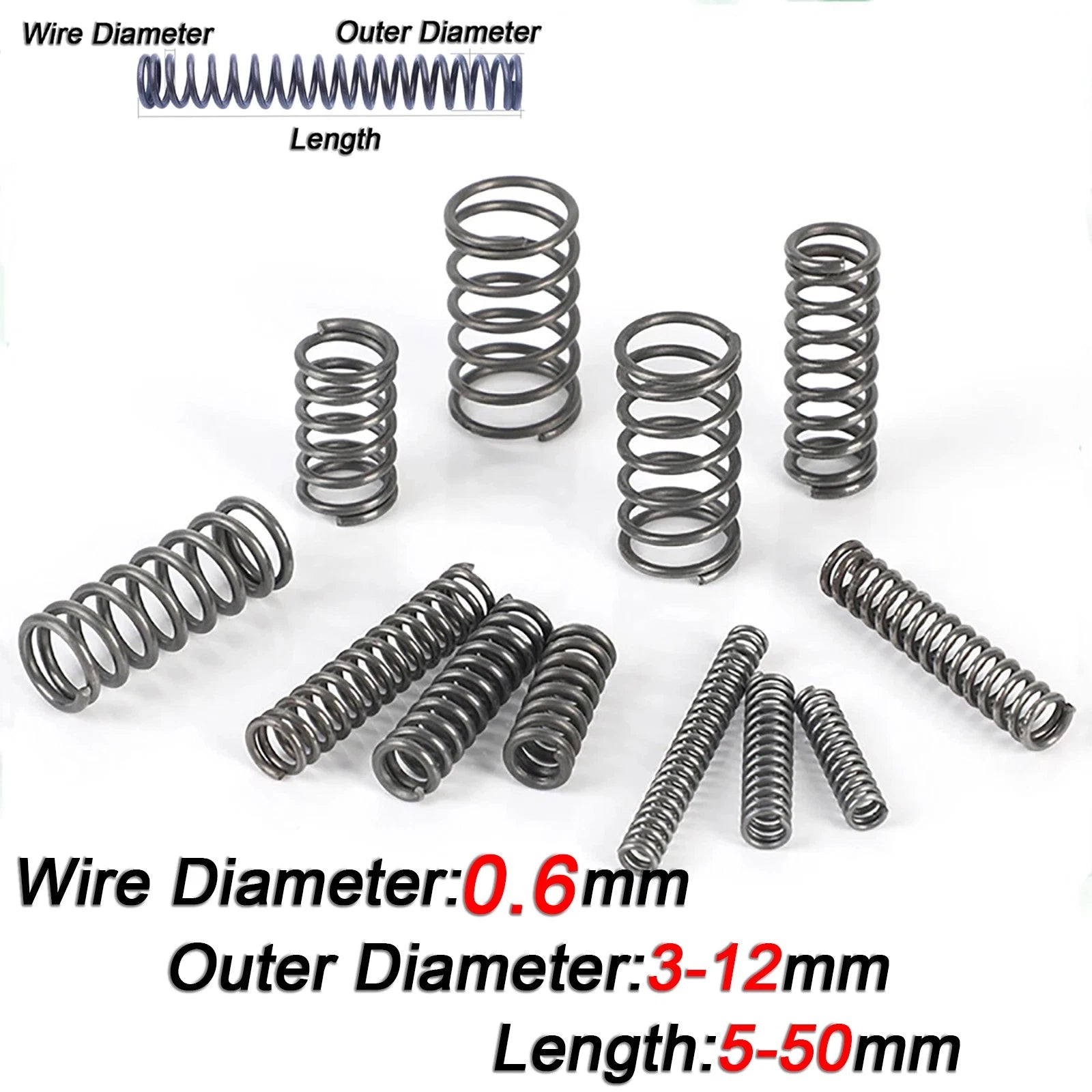

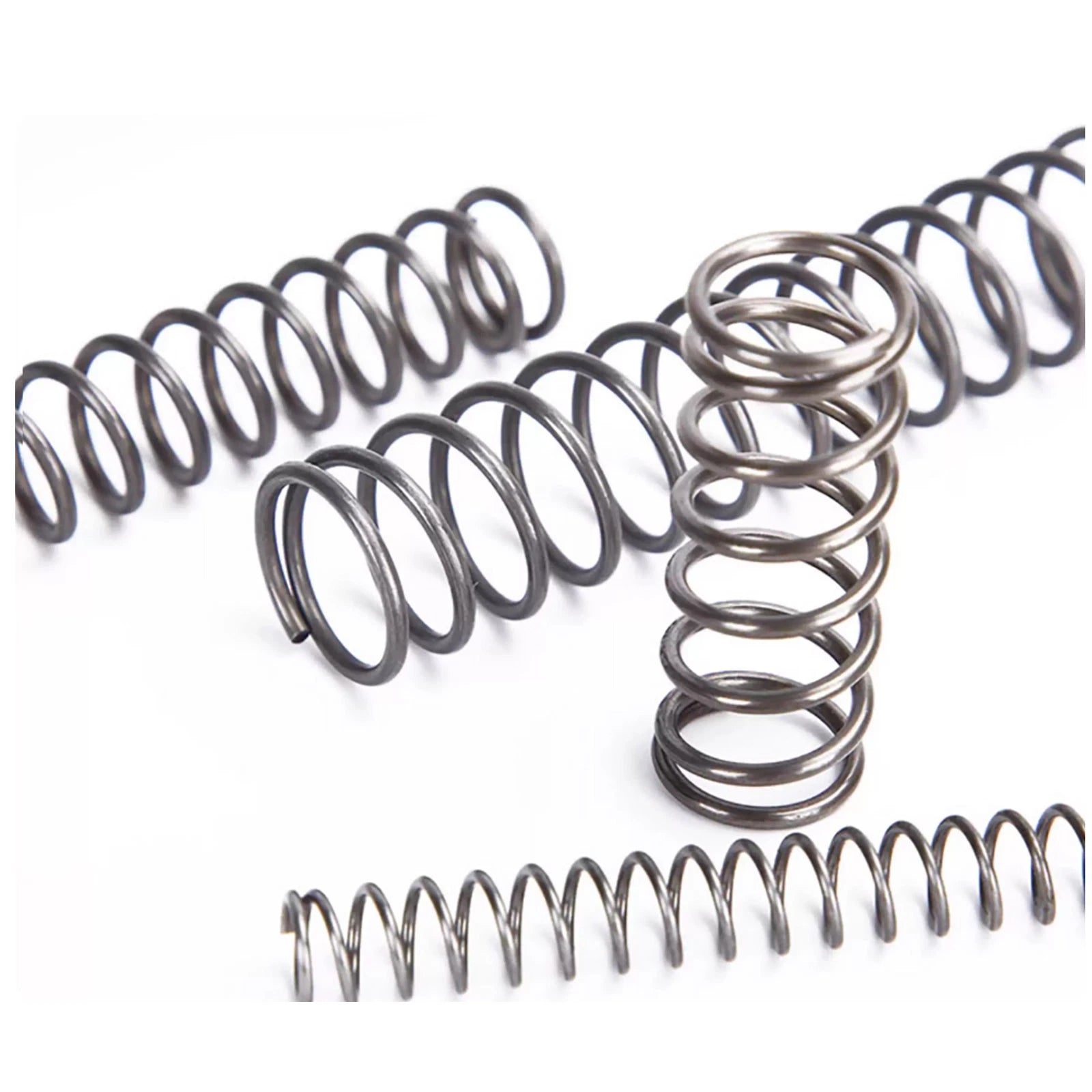

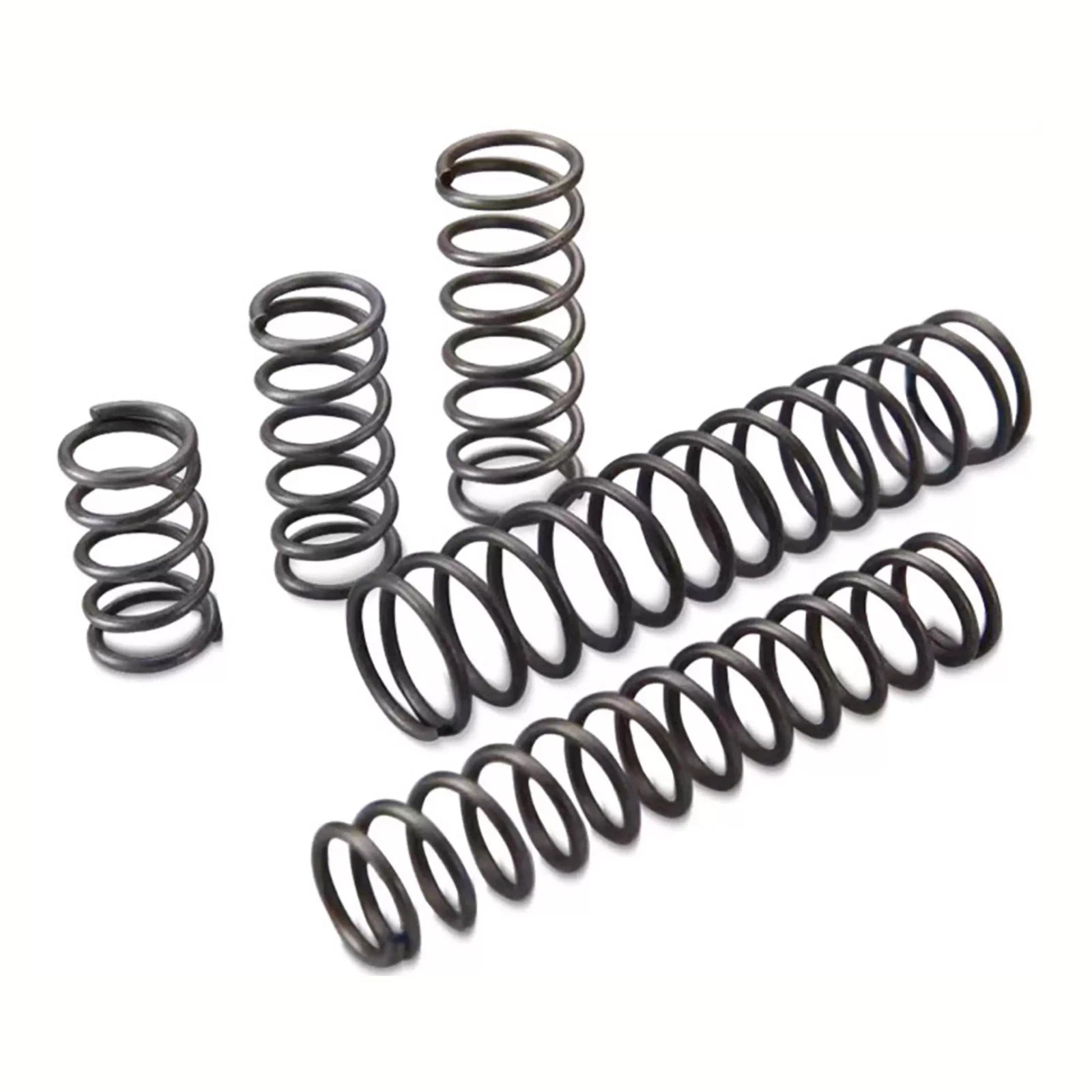

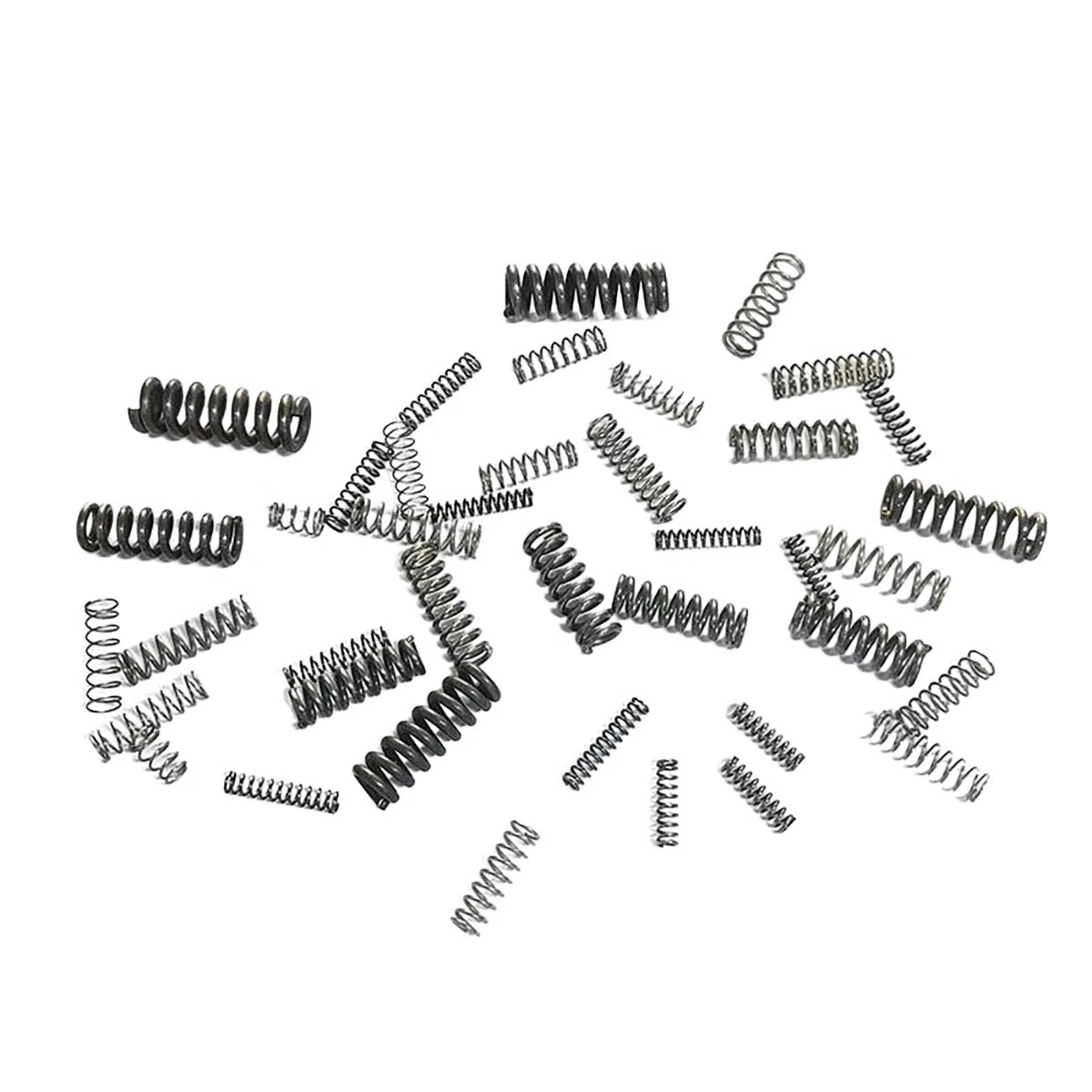

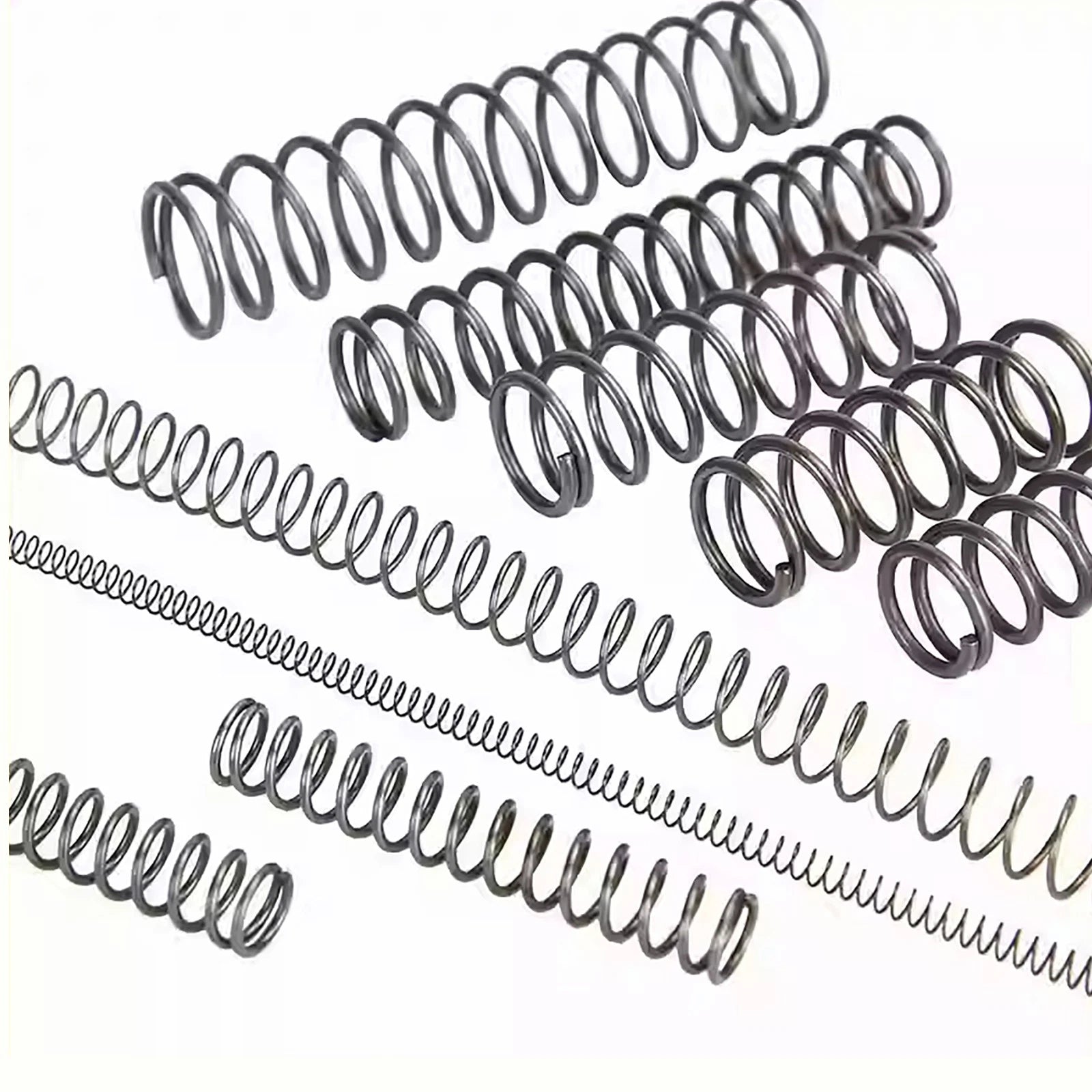

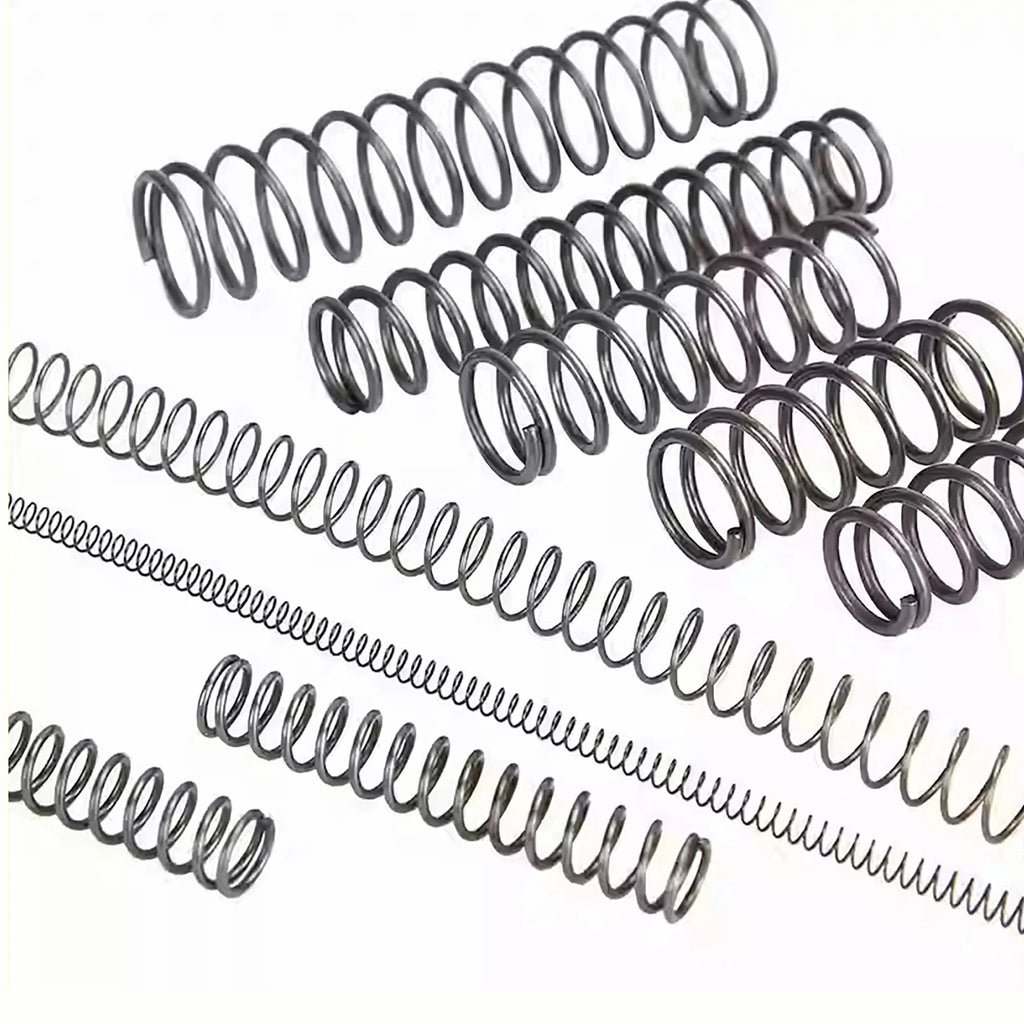

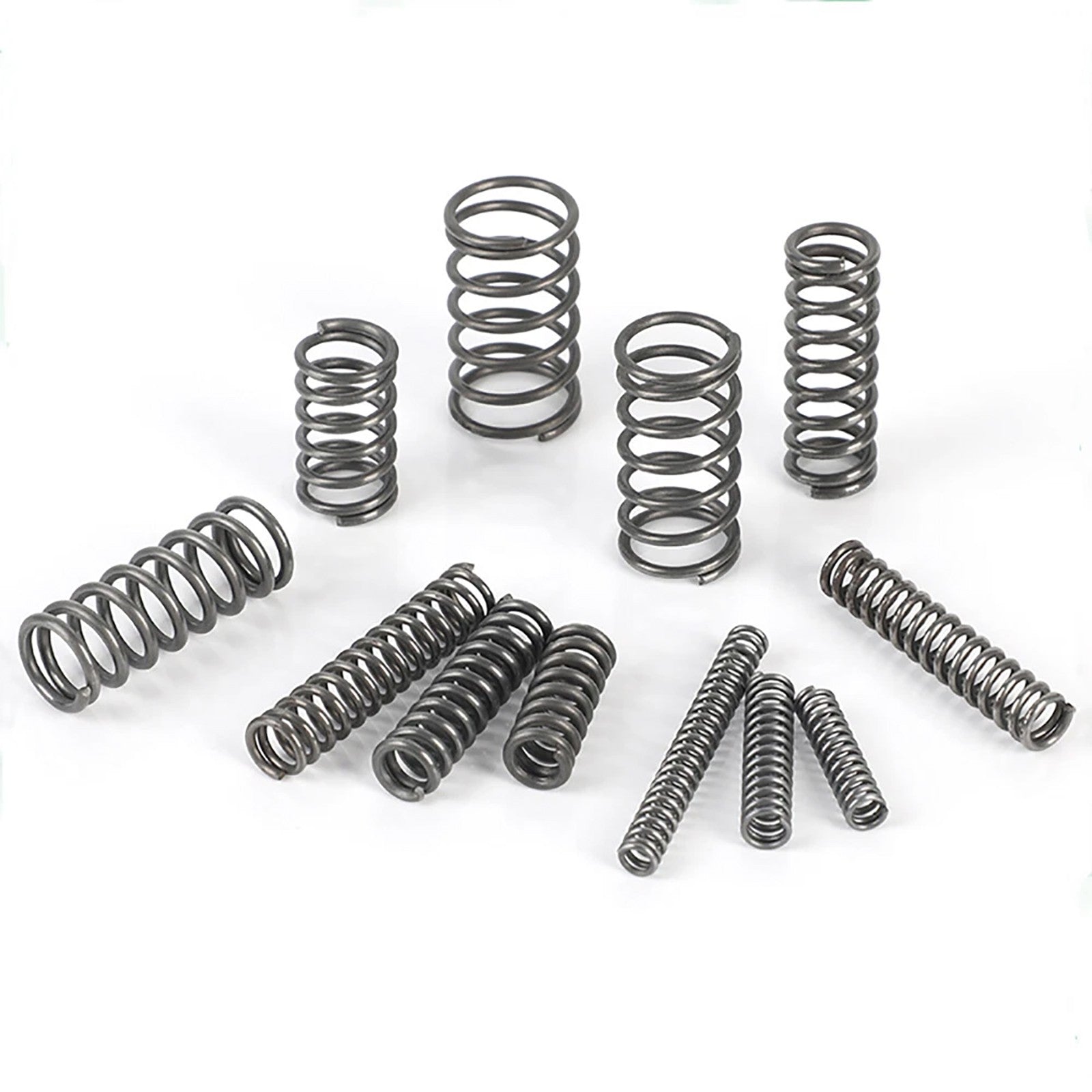

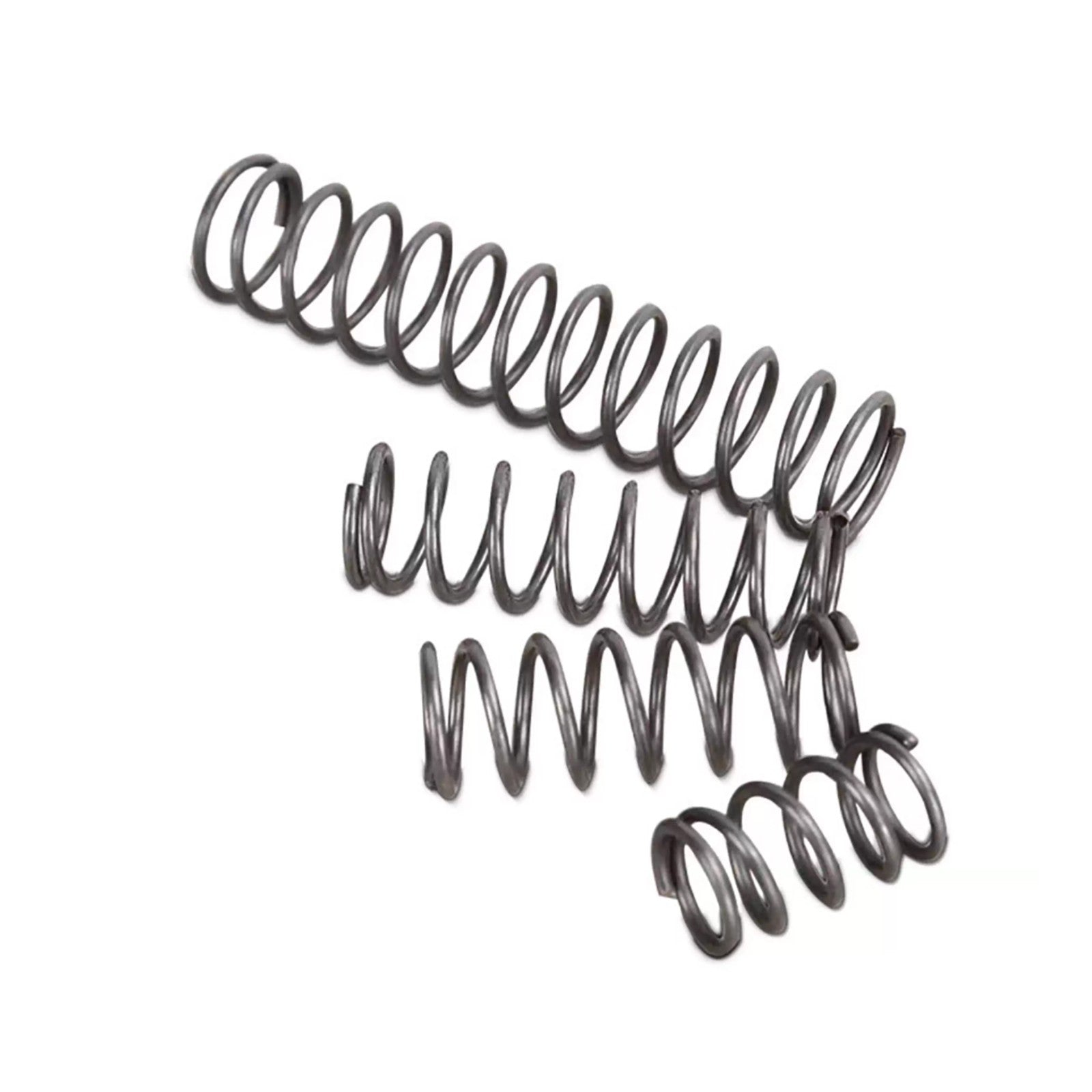

Each pack contains 10 compression springs made from carbon steel wire with a diameter of 0.6 mm (approx. 0.024 in). Outer diameters span 3 mm to 12 mm (approx. 0.12 in to 0.47 in), and free lengths range from 5 mm to 60 mm (approx. 0.20 in to 2.36 in), giving you precise control over spring rate and travel distance. The coil pitch is uniform across the body with closed and ground ends on most sizes for stable seating.
Typical use cases include replacing worn return springs in mechanical keyboards and clicky switches, providing preload in 3D-printer extruder assemblies, and acting as ejector springs in small injection-mould tooling or hobby CNC fixtures — all scenarios where a compact, consistent compression spring for small mechanisms is essential.
🔧
Compatibility: Suitable for spring-loaded buttons, latches, valves, pen mechanisms, electronics enclosures, RC models, and general DIY assemblies requiring a 0.6 mm wire compression spring with OD 3–12 mm.
✅ Key Features of These Compression Springs
🔩
0.6 mm Wire Diameter — Fine wire gauge delivers a light spring rate suited to delicate mechanisms, switches, and precision instruments without over-stressing mounting posts.
📐
Wide OD Range 3–12 mm — Ten outer-diameter options (3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 mm) let you match the exact bore or housing diameter of your project without modification.
📏
Multiple Free Lengths 5–60 mm — Eleven length options from 5 mm to 60 mm give you control over travel and preload force, covering both ultra-compact and medium-stroke applications.
⚙️
Carbon Steel Construction — Formed from carbon steel wire for consistent elasticity and fatigue resistance across repeated compression cycles in mechanical assemblies.
🛡️
Uniform Coil Pitch — Evenly spaced coils ensure straight, predictable compression without lateral buckling, critical for guided spring applications in tight bores.
📦
10-Piece Pack — Each variant ships as a pack of 10 identical springs, giving you spares for prototyping, repair, or batch production without over-ordering.
📐 Technical Specifications — Compression Springs
| Wire Diameter |
0.6 mm (0.024 in) |
| Outer Diameter (OD) |
3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 mm — See variant options |
| Free Length |
5 / 10 / 15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 / 60 mm — See variant options |
| Material |
Carbon Steel |
| Spring Type |
Compression (coil) |
| End Style |
Closed ends (typical for this wire gauge) |
| Coil Direction |
Right-hand |
| Finish |
Bare steel (uncoated) |
| Pack Quantity |
10 pieces per pack |
| Spring Rate |
See variant options (varies by OD and length) |
❓ Frequently Asked Questions
How do I choose the right outer diameter for my application?

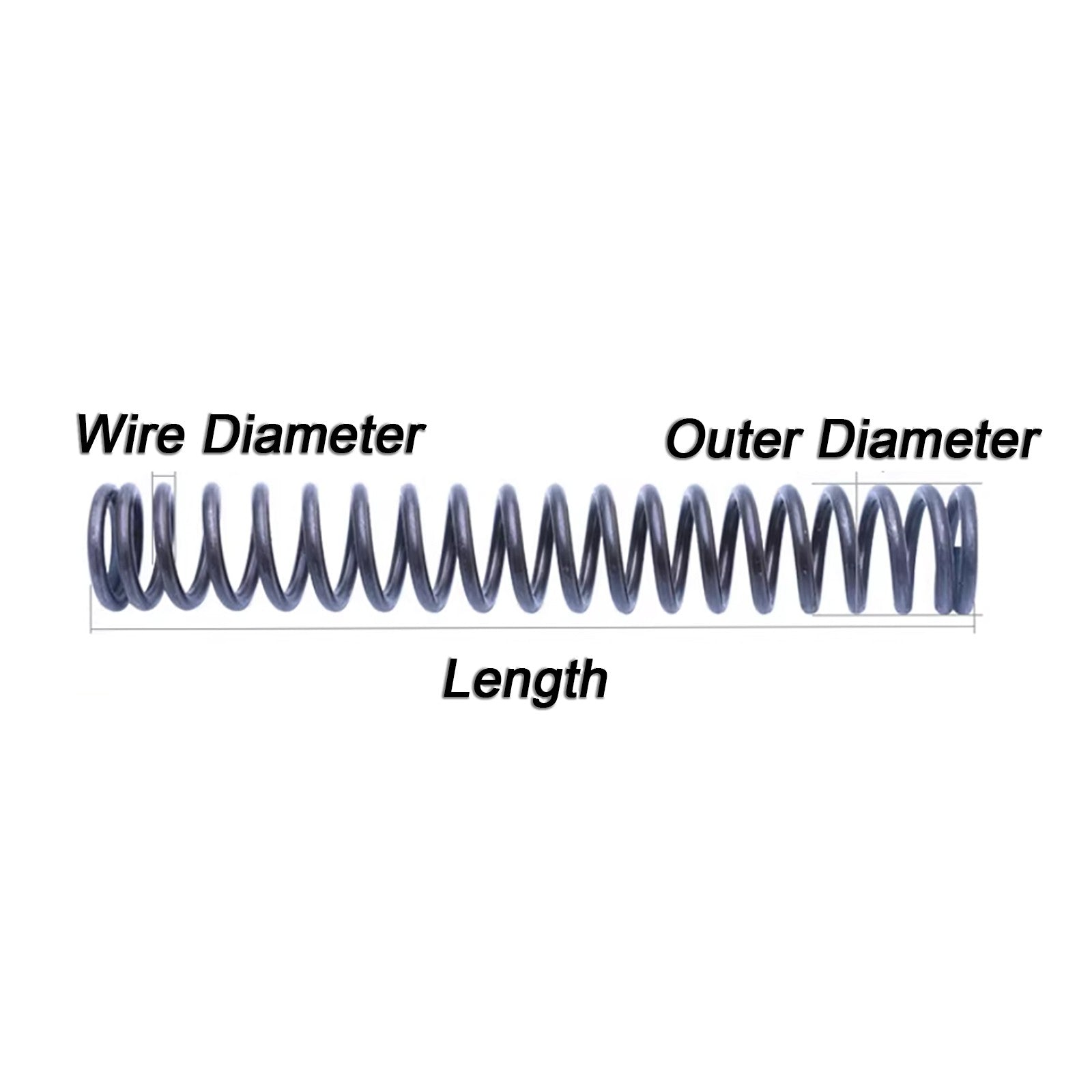

Measure the inner diameter of the bore or housing where the spring will sit. The spring's OD should be slightly smaller than the bore — typically 0.2–0.5 mm clearance — so it compresses freely without binding. For a guided post, the spring's inner diameter (OD minus 2× wire diameter) should be slightly larger than the post.
What free length should I select?
Choose a free length that is longer than your required compressed length plus the desired travel (stroke). For example, if you need 10 mm of travel and the spring will be compressed to 15 mm, select a free length of at least 25 mm. Refer to the variant options for available lengths from 5 mm to 60 mm.
Are these springs strong enough for my mechanism?
With a 0.6 mm wire diameter, these are light-duty springs designed for low-load applications such as switches, buttons, pen clips, and small latches. They are not intended for heavy industrial loads. If your application requires significant force (over a few Newtons), consider a heavier wire gauge.
Will these springs rust or corrode?
These springs are made from bare carbon steel without a protective coating. They are suitable for dry indoor environments. For humid, wet, or outdoor conditions, consider applying a light machine oil or selecting stainless steel springs to prevent surface oxidation.
Are these compatible with 3D-printer extruder or hotend assemblies?
Yes — the 0.6 mm wire / 5–6 mm OD variants are commonly used as extruder idler springs and bed-levelling springs in FDM printers. Verify the OD and free length against your printer's spring seat dimensions before ordering. The 10-piece pack provides extras for future maintenance.
Can I use these springs in electronics or PCB assemblies?
Yes. The small OD range (3–6 mm) is well suited to spring-loaded battery contacts, pogo-pin assemblies, and tactile switch return mechanisms. Ensure the spring is not in a live electrical circuit path, as bare carbon steel has moderate conductivity and no insulating coating.
How many springs do I receive per order?
Each variant you add to your cart ships as a pack of 10 identical springs of the selected wire diameter, outer diameter, and free length. If you need multiple sizes, add each size as a separate line item.
🛒 Select your Outer Diameter and Length above, then add to cart.
