When a ballpoint pen clicks but fails to retract smoothly, or a small mechanism loses its snap, the culprit is almost always a worn or undersized compression spring. Engineers, repair technicians, and DIY makers who need reliable, dimensionally consistent small springs will find these compression springs purpose-built for the task — delivering repeatable force in tight-tolerance assemblies.

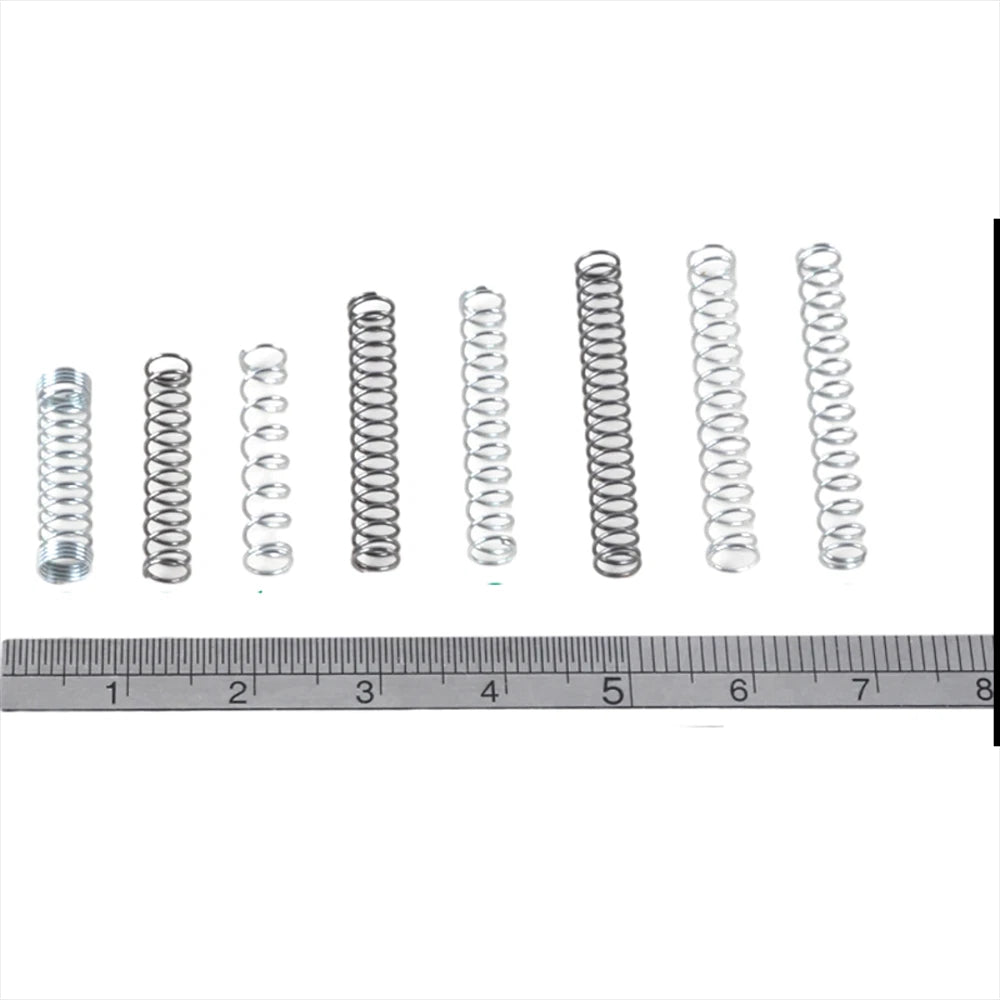

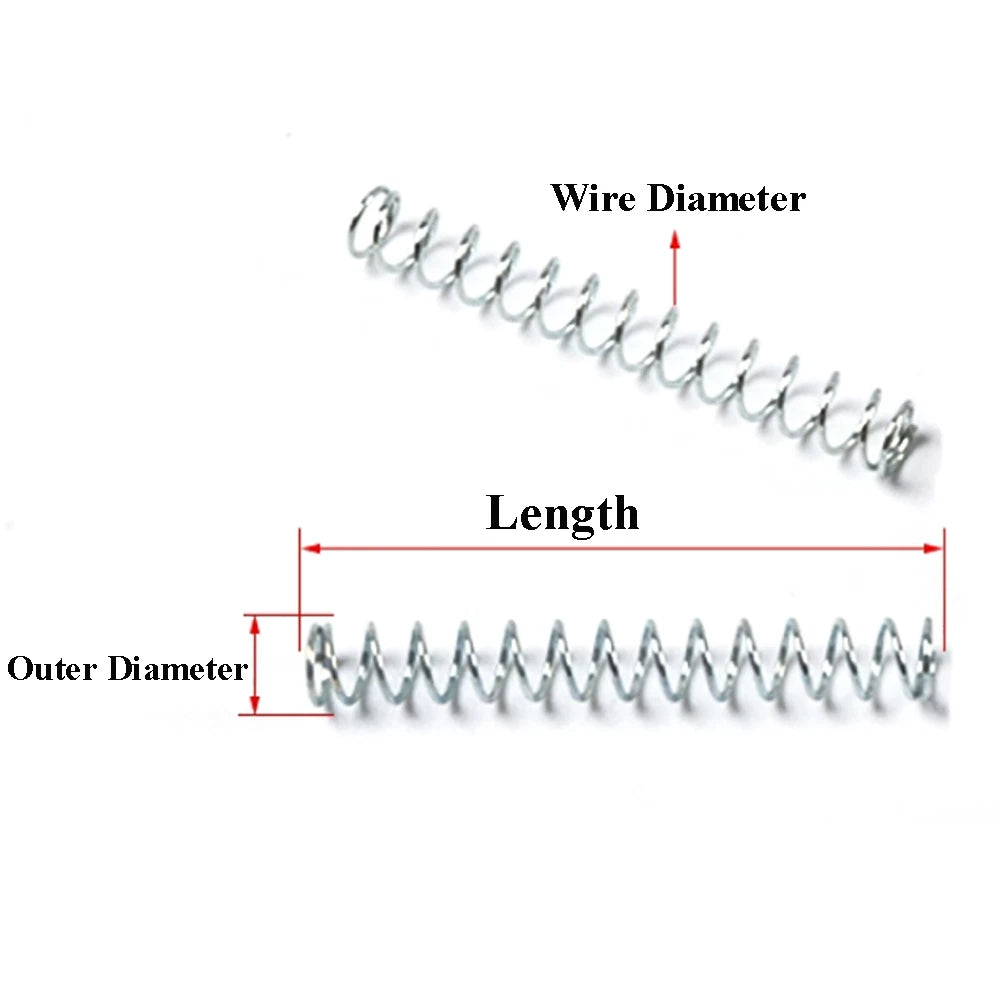

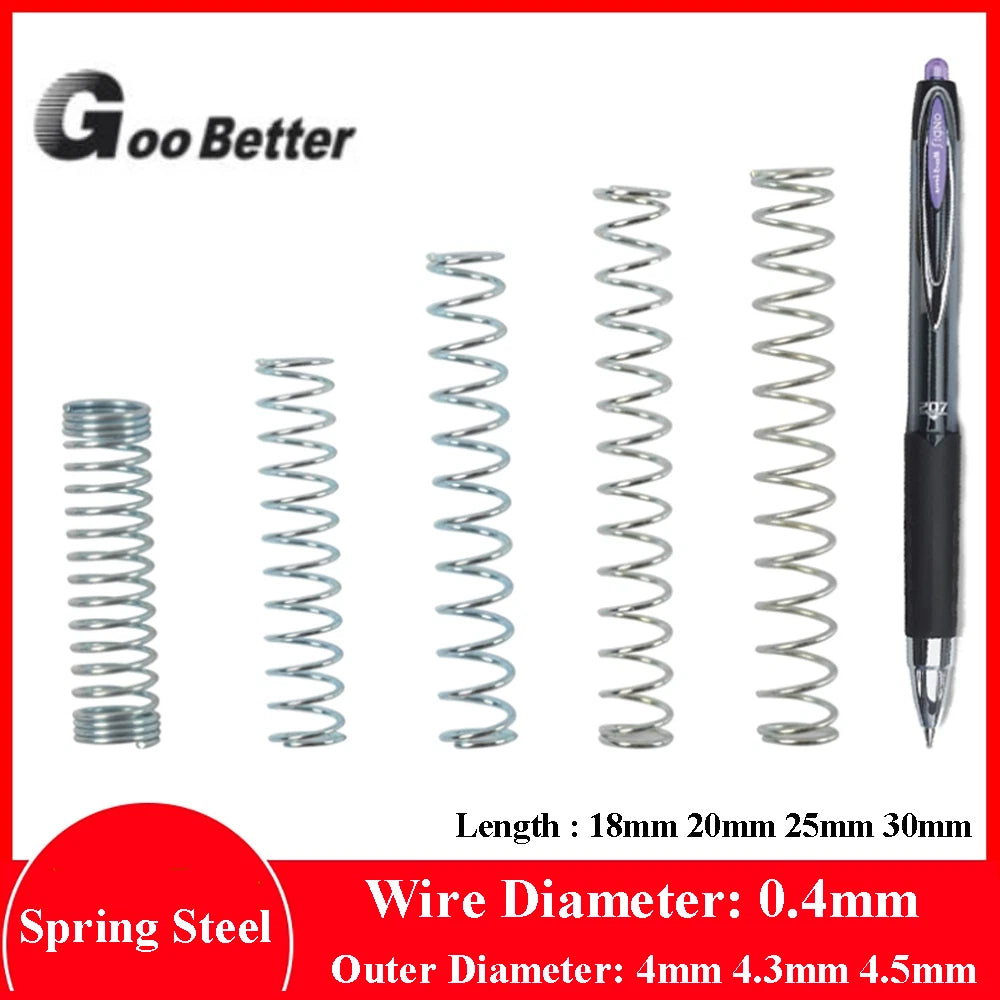

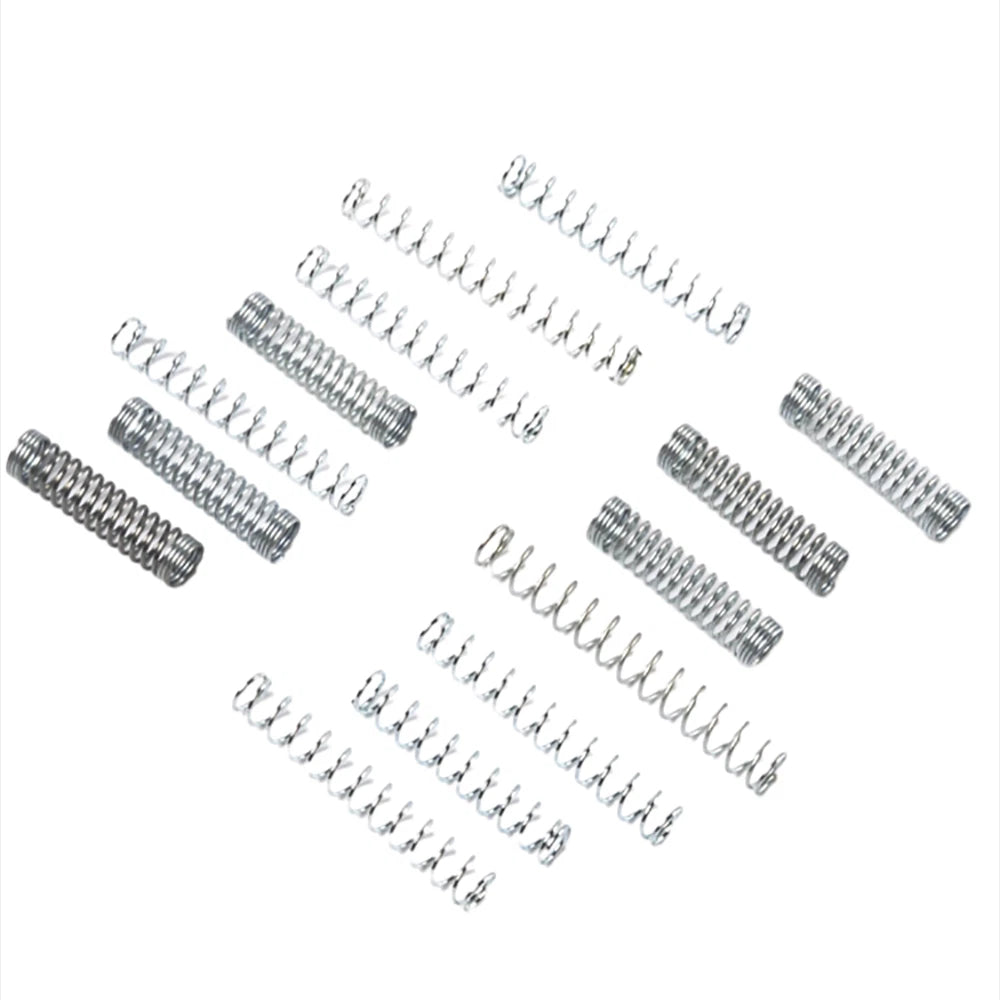

Each spring is wound from 0.4mm wire with an outer diameter ranging from 4mm to 4.5mm (approximately 0.157" to 0.177") and a free length of 18mm to 30mm (approximately 0.71" to 1.18"). Available in spring steel for maximum elasticity and fatigue resistance, or galvanized finish for added corrosion protection in humid environments.

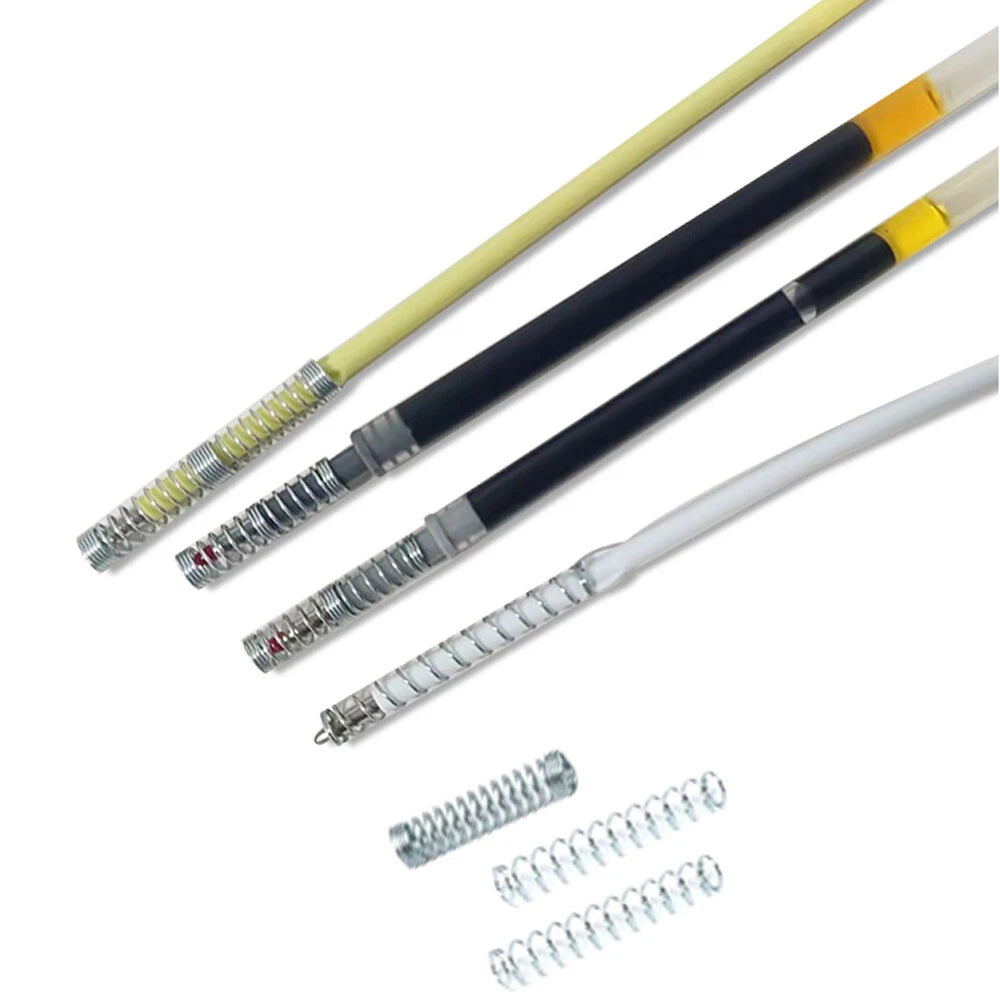

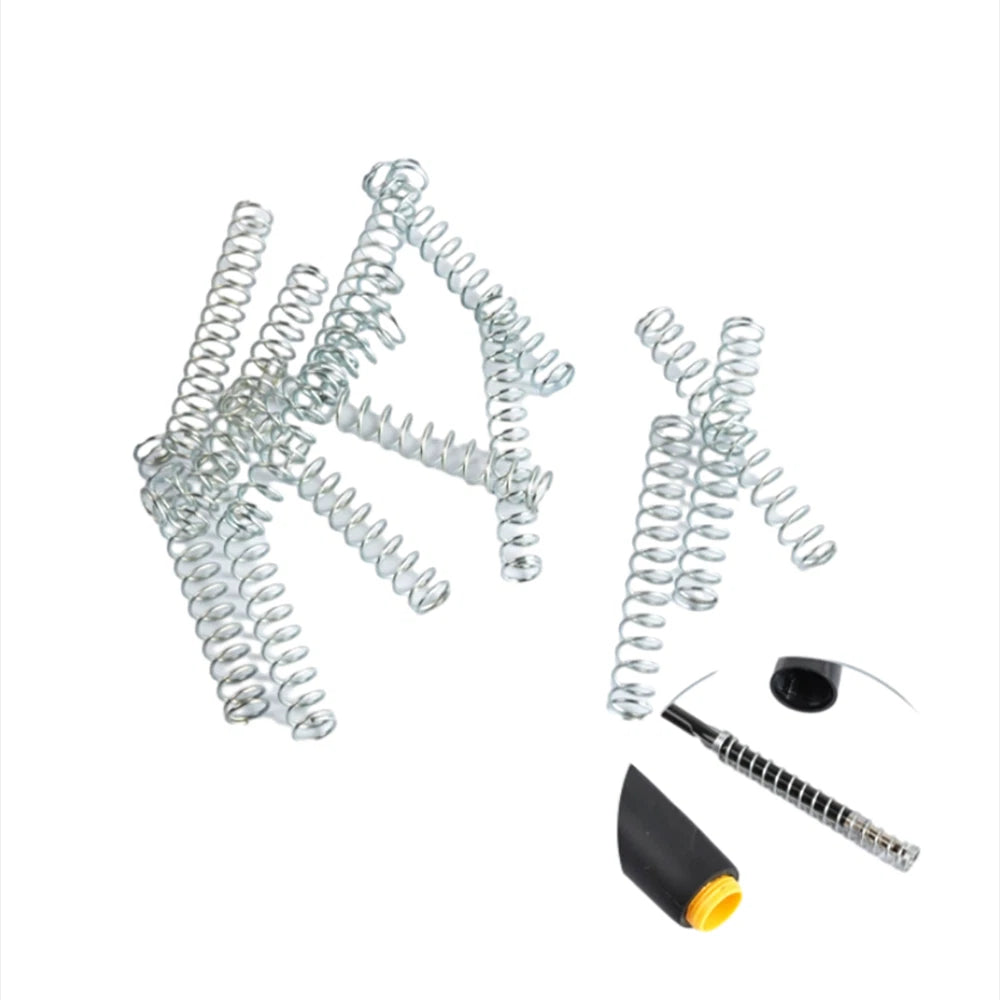

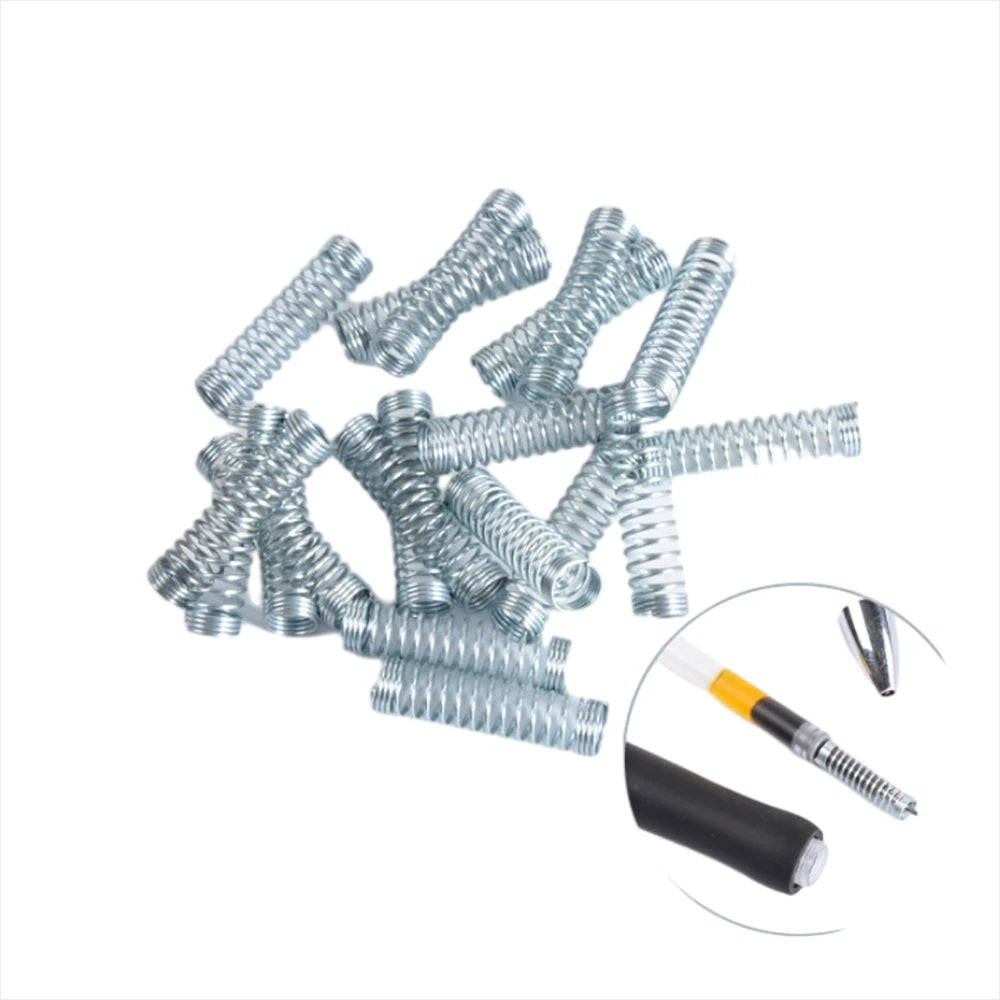

Typical applications include ballpoint pen retract mechanisms, small push-button assemblies, light-load valve returns, and precision instrument components — anywhere a compact compression spring for pen mechanisms or miniature spring replacement is required.

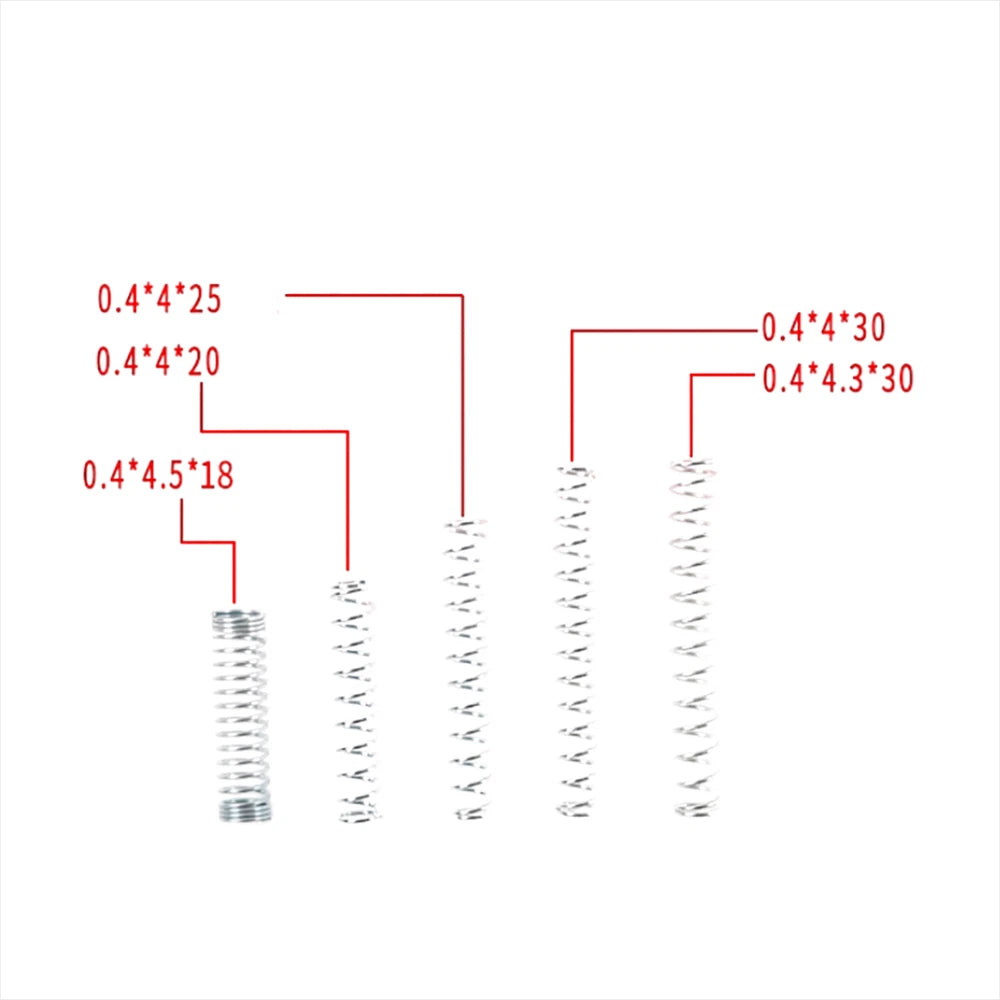

| Wire Diameter | 0.4 mm |
|---|---|
| Outer Diameter (OD) | 4 mm / 4.3 mm / 4.5 mm (see variant options) |
| Free Length | 18 mm / 20 mm / 25 mm / 30 mm (see variant options) |
| Material | Spring Steel / Galvanized Steel (see variant options) |
| Finish | Natural (Spring Steel) / Zinc-plated Galvanized (see variant options) |
| Spring Type | Compression (helical coil) |
| End Type | Close-wound / flat ends |
| Pack Quantity | 10 / 20 / 50 / 1000 pcs (see variant options) |
| Spring Rate | See variant options |
| Max Load | See variant options |

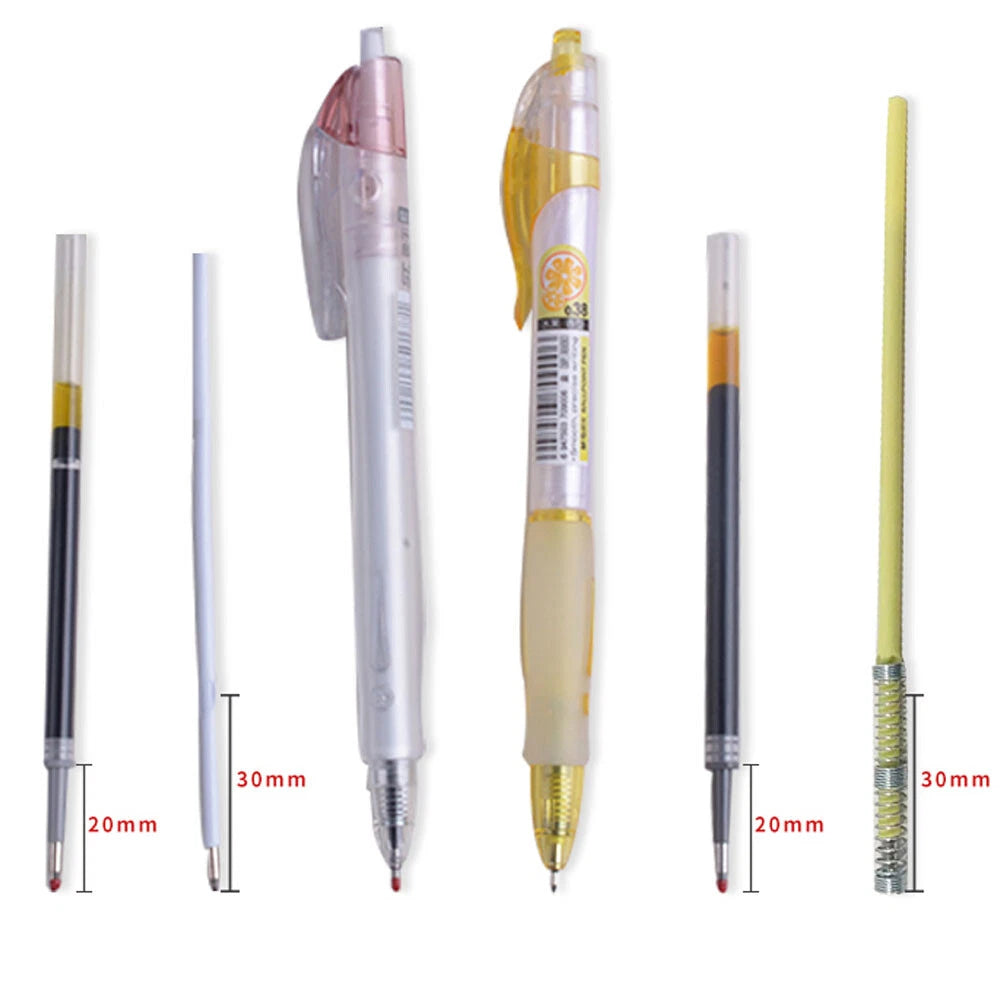

Measure the inner bore of your pen housing (the cylindrical seat where the spring sits) and the required free length when the pen is fully extended. The spring's outer diameter should be slightly smaller than the bore — for most standard ballpoint pens, the 4mm OD variants fit housings with an inner bore of approximately 4.1–4.5mm. Match the free length to the travel distance of your pen mechanism plus a small preload margin.
Spring steel variants are made from high-carbon steel wire that is heat-treated for maximum elasticity and fatigue resistance — ideal for dry indoor applications where cycle life is the priority. Galvanized variants have a zinc coating applied to the steel wire, providing corrosion protection in humid or mildly wet environments. For standard pen use, either material works well; choose galvanized if the assembly may be exposed to moisture or sweat over time.
Yes. While sized for ballpoint pen retract mechanisms, these small compression springs are also used in push-button switches, light-load valve returns, precision instrument assemblies, hobby electronics enclosures, and miniature mechanical devices. Any application requiring a helical compression spring with 0.4mm wire, 4–4.5mm OD, and 18–30mm free length is a potential fit.
Due to the small wire diameter (0.4mm) and compact coil geometry, these springs are designed for light-load applications — typically in the range of a few grams to a few hundred grams of force at working deflection. They are not intended for heavy-duty industrial clamping or high-force actuation. For exact spring rate and load data for a specific size, please contact us to confirm.
The galvanized variants offer zinc-plated corrosion protection suitable for mildly humid or occasionally damp conditions. For prolonged outdoor exposure or contact with water, additional sealing or a stainless steel alternative may be more appropriate. The spring steel (uncoated) variants are best kept in dry indoor environments to prevent surface oxidation.
For a single repair or prototype, the pack of 10 is the most economical entry point. If you are building a small batch of devices or want spares on hand, packs of 20 or 50 offer a lower per-unit cost. The 1000-piece pack is designed for production runs or resellers who need bulk compression spring stock at the lowest per-piece price.
These springs are manufactured to match common ballpoint pen spring dimensions and are not explicitly certified to a specific DIN or ISO standard. If your application requires certified spring tolerances or traceable material certifications, please contact us before ordering so we can confirm suitability.
