HTD 8M Double-Sided Timing Belt — Reliable Counter-Rotation Drive for Demanding Applications
When your drive system requires a belt that engages pulleys on both sides — whether in a serpentine layout, a counter-rotation gearbox, or a multi-shaft CNC machine — a standard single-sided belt simply won't do. Engineers, machine builders, and serious DIYers who need precise, slip-free power transmission on both the inner and outer belt surfaces turn to the DA-type HTD 8M double-sided timing belt to solve that exact problem without redesigning the entire drivetrain.

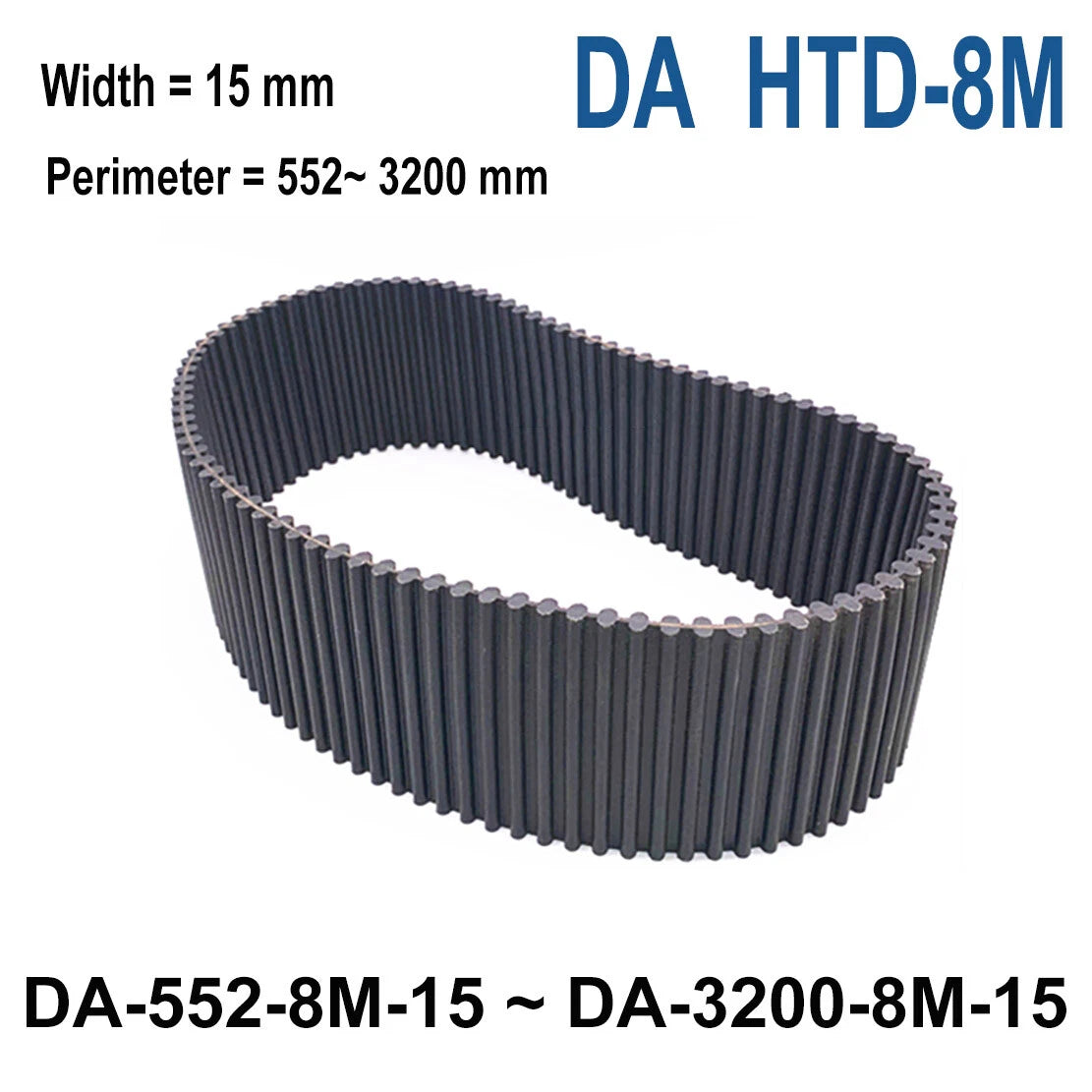

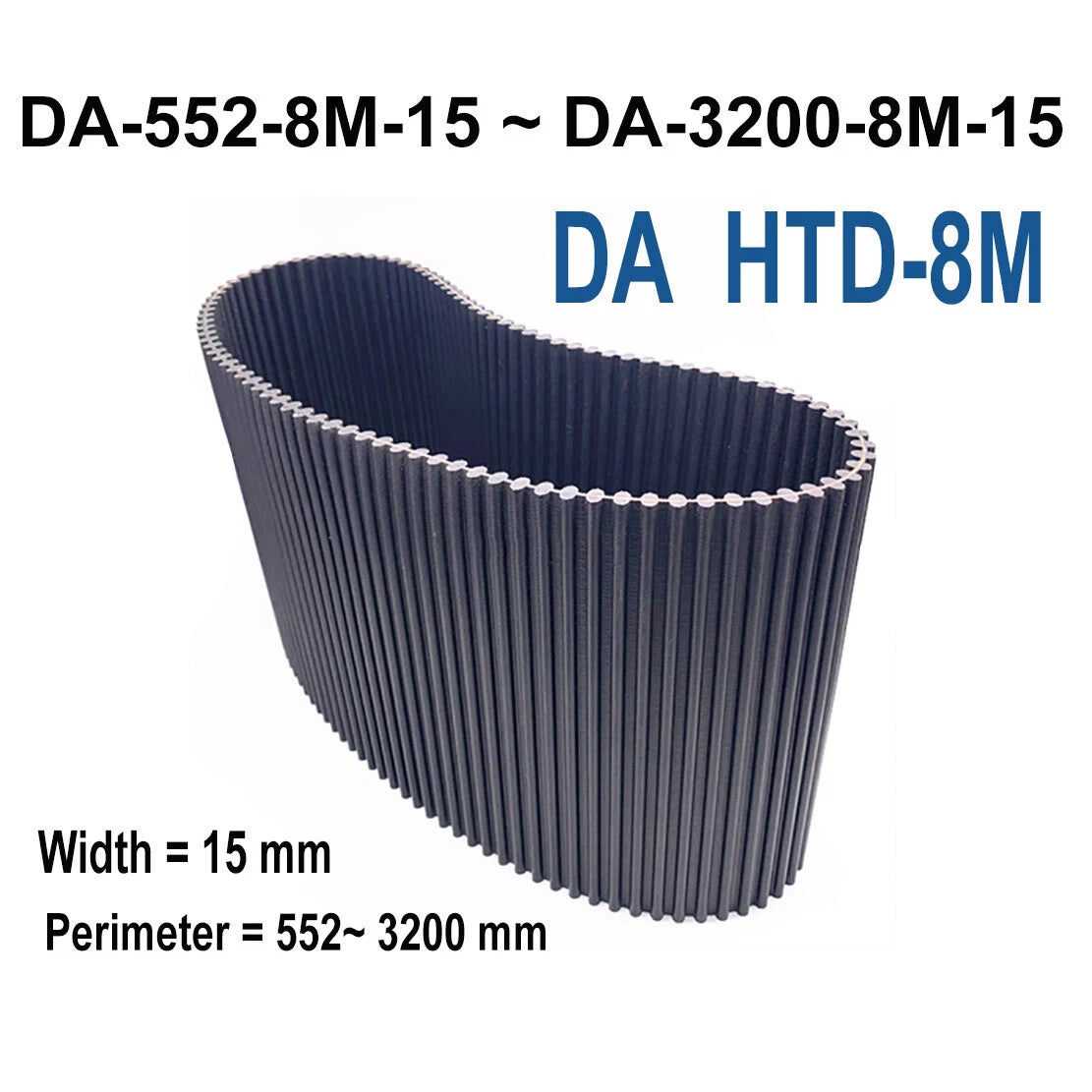

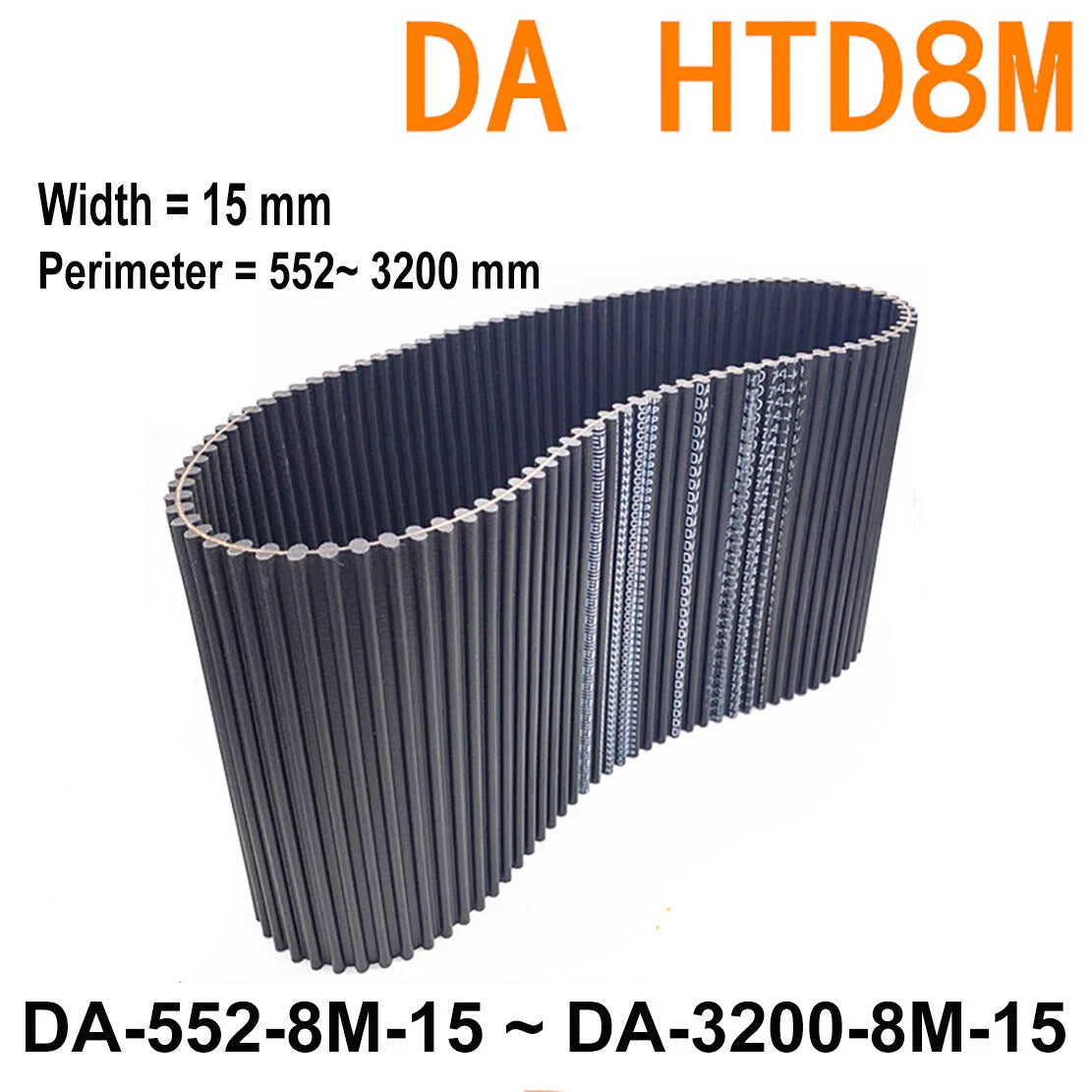

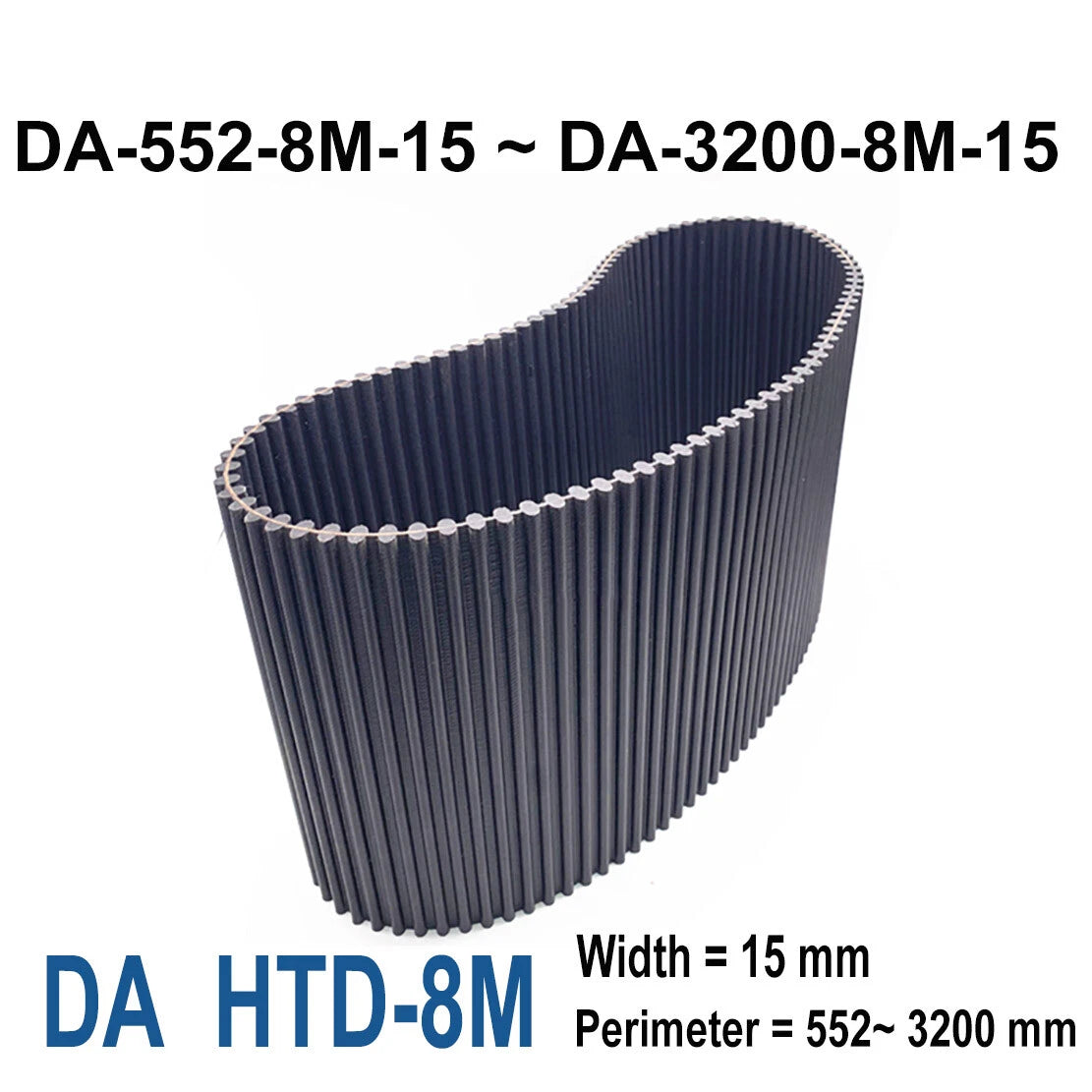

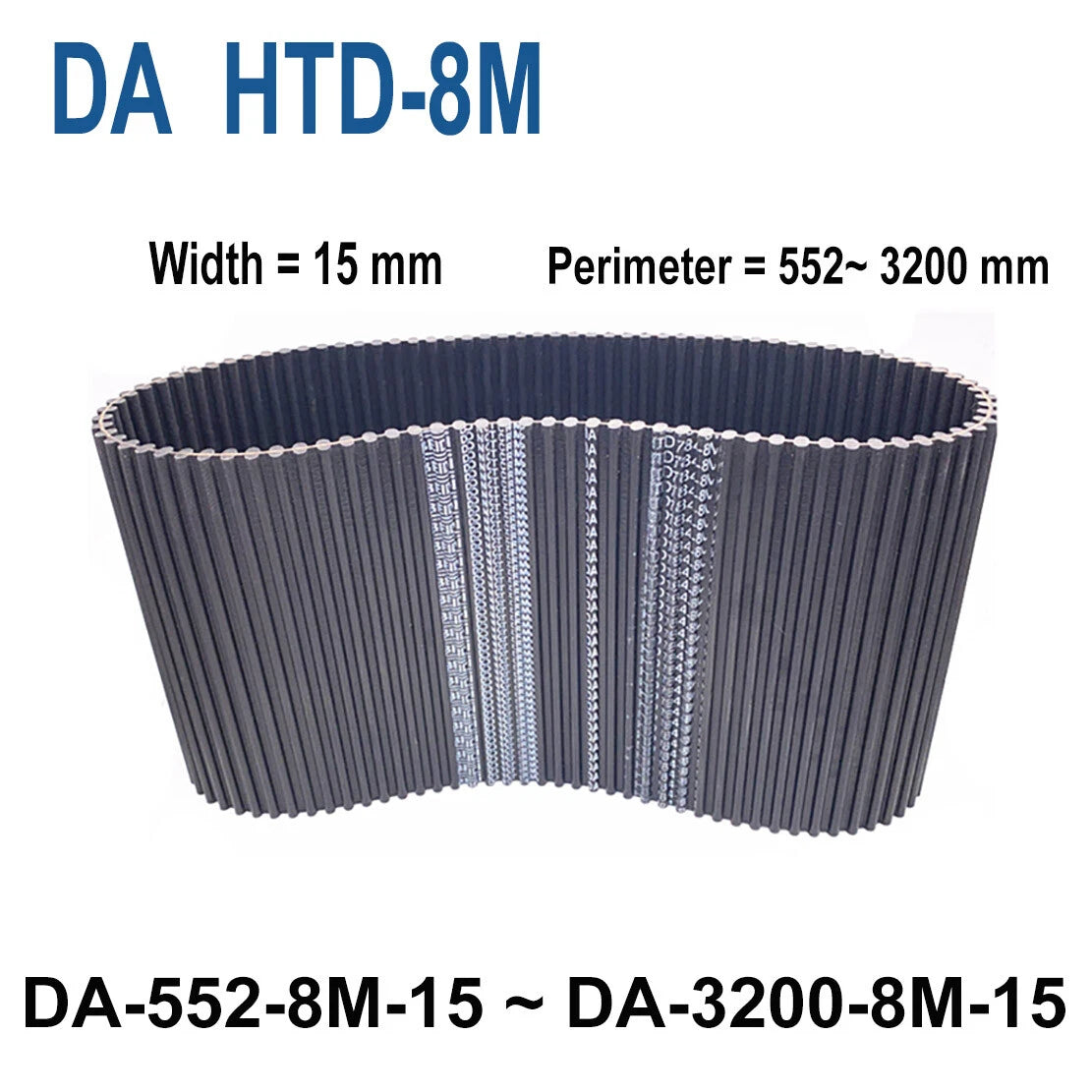

Each belt in this listing is a closed-loop HTD 8M double-sided timing belt with a 15mm (≈0.59") belt width and an 8mm tooth pitch. The "DA" designation confirms teeth on both faces. Available perimeters run from 552mm (≈21.7") up to 3200mm (≈126.0"), covering 70 discrete sizes — each identified in the variant selector as DA-[perimeter]-8M-[tooth count]. Construction is typically neoprene rubber with a fiberglass or steel tensile cord and a nylon tooth-facing fabric for reduced wear and consistent tooth engagement.
Typical use cases include CNC router and laser cutter axis drives requiring synchronized counter-rotation, industrial conveyor systems with serpentine belt paths, 3D printer and motion-control builds using dual-drive extruder or gantry setups, and agricultural or HVAC equipment where a single belt must power accessories on both sides of the drive. The HTD 8M double-sided timing belt is also a direct replacement part for many OEM drive systems that specify an 8mm-pitch dual-tooth synchronous belt.
ℹ️ Compatibility: Fits HTD 8M pulleys/sprockets only (8mm pitch, curved tooth profile). Not compatible with trapezoidal (XL, L, H), GT2, or GT3 pulleys. Confirm your pulley is rated for the HTD 8M tooth form before ordering.
✅ Key Features of These HTD 8M Double-Sided Timing Belts
-
⚙️ Dual-Face Tooth Design — Teeth on both inner and outer surfaces enable serpentine and counter-rotation drive layouts without additional idler pulleys, simplifying complex multi-shaft machine builds.
-
📐 8mm HTD Pitch for High Torque Transfer — The HTD (High Torque Drive) 8M tooth profile distributes load across a broader tooth root than trapezoidal belts, reducing tooth shear stress in moderate-to-heavy duty synchronous drive applications.
-
📏 70 Perimeter Sizes — 552mm to 3200mm — From compact 552mm (≈21.7") loops for tight machine enclosures to 3200mm (≈126.0") runs for large-format equipment, every size is stocked and ready to ship.
-
🔩 15mm Consistent Belt Width — A uniform 15mm (≈0.59") width across all perimeter variants ensures the same pulley flange clearance and tensioner setup regardless of which loop length you select.
-
🛡️ Nylon Tooth Facing for Wear Resistance — The nylon fabric bonded to the tooth surface reduces friction against pulley grooves, extending service life in continuous-duty drives compared to bare rubber tooth belts.
-
🔄 Slip-Free Synchronous Operation — Positive tooth engagement eliminates the speed variation and creep associated with V-belts or flat belts, making this HTD 8M double-sided timing belt suitable for position-critical CNC and automation drives.

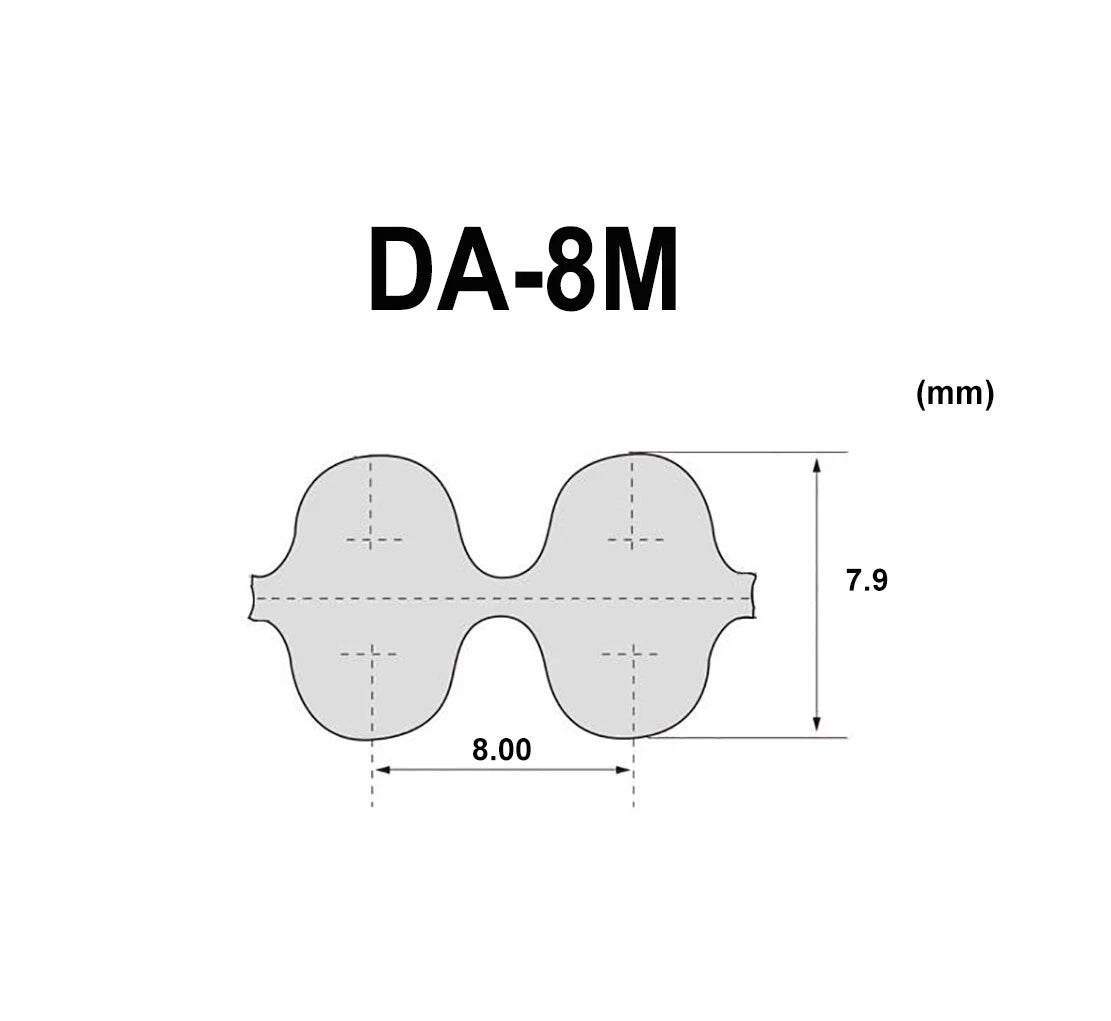

📐 Technical Specifications — HTD 8M Double-Sided Timing Belt
| Belt Type |
DA (Double-sided / Dual-tooth) Synchronous Timing Belt |
| Tooth Profile |
HTD (High Torque Drive) — curved/round tooth form |
| Pitch |
8mm (0.315") |
| Belt Width |
15mm (≈0.59") |
| Perimeter Range |
552mm (≈21.7") — 3200mm (≈126.0") | 70 sizes available |
| Tooth Count Range |

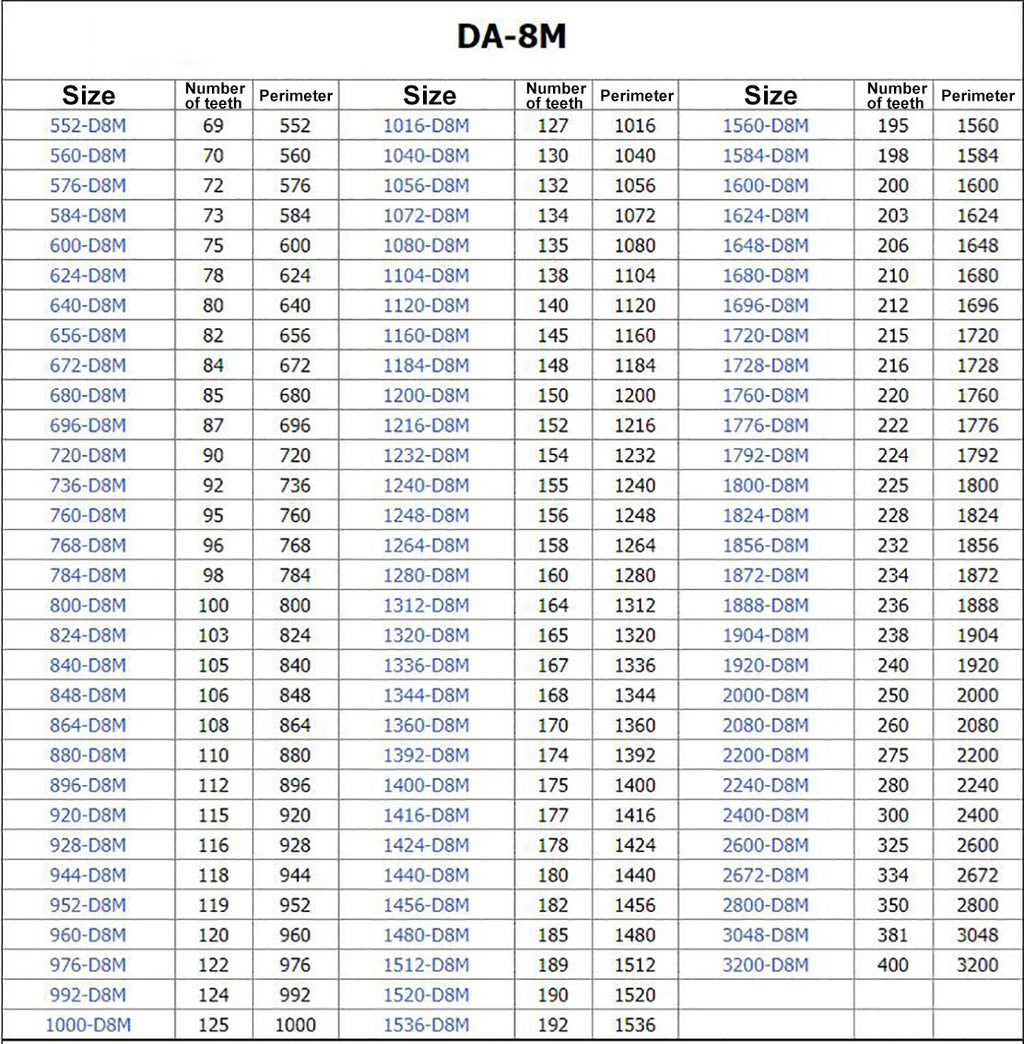

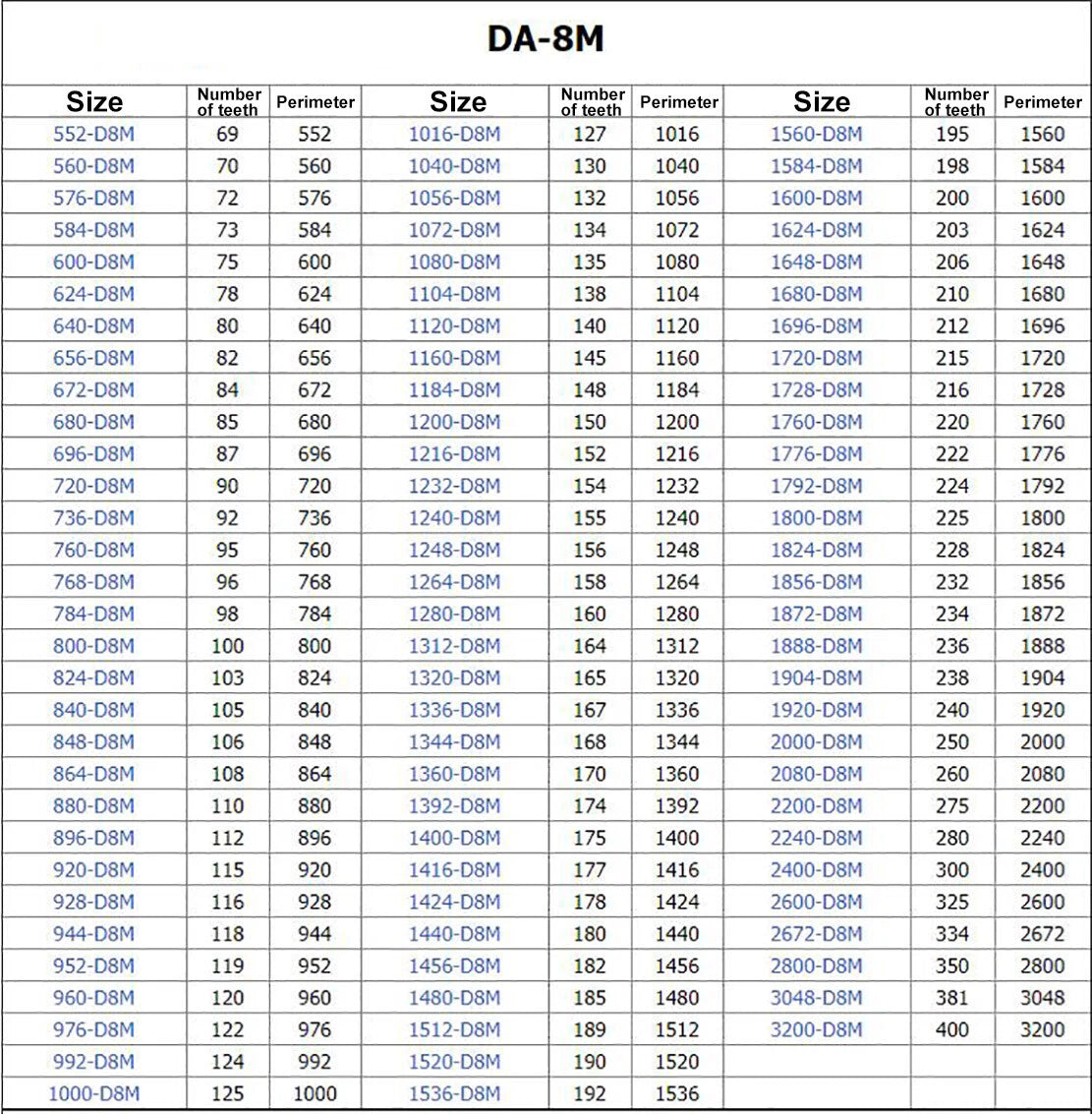

69 teeth (DA-552) — 400 teeth (DA-3200) |
| Body Material |
Neoprene rubber (typically); polyurethane variants available — see variant options |
| Tensile Cord |
Fiberglass or steel-reinforced (contact us to confirm for specific size) |
| Tooth Facing |
Nylon fabric (both sides) |
| Operating Temperature |
Typically –30°C to +80°C (–22°F to +176°F) |
| Compatible Pulley Standard |
HTD 8M only (8mm pitch, curved groove) |
| Sold As |
1 belt per order (single closed loop) |
| Color |
See variant options |
⚠️ Size Selection Tip: The variant format is DA-[perimeter mm]-8M-[tooth count]. Verify your required perimeter in millimeters before adding to cart. If you are unsure, measure your existing belt or calculate from pulley center distance.
❓ Frequently Asked Questions
How do I choose the right perimeter (circumference) for my application?
Measure the center-to-center distance between your two pulleys, then calculate the belt path length: approximately 2 × center distance + π × (pulley pitch diameter sum / 2). Match that figure to the DA-[perimeter] value in the variant list. For reference, DA-552 = 552mm (≈21.7") and DA-1600 = 1600mm (≈63.0"). When in doubt, size up by one increment — a slightly longer belt is easier to tension than one that is too short.
What does the tooth count number in the variant name mean?
The last number in the variant code (e.g., DA-552-8M-69) is the total number of teeth on the belt. It is derived by dividing the perimeter by the pitch: 552mm ÷ 8mm = 69 teeth. You can use this figure to verify pulley-to-belt tooth engagement ratios in your drive design.
What tensile strength and load capacity can I expect from this belt?
HTD 8M belts in the 15mm width class are generally rated for moderate-to-heavy power transmission. Typical tensile cord construction uses fiberglass or steel-reinforced cords embedded in neoprene or polyurethane. Exact load ratings depend on pulley diameter, speed, and wrap angle — consult your drive design software or contact us to confirm suitability for your specific application.
Can this belt be used outdoors or in wet / oily environments?
HTD 8M timing belts are typically constructed from neoprene rubber with a nylon tooth facing, which provides good resistance to moisture, mild oils, and moderate temperature ranges (generally –30°C to +80°C / –22°F to +176°F). They are not recommended for prolonged immersion or exposure to aggressive solvents. For harsh outdoor or chemical environments, contact us to confirm material compatibility before ordering.
What pulley standard is compatible with this belt?
This belt uses the HTD (High Torque Drive) 8M tooth profile with an 8mm pitch. It is compatible with HTD 8M pulleys/sprockets only — it is not interchangeable with standard trapezoidal (MXL, XL, L, H) or GT2/GT3 profile pulleys of the same pitch. Always verify that your pulley is specifically rated for the HTD 8M tooth form before ordering.
Why would I need a double-sided (DA) timing belt instead of a single-sided one?
Double-sided timing belts (DA type) have teeth on both the inner and outer surfaces. This allows the belt to drive pulleys on both sides simultaneously — useful in serpentine drive layouts, counter-rotation applications, or systems where a single belt must engage multiple shafts running in opposite directions. If your drive only requires engagement on one side, a standard single-sided HTD 8M belt is sufficient.
How do I convert the perimeter from millimeters to inches?
Divide the millimeter value by 25.4. Quick reference examples:
- 552mm ÷ 25.4 ≈ 21.7"
- 1600mm ÷ 25.4 ≈ 63.0"
- 3200mm ÷ 25.4 ≈ 126.0"
All 70 size options are listed in the variant dropdown in millimeter format (DA-[perimeter]-8M-[teeth]).
🛒 Select your size (perimeter and tooth count) above, then add to cart — ships from our US warehouse.
