Door Hinge Installation Kit — Precision Mortising Made Simple
Hanging a door used to mean hours of chiseling, measuring twice, and still ending up with a gap that won't close right. Whether you're a weekend DIYer replacing interior doors or a carpenter fitting dozens of hinges on a job site, misaligned mortises cost time and money. This door hinge installation kit gives you a repeatable, router-guided system that locks in the correct position every time — no guesswork, no freehand routing.

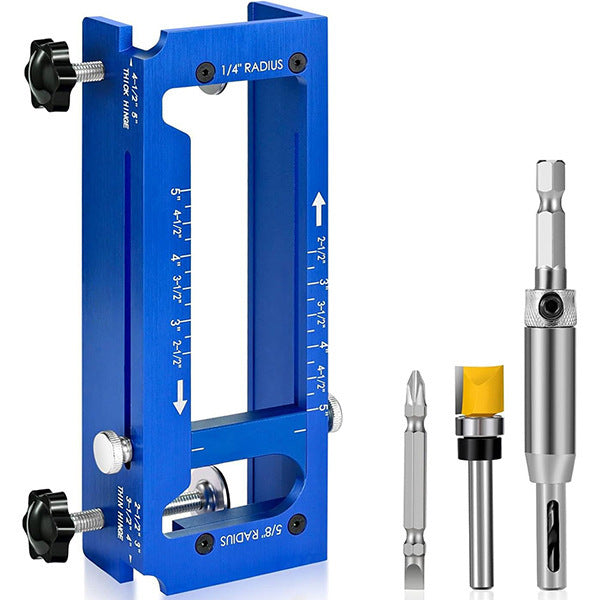

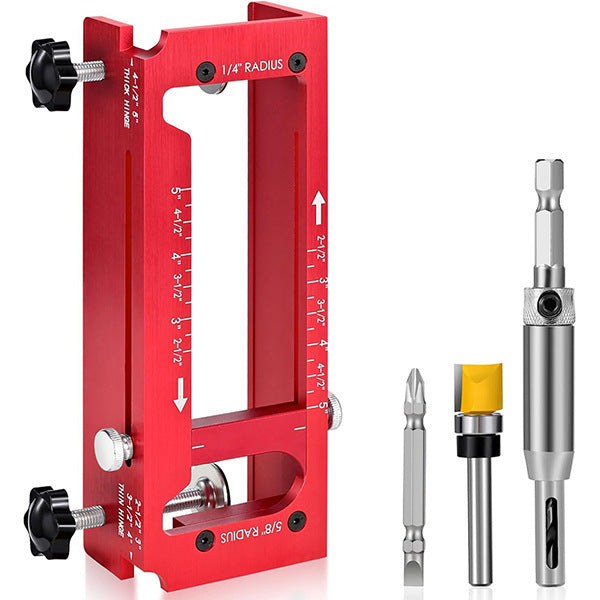

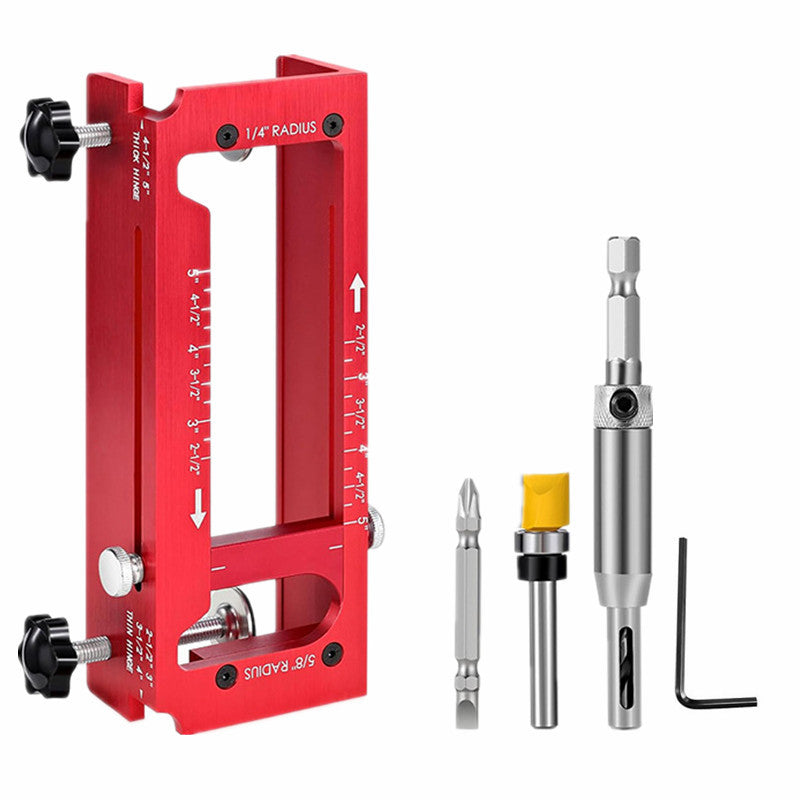

The kit centers on a heavy-duty red (or blue) anodized aluminum jig body with built-in depth gauge markings. It ships with three accessories: a straight router bit for cutting clean hinge mortises, a self-centering hinge bit for drilling perfectly centered pilot holes, and a double-ended driver bit for driving screws into the door. The jig body measures approximately 22 × 8 × 5 cm and weighs 0.76 kg.
Use it to mortise interior passage doors, exterior entry doors, cabinet doors, and furniture lids. The adjustable sliding guide accommodates hinge lengths from 2-1/2" to 5", making it equally at home on a quick bedroom door swap, a full kitchen cabinet build, or a professional door-hanging contract.
✅ Compatible with thin hinges (2-1/2", 3", 3-1/2", 4") and thick hinges (4-1/2", 5") — supports 1/4" and 5/8" corner radius mortises.
Key Features
- 🔴 Anodized Aluminum Jig Body — Rigid, lightweight aluminum construction resists flex during routing for consistent mortise depth and clean edges on every pass.
- 📐 Dual Radius Corner Support — Built-in 1/4" and 5/8" radius guides let you match the exact corner profile of your hinge without swapping templates.

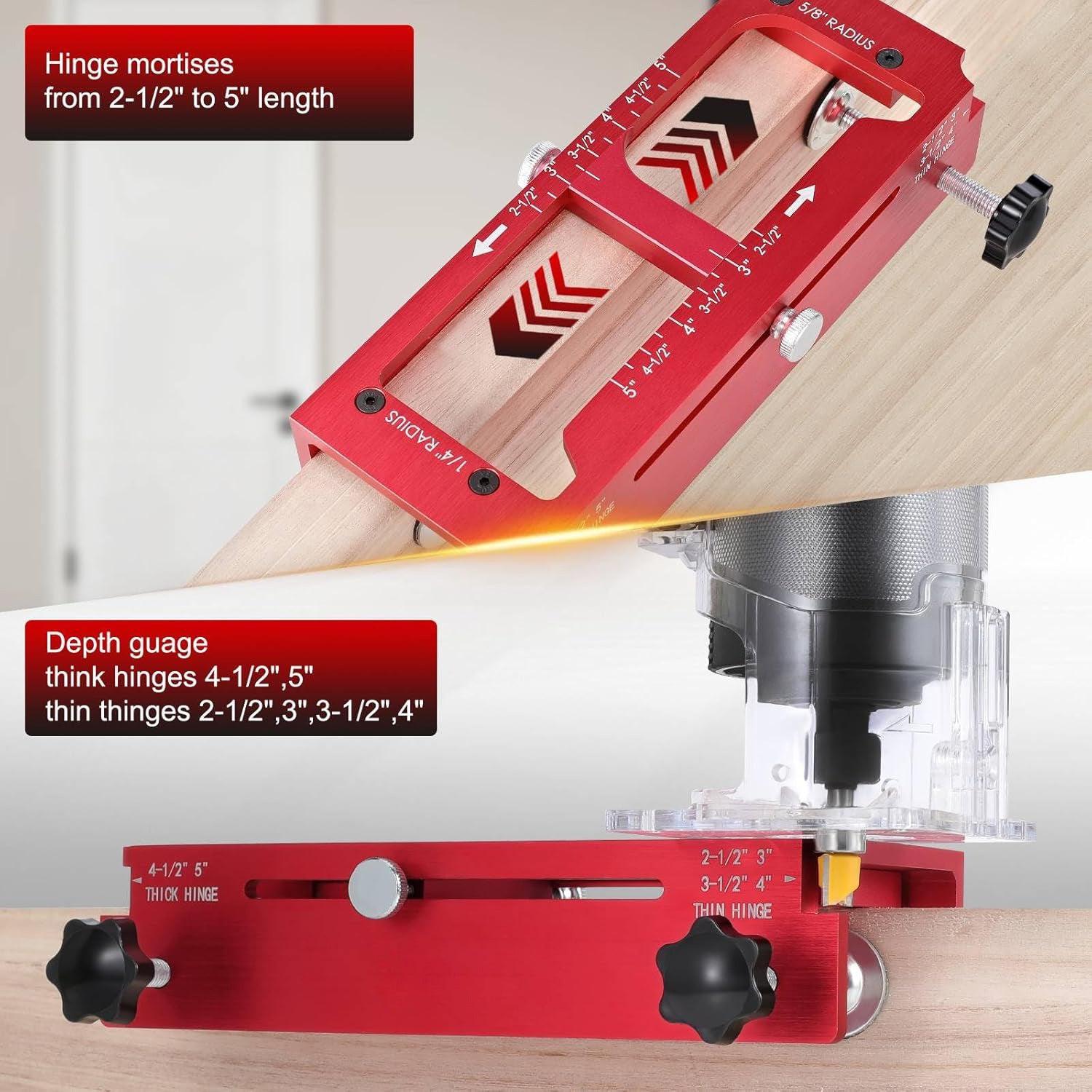

- 📏 Integrated Depth Gauge — Engraved markings for thick hinges (4-1/2", 5") and thin hinges (2-1/2", 3", 3-1/2", 4") let you set router depth in seconds.
- 🎯 Self-Centering Hinge Bit Included — Spring-loaded self-centering drill bit automatically finds the center of each hinge screw hole, eliminating pilot-hole drift.

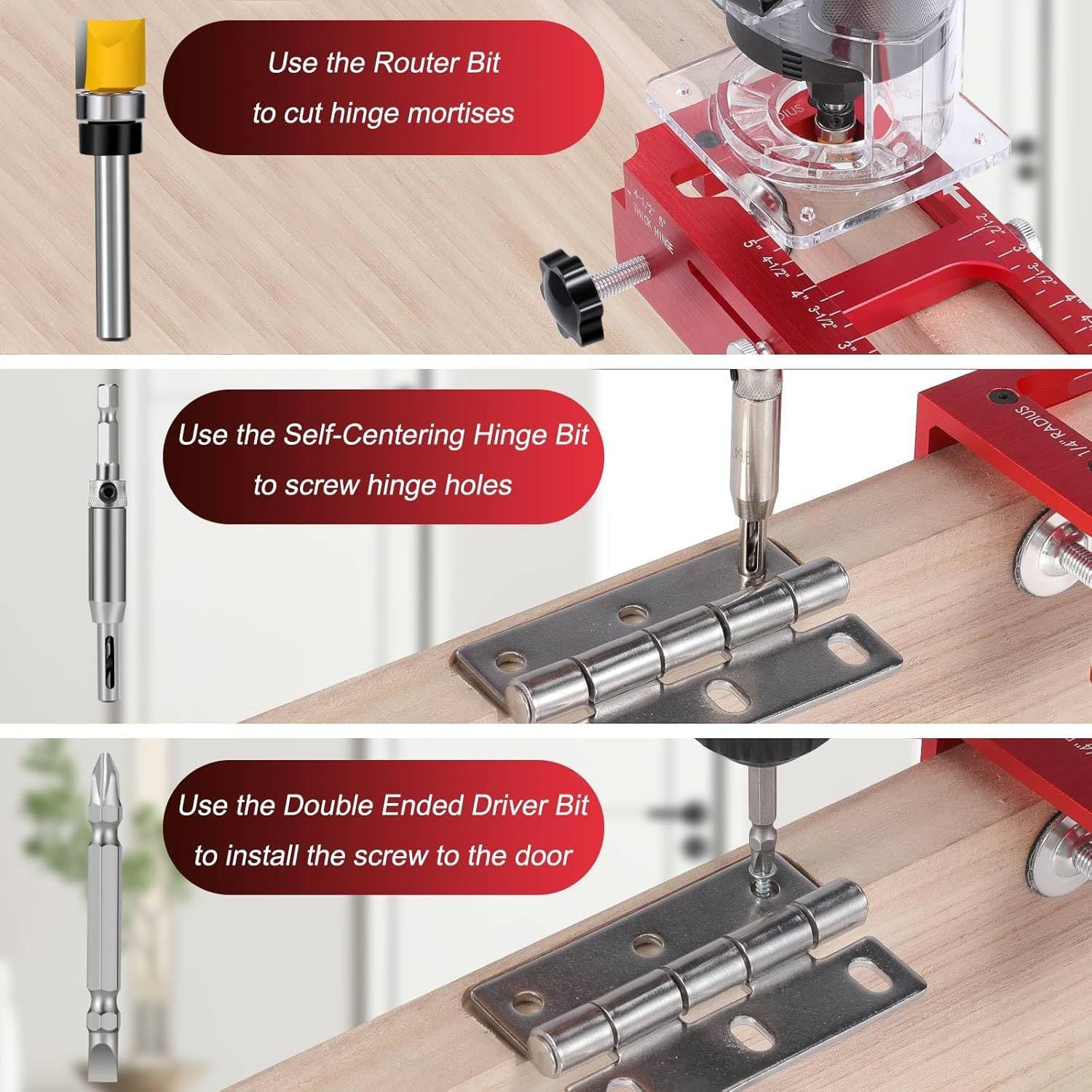

- 🔩 Complete 3-Piece Accessory Set — Router bit, self-centering hinge bit, and double-ended driver bit cover every step from mortising to final screw installation in one kit.
- 🔒 Secure Clamp System — Knob-tightened clamps grip the door edge firmly so the jig stays locked in position throughout routing — no slipping, no re-clamping mid-cut.
Who Is This For
🔧 DIY Homeowners

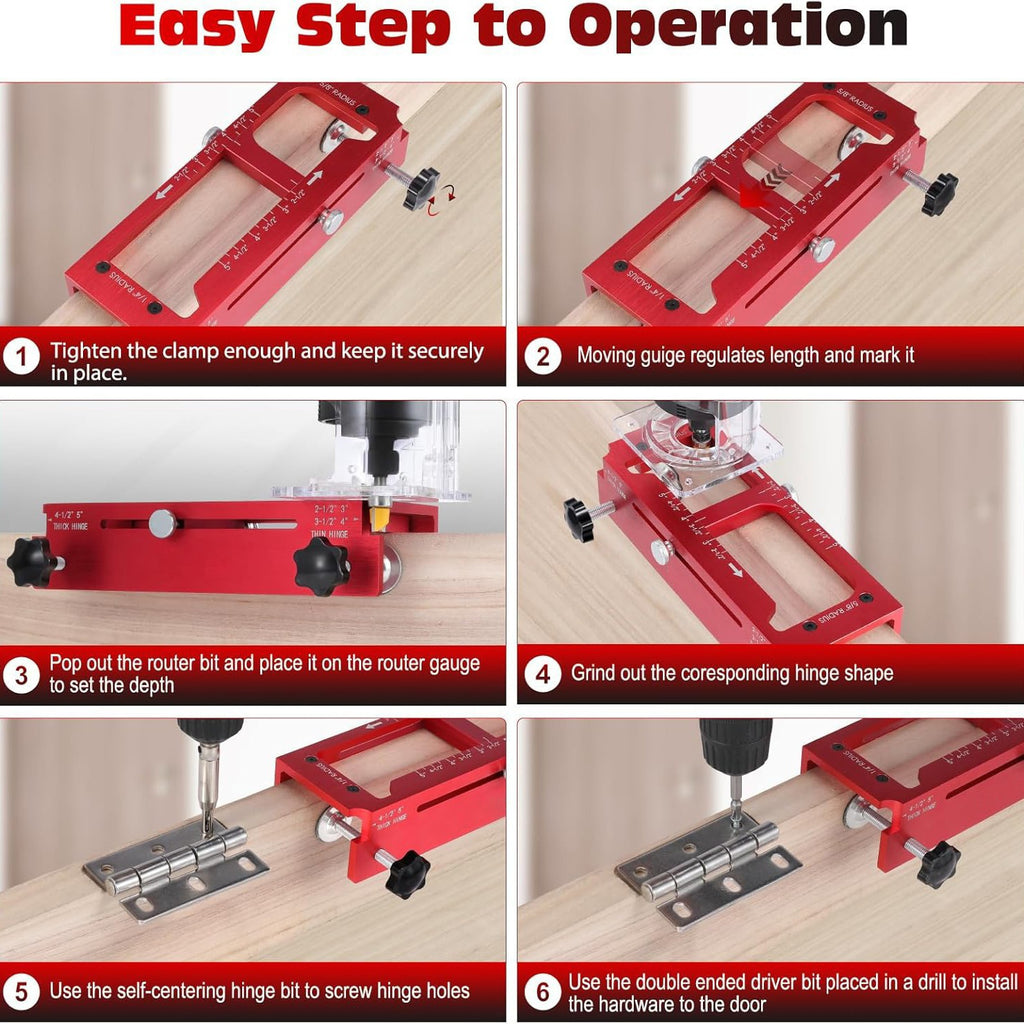

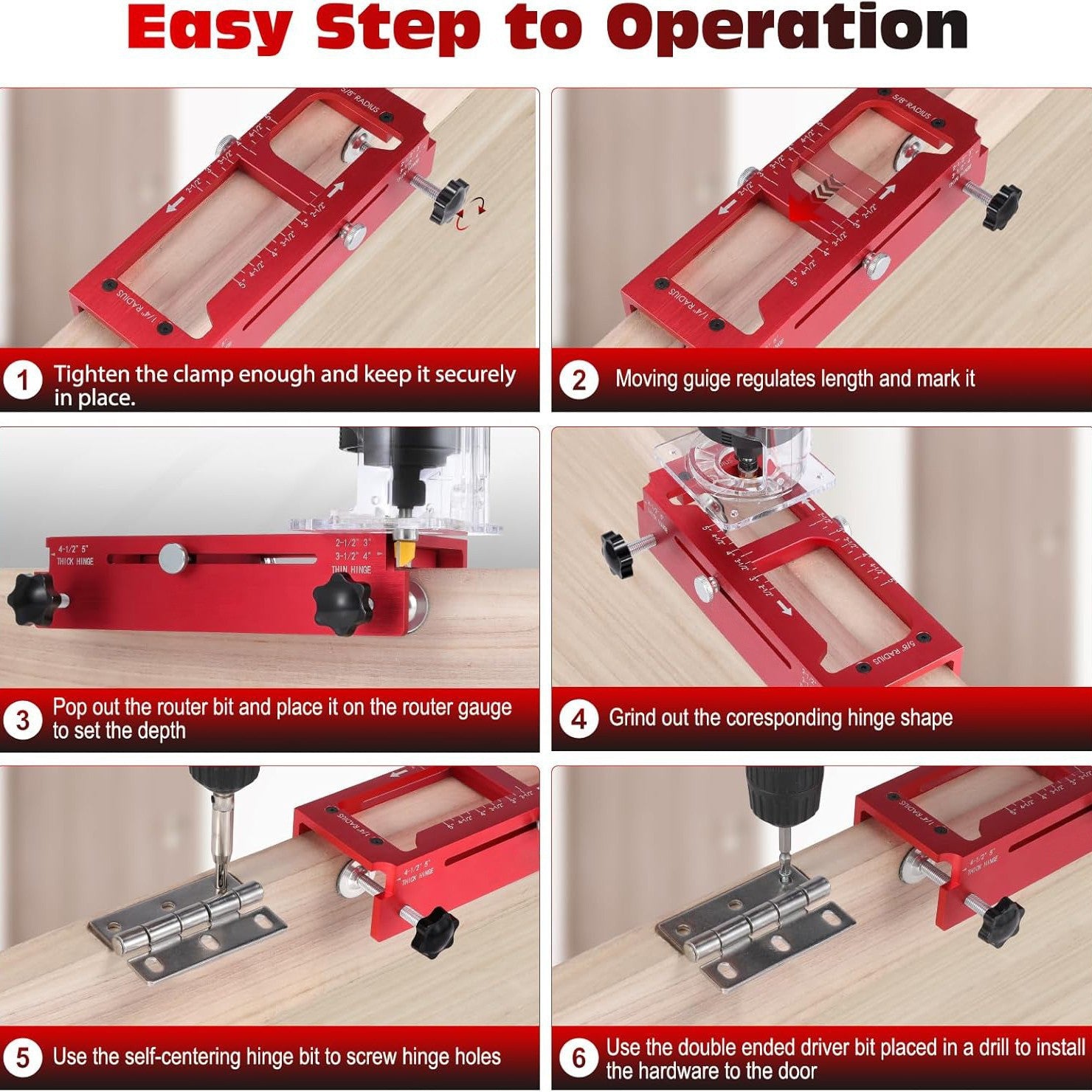

Replacing interior doors or upgrading cabinet hardware? This kit removes the need for a chisel and mallet — clamp, rout, drill, and screw in six straightforward steps.
💼 Carpenters & Door Hangers
Speed up repetitive hinge mortising on job sites. The adjustable guide repositions in seconds between doors, keeping your workflow moving without sacrificing accuracy.
🪵 Woodworkers & Cabinet Makers
Building furniture or custom cabinetry? The dual-radius corner support and precise depth gauge deliver furniture-grade mortises on hardwood, softwood, and MDF alike.
🎁 Gift for the Tool Enthusiast
A practical, well-packaged kit that solves a real problem — ideal for housewarming gifts or stocking a new workshop with tools that actually get used.
Technical Specifications
| Product Type |
Hinge Jig Kit |
| Jig Material |
Anodized Aluminum |
| Color Options |
Red, Blue |
| Hinge Length Range |
2-1/2" to 5" (63 – 127 mm) |
| Thin Hinge Sizes |
2-1/2", 3", 3-1/2", 4" |
| Thick Hinge Sizes |
4-1/2", 5" |
| Corner Radius |
1/4" and 5/8" |
| Included Accessories |
Router Bit, Self-Centering Hinge Bit, Double-Ended Driver Bit |
| Package Dimensions |
22 × 8 × 5 cm (8.7" × 3.1" × 2.0") |
| Weight |
0.76 kg (1.68 lb) |
Frequently Asked Questions
What hinge sizes does this jig support?
The jig supports thin hinges in 2-1/2", 3", 3-1/2", and 4" lengths, and thick hinges in 4-1/2" and 5" lengths — covering the vast majority of residential and light commercial door hinges.
Does the kit include a router bit?
Yes. The kit includes a straight router bit for cutting hinge mortises, a self-centering hinge bit for drilling pilot holes, and a double-ended driver bit for installing screws — everything you need from start to finish.
What corner radius options are available?
The jig has built-in guides for both 1/4" and 5/8" corner radii, so you can match the rounded corners of most standard door hinges without needing a separate template.
Do I need a router to use this kit?
Yes, a handheld trim router or compact router is required to use the router bit for cutting mortises. The self-centering bit and driver bit work with any standard power drill or drill driver.
Will this work on cabinet doors as well as entry doors?
Yes. The adjustable sliding guide accommodates a wide range of hinge lengths, making it suitable for interior passage doors, exterior entry doors, cabinet doors, and furniture lids.
Is the jig compatible with both thin and thick hinges?
Yes. The depth gauge has separate markings for thin hinges (typically lighter residential hinges) and thick hinges (heavier-duty hinges), so you can set the correct mortise depth for either type quickly.
What material is the jig body made from?
The jig body is machined from anodized aluminum, which provides a rigid, corrosion-resistant structure that stays accurate under repeated use without adding unnecessary weight.
Providing a rigid, corrosion-resistant structure that remains. Add this door hinge installation kit to your cart and hang doors with confidence — clean mortises, centered pilot holes, and tight-fitting hinges every time.
