DPDT Mini Toggle Switch — Reliable Circuit Control for Boats, Cars & DIY Panels

Whether you're rewiring a boat console, building a custom automotive fuse panel, or prototyping a DIY electronics project, finding a compact toggle switch that fits tight spaces without sacrificing reliability is a constant challenge. Loose connections, undersized contacts, and switches that fail after a season of vibration are frustrating — and potentially dangerous. These DPDT mini toggle switches are built for exactly those demanding environments.

Each switch features a double-pole double-throw (DPDT) design with 6 solder terminals, available in 2-position (ON-OFF) and 3-position (ON-OFF-ON) configurations. The toggle body is compact enough for dense panel layouts, with an M6 metric mounting bushing that fits a standard 6mm (≈1/4") panel cutout. Rated at 125V and 250V AC, they are available in red, black, and green toggle colors to support color-coded panel organization. An optional M6 waterproof cap variant is also available for moisture-exposed installations.

These mini toggle switches are well-suited for marine switch panels and boat console wiring, 12V–24V automotive accessory control, and DIY electronics enclosures where a compact DPDT on-off-on toggle switch is needed for motor direction control or dual-circuit switching.

ℹ️ Compatibility Note: These switches use an M6 metric mounting thread. Verify your panel cutout diameter (typically 6mm / ≈1/4") and panel thickness before installation. For waterproof applications, select the M6 Waterproof Cap variant.

✅ Key Features of These DPDT Mini Toggle Switches

🔀True DPDT Switching — Double-pole double-throw design lets you control two independent circuits simultaneously, making these ideal for DC motor direction control or dual-circuit switching in automotive and marine panels.
⚡Dual Voltage Rating — Rated for both 125V and 250V AC operation, these mini toggle switches adapt to a wide range of household, marine, and automotive electrical systems without needing separate part numbers.
📐Compact M6 Form Factor — The M6 metric bushing fits a standard 6mm panel cutout, allowing installation in tight console layouts where space is limited — common in boat dashboards and custom car interiors.
🎨Color-Coded Toggle Options — Available in red, black, and green to support intuitive panel organization. Color coding reduces wiring errors during installation and makes troubleshooting faster in multi-switch panels.

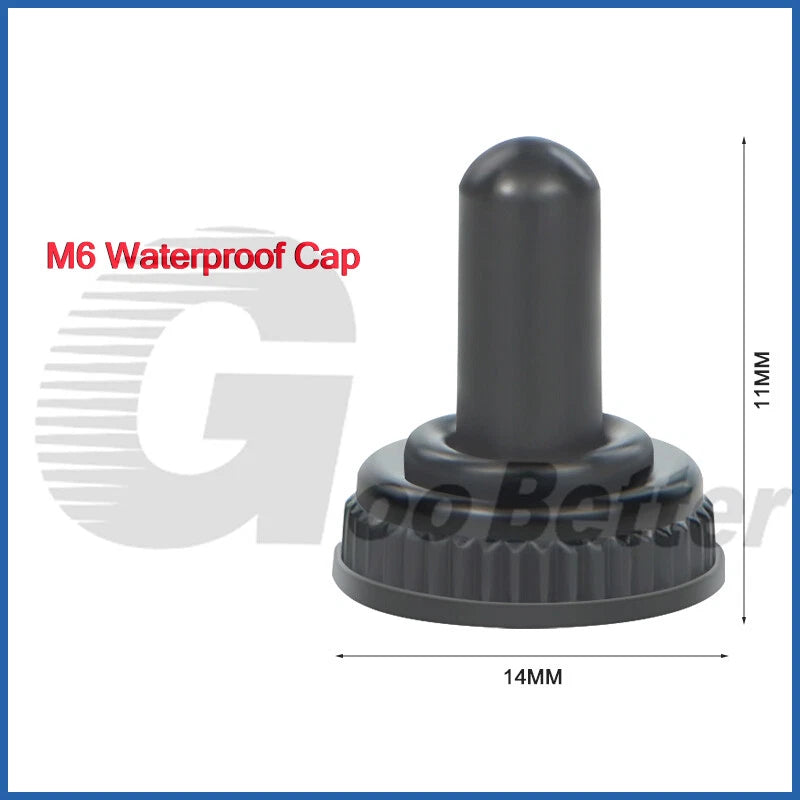

🔒Waterproof Cap Available — The M6 waterproof cap variant adds a protective rubber boot over the toggle, providing a basic moisture barrier for installations exposed to splash, humidity, or marine spray.
📦Flexible Pack Quantities — Available in 1, 2, 3, 5, 10, and 20-piece quantities so you can order exactly what your project requires — whether it's a single replacement or a full panel build.

📐 Technical Specifications — DPDT Mini Toggle Switch

Switch Type	DPDT (Double Pole Double Throw)
Positions	2-Position (ON-OFF) or 3-Position (ON-OFF-ON) — see variant options
Number of Pins	6 solder terminals (3-pin variants: see variant options)
Voltage Rating	125V AC / 250V AC
Current Rating	Typically 6A at 125V AC; 3A at 250V AC
Mounting Thread	M6 metric bushing
Panel Cutout Diameter	6mm (≈1/4")
Toggle Colors Available	Red, Black, Green
Waterproof Option	M6 Waterproof Cap (select variant)
Pack Quantities	1, 2, 3, 5, 10, 20 pcs
Application	Marine, automotive, DIY electronics, control panels
Terminal Type	Solder lug
Body Material	Contact us to confirm
Operating Temperature	Contact us to confirm

⚠️ Spec Confirmation: Body material and operating temperature range are not confirmed on this listing. If your application has specific environmental requirements, please contact us before ordering.

❓ Frequently Asked Questions

How do I choose between a 2-position and a 3-position toggle switch?

A 2-position switch (ON-OFF) is used when you need a simple on or off state — for example, controlling a single light or fan. A 3-position switch (ON-OFF-ON) is used when you need to control two separate circuits or directions from one switch, such as reversing a DC motor or switching between two power sources. Choose based on how many switching states your circuit requires.

What is the current rating of these mini toggle switches?

These DPDT mini toggle switches are typically rated at 6A at 125V AC or 3A at 250V AC. Always verify the current draw of your specific application before installation to ensure safe operation.

Can these toggle switches be used outdoors or in marine environments?

The switches themselves are not inherently waterproof, but the included M6 waterproof cap accessory can be fitted over the toggle to provide a basic moisture barrier. For fully exposed marine or outdoor installations, we recommend pairing the switch with the waterproof cap and mounting it in a sealed enclosure for best protection.

What thread standard does the M6 mounting bushing use?

The mounting bushing on these mini toggle switches generally uses an M6 metric thread, compatible with standard M6 panel nuts. The panel cutout diameter is typically 6mm (≈1/4"). Always measure your panel thickness before ordering to confirm fit.

Which color should I choose — red, black, or green?

Color choice is primarily aesthetic and used for panel organization. A common convention in automotive and marine wiring is: red for power/positive circuits, black for ground or off-state circuits, and green for auxiliary or secondary circuits. Choose the color that best matches your panel labeling system.

Are these switches compatible with both AC and DC circuits?

Yes. These DPDT mini toggle switches are generally compatible with both AC circuits (rated 125V or 250V AC) and low-voltage DC circuits commonly found in automotive and marine applications (typically 12V–24V DC). For DC use, the current rating may differ — consult your circuit specifications and confirm with us if needed.

How do I wire a DPDT toggle switch for motor direction control?

In a typical H-bridge configuration using a DPDT switch, the two input terminals connect to your power supply poles, and the four output terminals connect to the motor leads in a cross pattern. Flipping the switch reverses the polarity across the motor, changing its direction. We recommend consulting a wiring diagram specific to your motor and voltage before installation.

🛒 Select your model and quantity above, then add to cart — ships from our US warehouse.
