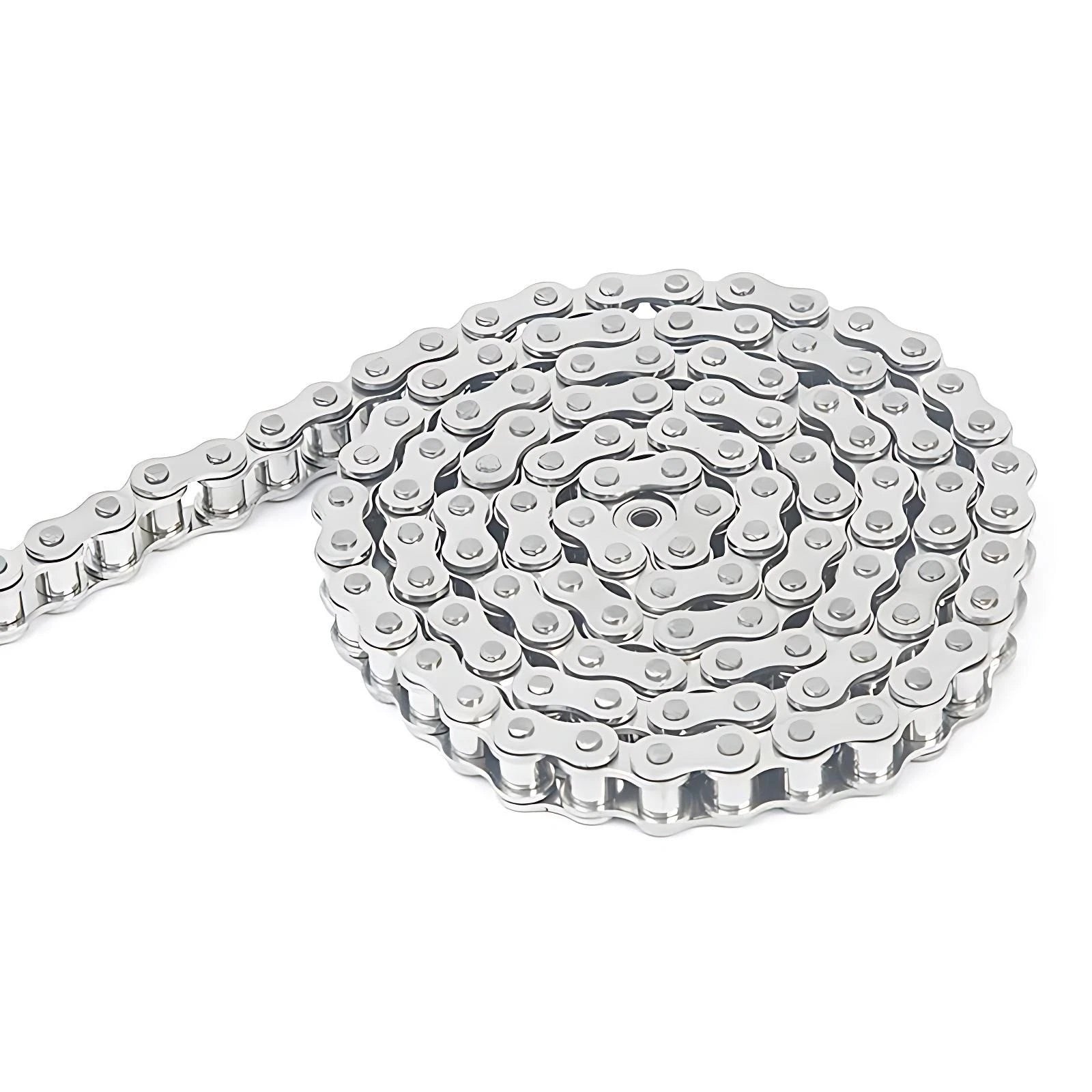

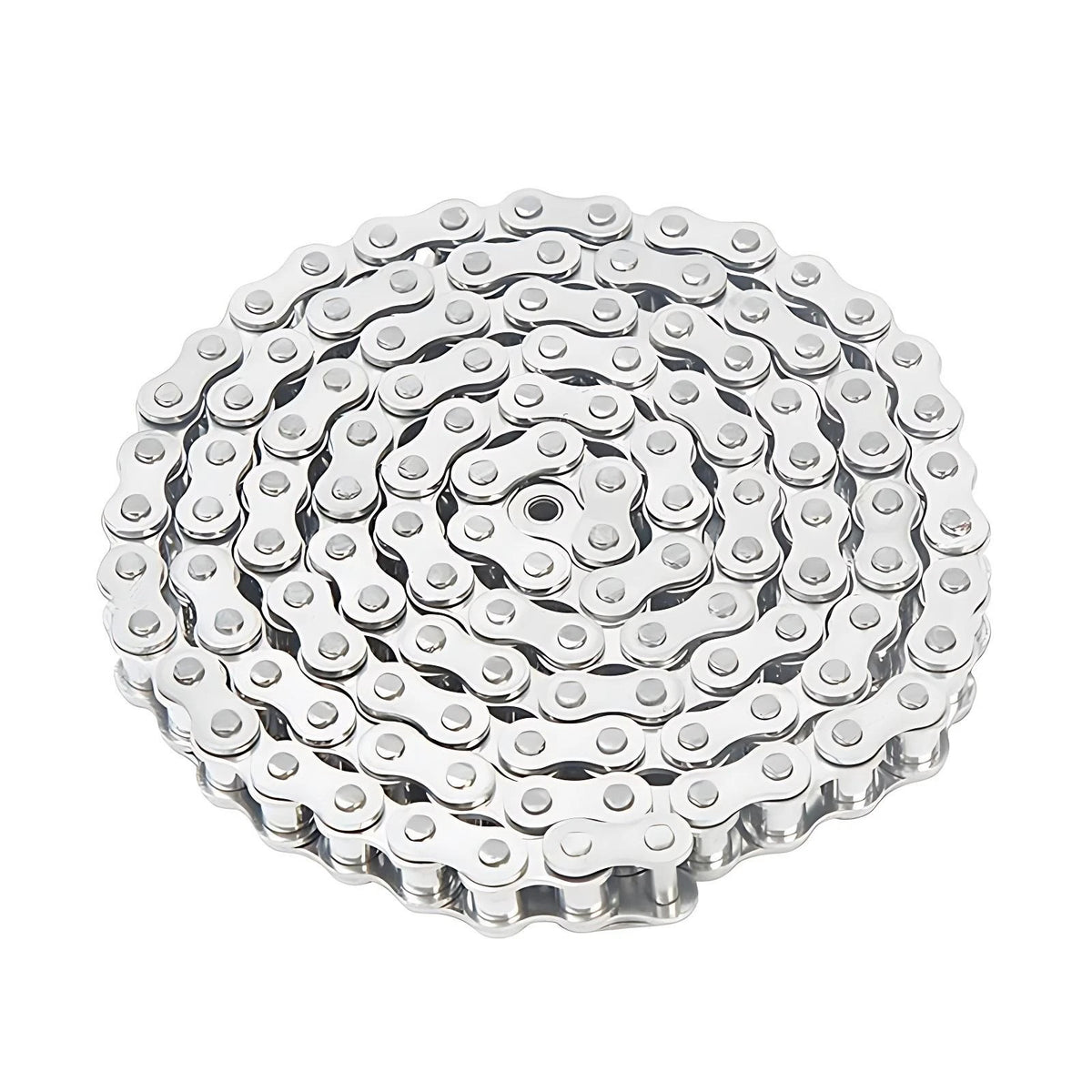

When a standard carbon-steel chain corrodes, seizes, or contaminates a process, the cost of downtime far outweighs the cost of the right part. Engineers, maintenance technicians, and serious DIY builders who work around moisture, chemicals, food-grade environments, or outdoor exposure need a chain that holds up without constant re-lubrication or replacement. These duplex roller chains are manufactured to ISO/BS standards in A2/304 stainless steel, giving you the corrosion resistance of stainless with the mechanical strength of a precision roller chain.

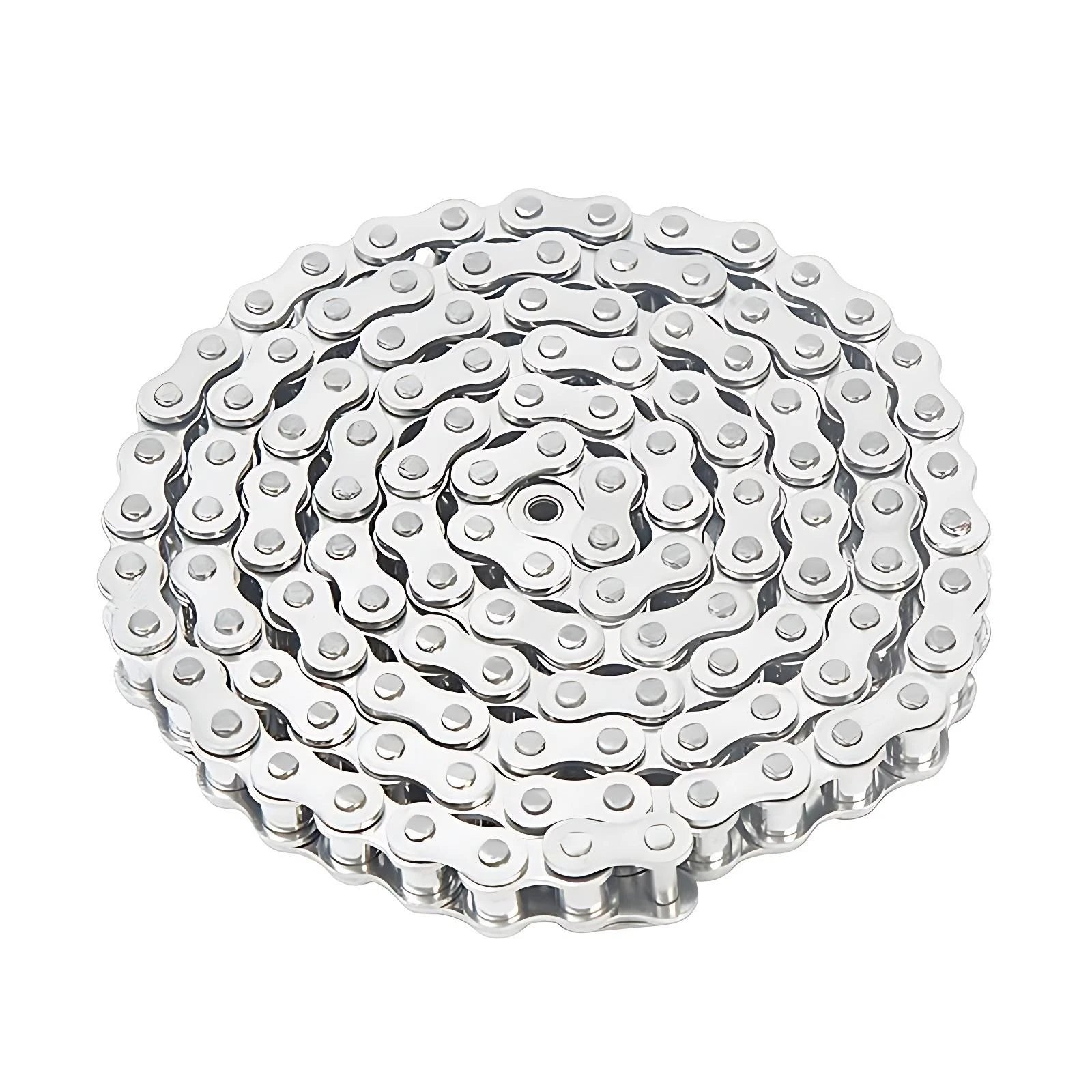

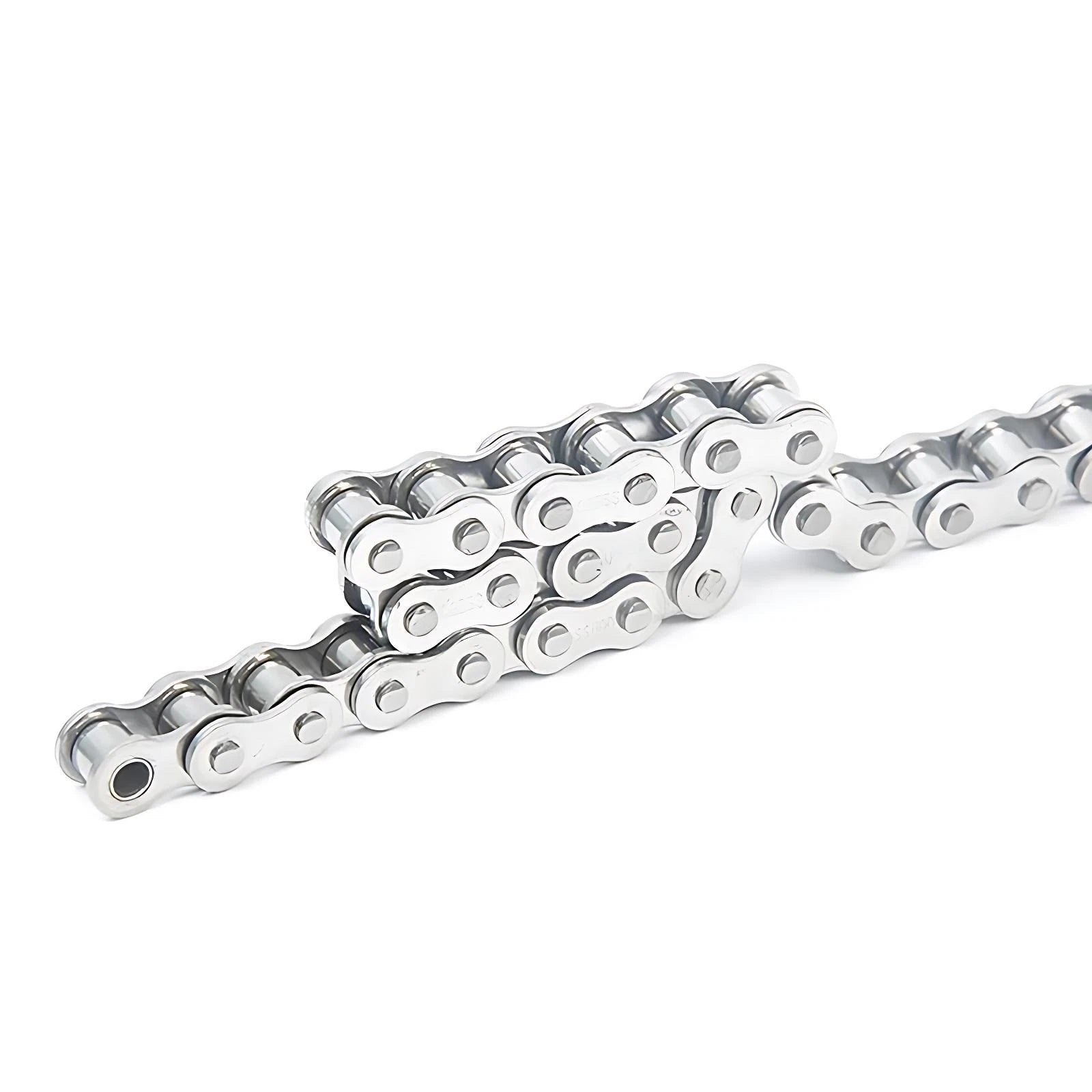

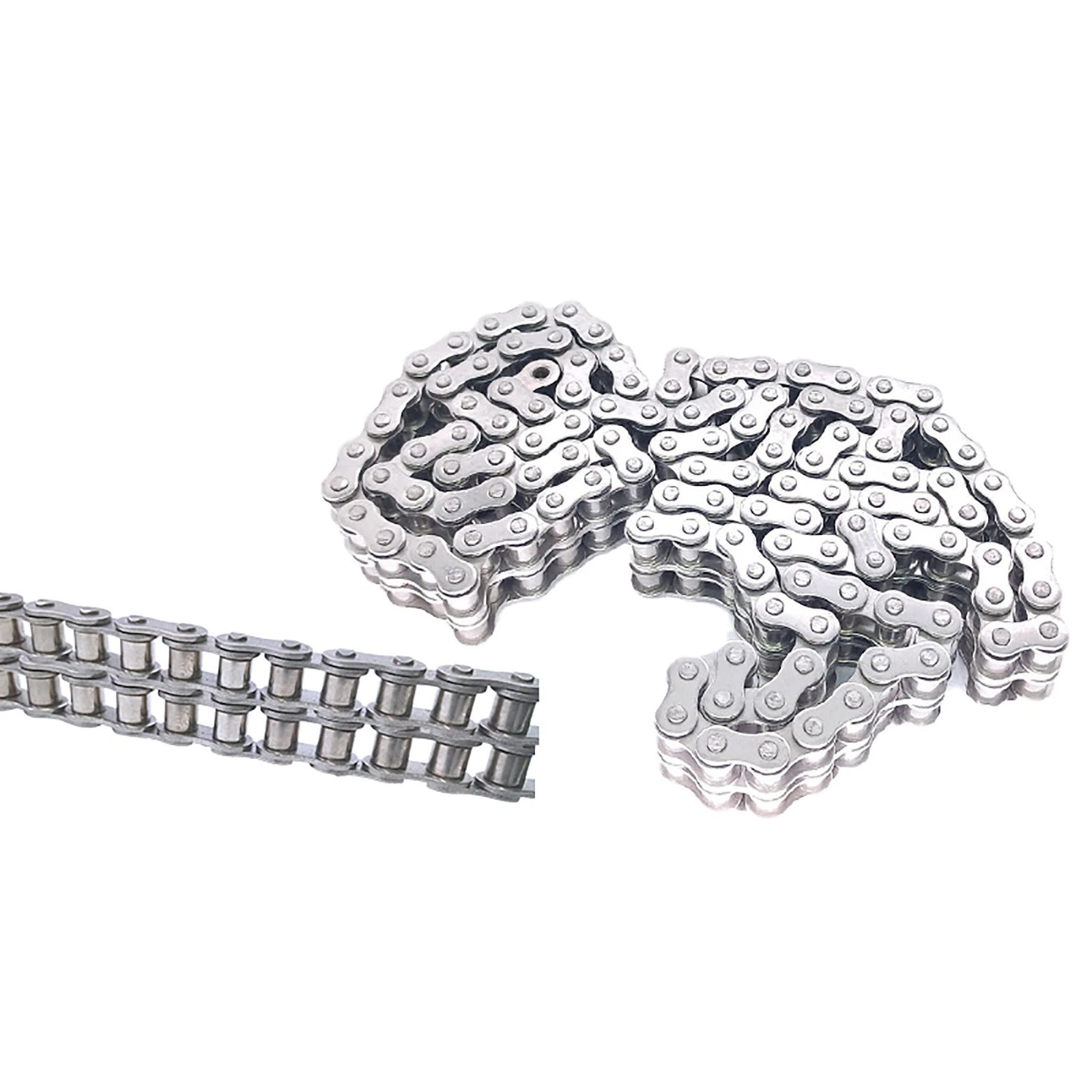

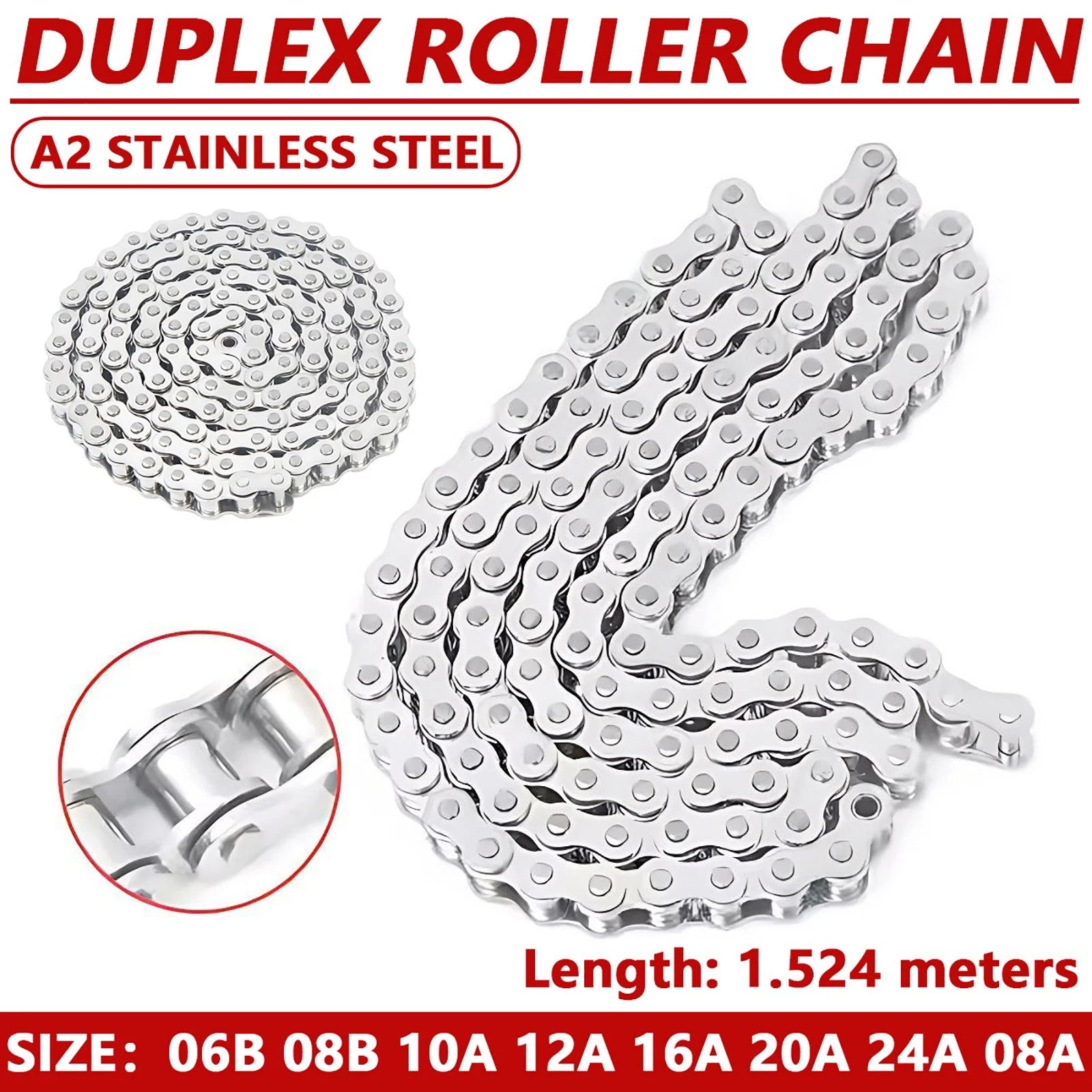

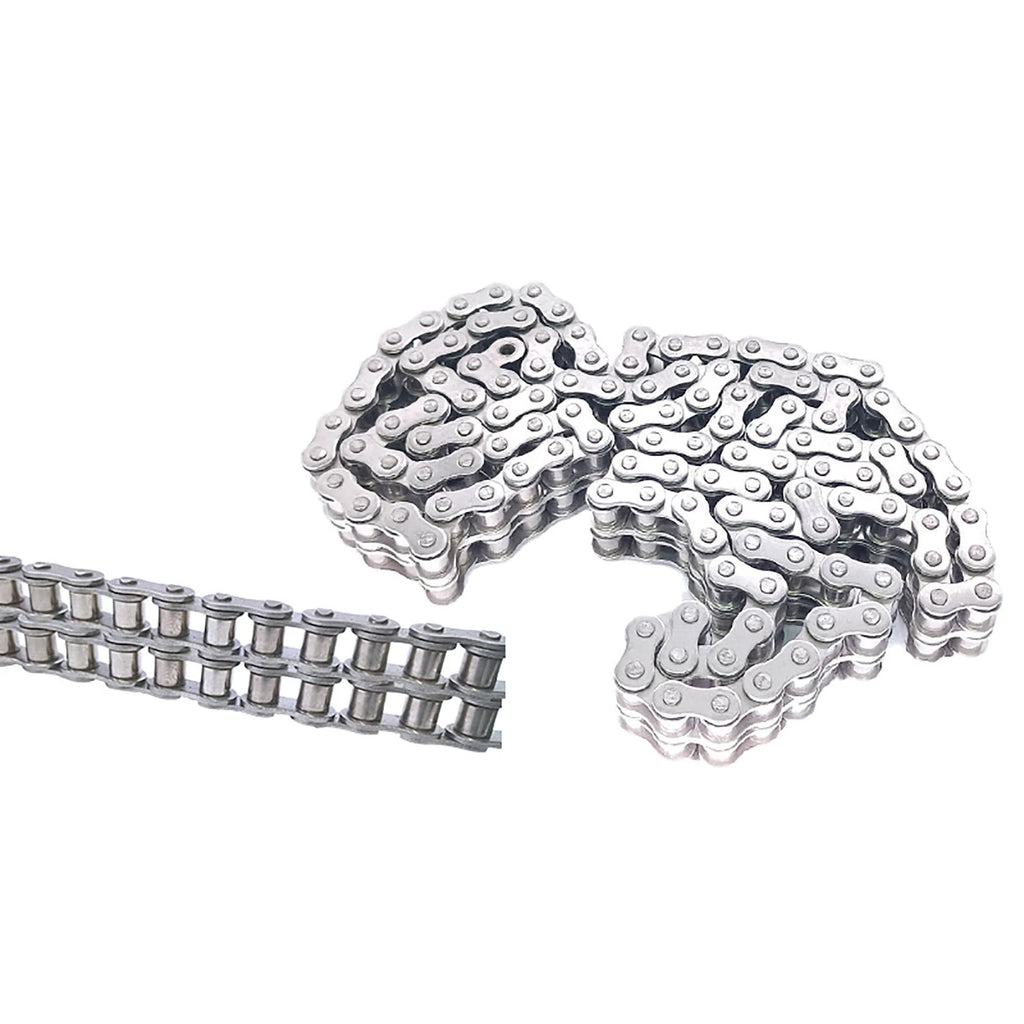

Each length is 1.524 m (60 inches / 5 ft) of duplex (double-strand) roller chain. Available sizes span 06B-2, 08A-2, 08B-2, 10A-2, 12A-2, 16A-2, 20A-2, and 24A-2 — covering pitch ranges from approximately 9.525 mm (3/8 in) for 06B up to 38.1 mm (1½ in) for 24A. Inner width, roller diameter, and breaking load vary by size; refer to the variant selector for the specification that matches your sprocket.
Typical applications include food-processing conveyor lines where hygiene and washdown resistance are critical, marine and coastal machinery exposed to salt air, pharmaceutical or chemical plant drives requiring non-reactive hardware, and outdoor agricultural or garden equipment where weather resistance extends service life. Long-tail search terms that describe this product: stainless steel duplex roller chain 08B-2, ISO 606 double-strand chain 304 SS, corrosion-resistant drive chain 1.524m length.

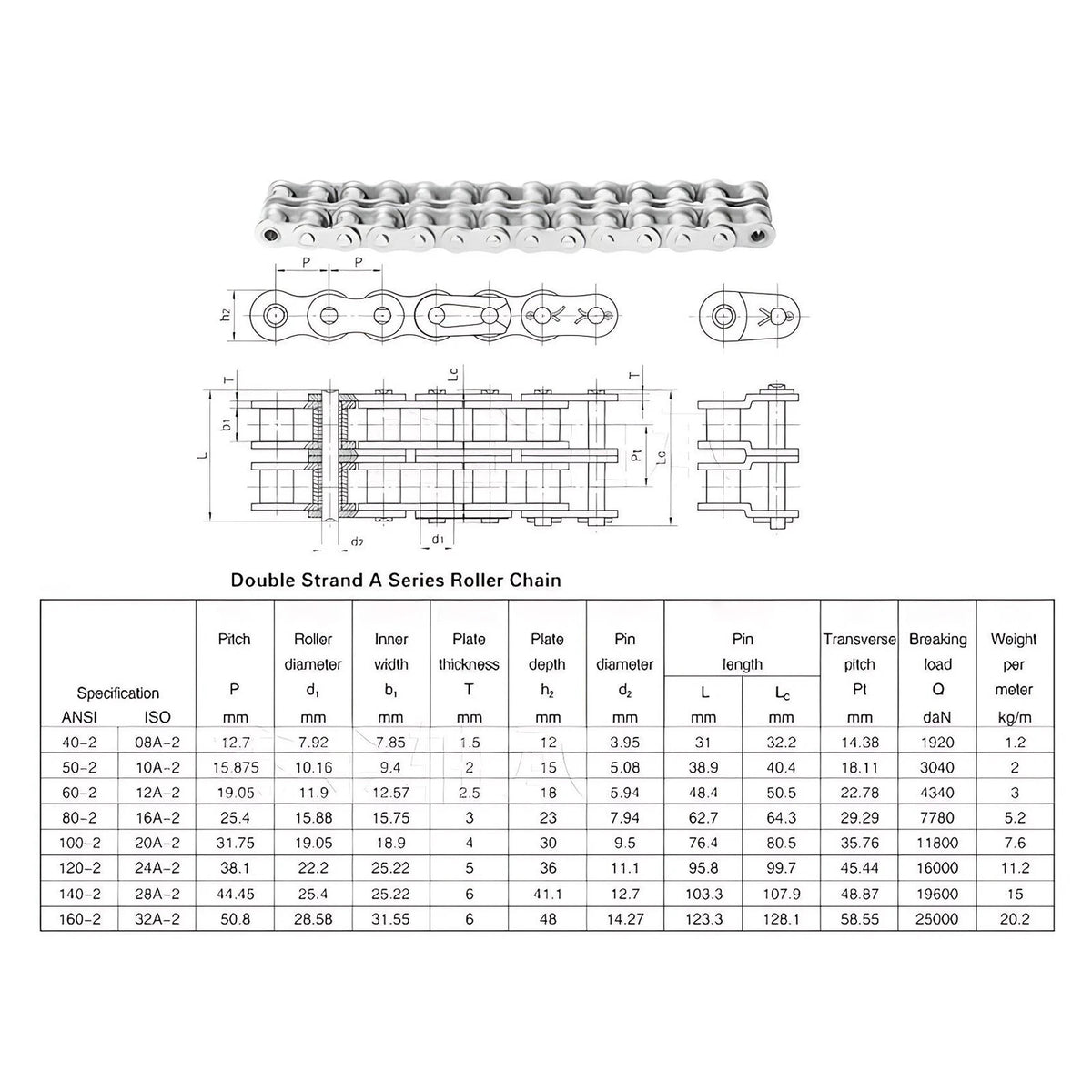

| Chain Standard | ISO 606 / BS 228 |
|---|---|
| Strand Configuration | Duplex (2-strand) |
| Material | A2 / 304 Stainless Steel |
| Available Sizes | 06B-2, 08A-2, 08B-2, 10A-2, 12A-2, 16A-2, 20A-2, 24A-2 |
| Pitch Range | 9.525 mm (06B) – 38.1 mm (24A) |
| Length per Piece | 1.524 m (60 in / 5 ft) |
| Roller Diameter | See variant options |
| Inner Width | See variant options |
| Breaking Load | See variant options |
| Surface Finish | Natural stainless (uncoated) |
| Lubrication | Light factory oil; re-lubricate per application requirements |
| Connecting Link | Sold separately (specify size when ordering) |
Match the chain pitch and strand width to your existing sprocket specification. The size designation (e.g., 08B-2) encodes the pitch: 08B has a pitch of 12.7 mm (½ in), while 08A has a pitch of 12.7 mm to the ANSI/A-series standard. Check your sprocket's bore plate or manufacturer datasheet for the chain number it accepts, then select the matching variant above.

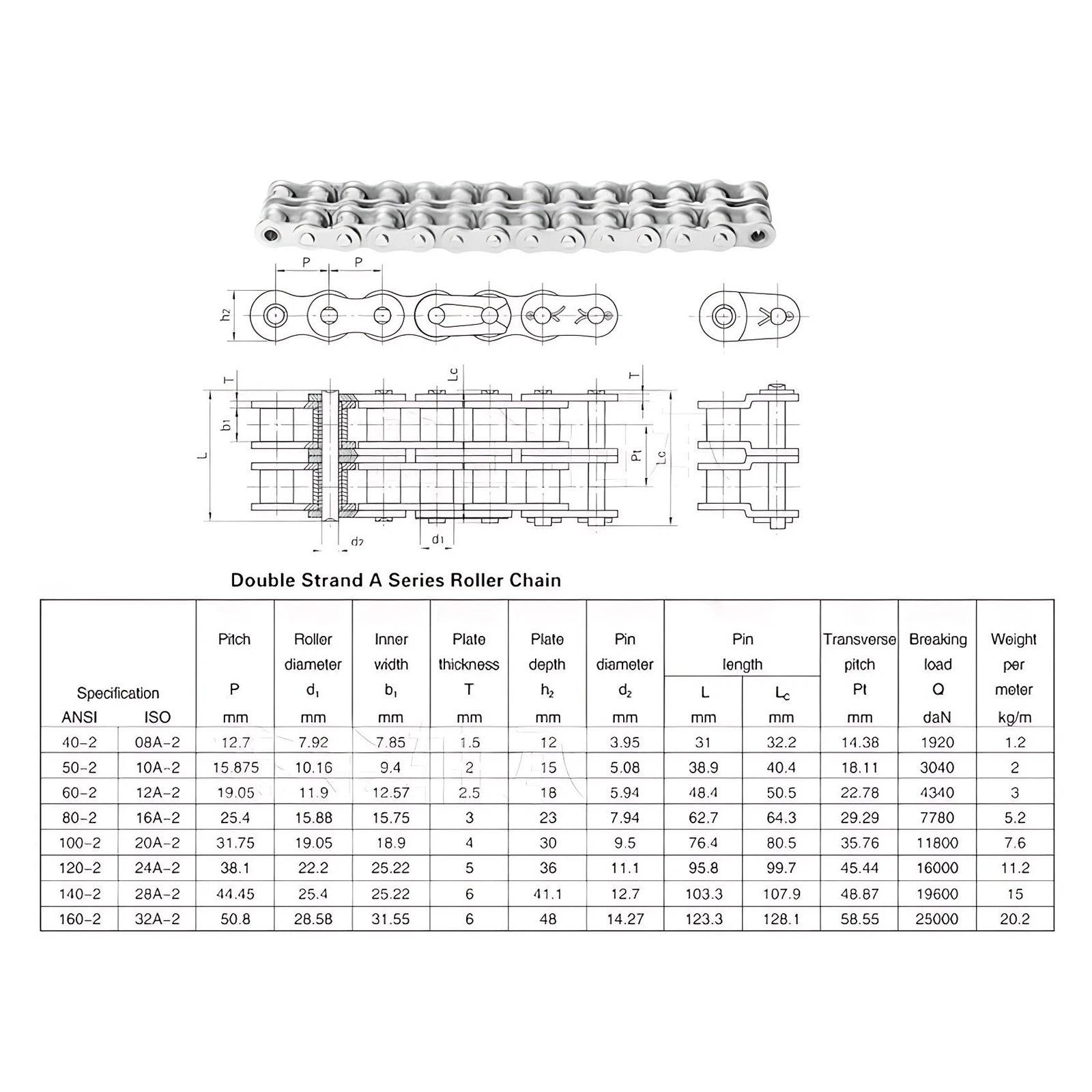

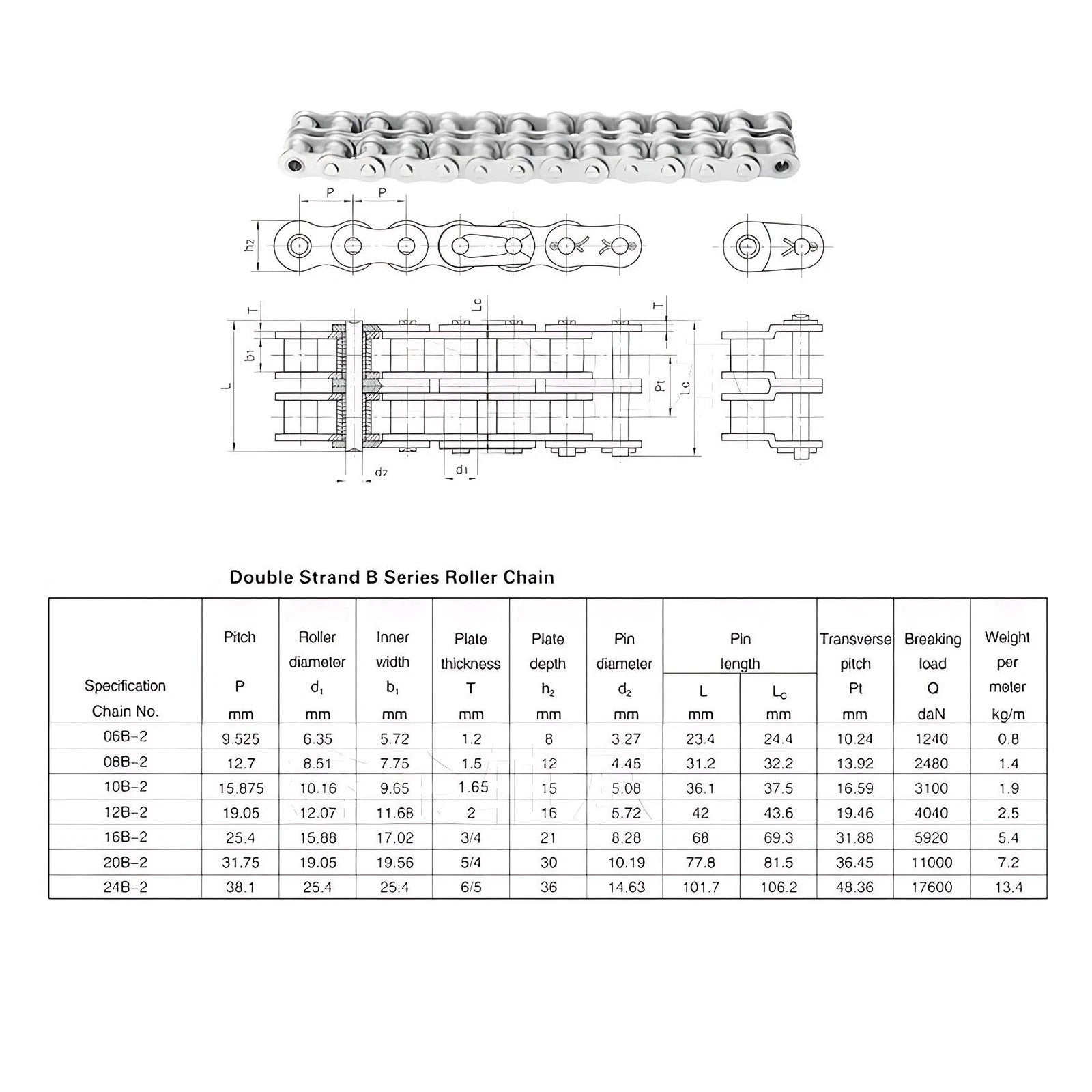

A-series chains follow the ANSI/ASA standard (common in North America), while B-series chains follow the ISO/BS standard (common in Europe and internationally). Although both 08A and 08B share a 12.7 mm pitch, they differ in roller diameter and inner width, making them non-interchangeable. Always match the series to your sprocket standard.
A2/304 stainless steel offers good tensile strength suitable for many industrial drives, though its breaking load is typically 10–20% lower than an equivalent carbon-steel chain. For very high-load or high-speed applications, verify the working load against the chain's rated breaking load (see variant options) and apply an appropriate safety factor — typically 7:1 or higher for drive chains.
A2/304 stainless steel is widely used in food-grade and pharmaceutical conveyor applications due to its corrosion resistance and ease of cleaning. However, if your process requires FDA-compliant lubrication or full NSF certification, confirm that any lubricant you apply also meets those standards. The chain material itself is non-reactive with most mild cleaning agents.
Use a stainless steel duplex connecting link (also called a master link) of the same size and series as your chain. The connecting link clips onto the open ends of two chain lengths to form a continuous loop or extended run. Connecting links are sold separately — please specify your chain size when ordering to ensure compatibility.
Yes. While stainless steel resists corrosion, the pin-bushing-roller interface still requires lubrication to reduce wear and extend service life. Use a food-grade or stainless-compatible chain lubricant appropriate for your operating environment. In very wet or washdown conditions, re-lubricate more frequently as water can flush lubricant from the joints.
Each piece is supplied as a 1.524 m (60-link equivalent) length. To shorten it, use a chain breaker tool to remove the required number of links. To extend it, join multiple lengths with duplex connecting links. If you need a custom cut length or a bulk reel, please contact us to confirm availability.
