E-TEN1322 6-Pin DPDT Toggle Switch — Reliable 3-Position Control for DIY Electronics

If you have ever had a control panel switch fail mid-project — or spent an afternoon hunting for a replacement that actually fits your panel cutout — you know how frustrating sourcing the right toggle switch can be. This 2-pack of E-TEN1322 toggle switches is stocked for DIY builders, electronics hobbyists, repair technicians, and anyone who needs a dependable 3-position ON-OFF-ON switch on hand.

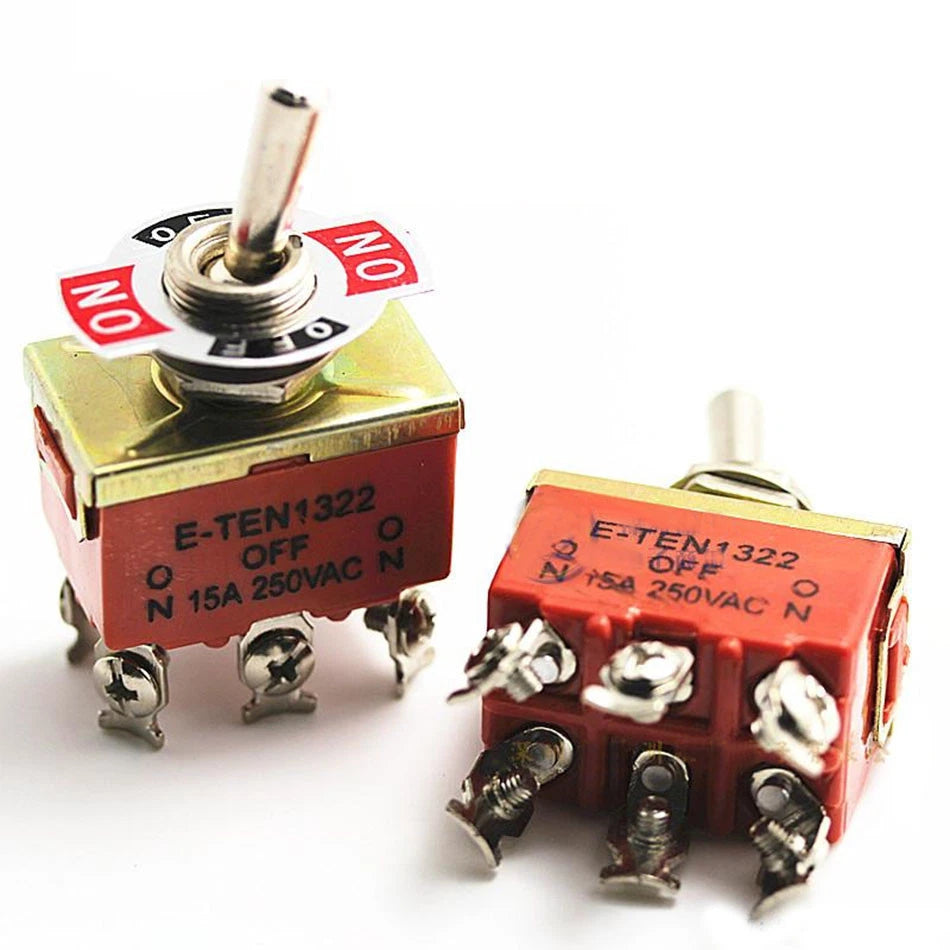

Each set includes 2 x E-TEN1322 toggle switches. These are 6-pin, Double Pole Double Throw (DPDT) switches with a 3-position (ON-OFF-ON) action. The bushing diameter is typically around 6mm (approx. 1/4"), fitting standard miniature panel cutouts. Solder-lug terminals provide secure wiring connections for a wide range of circuit applications.

Typical use cases include custom control panels and enclosures, electronics repair and prototyping benches, and DIY audio or lighting switching circuits — anywhere a compact 6-pin DPDT toggle switch with a center-off position is needed.

🔌 Compatibility: Standard miniature panel mount — fits typical 6mm (approx. 1/4") panel cutouts. DPDT 6-pin wiring follows standard ON-OFF-ON toggle switch configurations. Verify your panel hole size and circuit requirements before installation.

✅ Key Features of These E-TEN1322 DPDT Toggle Switches

  • 🔀DPDT 3-Position Action — ON-OFF-ON configuration gives you two active switching positions plus a center-off, ideal for reversing circuits or selecting between two signal paths in DIY electronics projects.
  • 📌6-Pin Solder-Lug Terminals — Two independent poles with three contacts each allow flexible wiring for dual-circuit control without additional relays or components.
  • 📐Compact Panel-Mount Form Factor — The miniature body fits tight enclosures and custom control panels where space is limited, with a standard bushing diameter for straightforward installation.
  • 🔧Tactile Lever Action — The toggle lever provides clear, positive feedback at each position, reducing the chance of accidentally leaving the switch in an intermediate state during operation.
  • 📦2-Pack Value — Includes two switches per order, so you have a spare for prototyping, multi-channel builds, or as a backup for repair work — reducing downtime on your projects.
  • 🏷E-TEN1322 Model Consistency — Sourced to the E-TEN1322 specification, making it straightforward to cross-reference datasheets and match replacements in existing panel designs.

📐 Technical Specifications — DPDT Toggle Switch

Model E-TEN1322
Switch Type DPDT (Double Pole Double Throw)
Number of Pins 6
Positions 3 (ON-OFF-ON)
Bushing Diameter Typically 6mm (approx. 1/4") — contact us to confirm
Mounting Style Panel mount, solder-lug terminals
Rated Current / Voltage Typically 3A at 125VAC / 1.5A at 250VAC — see variant options
Body / Lever Material See variant options
Operating Temperature Contact us to confirm
Quantity per Pack 2 pieces
SKU BH0149
⚠ Note: Specifications above are based on the E-TEN1322 product family. If your application has specific voltage, current, or dimensional requirements, please contact us before ordering to confirm exact values.

❓ Frequently Asked Questions

How do I choose the right toggle switch size for my panel?

The E-TEN1322 typically requires a panel cutout of approximately 6mm (approx. 1/4") in diameter. To select the right switch, measure your existing panel hole or plan your cutout before ordering. If you are replacing an existing switch, match the bushing diameter and pin count. Contact us to confirm exact dimensions if your application has tight tolerances.

What current and voltage can this toggle switch handle?

Switches in the E-TEN1322 family are generally rated for approximately 3A at 125VAC or 1.5A at 250VAC. For DC circuits, ratings may differ. Always verify against the datasheet for your specific application, especially in higher-load or safety-critical circuits. Contact us to confirm before use.

Can this switch be used outdoors or in wet environments?

The E-TEN1322 is a standard, non-sealed toggle switch and is generally not suitable for direct outdoor exposure, rain, or high-humidity environments. For outdoor or waterproof applications, a sealed or IP65-rated toggle switch is recommended. Contact us if you need guidance on a weatherproof alternative.

What does 6-pin DPDT mean, and how do I wire it?

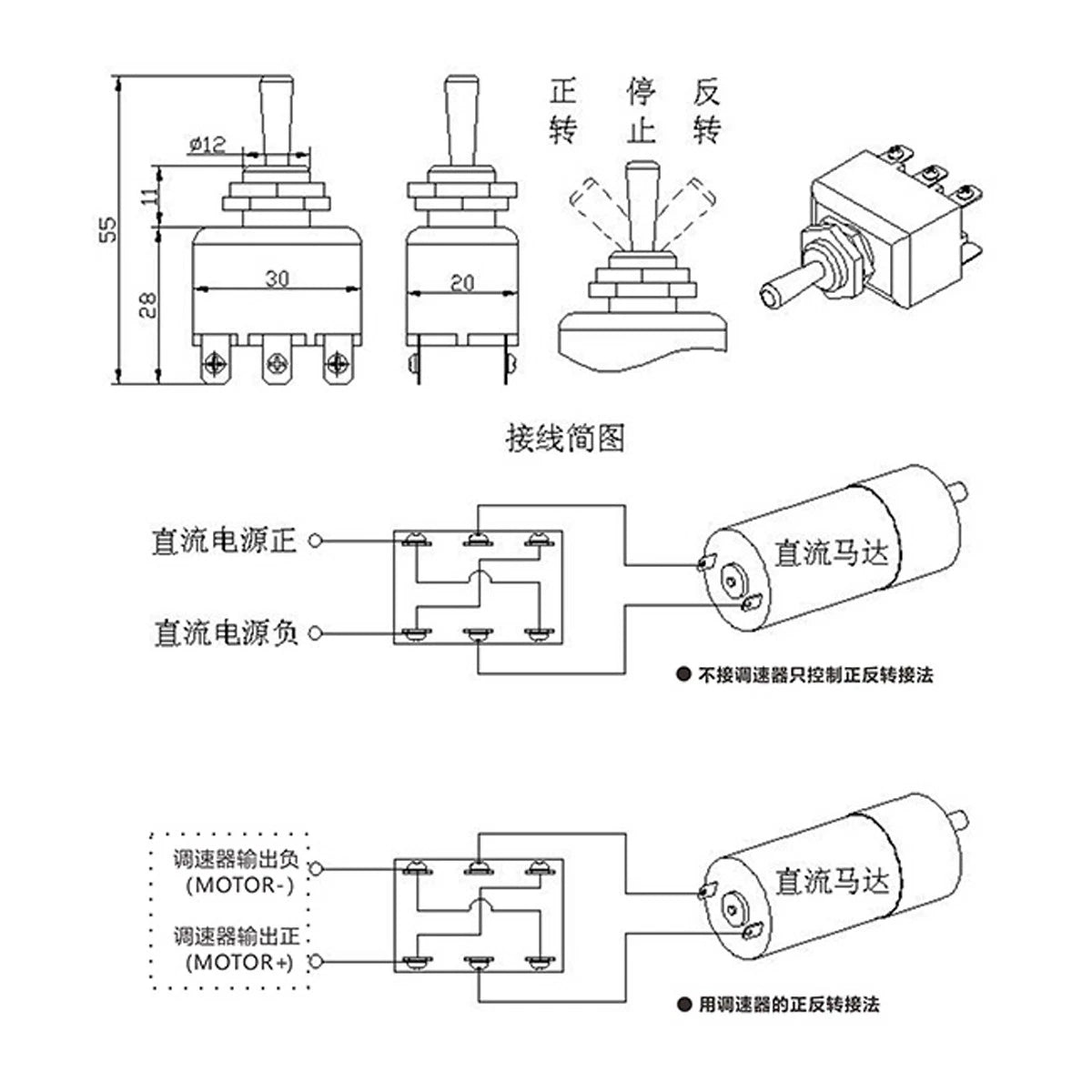

DPDT stands for Double Pole Double Throw. The 6 pins are arranged as two independent switching circuits (poles), each with a common terminal, a normally-open contact, and a normally-closed contact. In the 3-position ON-OFF-ON configuration, the center position disconnects both poles simultaneously. Standard DPDT wiring diagrams are widely available online — search “DPDT 6-pin toggle switch wiring diagram” for visual references.

Is this switch compatible with breadboards or PCB through-hole mounting?

The E-TEN1322 uses solder-lug terminals and is designed for panel mounting rather than direct breadboard or PCB through-hole insertion. It can be connected to a PCB using wire leads soldered to the lugs. If you need a PCB-mount toggle switch, a different form factor would be more appropriate — contact us for options.

Why does this listing include 2 switches instead of 1?

The 2-pack format is practical for several reasons: it gives you a spare for prototyping or repair, supports multi-channel control panel builds where two switches are needed, and reduces the per-unit cost compared to buying individually. For larger quantities, contact us to ask about bulk pricing.

How do I confirm this switch will fit my existing panel or enclosure?

Check the bushing diameter (typically 6mm / approx. 1/4" for the E-TEN1322) against your panel cutout size. Also verify the body depth fits within your enclosure. If you are replacing an existing switch, note the model number and pin count of the original. When in doubt, contact us with your panel specs and we will help confirm compatibility.

🛒 Select your quantity above, then add to cart — ships from our US warehouse.
