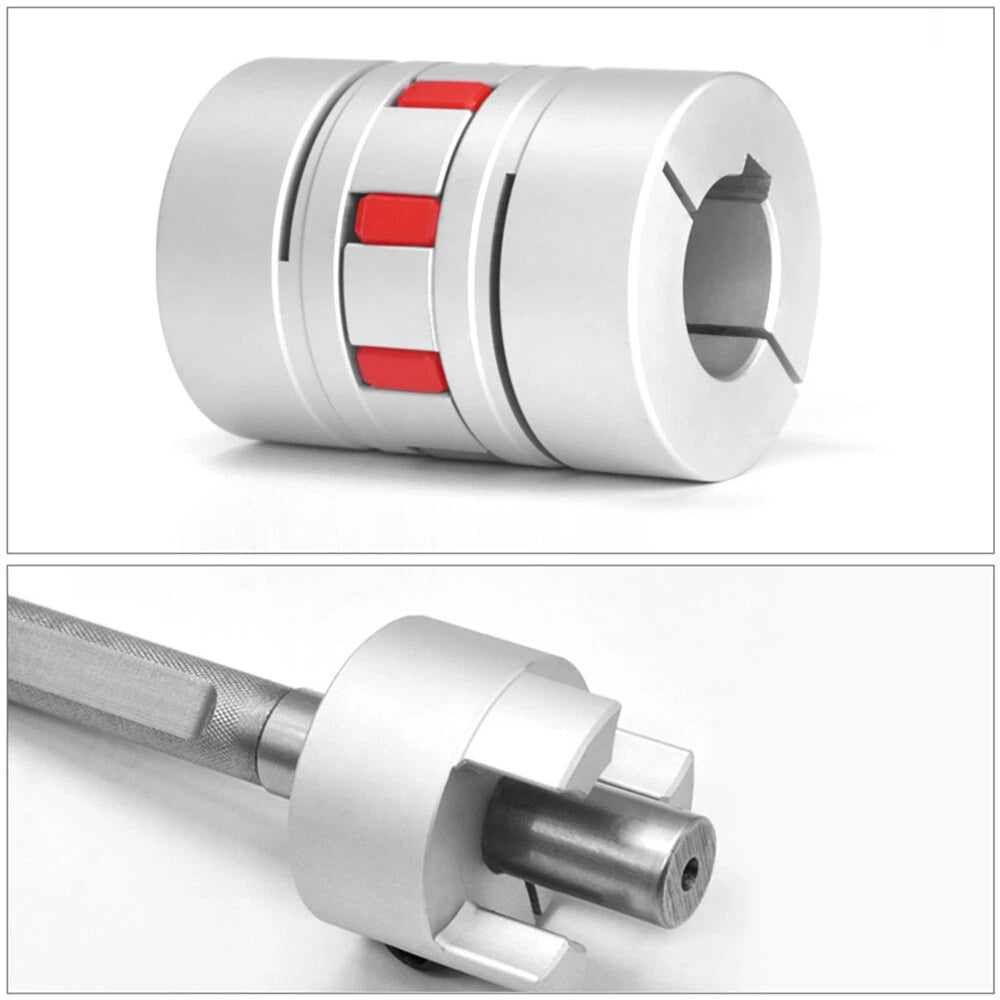

When misalignment, vibration, or shaft size mismatch causes skipped steps, binding, or premature wear in your CNC router, stepper motor drive, or 3D printer, the root cause is often a rigid or poorly fitted coupling. This flexible plum coupling shaft coupler is engineered for DIY builders, machine retrofitters, and motion-control enthusiasts who need reliable torque transmission across mismatched or same-diameter shafts without sacrificing positional accuracy.

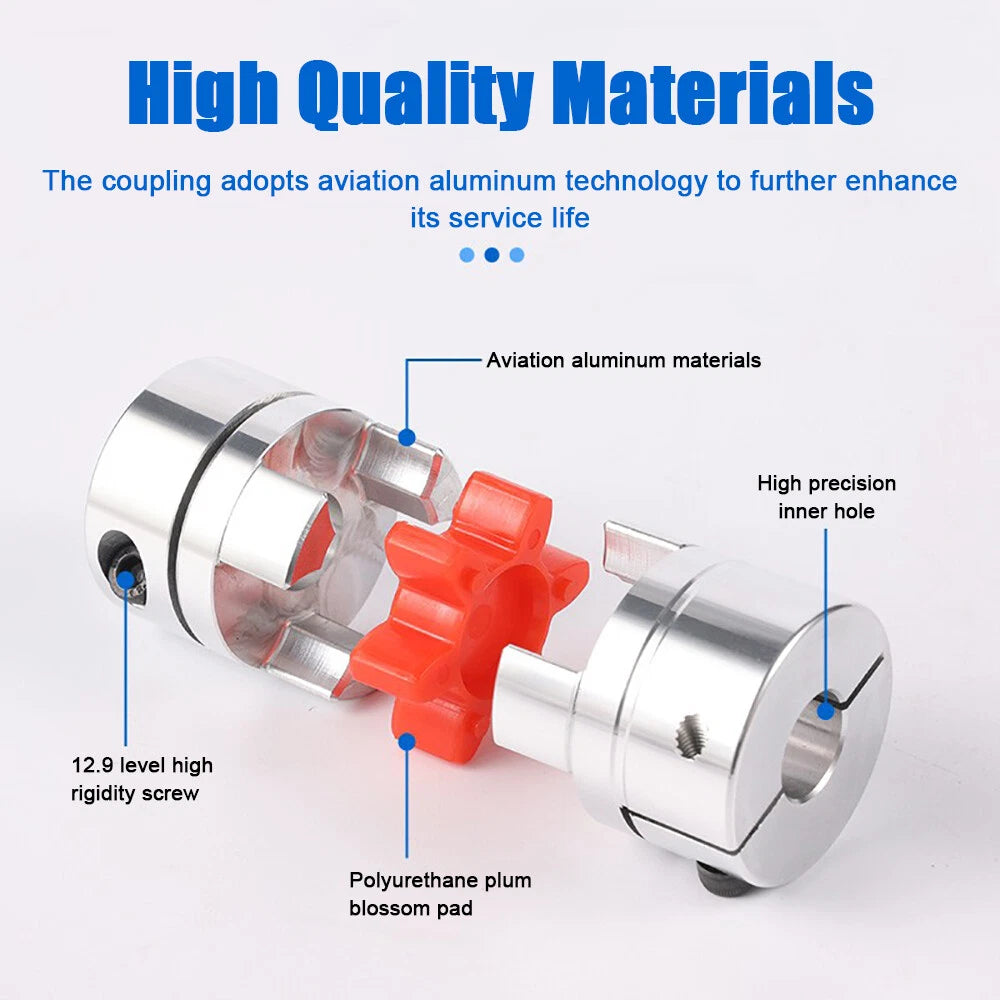

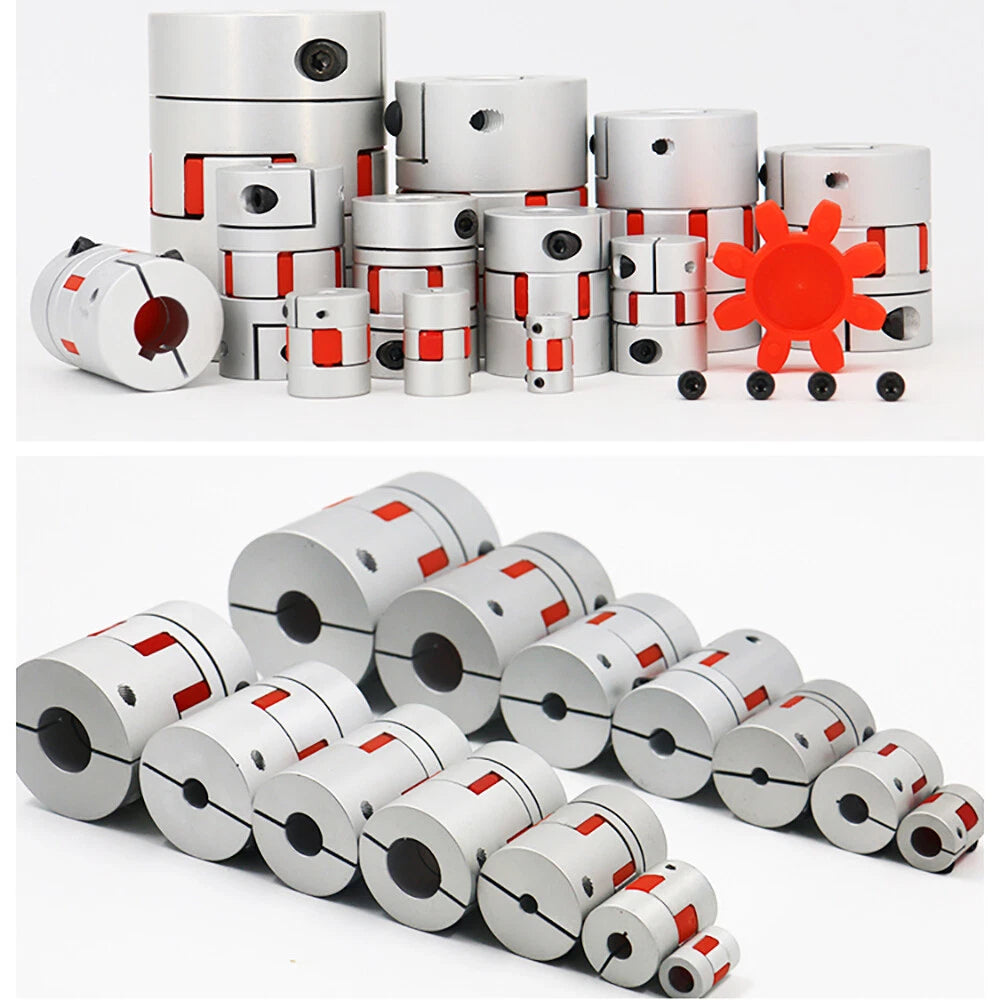

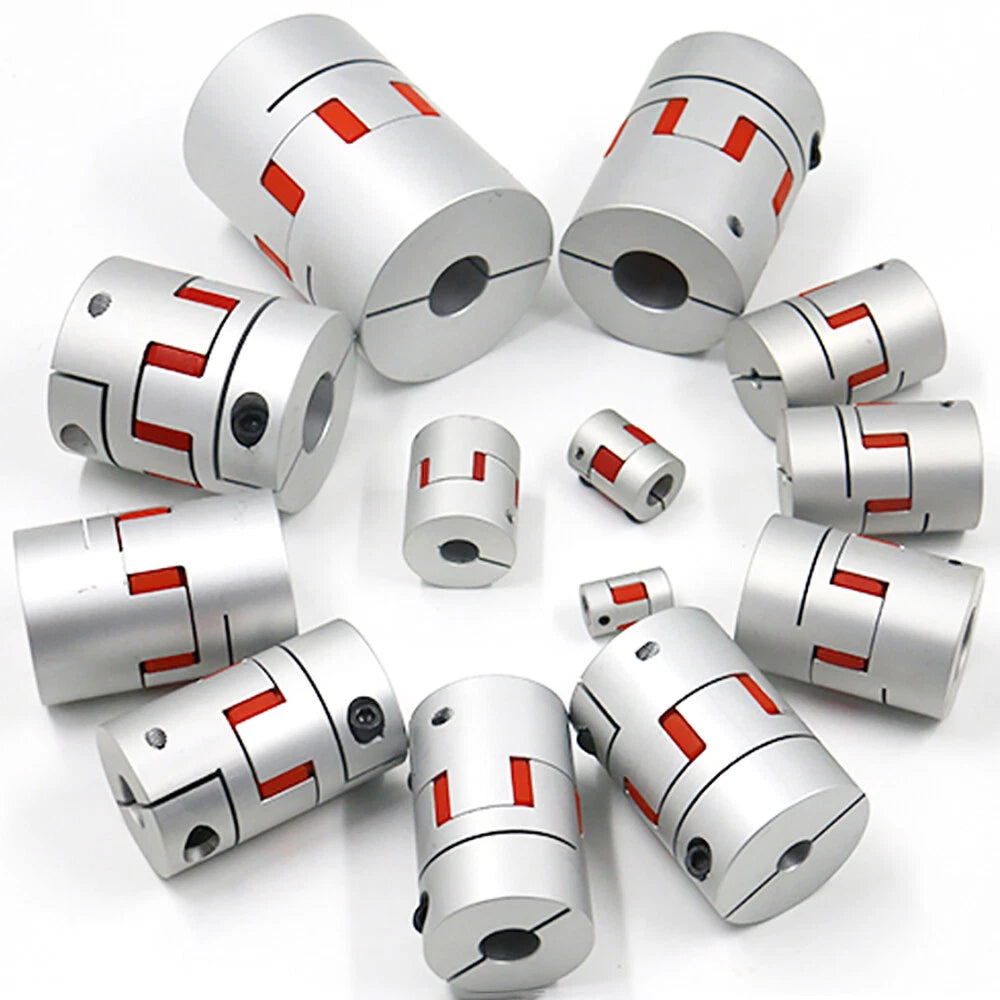

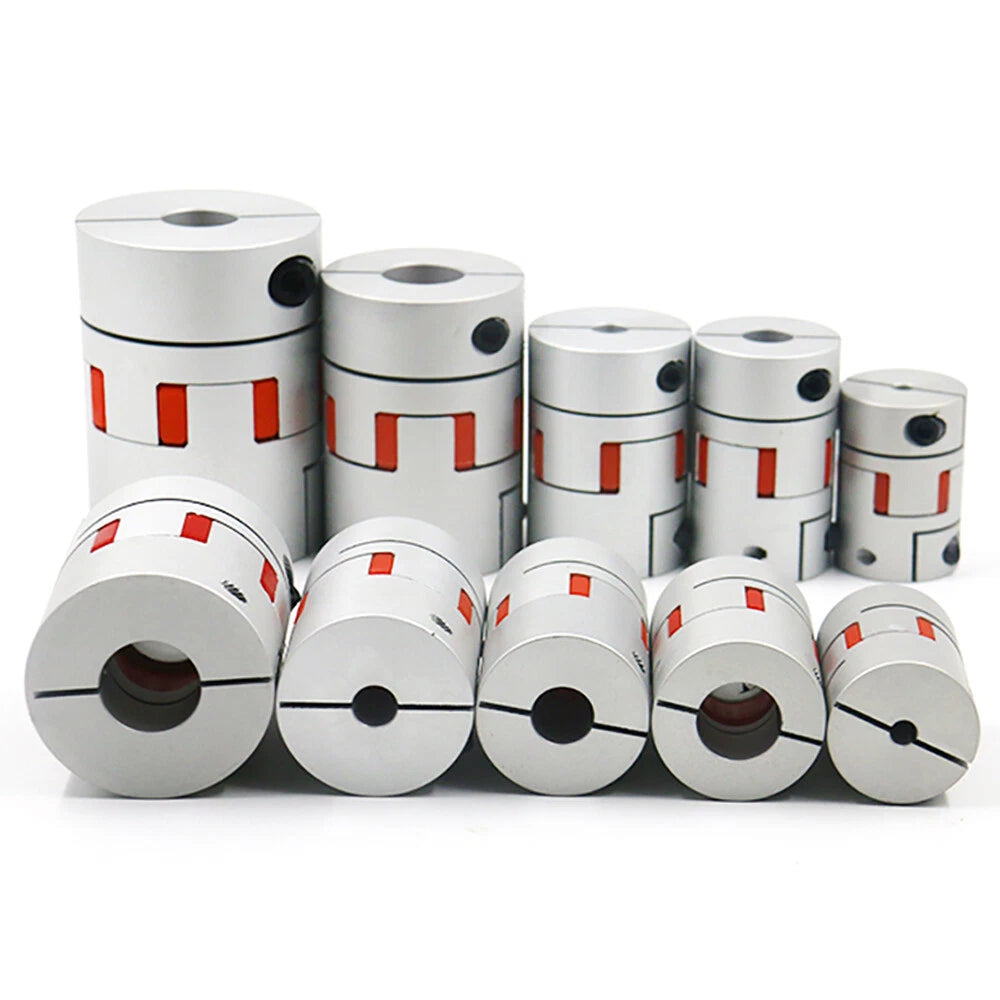

Each coupler is machined from aluminum alloy with a polyurethane (PU) spider insert, available in two mounting styles — Top Tight Type and Clamping Type — and covers shaft hole combinations from 3mm × 3mm up to 8mm × 8mm (approximately 0.12" × 0.12" to 0.31" × 0.31"). The spider insert absorbs shock and compensates for angular, parallel, and axial misalignment typically in the range of ±1°–3° angular and 0.1–0.5mm parallel offset.

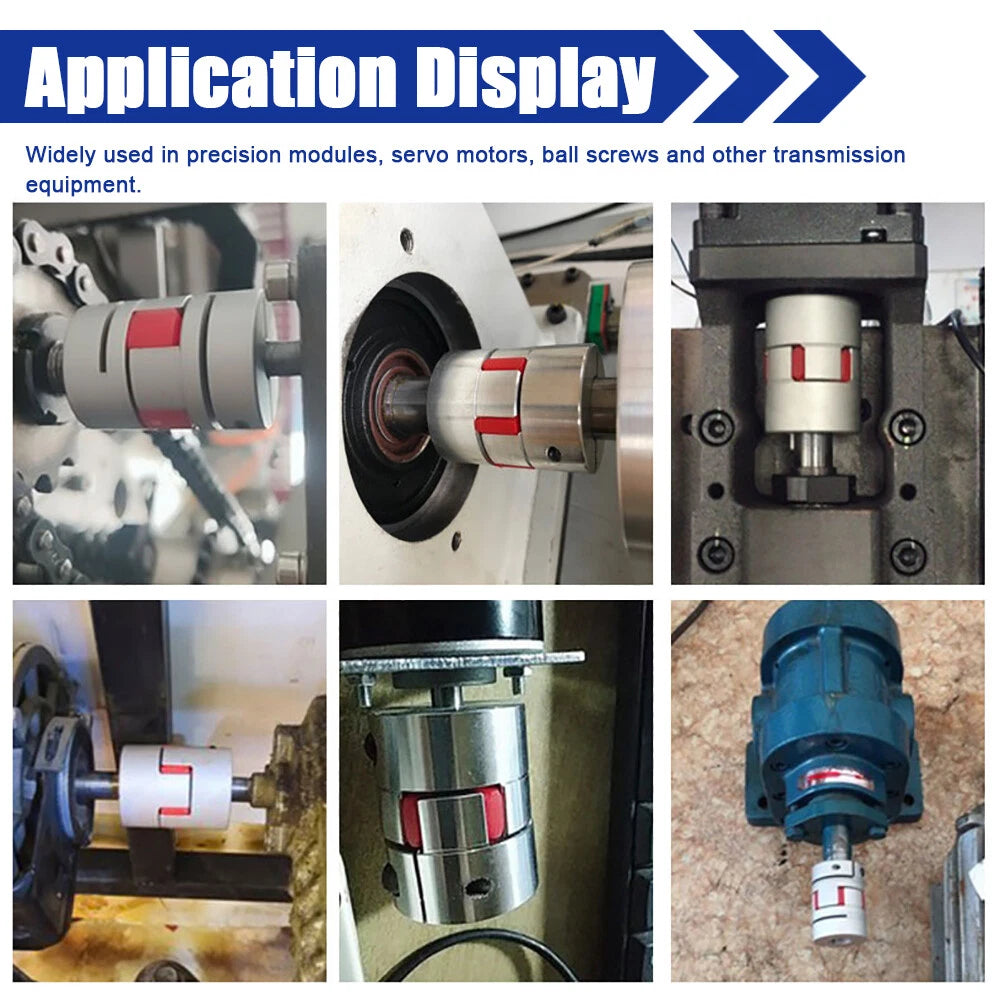

Typical use cases include replacing worn couplings on desktop CNC mills and routers, connecting NEMA 17/23 stepper motor shafts to lead screws on 3D printer Z-axes, and coupling servo motor outputs to encoder shafts in automation rigs — all scenarios where a flexible plum coupling shaft coupler outperforms rigid jaw or beam-style alternatives.
| Coupling Type | Flexible Plum (Spider / Jaw) Coupling |
|---|---|
| Hub Material | Aluminum Alloy |
| Spider Insert Material | Polyurethane (PU) |
| Mounting Style | Top Tight Type (set-screw) / Clamping Type (split-clamp) |

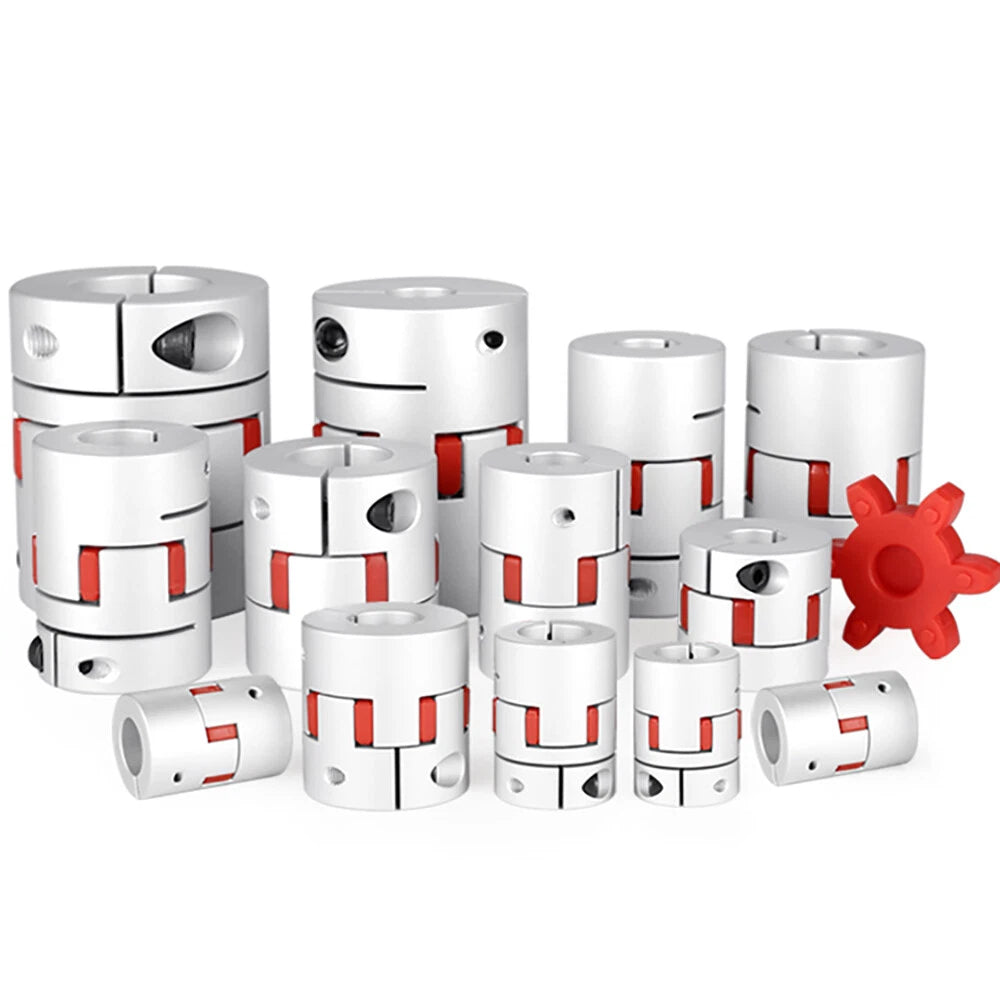

| Shaft Hole Combinations (d1 × d2) | 3×3, 3×4, 3×5, 3×6, 3×7, 3×8, 4×4, 4×5, 4×6, 4×7, 4×8, 5×5, 5×6, 5×7, 5×8, 6×6, 6×7, 6×8, 7×7, 7×8, 8×8 mm |
| Shaft Diameter Range | 3mm – 8mm (approx. 0.12" – 0.31") |
| Angular Misalignment Tolerance | Typically ±1° – 3° |
| Parallel Offset Tolerance | Typically 0.1 – 0.5mm |
| Outer Diameter | See variant options |
| Overall Length | See variant options |
| Finish | Natural anodized aluminum |
| Quantity per Order | 1 piece |
| Application | CNC routers, stepper motors, 3D printers, laser engravers, automation |

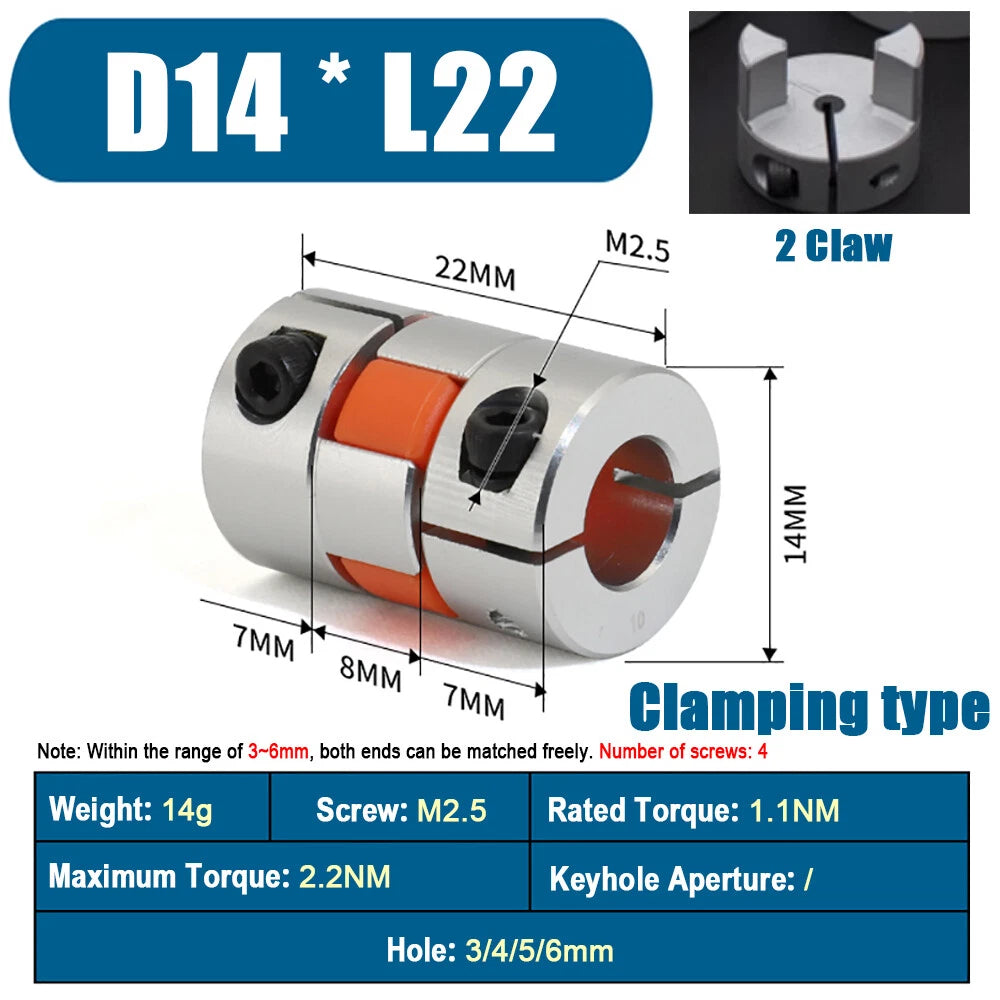

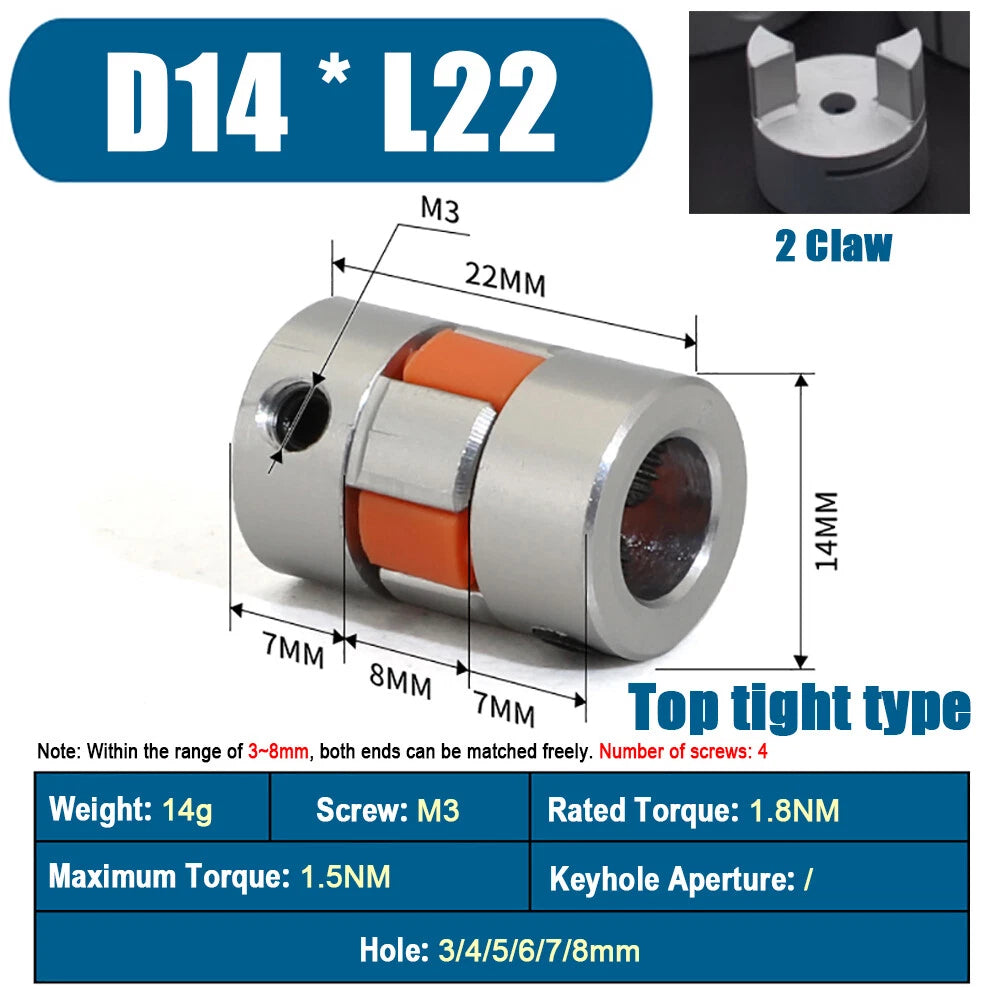

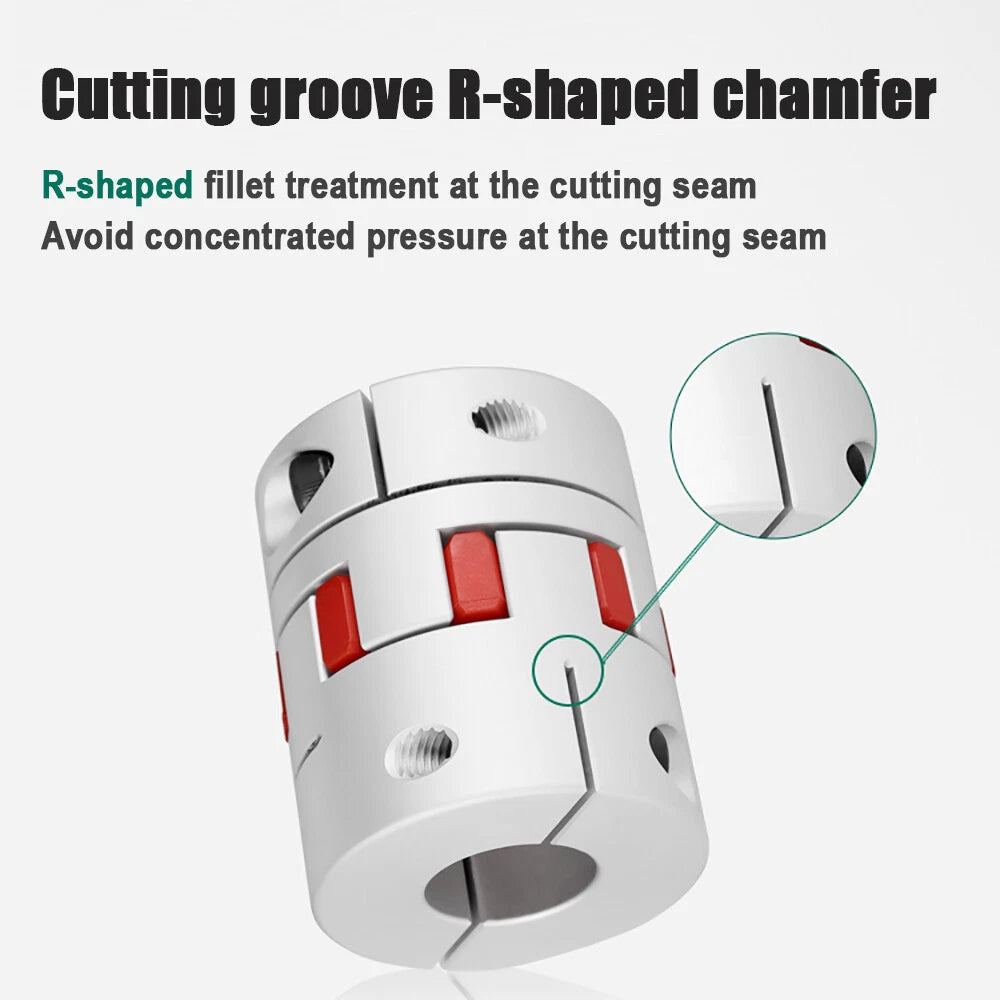

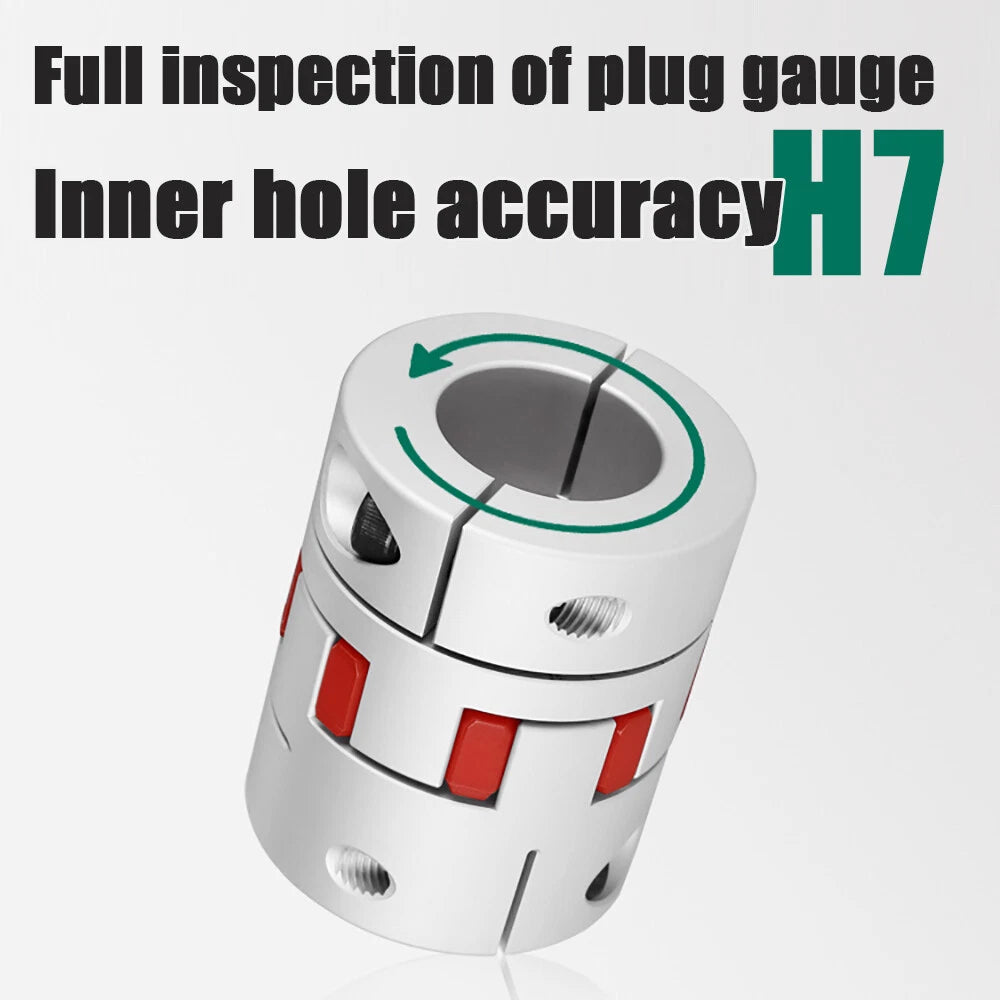

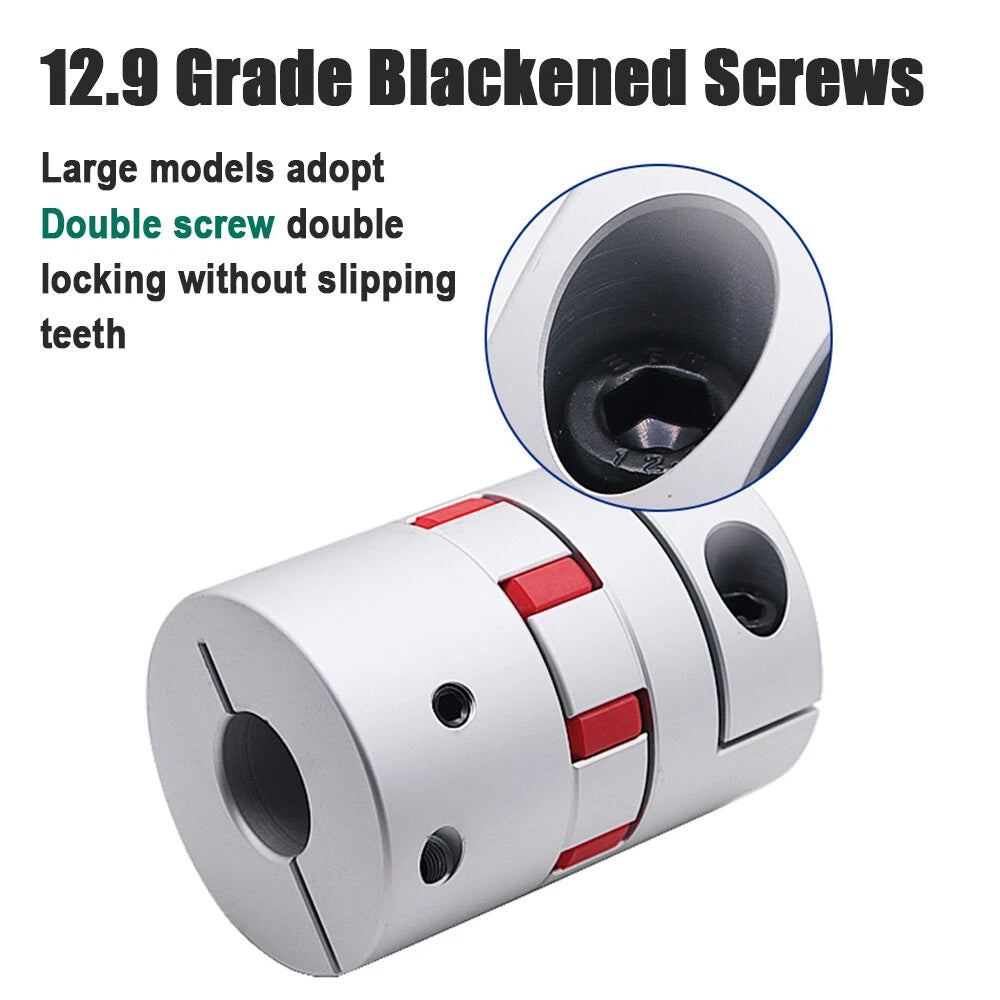

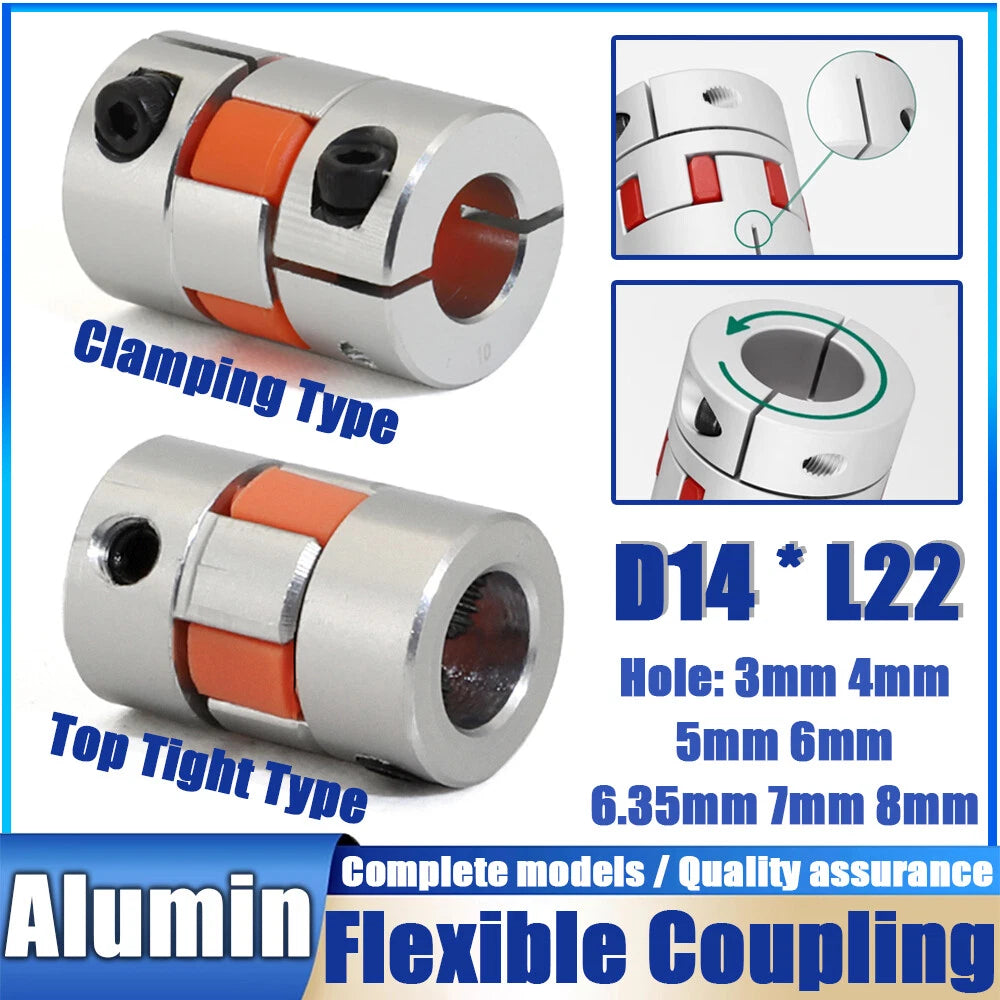

Top Tight Type uses a set-screw to grip the shaft — it installs quickly and works well for smooth shafts where occasional repositioning is needed. Clamping Type uses a split-clamp design that wraps around the shaft for a more uniform grip, making it the better choice for applications requiring zero-backlash performance or where vibration could loosen a set-screw over time.
Select the combination that matches your motor shaft diameter (d1) and lead screw or driven shaft diameter (d2). For example, if your NEMA 17 stepper has a 5mm shaft and your lead screw is 8mm, choose 5mm × 8mm. If both shafts are the same diameter, choose the matching same-size option (e.g., 5mm × 5mm).
The aluminum alloy hubs and PU spider insert are designed for the torque ranges typical of NEMA 17 and NEMA 23 stepper motors used in desktop CNC and 3D printing applications. For high-torque servo or industrial motor applications, please contact us to confirm suitability for your specific torque and RPM requirements.
The aluminum alloy hubs have a natural anodized finish that provides moderate corrosion resistance suitable for indoor workshop and enclosed machine environments. For prolonged exposure to moisture, salt spray, or outdoor conditions, additional protective coating or stainless-steel alternatives are recommended.
This flexible plum coupling is compatible with most standard desktop 3D printer Z-axis configurations that use 5mm motor shafts paired with T8 (8mm) lead screws — select the 5mm × 8mm variant. The outer diameter and hub geometry follow common coupling standards, making it a drop-in replacement for most machines without additional machining.

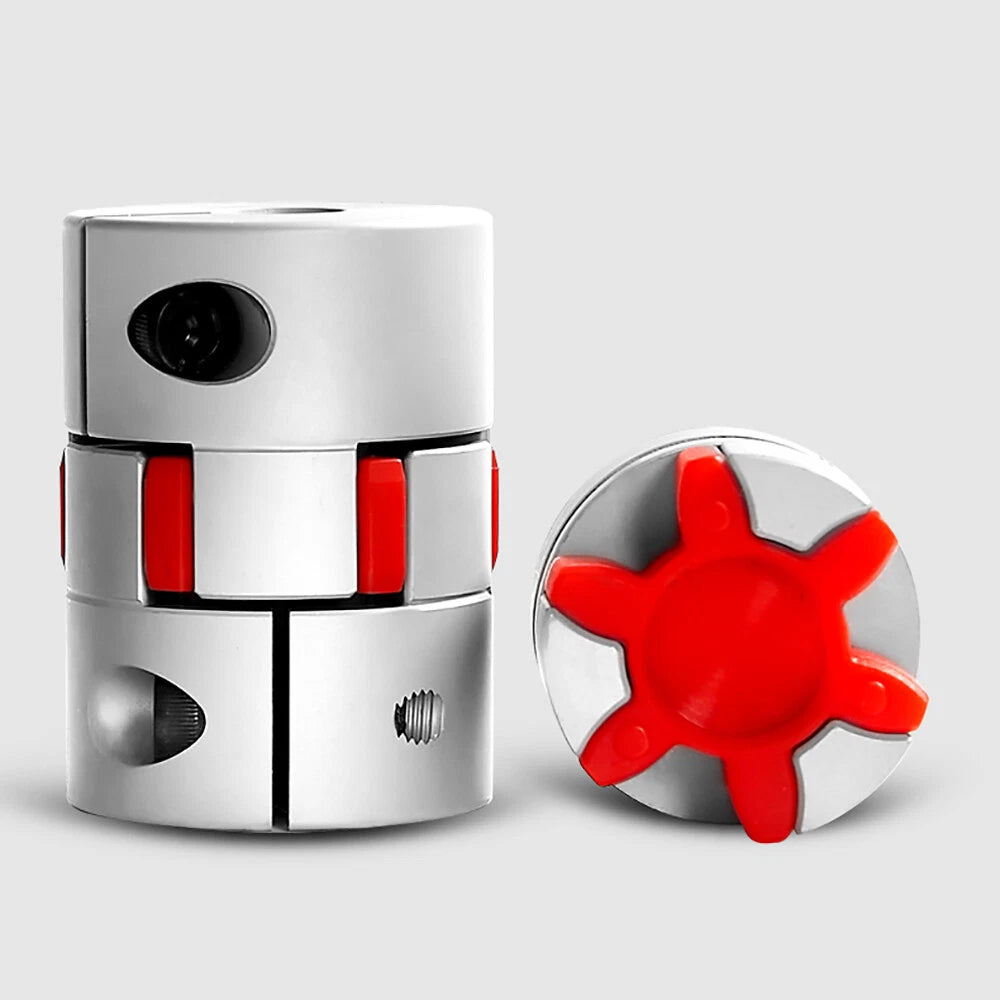

The polyurethane spider insert absorbs torsional vibration and mechanical shock between the two hubs. In 3D printing, this reduces Z-banding artifacts caused by lead screw resonance. In CNC routing, it dampens chatter transmitted from the cutting tool back to the stepper motor, helping maintain positional accuracy and extending motor bearing life.

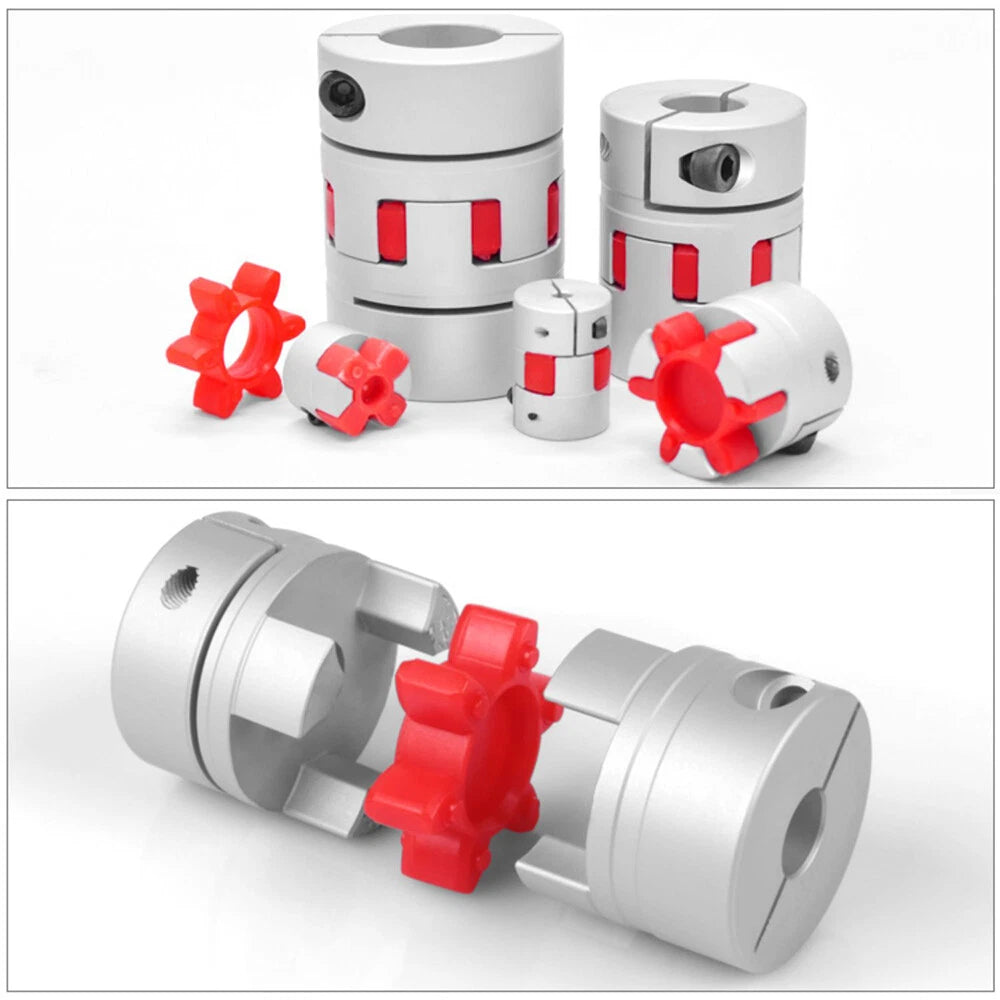

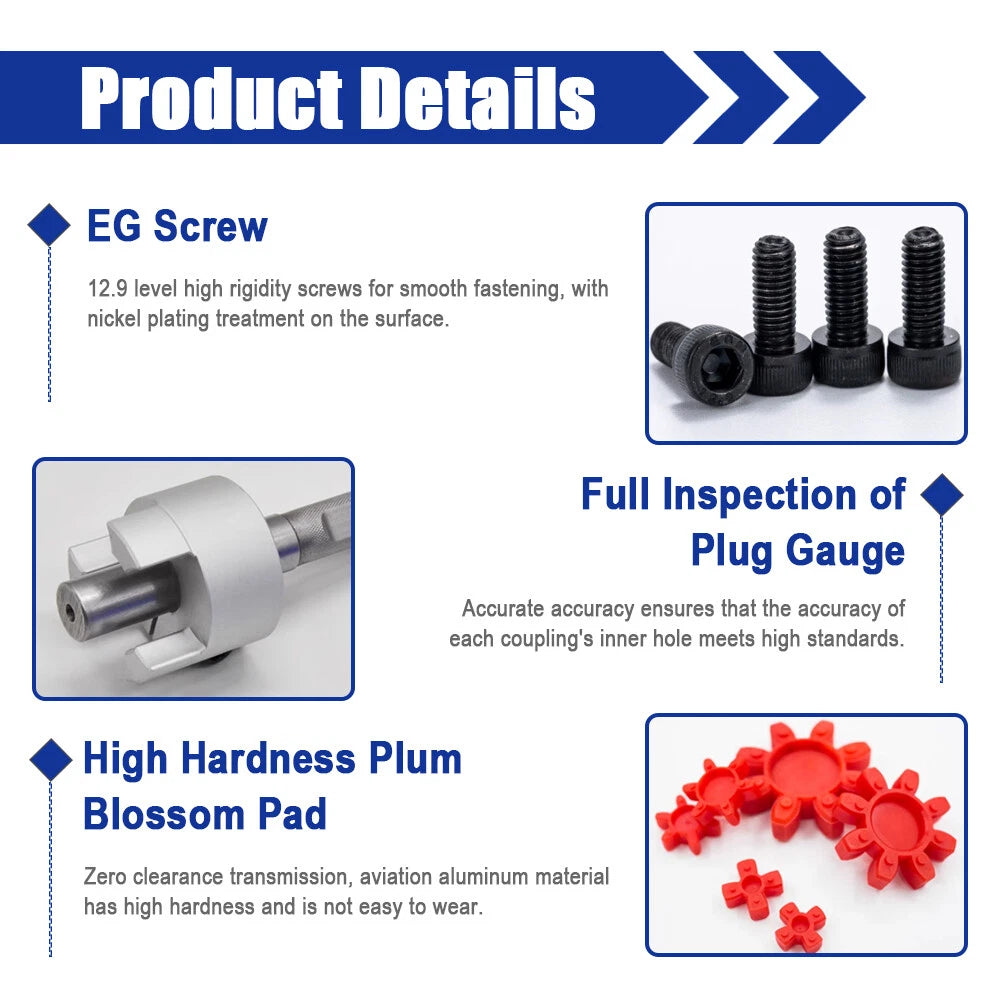

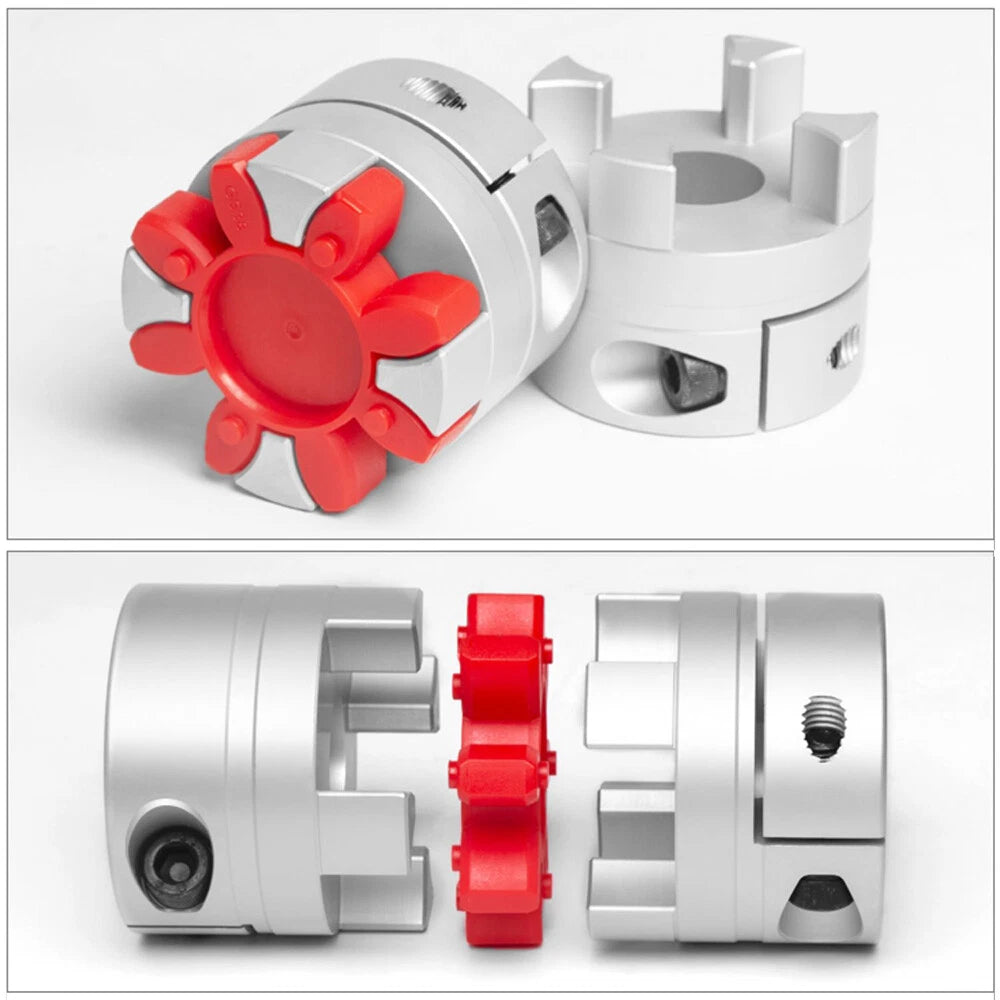

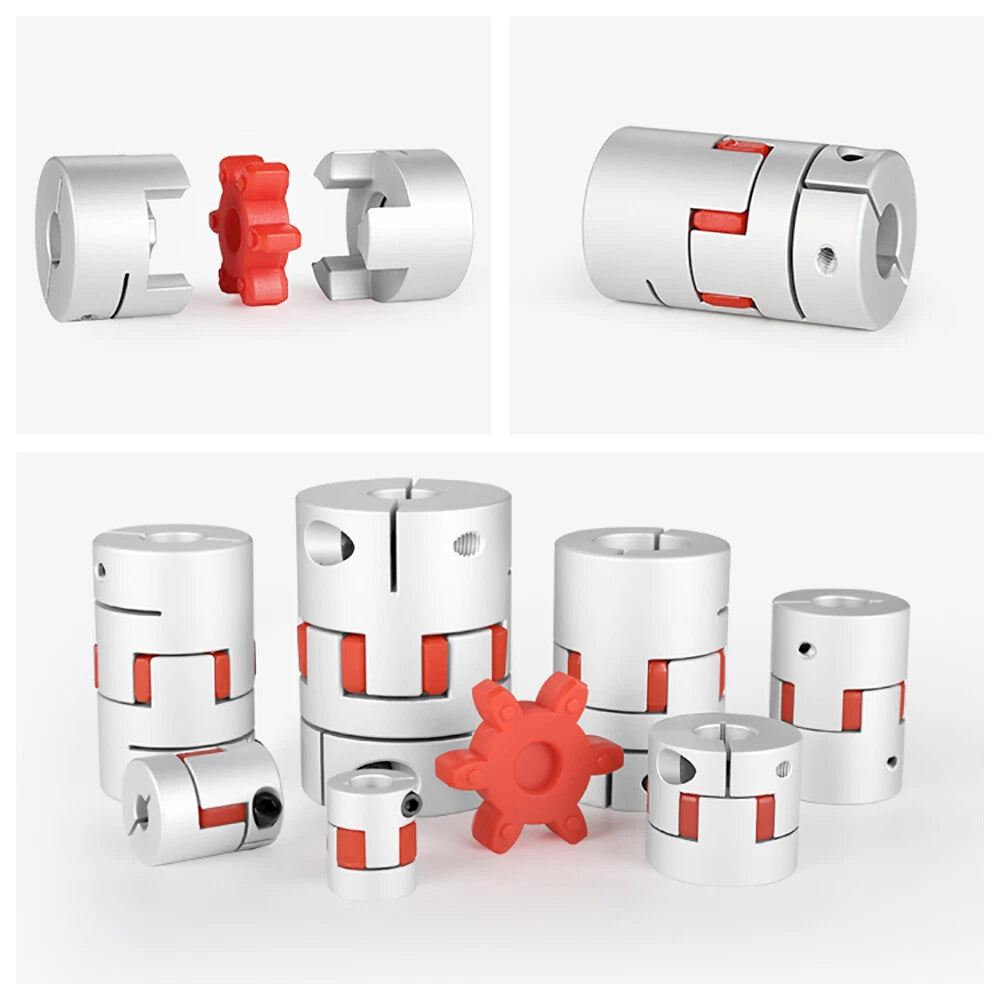

The PU spider insert is a separate component seated between the two aluminum hubs. In most cases it can be replaced independently without replacing the entire coupler. Contact us to confirm insert availability for your specific size combination.
