When misalignment, vibration, or shaft wobble disrupts your CNC router, 3D printer, or stepper motor drive system, the root cause is often a poorly fitted coupling. Engineers, makers, and machine builders who demand repeatable, zero-backlash motion need a shaft coupler that holds its grip under continuous load — not one that slips, cracks, or introduces runout into the drivetrain.

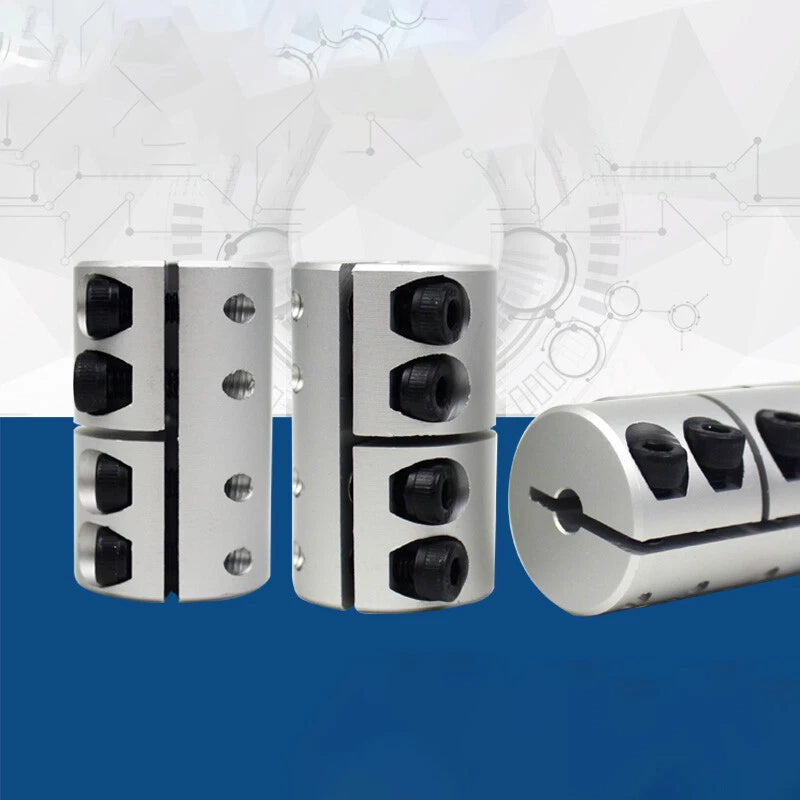

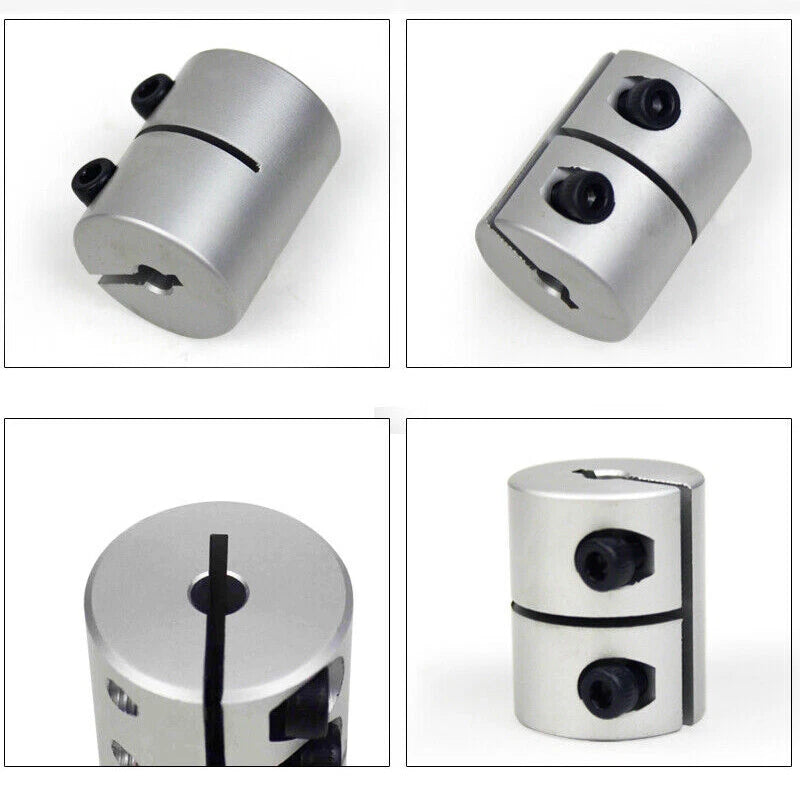

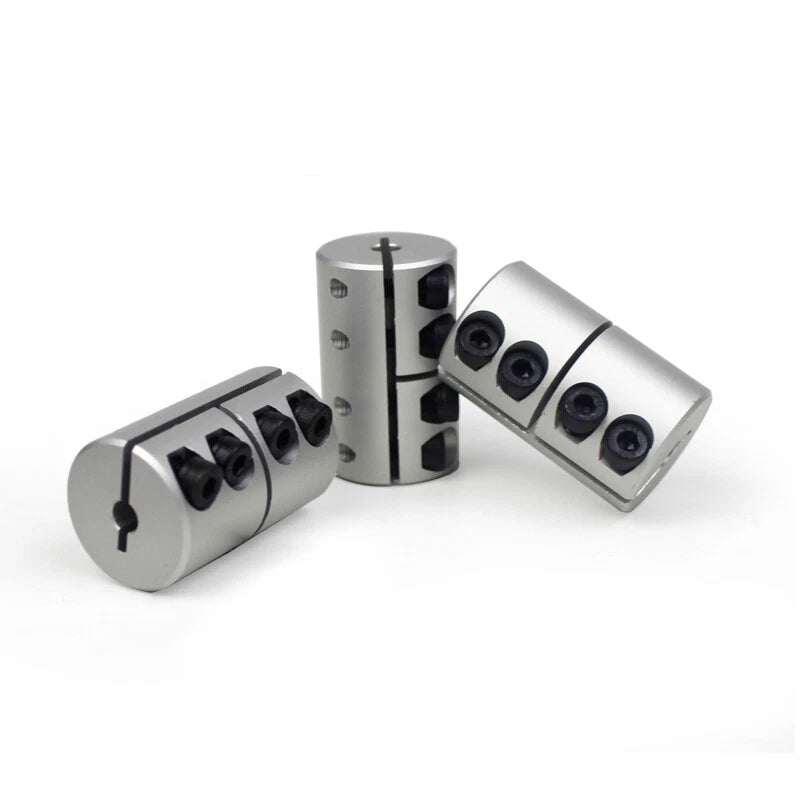

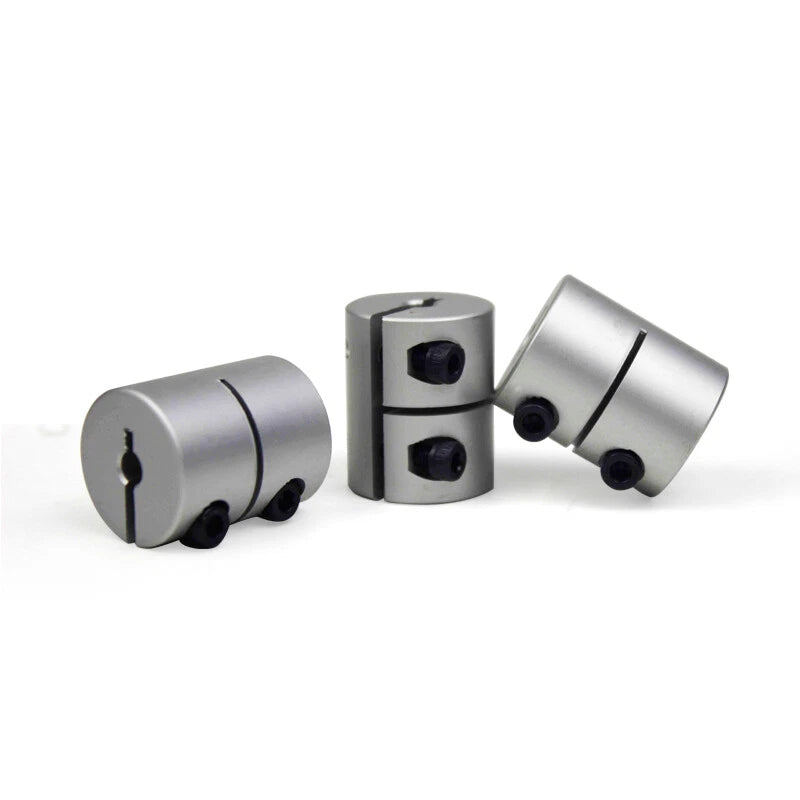

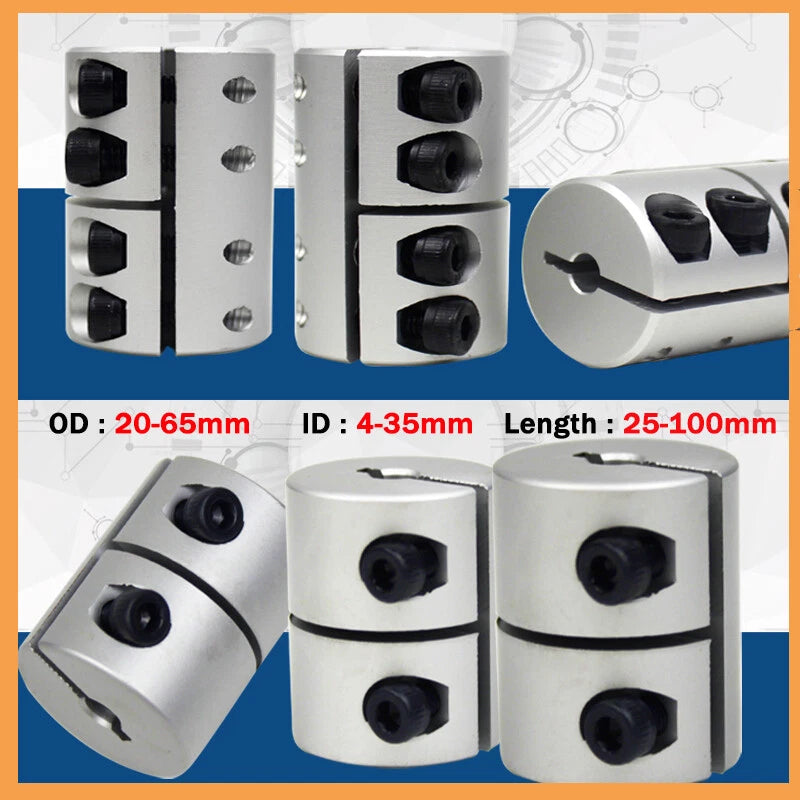

These flexible shaft couplers are machined from aluminum alloy with a helical-cut body that absorbs minor angular and parallel misalignment while maintaining rigid torque transfer. Available in coupler outer diameters from D20mm to D65mm and lengths from L25mm to L100mm, they accept shaft diameters ranging from 4mm to 35mm (approximately 0.16 in to 1.38 in). Each coupler is secured via dual set screws on each hub for a firm, slip-resistant grip on both shafts.
Typical applications include lead screw connections on CNC milling machines and laser engravers, motor-to-shaft coupling on FDM and resin 3D printers, stepper motor drives in pick-and-place automation, and encoder shaft connections in servo systems. The wide size matrix — with same-diameter and cross-diameter shaft options — makes these couplers a go-to solution for flexible shaft coupler replacement, CNC stepper motor coupling, and 3D printer Z-axis coupler upgrades.
| Material | Aluminum Alloy |
|---|---|
| Coupler Outer Diameter (OD) | D20mm – D65mm (see variant options) |
| Coupler Length | L25mm – L100mm (see variant options) |
| Shaft Bore Diameter | 4mm – 35mm (≈ 0.16 in – 1.38 in) |
| Bore Configuration | Same-diameter and cross-diameter (see variant options) |
| Clamping Method | Dual set screws per hub |
| Coupler Type | Helical-cut flexible rigid coupling |
| Finish | Natural aluminum (uncoated) |
| Quantity per Order | 1 pc |
| Compatible Motor Types | NEMA 17, NEMA 23, NEMA 34 stepper motors; servo motors |
| Typical Applications | CNC routers, 3D printers, laser engravers, lead screw drives, encoder shafts |
Select the Coupler Dimension (outer diameter × length) based on the physical space available in your machine. Then select the Shaft Diameter that matches the two shafts you are connecting — for example, "6mm to 8mm" means one hub accepts a 6mm shaft and the other accepts an 8mm shaft. If both shafts are the same size, choose a same-bore option such as "8mm to 8mm".
A rigid coupler transmits torque with no flex — ideal when shafts are perfectly aligned. A flexible (helical) coupler has a spiral cut that allows it to absorb small amounts of angular and parallel misalignment without transmitting that stress to motor bearings or lead screw nuts. These couplers combine both: the helical cut provides flexibility while the aluminum body maintains near-zero backlash.
NEMA 17 stepper motors typically have a 5mm output shaft. Select a shaft diameter option that includes "5mm" on the motor side (e.g., "5mm to 5mm" or "5mm to 8mm" if your lead screw is 8mm). The D20mm × L25mm or D20mm × L30mm coupler dimensions are the most common fit for NEMA 17 applications.

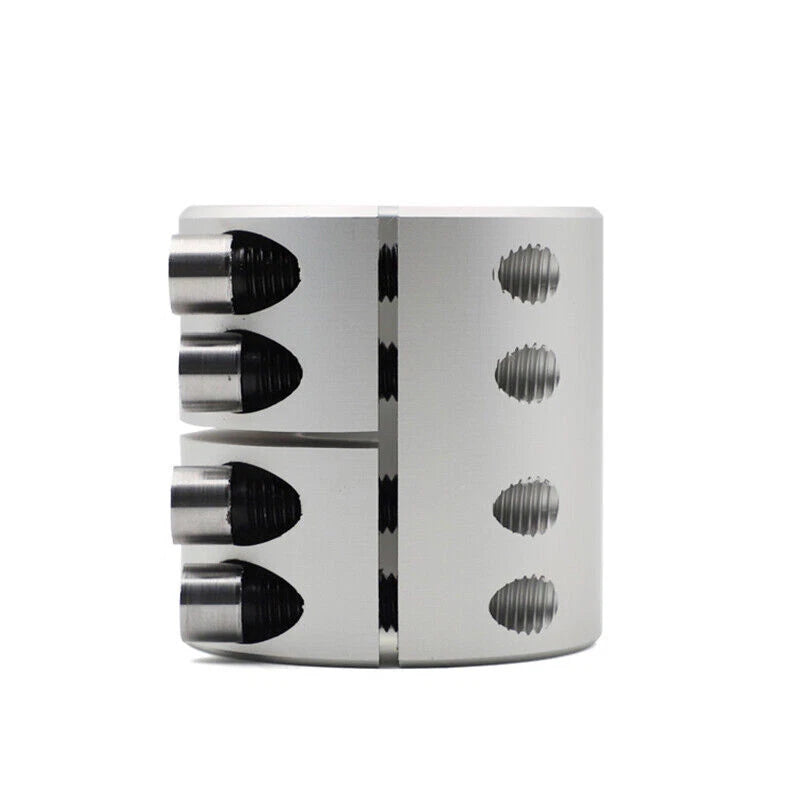

Each hub uses two set screws tightened against the shaft. For best results, ensure the shaft has a flat (D-cut) or use thread-locking compound on the set screws. The aluminum alloy body provides sufficient grip for typical stepper motor torque outputs. For high-torque servo applications with shafts above 20mm, verify the coupler's rated torque against your motor's peak output.
The natural aluminum alloy finish offers moderate corrosion resistance suitable for indoor workshop and enclosed machine environments. For prolonged exposure to moisture, salt air, or chemical vapors, consider applying a thin coat of corrosion-inhibiting lubricant to the coupler surface. The set screws are steel and may show surface oxidation over time in high-humidity conditions.
Yes. These couplers are widely used to connect stepper or servo motor output shafts to ball screws and lead screws in CNC machines, 3D printers, and linear actuators. Select the shaft diameter option that matches your motor shaft on one side and your screw shaft diameter on the other. Confirm the coupler OD fits within your motor mount or bearing block clearance.
No. The bore must match the shaft diameter precisely. Using an oversized bore will result in runout, vibration, and potential shaft damage even when set screws are tightened. If your shaft size is not listed, contact us to confirm availability of additional bore sizes not shown in the current variant matrix.
