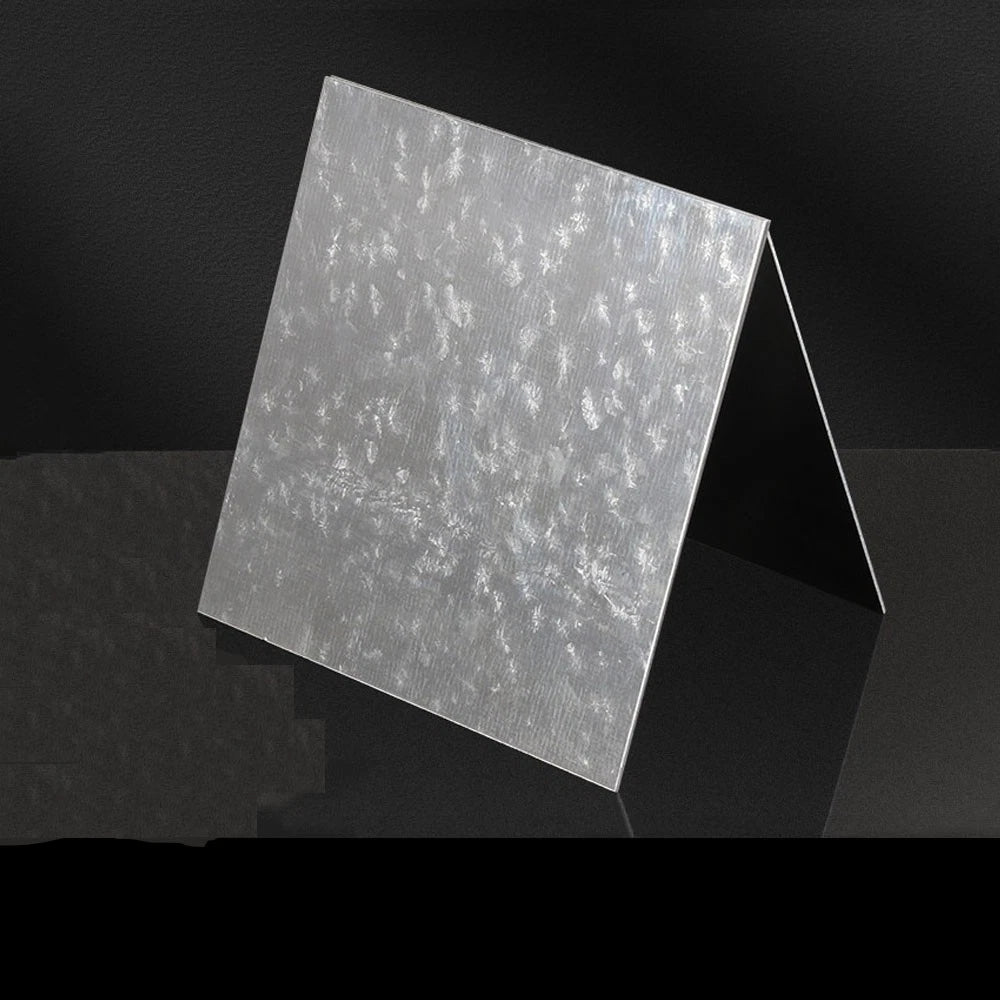

Sourcing correctly sized galvanised steel sheet plate without committing to full-mill quantities is a recurring challenge for fabricators, maintenance engineers, and hands-on DIYers. This listing offers zinc-coated galvanised steel sheet in a wide matrix of sizes and thicknesses, letting you order exactly what your project requires — from thin 0.5mm shim stock through to structural 3mm plate.

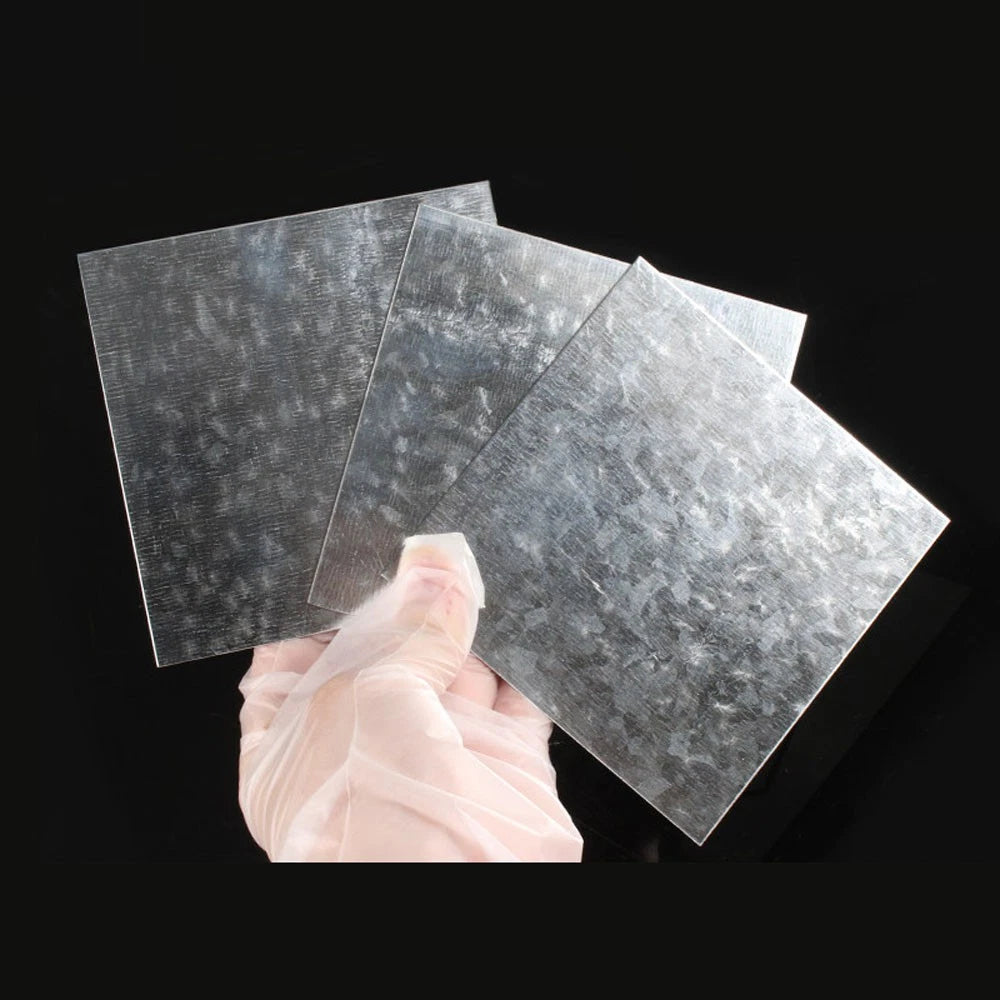

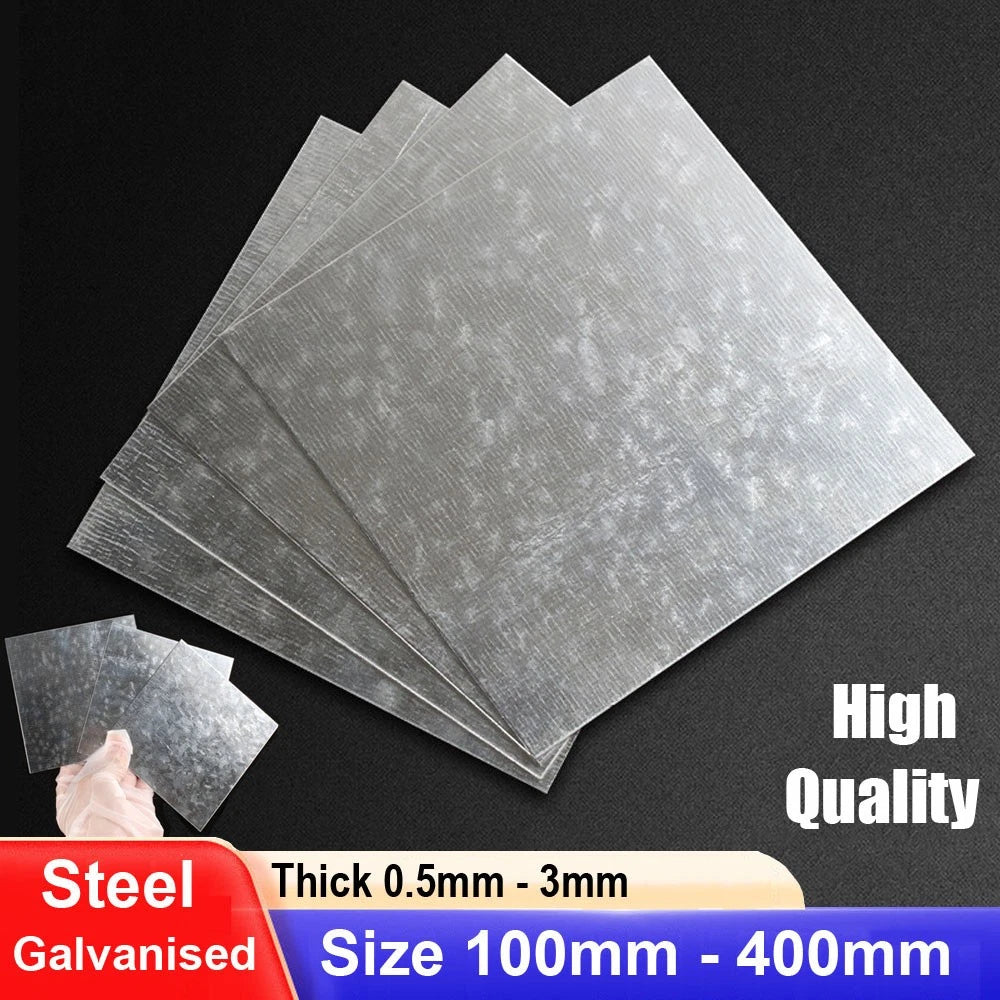

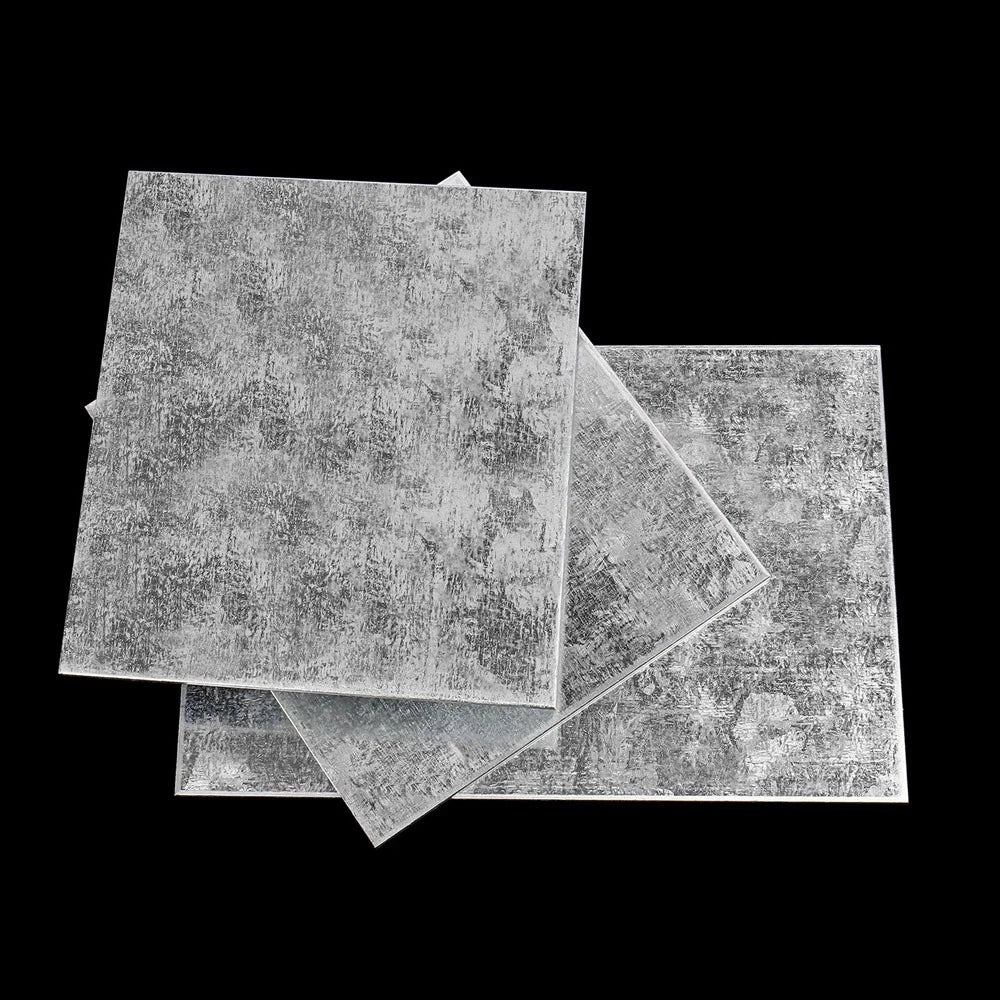

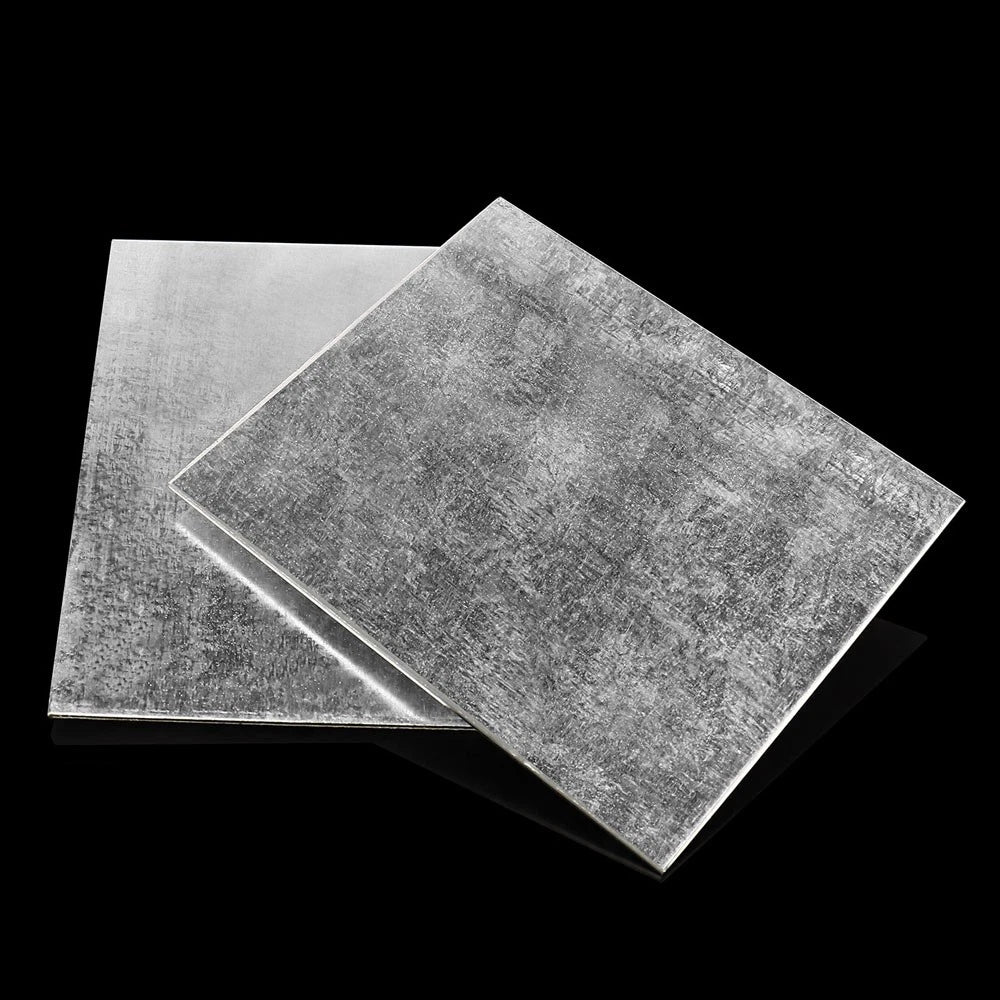

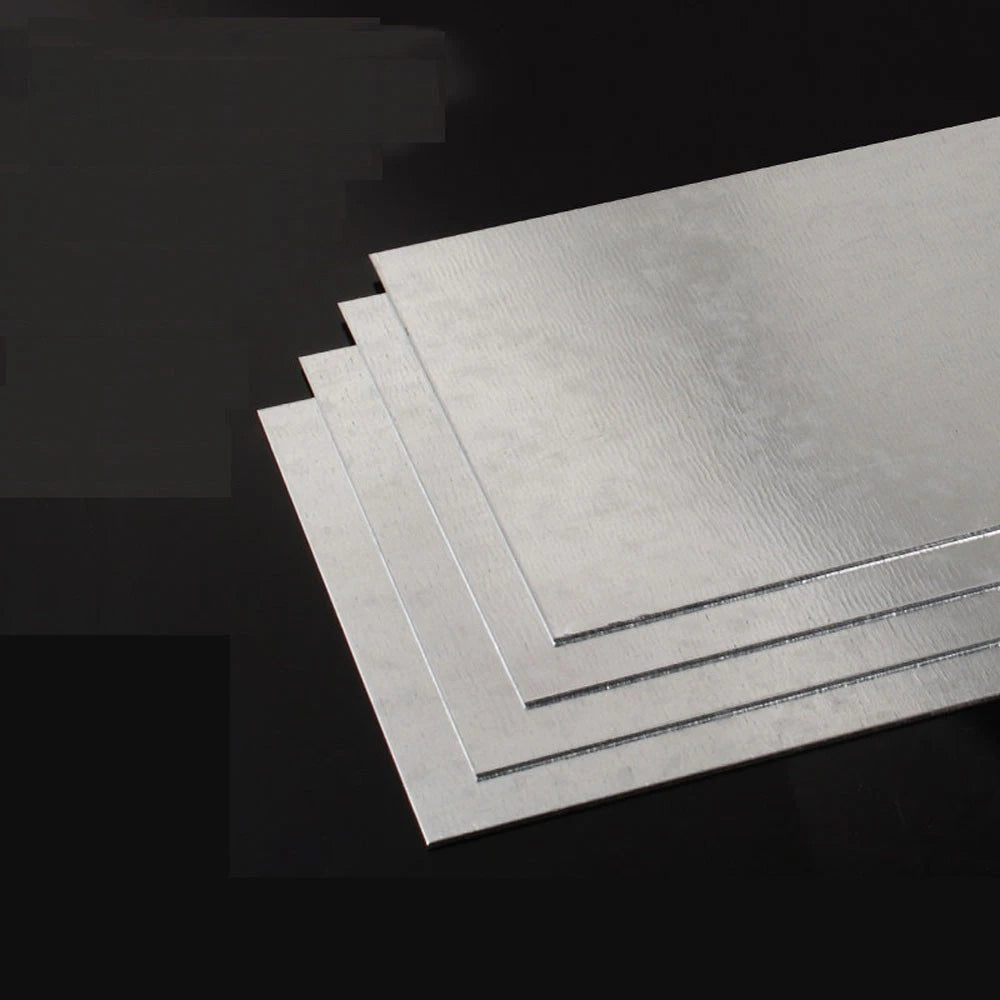

Each piece is cut from hot-dip or electro-galvanised mild steel (equivalent to EN 10346 / ASTM A653 specification), with a continuous zinc coating that provides barrier and sacrificial corrosion protection. Available sizes range from 100×100mm (approx. 3.94"×3.94") up to 300×400mm (approx. 11.81"×15.75"), with thickness options of 0.5mm, 0.6mm, 0.8mm, 1mm, 1.2mm, 1.5mm, 2mm, 2.5mm, and 3mm. Pack quantities of 1, 2, 3, or 6 pieces are available depending on the variant selected.
Typical applications include roofing flashing and weatherproofing patches, HVAC ductwork repairs and fabrication, automotive underbody and chassis repair panels, garden and agricultural enclosure panels, electrical enclosure blanking plates, and general sheet metal fabrication where a galvanised steel sheet plate is required for outdoor or moisture-exposed environments. Long-tail use cases include zinc-coated steel blanks for CNC plasma cutting, galvanised flat bar stock for welded frames, and corrosion-resistant sheet metal for marine-adjacent structures.
| Material | Zinc-galvanised mild steel (low-carbon steel substrate) |
|---|---|
| Equivalent Standard | EN 10346 / ASTM A653 (hot-dip galvanised sheet) |
| Coating Type | Zinc galvanised (hot-dip or electro-galvanised) |

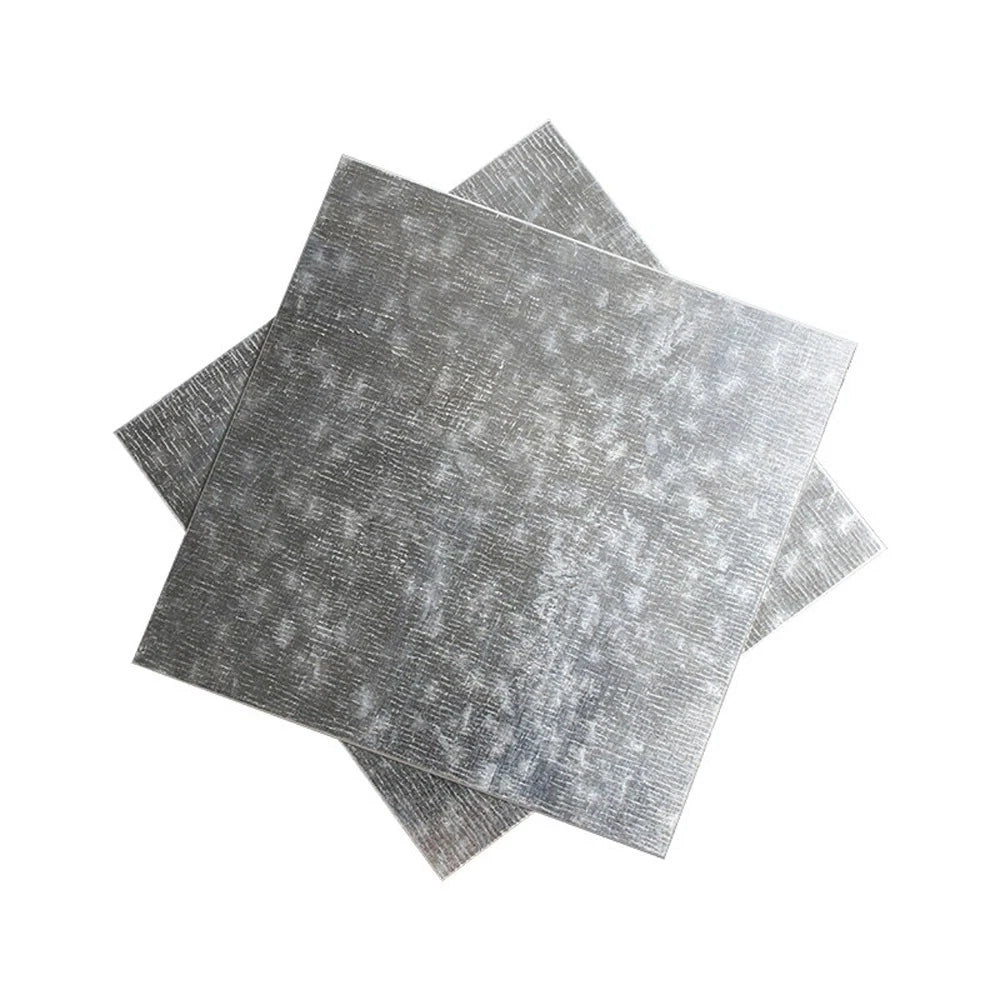

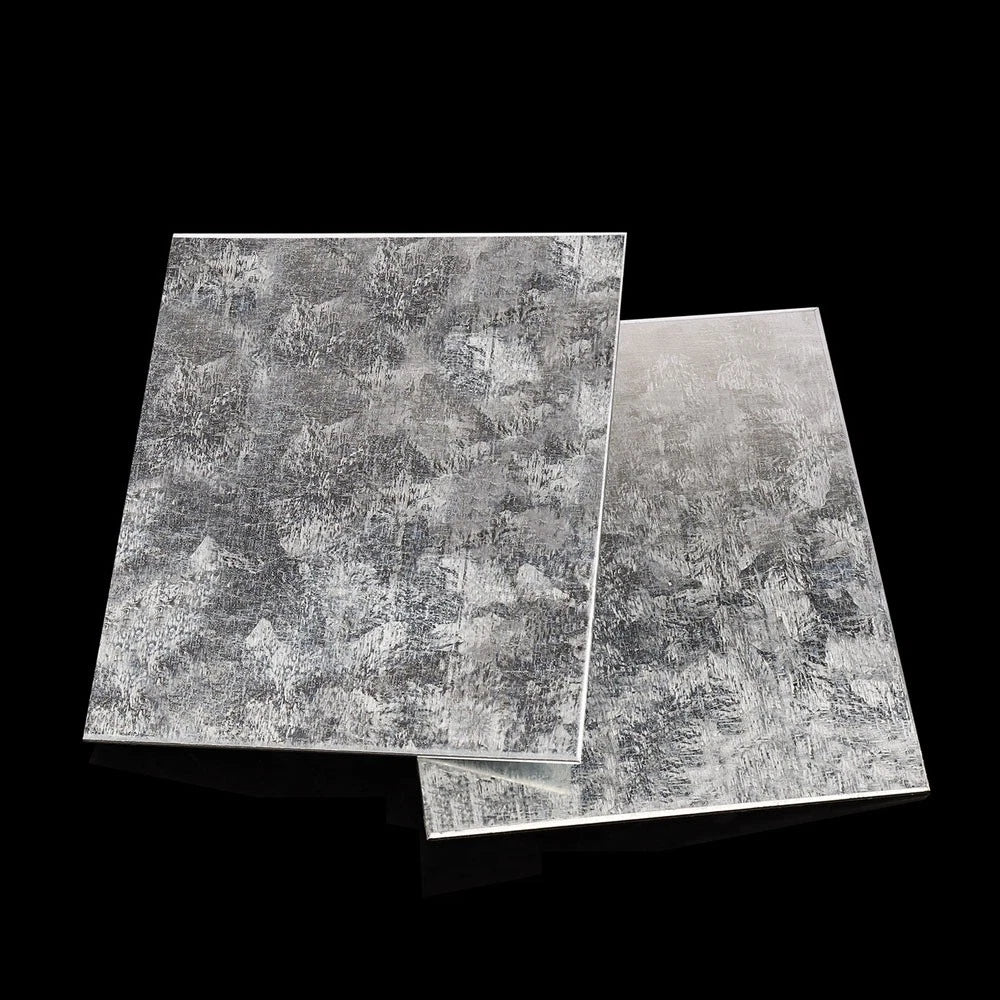

| Surface Finish | Spangled or minimised-spangle zinc finish (mill standard) |
| Available Sizes | 100×100mm to 300×400mm (see variant options) |
| Available Thicknesses | 0.5mm / 0.6mm / 0.8mm / 1mm / 1.2mm / 1.5mm / 2mm / 2.5mm / 3mm |

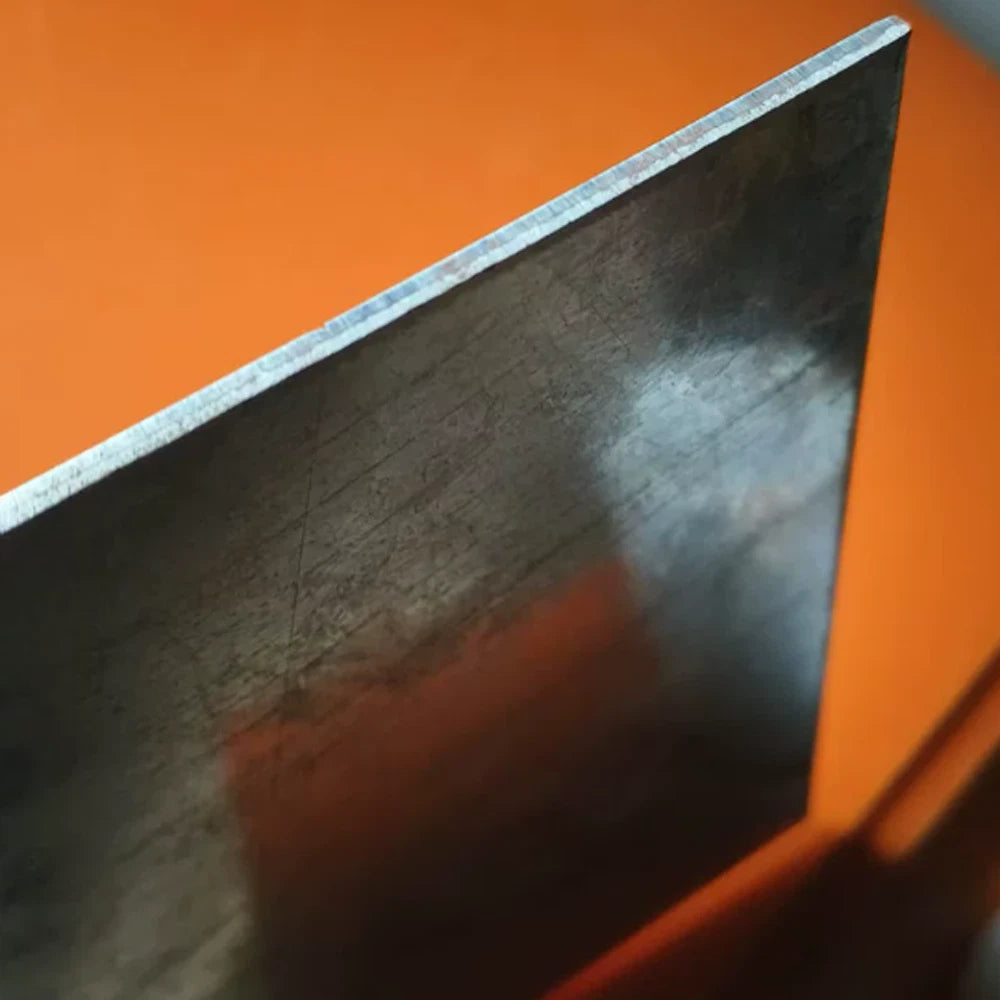

| Edge Type | Shear-cut, square edges |
| Tensile Strength (substrate) | Typically 270–500 MPa (grade dependent) |
| Zinc Coating Weight | See variant options |
| Pack Quantity | 1 / 2 / 3 / 6 pieces (see variant options) |
| Weight per Piece | See variant options |
For light-duty applications such as flashing, shims, and decorative panels, 0.5mm–0.8mm is appropriate. For general fabrication, enclosures, and repair patches, 1mm–1.5mm provides a good balance of rigidity and workability. For structural brackets, load-bearing panels, and heavy-duty repairs, choose 2mm–3mm. If you are unsure, select the next thickness up — it is easier to remove material than to add it.
Yes, but with precautions. The zinc coating burns off during welding and produces zinc oxide fumes, which are hazardous if inhaled. Always weld in a well-ventilated area or use local exhaust ventilation and appropriate respiratory protection. For best weld quality, grind or wire-brush the zinc coating back approximately 25mm from the weld zone on both sides before welding. MIG and TIG processes both work well on the mild steel substrate once the zinc is removed.
Galvanised steel is significantly more corrosion-resistant than bare mild steel. The zinc coating provides both barrier protection and sacrificial (cathodic) protection — meaning the zinc corrodes preferentially to protect the steel underneath, even at cut edges and scratches. In typical outdoor environments, galvanised sheet can last many years without significant rust. In highly aggressive environments (coastal saltwater, acid exposure), additional protective coatings such as paint or powder coat are recommended.
Yes. Thinner variants (0.5mm–1.2mm) can be cut with aviation snips, angle grinder cutting discs, or a jigsaw with a metal blade, and bent over a straight edge or in a bench vice. Thicker variants (1.5mm–3mm) are better suited to an angle grinder, plasma cutter, or bench shear for cutting, and a press brake or heavy-duty folder for bending. Always wear cut-resistant gloves when handling sheet metal edges.
Yes. For painting, clean the surface with a degreaser, lightly abrade with fine-grit abrasive paper, and apply a zinc-compatible primer (etch primer or zinc phosphate primer) before topcoating. For powder coating, the surface should be chemically pre-treated (chromate or phosphate conversion coating) for best adhesion. Avoid applying standard alkyd primers directly to galvanised surfaces without a compatible primer, as adhesion failure can occur.
Measure the damaged area and add at least 25–50mm overlap on each side for a secure repair. For example, a 60×60mm hole would typically require a 100×100mm patch minimum. If the repair area is irregular, order the next size up and trim to fit. For structural repairs, match the thickness of the original material as closely as possible to maintain the original load capacity.
Standard hot-dip galvanised steel is generally not recommended for direct food contact or potable water storage, as zinc can leach into acidic foods or water over time. For food-safe or drinking water applications, stainless steel or food-grade coated alternatives are more appropriate. For non-contact structural applications in food processing environments, galvanised steel is widely used and acceptable.
