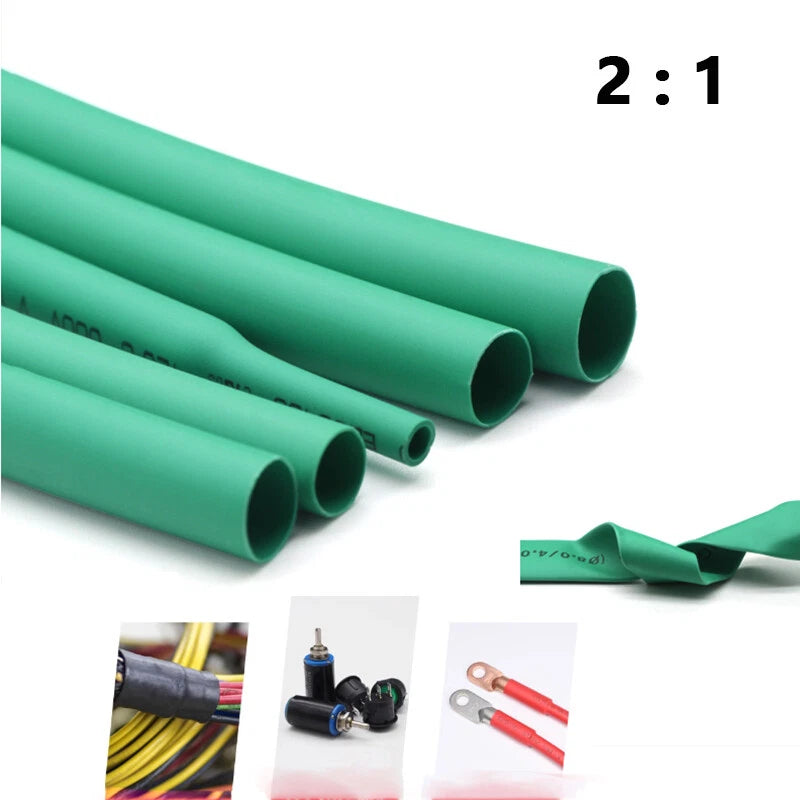

Green Heat Shrink Tubing 2:1 Ratio — Reliable Waterproof Wire Protection for Every Project
Whether you're chasing an electrical gremlin in your car, weatherproofing a marine connection, or tidying up a home wiring project, exposed wire splices and bare connectors are a liability. Moisture, abrasion, and vibration can degrade unprotected joints fast — and tracing a failed connection after the fact costs far more time than protecting it upfront. This green heat shrink tubing is built for DIYers, hobbyists, electricians, and automotive technicians who need a dependable, color-coded insulation solution they can trust.
Each listing covers a single continuous length of tubing in your chosen diameter and length combination. Diameters range from φ0.6mm (≈0.024") to φ80mm (≈3.15"), and lengths are available from 1M (≈3.3 ft) up to 50M (≈164 ft). The tubing is made from polyolefin — a material known for its flexibility, chemical resistance, and stable performance across a wide temperature range. With a 2:1 shrink ratio, each size recovers to approximately half its original inner diameter when heat is applied, creating a snug, moisture-resistant sleeve around your wire or connector.
Typical use cases include automotive wire harness repair and splice insulation, marine and outdoor electrical connections where moisture ingress is a concern, and electronics prototyping or hobby wiring where color-coded green sleeving helps with circuit identification. The green color also makes it easy to distinguish ground wires or safety-earth conductors in multi-wire assemblies — a common convention in industrial and residential wiring.
ℹ️ Compatibility Note: This tubing uses standard polyolefin construction and is compatible with copper, aluminum, and tinned wire. It works with most heat guns, soldering station hot-air attachments, and heat lighters. Not recommended for use with silicone wire jackets without confirming adhesion compatibility.
✅ Key Features of These Green Heat Shrink Tubes
-
🔥2:1 Shrink Ratio — Recovers to approximately half its original inner diameter, creating a tight, form-fitting sleeve that locks onto wire insulation and connectors without gaps.
-
💧Moisture-Resistant Construction — Polyolefin material resists water ingress, making this green heat shrink wire sleeving suitable for outdoor, automotive, and marine wiring environments.
-
📏Wide Size Range — Available from φ0.6mm to φ80mm diameter, covering everything from fine gauge hobby wire to large cable bundles and battery terminals.
-
🎨Color-Coded Green — Green is a widely recognized convention for ground/earth conductors and safety wiring, making circuit identification faster and reducing wiring errors in multi-conductor assemblies.
-
🌡️Broad Temperature Tolerance — Rated for continuous use across a wide temperature range, generally suitable for under-hood automotive applications, outdoor enclosures, and industrial control panels.
-
✂️Cut-to-Length Flexibility — Sold in lengths from 1M to 50M so you can buy exactly what your project needs — no waste on small jobs, bulk value for larger wiring runs or workshop stock.

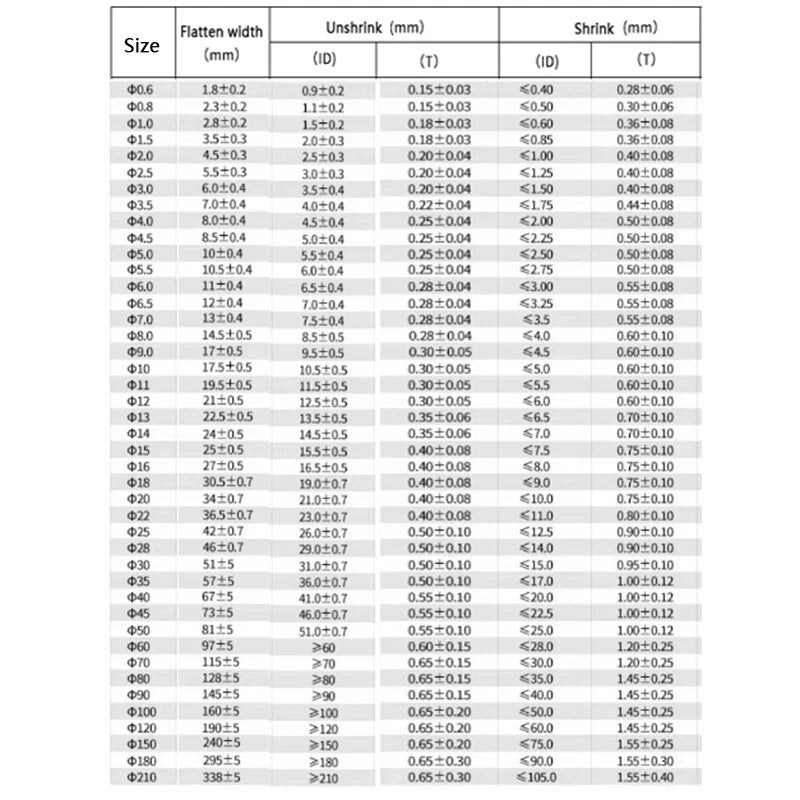

📐 Technical Specifications — Heat Shrink Tubing
| Material |
Polyolefin |
| Color |
Green |
| Shrink Ratio |
2:1 |
| Diameter Range (Supplied) |
φ0.6mm (≈0.024") – φ80mm (≈3.15") |
| Available Lengths |
1M, 3M, 5M, 10M, 20M, 30M, 50M |
| Shrink Temperature |
Typically 90°C–120°C (194°F–248°F) |
| Operating Temperature |
Generally -55°C to +125°C (-67°F to +257°F) |
| Voltage Rating |
See variant options / Contact us to confirm |
| Flame Retardancy |
See variant options / Contact us to confirm |
| Recommended Tool |
Heat gun or hot-air station |
| Quantity per Order |
1 continuous length per variant selected |
⚠️ Sizing Tip: Always measure your wire or connector's outer diameter before ordering. Select a tubing size whose recovered diameter (approximately half the listed φ) is slightly smaller than your wire OD for a secure fit. If you're unsure, contact us with your wire gauge and we'll help you choose.
❓ Frequently Asked Questions
How do I choose the right diameter for my wires?
Measure the outer diameter of your wire or connector before shrinking. Choose a tubing size whose recovered (post-shrink) diameter is slightly smaller than your wire. For example, φ4mm tubing typically recovers to about φ2mm. When in doubt, size up — you can always apply more heat, but you cannot reverse over-shrinking.

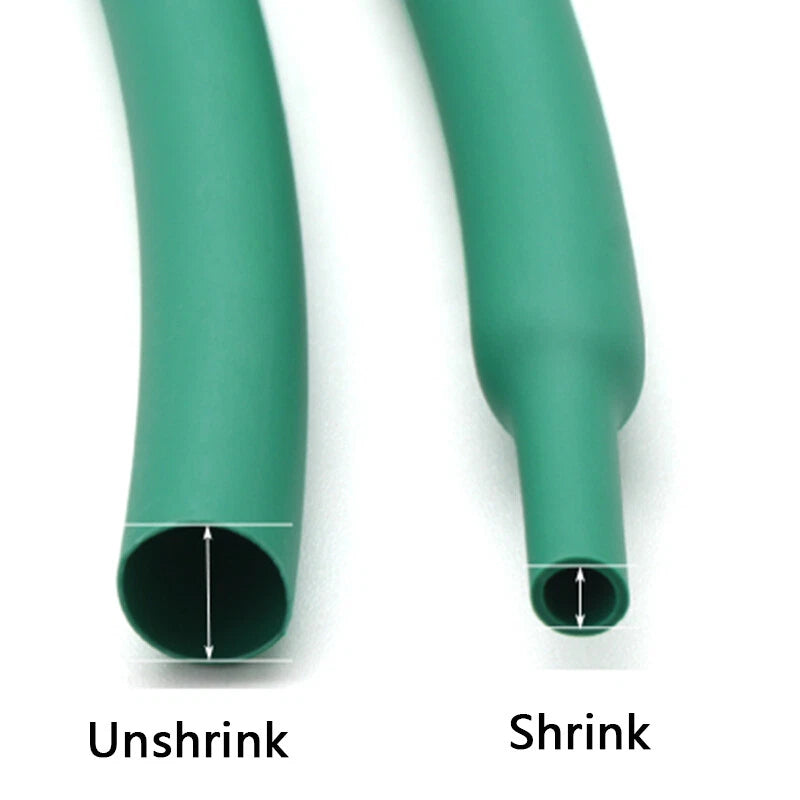

What does 2:1 shrink ratio mean?
A 2:1 ratio means the tubing shrinks to approximately half its original inner diameter when heat is applied. For example, φ10mm tubing will generally recover to around φ5mm after shrinking. This ratio is the most common for general-purpose electrical insulation work.
Is this heat shrink tubing waterproof?
Yes. This tubing is designed to provide moisture resistance and is suitable for outdoor, marine, and automotive environments where exposure to water or humidity is a concern. For fully submersed applications, we recommend confirming suitability with your specific use case. If you need adhesive-lined (dual-wall) tubing for a fully sealed connection, contact us.
What temperature is needed to shrink this tubing?
This tubing typically requires a heat source of around 90°C–120°C (194°F–248°F) to begin shrinking, and fully recovers at approximately 120°C (248°F). A heat gun is recommended for even, controlled shrinking. Avoid open flames where possible, as uneven heat can cause bubbling or uneven recovery.
Can I use this tubing for automotive wiring?
Yes. This heat shrink tubing is commonly used for automotive wire splices, connector insulation, and harness protection. Its moisture resistance makes it well-suited for under-hood and underbody applications. The green color is also useful for identifying ground wires in automotive harnesses.
What is the operating temperature range?
This tubing is generally rated for continuous use between -55°C and +125°C (-67°F to +257°F), making it suitable for most indoor and outdoor electrical applications. This covers typical automotive, marine, and industrial environments. Contact us to confirm ratings for extreme-temperature use cases.
How do I convert mm to inches for sizing?
Divide the mm value by 25.4 to get inches. Common quick conversions for this product's range:
- φ3mm ≈ 1/8" (0.118")
- φ6mm ≈ 1/4" (0.236")
- φ12mm ≈ 1/2" (0.472")
- φ25mm ≈ 1" (0.984")
- φ50mm ≈ 2" (1.969")
Remember: the listed diameter is the supplied (pre-shrink) size. The recovered diameter will be approximately half these values.
🛒 Select your diameter and length above, then add to cart — ships from our US warehouse.
