Belt slippage and inconsistent tension are among the most common causes of print artifacts in 3D printers and positioning errors in CNC routers. Engineers and makers who demand repeatable motion control need an idler pulley that holds its line under load. This GT2 6mm smooth tooth idler pulley is designed for builders who refuse to compromise on dimensional accuracy.

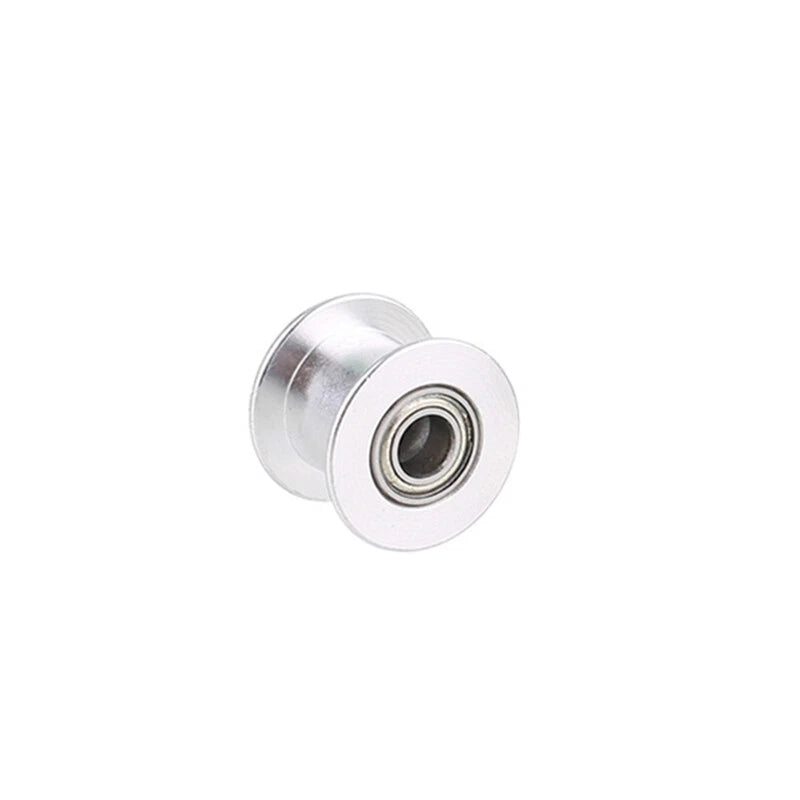

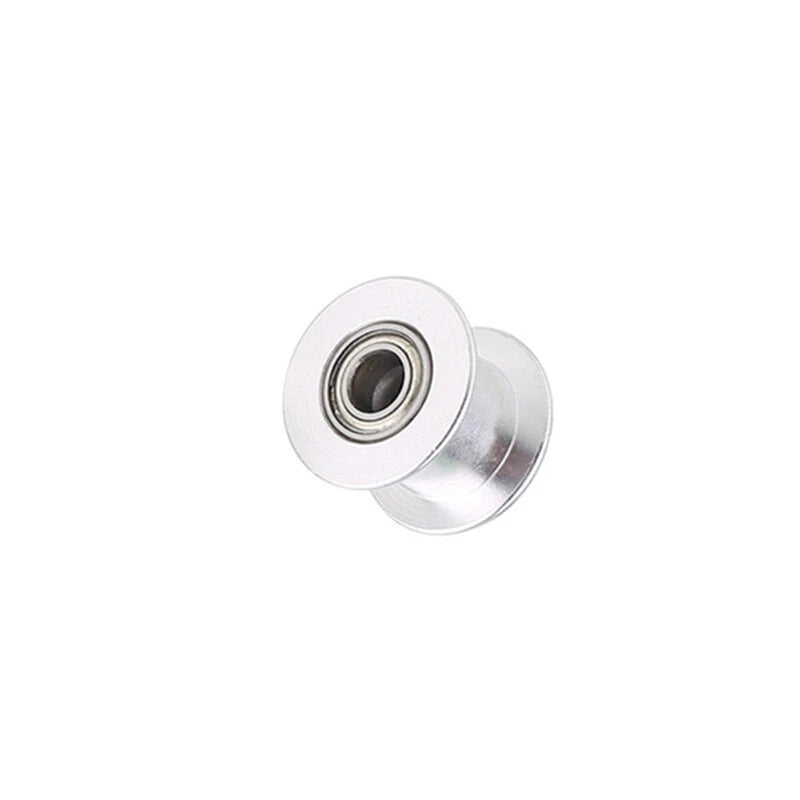

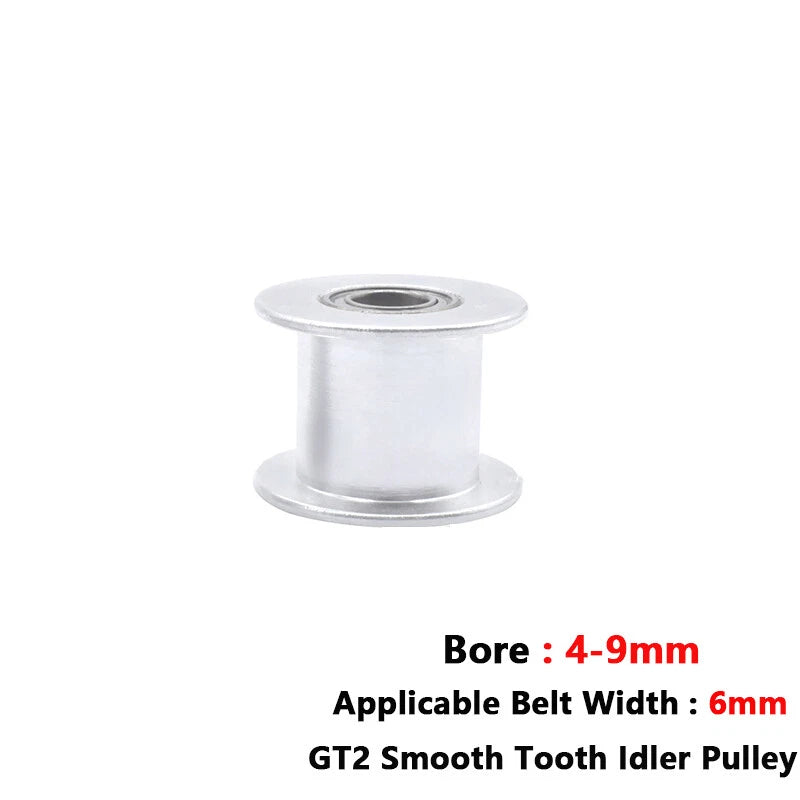

Each pulley features a smooth (toothless) groove profile machined to accept standard GT2 6mm wide timing belts. The groove outer diameter is available in 12mm (~0.47 in) or 16mm (~0.63 in), with bore options ranging from 3mm to 9mm (~0.12–0.35 in) to suit a wide range of shaft and screw sizes. The body is typically constructed from aluminum alloy or engineering-grade polymer with an integrated or press-fit bearing for low-friction rotation.
Typical applications include: belt tensioner idler on CoreXY and Cartesian 3D printers, guide pulley for GT2 belt loops in CNC laser engravers, and passive redirection pulley in belt-driven linear actuators and pick-and-place systems.
Toothless inner groove allows the GT2 belt to glide freely without tooth engagement — ideal for tensioner and redirection roles where belt meshing is not required.
Choose groove outer diameter 12mm or 16mm to match your frame geometry and belt routing path, minimizing wrap angle loss and maximizing tension efficiency.
Seven bore sizes (3 / 4 / 5 / 6 / 7 / 8 / 9mm) accommodate M3 through M8 screws and shafts, giving you flexibility across different machine frames and mounting hardware.
Integrated bearing insert enables smooth, consistent rotation under belt tension, reducing wear on both the belt and the pulley over extended duty cycles.
Groove width of 7mm accommodates standard 6mm GT2 belts with lateral clearance to prevent edge binding during high-speed or high-tension operation.
Dimensionally consistent with widely used GT2 idler pulley standards, making these a reliable replacement or upgrade for existing 3D printer and CNC motion systems.
| Belt Profile | GT2 (2mm pitch) |
|---|---|
| Belt Width | 6mm |
| Groove Type | Smooth (toothless) |
| Groove Outer Diameter | 12mm / 16mm (see variant options) |
| Groove Width | 7mm |
| Bore Diameter | 3 / 4 / 5 / 6 / 7 / 8 / 9mm (see variant options) |
| Bearing Type | See variant options |
| Body Material | See variant options |
| Quantity per Pack | 1 piece |
| Weight | See variant options |
The groove outer diameter affects the belt wrap angle and the physical clearance within your machine frame. The 12mm OD is suited to compact frames and tight belt routing paths, while the 16mm OD provides a larger contact arc that can reduce belt stress at the bend point. Check your machine's idler mounting position and available clearance before selecting.
Match the bore to your idler mounting screw or shaft diameter. Most desktop 3D printers (Ender 3, Voron, RatRig) use M5 screws for idler mounts, so a 5mm bore is the most common choice. CNC routers and custom builds may use M3–M8 hardware — check your BOM or frame drawings to confirm.
Smooth idler pulleys are used where the belt needs to change direction or maintain tension without driving or being driven. Using a toothed pulley as an idler can cause belt tooth skip and uneven wear. A smooth groove allows the belt's flat back to ride cleanly, which is the correct configuration for tensioner and redirection positions.
This smooth tooth idler pulley is compatible with both open-ended GT2 6mm belt (sold by the meter) and closed-loop GT2 belts. It functions as a passive guide or tensioner in either configuration. Ensure the belt width is 6mm and the pitch is GT2 (2mm) for correct fitment.
Durability depends on the bearing quality and body material of the specific variant. The integrated bearing is designed for continuous low-load rotation typical of 3D printer and light CNC duty. For high-speed or high-tension industrial applications, verify the bearing load rating against your operating conditions. Replacing idler pulleys as part of periodic maintenance is recommended for machines running long print jobs continuously.
No. This pulley is designed specifically for GT2 profile belts with 2mm pitch and 6mm width. HTD (3mm, 5mm pitch) and MXL belts have different tooth profiles and widths that are not compatible with this groove geometry. Using mismatched belt and pulley profiles will result in poor tracking and accelerated belt wear.
Each pack contains 1 pulley. Mounting screws, spacers, and washers are not included unless explicitly stated in the variant listing. Please refer to your machine's hardware kit or source the appropriate M-size screw separately based on your chosen bore diameter.
