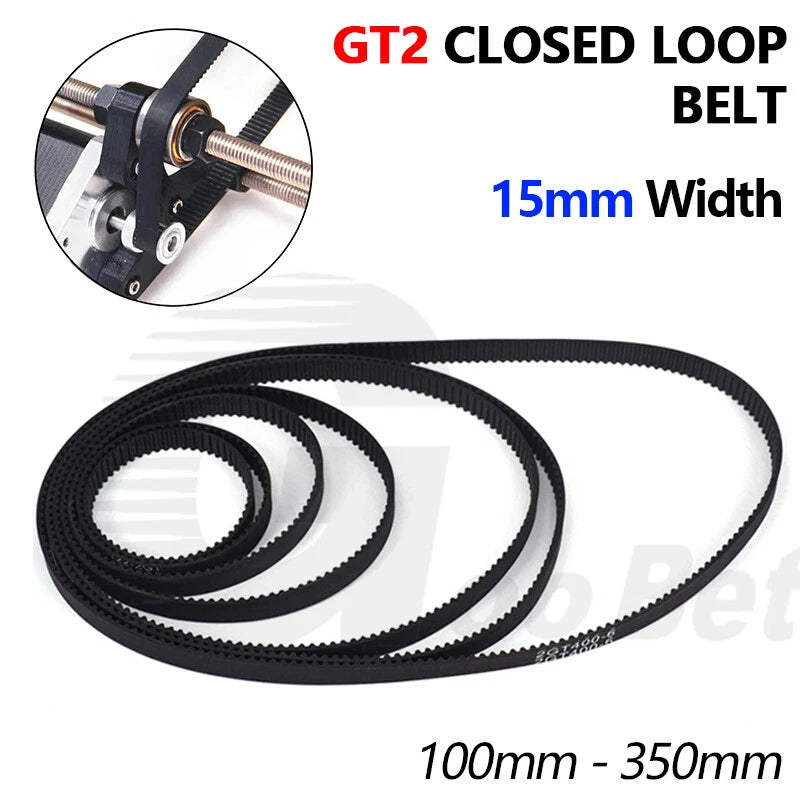

GT2 Closed Loop Timing Belt — Reliable 2mm Pitch Drive for CNC & 3D Printing
When a slipping or mismatched belt throws off your CNC axis or causes layer shifts in your 3D prints, the entire project is compromised. Makers, engineers, and machine builders who demand repeatable, backlash-free motion need a belt that stays in sync — every cycle, every time. This GT2 closed loop timing belt is built for exactly that kind of precision motion control.

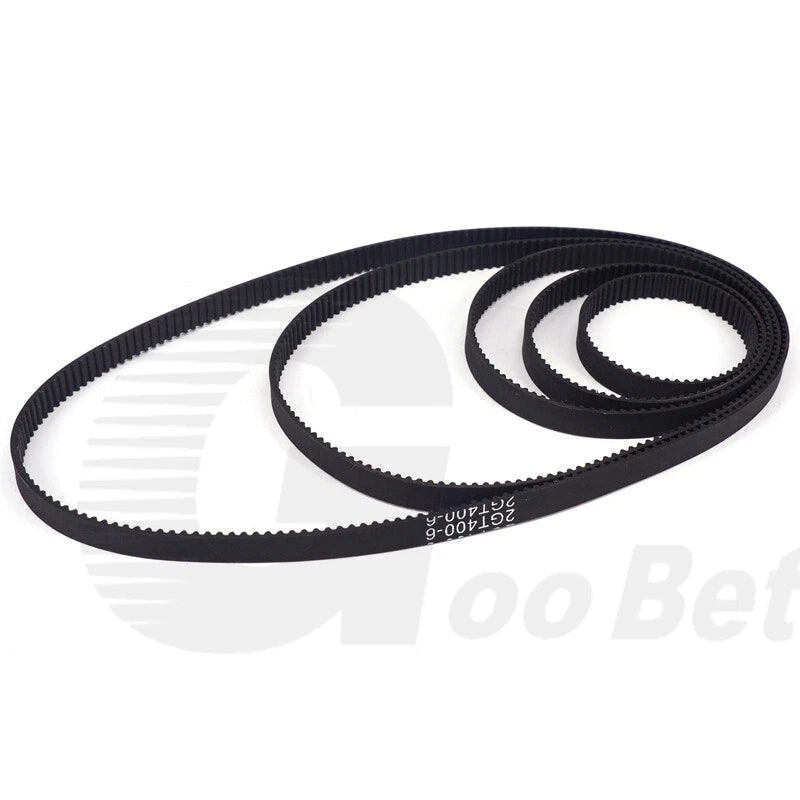

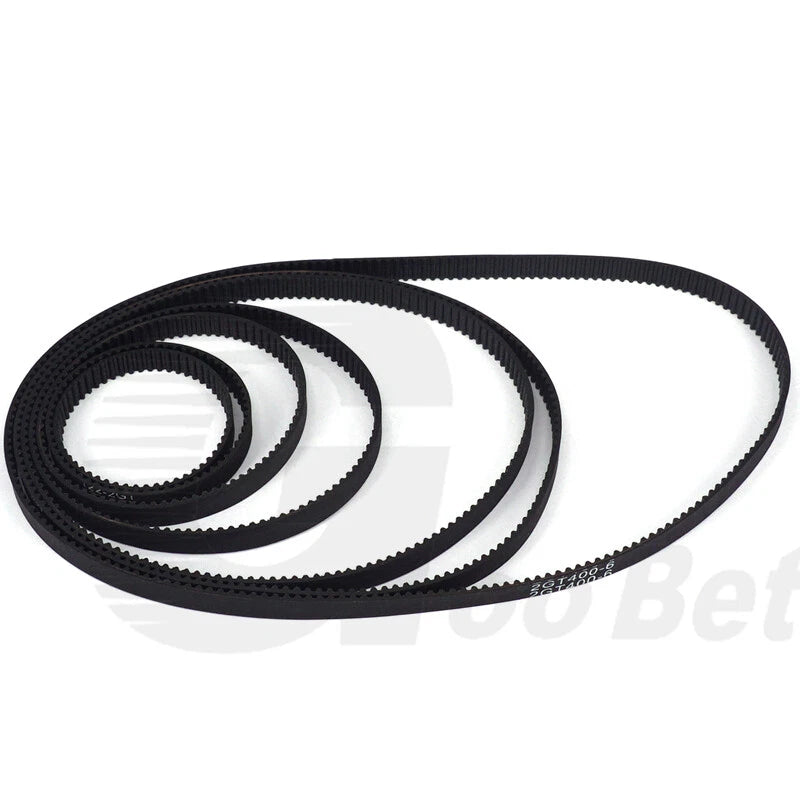

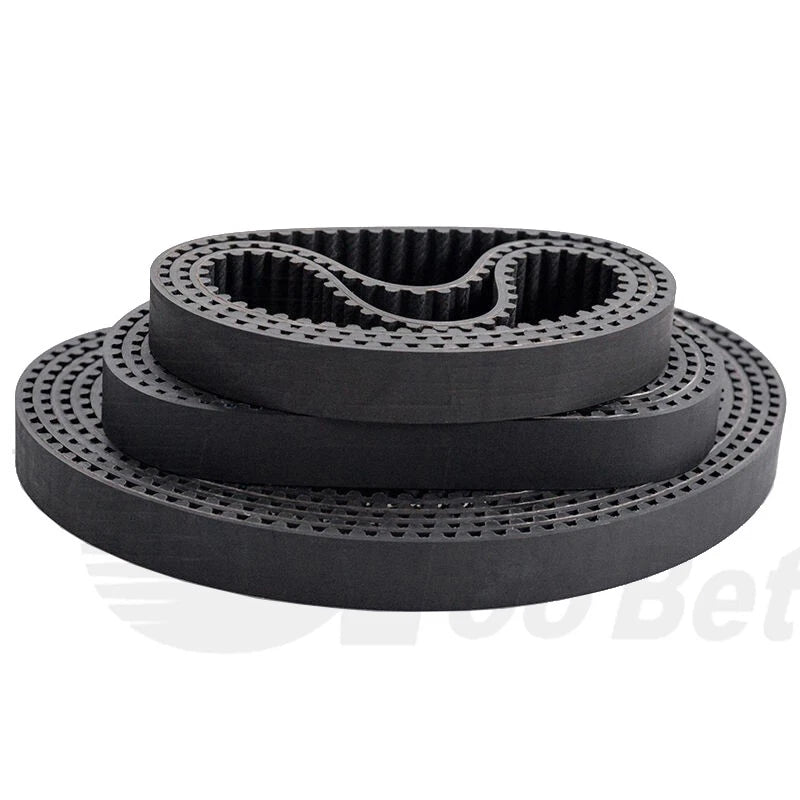

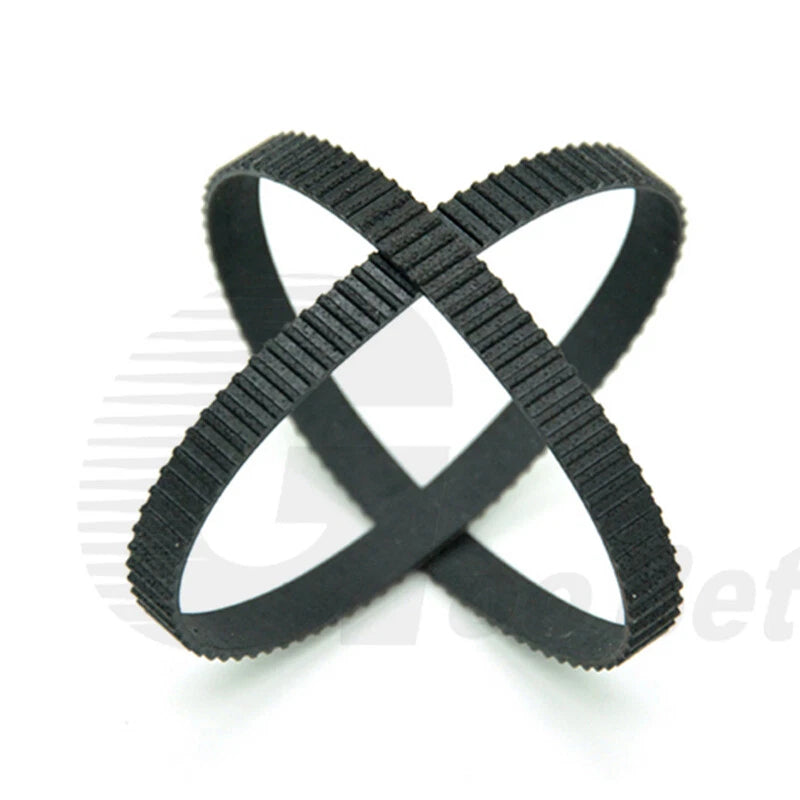

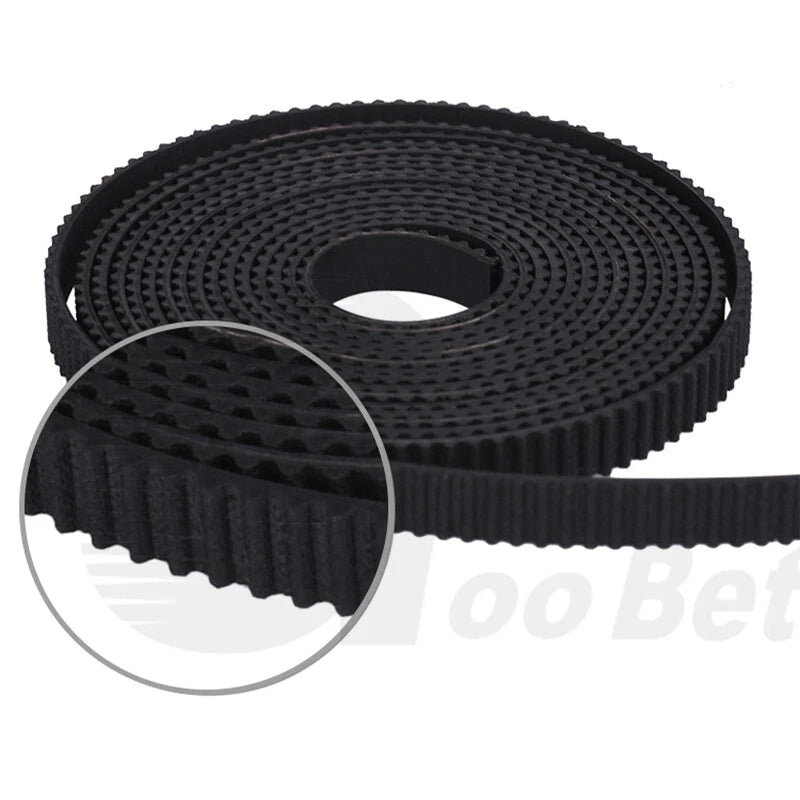

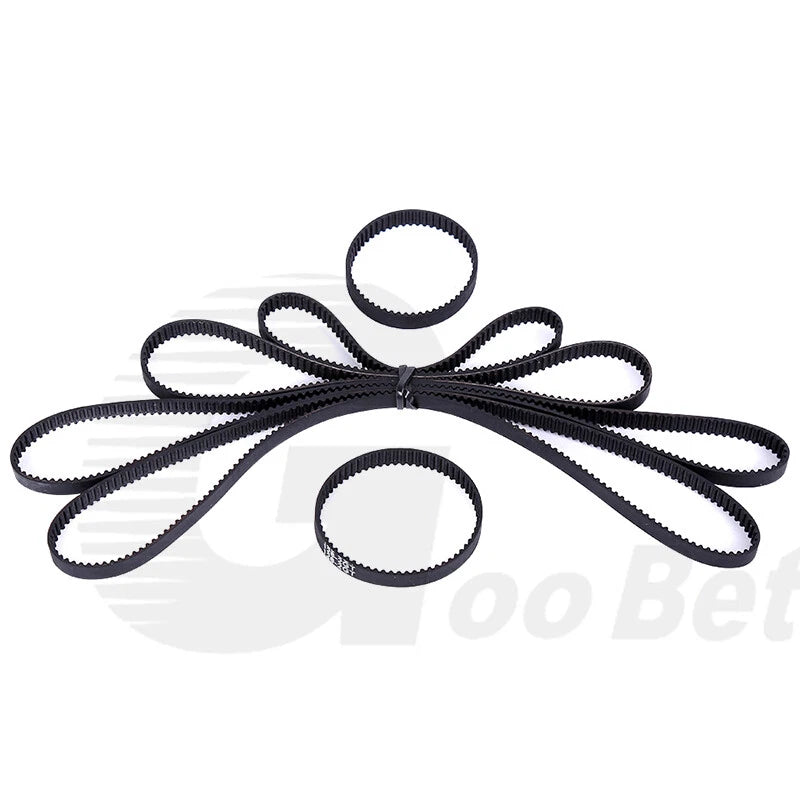

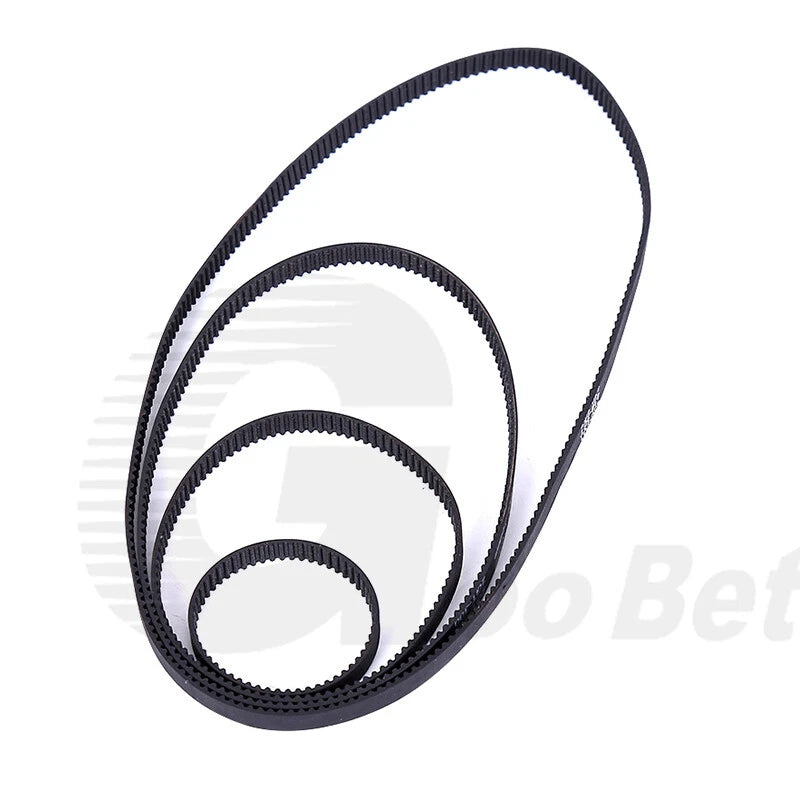

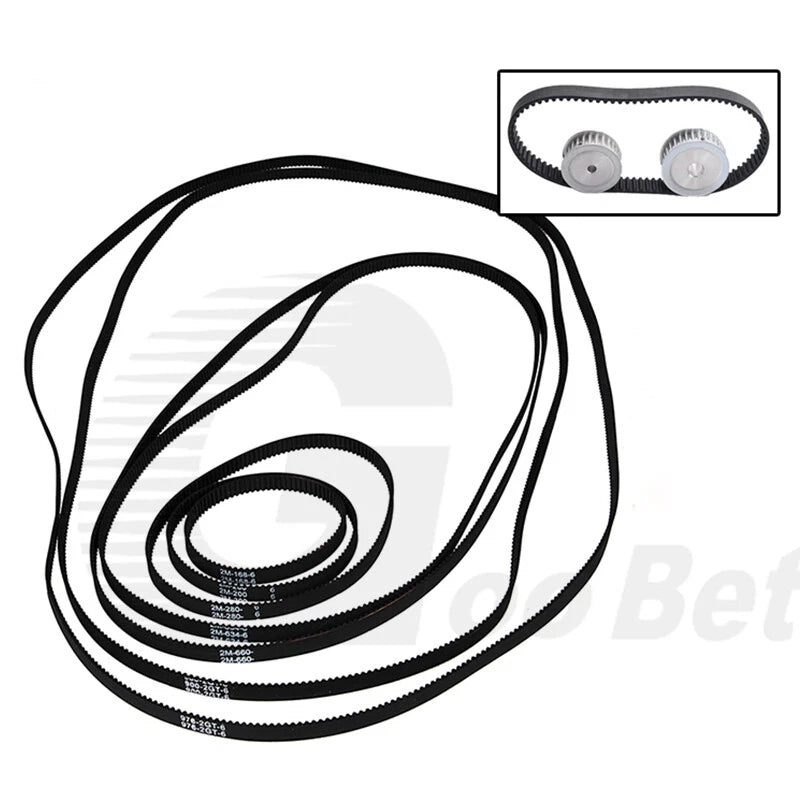

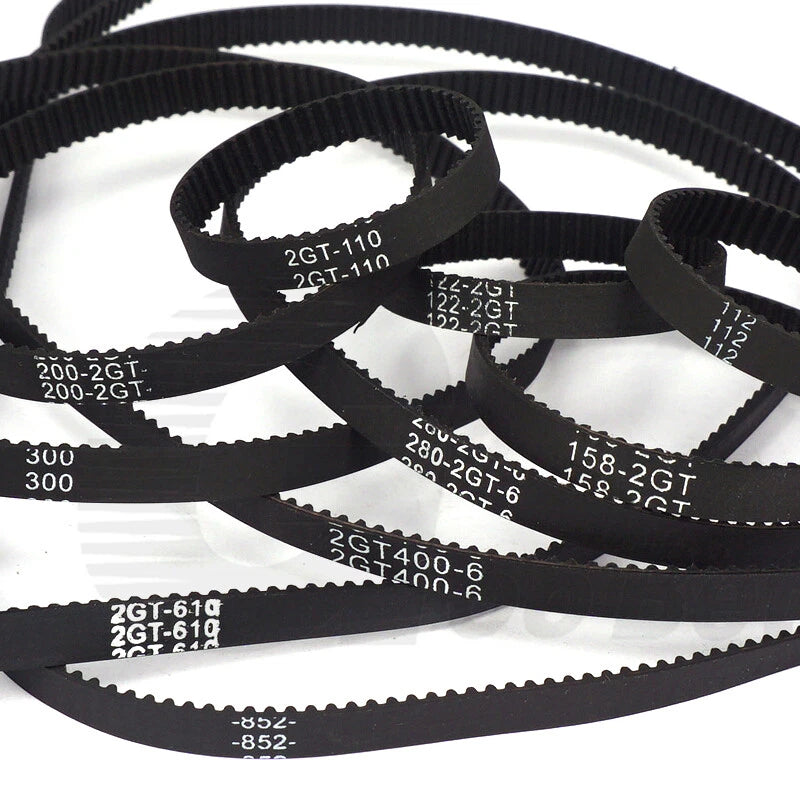

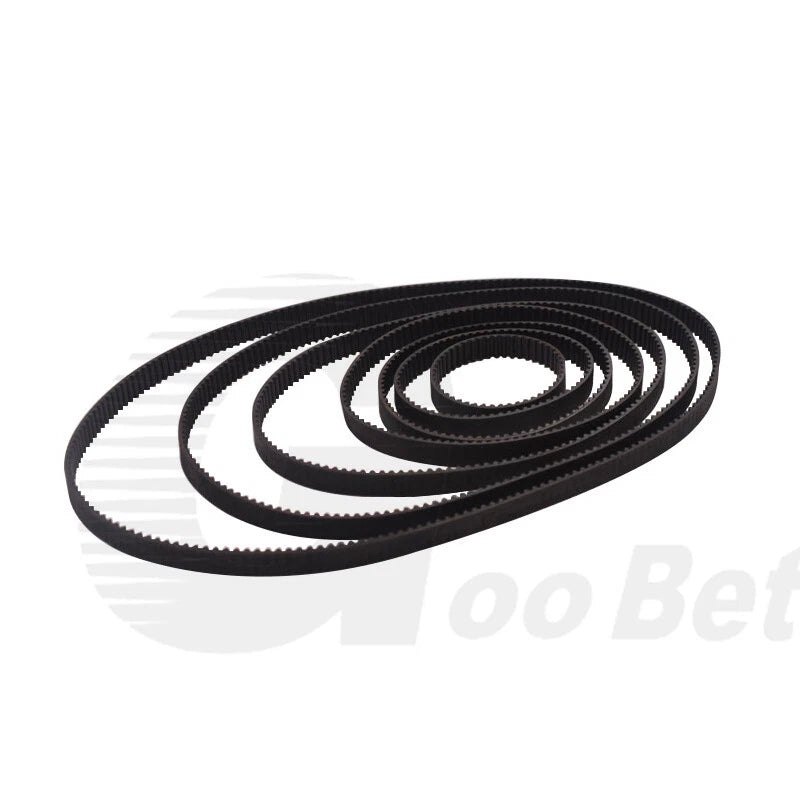

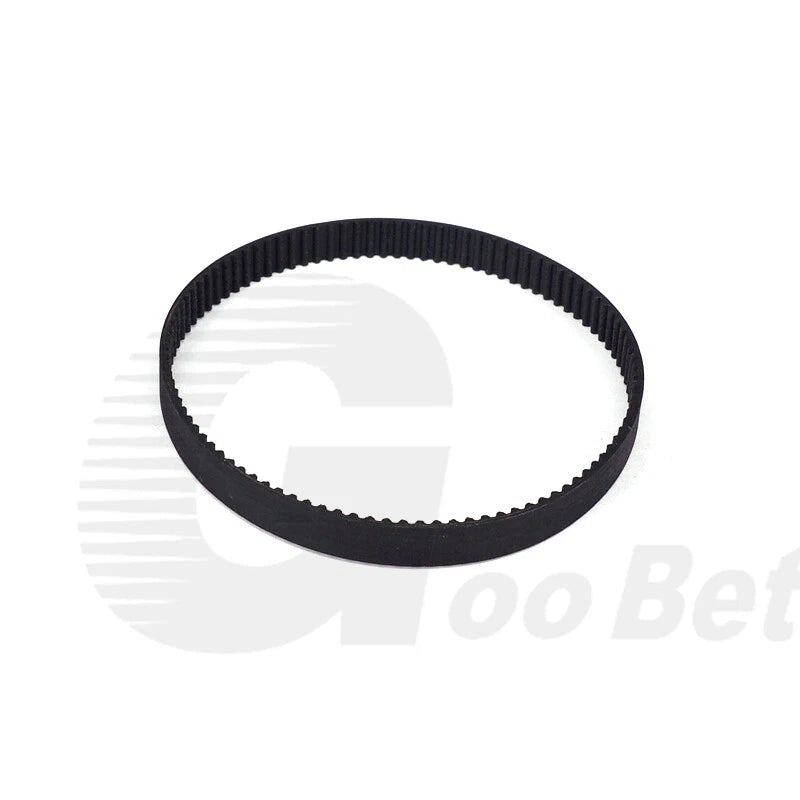

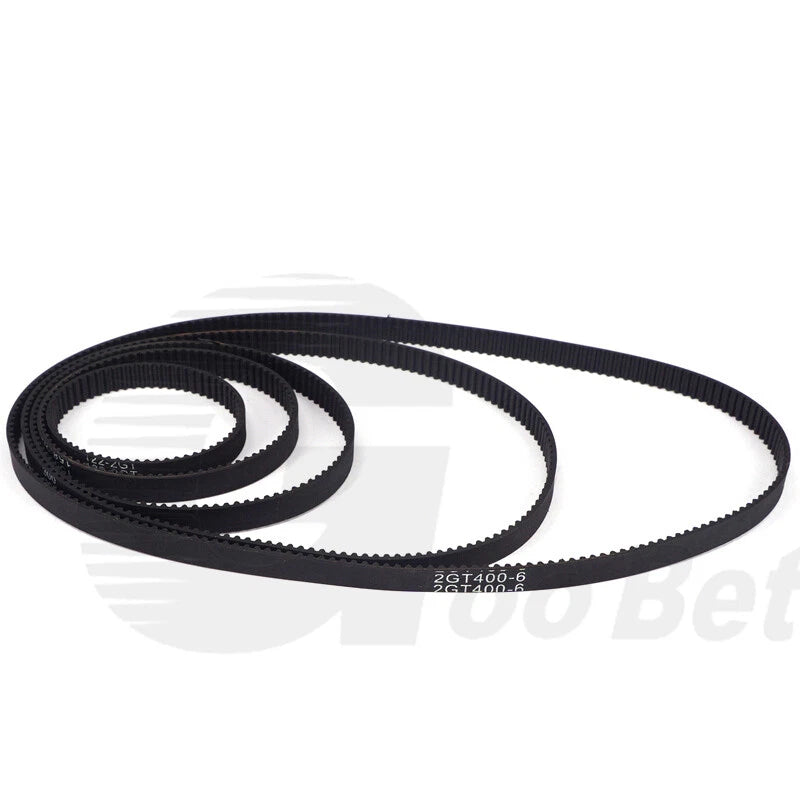

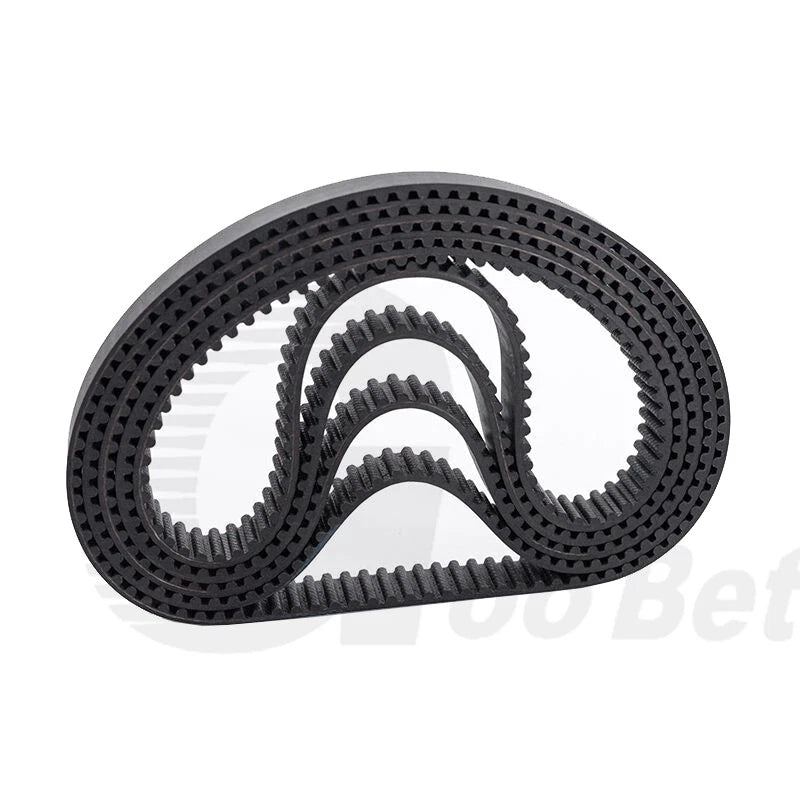

Each belt is a single closed loop (endless) construction with a GT2 tooth profile, 2mm pitch, and 15mm (≈0.59") width. The reinforced rubber body — typically neoprene with fiberglass cord tensile members — resists stretch under load and maintains consistent tooth engagement. Available in 24 sizes from 50 teeth / 100mm (≈3.9") up to 175 teeth / 350mm (≈13.8"), covering a wide range of axis and stage geometries.
Typical applications include CoreXY and Cartesian 3D printer axis drives, CNC router gantry and bed drives, laser engraver motion stages, and small-format automation conveyor loops where a GT2 2mm pitch closed loop timing belt for 3D printer or CNC use is required.
🔗
Compatibility: GT2 tooth profile · 2mm pitch · 15mm belt width · Works with any standard GT2 pulley rated for 15mm width. Not compatible with HTD, T2.5, or MXL profiles.
✅ Key Features of These GT2 Closed Loop Timing Belts
-
🔄
Endless Closed Loop Construction — No splice, no clamp, no weak point. The seamless loop delivers consistent tension and zero backlash at the joint, critical for accurate positioning in CNC routing and 3D printing.
-
📐
GT2 2mm Pitch Tooth Profile — The GT2 profile is the industry standard for light-duty precision motion. The 2mm pitch provides fine positional resolution, making this GT2 timing belt for CNC router and 3D printer builds a direct drop-in for most machines.
-
📏
15mm Width for Higher Load Capacity — Wider than the common 6mm or 10mm variants, the 15mm belt width distributes drive force across more tooth contact area, reducing per-tooth stress and extending service life in demanding axis applications.
-
🧵
Fiberglass Cord Reinforcement — Internal tensile cords resist elongation under dynamic loads, maintaining consistent belt tension over time and reducing the need for frequent re-tensioning on active machines.
-
📦
24 Sizes in One Listing — From 50T/100mm to 175T/350mm, select the exact tooth count and circumference your machine requires. Each variant name clearly states both teeth and belt circumference for straightforward matching.
-
⚙️
Neoprene Rubber Body — Offers moderate resistance to moisture, oils, and temperature variation typical of workshop environments, making this closed loop synchronous belt suitable for both benchtop and enclosed machine use.
📐 Technical Specifications — GT2 Closed Loop Synchronous Timing Belt
| Belt Profile |
GT2 |
| Pitch |
2mm |
| Belt Width |
15mm (≈0.59") |
| Belt Type |
Closed Loop (Endless) |
| Tooth Count Range |
50T – 175T (see variant options) |
| Belt Circumference Range |
100mm (≈3.9") – 350mm (≈13.8") |
| Body Material |
Neoprene rubber (typical) |
| Tensile Member |
Fiberglass cord (typical) |
| Compatible Pulley Profile |
GT2, 2mm pitch, 15mm width |
| Tooth Height |
See variant options / Contact us to confirm |
| Operating Temperature |
Contact us to confirm |
| Quantity per Order |
1 belt per unit |
⚠️
Before ordering: Verify your pulley's belt width rating is 15mm. GT2 pulleys are available in 6mm, 9mm, 10mm, and 15mm widths — using a mismatched width will cause belt tracking issues.
❓ Frequently Asked Questions
How do I choose the right tooth count and belt length?
Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference: C = 2 × center distance + (π × pulley pitch diameter). Divide the circumference by the pitch (2mm) to get the tooth count. For example, a 200mm loop uses 100 teeth. When in doubt, size up — a slightly longer belt can typically be tensioned; a short one cannot be installed.
What load or torque can this timing belt handle?
GT2 2mm pitch belts are generally rated for light-to-medium duty positioning applications. The 15mm width provides greater load capacity than the more common 6mm or 10mm variants — typically suitable for CNC axis drives, extruder systems, and small automation stages. For heavy industrial loads, contact us to confirm suitability.
Can this belt be used outdoors or in humid environments?
GT2 timing belts are typically made from neoprene rubber with fiberglass cord reinforcement, which offers moderate resistance to moisture and temperature variation. They are generally suitable for indoor workshop and light outdoor use. Prolonged UV exposure or chemical contact may degrade the belt over time.
Is this belt compatible with standard GT2 pulleys?
Yes. This belt follows the GT2 tooth profile with a 2mm pitch, which is compatible with any standard GT2 pulley of matching pitch. Ensure your pulley is rated for 15mm belt width. It is not cross-compatible with HTD, T2.5, or MXL profile pulleys.
Which size should I choose for my 3D printer or CNC router?
Check your machine's belt path length (the full loop circumference). Common 3D printer CoreXY and bed-slinger builds typically use 100mm–300mm closed loops for individual axis stages. CNC routers vary widely — measure your existing belt or consult your machine's BOM. The variant name shows both tooth count and circumference in mm for easy matching.
What is the difference between a closed loop belt and an open-ended belt?
A closed loop (endless) belt is a continuous ring with no splice or join — it installs by sliding over pulleys and provides consistent tension and zero backlash at the joint. An open-ended belt is cut to length and clamped at both ends. Closed loop belts are generally preferred for precision motion control in 3D printers and CNC machines.
Can I use this belt with a 20-tooth GT2 pulley?
Yes, as long as the pulley has a GT2 2mm pitch tooth profile and is designed for 15mm belt width. A 20-tooth GT2 pulley has a pitch diameter of approximately 12.73mm (≈0.5"). Pair it with the appropriate closed loop length based on your axis geometry.
🛒 Select your size above, then add to cart — ships from our US warehouse.
