Loose or inconsistent belt tension is one of the most common causes of layer shifting, ghosting, and dimensional inaccuracy in FDM 3D printing. Whether you're maintaining a RepRap build or upgrading a GT2-driven motion system, the right torsion spring keeps your belt tensioner loaded and responsive without constant manual adjustment.

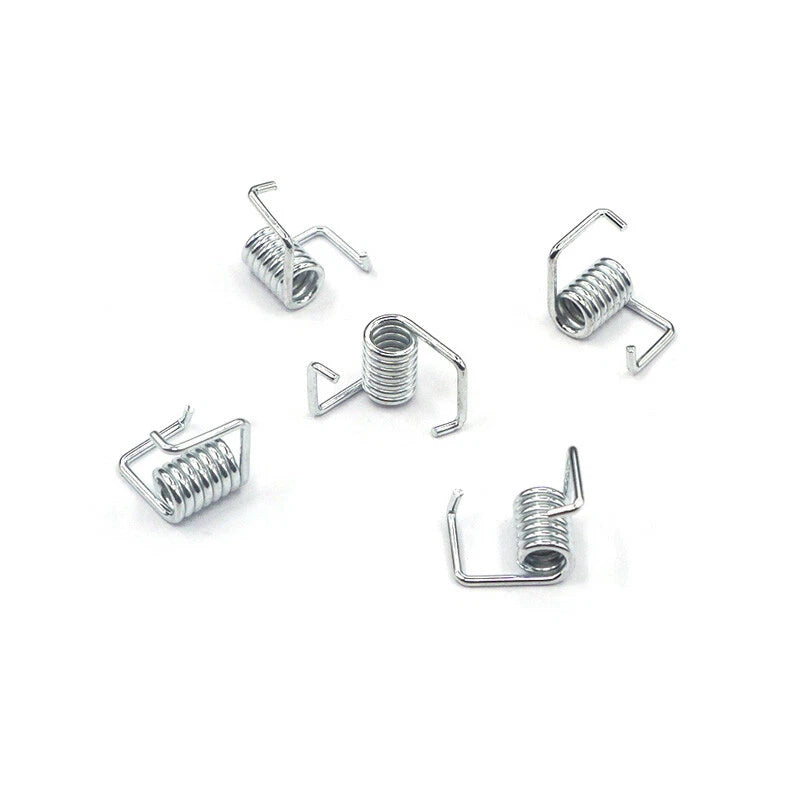

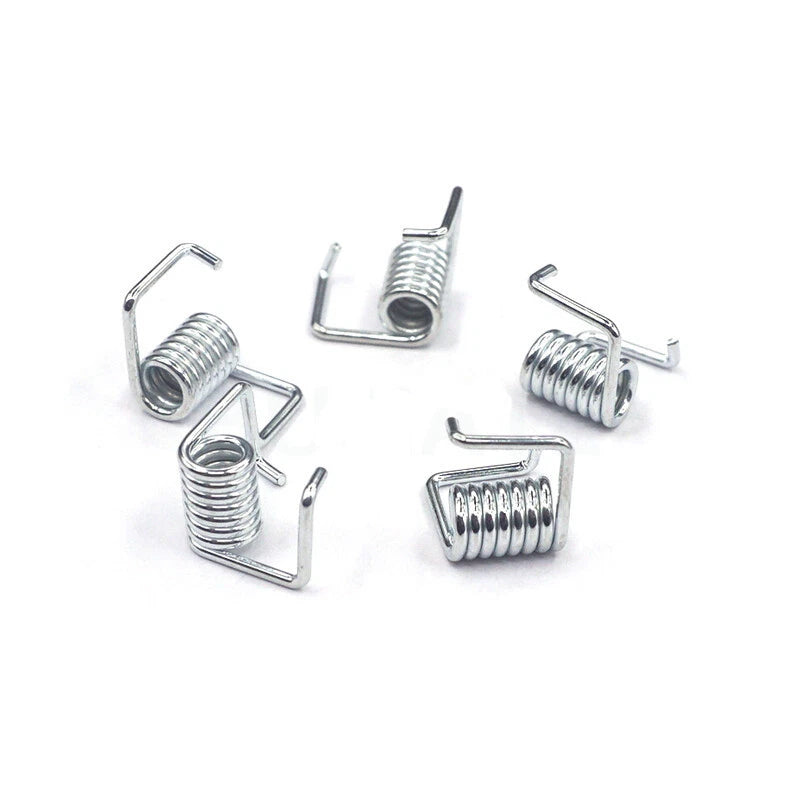

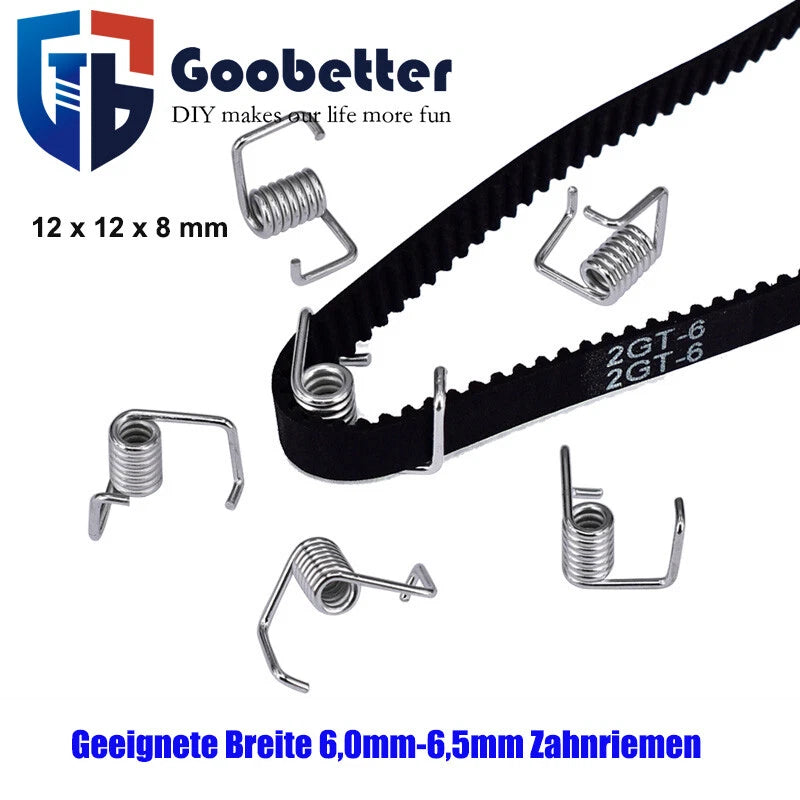

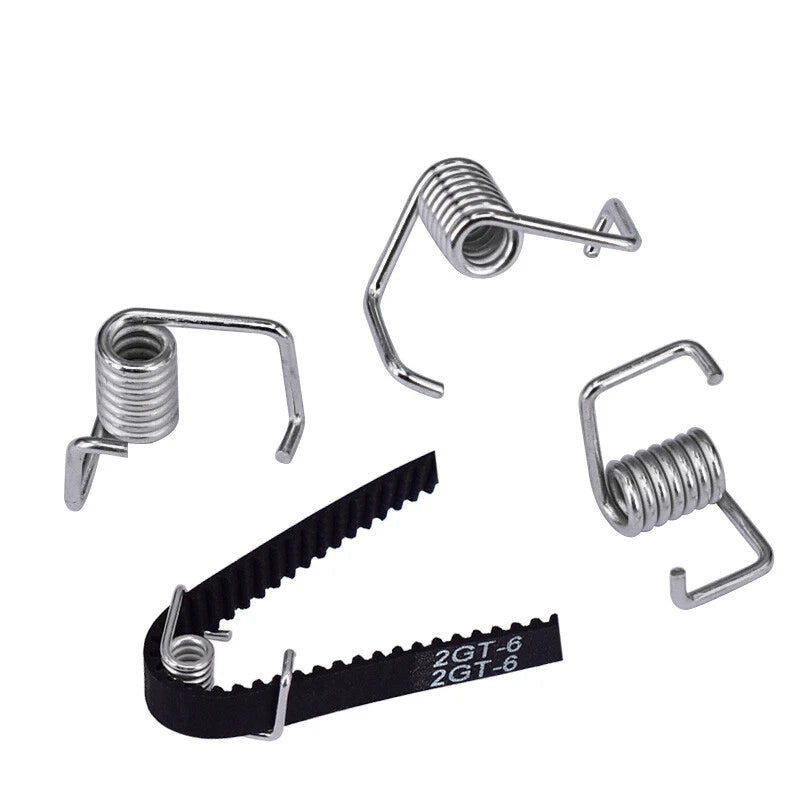

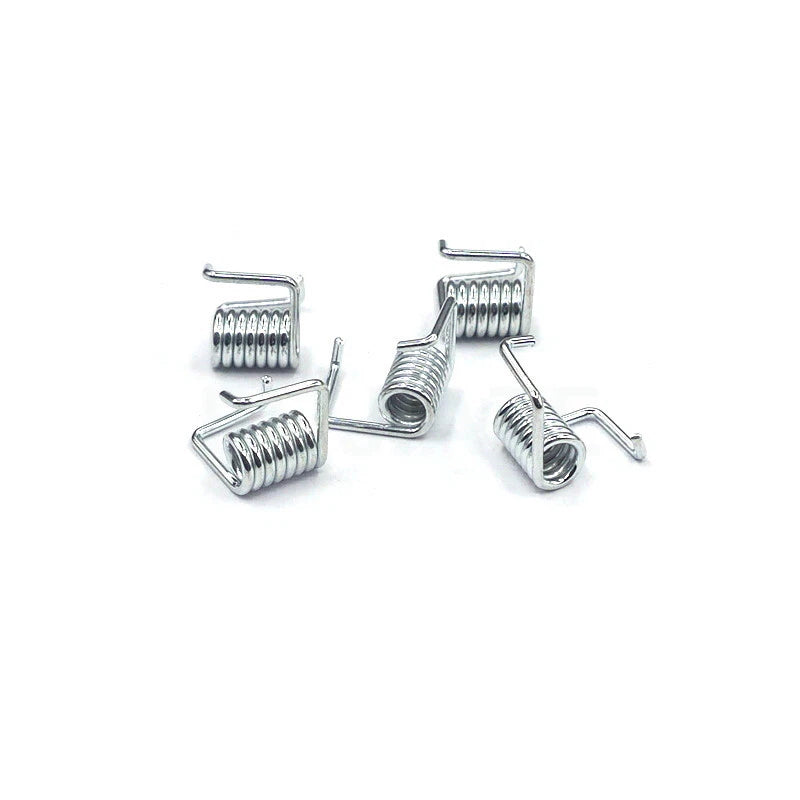

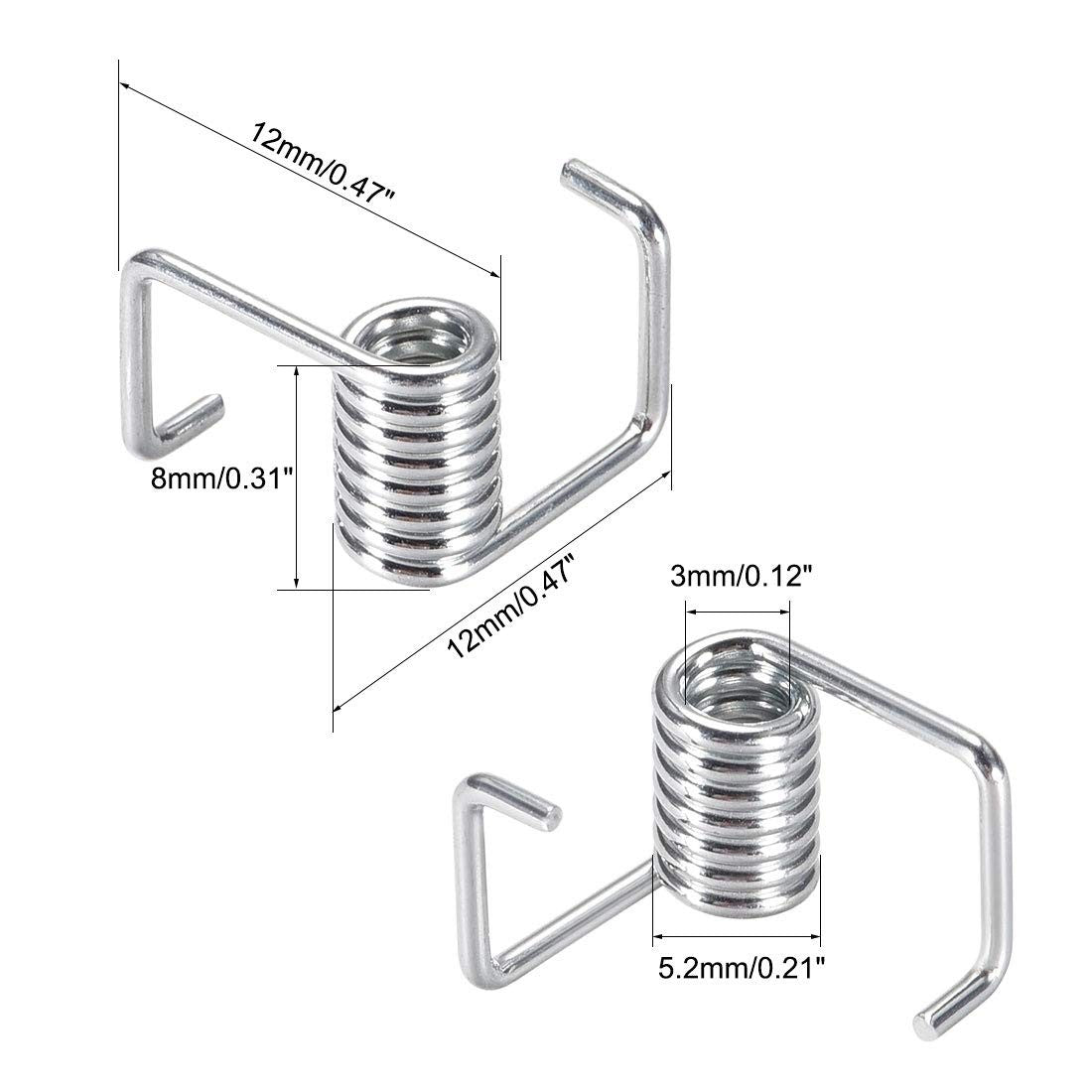

This GT2 torsion spring measures 12 × 12 × 8 mm (approx. 0.47" × 0.47" × 0.31") and is designed for 6 mm wide GT2 timing belts. Constructed from carbon steel wire with a consistent coil pitch, it delivers reliable spring force across repeated compression and release cycles. Wire diameter is typically 0.8–1.2 mm depending on variant.
Ideal for RepRap Prusa-style belt tensioners, CoreXY idler assemblies, and custom 3D printer belt management systems — anywhere a compact torsion spring is needed to maintain GT2 belt tension automatically.
Compact footprint fits standard RepRap and GT2 tensioner housings without modification.
Engineered specifically for GT2 timing belts — the most common belt standard in desktop FDM 3D printing.
Consistent spring force and resistance to fatigue over thousands of compression cycles in continuous-use printer environments.
Applies rotational spring force to keep tensioner arms loaded — no manual re-tensioning needed between print jobs.
Choose from 5, 10, 20, 50, or 100 pieces — stock up for fleet maintenance or long-term spare parts inventory.
Matches OEM-style dimensions for common RepRap tensioner designs — swap in minutes with no tools beyond basic assembly.
| Spring Type | Torsion Spring |
|---|---|
| Dimensions (L × W × H) | 12 × 12 × 8 mm (approx. 0.47" × 0.47" × 0.31") |
| Compatible Belt Width | 6 mm (GT2 timing belt) |
| Material | Carbon Steel |
| Wire Diameter | Typically 0.8–1.2 mm (see variant options) |
| Spring Force | See variant options |
| Finish | See variant options |
| Application | GT2 belt tensioner, 3D printer RepRap motion systems |
| Pack Sizes Available | 5 / 10 / 20 / 50 / 100 pieces |
This spring measures 12 × 12 × 8 mm and is designed for GT2 belt tensioners using 6 mm wide belts. Check your tensioner housing dimensions before ordering — most standard RepRap and Prusa-style tensioners accept this footprint directly.
Yes, provided your CoreXY tensioner bracket is designed for a 12 × 12 × 8 mm torsion spring and a 6 mm GT2 belt. Many open-source CoreXY designs use this standard spring size. Verify your CAD files or tensioner specs before purchasing.
The spring force depends on wire diameter and coil count. This spring is designed to provide sufficient rotational load to keep a GT2 belt tensioner arm engaged under normal 3D printing conditions. For exact force values, contact us to confirm.
The spring is made from carbon steel, which offers good mechanical strength and fatigue resistance. For environments with elevated humidity, consider applying a light machine oil coating to extend service life. Stainless steel variants are not included in this listing.
For a single printer, 5–10 pieces covers initial installation plus spares. If you maintain multiple machines or run a print farm, the 50- or 100-piece packs offer the best per-unit value. Springs are small and easy to store, so stocking extras is always practical.
Yes — this is a direct replacement for any GT2 belt tensioner that uses a 12 × 12 × 8 mm torsion spring. Remove the old spring, seat the new one in the tensioner pivot point, and reassemble. No special tools required beyond standard 3D printer maintenance tools.
Absolutely. Insufficient belt tension is a leading cause of layer shifting, ghosting (ringing artifacts), and dimensional inaccuracy in FDM prints. A properly loaded torsion spring keeps the tensioner arm engaged so belt tension remains consistent throughout long print jobs.
