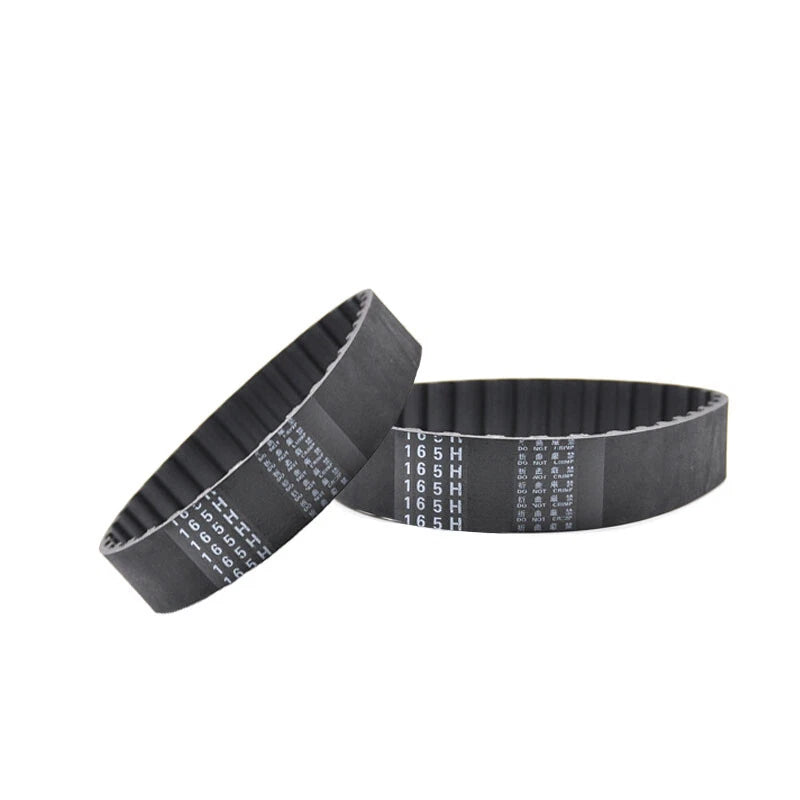

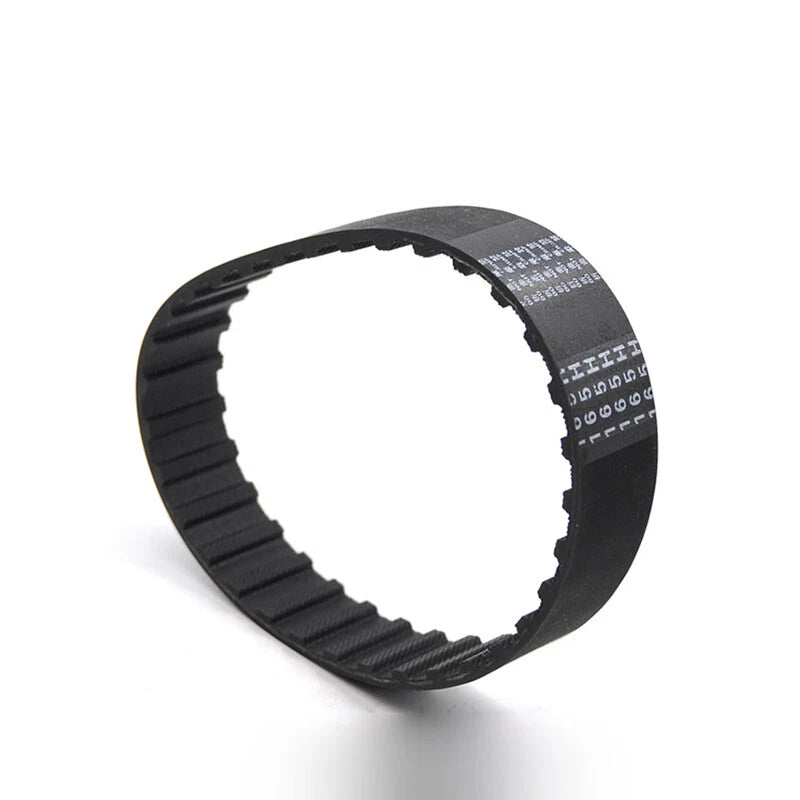

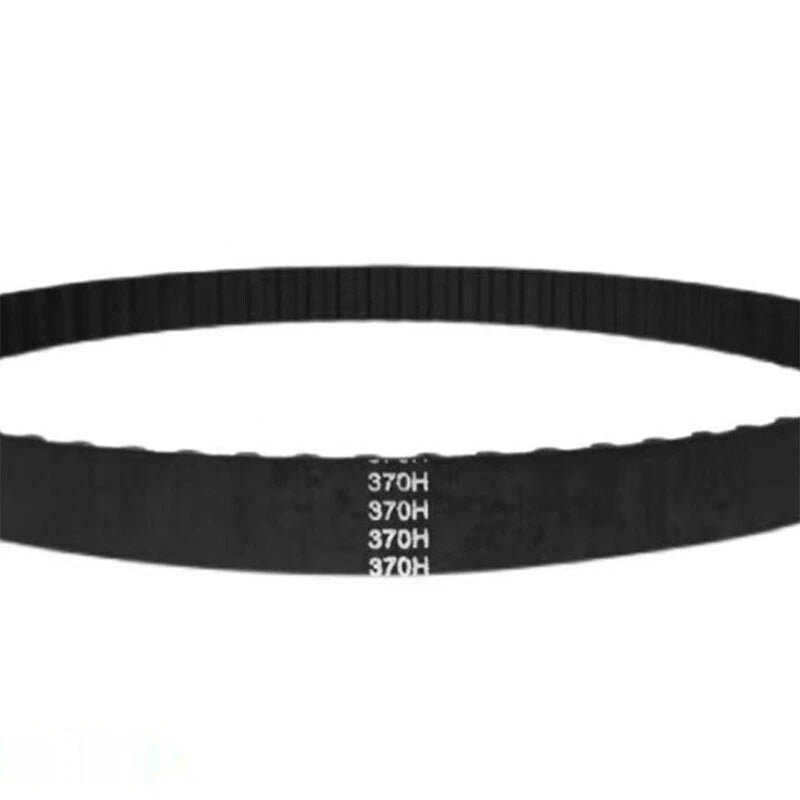

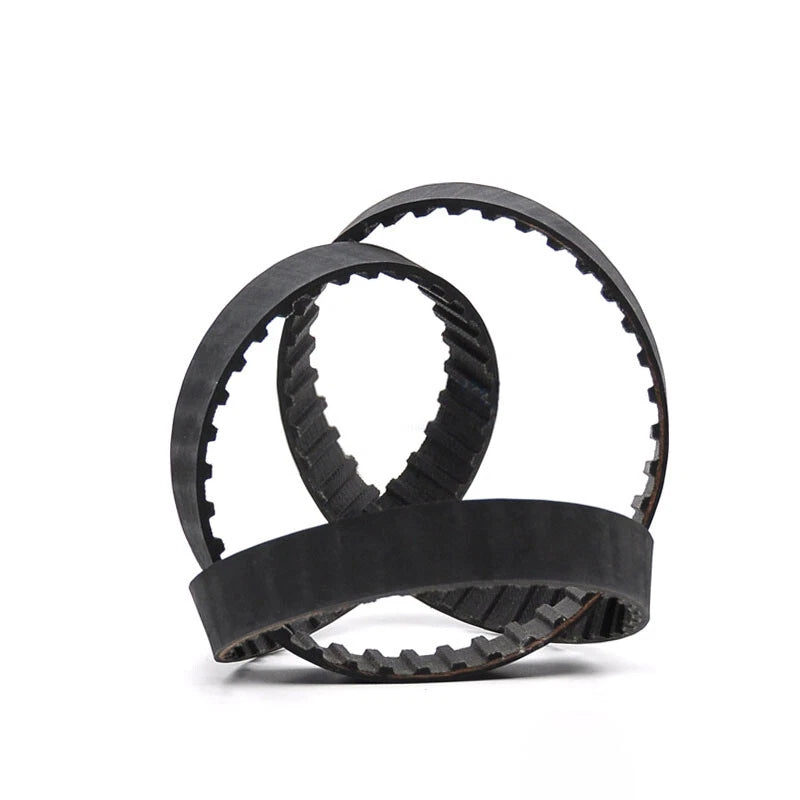

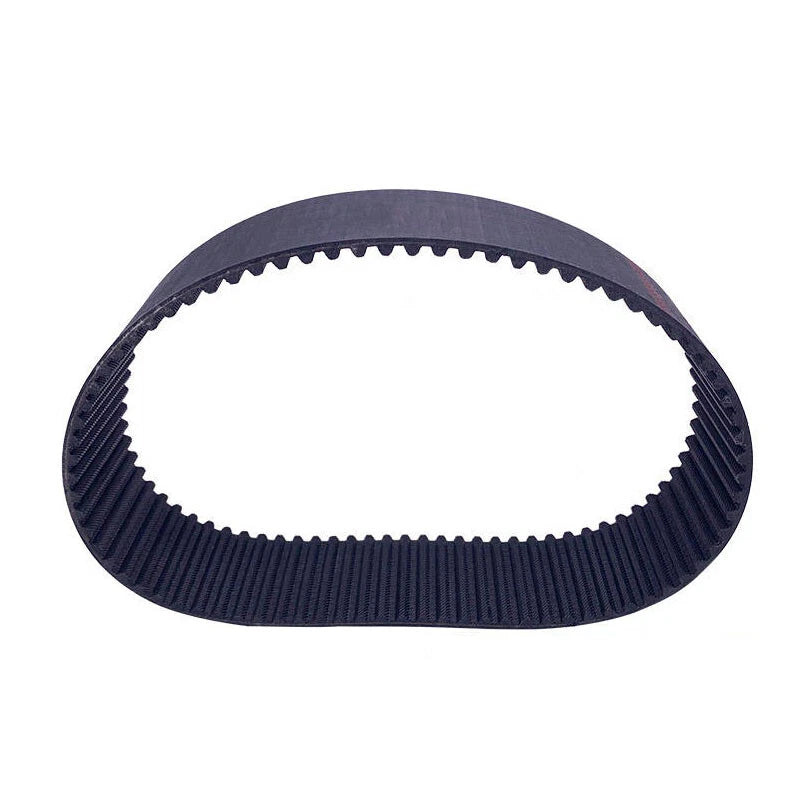

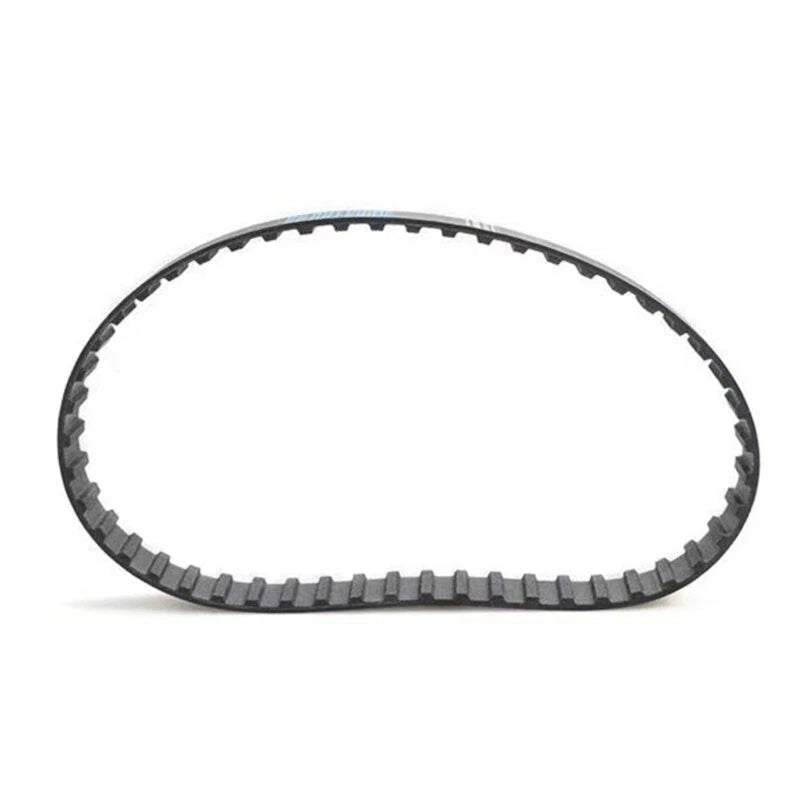

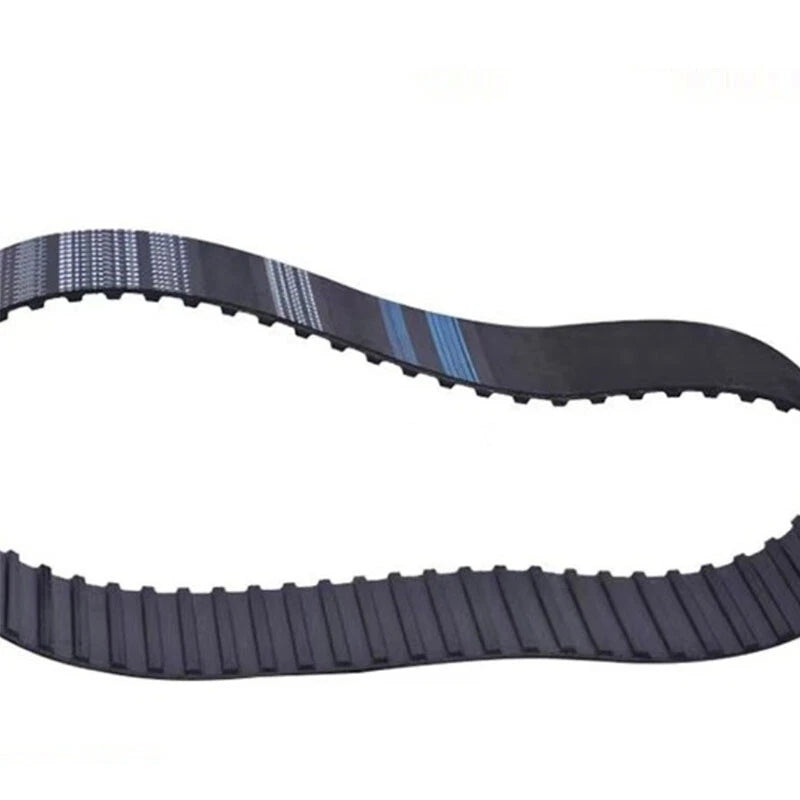

H Timing Belt Closed Loop 25mm Wide — Reliable Synchronous Drive for CNC, Machinery & DIY Builds

When a slipping V-belt or worn drive chain causes your CNC router, conveyor, or workshop machine to lose position or stall mid-run, the fix is a properly sized synchronous timing belt. This H-series closed loop timing belt is built for makers, machinists, and maintenance technicians who need a drop-in replacement or a new drive component that holds its timing under load.

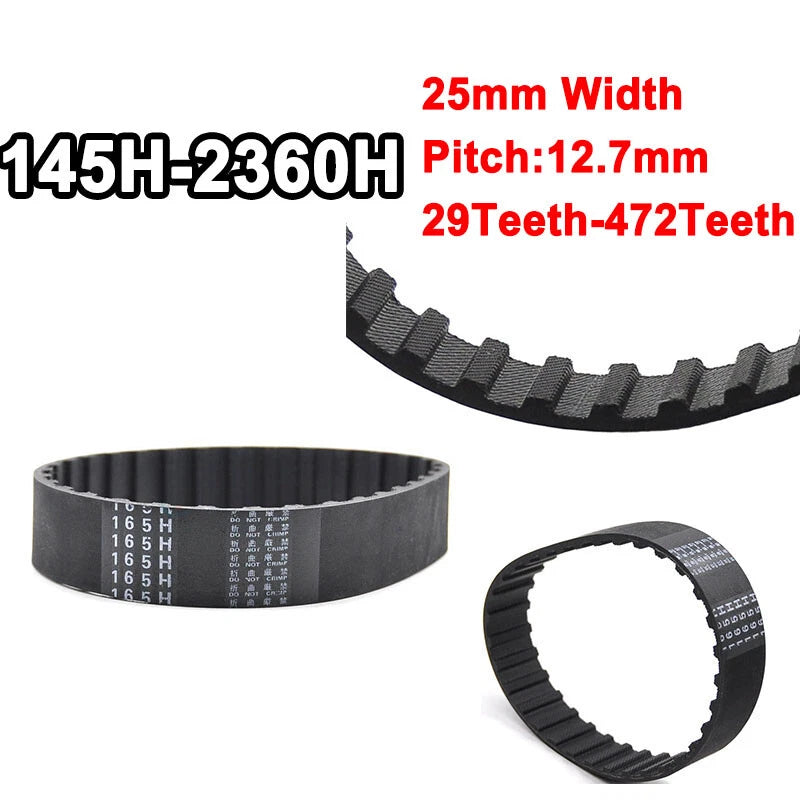

Each belt in this listing is a single closed-loop H-series timing belt, 25mm (≈1") wide with a 12.7mm (1/2") pitch trapezoidal tooth profile. Perimeter sizes range from 368.8mm (≈14.5") on the 145H model up to 5994.4mm (≈236") on the 2360H model, with tooth counts from 29 to 472 teeth. The belt body is typically constructed from neoprene rubber with tensile cord reinforcement for dimensional stability under cyclic loading.

Typical use cases include CNC router X/Y axis drives, 3D printer bed and gantry systems, laser cutter motion systems, light conveyor drives, and exercise equipment replacement belts — anywhere a synchronous H-profile timing belt replacement or upgrade is needed.

🔗 Compatibility: Fits standard H-series (1/2" pitch, trapezoidal) timing pulleys and sprockets. Verify your pulley tooth profile and face width before ordering. Belt width is 25mm — confirm your pulley accepts a 25mm belt.

✅ Key Features of These H-Series Closed Loop Timing Belts

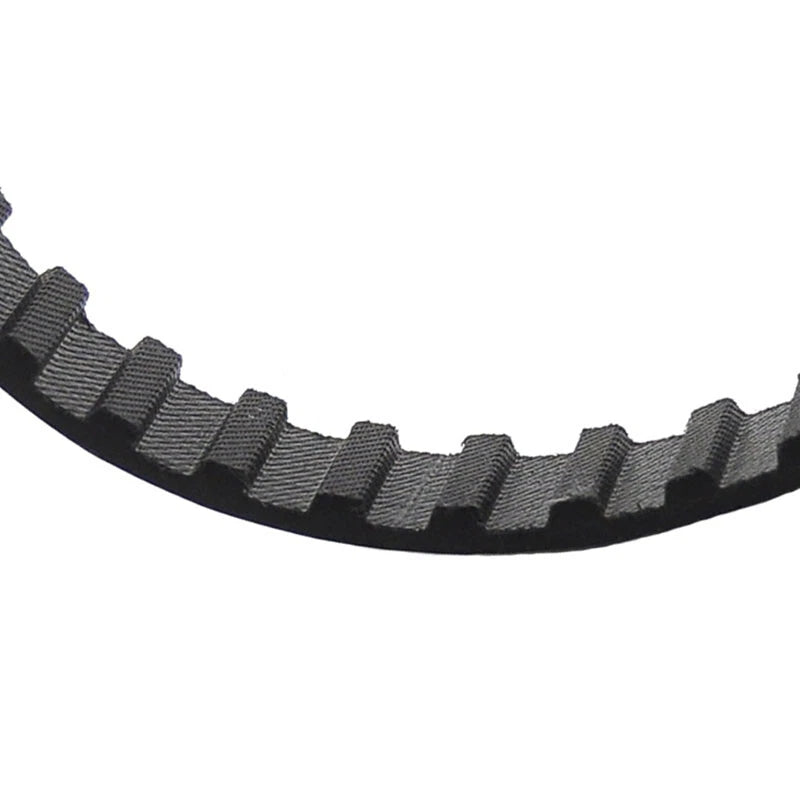

  • ⚙️Standard H-Series 12.7mm Pitch — Trapezoidal tooth profile matches any H-profile timing pulley for precise synchronous power transmission without slippage.
  • 📏Wide Size Selection (29–472 Teeth) — Over 160 model sizes from 145H to 2360H let you find an exact match for CNC router drives, conveyor systems, and machinery replacements without custom cutting.
  • 🔄Closed Loop Construction — Seamless endless loop eliminates splice points that can cause vibration or premature failure in high-cycle synchronous belt drives.
  • 🏗️25mm Belt Width — A widely used standard width for H-series drives, compatible with 1" face pulleys common in light industrial and DIY machinery builds.

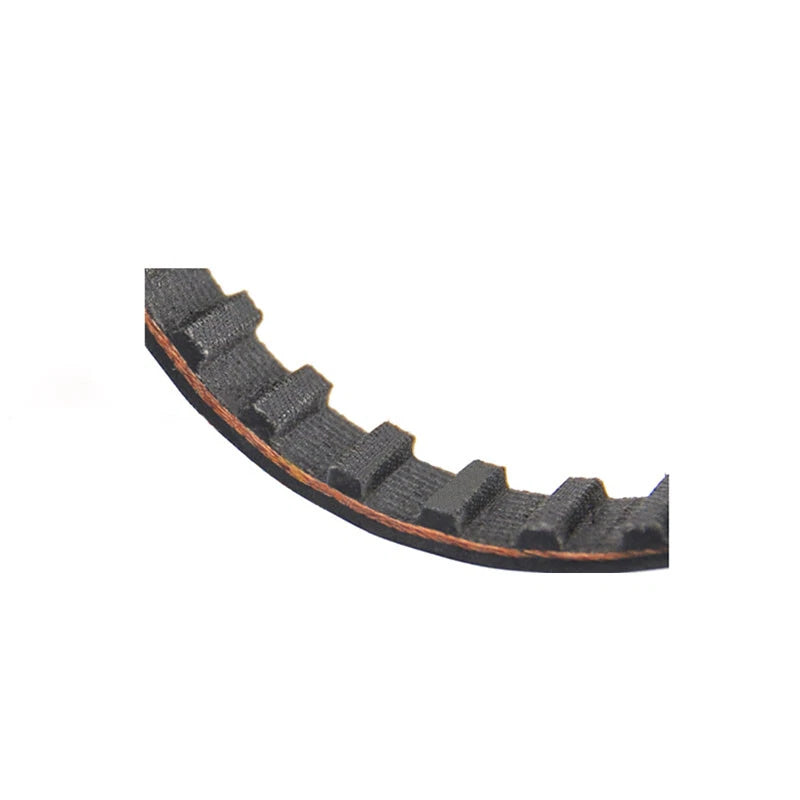

  • 🛡️Reinforced Tensile Cord — Internal cord reinforcement (typically fiberglass or steel) resists elongation under cyclic load, maintaining consistent center distance and tooth engagement over time.

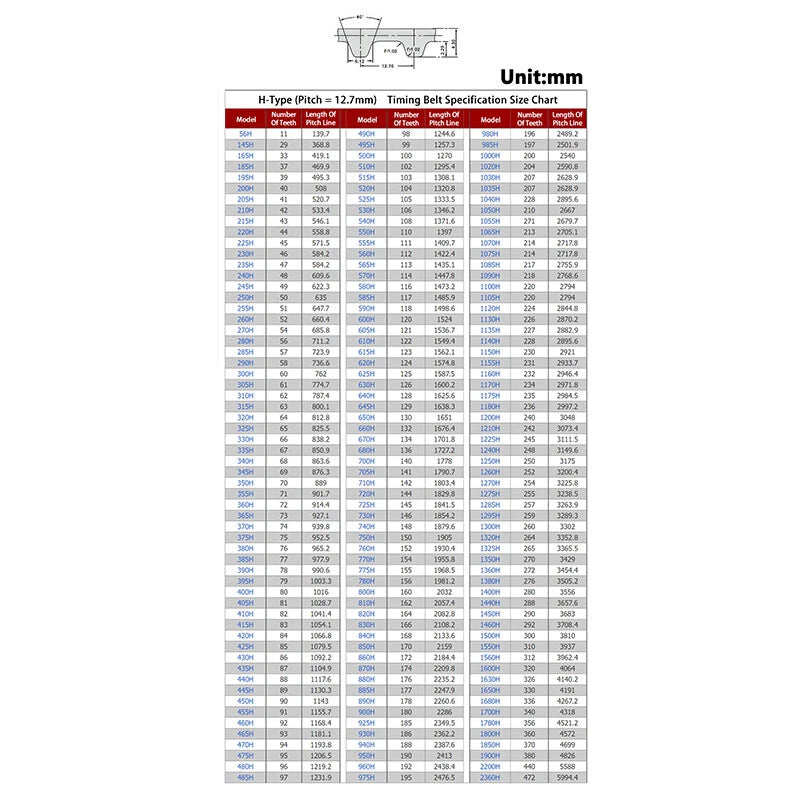

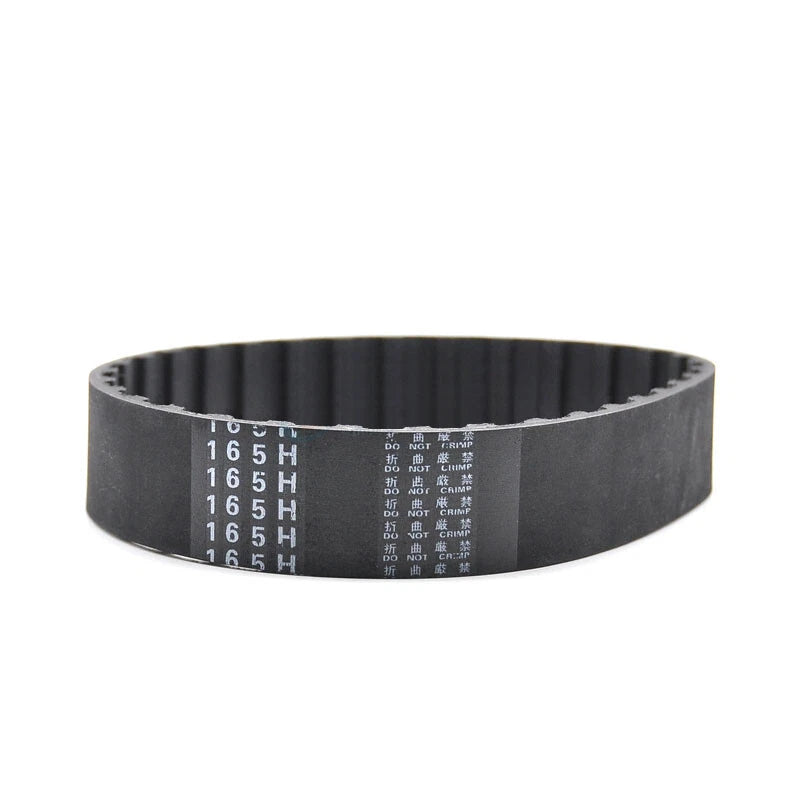

  • 🔧Drop-In Replacement Sizing — Model numbers follow the industry-standard H-series designation (e.g., 300H = 30.0" / 762mm perimeter), making it straightforward to cross-reference your existing belt or drive design spec.

📐 Technical Specifications — H-Series Closed Loop Timing Belt

Belt Series H (Heavy / Standard H-profile)
Pitch 12.7mm (1/2")

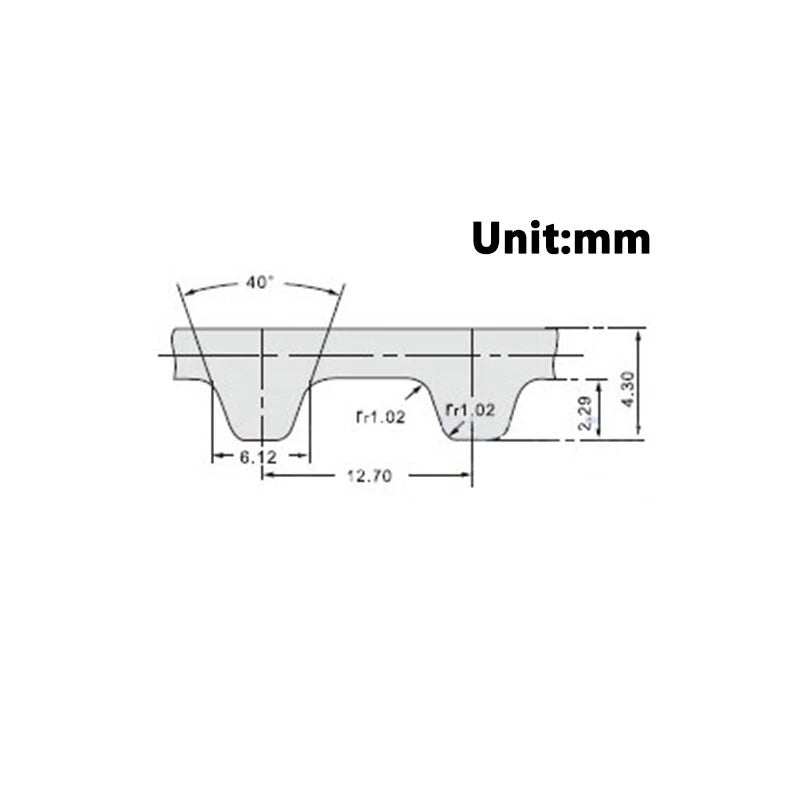

Tooth Profile Trapezoidal (standard H-series)
Belt Width 25mm (≈1")
Perimeter Range 368.8mm–5994.4mm (≈14.5"–236")
Tooth Count Range 29–472 teeth
Belt Type Closed loop (endless)
Construction Neoprene rubber body, tensile cord reinforcement (typically fiberglass or steel)
Model Designation e.g., 300H = 30.0" (762mm) perimeter, H-series pitch
Compatible Pulleys Standard H-series timing pulleys, 25mm face width
Operating Temperature See variant options / Contact us to confirm
Quantity per Order 1 belt per unit
⚠️ Sizing Note: The model number (e.g., 200H) indicates the belt perimeter in tenths of an inch — 200H = 20.0" = 508mm. Always verify your required perimeter and tooth count before ordering. If you are unsure, measure your existing belt or contact us.

❓ Frequently Asked Questions

How do I choose the right belt length and tooth count?

The model number (e.g., 200H) indicates the belt perimeter in tenths of an inch — so 200H = 20.0 inches (508mm). Count the teeth on your existing belt or measure the center distance between pulleys and use a belt-length calculator. Each tooth on an H-series belt is spaced 12.7mm (1/2") apart, so tooth count = perimeter ÷ 12.7mm. When in doubt, go up one size rather than down.

What load or torque can these H-series timing belts handle?

H-series (1/2" pitch) belts are generally rated for moderate-to-high torque applications. Actual load capacity depends on belt width, pulley diameter, and operating speed. At 25mm width, these belts are typically suitable for light industrial and DIY machinery. Consult your drive design specifications or contact us to confirm suitability for your load requirements.

Can these timing belts be used outdoors or in wet environments?

H-series timing belts are generally made from neoprene rubber with fiberglass or steel cord reinforcement, which provides reasonable resistance to moisture and moderate temperatures. However, prolonged exposure to UV, oils, or extreme heat can degrade performance. For outdoor or harsh-environment use, verify the belt material and consider a protective cover.

Are these belts compatible with standard H-profile pulleys and sprockets?

Yes. These belts follow the standard H-series (1/2" pitch, trapezoidal tooth profile) specification and are generally compatible with any H-profile timing pulley or sprocket of the same pitch. Always verify the tooth profile and belt width match your pulley before ordering.

How do I know if I need a 25mm wide belt versus a narrower or wider option?

Belt width is determined by your pulley face width and the torque requirements of your drive. A 25mm (approximately 1") wide belt is a common standard width for H-series drives in light industrial, CNC, and DIY applications. If your pulley is narrower or wider, you will need a different belt width. Check your existing belt or pulley specifications.

What machines or applications commonly use H-series timing belts?

H-series timing belts are widely used in CNC routers, 3D printers, laser cutters, conveyor systems, woodworking machinery, exercise equipment, and general power transmission drives. The 1/2" pitch makes them suitable for moderate-speed, moderate-torque applications where precise synchronization is needed.

What does the model number mean (e.g., 300H, 500H)?

The number before the 'H' represents the belt's outer perimeter in tenths of an inch. For example, 300H = 30.0 inches (762mm) perimeter. The 'H' designates the pitch series (1/2" / 12.7mm pitch, trapezoidal tooth profile). This is a widely used industry-standard designation.

🛒 Select your model and tooth count above, then add to cart — ships from our US warehouse.
