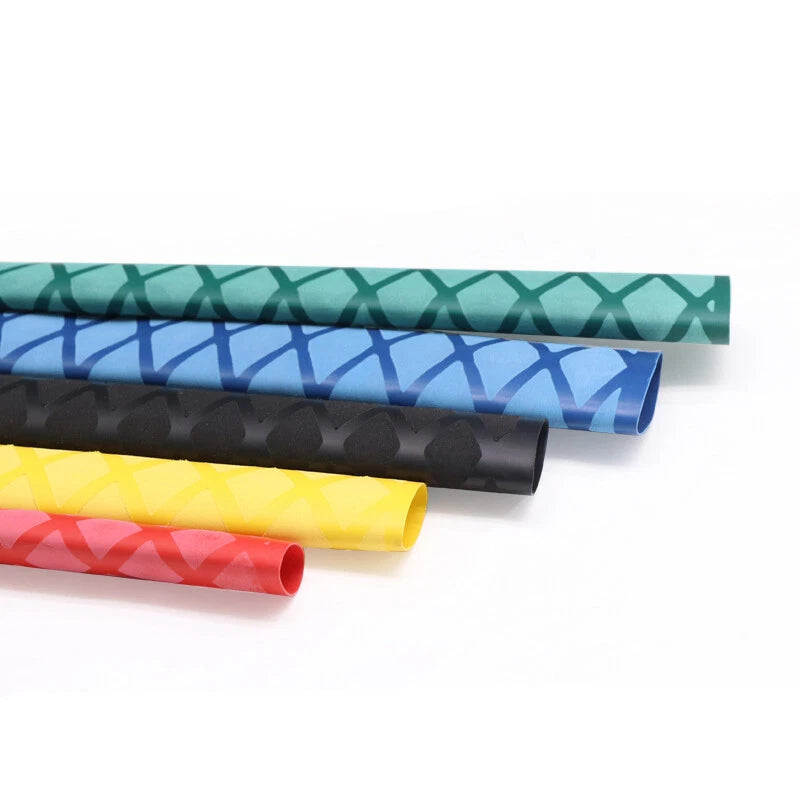

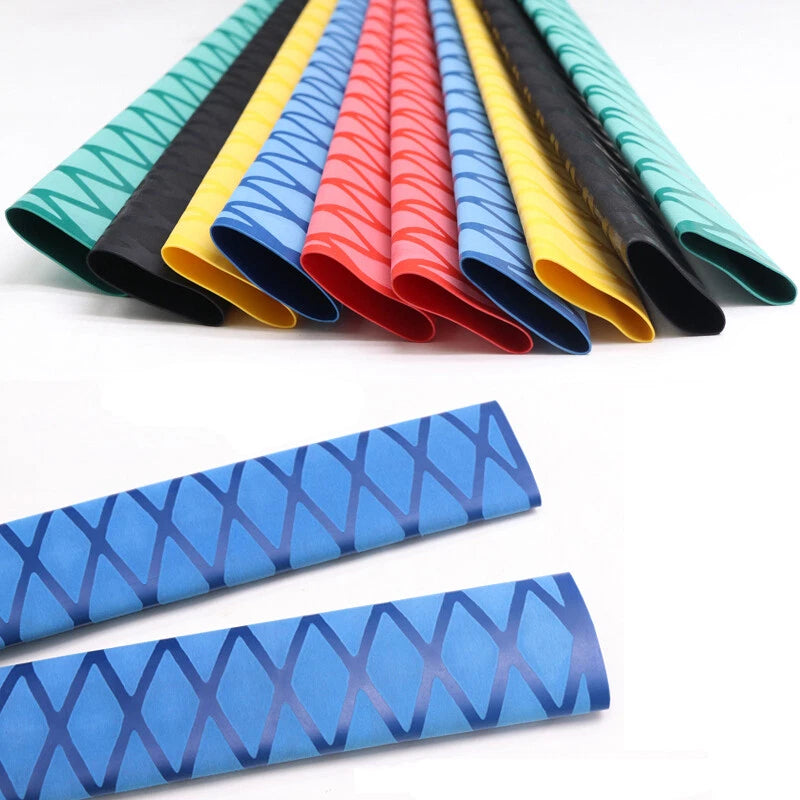

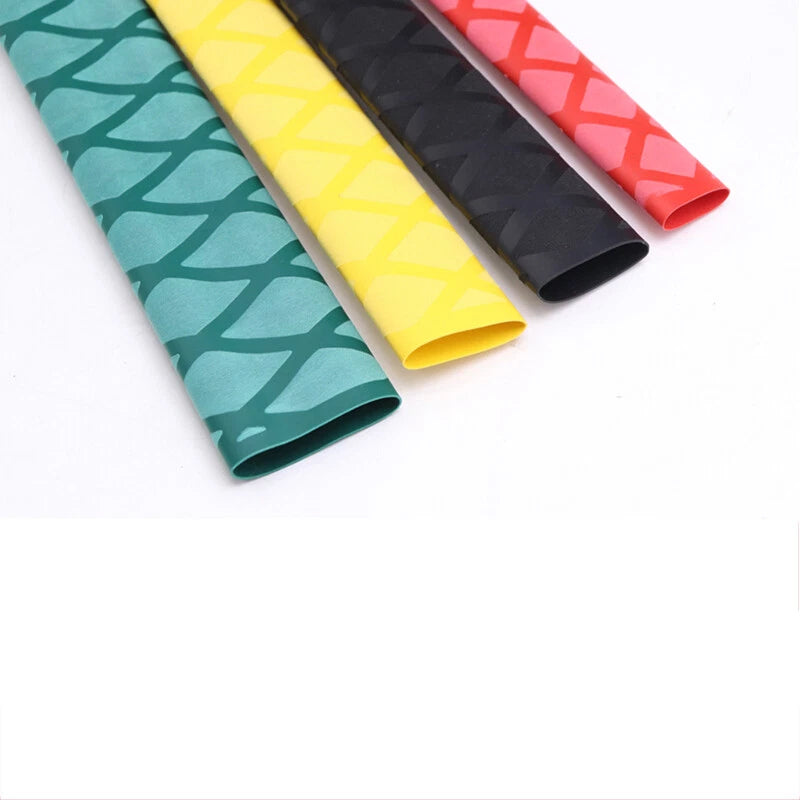

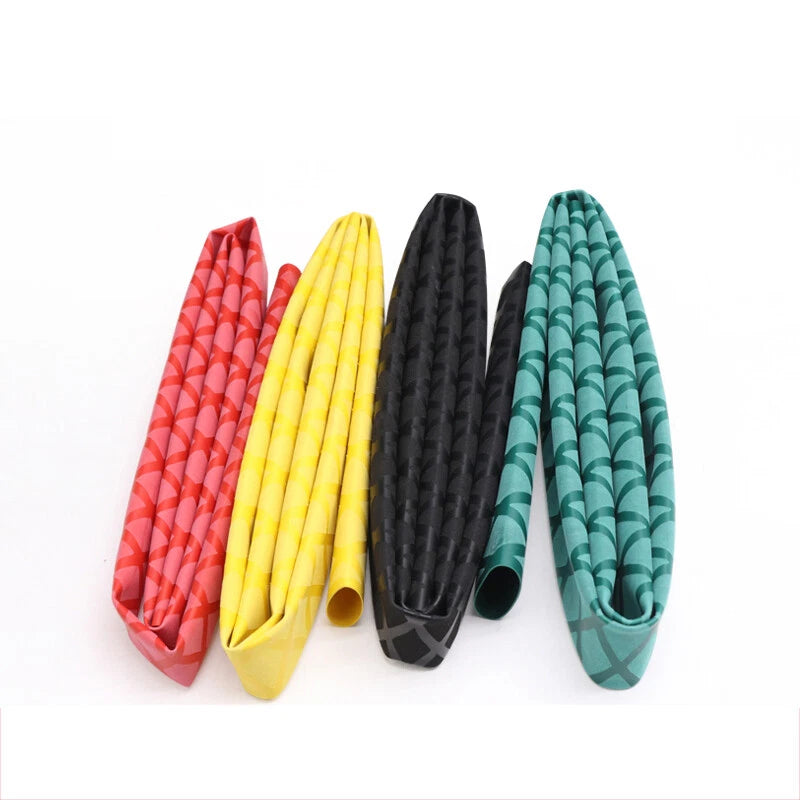

X-Pattern Heat Shrink Grip Tubing — Secure, Non-Slip Handle Wrap for Fishing Rods & Sports Equipment
If your fishing rod handle slips during a cast, your tool grip feels worn smooth, or your sports equipment needs a clean, professional-looking rewrap, bare handles are a real liability. This heat shrink tubing with an embossed X-pattern grip texture is built for DIYers, anglers, and sports equipment builders who need a reliable, low-profile grip solution that stays put under pressure.

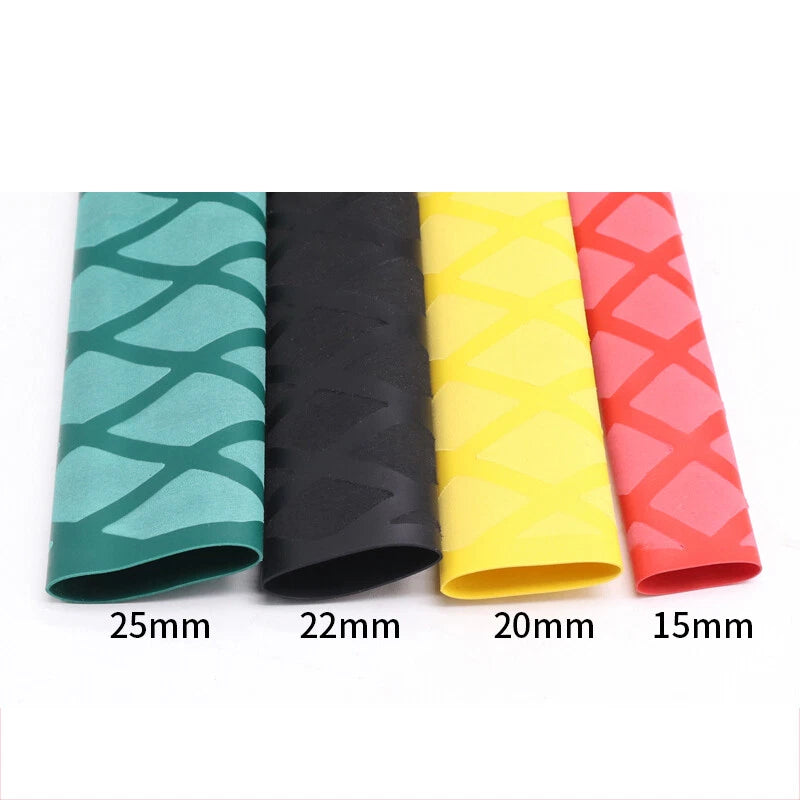

Each listing is sold by the meter (≈39.4") and is available in six diameters — 15mm (≈5/8"), 20mm (≈13/16"), 22mm (≈7/8"), 25mm (≈1"), 35mm (≈1-3/8"), and 40mm (≈1-9/16") — and five colors: Black, Red, Blue, Green, and Yellow. The tubing is made from polyolefin with a 2:1 shrink ratio and an operating temperature range of -55°C to 125°C (-67°F to 257°F). The raised X-pattern is molded into the outer surface before shrinking and remains tactile after heat is applied.
Typical applications include rewrapping fishing rod handles for a fresh non-slip grip, covering bicycle handlebar ends, protecting tool handles from wear and moisture, and adding color-coded identification to sports equipment grips. The tubing is also used in DIY archery bow grips and martial arts equipment handle builds where a secure, sweat-resistant wrap is needed.
ℹ️
Compatibility Note: This tubing fits over most rigid cylindrical handles including fiberglass, carbon fiber, aluminum, wood, and PVC rods. Measure your handle's outer diameter before ordering — the tubing should slide on loosely before heat is applied. See the FAQ below for sizing guidance.
✅ Key Features of These X-Pattern Heat Shrink Grip Tubes
-
🔲Embossed X-Pattern Grip Surface — The raised diamond-cross texture increases surface friction significantly, making it effective as a non-slip fishing rod handle wrap even when hands are wet or gloved.
-
📏Six Diameter Options in One Listing — Available from 15mm (≈5/8") to 40mm (≈1-9/16"), covering a wide range of rod blanks, tool handles, and sports grip diameters without needing separate products.
-
🌡️Wide Operating Temperature Range — Rated from -55°C to 125°C (-67°F to 257°F), making it suitable for outdoor fishing applications, cold-weather sports, and environments with moderate heat exposure.
-
✂️Cut-to-Length Flexibility — Sold by the meter so you can trim to any handle length. Clean-cut ends do not fray, and the tubing can be cut before or after shrinking for precise fitment on custom handle builds.
-
🎨Five Color Options for Visual Identification — Black, Red, Blue, Green, and Yellow allow color-coding of rods by species, line weight, or owner — a practical feature for guides and tournament anglers managing multiple setups.
-
💧Moisture-Resistant Polyolefin Construction — The material resists water absorption and does not degrade with repeated exposure to rain, spray, or perspiration, making it a durable choice for outdoor sports handle wrapping.
📐 Technical Specifications — X-Pattern Heat Shrink Grip Tubing
| Product Type |
Heat Shrink Tubing with Embossed X-Pattern Grip Texture |
| Material |
Polyolefin |
| Shrink Ratio |
2:1 (shrinks to approximately half the listed inner diameter) |
| Available Diameters |
15mm (≈5/8"), 20mm (≈13/16"), 22mm (≈7/8"), 25mm (≈1"), 35mm (≈1-3/8"), 40mm (≈1-9/16") |
| Available Colors |
Black, Red, Blue, Green, Yellow |
| Length per Unit |
1 Meter (≈39.4") |
| Operating Temperature |
-55°C to 125°C (-67°F to 257°F) |
| Application Temperature |
Typically 90–120°C (194–248°F) with a heat gun |
| Wall Thickness (pre-shrink) |
See variant options |
| Adhesive Lining |
None (non-adhesive lined) |
| Country of Manufacture |
China |
| Recommended Tool |
Heat gun (open flame not recommended) |
⚠️
Sizing Tip: Always measure your handle's outer diameter before selecting a size. The tubing must slide over the handle before heat is applied. If you are between sizes, size up — a slightly larger tube will shrink down more evenly than one that is too tight to slide on.
❓ Frequently Asked Questions
How do I choose the right diameter for my handle?
Measure the outer diameter of your handle or rod blank before shrinking. Heat shrink tubing typically shrinks to roughly half its listed diameter when fully heated, so choose a size that fits loosely over the bare handle. For example, a 25mm (≈1") tube is generally suitable for handles with a pre-shrink outer diameter of 12–20mm. When in doubt, size up — a slightly larger tube shrinks more evenly than one forced over a tight fit.
What shrink ratio does this tubing use?
This tubing generally uses a 2:1 shrink ratio, meaning it shrinks to approximately half its original inner diameter when heat is applied evenly with a heat gun. The X-pattern texture is retained after shrinking and remains tactile on the finished surface.
Can I use this tubing outdoors or in wet conditions like fishing?
Yes. The polyolefin material is moisture-resistant and generally suitable for outdoor use, including fishing rods exposed to rain, spray, and repeated handling with wet hands. It is not designed for continuous submersion. For saltwater fishing applications, the material typically holds up well, but rinsing after use is always a good practice.
What tools do I need to apply the heat shrink tubing?
A heat gun is the recommended tool. In most cases, a temperature setting of around 90–120°C (194–248°F) applied evenly along the length of the tube produces a clean, uniform shrink. Avoid open flames such as lighters or torches — uneven heat can scorch the surface or cause the tubing to shrink unevenly, which may distort the X-pattern texture.
Is the X-pattern texture functional or just decorative?
The embossed X-pattern is functional. It increases surface friction to improve grip in wet, sweaty, or cold conditions — which is why it is commonly used on fishing rod handles, bicycle grips, archery bows, and sports equipment. The texture is molded into the tubing before shrinking and remains raised and tactile after the heat shrink process is complete.
What surfaces or materials can this tubing be applied to?
This tubing is designed to shrink tightly over most rigid cylindrical surfaces including fiberglass rod blanks, carbon fiber shafts, aluminum tubes, wood dowels, and PVC pipe. It does not contain an adhesive inner lining, so it relies on mechanical compression to stay in place. For applications requiring a bonded seal, contact us to confirm compatibility before ordering.
Can I cut the tubing to a custom length?
Yes. Each piece is sold by the meter (≈39.4") and can be cut to any length with scissors or a utility knife before or after shrinking. Cut ends do not fray. For fishing rod handle wraps, most builders cut to the exact grip length needed and apply the tubing in a single piece for a seamless finish.
🛒 Select your diameter, color, and length above, then add to cart — ships from our US warehouse.
