🔥 Heat Shrink Wire Connectors Waterproof Solder Seal Terminals Kit | HomeDIYer
Make your electrical connections stronger and safer with our Heat Shrink Wire Connectors! Designed for marine, automotive, and home use, these waterproof solder seal terminals ensure durable, corrosion-resistant joints that withstand even harsh environments. 🚗⚡

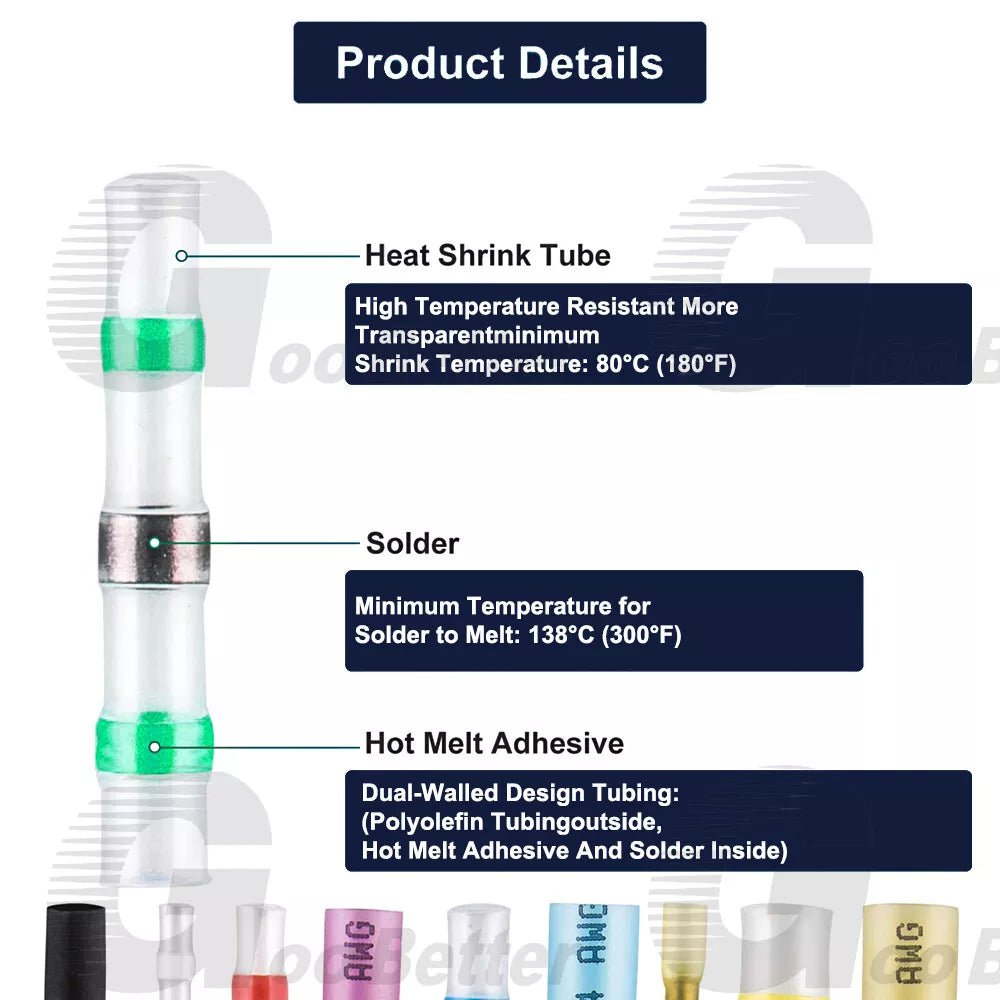

💎 Superior Quality Heat Shrink Design
- 🧱 Dual-Wall Structure: Polyolefin tubing outside with polyamide hot-melt adhesive inside for maximum waterproofing and protection.
- 💧 Anti-Corrosion: Prevents wire corrosion and oxidation even in humid or marine environments.
- 🔥 High Heat Resistance: Prevents melting before soldering while maintaining perfect shrink and seal.
⚙️ Excellent Heat Shrink Engineering
- 🔌 No Crimping or Soldering Required: Simply heat to shrink and seal.
- 🧲 Stable Connection: The tin ring and hot-melt adhesive hold wires tightly for a secure bond.
- 🌀 Compact Design: Ideal for small spaces, wires remain flexible after installation.
- 🧵 No Wire Slipping: Hot melt ensures high tensile strength and tear resistance.

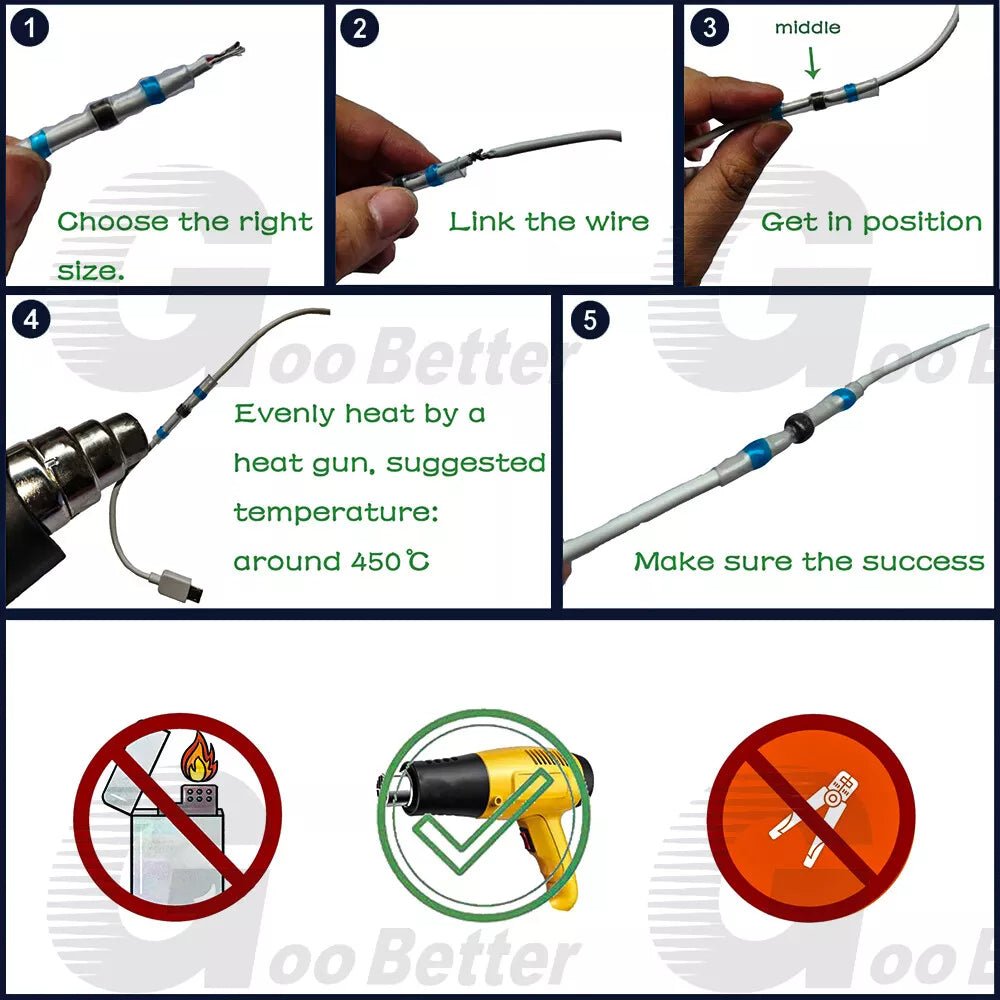

🧰 Easy Operation
Insert the stripped wires into the Heat Shrink solder sleeve and evenly heat with a heat gun until the tubing shrinks and the solder melts — done in seconds!
🌊 Wide Application of Heat Shrink Connectors
- 🚤 Marine wiring and waterproof electrical repairs
- 🚗 Automotive and motorcycle maintenance
- 🏠 Home electrical projects
- ✈️ Aerospace and scientific wiring applications
📋 Heat Shrink Wire Connectors Specifications
| Specification |
Details |
| Product Type |
Heat Shrink Wire Connectors |
| Gauge Range |
26-10 AWG |
| Material |
Polyolefin Tubing with Hot Melt Adhesive & Solder |
| Contact Material |
Tin |
| Operating Temperature |
-55°C ~ 125°C (-122°F ~ 290°F) |
| Minimum Shrinkage Temp |
80°C (180°F) |
| Minimum Soldering Temp |
138°C (300°F) |
| Colors |
Yellow / Green / White / Red |
| Pieces per Pack |
50pcs per color, total 200pcs |

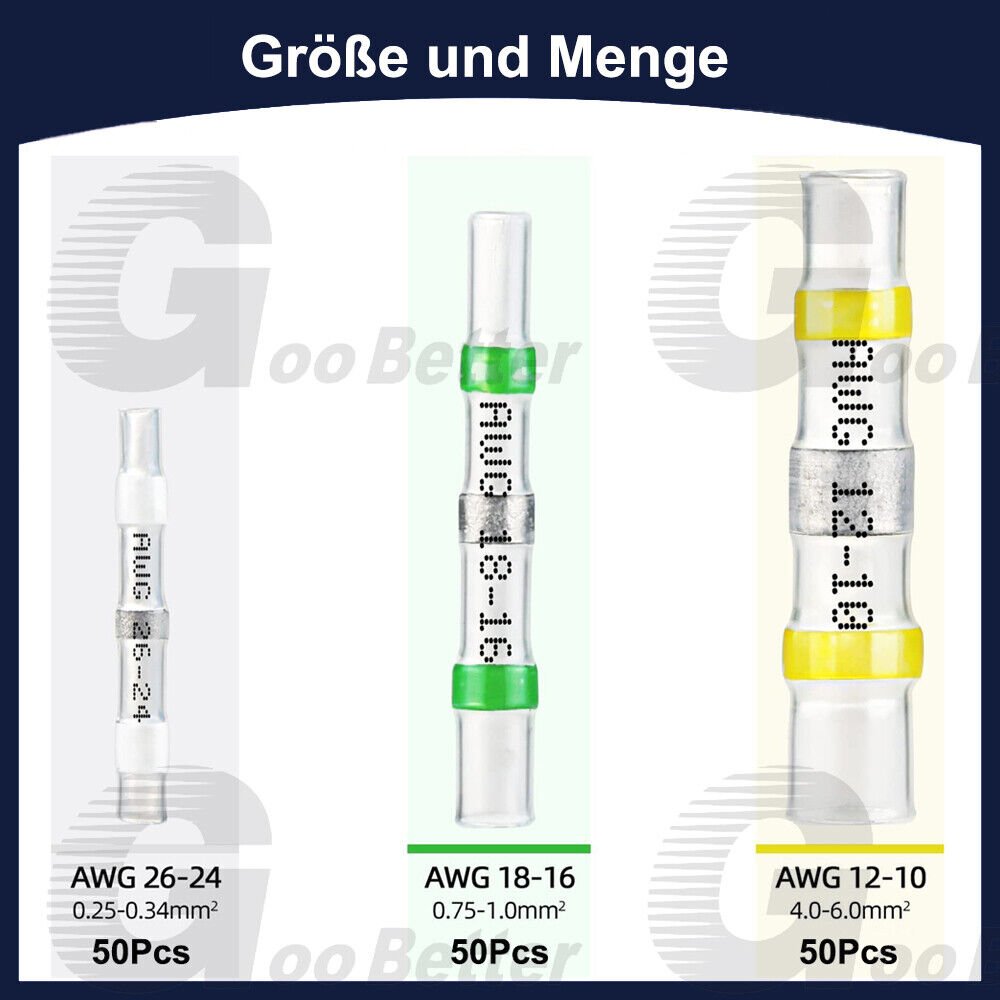

📦 Package Includes
- 🟡 50 × Yellow Connectors (12-10 AWG / 4.0-6.0mm²)
- 🟢 50 × Green Connectors (18-16 AWG / 0.75-1.5mm²)
- ⚪ 50 × White Connectors (26-24 AWG / 0.25-0.34mm²)
- 🔴 50 × Red Connectors (22-18 AWG / 0.5-1.0mm²)
❓ FAQ – About Heat Shrink Wire Connectors
Q1: Do I need special tools to use these?
A1: No crimping or soldering tools needed — just use a heat gun for quick installation.
Q2: Are the Heat Shrink connectors waterproof?
A2: Yes, the dual-wall design with hot melt adhesive ensures a fully waterproof seal.
Q3: What’s the temperature range for use?
A3: Operates perfectly between -55°C to 125°C (-122°F to 290°F).
Q4: Can I use these for outdoor wiring?
A4: Absolutely! Ideal for marine, automotive, and outdoor electrical applications.
💡 Note
Due to lighting and screen differences, actual colors of the Heat Shrink connectors may vary slightly from the pictures.
