Metal Toggle Switch 15A 250VAC — Reliable Control for Automotive, Marine & Industrial Panels
When a flimsy plastic rocker switch fails mid-project — or worse, mid-trip — the consequences range from frustrating to dangerous. Electricians, automotive builders, marine riggers, and DIY panel fabricators need a toggle switch that locks into position, handles real current loads, and survives vibration, heat, and repeated cycling without loosening. These heavy duty metal toggle switches are built for exactly those demands.

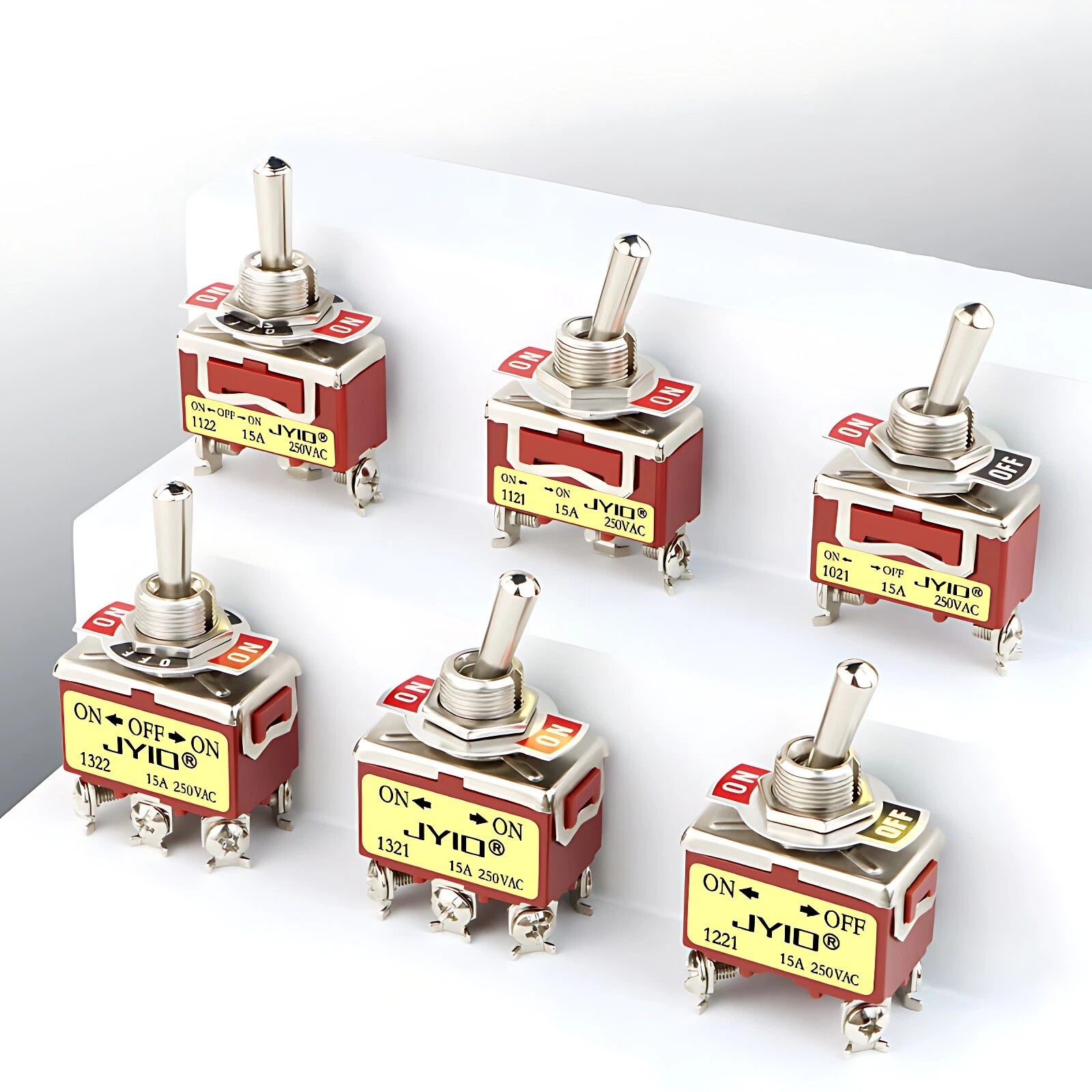

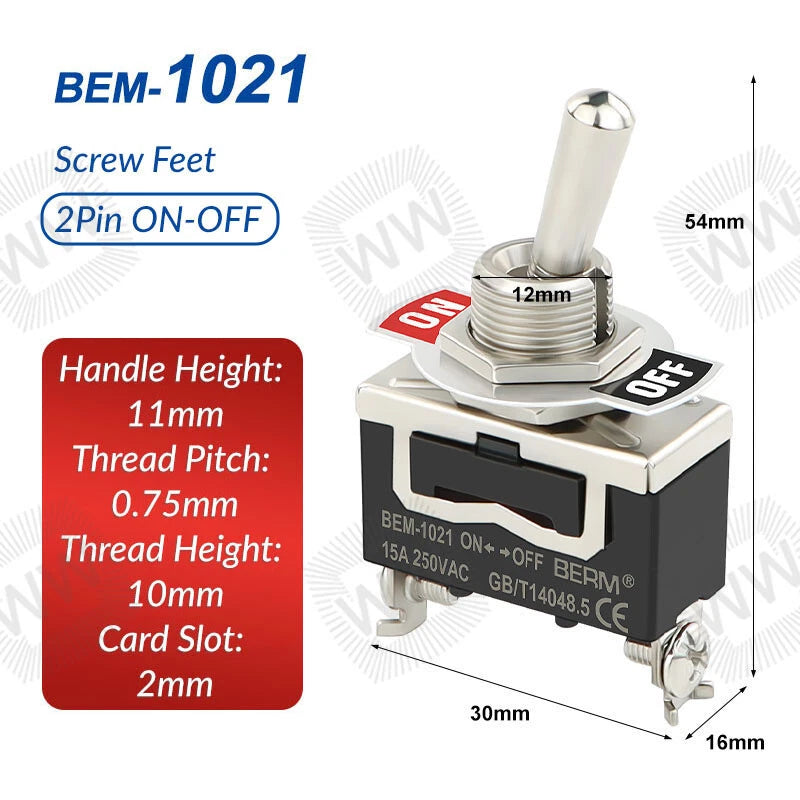

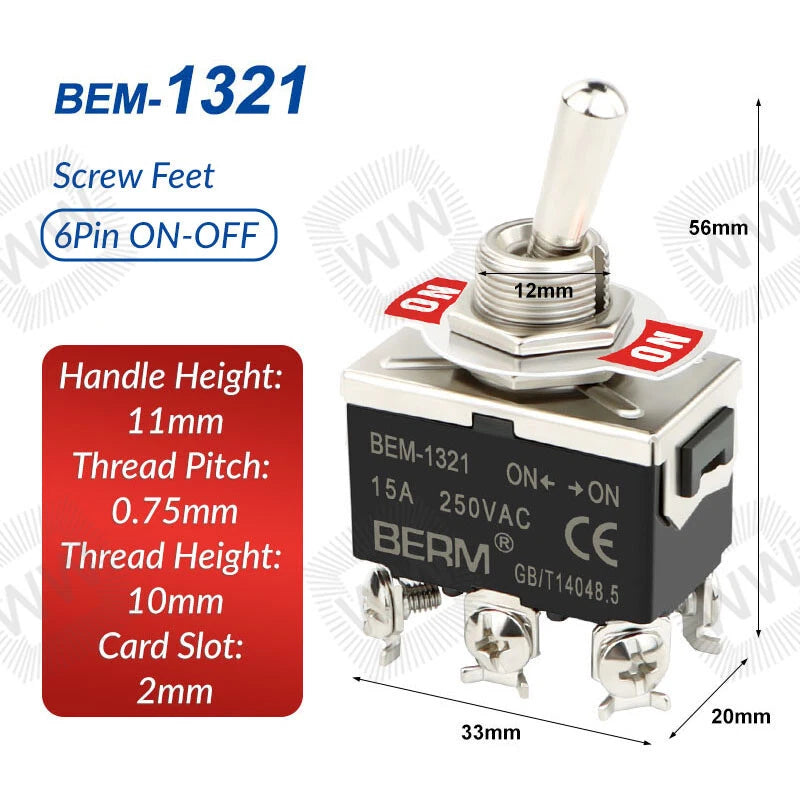

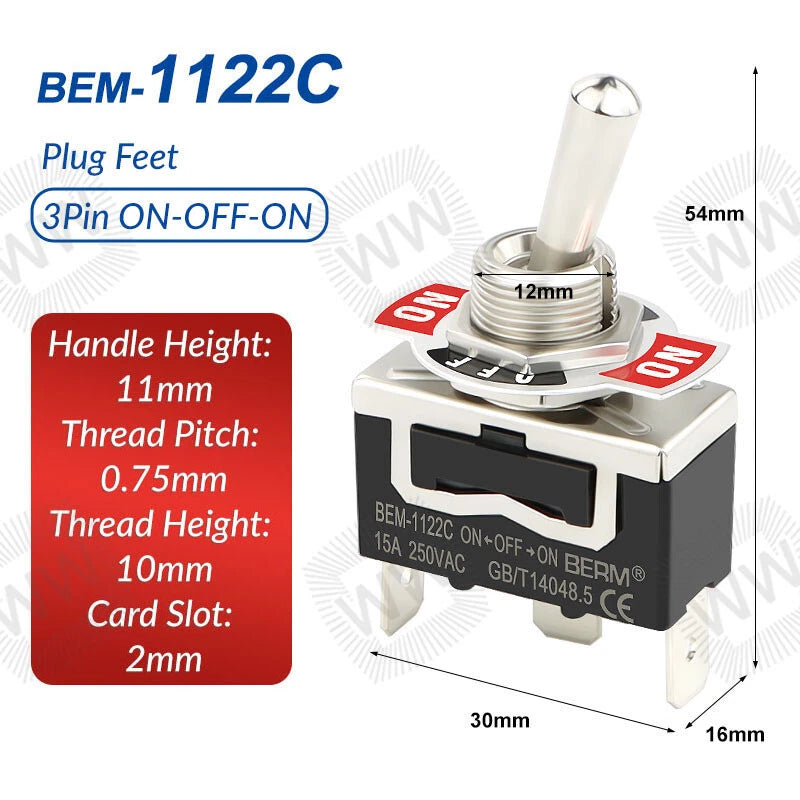

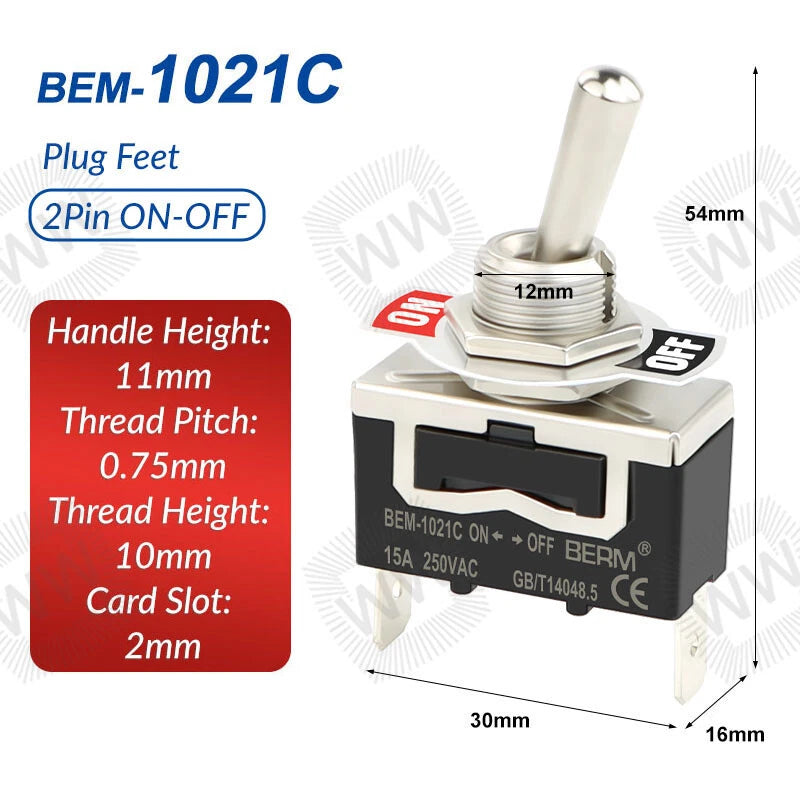

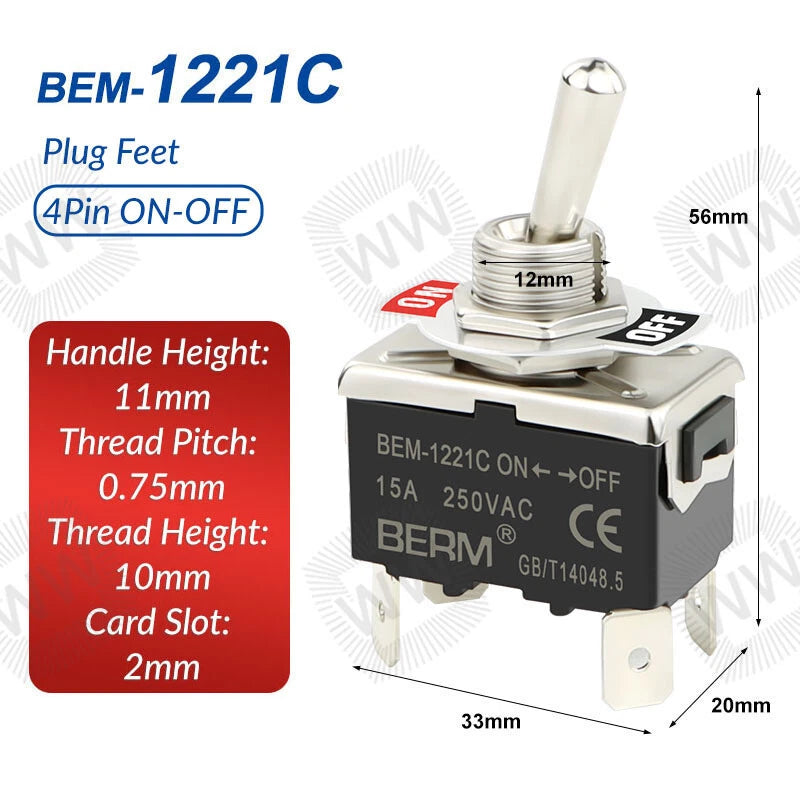

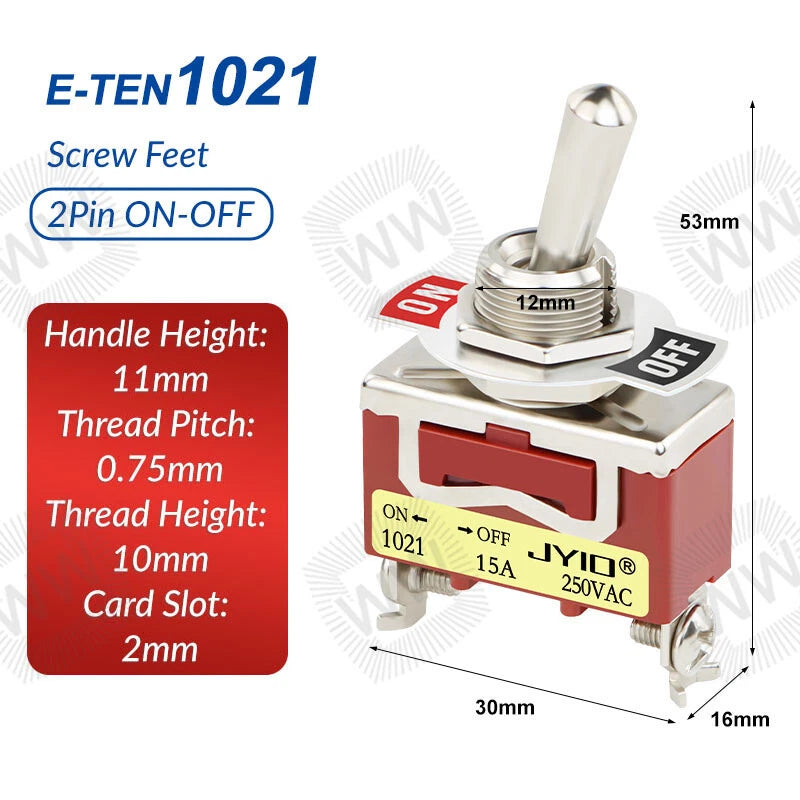

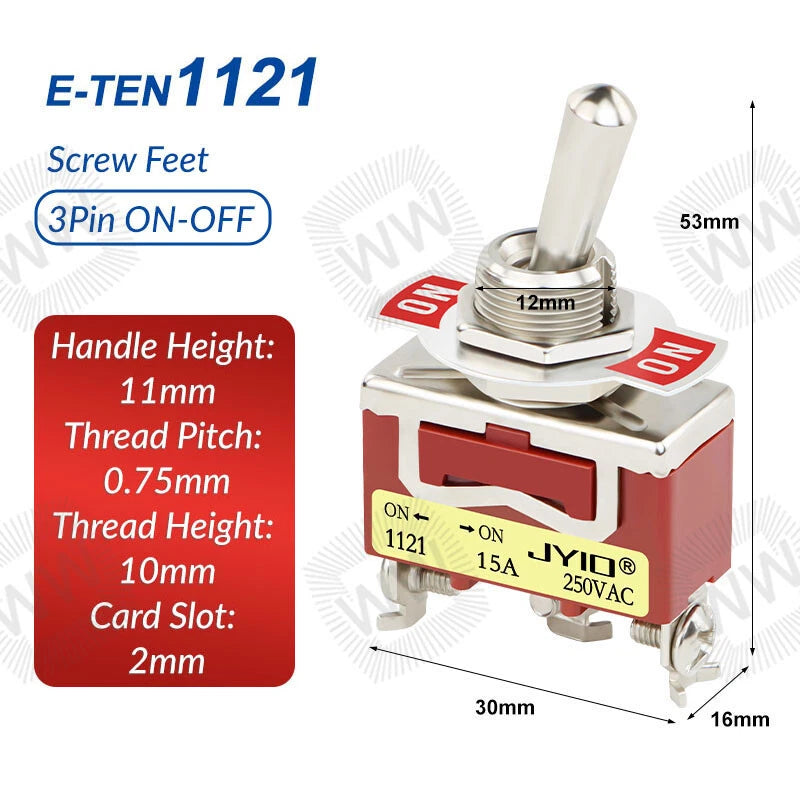

Each switch features an all-metal body and toggle lever, rated at 15A / 250VAC. Available in 2-pin, 3-pin, 4-pin, and 6-pin configurations with ON-OFF, ON-OFF-ON, and Momentary ON-OFF-ON action options. Choose Plug Feet (quick-connect spade terminals) or Screw Feet (screw-clamp terminals) to match your wiring method. Color options include Black and Red. A compatible Waterproof Cover is available as a separate variant for splash-prone installations. Bulk packs of 1, 3, 5, 10, 30, and 50 pieces are available to suit single builds and production runs alike.
Typical use cases include automotive dashboard switch panels for lights, fans, and accessories; boat and marine control panels for bilge pumps, navigation lights, and electronics; industrial control enclosures for machinery on/off circuits; and DIY electronics projects requiring a dependable SPST or DPDT toggle switch with a metal body.
🔌
Compatibility Note: These switches use standard metric toggle-mount threading (typically M12 bushing). They fit standard 12mm round panel cutouts common in automotive, marine, and industrial enclosures. Plug Feet variants accept standard 6.3mm (1/4") quick-connect terminals. Screw Feet variants accept bare wire ends. Confirm your panel thickness and terminal type before ordering.
✅ Key Features of These Metal Toggle Switches
-
⚡15A / 250VAC Rated — Handles real electrical loads including lighting circuits, motors, and accessories in automotive and marine toggle switch applications without nuisance tripping.
-

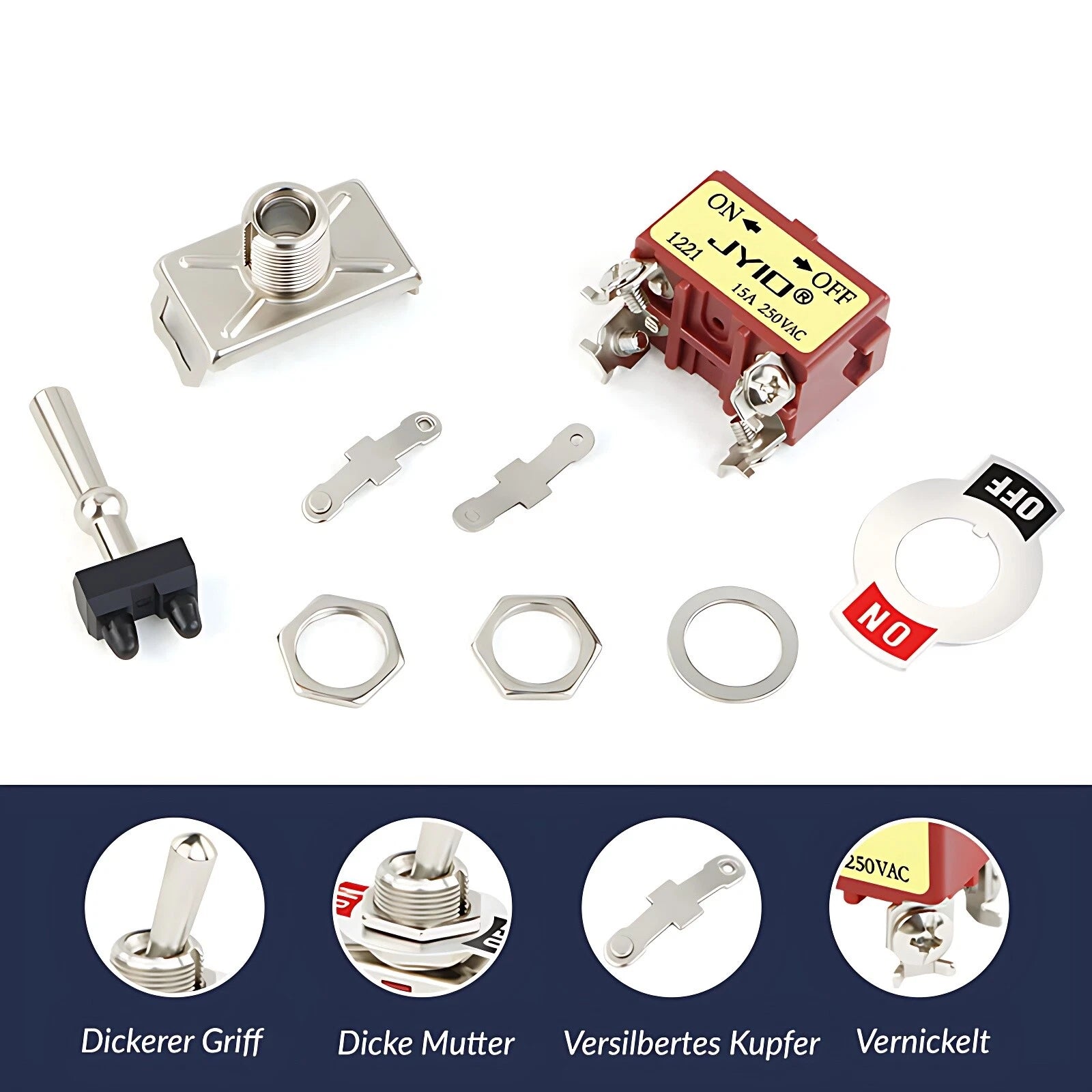

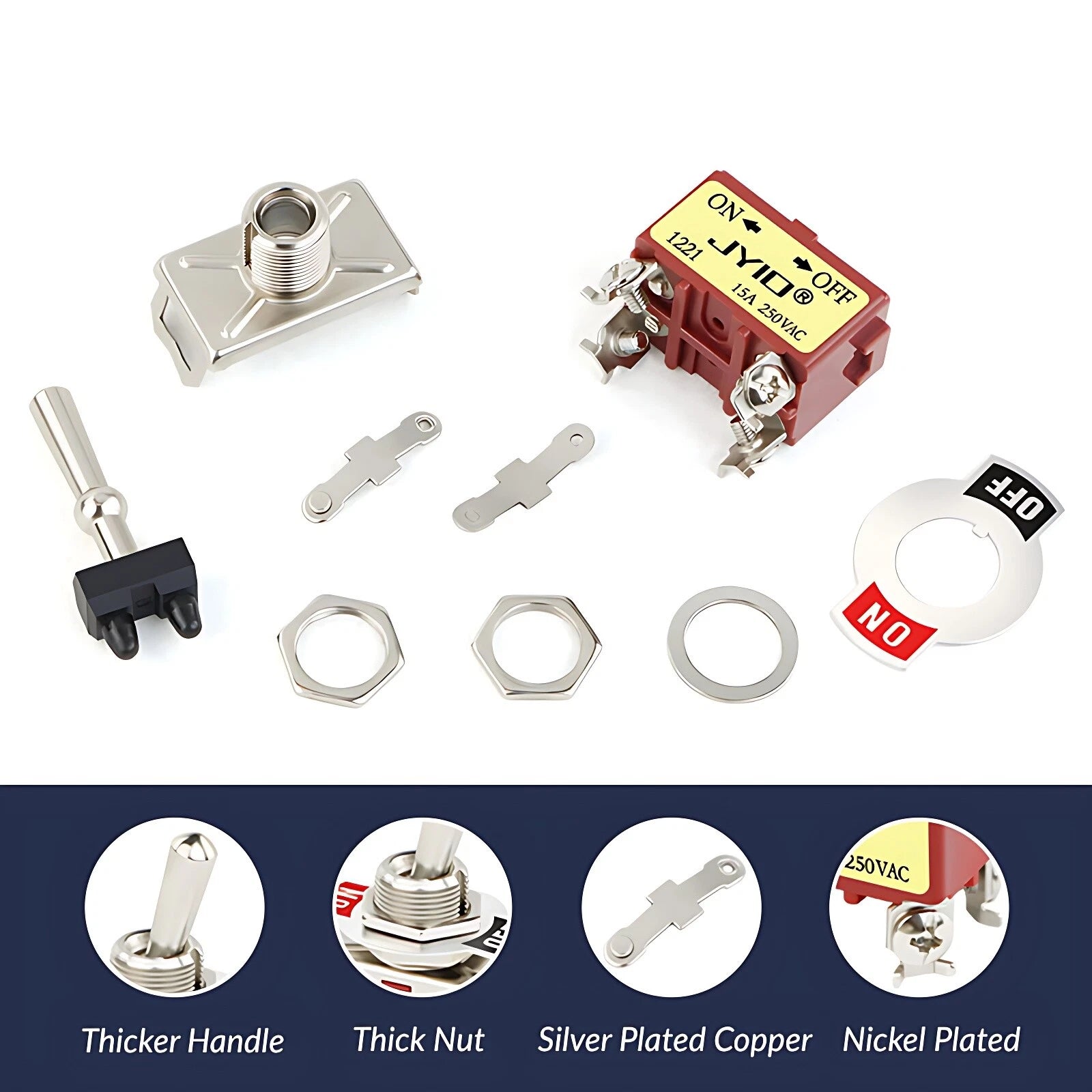

🔩Solid Metal Body & Lever — The all-metal construction resists cracking, warping, and loosening under vibration — a common failure point with plastic-body switches in car dash and boat panel installations.
-

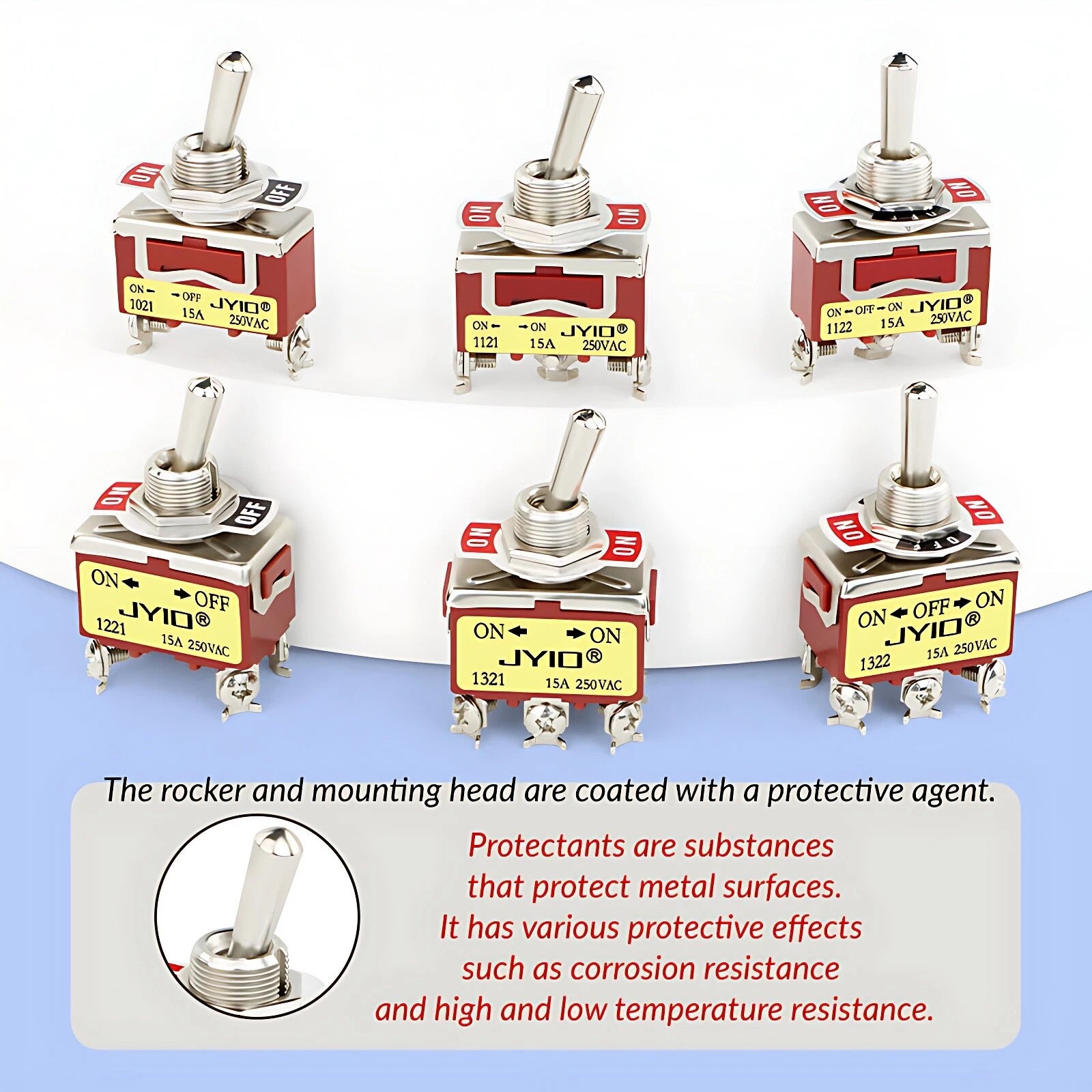

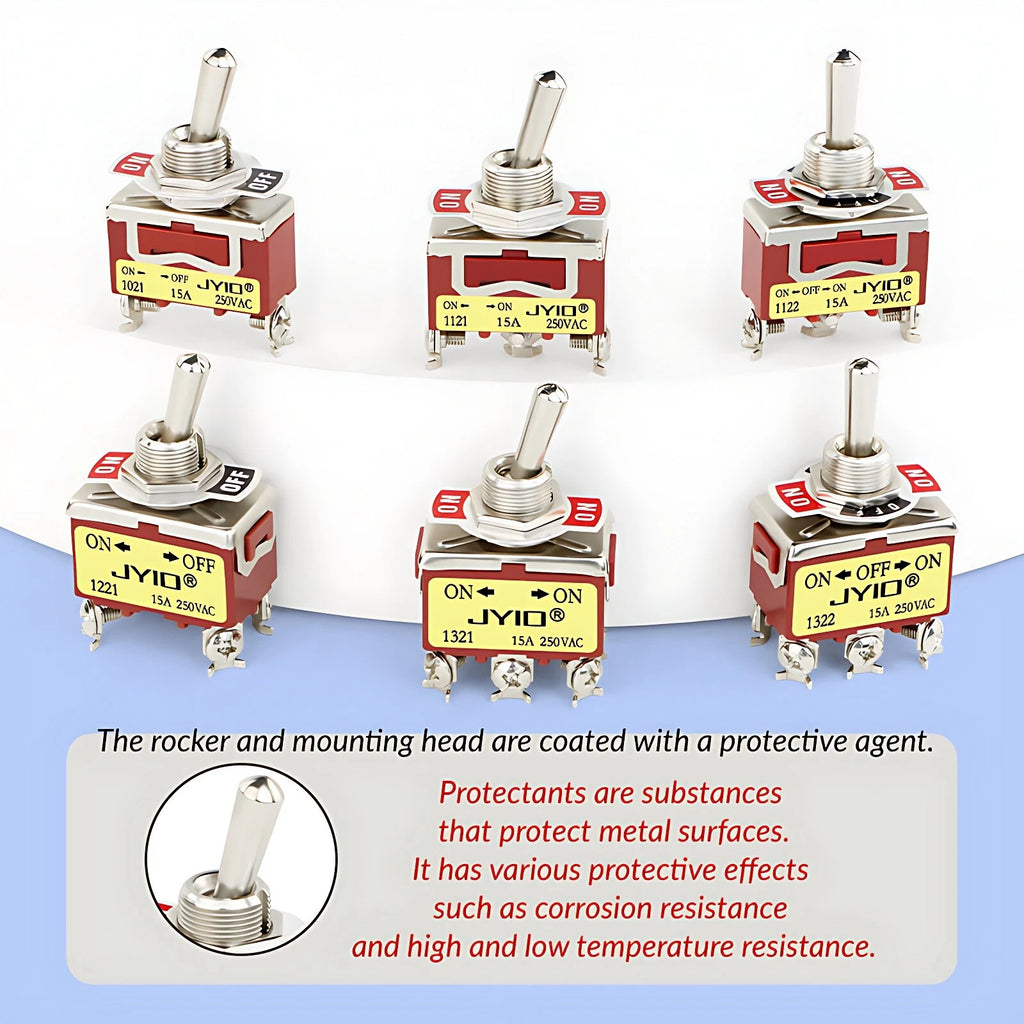

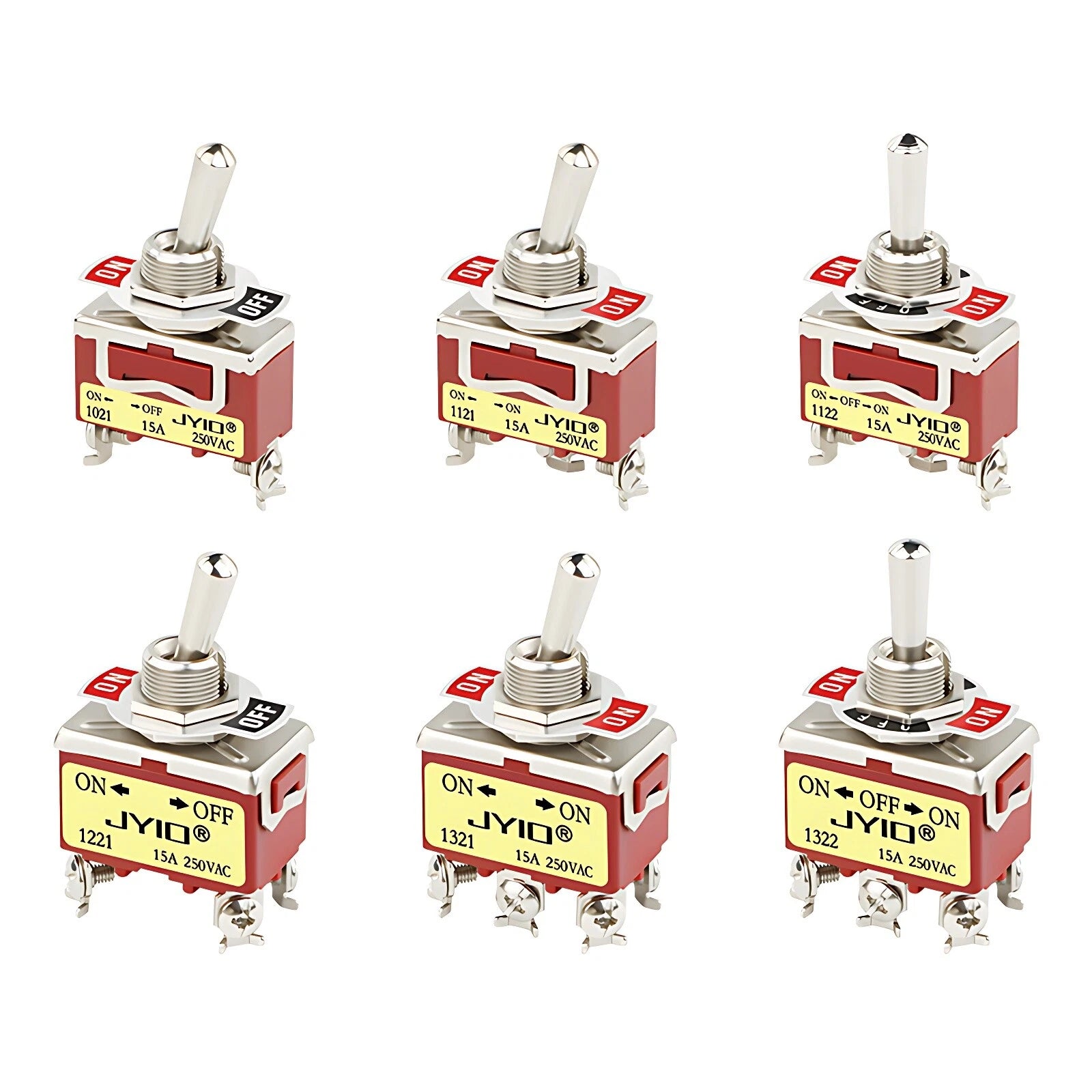

🔀Multiple Pin & Action Configurations — Choose from 2-pin, 3-pin, 4-pin, or 6-pin layouts in ON-OFF, ON-OFF-ON, or Momentary ON-OFF-ON action to match your exact wiring diagram without adapters.
-

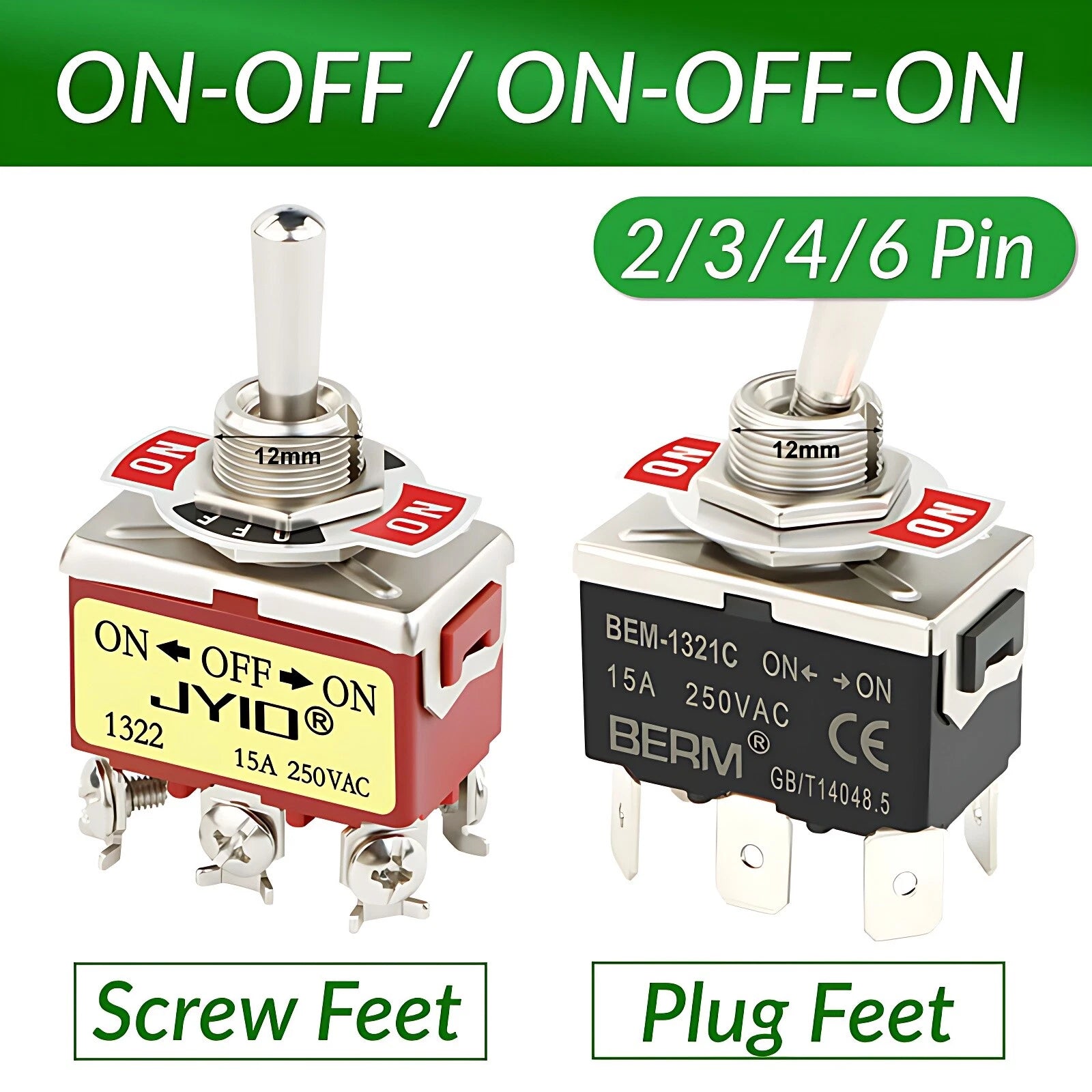

🔧Plug Feet or Screw Feet Terminals — Plug Feet (spade terminals) allow tool-free wire changes ideal for prototyping and dashboards; Screw Feet provide a locked, vibration-resistant connection for permanent panel-mount wiring.
-

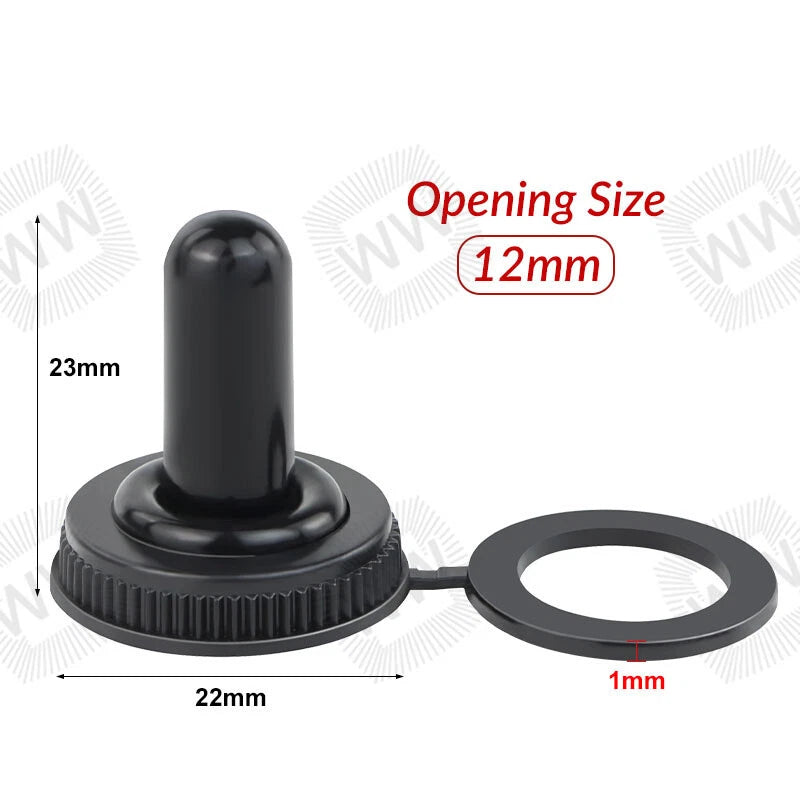

🛡️Optional Waterproof Cover Available — A matching waterproof boot cover is available as a separate variant, adding splash resistance for outdoor, marine, and engine-bay toggle switch installations.
-
📦Flexible Pack Sizes from 1 to 50 Pieces — Order a single switch for a repair or up to 50 pieces for panel production runs — bulk pricing scales down per-unit cost for builders and fabricators.

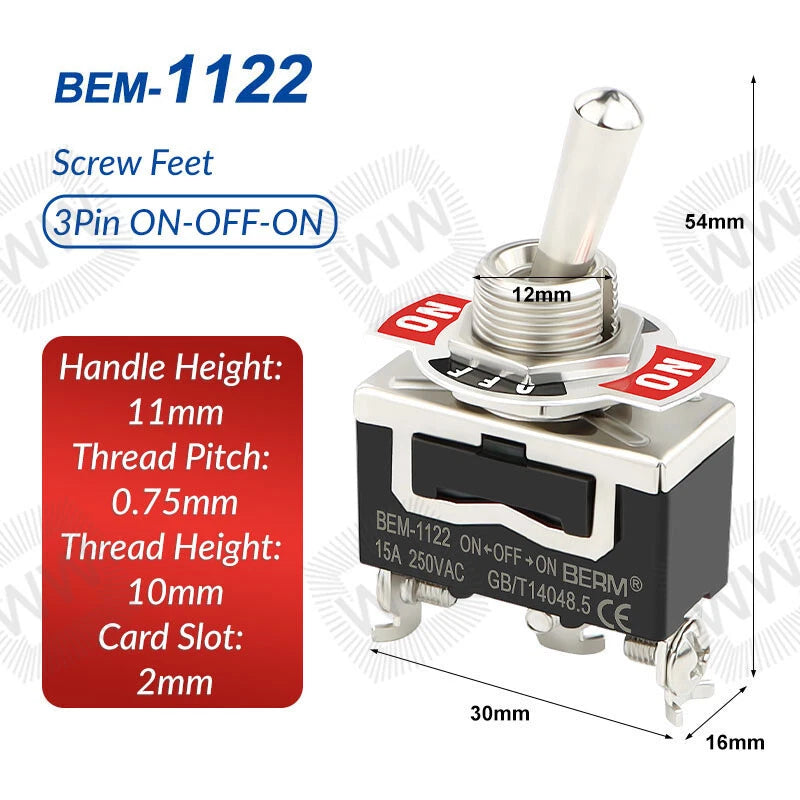

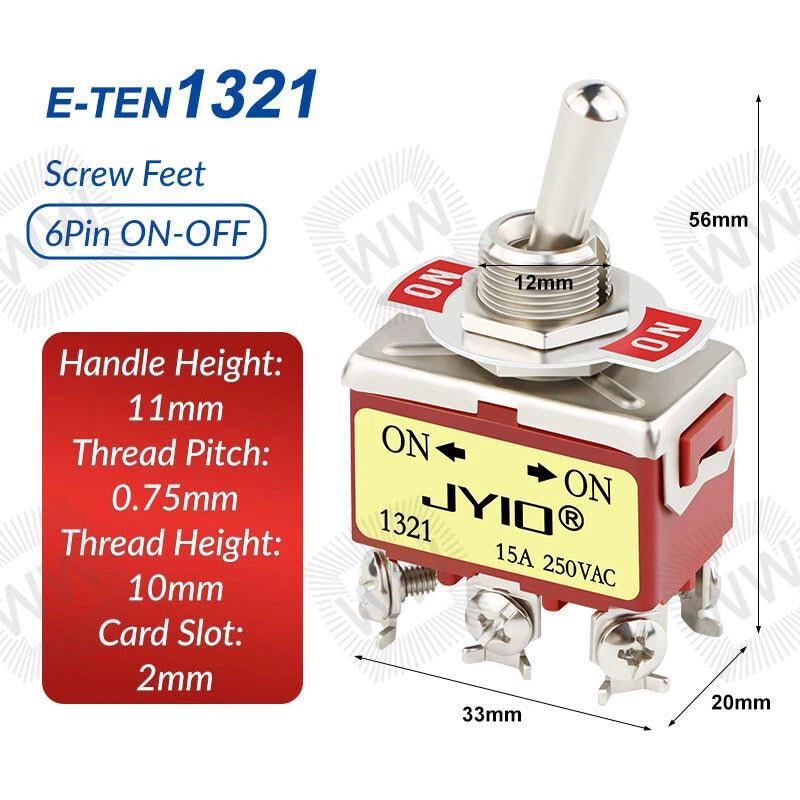

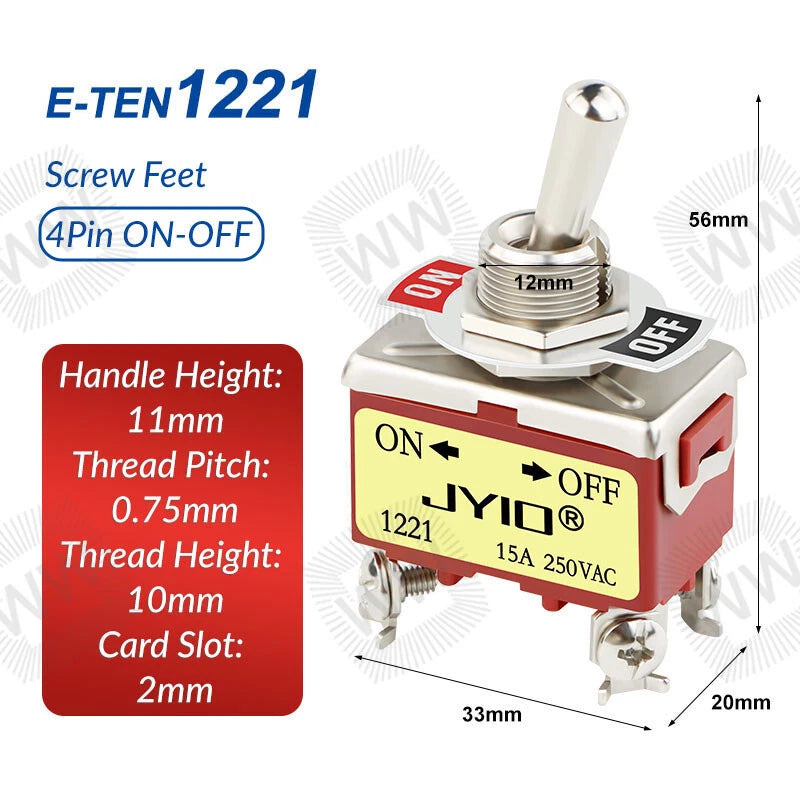

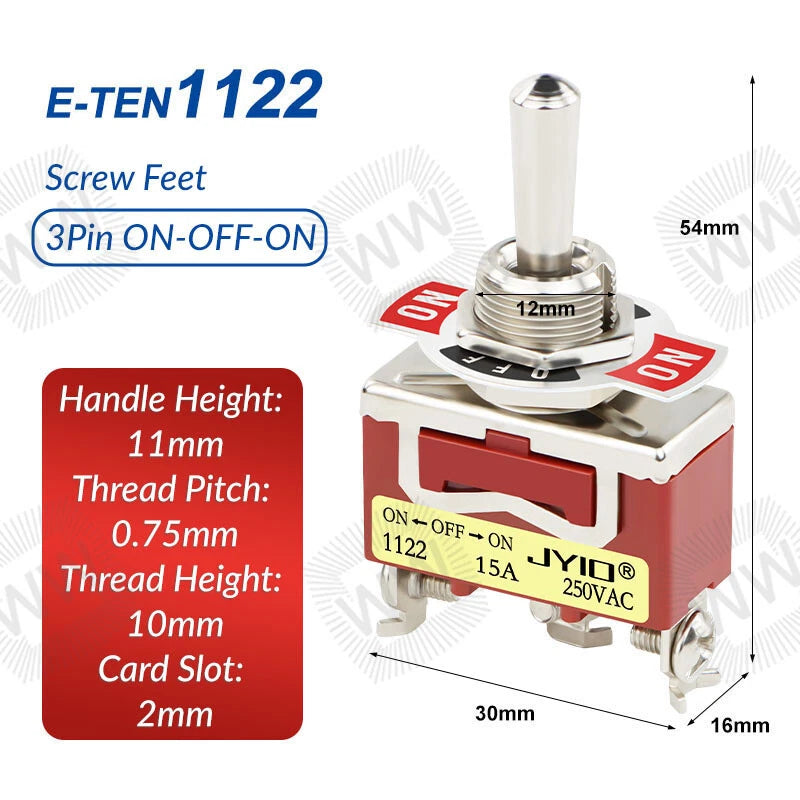

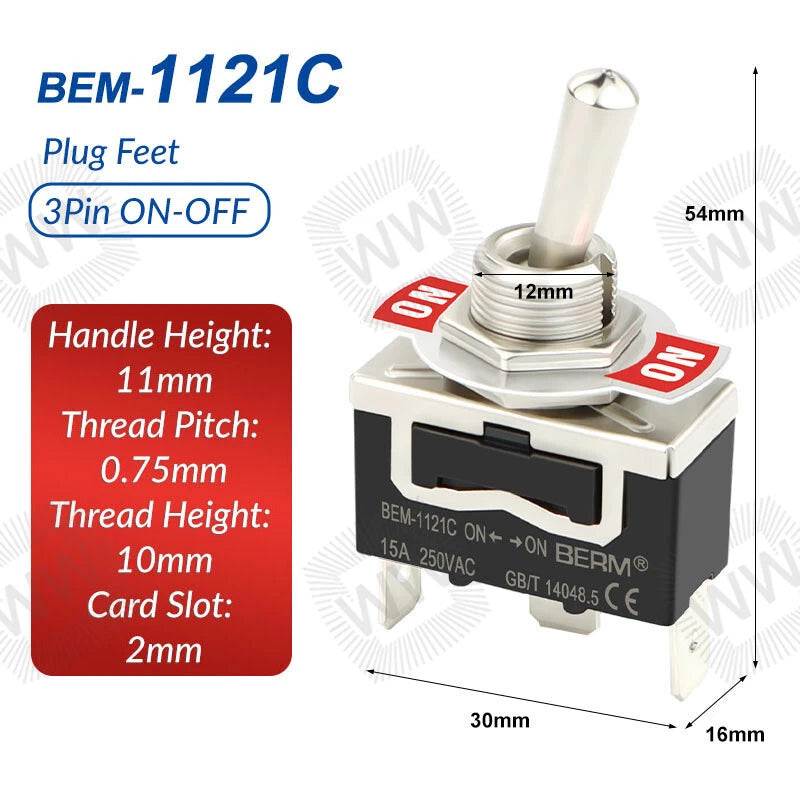

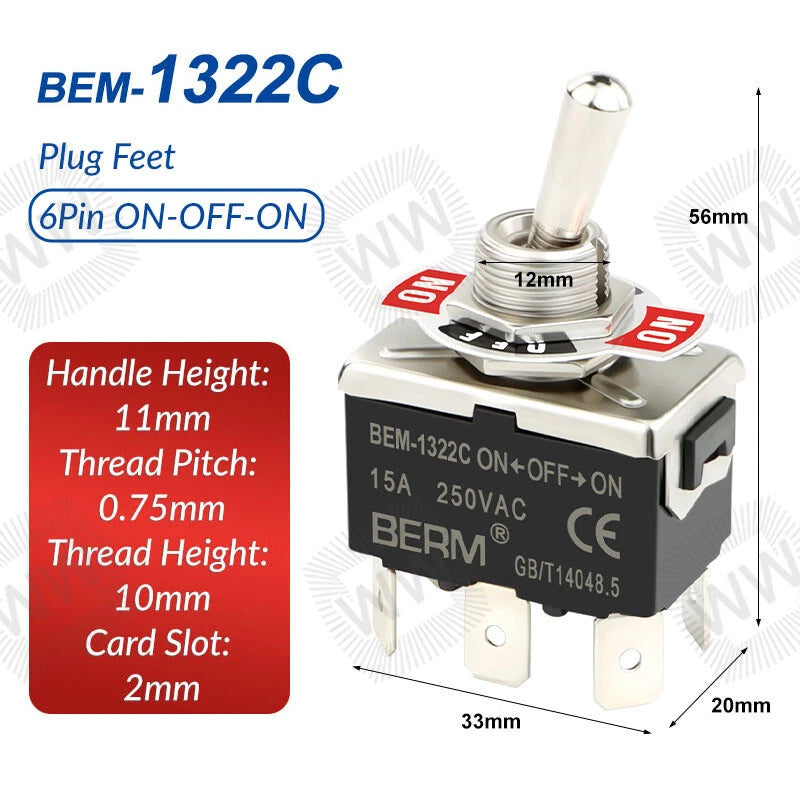

📐 Technical Specifications — Metal Toggle Switch
| Switch Type |
Heavy Duty Metal Toggle Switch |
| Current Rating |
15A |
| Voltage Rating |
250VAC (typically ~20A at 12VDC — confirm for DC use) |
| Pin Configurations |
2-Pin, 3-Pin, 4-Pin, 6-Pin |
| Switch Actions |
ON-OFF, ON-OFF-ON, Momentary ON-OFF-ON |
| Terminal Types |
Plug Feet (6.3mm / 1/4" spade) or Screw Feet (bare wire clamp) |
| Body Material |
Metal (zinc alloy / steel — see variant options) |
| Toggle Lever Color |
Black or Red |
| Panel Cutout |
Typically 12mm (≈15/32") round — confirm before drilling |
| Mounting |
Panel mount with threaded bushing and nut |
| Waterproof Rating |
Not rated (optional waterproof cover available separately) |
| Pack Sizes Available |
1, 3, 5, 10, 30, 50 pcs |
| Typical Applications |
Automotive dash, marine panel, industrial control, DIY electronics |
| Country of Origin |
See variant options |
⚠️
Spec Confirmation: Exact body dimensions, thread pitch, and DC current ratings can vary slightly between configurations. If your application has tight tolerances, contact us to confirm before ordering.
❓ Frequently Asked Questions
How do I choose the right pin count for my application?

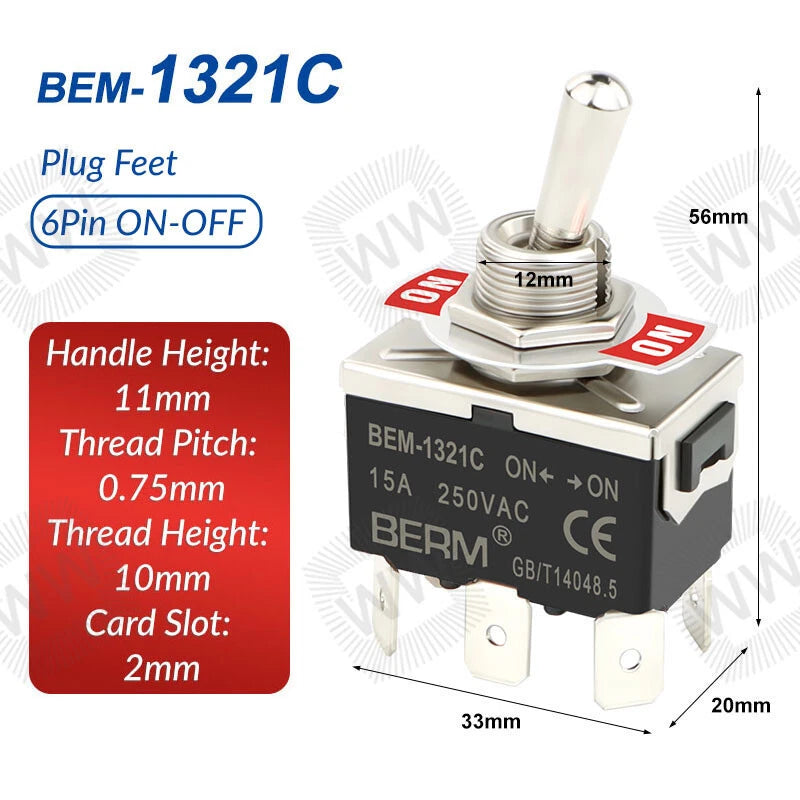

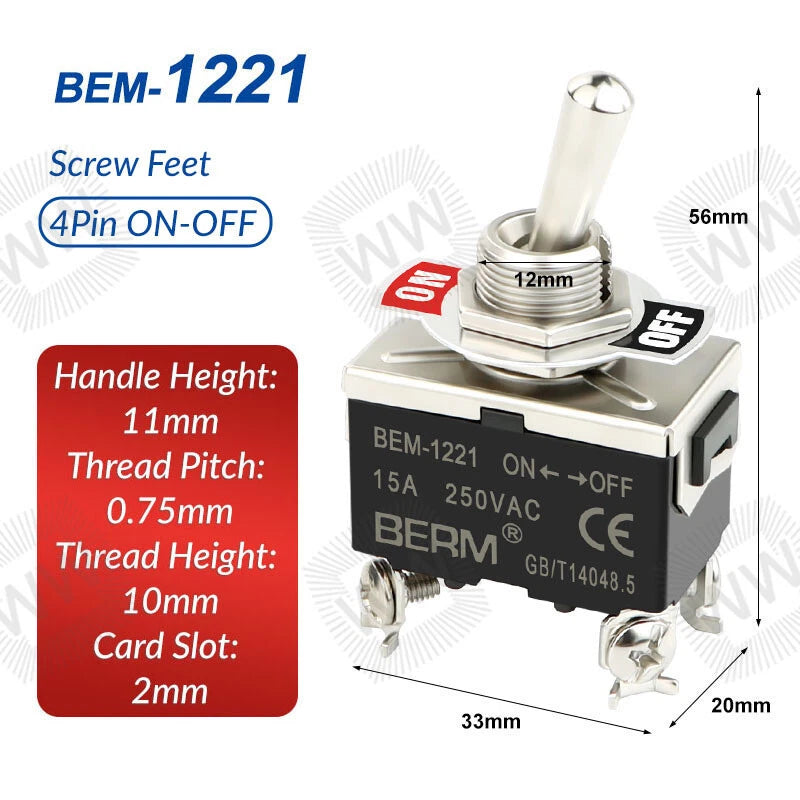

Pin count determines how many circuits the switch controls. A 2-pin switch handles a single circuit (one input, one output — SPST). A 3-pin switch adds a common terminal, enabling ON-OFF or ON-OFF-ON configurations (SPDT). A 4-pin switch typically controls two independent circuits simultaneously (DPST). A 6-pin switch generally supports double-pole double-throw (DPDT) operation — two separate circuits switched together. Match the pin count to your wiring diagram before ordering.
What is the current and voltage rating, and does it apply to DC circuits?
These switches are rated at 15A at 250VAC. For DC applications, the rating is generally lower due to arc suppression differences — typically around 20A at 12VDC in most cases, though this varies by configuration. Always verify your circuit's actual load requirements and derate appropriately for DC use. Contact us to confirm if your application is near the rated limits.
Can these toggle switches be used outdoors or in wet environments?
The switches themselves are not inherently waterproof. However, we offer a compatible Waterproof Cover (available as a separate variant) that fits over the toggle lever to provide splash resistance for outdoor, marine, and engine-bay installations. For fully submersed or high-pressure wash-down environments, additional sealing measures are recommended.
What is the difference between ON-OFF, ON-OFF-ON, and Momentary configurations?

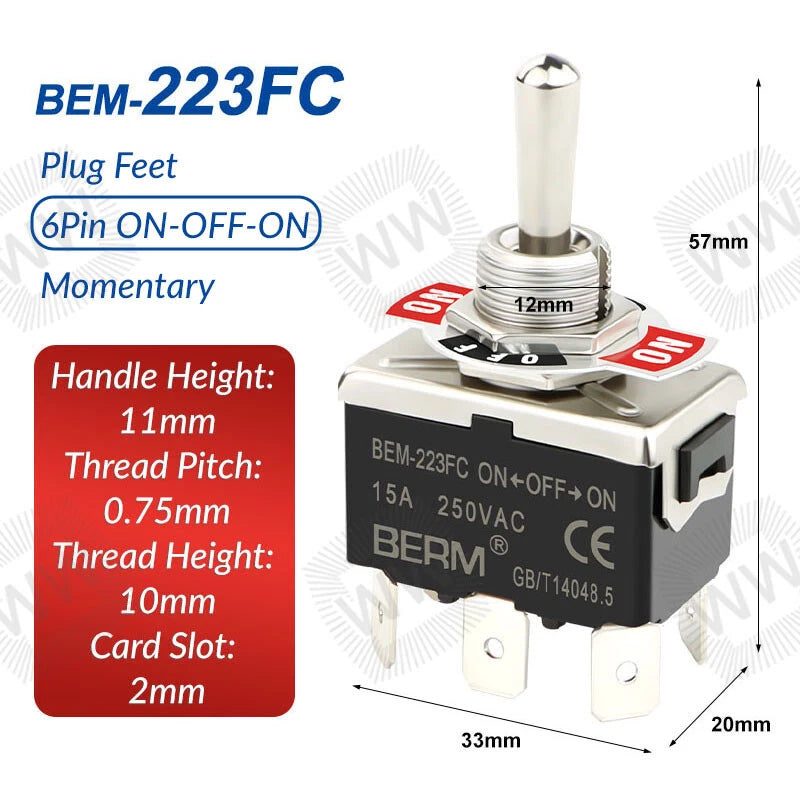

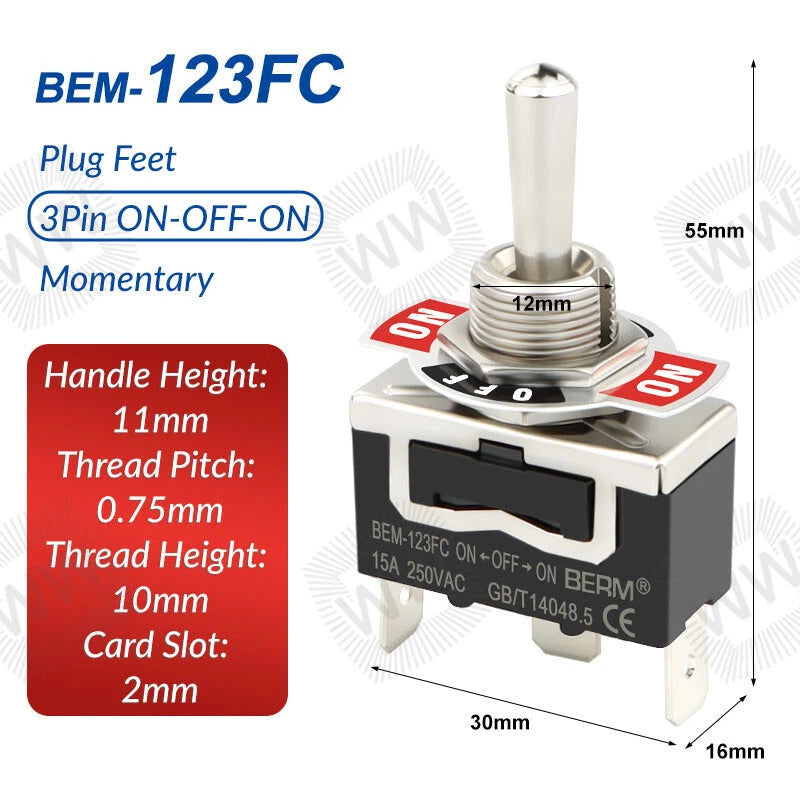

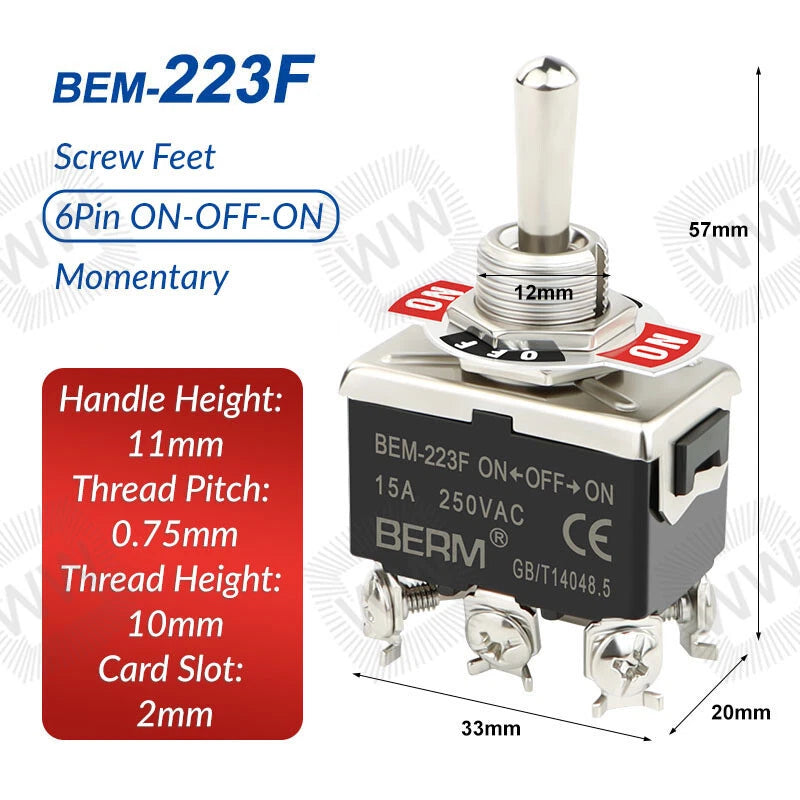

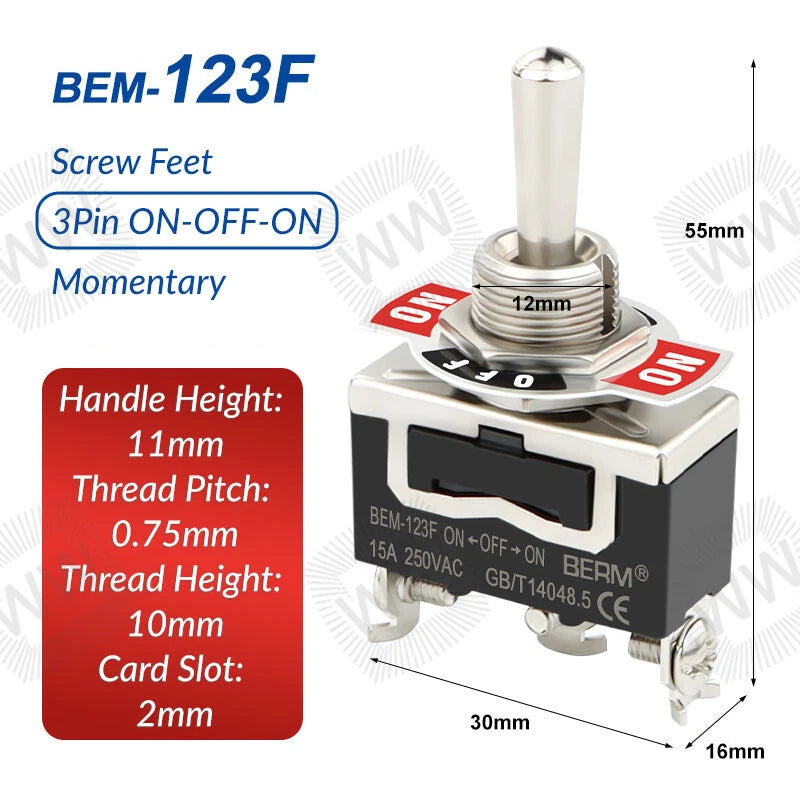

An ON-OFF switch has two stable positions: circuit open or circuit closed. An ON-OFF-ON switch has three stable positions: one circuit active, both open (center off), or a second circuit active — useful for forward/reverse motor control or dual-circuit selection. A Momentary ON-OFF-ON switch returns to the center-off position automatically when released — commonly used for horn buttons, starter circuits, or momentary signal inputs.
What is the difference between Plug Feet and Screw Feet terminals?

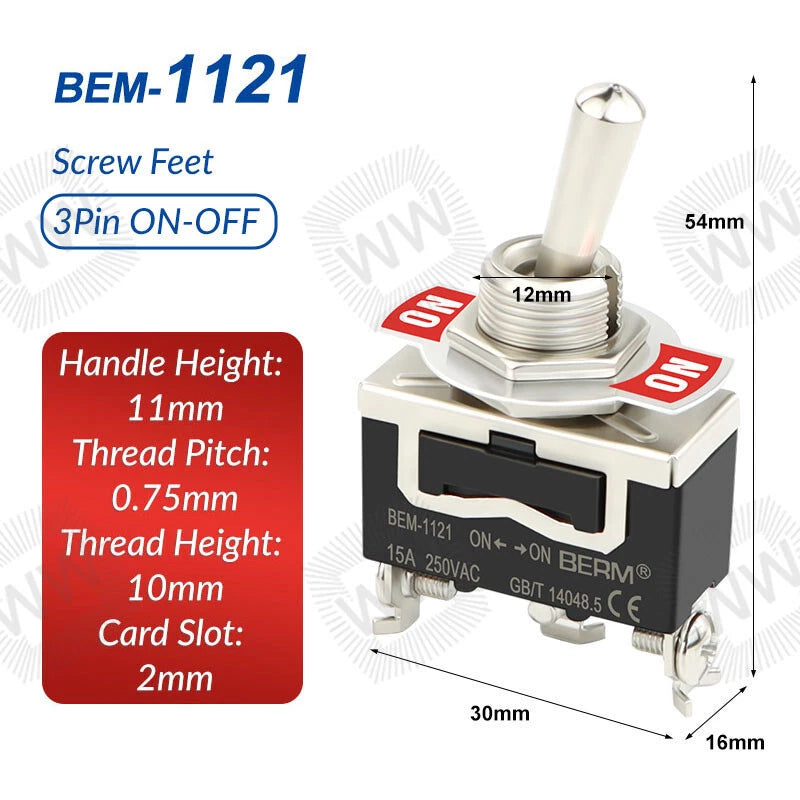

Plug Feet (quick-connect / spade terminals) allow you to push pre-crimped wire connectors on and off without tools — ideal for automotive dashboards, prototyping, and applications where you may need to swap wires. Screw Feet (screw-clamp terminals) use a threaded clamp to secure bare wire ends directly, providing a more permanent and vibration-resistant connection common in marine, industrial, and panel-mount applications.
What panel cutout size do these toggle switches require?
These switches typically require a round panel cutout of approximately 12mm (≈15/32") in diameter. The threaded bushing passes through the hole and the included nut secures the switch from the rear. Always measure your specific switch body before drilling, as tolerances can vary slightly between pin configurations. Panel thickness compatibility is generally up to about 3–5mm — contact us to confirm for thicker panels.
Are these switches compatible with 12V automotive and marine systems?
Yes. While rated at 15A 250VAC, these metal toggle switches are widely used in 12V and 24V DC automotive, marine, and off-road vehicle applications for controlling lights, fans, pumps, and accessories. DC current ratings are generally lower than AC ratings for the same switch body — in most cases these switches handle up to approximately 20A at 12VDC. Always confirm your load requirements and use an appropriately rated fuse in the circuit.
How do I select the right pack size for my project?
If you need a single switch for a repair or one-off build, the 1-piece option is the most economical entry point. For small panel builds with multiple switch positions, the 3- or 5-piece packs offer a per-unit discount. For production runs, custom enclosures, or stocking a workshop, the 10, 30, or 50-piece bulk packs provide the best per-unit value. All pack sizes ship the same switch — just in larger quantities.
